USER MANUAL LM509AC Vonroc

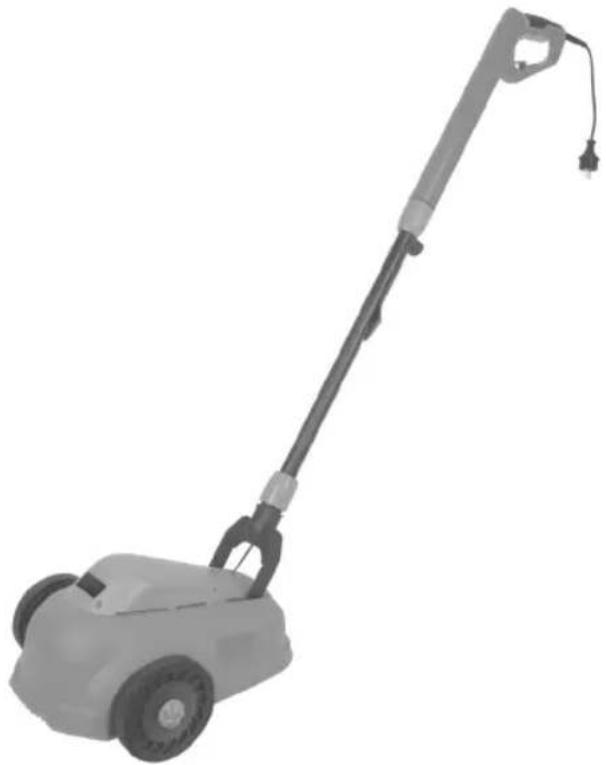

MINI LAWN MOWER LM509AC

White silhouette of a car with a diagonal antenna and a horizontal bar, on a black background (no text or symbols)

EN Original Instructions

34 CE Declaration of conformity 111

WEEE Directive 112

A

Exterior view of a handheld electric vacuum cleaner (no text or symbols visible)

B

Diagram of a car hood with labeled parts and exploded views showing internal components and assembly steps.

C-1 10 11A 11B 11C

Close-up of a mechanical component with arrows indicating motion or movement, no visible text or symbols

C-3 13 12A 12B 12C

C-4 1 2 3

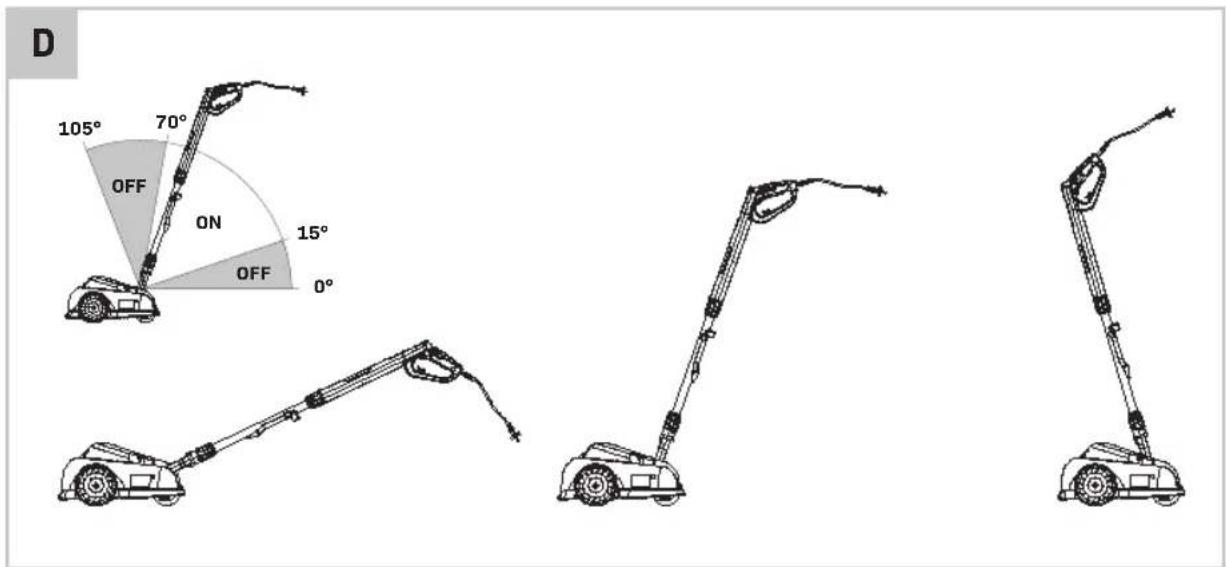

D 105° 70° OFF ON 15° OFF 0°

Technical diagram of a mechanical component with an inset close-up showing internal structure (no text or symbols)

F 15 16

1. SAFETY INSTRUCTIONS

Read the enclosed safety warnings, the additional safety warnings and the instructions. Failure to follow the safety warnings and the instructions may result in electric shock, fire and/or serious injury. Save the safety warnings and the instructions for future reference.

The following symbols are used in the user manual or on the product:

Denotes risk of personal injury, loss of life or damage to the tool in case of non-observance of the instructions in this manual.

Read the instructions!

Risk of electric shock.

Wear hearing protection.

Wear eye protection.

Danger – Keep hands away from moving parts.

Beware of flying objects to bystanders. Keep bystanders safe distance away from the machine.

Beware of sharp blades. Blades continue to rotate after the motor is switched off - Remove plug from mains before maintenance or if cord is damaged.

Keep the powercord awar from the cutting blades.

Do not use in the rain and do not cut wet grass.

The guaranteed sound power level LWA = 94 dB(A).

Class II machine - Double insulation - You don't need any earthed plug.

Do not dispose of the product in unsuitable containers.

CE The product is in accordance with the applicable safety standards in the European directives.

GENERAL POWER TOOL SAFETY WARNINGS

WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) Work area safety

a) Keep the work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device

(RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3) Personal safety
a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust related hazards.
h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.
4) Power tool use and care
a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

5) Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

ADDITIONAL SAFETY INSTRUCTION FOR LAWN MOWERS

• Only use this lawn mower when a Residual Current Device (RCD) with a tripping current of not more than 30mA is in the circuit.
• If an extension cord is used make sure it is for outdoor use and marked as such. The recommended size of extension cord is not lighter than 1.5 mm ^2 and a maximum of 10 metres in length.
• Completely uncoil your extension cable before use to prevent overheating and loss of mower efficiency. When tidying away the cable, wind it carefully to avoid kinking.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

WARNING: After switching off the machine, the cutting blade continues to rotate for a few more seconds.

• Frequently inspect the condition of the cutting blade. Damaged blade must be replaced immediately. Follow all the required precautions when replacing the blade.
• Before use check the supply and extension cord for signs of damage or ageing. If the cord becomes damaged during use, disconnect the cord from the supply immediately.
• DO NOT TOUCH THE CORD BEFORE DISCONNECTING THE SUPPLY.
• Do not connect a damaged cable to the power supply or touch a damaged cable before it has been disconnected from the power supply. A damaged can lead to contact with energized parts.
• Do not use the mower if the cord is damaged or worn.
• Read the instructions carefully. Be familiar with the controls and proper use of the equipment.
• Keep extension cord away from cutting blades.
• Wear eye and ear protection. Wear dust protection if the mowing action causes the raising of dust or particles.
• Never allow children, infirm people or people unfamiliar with these instructions to use this mower.
• Avoid using the mower while people, especially children and the infirm, or pets are nearby.
• Use the mower only in day light or good artificial light.
• Never operate the mower with a damaged base.
• When starting up and when the machine is in operation, keep the cutting section away from all parts of the body, especially the hands and feet.
• Do not start the machine when it is not in the operating position.

• Thoroughly inspect the mower for loose or damaged parts before each use. Do not use the unit until adjustments or repairs are made.

• Use only the manufacturer's recommended replacement parts and accessories.

• Always disconnect the mower from the mains when leaving it unattended.
• Switch the motor off and pull out the plug when the machine is not being used, being cleaned, being moved from one place to another or when the blade is being changed or adjusted.
• If there is an interruption to the power supply or the extension cable is damaged, switch off the machine immediately and remove the plug from the power point.
• Inspect and maintain the mower regularly. Have the mower repaired only by an authorised repairer.
• If power cord is damaged, only have it repaired or replaced by an authorised service centre.
• Check that all grass cuttings and dirt have been removed from the ventilation vents.
• When not in use, store the mower out of the reach of children and infirm people.

WARNING: In order to reduce the risk, disconnect the plug from the supply power, only use recommended accessories as required, otherwise personal injury may result.

• Do not switch on the machine in enclosed or poorly ventilated spaces or in the presence of inflammable and /or explosive substances such as liquids, gasses and powders.
• Always stop the mower and switch off at the mains when cutting is delayed, emptying the grass box or when walking from one cutting location to another.
• Do not cross roads or gravel paths with the machine still running.
• Do not move the machine by pulling on the electrical cable. Always use the handgrip.
• Keep a balanced and stable stance while using the machine.
• Ensure that the area being cut is free from strings, stones and debris. Remove any objects that could be thrown during cutting or could wind around the cutting mechanism. Carefully check the area to be mown for wildlife such as hedge hogs, frogs etc. And move them to a safe location.
• If you hit or become entangled with a foreign object, stop the motor and disconnect from the

mains immediately to check for damage. Repair any damage before further operation is attempted.

• Do not operate the mower with loose or damaged parts.
• Do not cut against hard objects. This could cause injury to the operator and damage to the machine.
• Keep your hands, face and feet away from all moving parts.
• If possible, avoid cutting wet grass.
• Exercise proper caution when mowing on sloping ground. Watch your footing and wear non-slip footwear. Mow along the slope not up and down it. Do not mow on steep slopes. Be especially cautious when changing direction on slopes stand above the mower to avoid risk of injury.
• Never operate the mower barefoot or when wearing open sandals or canvas shoes.
• Do not mow by pulling the machine towards you.
• When mowing, keep the cable away from the mower. Your direction of work should be away from the power point. Mow in straight lines, not in circles.
• Always keep hands and feet away from rotating parts.
• Check the grass box frequently for wear or deterioration.
• After use, disconnect the machine from the power supply and check for damage. If you have the slightest doubts, check with an authorised service centre.
• Only use the machine according to the instructions given in this manual.
• Check regularly that the nuts, bolts, screws and other fittings are tight and secure. Keep the mower free of grass, leaves and other debris build-up.
• Do not tilt the mower when switching on the motor, except if the mower has to be tilted for starting. In this case, do not tilt it more than is absolutely necessary and lift only the part which is away from the operator. Always ensure that both hands are in operating position before returning the mower to the ground.
• Do not try to repair the machine or access internal parts. Use authorised service centres only.

• Do not get distracted and always concentrate on what you are doing.

• Use common sense. Never operate the machine when you are tired, sick or under the influence of alcohol or other drugs.

• Keep these instructions. Refer to them frequently and use them to instruct other users. If you loan someone this unit, also loan them these instructions.
• The operator or user is responsible for accidents or hazards occurring to other people or their property.
• Failure to follow operating instructions and safety precautions in this instruction manual can result in serious injury. Read the manual before starting or operating this unit.
• Wear eye protection. Wear hearing protection. Wear respiratory protection.

Electrical safety

Warning! When using electric tools, basic safety precautions should always be followed to reduce the risk of fire, electric shock and personal injury. Read all these instructions before attempting to operate this product and save these instructions.

Always check that the voltage of the power supply corresponds to the voltage on the rating plate.

The machine is double insulated therefore no earth wire is required.

Replacing cables or plugs

If the replacement of the supply cord is necessary, this has to be done by the manufacturer or his agent in order to avoid a safety hazard.

Using extension cables

Only use an approved extension cable suitable for the power input of the machine. The minimum conductor size is 1.5 mm^2 . When using a cable reel always unwind the reel completely.

2. MACHINE INFORMATION

Intended use

The machine is only intended for mulching (mowing without grass catcher box) of lawns and grass areas in residential areas. The device is intended to be used by do-it-yourselves. This equipment is not suitable for commercial use. Commercial use will invalidate the guarantee.

TECHNICAL SPECIFICATIONS

Model No. LM509AC
Voltage 230V~
Frequency 50 Hz
Power 350 W
No-load speed 3900/min
Weight 6.64 kg
Cutting width 220mm
Cutting system Rotary blade (LM804AA)
Cutting height (manual adjusting)	3 settings:30mm, 40mm & 50mmsee figure D(height adjustable on front wheels and rear wheels)
Sound pressure level L_PA	73.8dB(A) K=3.21dB(A)
Acoustic power level L_WA	93.8dB(A),K=3.21dB(A)
Vibration <2.5m/s	^2 , K=1.5 m/s ^2

Vibration level

The vibration emission level stated in this instruction manual has been measured in accordance with a standardised test given in EN 62841-1; it may be used to compare one tool with another and as a preliminary assessment of exposure to vibration when using the tool for the applications mentioned.

• using the tool for different applications, or with different or poorly maintained accessories, may significantly increase the exposure level.
• the times when the tool is switched off or when it is running but not actually doing the job, may significantly reduce the exposure level.

Protect yourself against the effects of vibration by maintaining the tool and its accessories, keeping your hands warm, and organizing your work patterns.

DESCRIPTION

The numbers in the text refer to the diagram on page 2-4.

1. Plug
2. Handle
3. On/off switch
4. Safety switch
5. Handle height adjustment knob
6. Handle height adjustment knob

7. Telescopic handle

8. Main housing connection

9. Cleaning shovel
10. Internal wheels
11. Internal height adjustment
    a. 30mm
    b. 40mm
    c. 50mm
12. Front wheel
13. Front wheel fixing screw
14. Front wheel height adjustment
    a. 30mm
    b. 40mm
    c. 50mm
15. Cutting blade
16. Blade bolt

3. ASSEMBLY

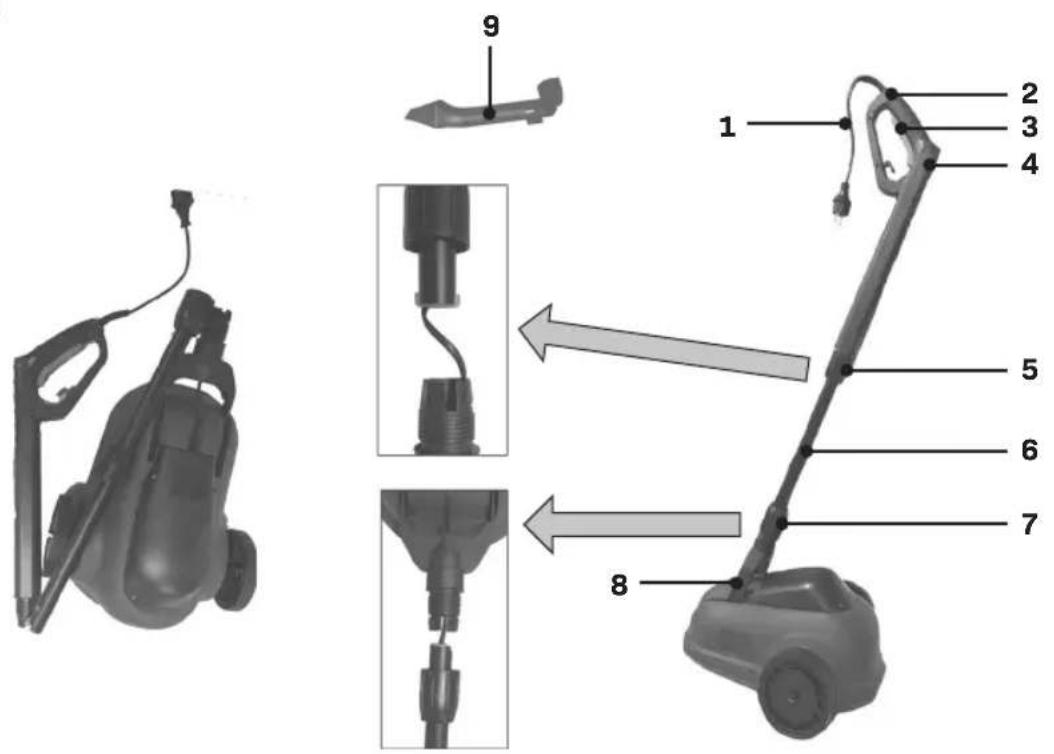

Assembly of the telescopic handle (Fig. B)

• Open the handle height adjustment knobs (5 & 6) by turning them.
• Slide the telescopic handle (7) into the knobs on the main housing connection (8) and the handle (2). You can adjust the machine to your ideal length by sliding the tube less or more into the handle.
• Secure the tube by turning the knobs, fastening them.

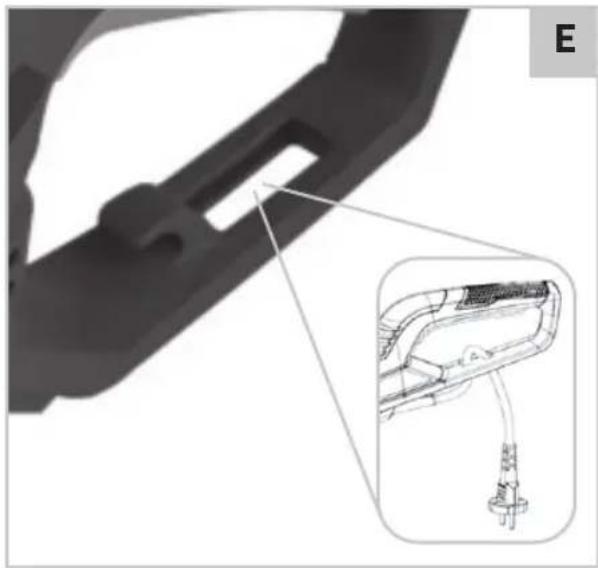

• Loop the mains lead through the cable retainer on the handle as shown in figure E.

Be careful during adjustment of the machine to prevent entrapment of the fingers between moving and fixed parts of the machine.

Before carrying out any work on the machine, disconnect the mains plug from the power supply.

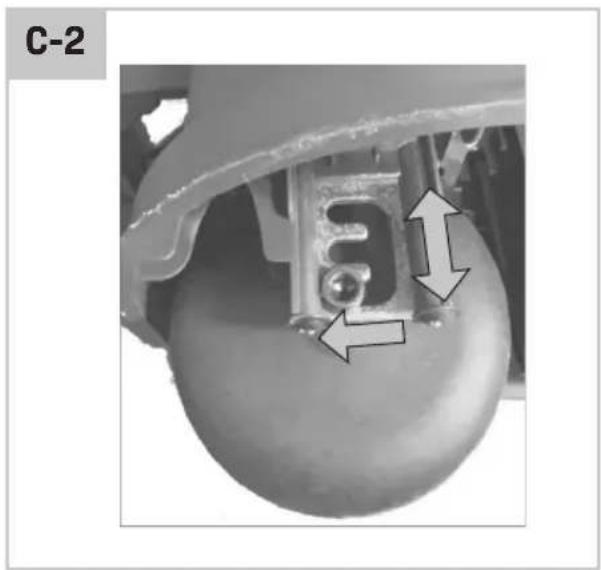

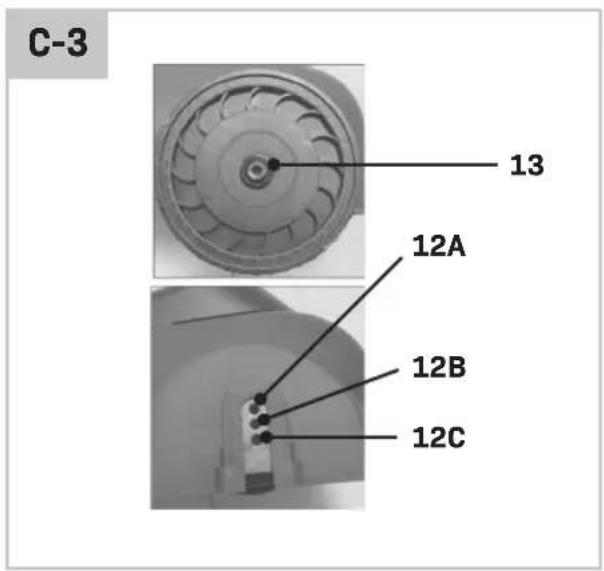

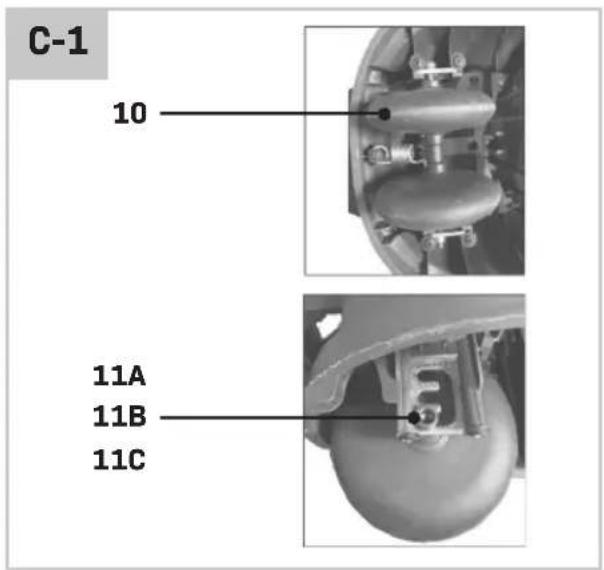

Adjusting the cutting height (Fig. C1, C2 & C3)

Depending on the preferred cutting height, you can adjust the wheels in one of three positions (11&12A,B and C).

• Put the lawn mower on its side.

• Pull the internal wheels (10) inward evenly and adjust them to the required height. The spring will pull the wheels back into a secure position. Ensure the left and right side of the axle are mounted at the same height.

• Unscrew the front wheels by turning the wheel screws (10).

• Adjust the front wheels to the same height as the internal wheels and secure them by turning the wheel screws until they are tightened.
• Each position on the height adjustments (11ABC and 12ABC) resembles a cutting height, as shown on figure C4.
• Position A resembles a cutting height of 30mm
• Position B resembles a cutting height of 40mm
• Position C resembles a cutting height of 50mm

Note: A higher cut height should be selected for the first cut of the season.

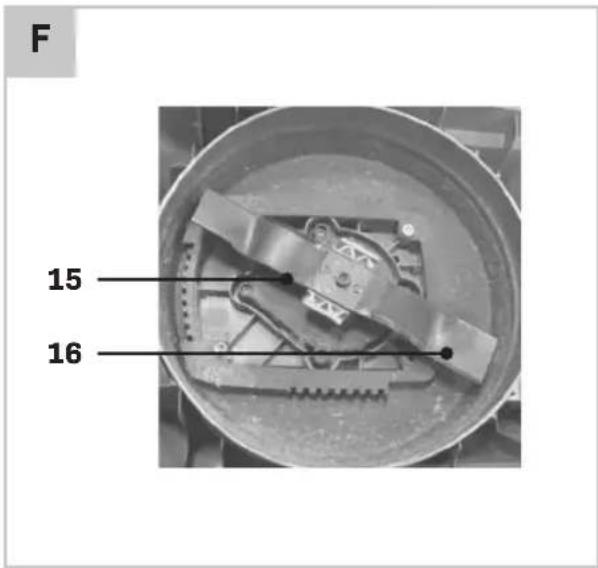

Replacing the blade (Fig. F)

When replacing the cutting blade, wear protective gloves. Danger of injury when touching the cutting blade.

Only use blades that are recommended by the manufacturer.

• Unscrew the cutting blade (15) by turning the blade bolt (16) counterclockwise and remove the blade from the machine.
• Take the replacement blade and place it in the machine.
• Fasten the blade by turning the blade bolt clockwise into the machine until it is fully tightened.

4. OPERATION

Before using, always visually inspect to see that the blades, blade bolts and cutter assembly are not worn or damaged. Please keep power switched off and disconnect the power supply. Replace worn or damaged blades and bolts in sets to preserve balance.

If the machine starts to vibrate abnormally (check immediately):

• inspect for damage,
• replace or repair any damaged parts,
• check for and tighten any loose parts.

Using your lawn mower

• For your own safety and for the best results read the following user advice and do not use this product for anything other than its intended purpose.
• This grass trimmer is made for cutting grass. All other use that is not specifically allowed in this manual may lead to damage to the grass trimmer or injury to the user.
• Make sure that the work area is free of rock, debris, lines and other objects.
• Start the tool before approaching the grass to be cut.
• Always work your way away from the power cables to avoid cutting them.
• High grass should be cut in layers always beginning from the top. Do not cut damp or wet grass. Do not overload your tool.

Safety features

• The lawn mower has a handle angle safety switch and can only be operated when holding the machine at a safe angle. The lawn mower will automatically switch off when trying to operate it outside of the angles shown in figure D.
• Disconnect the lawn mower from its power source when transporting the machine to prevent accidentally turning on the machine during transport.

Switching On and Off (Fig. B)

Do not start the mower if it is standing in long grass.

• To switch the lawn mower on, press the safety switch (4) and then press on/off switch (3).
• To switch off, release the on/off switch (3) and wait until cutting blade stops rotating.

Always allow the machine to cool down before storing.

5. MAINTENANCE

Before cleaning and maintenance, always switch off the machine and disconnect the mains plug from the power supply.

Beware of sharp blades. Blades continue to rotate after the motor is switched off – Remove disabling device before maintenance.

Your mower has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper machine care and regular cleaning.

• Keep the mower clean and dry.
• Regularly use the included cleaning shovel (9) to remove grass and dirt from the mower.

Cleaning

Regularly clean the machine housing with a soft cloth, preferably after each use. Keep the ventilation slots free from dust and dirt. If the dirt does not come off use a soft cloth moistened with soapy water. Never use solvents such as petrol, alcohol, ammonia water, etc. These solvents may damage the plastic parts.

WARRANTY

VONROC products are developed to the highest quality standards and are guaranteed free of defects in both materials and workmanship for the period lawfully stipulated starting from the date of original purchase. Should the product develop any failure during this period due to defective material and/or workmanship then contact VONROC directly.

The following circumstances are excluded from this guarantee:

• Repairs and or alterations have been made or attempted to the machine by unauthorized service centers;
• Normal wear and tear;
• The tool has been abused, misused or improperly maintained;
• Non-original spare parts have been used.

This constitutes the sole warranty made by company either expressed or implied. There are no other warranties expressed or implied which extend beyond the face hereof, herein, including the implied warranties of merchantability and fitness for a particular purpose. In no event shall VONROC be liable for any incidental or consequential damages. The dealers remedies shall be limited to repair or replacement of nonconforming units or parts.

The product and the user manual are subject to change. Specifications can be changed without further notice.

DECLARATION OF CONFORMITY LM509AC - MINI LAWN MOWER

(EN) We declare under our sole responsibility that this product is in conformity with directive 2011/65/EU of the European parliament and of the council of 8 June on the restriction of the use of certain hazardous substances in electrical and electronic equipment is in conformity and accordance with the following standards and regulations:
(DE) Der Hersteller erklärt eigenverantwortlich, dass dieses Produkt der Direktive 2011/65/EU des Europäischen Parlaments und des Rats vom 8. Juni 2011 über die Einschränkung der Anwendung von bestimmten gefährlichen Stoffen in elektrischen und elektronischen Geräten entspricht. den folgenden Standards und Vorschriften entspricht:
(NL) Wij verklaren onder onze volledige verantwoordelijkheid dat dit product voldoet aan de conform Richtlijn 2011/65/EU van het Europees Parlement en de Raad van 8 juni 2011 betreffende beperking van het gebruik van bepaalde gevaarlijke stoffen in elektrische en elektronische apparatuur en in overeenstemming is met de volgende standaarden en reguleringen:
(FR) Nous déclarons sous notre seule responsabilité que ce produit est conforme aux standards et directives suivants: est conforme à la Directive 2011/65/EU du Parlement Européen et du Conseil du 8 juin 2011 concernant la limitation d'usage de certaines substances dangereuses dans l'équipement électrique et électronique.
(ES) Declaramos bajo nuestra exclusiva responsabilidad que este producto cumple con las siguientes normas y estándares de funcionamiento: se encuentra conforme con la Directiva 2011/65/UE del Parlamento Europeo y del Consejo de 8 de junio de 2011 sobre la restricción del uso de determinadas sustancias peligrosas en los equipos eléctricos y electrónicos
(IT) Dichiariamo, sotto la nostra responsabilità, che questo prodotto è conforme alle normative e ai regolamenti seguenti: è conforme alla Direttiva 2011/65/UE del Parlamento Europeo e del Consiglio dell'8 giugno 2011 sulla limitazione dell'uso di determinate sostanze pericolose nelle apparecchiature elettriche ed elettroniche.
(SV) Vi garanterar på eget ansvar att denna produkt upp fyller och följer följande standarder och bestämmelser: uppfyller direktiv 2011/65/EU från Europeiska parlamentet och EG-rådet från den 8 juni 2011 om begränsningen av användning av farliga substanser i elektrisk och elektronisk utrustning.

(DA) Vi erklærer under eget ansvar, at dette produkt er i overensstemmelse med følgende standarder og bestemmelser: er i overensstemmelse med direktiv 2011/65/EU fra Europa-Parlamentet og Rådet af 8. juni 2011 om begrænsning af anvendelsen af visse farlige stoffer i elektrisk og elektronisk udstyr.
(PL) Deklarujemy na własną odpowiedzialność, że ten produkt spełnia wymogi zawarte w następujących normach i przepisach: jest zgodny z Dyrektywą 2011/65/UE Parlamentu Europejskiego i Rady z dnia 8 czerwca 2011 r. w sprawie ograniczenia stosowania niektórych niebezpiecznych substancji w sprzęcie elektrycznym i elektronicznym.
(RO) Declarăm prin aceasta cu răspunderea deplină că produsul acesta este în conformitate cu următoarele standarde sau directive: este în conformitate cu Directiva 2011/65/UE a Parlamentului European și a Consiliului din 8 iunie 2011 cu privire la interzicerea utilizării anumitor substanțe periculoase la echipamentele electrice și electronice.
(PT) Declaramos por nossa total responsabilida-de que este produto está em conformidade e cumpre as normas e regulamentações que se seguem: está em conformidade com a Directiva 2011/65/EU do Parlamento Europeu e com o Conselho de 8 de Junho de 2011 no que respeita à restrição de utilização de determinadas substâncias perigosas existentes em equipamento eléctrico e electrónico.
(HU) Felelősségünk teljes tudatában kijelentjük, hogy ez a termék teljes mértékben megfelel az alábbi szabványoknak és előírásoknak: je v souladu se směrnicí 2011/65/EU Evropského parlamentu a Rady EU ze dne 8. června 2011, která se týká omezení použití určitých nebezpečných látek v elektrických a elektronických zařízeních.
(CS) Na naši vlastní zodpovědnost prohlašujeme, že je tento výrobek v souladu s následujícími standardy a normami: Je v súlade s normou 2011/65/EÚ Európskeho parlamentu a Rady z 8. júna 2011 týkajúcej sa obmedzenia používania určitých nebezpečných látok v elektrickom a elektronickom vybavení.
(TR) Tek sorumlusu biz olmak üzere bu ürünün Avrupa Parlamentosunun 2011/65/EU ve 8 Haziran 2011 tarihli konseyin elektrikli ve elektronik ekipmanlarda belirlenmiş tehlikeli malzeme kullanımının kısıtlanması hakkındaki talimatları ile birlikte aşağıda belirtilen standart ve yönergelere uygun ve uyumlu olduğunu beyan ederiz:

MEASURED SOUND POWER LEVEL: 93.8 dB(A)

GUARANTEED SOUND POWER LEVEL: 94 dB(A)

CONFORMITY ASSESSMENT METHOD TO ANNEX VI DIRECTIVE 2000/14/EC AMENDED BY 2005/88/EC.

THE NOTIFIED BODY INVOLVED: TÜV SÜD INDUSTRIE SERVICE GMBH, CERTIFICATION BODY OF THE NOTIFIED BODY 0036

EN 62841-1, EN IEC 62841-4-3, EN IEC 55014-1, EN IEC 55014-2, EN IEC 61000-3-2, EN 61000-3-3, 2006/42/EC, 2014/30/EU, 2000/14/EC ANNEX VI & 2005/88/EC, 2012/19/EC, 2011/65/EU

Zwolle, 01-11-2024 H.G.FRosberg CEO

VONROC • Lingenstraat 6 • 8028 PM Zwolle • The Netherlands

EXPLANATION WEEE SYMBOL (EUROPEAN DIRECTIVE 2012/19/EU)
