ELECTRIC LAWN MOWER LM503DC

White silhouette of a car with extended boom and antenna (no text or symbols)

EN Original Instructions 07

CE Declaration of conformity 145

WEEE Directive 146

A 3 2 1 5 15 14 6 13 28 12 11 7 10 16 9 8 8 9 9 8 3 4 2

Close-up of a hand using a tool to lift a small mechanical component, with a downward arrow indicating the process (no text or symbols present)

Close-up of a hand using a tool to adjust or install a mechanical component, showing a curved arrow indicating rotation (no text or symbols present)

D

Close-up of hands holding a metal tool with a curved arrow indicating rotation (no text or symbols)

E

Close-up of a black plastic wheel with six spokes and a central hub (no text or symbols visible)

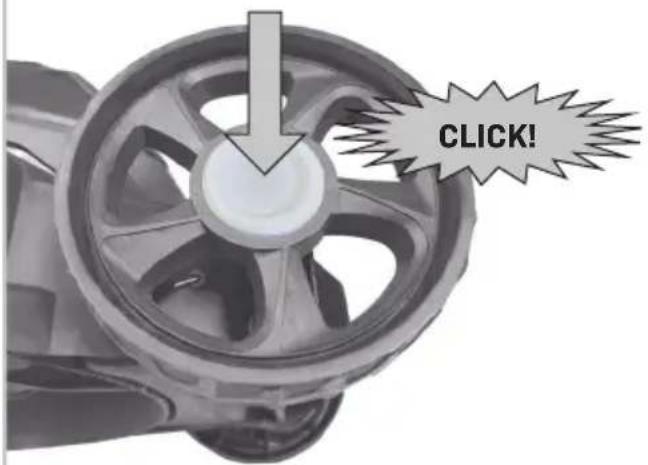

CLICK!

Hand holding a black tool inside a plastic housing, with arrows indicating two steps (no text or symbols)

G CLICK!

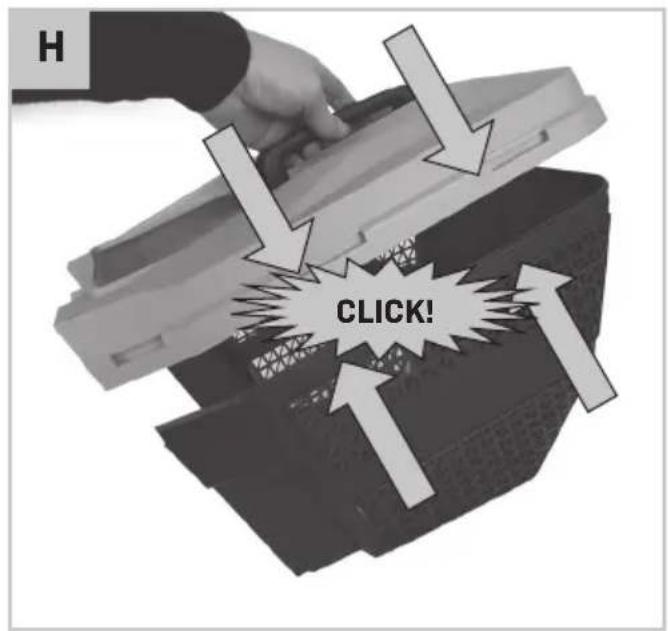

H CLICK!

Close-up of a hand operating a small outdoor lawn mower with a mesh casing, showing mechanical components and a hand adjusting the casing (no text or symbols visible)

Close-up of a hand adjusting a mechanical component with arrows indicating assembly or inspection (no visible text or symbols)

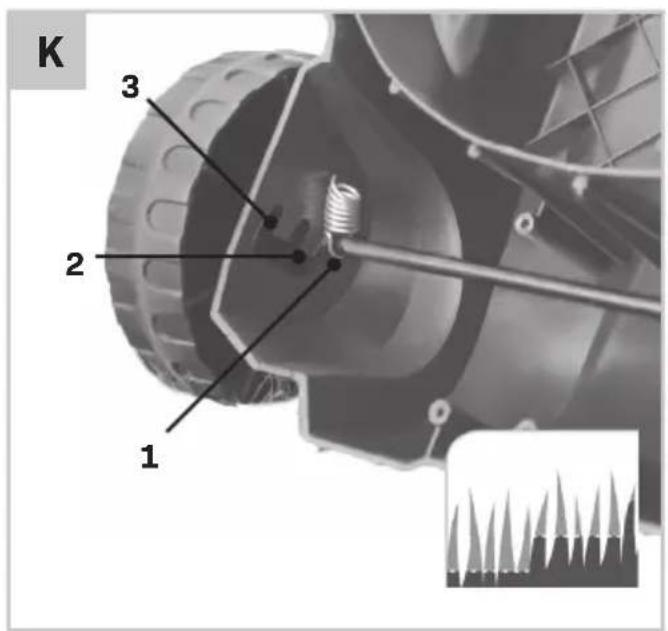

K 1 2 3

L B A

Close-up of hands operating a mechanical component with a wrench, showing a circular motion indicator (no text or symbols)

N 18 20 19 21 22 22

0 18 20 19 23 24 25 26

P 17 18 27

1. SAFETY INSTRUCTIONS

Read the enclosed safety warnings, the additional safety warnings and the instructions. Failure to follow the safety warnings and the instructions may result in electric shock, fire and/or serious injury. Save the safety warnings and the instructions for future reference.

The following symbols are used in the user manual or on the product:

Read the user manual.

Risk of personal injury.

Risk of electric shock.

Wear eye protection.

Wear hearing protection.

Caution: Do not touch rotating blades. Sharp blade(s). Beware of severing toes or fingers. Keep bystanders, especially children and pets, at a distance greater than 10m.

The lawn mower shall not be operated without either the entire grass catcher or the guard in place.

Do not use in the rain or leave the mower outdoors while it is raining.

Switch off and remove safety key (isolator switch) before adjusting, cleaning and before leaving the product unattended for any period of time.

Wait until all machine components have completely stopped before touching them. The blades continue to rotate after the machine is switched off, a rotating blade can cause injury.

e sure that bystanders are not injured by foreign objects being thrown away.

Warning: Keep a safe distance to the product when operating.

Carefully check the area where the tool is to be used for wildlife and pets. Wildlife and pets may be injured while the machine is in operation. Thoroughly check the working area and remove any stones, sticks, wires, bones and foreign objects. When sing the machine, ensure that no wildlife, pets or small tree stumps are hidden in the dense grass.

Only use the battery charger indoors.

Do not dispose of the product in unsuitable containers.

The guaranteed sound power level LWA = 96 dB(A)

The product is in accordance with the applicable safety standards in the European directives.

GENERAL POWER TOOL SAFETY WARNINGS

WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) Work area safety

a) Keep the work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any

adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.

b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
3) Personal safety
a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves

away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust related hazards.
h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

4) Power tool use and care
a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

5) Battery tool use and care

a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

b) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.

c) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

e) Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.

f) Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130 °C may cause explosion. NOTE The temperature „130 °C“ can be replaced by the temperature „265 °F“.

g) Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.

6) Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

b) Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.

ADDITIONAL SAFETY INSTRUCTION FOR BATTERY LAWN MOWERS

- Never allow children or people unfamiliar with these instructions to use the product. Local regulations may restrict the age of the operator.

When not in use store the product out of reach of children.

• Never allow children, persons with physical, sensory or mental limitations or a lack of experience and/or knowledge and/or people unfamiliar with these instructions to use the product. Local regulations may re-strict the age of the operator.
• Children should be supervised to ensure that they do not play with the product.
• Never work while people, especially children, or pets are nearby.
• The user is responsible for accidents or hazards occurring to other people or their property.
• Do not wear open rubber shoes or sandals when using the product. Al-ways wear sturdy shoes and long trousers. Do not use barefoot.
• Thoroughly inspect the area where the machine is to be used and re-move all stones, sticks, wires, bones and other foreign objects.
• Before using, always visually inspect to see that the blades, blade bolts and cutter assembly are not worn or damaged. Replace worn or damaged blades and bolts in sets to preserve balance.
• Mow only in daylight or in good artificial light.
• Avoid mowing in bad weather conditions especially when there is a risk of lightning.
• Avoid operating the machine in wet grass, where feasible.
  Walk, never run.
• Never operate the machine with defective guards or shields, or without safety devices, for example deflectors and/or grass catchers in place.
• We would advise you to wear ear protection for your own convenience.
• Never operate the product when you are tired, ill or under the influence of alcohol, drugs or medicine.

• Working on banks can be dangerous:

• Do not mow on excessively steep slopes.

• Always be sure of your footing on slopes or wet grass.

• Mow across the face of slopes never up and down.
  – Exercise extreme caution when changing direction on slopes.

• Use extreme caution when stepping back or pulling the machine towards you.

• Never mow by pulling the mower towards you.

• Wait until the blades stop if the machine has to be tilted for transportation when crossing surfaces other than grass and when transporting the machine to and from the area to be mowed.

• Do not tilt the machine when starting or switching on the motor.

• Switch on the motor according to the instructions with feet well away from rotating parts.
• Do not put hands or feet near or under rotating parts.
• Always stand clear of the discharge zone when operating the machine.
• Never pick up or carry the machine while the motor is running.
• When storing, make sure that all 4 wheels of the garden tool stand on the ground/floor.
• Only lift the garden tool with the carrying handle. Use the carrying handle with care.
• Do not modify the machine. Unauthorized modifications can impair the safety of your machine, lead to increased noise and vibrations, and poor performance.

• Remove the safety key (isolator switch):

• Whenever you leave the machine.

• Before clearing a blockage.
• Before checking, cleaning or working on the machine.
• After striking a foreign object. Inspect the machine for damage and change the blade as necessary.
• If the machine starts to vibrate abnormally (check immediately).

SAFETY WARNINGS FOR BATTERY

a) Do not open the battery. Danger of short-circuiting.
b) Protect the battery against heat, e. g., against continuous intense sunlight, fire, water, and moisture. Danger of explosion.
c) In case of damage and improper use of the battery, vapours may be emitted. Ventilate the area and seek medical help in case of complaints. The vapours can irritate the respiratory system.
d) Use the battery only in conjunction with your Vonroc product. This measure alone protects the battery against dangerous overload.
e) The battery can be damaged by pointed objects such as nails or screwdrivers or by force applied externally. An internal short circuit can occur and the battery can burn, smoke, explode or overheat.

SAFETY WARNINGS FOR CHARGER Intended use

Charge only CD801AA, CD803AA, CD828AA and CD829AA type rechargeable Battery packs with the charger. Other types of batteries may burst causing personal injury and damage.

a) The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.
b) Children being supervised not to play with the appliance.
c) Do not recharging non-rechargeable batteries!
d) During charging, batteries must be placed in the well ventilated area!

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Electrical safety

Always check that the voltage of the power supply corresponds to the voltage on the rating plate.

• Do not use the machine if the mains cable or the mains plug is damaged.
• Only use extension cables that are suitable for the power rating of the machine with a minimum thickness of 1.5 mm ^2 . If you use an extension cable reel, always fully unroll the cable.

2. MACHINE INFORMATION

Intended use

This product is designed for lawnmowing in domestic environments. The lawn mower is intended for private gardens at home. The lawn mower may not be used to trim bushes, hedges or shrubs, to cut scaling vegetation, planted roofs, or balcony-grown grass, to clean (vacuum) dirt and debris off walkways, or to chop up tree or hedge clippings. Moreover, the lawn

mower may not be used as a power cultivator to level out high areas such as molehills. The equipment is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse.

TECHNICAL SPECIFICATIONS

This manual has been drawn up for different sets / article numbers. Check the corresponding article number in below specifications table for the correct composition and contents of your set.

MACHINE
Model No. LM503DC
Voltage 20V	---
No load speed 3400/min
Cutting width 320 mm
Cutting height 30/50/70mm
Grass box capacity 30 L
Protection level IPX1
Sound pressure level (LpA) 69.5dB(A), K=2.15dB(A)
Sound power level (LwA) 89.5dB(A), K=2.15dB(A)
Vibration value <=2.5m/s2, K=1.5m/s2

BATTERY
Model No. CD803AA / CD829AA
Battery Type	Lithium-Ion
Voltage	20V---
Capacity	4.0 Ah
Recommended charger	CD802AA, CD820AA
Weight	0.65 kg

BATTERY
Model No.	CD801AA / CD828AA
Battery Type	Lithium-Ion
Voltage	20V---
Capacity	4.0 Ah
Recommended charger	CD802AA, CD820AA
Weight	0.3 kg

CHARGER
Model No.	CD802AA
Charger input	220-240V~, 50Hz 0.4A
Charger output	21V——2.5A
Charging time 2Ah battery	60 minutes
Charging time 4Ah battery	120 minutes
Recommended batteries	CD801AA, CD803AA, CD828AA, CD829AA
Weight	0.36 kg

Model No.	CD820AA
Charger input	220-240V~, 50Hz, 1.0A
Charger output	2x21V—, 3.8A

Only use the following batteries of the VONROC VPOWER 20V battery platform. Using any other batteries could cause serious injury or damage the tool.

CD801AA	20V, 2Ah Lithium-Ion
CD803AA	20V, 4Ah Lithium-Ion
CD828AA	20V, 2Ah Lithium-Ion
CD829AA	20V, 4Ah Lithium-Ion

The following charger of the can be used to charge these batteries.

CD802AA	Quick charger
CD820AA	Dual quick charger

Vibration level

The vibration emission level stated in this instruction manual has been measured in accordance with a standardized test given in EN 60335-1 and EN 60335-2-77; it may be used to compare one tool with another and as a preliminary assessment of exposure to vibration when using the tool for the applications mentioned.

• Using the tool for different applications, or with different or poorly maintained accessories, may significantly increase the exposure level.
• The times when the tool is switched off or when it is running but not actually doing the job, may significantly reduce the exposure level.

Protect yourself against the effects of vibration by maintaining the tool and its accessories, keeping your hands warm, and organizing your work patterns.

DESCRIPTION

The numbers in the text refer to the diagrams on pages 2-8.

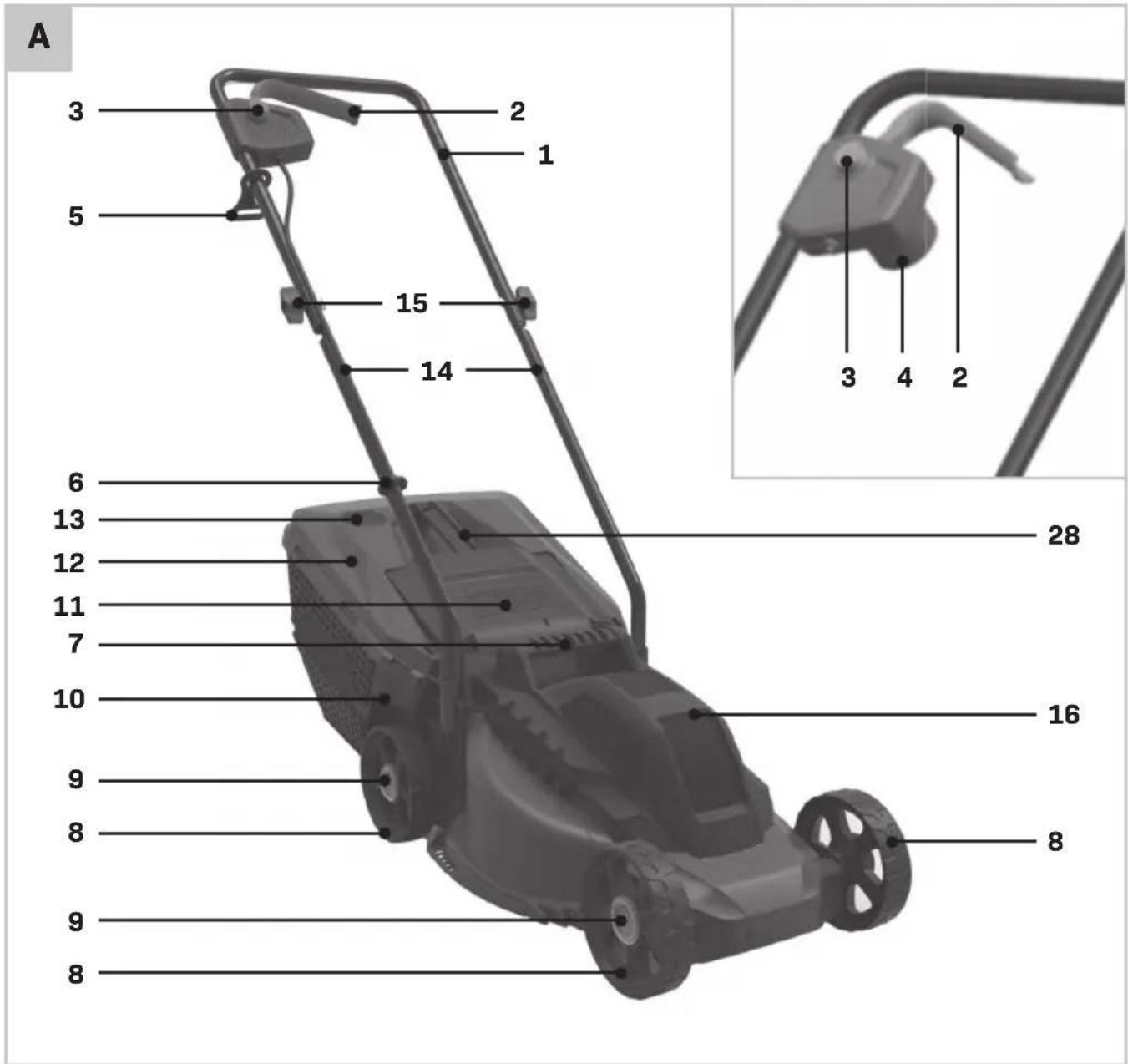

1. Upper handle
2. On/off switch
3. Safety button
4. Power socket
5. Cable strain relief
6. Cable holder
7. Carrying handle

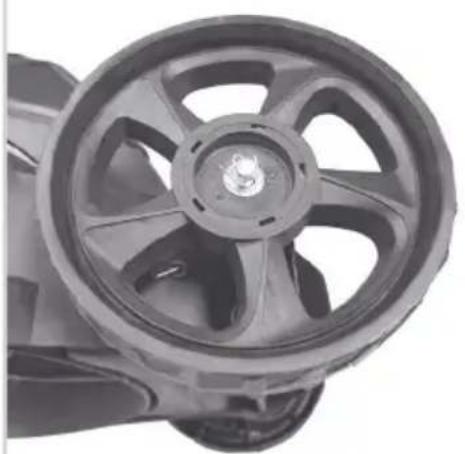

8. Wheel
9. Wheel cover
10. Grass box basket
11. Grass box lid
12. Grass box cover
13. Grass level indicator
14. Lower handle
15. Knob for handle
16. Battery compartment
17. Battery unlock button
18. Battery
19. Battery LED indicators button
20. Battery LED indicators

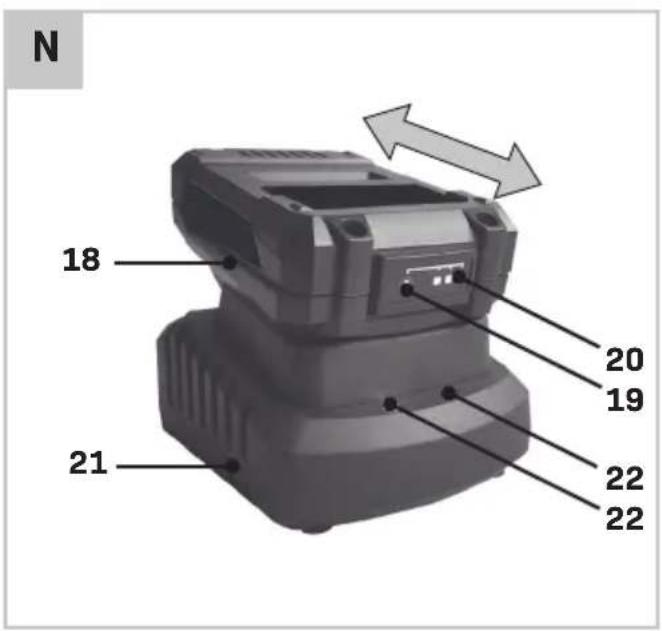

21. Charger
22. Charger LED indicators

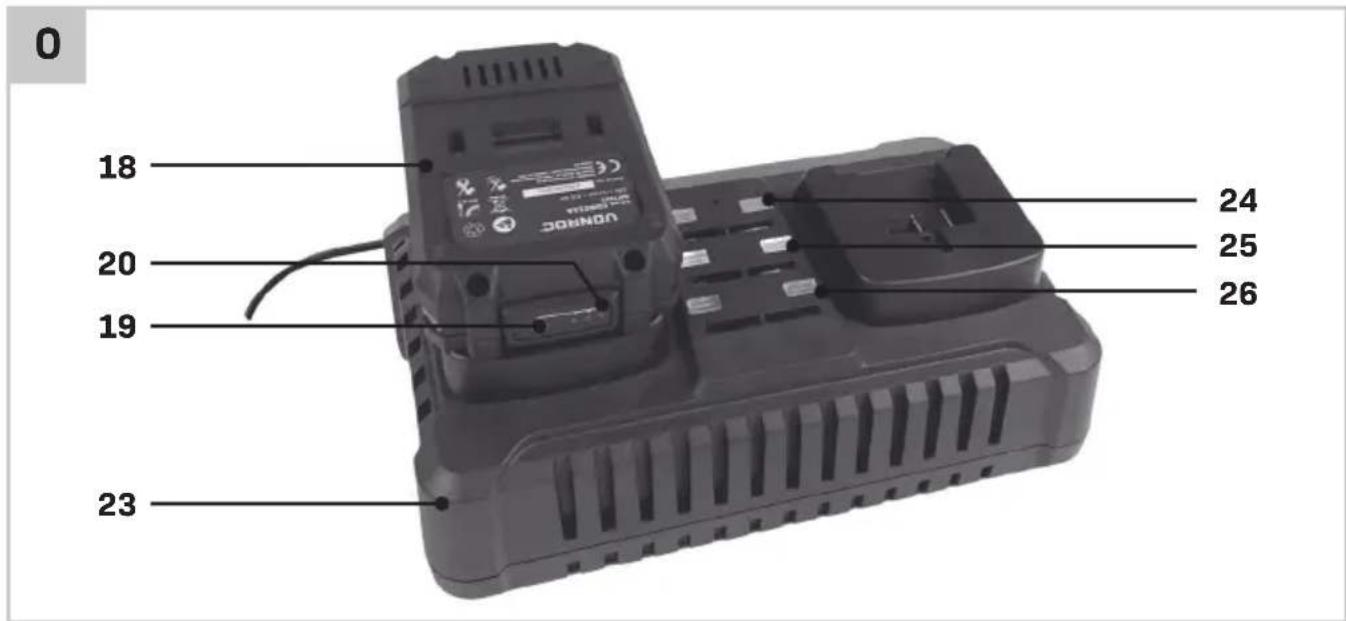

23. Charger
24. Green LED indicators
25. Amber LED indicators
26. Red LED indicators
27. Safety key (isolator switch)
28. Grass box carrying handle

3. ASSEMBLY

The battery must be charged before first use.

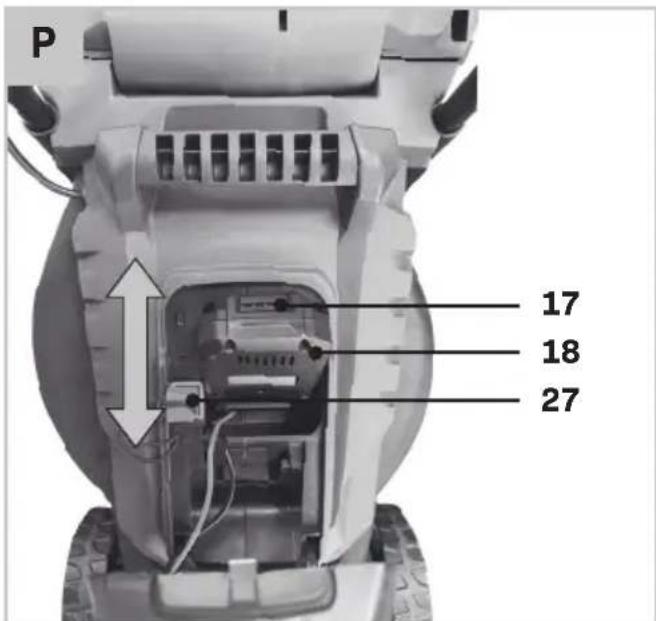

Inserting the battery into the machine (Fig. A, P)

Ensure that the exterior of the battery is clean and dry before connecting to the charger or machine. Close the battery cover before use.

1. Open the battery compartment (16).
2. Insert the battery (18) into the battery compartment (16) as shown in Fig. P.
3. Push the battery further forward until it clicks into place.
4. Close the battery compartment (16).

Removing the battery from the machine (Fig. N, P)

1. Open the battery compartment (16).
2. Pull the battery (18) out of the battery compartment (16) as shown in Fig. P.
3. Repeat for the other battery (18). Checking the battery charging status (Fig. N)
4. To check the battery charge status, push the button (19) on battery shortly.
5. The battery has 3 lights indicating the charge level, the more lights that burn, the more charge the battery has left.
6. When the lights are not burning it means the battery is empty and must be charged immediately.

Charging the battery with the CD802AA charger (Fig. N)

1. Take the battery (18) from the machine.
2. Turn the battery (18) to upside down position and slide it onto the charger (21) as shown in Fig. K.
3. Push the battery until it is fully pushed into the slot.
4. Plug the charger plug into an electrical outlet and wait for a while. The LED indicators on the charger (22) will lighten up and show the charger status. The charger has 2 LED indicators (22) which indicate the status of the charging process:

Red LED Status Green LED status Charger status
Off Off	No power
Off On		Standby mode:- No battery is inserted or,- Battery inserted but charging has finished
On	Off	Battery charging in progress

After the battery is fully charged remove the charger plug from the outlet and remove the battery from the charger.

When the machine is not being used over a longer period of time it is best to store the battery in charged condition.

Charging the battery with the CD820AA dual charger (Fig. O)

1. Take the battery (18) from the machine.
2. Turn the battery (18) to upside down position and slide it onto the charger (23) as shown in Fig. 0.
3. Push the battery until it is fully pushed into the slot.
4. Plug the charger plug into an electrical outlet and wait for a while. The LED indicators on the charger (24, 25, 26) will lighten up and show the charger status.

The charger has 6 LED indicators (24, 25, 26) which indicate the status of the charging process:

Item Conditions LED colour
		Red Amber Green
Stand by Power on On On On
Charging Started charging (10-19V DC±0.5V DC)	Blink Off Off
Halfway charging (19-20V DC±0.5V DC)	On Blink Off
Finished charging (20-21V DC±0.5V DC)	On On Blink
Fully charged	Trickle charging ≤300±150mA	On On On
	Stop charging
High temperature	High-temperature protection of the battery works	On On On

After the battery is fully charged remove the charger plug from the outlet and remove the battery from the charger.

When the machine is not being used over a longer period of time it is best to store the battery in charged condition.

Assembling the lower handle (Fig. B, C)

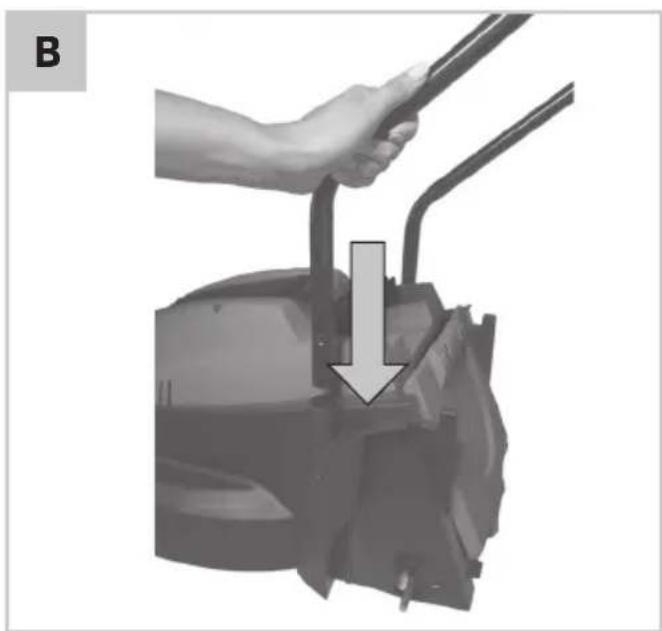

1. Insert the lower handle (14) into the intended hole of the lawn mower body, as shown on figure B and C. Ensure the hole in the lower handle (14) aligns with the hole in the lawn mower body.

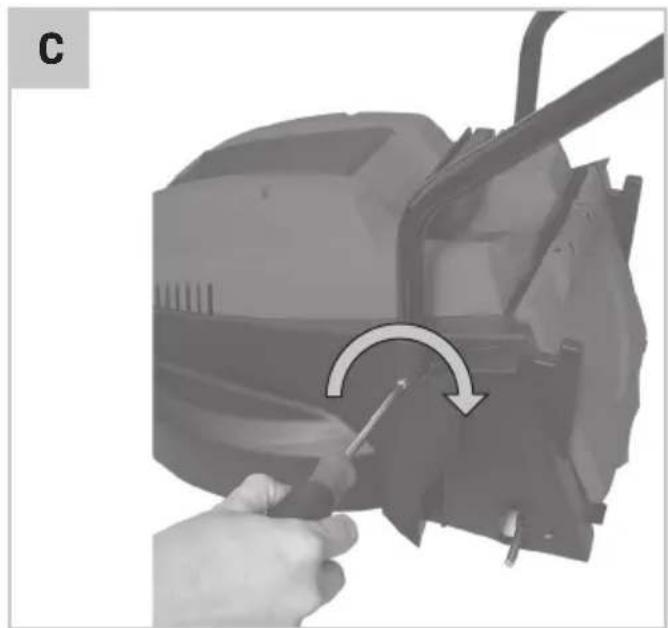

2. Insert the screw in the hole and tighten by turning clockwise, as shown on figure B and C.
3. Repeat these steps for the other lower handle (14).

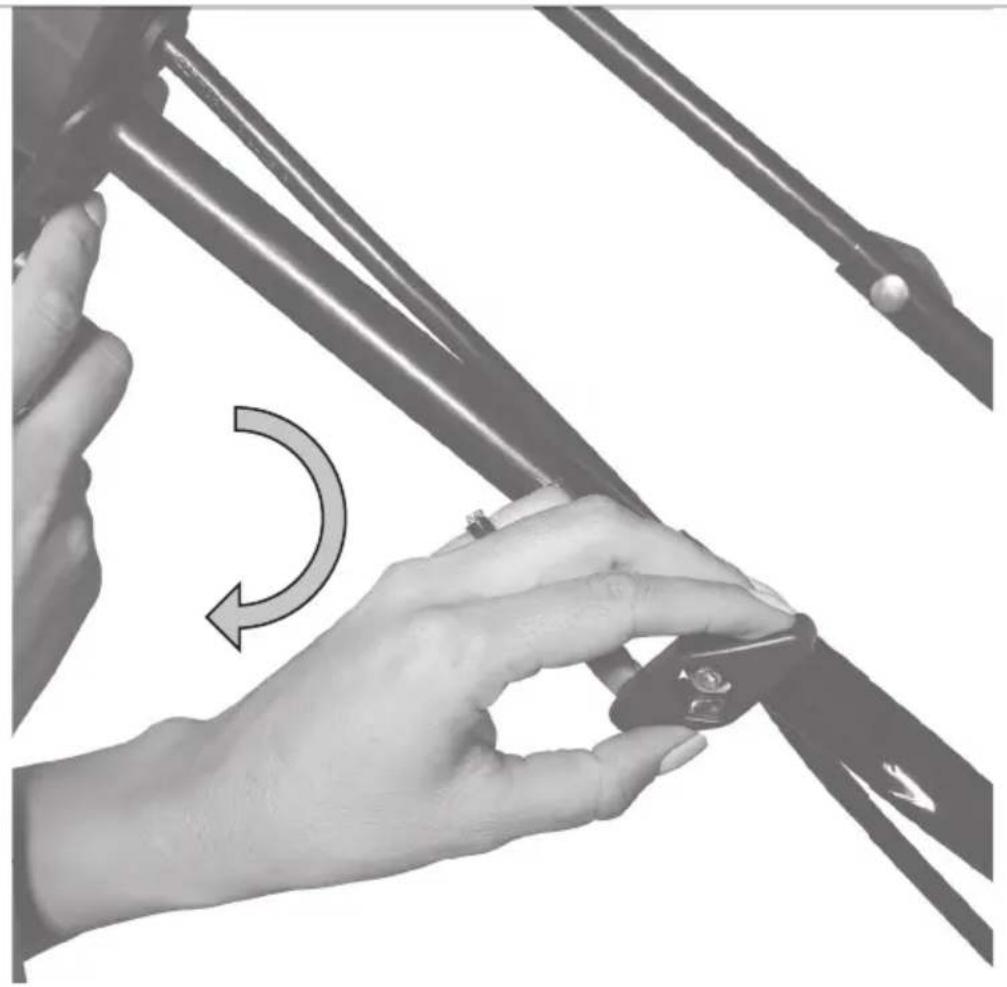

Assembling the upper handle (Fig. D)

1. Put the cable strain relief (5) on the right side of the upper handle (1) as shown on figure D.
2. Attach the upper handle (1) to the lower handle (14), using the supplied bolts and handle knobs (15) as shown on figure D and E. Make sure the on/off switch (2) assembly is on the right side when standing behind the lawn mower.
3. Fixate the cable to the handle by using the cable holders (6), as shown on figure F.

Note: When handle knobs (15) are loosened, the upper handle (1) can be folded down for storing the lawn mower. Ensure that the power cable is not caught.

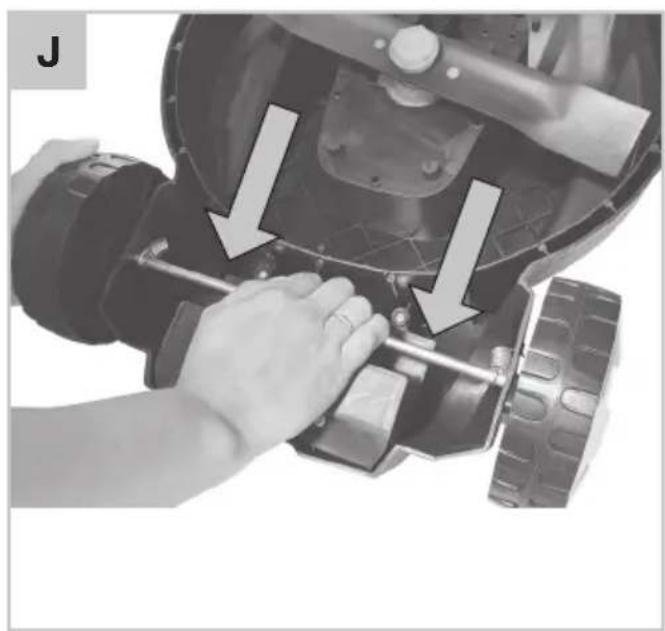

Mounting the wheels (Fig. E)

1. Attach a wheel (8) on the axle. Afterwards, put a supplied metal washer onto the axle.
2. Insert the supplied metal split pin in the opening of the axle. Afterwards, fold the metal split pin around the axle, as shown on figure E.
3. Mount the wheel cover (9) onto the wheel (8). Make sure the plastic pins on the wheel cover (9) align with the holes of the wheel (8).
4. Repeat these steps for the other wheels.

Assembling the grass box (Fig. F, G, H, I)

It is possible to use the lawn mower with or without grass box. Remember though that when cutting without the grass box, the grass box lid (11) must be lowered. Do not operate the mower with outlet lid lifted.

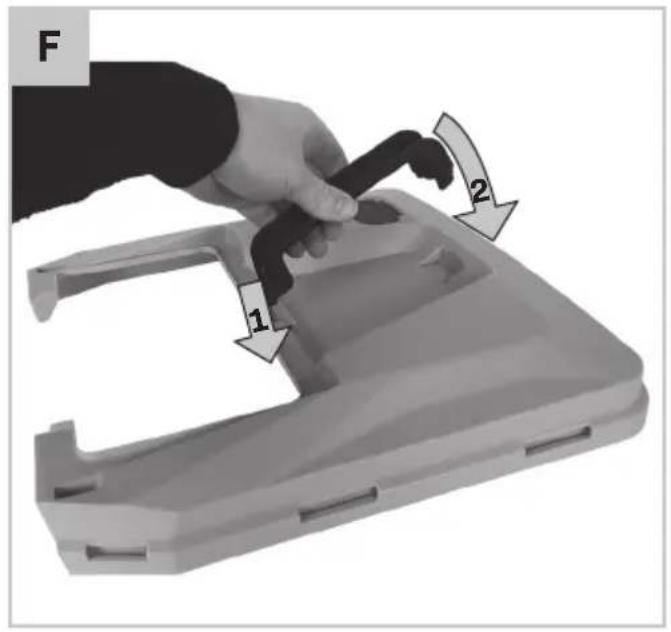

1. Mount the Grass box carrying handle (16) onto the grass box cover (12), as shown on figure F.

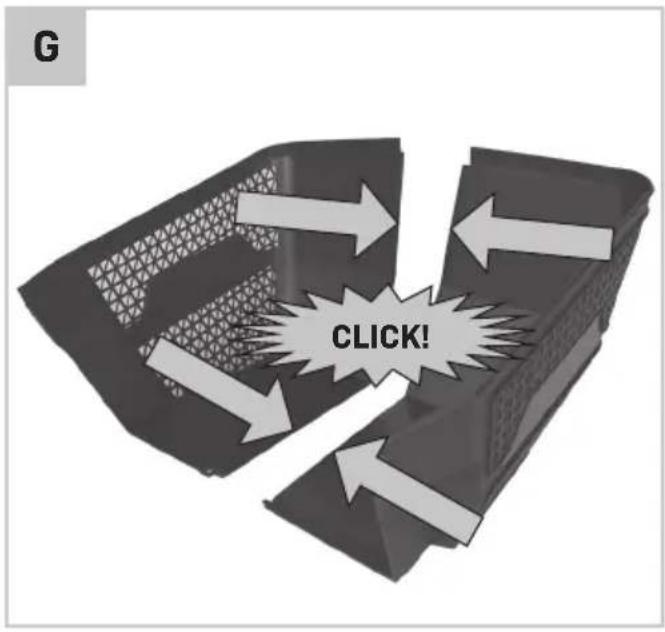

2. Join the two halves of the grass box basket (10), as shown on figure G.

3. Mount the grass box cover (12) onto the assembled grass box basket (10), as shown on figure H.

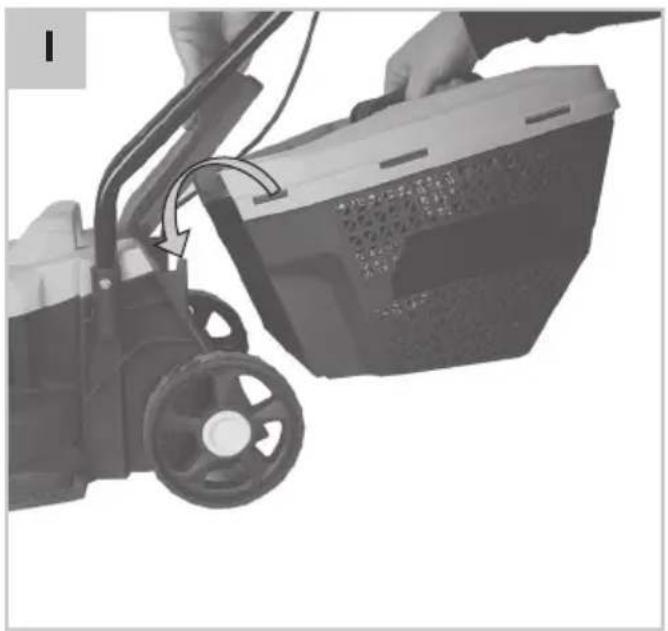

4. Lift the grass box lid (11) and attach the assembled grass box onto the lawn mower. Ensure the indents in the grass box align properly with the holders of the lawn mower body.

Note: the grass box is fitted with a grass level indicator (13), which shows the amount of mowed grass. As long as the grass box is not full, the indicator will be opened. When the grass box is full, the indicator will close. In that case immediately stop mowing and empty the grass box. This indicator is only a rough guideline, of which the functionality depends on the condition inside the grass basket.

Replacing the cutting blade (Fig. A, M)

Before any work on the power tool, remove the battery.

When replacing the cutting blade, wear protective gloves. Danger of injury when touching the cutting blade.

Only use blades that are recommended by the manufacturer.

1. Remove the grass box.
2. Turn the mower onto its side.
3. Firmly hold cutting blade using protective gloves.

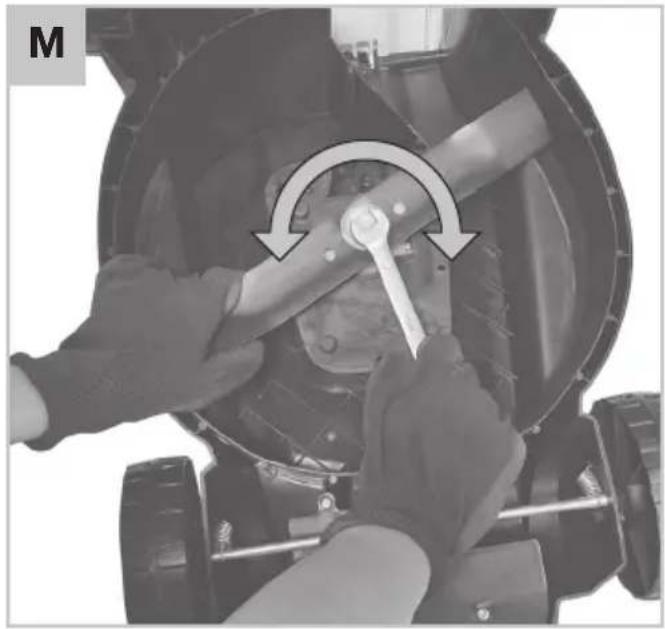

4. Turn the cutting blade fixing screw counter -clockwise to loosen it, as shown on figure M.
5. Replace or sharpen the cutting blade.
6. Install the cutting blade, use the above procedure in reversed order (holes in the cutting blade must be seated on the spindle pins).
7. It is best to entrust sharpening or replacement of cutting blade to a qualified person. Only original parts should be used. All defects should be repaired by service workshop authorized by the manufacturer.

4. OPERATION

Before using, always visually inspect to see that the blades, blade bolts and cutter assembly are not worn or damaged. Please remove the battery from the tool. Replace worn or damaged blades and bolts in sets to preserve balance.

If the machine starts to vibrate abnormally (check immediately):

• inspect for damage,
• replace or repair any damaged parts,
• check for and tighten any loose parts.

Immediately switch off the machine in the following cases:

• whenever you leave the machine,
• before clearing blockages or unclogging chute,
• before checking, cleaning or working on the machine,
• after striking a foreign object. Inspect the machine for damage and make repairs before restarting and operating the machine;

Be careful during adjustment of the machine to prevent entrapment of the fingers between moving blades and fixed parts of the machine.

Switching the machine on/off (Fig. A, P)

Before starting, put the product on a flat surface free of high grass.

Clean the underside of the deck before turning on the machine.

Keep your feet well away from the cutting blade.

Do not tilt the product when starting the motor.

1. Ensure the safety key (27) is inserted in the designated spot on top of the machine housing, behind the carrying handle (7).
2. To start the machine, press and hold the safety button (3) and press the on/off switch (2). Whilst holding the on/off switch (2), you can release pressure on the safety button (3).
3. To stop the machine, release the on/off switch (2) and wait until cutting blade stops rotating.

Operating the mower (fig. A, P)

Always ensure that a safe distance (provided by the length of the long handles) is maintained between the user and the mower housing.

Be especially careful when mowing and changing direction on slopes and inclines. Maintain a solid footing and wear sturdy, non-slip footwear and long trousers. Always mow along the incline (not up and down). For safety reasons, the lawn mower may not be used to mow inclines whose gradient exceeds 15 degrees.

Use special caution when backing up and pulling the lawn mower. Tripping hazard!

Before use

• Make sure that the lawn is clear of stones, sticks, wire or other objects that could damage the product or its product.
• Do not cut wet grass because it tends to stick to the underbody of the product, preventing the proper discharge of grass clippings, and it could also cause you to slip and fall.
• Never cut off more than one-third of the total length of the grass for a healthy lawn. In the autumn, lawns should only be cut as long as there is growth.
• Slowly push the product forward, do not force.
• Mow in slight overlapping rows. The most effective hat all the lawn is cut without missing any spots, as shown on figure M.
• Circle around flower beds. When reaching a flower bed in the middle of the lawn, cut a row or two around the circumference of the bed.
• Pay special attention when changing direction.
• Always mow along inclines (not up and down). You can prevent the lawn mower from slipping down by holding a position at an angle upwards.
• Select the cutting height according to the length of the grass. Make several passes to prevent that too much grass is cut at one time.
• Empty the grass box regularly.

Note: The operating time of the rechargeable batteries and therefore the area in square meters that can be covered with a single battery charge is largely dependent on the state of the grass (e.g. density, moisture, height, cutting height, etc.) and the mowing speed (walking speed). To adjust the area coverage to your individual requirements, it is recommended that you mow the lawn more often, with a higher cutting height and at an appropriate speed. Frequently turning the equipment on and off while mowing will also reduce the amount of area that you can cover. If the operating time of the rechargeable batteries (area coverage) is still unsatisfactory in spite of the above measures, you can remedy the problem by using rechargeable batteries with a larger capacity (Ah).

After use

1. After use, switch the product off, disconnect the safety key (27).
2. Remove the battery packs (18).
3. Check, clean and store the product as described in chapter 'maintenance'.

5. MAINTENANCE

Switch off the equipment, wait for the blade to stop and remove the battery. There is a risk of injury.

Cleaning

Your mower has been designed to operate over a long period of time with minimum of maintenance. Continuous satisfactory operation depends upon proper mower care and regular cleaning.

• Keep the mower clean and dry.
• Regularly use a blunt scraper to remove grass and dirt from the mower
• To clean the mower, use only mild soap and a damp cloth. Never let any liquid get inside the tool and never immerse any part of the tool into liquid. Do not use any abrasive or solvent - based cleaner.

Stop the blade(s) if the machine has to be tilted for transportation when crossing surfaces other than grass, and when transporting the machine to and from the area to be used. Do not start the machine when standing in front of the discharge opening.

Storage

Always allow the machine to cool down before storing. Replace worn or damaged parts for safety. Use only genuine replacement parts and accessories.

1. Switch the product off, disconnect the safety key (27) and remove the battery pack (18) before storage.
2. Clean the product as described above.
3. Store the product and its accessories in a dark,

dry, frost-free, well-ventilated place. The ideal storage temperature is between 10 °C and 30 °C.

1. Always store the product in a place that is inaccessible to children.
2. We recommend using the original package for storage or covering the product with a suitable cloth or enclosure to protect it against dust.

Transportation

1. Switch the product off, disconnect the safety key (27) and remove the battery pack (18) before transporting it anywhere.
2. Always transport the product by its carrying handle (7).
3. Protect the product from any heavy impact or strong vibrations which may occur during transportation in vehicles.
4. Secure the product to prevent it from slipping or falling over, damage and injury.

WARRANTY

VONROC products are developed to the highest quality standards and are guaranteed free of defects in both materials and workmanship for the period lawfully stipulated starting from the date of original purchase. Should the product develop any failure during this period due to defective material and/or workmanship then contact VONROC directly.

The following circumstances are excluded from this guarantee:

• Repairs and or alterations have been made or attempted to the machine by unauthorized service centers;
• Normal wear and tear;
• The tool has been abused, misused or improperly maintained;
• Non-original spare parts have been used.

This constitutes the sole warranty made by company either expressed or implied. There are no other warranties expressed or implied which extend beyond the face hereof, herein, including the implied warranties of merchantability and fitness for a particular purpose. In no event shall VONROC be liable for any incidental or consequential damages. The dealers remedies shall be limited to repair or replacement of nonconforming units or parts. The product and the user manual are subject to

change. Specifications can be changed without further notice.

The product and the user manual are subject to change. Specifications can be changed without further notice.

ADDITIONELE VELIGHEIDSINSTRUCTIES VOOR GAZONMAAIERS MET ACCU

VEILIGHEIDSWAARSCHUWINGEN VOOR DE ACCU

2. INFORMATIE OVER HET APPARAAT

Bedoeld gebruik

battery in charged condition.

Montar as rodas (Fig. E)

Measured sound power level: 90.4dB(A)

Guaranteed sound power level: 96 dB(A)

Conformity assessment method to Annex VI Directive 2000/14/EC amended by 2005/88/EC.

The notified body involved: TÜV SÜD Industrie Service GmbH, Certification Body of the Notiffed Body 0036

EN 60335-1, EN 60335-2-77, EN 62233, EN 55014-1, EN 55014-2, EN 61000-3-2, EN 61000-3-3, 2006/42/EC, 2014/30/EU, 2000/14/EC ANNEX VI & 2005/88/EC, 2012/19/EC, 2011/65/EU

Zwolle, 01-10-2024 H.G.F Rosberg

CEO

VONROC • Lingenstraat 6 • 8028 PM Zwolle • The Netherlands

(EN) This product is labelled with this crossed out wheel bin symbol in accordance with European Directive 2012/19/EU to indicate that it must not be disposed of with your other household waste. Due to the presence of hazardous substances, mixtures or components, electrical and electronic devices that are not subject to selective sorting are potentially dangerous to the environment and human health. Please check your local city office or waste disposal service for the return and recycling of this product.
