USER MANUAL RCES-215/12 Royal Catering

Abstract white line drawing of a stylized mythical creature on a dark blue background (no text or symbols)

DE	Produktname	Aufschnittmaschine
EN	Product name	Meat slicer
PL	Nazwa produktu	Krajalnica do wędlin
CZ	Název výrobku	Kráječ na maso
FR	Nom du produit	Trancheuse à viande
IT	Nome del prodotto	Affettatrice per carne
ES	Nombre del producto	Cortadora de carne
HU	Termék neve	Hús szeletelő
DA	Produktnavn	Kødskærer
FI	Tuotteen nimi	Lihaleikkuri
NL	Productnaam	Vleessnijmachine
NO	Produktnavn	Kjøttskjærer
SE	Produktnamn	Köttskivare
PT	Nome do produto	Fatiador de carne
SK	Názov produktu	Krájač na mäso
BG	Име на продукта	Машина за рязане на месо
EL	Όνομα προϊόντος	Κρεατοκόπτης
HR	Naziv proizvoda	Rezač mesa
LT	Produkto pavadinimas	Mêsos pjaustyklė
RO	Numele produsului	Feliator de carne
SL	Ime izdelka	Rezalnik za meso
DE Modell | EN Product model | PL Model produktu | CZ Model výrobku | FR Modèle | IT Modello | ES Modelo | HU Modell | DA Model | FI Tuotteen malli | NL Productmodel | NO Produktmodell | SE Produktmodell | PT Modelo do produto | SK Model | BG Модел на продукт | EL Movtéλο προϊόντος | HR Model proizvoda | LT: Gaminio modelis | RO: Model de produs | SL: Model izdelka		RCMS-215/12RCES-215/12
DE Hersteller | EN Manufacturer | PL Producent | CZ Výrobce | FR Fabricant | IT Produttore | ES Fabricante | HU Termelő | DA Producent | FI Valmistaja | NL Producent | NO Produsent | SE Tillverkare | PT Fabricante | SK Výrobca | BG Производител | EL Κατασκευαστής | HR Proizvođač | LT Gamintojas | RO Producător | SL Proizvajalec		expondo Polska sp. z o.o. sp. k.
DE Anschrift des Herstellers | EN Manufacturer Address | PL Adres producenta | CZ Adresa výrobce | FR Adresse du fabricant | IT Indirizzo del produttore | ES Dirección del fabricante | HU A gyártó címe | DA Producentens adresse | FI Valmistajan osoite | NL Adres producent | NO Produsentens adresse | SE Tillverkarens adress | PT Endereço do fabricante | SK Adresa výrobcu | BG Адрес на производителя | EL: Διεύθυνση κατασκευαστή | HR Adresa proizvođača | LT Gamintojo adresas | RO Adresa producătorului | SL Naslov proizvajalca		ul. Nowy Kisielin – Innowacyjna 7, 66-002 Zielona Góra | Poland, EU

Person using a tool to interact with a metallic mechanical device (no visible text or symbols)

Person handling a large metallic object with a red tag, possibly a device or machine component (no visible text or symbols)

Person handling a metallic mechanical component with a tool, no visible text or symbols

Close-up of a hand using a plastic bag to clean a small yellow object inside a machine (no visible text or symbols)

Close-up of a mechanical component with a yellow apple inside, no visible text or symbols

Close-up of a hand holding a small mechanical component, possibly a tool or device, with no visible text or symbols.

Close-up of a hand inserting a component into a metal device (no visible text or symbols)

Close-up of a hand pressing a mechanical component with a red arrow indicating direction (no text or symbols visible)

Close-up of a hand holding a small metallic tool, possibly a screwdriver or tool, with no visible text or symbols.

Close-up of a hand adjusting a metallic mechanical component (no visible text or symbols)

Close-up of a hand using a power tool to switch a metal component on a white circular surface (no text or symbols visible)

Close-up of yellow liquid with small droplets and a metallic container, no visible text or symbols

This User Manual has been translated for your convenience using machine translation. Reasonable efforts have been made to provide an accurate translation; however, no automated translation is perfect nor is it intended to replace human translators. The official User Manual is the English version. Any discrepancies or differences created in the translation are not binding and have no legal effect for compliance or enforcement purposes. If any questions arise related to the accuracy of the information contained in the User Manual, please refer to the English version of those contents which is the official version.

Technical data

Parameter description	Parameter value
Product name	Meat slicer
Model	RCMS-215/12	RCES-215/12
Input	-	12 V DC / 5A
Rated power [W]	-	60
Blade diameter [mm]	145
Cutting width [mm]	0-15
Dimensions [Width x Depth x Height; mm]	302 x 415 x 390 317	x 360 x 430
Weight [kg]	4.7	6.55

PLEASE NOTE! Drawings in this manual are for illustration purposes only and in some details may differ from the actual product.

ATTENTION! Despite the safe design of the device and its protective features, and despite the use of additional elements protecting the operator, there is still a slight risk of accident or injury when using the device. Stay alert and use common sense when using the device.

EN

Installation

1. Use a wrench to attach the handle to the cutter head.
2. Insert the suction cup at the bottom. For smooth surfaces, the suction cup can be used directly. For non-smooth surfaces, secure the suction cup with screws.

ATTENTION! For RCES-215/12, always make sure the unit is unplugged before cleaning or changing the Cutting width.

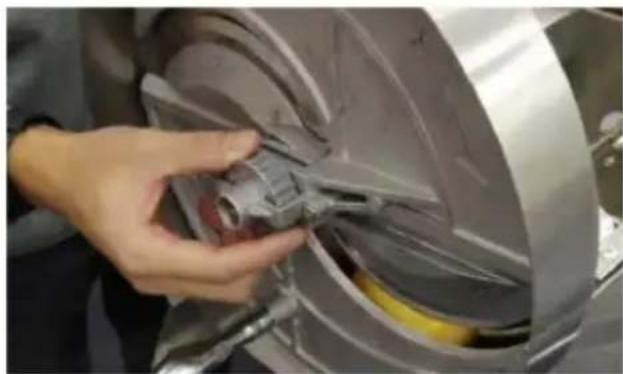

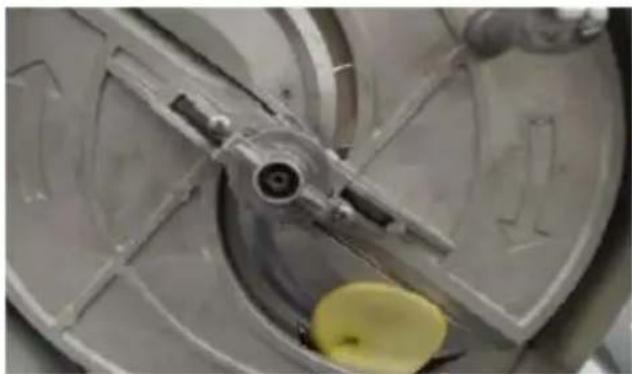

Method of operation

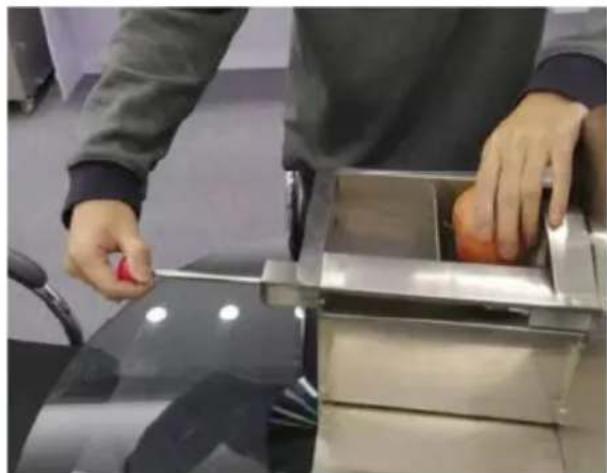

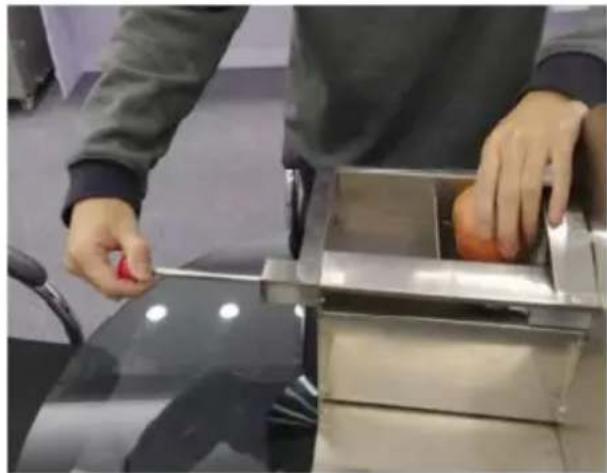

1. Pull the lever

2. Insert the food

3. Turn the knob to adjust the thickness

4. Move the handle to begin cutting

Close-up of a mechanical component with a yellow apple inside, no visible text or symbols

1. Check the size indicated on the knob.

Close-up of a hand holding a small mechanical component, possibly a tool or device, with no visible text or symbols.

1. Turn the knob clockwise to make the slices thinner, or counterclockwise to make them thicker.

Note:

If you feel resistance while turning the knob, it means you have reached the adjustment limit. In this case, reverse the direction to prevent damage to the adjustment thread. Forcing the knob may cause damage.

Disassembly instructions

Close-up of a hand inserting a component into a device (no visible text or symbols)

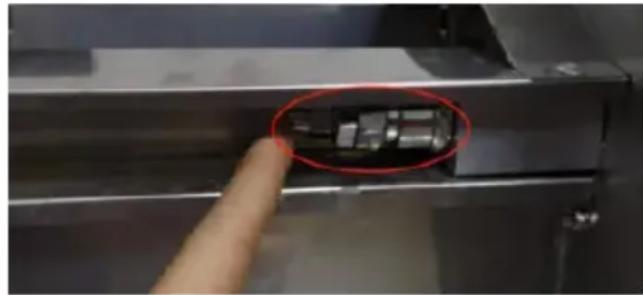

Unlock the buckle behind the knife basin.

Close-up of a hand pressing a button on a mechanical component (no visible text or symbols)

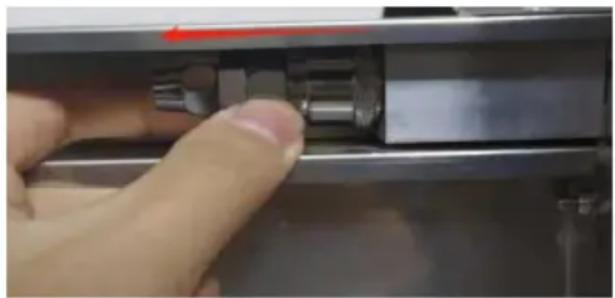

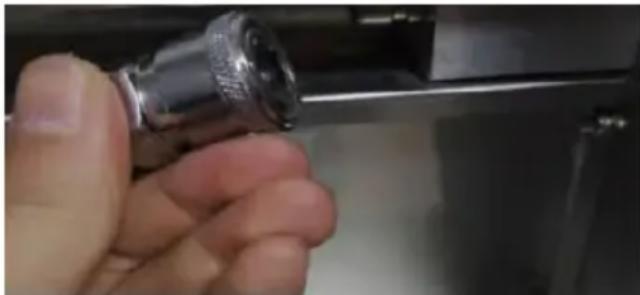

Pull out the snap spring.

Close-up of a hand holding a small metallic tool or component, no visible text or symbols

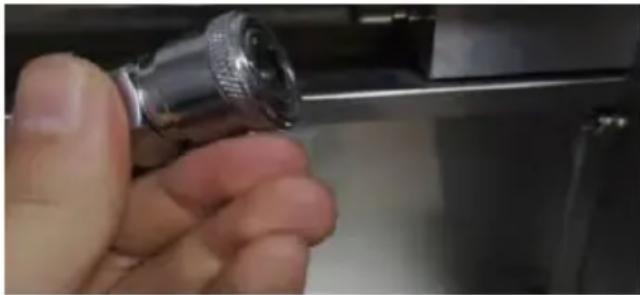

Remove the buckle and gasket.

Close-up of a hand operating a mechanical device with metallic components (no visible text or symbols)

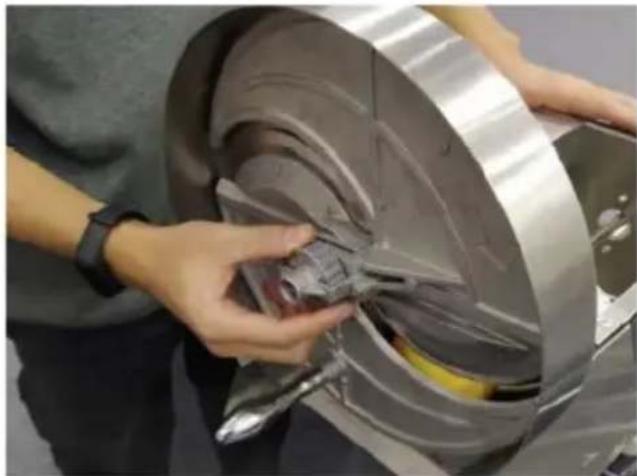

Disassemble the knife wheel.

Close-up of a hand using a tool to wire components on a white circular object (no visible text or symbols)

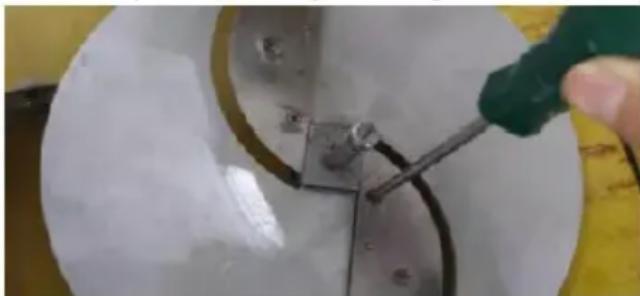

Unscrew the blade.

Close-up of yellow liquid with a metallic container and small holes, no visible text or symbols

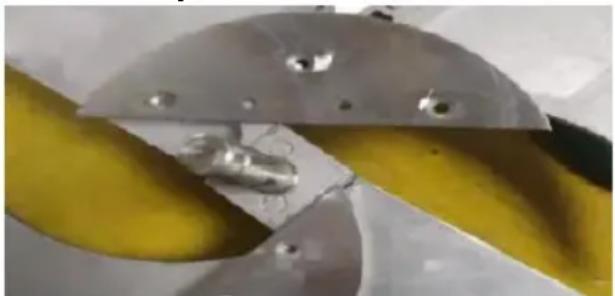

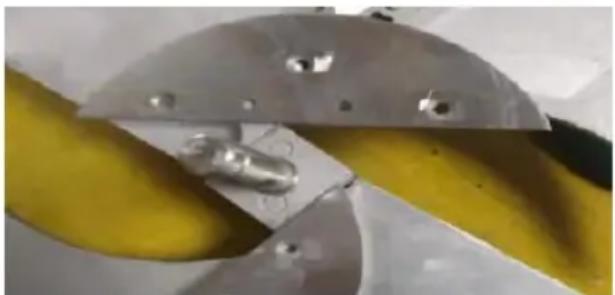

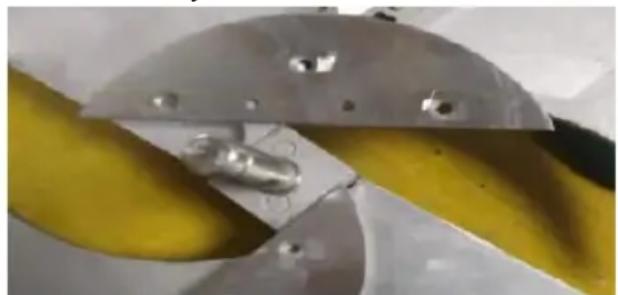

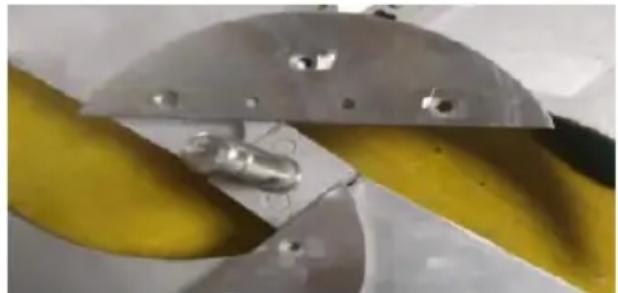

Carefully remove the blade.

Cleaning and maintenance instructions for meat slicer

ATTENTION! For RCES-215/12, always make sure the unit is unplugged before cleaning or changing the Cutting width.

Cleaning procedure

• Clean the blade:
  Wipe the blade with a damp cloth and warm, soapy water. Dry thoroughly.
• Clean the slicer body:
  Wipe the surfaces with a damp cloth and mild detergent. Avoid water near the motor.

- Sanitize:

Use a food-safe sanitizer on all surfaces and allow them to air-dry.

- Deep cleaning:

Clean hard-to-reach areas where food particles may accumulate.

Person using a tool to interact with a metallic mechanical device (no visible text or symbols)

Person handling a large metallic device with a red trigger, no visible text or symbols

1. Włóż jedzenie

Person handling a large metallic object with a tool, no visible text or symbols

Close-up of a hand using a plastic bag to clean a small yellow object inside a machine (no visible text or symbols)

Close-up of a mechanical component with a yellow apple inside, no visible text or symbols

Close-up of a hand holding a small mechanical component, possibly a tool or device, with no visible text or symbols.

Close-up of a hand inserting a component into a device (no visible text or symbols)

Close-up of a finger pressing a mechanical component on a metal bracket (no visible text or symbols)

Close-up of a hand holding a metallic tool, no visible text or symbols

Close-up of a hand adjusting a metallic mechanical component (no visible text or symbols)

Close-up of a hand using a tool to adjust or install a metal component, no visible text or symbols

Odkręć ostrze.

Close-up of a metallic mechanical component with yellow liquid, showing internal components and mounting holes (no text or symbols visible)

Person using a tool to interact with a metallic mechanical device (no visible text or symbols)

1. Zatáhněte za páku

Person handling a large metallic object with a red tool, possibly a food item or container (no visible text or symbols)

1. Vložte jídlo

Person using a tool to clean or store chocolate in a large metallic bowl (no visible text or symbols)

Close-up of a hand placing a small object into a circular device with a lime slice, no visible text or symbols

Close-up of a mechanical component with a yellow apple inside, no visible text or symbols

Close-up of a hand holding a small mechanical component, possibly a tool or device, with no visible text or symbols.

Close-up of a hand inserting a component into a device (no visible text or symbols)

Close-up of a hand pressing a button on a mechanical component (no visible text or symbols)

Close-up of a hand holding a metallic mechanical component, no visible text or symbols

Close-up of a hand adjusting a metallic mechanical component (no visible text or symbols)

Close-up of a hand using a tool to wire components on a white circular object (no visible text or symbols)

Odšroubujte čepel.

Close-up of yellow liquid with metallic plates and small holes, no visible text or symbols

Person using a tool to interact with a metallic mechanical device (no visible text or symbols)

1. Tirez le levier

Person handling a large metallic object with a red tool, possibly a food item or container (no visible text or symbols)

Person using a tool to clean or inspect a large metallic object, no visible text or symbols

Close-up of a hand using a tool to clean or wash a small object inside a circular device (no visible text or symbols)

Close-up of a mechanical component with a yellow apple inside, no visible text or symbols

Close-up of a hand holding a small mechanical component, possibly a tool or device, in a metallic industrial setting (no visible text or symbols)

Close-up of a hand inserting a component into a device (no visible text or symbols)

Close-up of a hand pressing a mechanical component with a red arrow indicating motion (no text or symbols visible)

Retirez le ressort à pression.

Close-up of a hand holding a metallic tool, no visible text or symbols

Close-up of a hand adjusting a metallic mechanical component (no visible text or symbols)

Close-up of a hand using a tool to adjust or install a mechanical component, no visible text or symbols

Dévisser la lame.

Close-up of yellow banana slices with metallic plates and small holes, no visible text or symbols

Retirez soigneusement la lame.

Person using a tool to interact with a metallic mechanical device (no visible text or symbols)

1. Tirare la leva

Person handling a large metallic object with a red tool, possibly a food item or container (no visible text or symbols)

1. Inserire il cibo

Person using a tool to clean or inspect a large metallic object, no visible text or symbols

Close-up of a hand using a tool to clean or wash a small object inside a circular device (no visible text or symbols)

Close-up of a mechanical component with a yellow apple inside, no visible text or symbols

Close-up of a hand holding a small mechanical component, possibly a tool or device, with no visible text or symbols.

Close-up of a hand inserting a component into a device (no visible text or symbols)

Close-up of a hand pressing a mechanical component with a red arrow indicating motion (no text or symbols visible)

Close-up of a hand holding a metallic tool, no visible text or symbols

Close-up of a hand adjusting a metallic mechanical component (no visible text or symbols)

Close-up of a hand using a tool to adjust or install a mechanical component, no visible text or symbols

Svitare la lama.

Close-up of a metallic mechanical component with yellow liquid, showing internal components and mounting holes (no text or symbols visible)

Person using a tool to interact with a metallic mechanical device (no visible text or symbols)

1. Tirar de la palanca

Person handling a large metallic object with a red tool, possibly a food item or container (no visible text or symbols)

1. Insertar la comida

Person using a tool to clean or inspect a large metallic object, no visible text or symbols

Close-up of a hand using a tool to clean or wash a small object inside a circular device (no visible text or symbols)

Close-up of a mechanical component with a yellow apple inside, no visible text or symbols

Close-up of a hand holding a small mechanical component, possibly a tool or device, with no visible text or symbols.

Close-up of a hand inserting a component into a device (no visible text or symbols)

Desbloquee la hebilla detrás del recipiente del cuchillo.

Close-up of a hand pressing a mechanical component with a red arrow indicating motion (no text or symbols visible)

Close-up of a hand holding a metallic tool, no visible text or symbols

Close-up of a hand adjusting a metallic mechanical component (no visible text or symbols)

Close-up of a hand using a tool to adjust or install a mechanical component, no visible text or symbols

Desatornille la cuchilla.

Close-up of a metallic mechanical component with yellow liquid, showing internal components and mounting holes (no text or symbols visible)

Person using a tool to interact with a metallic mechanical device (no visible text or symbols)

1. Húzza meg a kart

Person handling a large metallic device with a red trigger, no visible text or symbols

Person handling a large metallic object with a tool, no visible text or symbols

Close-up of a hand using a plastic bag to clean a small yellow object inside a machine (no visible text or symbols)

Close-up of a mechanical component with a yellow apple inside, no visible text or symbols

Close-up of a hand holding a small mechanical component, possibly a tool or device, with no visible text or symbols.

Close-up of a hand inserting a small cylindrical component into a metal housing (no text or symbols visible)

Close-up of a hand pressing a button on a mechanical component (no visible text or symbols)

Húzza ki a rugót.

Close-up of a hand holding a small metallic tool or component, no visible text or symbols

Close-up of a hand adjusting a metallic mechanical component (no visible text or symbols)

Close-up of a hand using a tool to wire components on a white circular object (no visible text or symbols)

Close-up of yellow liquid with metallic plates and small holes, no visible text or symbols

Person using a tool to interact with a metallic mechanical device (no visible text or symbols)

1. Træk i håndtaget

Person handling a metallic mechanical device with a red tool, no visible text or symbols

1. Indsæt maden

Person handling a large metallic object with a tool, no visible text or symbols

Close-up of a hand placing a small object into a circular device with a lime slice, no visible text or symbols

Close-up of a mechanical component with a yellow apple inside, no visible text or symbols

Close-up of a hand holding a small mechanical component, possibly a tool or device, with no visible text or symbols.

Close-up of a hand inserting a component into a device (no visible text or symbols)

Close-up of a hand pressing a button on a mechanical component (no visible text or symbols)

Close-up of a hand holding a metallic mechanical component, no visible text or symbols

Close-up of a hand adjusting a metallic mechanical component (no visible text or symbols)

Skil knivhjulet ad.

Close-up of a hand using a tool to wire components on a white circular object (no visible text or symbols)

Skru bladet af.

Close-up of yellow liquid with metallic plates and small holes, no visible text or symbols

Person using a tool to interact with a metallic mechanical device (no visible text or symbols)

1. Vedä vivusta

Person handling a large cylindrical object with a red tool, possibly a food item or container (no visible text or symbols)

1. Aseta ruoka

Person handling a chocolate chip into a large metallic bowl (no visible text or symbols)

Close-up of a hand placing a plastic bag into a circular container with a lemon slice, next to a dark liquid (no text or symbols visible)

Close-up of a mechanical component with a yellow apple inside, no visible text or symbols

Close-up of a hand holding a small metallic object inside a large industrial fan (no visible text or symbols)

Close-up of a hand inserting a component into a device (no visible text or symbols)

Close-up of a hand pressing a button on a mechanical component (no visible text or symbols)

Vedä jousi ulos.

Close-up of a hand holding a metallic tool, no visible text or symbols

Close-up of a hand adjusting a metallic mechanical component (no visible text or symbols)

Pura veitsen pyörä.

Close-up of a hand using a tool to wire components on a white circular object (no visible text or symbols)

Ruuvaa terä irti.

Close-up of yellow liquid with metallic plates and small holes, no visible text or symbols

Person using a tool to interact with a metallic mechanical device (no visible text or symbols)

1. Trek aan de hendel

Person handling a large metallic object with a red tag, possibly a device or machine component (no visible text or symbols)

1. Plaats het voedsel

Person handling a metallic mechanical component with a tool, no visible text or symbols

Close-up of a hand placing a small green slice into a circular device component (no visible text or symbols)

Close-up of a mechanical component with a yellow apple inside, no visible text or symbols

Close-up of a hand holding a small mechanical component, possibly a tool or device, with no visible text or symbols.

Close-up of a hand inserting a component into a device (no visible text or symbols)

Close-up of a hand pressing a button on a mechanical component (no visible text or symbols)

Trek de breekveer eruit.

Close-up of a hand holding a metallic mechanical component, no visible text or symbols

Close-up of a hand adjusting a metallic mechanical component (no visible text or symbols)

Close-up of a hand using a tool to wire components on a white circular object (no visible text or symbols)

Draai het mes los.

Close-up of yellow liquid with metallic plates and small holes, no visible text or symbols

Person using a tool to interact with a metallic mechanical device (no visible text or symbols)

1. Trekk i spaken

Person handling a metallic mechanical device with a red tool, no visible text or symbols

1. Sett inn maten

Person handling a large metallic object with a tool, no visible text or symbols

Close-up of a hand placing a small object into a circular device with a lime slice, no visible text or symbols

Close-up of a mechanical component with a yellow apple inside, no visible text or symbols

Close-up of a hand holding a small mechanical component, possibly a tool or device, with no visible text or symbols.

Close-up of a hand inserting a component into a device (no visible text or symbols)

Close-up of a hand pressing a button on a mechanical component (no visible text or symbols)

Close-up of a hand holding a metallic tool, no visible text or symbols

Close-up of a hand operating a mechanical device with metallic components (no visible text or symbols)

Demonter knivhjulet.

Close-up of a hand using a tool to wire components on a white circular object (no visible text or symbols)

Skru av bladet.

Close-up of yellow liquid with metallic plates and small holes, no visible text or symbols

Person using a tool to interact with a metallic mechanical device (no visible text or symbols)

1. Dra i spaken

Person handling a metallic mechanical device with a red tool, no visible text or symbols

1. Sätt i maten

Person handling a large metallic object with a tool, no visible text or symbols

Close-up of a hand placing a small object into a circular device with a lime slice, no visible text or symbols

Close-up of a mechanical component with a yellow apple inside, no visible text or symbols

Close-up of a hand holding a small metallic object inside a large industrial fan (no visible text or symbols)

Close-up of a hand inserting a component into a device (no visible text or symbols)

Close-up of a hand pressing a button on a mechanical component (no visible text or symbols)

Close-up of a hand holding a metallic tool, no visible text or symbols

Close-up of a hand adjusting a metallic mechanical component (no visible text or symbols)

Ta isär knivhjulet.

Close-up of a hand using a tool to wire components on a white circular object (no visible text or symbols)

Skruva loss bladet.

Close-up of yellow liquid with metallic plates and small holes, no visible text or symbols

Person using a tool to interact with a metallic mechanical device (no visible text or symbols)

1. Puxe a alavanca

Person handling a metallic mechanical device with a red tool, no visible text or symbols

1. Insira a comida

Person using a tool to clean or store chocolate in a large metallic bowl (no visible text or symbols)

Close-up of a hand placing a small object into a circular device with a lime slice, no visible text or symbols

Close-up of a mechanical component with a yellow apple inside, no visible text or symbols

Close-up of a hand holding a small mechanical component, possibly a tool or device, with no visible text or symbols.

Close-up of a hand inserting a component into a device (no visible text or symbols)

Close-up of a hand pressing a button on a mechanical component (no visible text or symbols)

Close-up of a hand holding a metallic mechanical component, no visible text or symbols

Close-up of a hand adjusting a metallic mechanical component (no visible text or symbols)

Close-up of a hand using a tool to wire components on a white circular object (no visible text or symbols)

Close-up of yellow liquid with metallic plates and small holes, no visible text or symbols

Person using a tool to interact with a metallic mechanical device (no visible text or symbols)

1. Potiahnite páku

Person handling a large metallic object with a red tool, possibly a food item or container (no visible text or symbols)

1. Vložte jedlo

Person using a tool to clean or store contents of a large metallic object (no visible text or symbols)

Close-up of a hand using a tool to clean or remove a circular object, with a lime slice visible (no text or symbols)

Close-up of a mechanical component with a yellow apple inside, no visible text or symbols

Close-up of a hand holding a small mechanical component, possibly a tool or device, with no visible text or symbols.

Close-up of a hand inserting a small cylindrical component into a metal housing (no text or symbols visible)

Odomknite pracku za miskou noža.

Close-up of a hand pressing a button on a metal mechanical component (no visible text or symbols)

Vytiahnite zaskakovaciu pružinu.

Close-up of a hand holding a metallic mechanical component, no visible text or symbols

Odstráňte pracku a tesnenie.

Close-up of a hand operating a mechanical device with metallic components (no visible text or symbols)

Demontujte nožové koleso.

Close-up of a hand using a tool to wire components on a white circular object (no visible text or symbols)

Odskrutkujte čepel'.

Close-up of yellow liquid with metallic plates and small holes, no visible text or symbols

Opatrne vyberte čepel'.

Person using a tool on a metallic tray, with red lines indicating motion (no text or symbols visible)

1. Издърпайте лоста

Person handling a large metallic object with a red tool, possibly a device or machine component (no visible text or symbols)

1. Поставете храната

Person handling a large metallic object with a tool, no visible text or symbols

Close-up of a hand cleaning a car interior with a lemon slice and plastic wrap (no visible text or symbols)

Close-up of a mechanical component with a yellow apple inside, no visible text or symbols

Close-up of a hand holding a small metallic object inside a large industrial fan (no visible text or symbols)

Close-up of a hand inserting a component into a device (no visible text or symbols)

Close-up of a hand pressing a mechanical component with a red arrow indicating direction (no text or symbols visible)

Close-up of a hand holding a metallic tool, no visible text or symbols

Close-up of a hand adjusting a metallic mechanical component (no visible text or symbols)

Close-up of a hand using a power tool to test a small component on a white circular surface (no visible text or symbols)

Развийте острието.

Close-up of yellow liquid with a metallic container and small droplet on top (no text or symbols visible)

Person using a tool to interact with a metallic mechanical device (no visible text or symbols)

1. Τραβήξτε το μοχλό

Person handling a large metallic device with a red trigger, no visible text or symbols

Person handling a metallic mechanical component with a tool, no visible text or symbols

Close-up of a hand placing a plastic bag into a circular container with a lime slice, no visible text or symbols.

Close-up of a mechanical component with a yellow apple and circular base (no visible text or symbols)

Close-up of a hand holding a small mechanical component, possibly a tool or device, with no visible text or symbols.

Close-up of a hand inserting a small electronic component into a metal enclosure (no visible text or symbols)

Close-up of a finger pressing a button on a mechanical component (no visible text or symbols)

Close-up of a hand holding a small mechanical component, possibly a tool or tool, with no visible text or symbols.

Close-up of a hand adjusting a metallic mechanical component (no visible text or symbols)

Close-up of a hand using a tool to test a metal component on a white circular surface (no visible text or symbols)

Close-up of yellow liquid with small white and silver components, no visible text or symbols
