USER MANUAL RCGS 550 Royal Catering

• Prüfen Sie, dass der Hebel richtig sitzt. Thank you for choosing this quality product by Royal Catering! CAUTIONS General safety information for the use of electrical devices: To avoid injury from re or electric shock, please ensure compliance with safety instructions when using this device. Please read the instruction carefully and make sure that you have understood it well. Keep the manual near the equipment to be able to read it at any time. Always use current sources connected to the ground and providing the necessary voltage (indicated on the label on the device). If you have any doubt, let an electrician check that your outlet is properly grounded. Never use a damaged power cable. Do not open the unit in damp or wet environment, or if you are wet yourself. Protect the unit of solar radiation. Use the device in a protected location to avoid damaging the equipment or endangering others. Before cleaning, disconnect it. Use a soft damp cloth for cleaning. Avoid using deter- gent and make sure that no liquid enters the unit. Turn off the device quickly if you notice any inconsistencies in its function. Unplug the device when you´re not using it. An opening of the device without our approval leads to a loss of warranty. General safety information for the use of our vegetable cutters:

• The user manual should be kept close to the device and should always be acces- sible for the users. Instruct your employees how to use the device properly.

• While using the machine, please always watch up to keep body parts, clothes and cooking instruments far from the blade. A contact with the rotating blade can lead to severe injuries!

• To prevent from injuries, be always careful by the maintenance of the device, particularly by the maintenance of the blades.

• Always use the carriage to process food with the machine.

• Please do not use the device to process deep frozen foodstuffs or bones. USER MANUAL DE EN

Rev. 13.04.2021• Please only use the original parts delivered with the device.

• Before cleaning or servicing the appliance, disconnect the electricity power sup- ply.

• When cleaning or servicing the device (safety protections removed) take into consideration all possible hazards-Residual Risks.

• When cleaning or servicing the appliance always concentrate on what you are doing and avoid any possible distractions.

• WARNING - The machine should be repaired by manufacturer or agent if the machine faults.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualied persons in order to avoid a hazard.

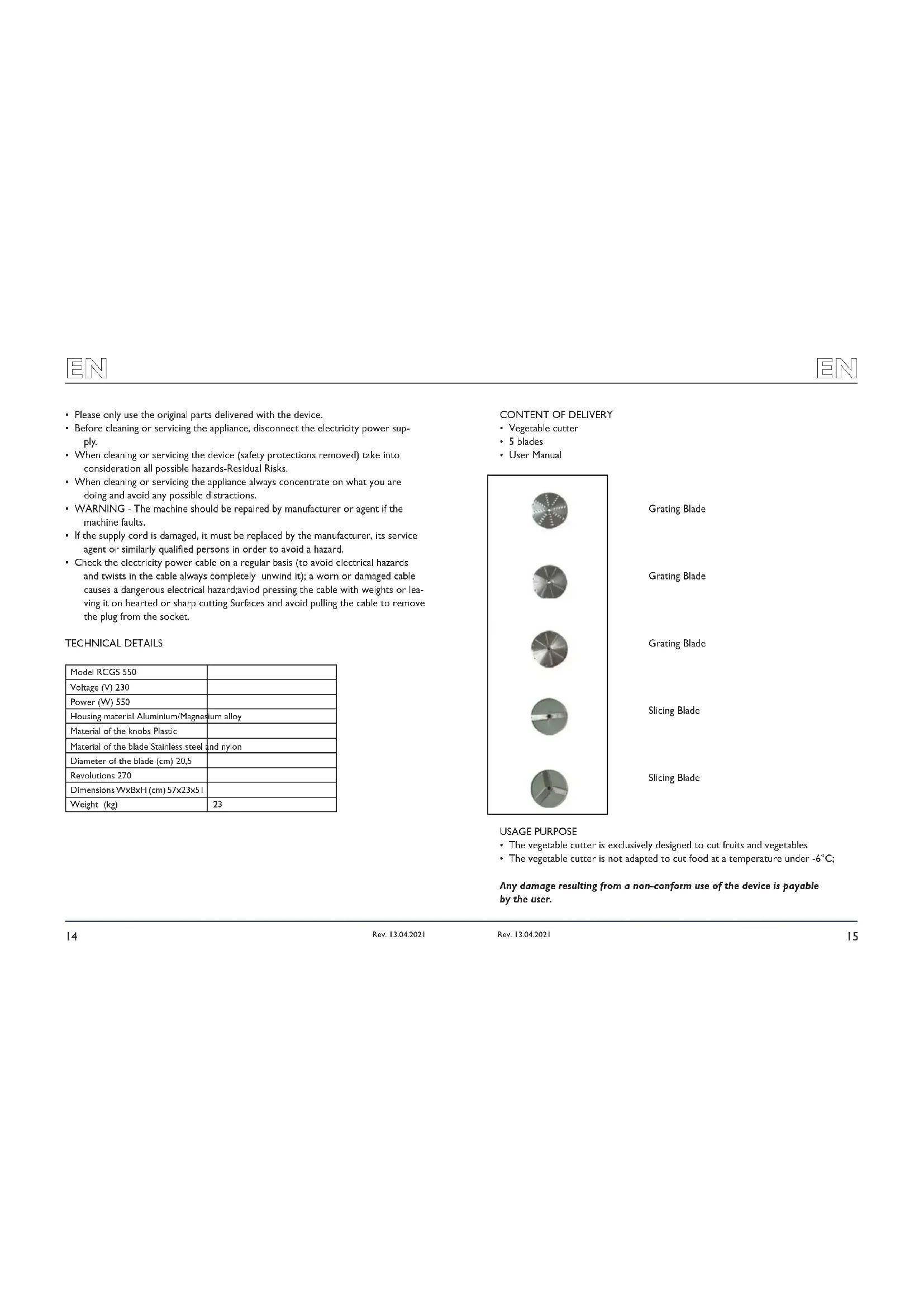

• Check the electricity power cable on a regular basis (to avoid electrical hazards and twists in the cable always completely unwind it); a worn or damaged cable causes a dangerous electrical hazard;aviod pressing the cable with weights or lea- ving it on hearted or sharp cutting Surfaces and avoid pulling the cable to remove the plug from the socket. TECHNICAL DETAILS Model RCGS 550 Voltage (V) 230 Power (W) 550 Housing material Aluminium/Magnesium alloy Material of the knobs Plastic Material of the blade Stainless steel and nylon Diameter of the blade (cm) 20,5 Revolutions 270 Dimensions WxBxH (cm) 57x23x51 Weight (kg) 23

Grating Blade Grating Blade Grating Blade Slicing Blade Slicing Blade USAGE PURPOSE

• The vegetable cutter is exclusively designed to cut fruits and vegetables

• The vegetable cutter is not adapted to cut food at a temperature under -6°C; Any damage resulting from a non-conform use of the device is payable by the user. EN EN

CONSIGNING THE APPLIANCE

Checking packaging upon consignment When the goods are received proceed with opening the packaging if there are no signs of damage. if when the goods are delivered there are signs of damage to the packaging, such as agent or courier, and within three days from the date indicated on the documents draw up a detailed list and report of all damage to the goods. Do not turn the packed goods upside down! When transporting the package make sure its four main points are rmly secured (maintain the goods parallel to the ground). Disposing of packaging The various items used for packaging (cardboard, plastic straps, polyurethane foam) should be conserved, so that the device can be sent back to the service center in best conditions in case of problem. EN EN

Rev. 13.04.2021INSTALLING THE APPLIANCE Appliance location The work surface where the RCGM 550 will be located must be suitable for the size of the appliance, please refer to the measurements given in FIG 2.The work surface must be level and dry and at a height of 80 cm from the ground with a temperature between 5°C and 35°C. The power cord connected with the appliance must be reliable grounding. Preparation

• Prior to use, thoroughly clean the device and equipment

• Select the appropriate cutting blade and install it in the device to cut food pro- ducts.

1. Loosen the safety close by turning the knob counter-clockwise.

2. Lift the pressing lever and tilt back the safety cover. First, insert the plastic disc,

then insert the cutting blade

• Close the safety cover and secure it by turning the safety close knob clockwise.

• Press the green START button to engage the cutting blade properly.

• Insert the desired products into the oval or round input bodies.

• To activate the device, press the green START button with your right hand while holding the lever with your left hand.

• Next, slowly bring the pressing lever down, pushing lightly to ensure best cutting results. Do not press too hard,as the device’s elements will be overloaded.

• When the lever reaches the bottom of the round inlet, lift it up.

• Continue cutting until the desired quantity of vegetables has been cut.

• If you desire to cut round slices from cylindrical vegetables such as carrots, cu- cumber, zucchini, etc., insert the vegetables into the small, round inlet and deli- cately press the vegetables down. Repeat the process described above until the desired quantity of vegetables has been cut.

• After completing the cutting process, turn the device off by pressing the red STOP button. Remove the device’s plug from its socket. EN EN

• Lift the cover with the handle.

• Turn the disc anticlockwise and cover the cutting edge with appropriate material as (rubber, fabric, etc), the lift it by setting your hand under the disc. Simply lift the discs to remove the grid disc for dice cutting, or the disc for stick cutting with the plastic disc. USING 2 BLADES

1. First mount the plastic disc

CLEANING AND MAINTENANCE

• Before carrying out any cleaning or maintenance operations, check to make sure that the mains switch be off and the supply plug disconnected from the mains.

• Accurately clean the equipment and the discs every day for a correct operation and life of the equipment. Cleaning

• The discs, the grid for cutting dices, and the plastic ejector, can be removed for washing under a warm water jet.

• Clean the machine, and above all where the discs rest, with a cloth or a sponge wet with warm water, accurately remove all wastes to prevent the discs from changing their position.

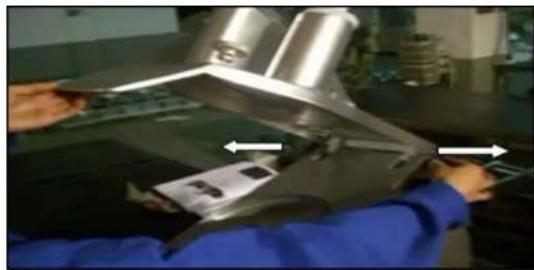

• Open the cover and loosen the 2 pins as shown in g.6. Remove the cover and wash under a water jet.

• Clean the surfaces with water and soup, alcohol, detergents without abrasives or substances based on chlorine or soda (chlorine water, muriatic acid).

• Never use abrasives, steel wool, or similar products as they may bring damages to the paint, the coat, ot the machine body. For cleaning, use non-toxic products and ones that guarantee the best hygiene. Machine idle for a long time Should the machine be idle for a long time, disconnect the main wall switch and clean the machine and its accessories accurately. Use white vaseline oil (or similar pro- ducts) to protect all the machine’s elements. These products, mainly made up of oily and detergent substances, and now available in spray cylinders for easy applicant, besides giving a glossy aspect to the aluminium magnestism alloy, prevent moisture and dirt from getting inside the machine, hence, its corrosion. We advise covering the machine with a nylon (or similar) cloth.

REGULAR CONTROL OF THE DEVICE

Control regularly that the device doesn´t present any damage. If it should be the case, please contact your customer service to solve the problem. EN EN

Rev. 13.04.2021WHAT TO DO IN CASE OF PROBLEM? Please contact your customer service and join following information:

• Invoice number and serial number (the latest is to be found on the technical plate on the device).

• If relevant, a picture of the damaged, broken or defective part.

• It will be easier for your customer service clerk to determinate the source of the problem if you make a detailed and precise description of the matter. Avoid formulations like “the device doesn´t work”, which may mean that it doesn´t slice properly or even not at all. Though, those two possibilities have a different causa- tion! The more detailed your information, the quicker the customer service will be able to answer your problem rapidly and efciently! CAUTION: Never open the device without the authorization of your customer service. This can lead to a loss of warranty! TROUBLESHOOTING Problem Cause Solution Polit light on the panel in on, but the machine does not start One or both microswit- ches do not close proper- ly the electric circuit

• Check that the housing is closed properly

Rev. 13.04.2021POUŽITÍ

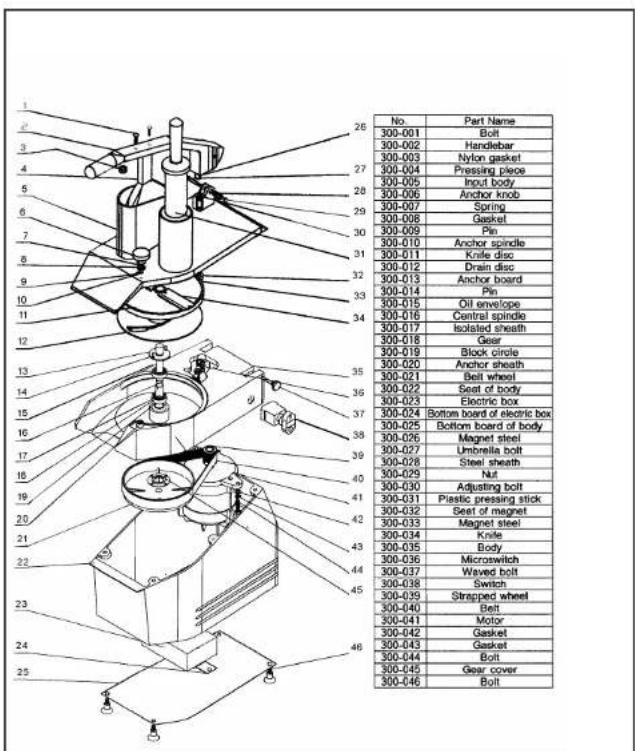

Rev. 13.04.2021COMPOSITION

Rev. 13.04.2021DIAGRAMMA ELETTRICO

Rev. 13.04.2021NOTES/NOTZIENNOTES/NOTZIEN
