Sicherheitshinweise

• This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are supervised or have received instructions concerning the use of the appliance in a safe way and understand the hazards involved.
  • Children shall not play with the product.
• Cleaning and user maintenance shall not be carried out by children unless they are supervised.
• A damaged power cord may only be replaced by the authorised service agent in order to avoid hazards.
• Caution! There is danger of explosion from improper replacement of the batteries. Replace batteries only with the same or equivalent type of batteries.
  • Always exchange the entire set of batteries.
• Make sure the batteries are correctly inserted. Observe the polarity (+) plus / (-) negative on the battery and the housing. Improperly inserted batteries can lead to leakage or, in extreme cases, a fire or an explosion.
• Remove used batteries. Remove the batteries if you know that the product will not be used for a longer period of time. Otherwise, the batteries could leak and cause damage.
  • Non-rechargeable batteries must not be recharged.
• The connections must not be short-circuited.
• Remove the batteries from the product before disposal.

English

Safety Instructions

• Unplug the product during filling and cleaning.
• Never leave water in the reservoir when the product is not in use.
• Empty and clean the product before storage. Clean the product before next use.
• Be aware that high humidity levels may encourage the growth of biological organisms in the environment.
• Do not permit the area around the humidifier to become damp or wet. If dampness occurs, turn the output of the humidifier down. If the humidifier output volume cannot be turned down, use the humidifier intermittently. Do not allow absorbent materials, such as carpeting, curtains, drapes, or tablecloths, to become damp.

Safety Instructions

1. Read this user manual thoroughly before first use and pass it on with the product. Pay attention to the warnings on the product and in this user manual. It contains important information for your safety as well as for the use and maintenance of the equipment.

2. Use the product only for its intended purpose and with recommended accessories and components. Improper use or wrong operation may lead to hazards.

3. Never leave the product unsupervised while it is switched on.

4. Do not place any objects on top of the product.

5. Never immerse electrical parts of the product in water or any other fluid during cleaning or operation. Never hold the product under running water.

6. Do not under any circumstances attempt (e.g. damaged power cord, product has been dropped, etc.) to repair the product yourself. For servicing and repairs, please consult an authorised service agent.

7. The mains voltage must match the information on the rating label of the product.

8. Only unplugging from the power socket can separate the product completely from the mains. Please be sure that the power plug is in operable condition.

9. Avoid damages to the power cord that may be caused by kinks or contact with sharp corners.

10. Keep this product including power cord and power plug away from all heat sources such as, ovens, hot plates and other heat-producing products/objects.

11. Only unplug from the power socket by the plug itself. Do not pull on the cord.

12. Unplug the product ...

13. when the product is not being used,

14. in case of malfunctions,
15. before attaching / detaching accessories and

16. before cleaning the product.

17. Use this product in dry indoor areas only and never outdoors.

18. Place the product on a flat, sturdy and slip-resistant surface.
19. Never use, expose or put the product near to:

- direct sunlight and dust; - fire (fireplace, grill, candles), water (water splashes, vases, bath tube) or heavy moisture.

1. This product is not intended for commercial use. It is designed for household use only.

2. Do not remove the guard or insert any object during operation.

3. Before cleaning, always let the product come to a complete stop and disconnect it from the mains.

4. In order to avoid overheating, do not cover the product.

5. Small children, children and older people should not be exposed to cold air currents for a long time.

6. Keep product away from loose objects such as plants, curtains, etc.

7. The product may only be connected to the mains once it has been completely assembled.

8. Follow the instructions in the chapter Cleaning and care.

9. Never expose batteries to excessive heat (e.g. bright sun, fire), and never throw them into fire. The batteries could explode.

10. Keep batteries out of reach of small children. If batteries have been swallowed, seek immediate medical attention.

WARNING

KEEP OUT OF REACH OF CHILDREN

Swallowing can lead to chemical burns, perforation of soft tissue, and death. Severe burns can occur within 2 hours of ingestion. Seek medical attention immediately.

English

Safety Instructions

1. If the batteries leak, remove them with a cloth and dispose of them accordingly. Prevent battery fluid from coming into contact with skin and eyes. If you do get battery fluid in your eyes, flush them thoroughly with lots of water and consult a physician immediately. If battery fluid comes into contact with your skin, wash the affected area with lots of water and soap.
2. Warning! Do not ingest the battery, Chemical Burn Hazard.
3. This product (remote control) contains a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death.
4. Keep new and used batteries away from children.
5. If the battery compartment does not close securely, stop using the product and keep it away from children.
6. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.
7. Remove used batteries from the device immediately and dispose of them properly and in accordance with legal regulations.
8. Do not heat batteries. Do not weld or solder directly to batteries. Do not disassemble batteries. Do not deform batteries.
9. A lithium battery with a damaged case should not come into contact with water.
10. Do not encapsulate and / or modify batteries.
11. Important! Check to ensure that the product is in a serviceable condition before use. The product shall not be used if it shows any signs of damage or it's suspected to be defect.

Congratulations

Thank you for your purchase of KOENIC product. Please read this manual carefully and keep it for future reference.

Intended use

The product is only intended for circulating and cooling the room air. Any other use may result in damage to product or injuries.

Imtron GmbH assumes no liability for damage to the product, for property damage or for personal injury due to careless or improper usage of the product, or usage of product which does not meet the manufacturer's specified purpose.

Before first time use

Remove the product and accessories carefully from the original packaging. It is recommended to keep the original packaging for storage. If you wish to dispose of the original packaging, please observe applicable legal provisions. Should you have any questions regarding proper disposal, contact your local waste management center.

Inspect the delivery contents for completeness and damages. Should the delivery contents be incomplete or damaged, contact your sales outlet immediately.

After unpacking, please refer to chapter

Cleaning and care.

Disposal

The symbol of the crossed-out wheeled bin shown on the product or its packaging means that the device must not be disposed of with other household waste but requires separate collection. You can dispose of the device free of charge at your local waste return and collection system. The addresses can be obtained from your responsible city council or local government. Alternatively, you can return small waste electrical and electronic equipment (WEEE) with an edge length of up to 25 cm free of charge to any retailer with a sales area relating to electrical and electronic equipment (EEE) of at least 400 m² or to a food retailer that offers EEE at least several times a year with a total

sales area of 800 m ^2 . Larger WEEE can be returned to a respective retailer free of charge when buying a new product of the same type. Regarding the modalities of the collection of WEEE in case of shipment of the newly bought product, please contact your retailer.

If possible, please remove all batteries and accumulators as well as all removable lamps before disposing of the device.

Please note that you are responsible for deleting all personal data on the device to be disposed of.

The symbol of the crossed-out wheeled bin shown on the battery or its packaging means that the battery must not be disposed of as unsorted municipal waste. In case the batteries contain more than 0,0005 % mercury (Hg), more than 0,002 % cadmium (Cd) or more than 0,004 % lead (Pb), the respective chemical symbol will be shown below the symbol of the crossed out wheeled bin. You can return waste batteries free of charge at your local waste return and collection system, whose addresses can be obtained from your responsible city council or local government, as well as in retail stores.

Returned waste batteries can be prepared for recycling in order to reduce waste and save resources. Please note that you are legally obliged to return batteries.

Batteries may contain substances which are harmful for the environment and human health. Due to the particular risks involved with lithium, special care must be taken when handling batteries containing it. The separate collection and recycling of waste batteries helps to prevent negative consequences for the environment and human health.

To avoid the generation of waste, please prefer batteries with a longer life or rechargeable batteries. To avoid littering, please do not leave batteries in public space but collect and return them for recycling.

English

Content

1 x Air Cooler
1 x Remote Control
2 x Cooling packs
1 x User manual

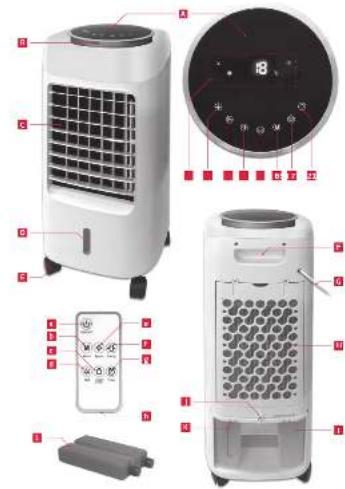

Controls and components

A Control panel with display

1 Display
2 Fan speed button
3 Cool mode button
4 Oscillation button
5 On/standby button
6 Mode button
7 Timer button
8 Display on/off button

B Decoration ring
Air outlet
D Water level display
E Castors (x 4)
F Handle
G Power cord with plug
H Air inlet grille
Water tank with water pump
J Water tank lock
K Water level scale MIN/MAX
Cooling pack

Remote control

a ON/OFF standby button
b MODE button
LIGHT ON/OFF button
d Cool mode button
e Speed button
f Swing button
g Timer button

Changing Battery

One battery is already inserted. Remove the battery protection before the first time use.

Fig. 1 Open the battery compartment. Insert 1 x battery of type CR2025 observing the + and - polarities as indicated on the battery and inside the battery compartment.

Assembly and installation

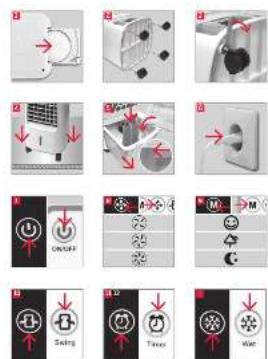

Fig. 2 Insert the rollers into the recesses provided on the underside of the product.

Fig. 3 Tighten the rollers with the supplied hexagon wrench.

Fig. 4 Place the product on stable ground.

Cooling with water

Fig. 5 Pull out the water tank and fill it up at least to the MIN mark and to the MAX mark at the most. Take care when doing so, to make sure, that no water enters the product, e.g. through the air inlet.

Warning

• Use only cold and clean tap water or distilled water.
• Never mix fragrances into the water.

You can also fill the supplied cooling packs with water, freeze them and put them in the water tank

Note:

Keep the small crystal inside the packs to make ice cooling gel.

• Keep out of reach of children.
• Do not swallow.
• If swallowed, consult a doctor immediately!
• In case of allergic reactions after skin contact, consult a doctor immediately!

Close the water tank again and ensure the lid is closed with a click.

Attention

If the water tank is filled, do not move or tilt the product, otherwise water will leak from the tank.

Warning

• The product may only be connected to the mains once it has been completely assembled.
• The product must not be disassembled during operation, general care, cleaning and user maintenance.
• The product may never be operated without the stand or in a horizontal position.
• Use only cold and clean tap water or distilled water.
• Never mix fragrances into the water.

Operation

Note:

The function settings and on/off switch can be operated from the control panel on the product as well as remotely.

Fig. 6 Plug the power plug into the socket. The room temperature is shown in the display.

Fig. 7 Turn on the air cooler using the on/standby button ⚙The room temperature is displayed.

Fig. 8 Select the fan strength using the speed button

Symbol	Fan strength
	low
	medium
	high

Fig. 9 Select the desired operating mode using the 📂Mutton.

Mode Function
	Normal ModeStandard fan functiondepending on the settinglow, medium or high
	Natural ModeChanging fan strength,which is based on natural wind
	Comfort ModeThe fan level is regulated down in stages (30 min.).Depending on the setting:from high to medium,later from medium to lowfrom medium to low or from low to shutdown

Oscillation mode

Fig. 10 Press the button to turn the swivel function on and off.

Timer mode

The timer Ⓜ function switches the product off at a set time. Times can be selected between 1 to 12 hour intervals.

Fig. 11 Press the Timer button Ⓜ set the turn-off time. Press the button repeatedly until OH appears in the display.

Note:

If the timer is activated, an H will appear in the display below the °C unit.

Cooling Mode

Fig. 12 Press this button ☑ to activate the cooling mode. Please refer to the chapter on Cooling with water.

Turn off the display

Fig. 13 Press this button ☐ to turn off the display. When you press any key, the display will turn on again.

English

Cleaning and care

Caution

• Before cleaning, always let the product come to a complete stop and disconnect it from the mains.
• Do not use solvents or abrasives, metal utensils or hard brushes for cleaning.
• Do not immerse the air cooler in water or other liquid. Do not allow water to drip on or into the air cooler motor housing.

Empty and clean the water tank

Note:

With daily use, clean the water tank every 7 days.

Remove the pump from its anchorage. Remove the water tank and empty it over a sink, wash the water tank with soapy water and let it dry.

Clean the filter

Note:

With daily use, clean the filter every 7 days or when the fan performance drops noticeably.

- Loosen the two screws of the screw lock to remove the filter frame. Take it off at a slight angle towards the top.

2 Remove the air intake filter. Clean the air intake filter with a soft brush. If it is very dirty, use soapy water and clean the filter under running water. Let the air intake filter dry completely.

3 Put the air intake filter back into the product.

4 Slide the filter frame into the guides on the product from above to reattach it. Fasten the filter frame with the two screws.

Note:

Before not using the product for extended periods of time, empty the water tank, turn the unit on, and set it to the highest fan speed for at least 12 hours. This will dry the filter and the inside of your unit.

Technical data

Rated voltage : 220 - 240 V\~

Rated power : 65 W

Frequency : 50 Hz

Protection class : II

Height : approx. 76 cm

Weight : approx. 6.0 kg

Remote control : 1 x CR2025

Description Symbol Value Unit
Maximum fan flow rate	F	6.8	m^3/min
Fan power input	P	58.2	W
Service value	S_v	0.12	(m^3/min)/W
Standby power consumption	P_ss	--	W
Fan sound power level	L_wA	64.3	dB(A)
Maximum air velocity	c	3.12	m/s
Measurement standard for service value	IEC 60879:1986+cor1:1992
Contact details for obtaining more information	Imtron GmbHWankelstraße 5, 85046 Ingolstadt, Germany

Peso : aprox. 6,0 kg

Peso : aprox. 6,0 kg

Controlo remoto : 1 x CR2025
