Sicherheitshinweise

- This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are supervised or have received instructions concerning the use of the appliance in a safe way and understand the hazards involved or are under supervision.

• Children shall not play with the product.

- Cleaning and user maintenance shall not be carried out by children unless they are supervised.

• The power supply unit shall not be used, if pins of the plug part are damaged.

- Please note that the mains plug and the connecting cable are not to be damaged. If any damage occurs the product must not be used anymore. Plug and power cable are not replaceable.

- Warning! Only use the detachable supply unit DZ012ALU050200V provided with this appliance.

- LED's are not replaceable.

- When the light source reaches its end of life the whole product shall be replaced.

- Attention! Please do not look directly into the light emanating from the LED. Do not point the LED light directly into the eyes.

- Follow the instructions in the chapter Cleaning and care.

- Unplug the product during filling and cleaning.

- Never leave water in the reservoir when the product is not in use.

Safety instructions

• Empty and clean the product before storage. Clean the product before next use.
• Be aware that high humidity levels may encourage the growth of biological organisms in the environment.
• Do not permit the area around the humidifier to become damp or wet. If dampness occurs, turn the output of the humidifier down. If the humidifier output volume cannot be turned down, use the humidifier intermittently. Do not allow absorbent materials, such as carpeting, curtains, drapes, or tablecloths, to become damp.
• Ensure that the fan is disconnected off from the supply mains before removing the guard.

English

Safety instructions

• Read this user manual thoroughly before first use and pass it on with the product. Pay attention to the warnings on the product and in this user manual. It contains important information for your safety as well as for the use and maintenance of the equipment.
• Never leave the product unsupervised while it is switched on.
• Do not place any objects on top of the product.
• Never immerse electrical parts of the product in water during cleaning or operation. Never hold the product under running water.
• Do not under any circumstances (e.g. product has been dropped etc.) attempt to repair the product yourself. For servicing and repairs, please consult an authorised service agent.
• Avoid damages to the cord that may be caused by kinks or contact with sharp corners.
• Keep this product including cord away from all heat sources, e.g. ovens, hot plates and other heat-producing products/objects.

• Disconnect the product from the power supply ...

• when the product is not being used,

• in case of malfunctions,
• before attaching / detaching accessories and

• before cleaning the product.

• Use this product in dry indoor areas only and never outdoors.

• This product is not intended for commercial use. It is designed for household use only.
• Make sure that the motor unit and supply cord do not become wet.

12

• Use accessories supplied with the device or recommended by the manufacturer only!
• This product is suitable only for private use.
• Do not cover the product while in use. Fire hazard!
• Important! Check to ensure that the product is in a serviceable condition before use. The product shall not be used if it shows any signs of damage or it's suspected to be defect.

Congratulations!

Thank you for your purchase of KOENIC product. Please read this manual carefully and keep it for future reference.

Intended use

The fan is intended to be used for air circulation. The LED light of this product is for decoration use only and not suitable for household room lighting. The LED light is not intended for use in other applications. Using it for anything else can damage the device or cause injury.

Imtron GmbH assumes no liability for damage to the product, for property damage or for personal injury due to careless or improper usage of the product, or usage of the product which does not meet the manufacturer's specified purpose.

Before first time use

Remove the product and its accessories carefully from the original packaging. It is recommended to keep the original packaging for storage. If you wish to dispose of the original packaging, please observe applicable legal provisions. Should you have any questions regarding proper disposal, contact your local waste management center.

Inspect the delivery contents for completeness and damages. Should the delivery contents be incomplete or damaged, contact your sales outlet immediately.

After unpacking, please refer to chapter

Cleaning and care.

Content

1 x Mini air cooler with water container
1 x USB cable
1 x Power adaptor
1 x User manual
1 x Warranty card

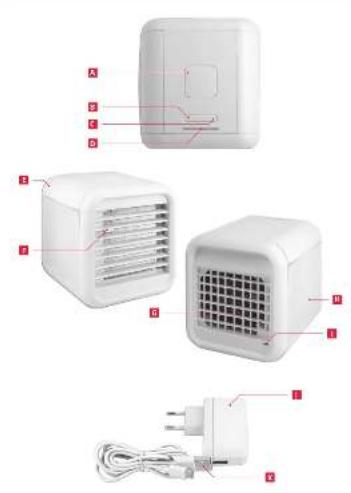

Controls and components

A On/off switch
B Fan level switch
c Light switch
D Fan level indicator
E Water container lid
F Air outlet, adjustable
G Air inlet
H Water container
USB socket
J Power adaptor
K USB Cable

English

Use

Note:

• Place the mini air cooler on an even surface such as a table, desk or counter top.
• Let the filter absorb water for at least 3 minutes after filling the container and before using it. Doing so, cools down the air the quickest way.
• Try to stay within a few feet of mini air cooler. You'll feel the most benefit when sitting directly in front of it.
• The mini air cooler will run for approximately 4 hours on a single fill on low fan speed. Even if the water container is empty, the filter is still damp and mini air cooler is still cooling.
  • Note that during the very first usage and after longer periods of not using the product, a greater amount of water will instantly flow from the container into the product and the filter. This is normal and does not influence the total running time.

Fig. 1 Place mini air cooler on a flat surface.
Fig. 2 Fold the cover upwards and take out the water container. Open the screw cap and fill the container with water. Close the container and put it back in place. Fold the cover down to fix the water container.

Warning!

If the water container has been filled, do not move the mini air cooler anymore. If water runs out of the container and electrical (fan motor) or electronic components get wet, the unit will be permanently damaged.

Fig. 3 Plug the USB adaptor into a socket outlet. Then, insert the larger USB A plug of the cable into the USB power supply and the other end into the USB socket on the back of the mini air cooler. Note the USB current of 2A. Therefore USB sockets of computers may not work appropriately.

Warning!

Do not turn on and / or use the product while it is connected to a powerbank.

Fig. 4 Press the on/off switch to turn on the mini air cooler. Set the fan speed by pressing the fan level button. You can choose between low, medium, and high mode. The fan level indicator shows the currently set speed. Choose the light color by pressing the light button. You can choose between 7 colors in the following order: red, blue, purple, green, yellow, cyan, white. Pushing the light button again when in white light mode will turn off the lights. To turn off the mini air cooler, press the on/off button again.

Note:

• It is recommend to turn on the mini cooler with an empty water container for at least 0.5 hour for drying. Missing to do so, might result in unpleasant smells etc.
• The machine provides the function of automatically shaking dust. When turned off, but connected with the power supply, press the fan speed and the light buttons for three seconds to enter this mode.
• The machine will switch back and forth between the high and low speed, and the color of the light will automatically change.
• Turn off the feature again by pressing the fan speed and light button for 3 seconds, or automatically after the machine runs for 5 minutes. This function can help shake off some dust adsorbed on the curtain fabric.

Cleaning and care

Warning!

• When cleaning, never use solvents or abrasive materials, hard brushes, metallic or sharp objects. Solvents are harmful to human health and can attack plastic parts, while abrasive cleaning mechanisms and tools may scratch the surface(s).
• Never immerse any electrical part of the product in water or in other liquids during cleaning. Never place it under running water.

Empty and clean the water tank

Note:

The filter does not need to be replaced.

Clean the device with a damp cloth. Then dry it with a dry cloth. Clean the water container and clean inside of the unit once weekly.

Fig. 5 Switch off the power. Take off the water container. Take off the upper parts and clean the filter.

Note:

Before not using the mini air cooler for extended periods of time, empty the water container, turn the unit on, and set it to the highest fan speed for at least 4 hours. This will dry the filter and the inside of your unit.

Troubleshooting

If there are any problems during operation, please refer to the following table. If problems cannot be solved as indicated under Solution, please contact your retailer.

Problem Possible causes Solution
Product does not work •	Interrupted power supply• Power supply too weak	• Check the power supply• Power supply must deliver 2A

Technical data

Rated voltage: 5 V

Rated current: 2 A

Water container capacity : max. 400 ml

Chromaticity coordinates : x=0.1988

$$ y = 0. 2 0 5 2 $$

Adaptor

Manufacturer: Hoyer Handel GmbH

Imported by : Imtron GmbH

Media-Saturn-Straße 1,85053 Ingolstadt, Germany.

Commercial registration number : HRB 4580

Model:DZ012ALU050200V

Input voltage: 100 - 240 V\~

Input AC frequency: 50/60 Hz

Output voltage: 5.0 V

Output current : 2.0 A

Output power : 10.0 W

Average active efficiency : 79.60%

Efficiency at low load (10 %) : -

No-load power consumption : 0.06 W

Protection class : II

English

Description Symbol Value Unit
Maximum fan flow rate F 1.33 m			^3 /min
Fan power input (with adaptor) P 1.51 W
Service value S	v	0.88 (m	^3 /min)/W
Standby power consumption P	SB	--	W
Fan sound power level L	wA	49.6 dB(A)
Maximum air velocity C 1.48 m/s
Seasonal electricity consumption	Q	--	kWh/a
Measurement standard for service value	EN 50564: 2011EN 60704-1: 20010+A11:2012EN IEC 60704-2-7:2020EN 60879:2019
Contact details for obtaining more information	Imtron GmbHMedia-Saturn-Straße 1,85053 Ingolstadt, Germany.
