USER MANUAL RCGM-01 Royal Catering

Abstract white line drawing of a stylized creature or mythical creature on a dark blue background (no text or symbols)

DE	Produktname	GETREIDEMÜHLE
EN	Product name	GRAIN MILL
PL	Nazwa produktu	MŁYNEK DO ZBOŻA
CZ	Název výrobku	MLÝNEK NA OBILÍ
FR	Nom du produit	MOULIN A CEREALES
IT	Nome del prodotto	ELETTROMULINO PER CEREALI
ES	Nombre del producto	MOLINILLO DE GRANO
HU	Termék neve	GABONAMALOM
DA	Produktnavn	KORNKVÆRN
FI	Tuotteen nimi	VILJAMYLLY
NL	Productnaam	GRAANMOLEN
NO	Produktnavn	KORNMÓLLE
SE	Produktnamn	SPANNMÅLSKVARN
PT	Nome do produto	MOINHO PARA GRÃOS
SK	Názov produktu	MLYNČEK NA OBILIE
DE	Modell	RCGM-01
EN	Product model
PL	Model produktu
CZ	Model výrobku
FR	Modèle
IT	Modello
ES	Modelo
HU	Modell
DA	Model
FI	Tuotteen malli
NL	Productmodel
NO	Produktmodell
SE	Produktmodell
PT	Modelo do produto
SK	Model
DE	Hersteller	expondo Polska sp. z o.o. sp. k.
EN	Manufacturer
PL	Producent
CZ	Výrobce
FR	Fabricant
IT	Produttore
ES	Fabricante
HU	Termelő
DA	Producent
FI	Valmistaja
NL	Producent
NO	Produsent
SE	Tillverkare
PT	Fabricante
SK	Výrobca
DE	Anschrift des Herstellers	ul. Nowy Kisielin – Innowacyjna 7, 66-002 Zielona Góra | Poland, EU
EN	Manufacturer Address
PL	Adres producenta
CZ	Adresa výrobce
FR	Adresse du fabricant
IT	Indirizzo del produttore
ES	Dirección del fabricante
HU	A gyártó címe
DA	Producentens adresse
FI	Valmistajan osoite
NL	Adres producent
NO	Produsentens adresse
SE	Tillverkarens adress
PT	Endereço do fabricante
SK	Adresa výrobcu

4 3 2 1 STROYAL COOKING COOKING COOKING COOKING COOKING COOKING COOKING COOKING COOKING COOKING COOKING COOKING COOKING COOKING COOKING COOKING COOKING COOKING COOKING COOKING COOKING COOKING COOKING COOKING COOKING COOKING COOKING COOKING COOKING COOKING COOKING COOKING COOKING COOKING COK O I

This User Manual has been translated for your convenience using machine translation. Reasonable efforts have been made to provide an accurate translation; however, no automated translation is perfect nor is it intended to replace human translators. The official User Manual is the English version. Any discrepancies or differences created in the translation are not binding and have no legal effect for compliance or enforcement purposes. If any questions arise related to the accuracy of the information contained in the User Manual, please refer to the English version of those contents which is the official version.

Technical data

Parameter description	Parameter value
Product name	Grain Mill
Model	RCGM-01
Rated voltage [V~] / frequency [Hz]	230/50
Rated power [W]	370
Rotation Speed [rpm]	1450
Dimensions [width x depth x height; mm]	270 x 220 x 420
Weight [kg]	12.5

1. General description

The user manual is designed to assist in the safe and trouble-free use of the device. The product is designed and manufactured in accordance with strict technical guidelines, using state-of-the-art technologies and components. Additionally, it is produced in compliance with the most stringent quality standards.

DO NOT USE THE DEVICE UNLESS YOU HAVE THOROUGHLY READ AND UNDERSTOOD THIS USER MANUAL.

To increase the product life of the device and to ensure trouble-free operation, use it in accordance with this user manual and regularly perform maintenance tasks. The technical data and specifications in this user manual are up to date. The manufacturer reserves the right to make changes associated with quality improvement. The device is designed to reduce noise emission risks to a minimum, taking into account technological progress and noise reduction opportunities.

Legend

The product satisfies the relevant safety standards.

Read instructions before use.

The product must be recycled.

WARNING! or CAUTION! or REMEMBER! Applicable to the given situation.

(general warning sign)

Use guard.

ATTENTION! Electric shock warning!

ATTENTION! Rotating parts, entanglement hazard!

Only use indoors.

PLEASE NOTE! Drawings in this manual are for illustration purposes only and in some details may differ from the actual product.

2. Usage safety

ATTENTION! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury or even death.

The terms "device" or "product" are used in the warnings and instructions to refer to:

Grain Mill

2.1. Electrical safety

a) The plug must fit the socket. Do not modify the plug in any way. Using original plugs and matching sockets reduces the risk of electric shock.
b) Avoid touching earthed elements such as pipes, heaters, boilers and refrigerators. There is an increased risk of electric shock if the earthed device is exposed to rain, comes into direct contact with a wet surface or is operating in a damp environment. Water getting into the device increases the risk of damage to the device and of electric shock.
c) Use the cable only for its designated use. Never use it to carry the device or to pull the plug out of a socket. Keep the cable away from heat sources, oil, sharp edges or moving parts. Damaged or tangled cables increase the risk of electric shock.
d) If using the device in a damp environment cannot be avoided, a residual current device (RCD) should be applied. The use of an RCD reduces the risk of electric shock.
e) Do not use the device if the power cord is damaged or shows obvious signs of wear. A damaged power cord should be replaced by a qualified electrician or the manufacturer's service centre.
f) To avoid electric shock, do not immerse the cord, plug or device in water or other liquids. Do not use the device on wet surfaces.
g) ATTENTION! DANGER TO LIFE! While cleaning, never immerse the device in water or other liquids.
h) Do not use in very humid environments or in the direct vicinity of water tanks.
i) Before the first use, please check whether the main voltage type and current comply with the indicated data on the type plate.

2.2. Safety in the workplace

a) Make sure the workplace is clean and well lit. A messy or poorly lit workplace may lead to accidents. Try to think ahead, observe what is going on and use common sense when working with the device.
b) Do not use the device in a potentially explosive environment, for example in the presence of flammable liquids, gases or dust. The device generates sparks which may ignite dust or fumes.
c) If there are any doubts as to the correct operation of the device, contact the manufacturer's support service.
d) Only the manufacturer's service point may repair the device. Do not attempt any repairs independently!
e) In case of fire, use a powder or carbon dioxide (CO2) fire extinguisher (one intended for use on live electrical devices) to put it out.
f) Children or unauthorised persons are forbidden to enter a work station. A distraction may result in loss of control over the device.
g) Use the device in a well-ventilated space.
h) Only connect and disconnect the pressure line when the air valve is closed.
i) Please keep this manual available for future reference. If this device is passed on to a third party, the manual must be passed on with it.
j) Keep packaging elements and small assembly parts in a place not available to children.
k) Keep the device away from children and animals.
I) If this device is used together with another equipment, the remaining instructions for use shall also be followed.

Remember! When using the device, protect children and other bystanders.

2.3. Personal safety

a) Do not use the device when tired, ill or under the influence of alcohol, narcotics or medication which can significantly impair the ability to operate the device.
b) The machine is not designed to be handled by persons (including children) with limited mental and sensory functions or persons lacking relevant experience and/or knowledge unless they are supervised by a person responsible for their safety or they have received instruction on how to operate the machine.
c) When working with the device, use common sense and stay alert. Temporary loss of concentration while using the device may lead to serious injuries.
d) To prevent the device from accidentally switching on, make sure the switch is on the OFF position before connecting to a power source.
e) Do not wear loose clothing or jewellery. Keep hair, clothes and gloves away from moving parts. Loose clothing, jewellery or long hair may get caught in moving parts.
f) Remove all adjusting tools or spanners before turning the device on. A tool or spanner left in the revolving part of the device may cause injury.
g) The device is not a toy. Children must be supervised to ensure that they do not play with the device.
h) Do not put your hands or other items inside the device while it is in use!

2.4. Safe device use

a) Do not use the device if the "ON/OFF" switch does not function properly (does not switch the device on and off). Devices which cannot be switched on and off using the ON/OFF switch are hazardous, should not be operated and must be repaired.
b) Disconnect the device from the power supply before commencement of adjustment, cleaning and maintenance. Such a preventive measure reduces the risk of accidental activation.
c) When not in use, store in a safe place, away from children and people not familiar with the device who have not read the user manual. The device may pose a hazard in the hands of inexperienced users.
d) Keep the device in perfect technical condition. Before each use check for general damage, especially check moving components for cracked parts or elements, and for any other conditions which may impact the safe operation of the device. If damage is discovered, hand over the device for repair before use.
e) Keep the device out of the reach of children.
f) Device repair or maintenance should be carried out by qualified persons, only using original spare parts. This will ensure safe use.
g) To ensure the operational integrity of the device, do not remove factory-fitted guards and do not loosen any screws.
h) Avoid situations where the device stops working during use due to excessive loading. This may result in overheating of the drive elements and damage to the device.
i) Do not touch articulated parts or accessories unless the device has been disconnected from the power source.
j) Do not move, adjust or rotate the device in the course of work.
k) Do not leave this appliance unattended while it is in use.
I) Clean the device regularly to prevent stubborn grime from accumulating.
m) The device is not a toy. Cleaning and maintenance may not be carried out by children without supervision by an adult person.
n) It is forbidden to interfere with the structure of the device in order to change its parameters or construction.
o) Keep the device away from sources of fire and heat.
p) Do not overload the device.
q) Do not cover the ventilation openings!
r) The appliance is only designed to grind dried grains, however, some of them (e.g. nuts, sesame, flax, poppy seeds or coffee) are oily and during grinding the oil they contain can settle on the grinding elements of the appliance, clogging them up, so grind them only together with dry grains. Never grind dried corn kernels!

ATTENTION! Despite the safe design of the device and its protective features, and despite the use of additional elements protecting the operator, there is still a slight risk of accident or injury when using the device. Stay alert and use common sense when using the device.

3. Use guidelines

This grain mill can process all types of cereal (wheat, rye, oats, barley, brown rice, millet and the related subspecies such as spelt). Never, however grind corn / popcorn.

The product is intended for home use only.

The user is liable for any damage resulting from unintended use of the device.

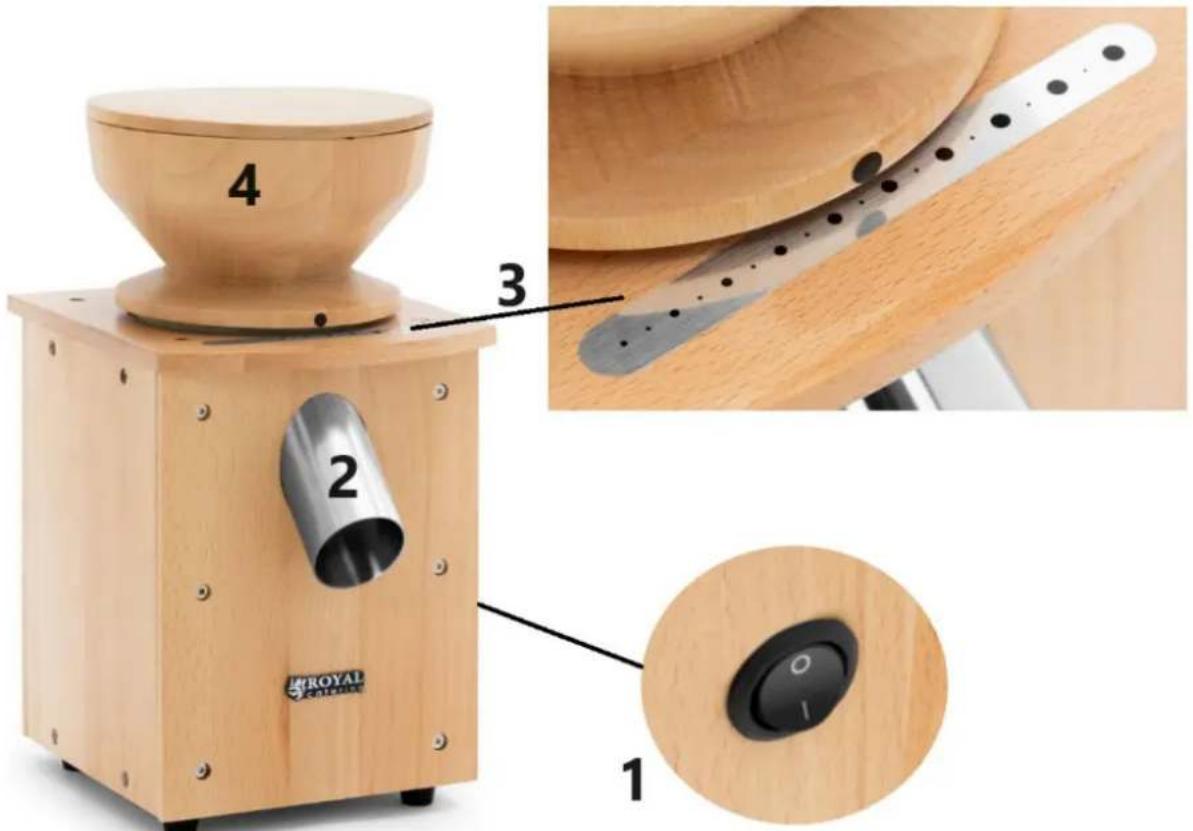

3.1. Device description

4 3 2 1 ROYAL COLLIER

1 - Power Switch (at the back of the device)
2 - Outlet Spout
3 – Grinding Fineness Scale
4 - Hopper

3.2. Preparing for use

APPLIANCE LOCATION

The temperature of environment must not be higher than 40^ C and the relative humidity should be less than 85%. Ensure good ventilation in the room in which the device is being used. There should be at least 10 cm distance between each side of the device and the wall or other objects. The device should always be used when positioned on an even, stable, clean, fireproof and dry surface, and be out of the reach of children and persons with limited mental and sensory functions. Position the device such that you always have access to the power plug. The power cord connected to the appliance must be properly grounded and correspond to the technical details on the product label.

Disassemble the device and all its components and clean them before the first use.

3.3. Device use

1. Connect the device to an outlet with alternating current (AC) only. Please make sure that your household power supply matches the voltage specifications indicated on the techplate of your device.

2. Use only thoroughly cleaned grain. Unclean grain may contain small stones that can damage the millstones.

3. Only use dry grain!! Moist grain will lead to the build-up of a thick residue on the Millstone. Testing whether grain is dry enough for milling by squashing a sample of it with the back of a spoon against a hard surface. If it cracks loudly, the grain is dry. If it flattens under pressure, looking something like a rolled oat, then it is moist (or oily).
4. This grain mill is designed for normal household use. It is not suitable for commercial use.
5. Never leave your mill unattended during operating. Always keep it out of reach of children.
6. Do not clean the mill by inserting pointed objects into the milling chamber or using running water.
7. The housing of this grain mil is made of solid wood. Please keep away from stove, other heat sources, sink, running water, or any other liquids.
8. Do not operate with damaged plug or electrical cord. If the plug is damaged, it must be replaced by the manufacturer.
9. Keep the ventilation slots unobstructed.

Selecting grain

1. Use only thoroughly cleaned grain. Unclean grain may contain small stones that can damage the millstones.
2. Only use dry grain!! Moist grain will lead to the build-up of a thick residue on the Millstone. Testing whether grain is dry enough for milling by squashing a sample of it with the back of a spoon against a hard surface. If it cracks loudly, the grain is dry. If it flattens under pressure, looking something like a rolled oat, then it is moist (or oily).
3. Oily / fatty foods
   Please refrain from milling nuts or oily foods such as sesame, flax, or poppy seeds. Even coffee beans contain a great deal of oil, which leaves a film on the milling stones, rendering them incapable of processing the grain properly. However, you have the option to mill oily products or fresh herbs by milling them together with dry grains.

Before first use

Please mill a handful of grain on Middle Scale and then discard the flour. This will remove any mineral debris from the manufacturing process on the milling stones.

1. Plug in the power cord.
2. Position container or bowl beneath the outlet spout.
3. Switch on the mill.
4. Adjust the grind (texture) setting.
5. Pour grain into the hopper to begin milling. Readjust the grind setting as required to produce flour at the desired texture.
6. When finished milling, switch off the mill and unplug the power cord.

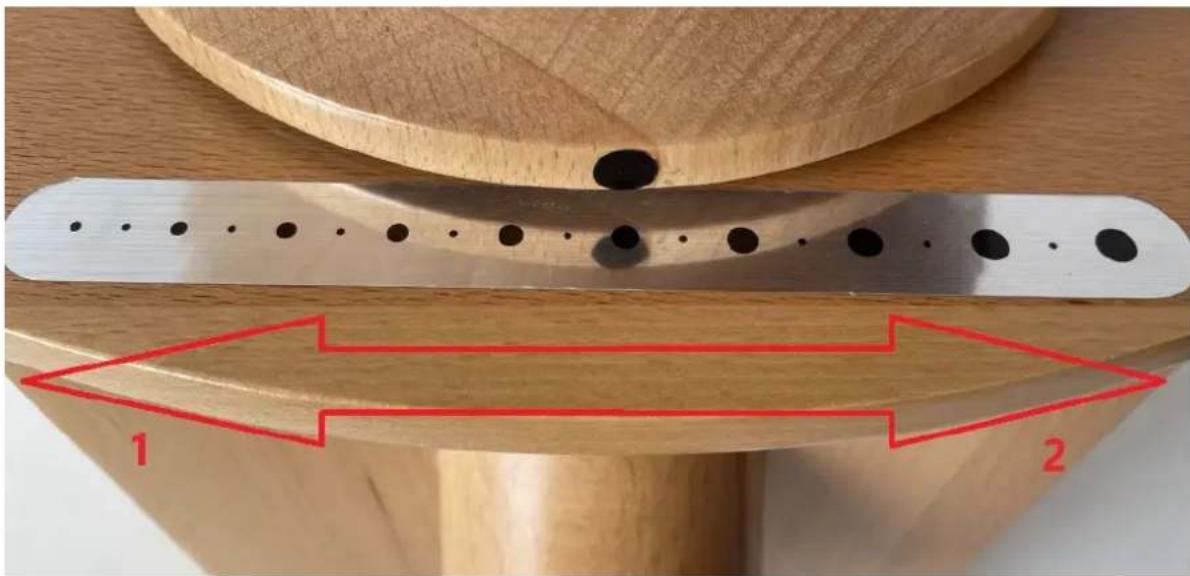

Adjusting the fineness of the milled product

To adjust the grind setting, simply rotate the hopper. You can continually adjust the grind setting between coarse and fine, even during the grinding process. To locate the finest setting, turn on the mill with the grain hopper empty, and rotate the hopper clockwise in the 'fine' direction until you hear the mill stones grinding against one another. Then slightly rotate the hopper counterclockwise until the grinding sound stops. This setting offers the least space between the millstones and is therefore the finest. (For spelt and rye, use about a finger's width towards the direction of 'coarse'. For oats, use even a little more). The scale below the hopper can help you remember your preferred settings, although the point on the scale for a given texture may vary slightly with the changing temperature and humidity in the room where mill is used.

CAUTION: If the mill is switched off and the hopper still contains grain, do not adjust the setting

towards 'fine'. This could jam the remaining flour and grain between the millstones, causing the motor to bind. Adjust to a coarse setting, switch on the mill, and then readjust the setting as desired.

1 2

Grind Setting:

1 - Fine

2 - Coarse

3.4. Cleaning and maintenance

Set the mill on"coarse". Without any grain in the hopper, turn it on. Hold a vacuum cleaner tube against the flour outlet and then against the grinding outlet.

If the millstones are smeared with an oily residue, you can clean them by grinding a cup of wheat or rice at the medium setting. This should remove all traces of the residue.

You can also remove the upper millstone to clean the millstones with a brush.

However, it is very important whenever you handle the millstones or the milling chamber, that you first unplug the power cord!

Afterwards, remove the hopper by unscrewing it (counterclockwise). You can remove the upper millstone to clean the millstones with a brush.

a) Unplug the mains plug and allow the device to cool completely before each cleaning, adjustment or replacement of accessories, or if the device is not being used.

• Wait for the rotating elements to stop.

b) Use only non-corrosive cleaners to clean the surface.

c) Use only mild, food-safe detergents to wash the device.

d) After cleaning the device, all parts should be dried completely before using it again.

e) Store the unit in a dry, cool place, free from moisture and direct exposure to sunlight.

f) Do not spray the device with a water jet or submerge it in water.

g) Do not allow water to get inside the device through vents in the housing of the device.

h) Clean the vents with a brush and compressed air.

i) The device must be regularly inspected to check its technical efficiency and spot any damage.

j) Do not use sharp and/or metal objects for cleaning (e.g. a wire brush or a metal spatula) because they may damage the surface material of the appliance.

k) Do not clean the device with an acidic substance, agents of medical purposes, thinners, fuel, oils or other chemical substances because it may damage the device.

DISPOSING OF USED DEVICES:

Do not dispose of this device in municipal waste systems. Hand it over to an electric and electrical device recycling and collection point. Check the symbol on the product, instruction manual and packaging. The plastics used to construct the device can be recycled in accordance with their markings. By choosing to recycle you are making a significant contribution to the protection of our environment.

Contact local authorities for information on your local recycling facility.

TROUBLESHOOTING:

Problem	Solution
The motor hums, but the grain is not taken up.	Simply turn the hopper and set the mill on “COARSE” until the motor starts. Then readjust the mill to the desired texture.
The motor binds during operating.	If the motor binds during the operating, this may be caused by overheating due to your improper use. To protect the motor from serious damage, a built-in thermal cut-off switch is designed. Unplug and allow the mill to cool down. Try to restart the mill, if this problem reoccurs, you need to troubleshoot the source:Is the grain too moist?Are the millstones or the mill chamber clogged?Is there a foreign object caught between the millstones?Did you turn on the mill with the hopper full and the millstones at the finest grind setting?

4 3 2 1 ROYAL COLOTHO O I

ROZWIĄZYWANIE PROBLEMÓW:

4 3 2 1 ROYAL COOKING COOKING COOKING COOKING COOKING COOKING COOKING COOKING COOKING COOKING COOKING COOKING COOKING COOKING COOKING COOKING COOKING COOKING COOKING COOKING COOKING COOKING COOKING COOKING COOKING COOKING COOKING COOKING COOKING COOKING COOKING COOKING COOKING COOKING COK O I

APPARATETS PLACERING

PLAATS VAN HET APPARAAT

APPARATENS PLACERING

4 3 2 1 ROYAL COOKING COOKING COOKING COOKING COOKING COOKING COOKING COOKING COOKING COOKING COOKING COOKING COOKING COOKING COOKING COOKING COOKING COOKING COOKING COOKING COOKING COOKING COOKING COOKING COOKING COOKING COOKING COOKING COOKING COOKING COOKING COOKING COOKING COOKING COK O I

For the disposal of the device please consider and act according to the national and local rules and regulations.
