USER MANUAL Genova RK10A01 LAICA

A) Connector
B) HYDROSMARTTM filter
C) Selector
E) Fastening ring
F) Rubber seal
G) Stainless steel strainer (removes main impurities)
H) Adapter keys
I) Set of adapters for taps with internal thread diameter of 23mm and 24mm
L) Set of adapters for taps with external thread diameter of 20.7mm and 21mm
M) Adapter for round taps with diameter from 15mm to 25mm
N) 2 universal seals for adapters

Dear Customer, LAICA would like to thank you for choosing this product, designed according to criteria of reliability and quality for complete satisfaction

IMPORTANT

READ CAREFULLY BEFORE USING

KEEP FOR FUTURE REFERENCE

The instruction manual must be considered an integral part of the product and must be kept for its entire life.

The connector is equipped with a stainless steel strainer that removes the main impurities, such as sand and suspended particles, that may be present in the water mains supply.

If the product is transferred to another owner, its documentation must also be transferred in its entirety. To ensure the safe and correct use of the product, the user must carefully read the instructions and warnings contained in the manual insofar as they provide important information regarding safety, user and maintenance instructions. Should the instruction manual get misplaced or you require additional information or clarifications, please fill in the relevant form on the website: https://www.laica.it/ in the FAQ and Support section.

Instruction manual available at: www.laica.com/manuals

CAUTION:

The GENOVA tap filter is a device intended for the treatment of drinking water.

The HYDROSMART™ filter filters drinking water, improving its taste and reducing any unwanted substances that may otherwise be present. HYDROSMART™ filters consist of activated carbon and hollow fibre membranes. Activated carbons are

generally effective in reducing chlorine and derivatives. The HYDROSMARTTM filter also effectively reduces: chlorine, microplastics, chlorinated herbicides and pesticides, chlorinated organic solvents, particulates and micro waste, sand and rust and suspended particles". The GENOVA tap filter allows you to select from 2 different water delivery modes:

1) Filtered water for drinking.
2) Unfiltered water with spray head.

CAUTION:

The HYDROSMART™ filter filters water, which IN ANY CASE MUST BE DRINKABLE and microbiologically safe

(check with the competent authority in your region).For informed use, request information from your mains water supplier or test the water coming from your house tap.

GENERAL SAFETY PRECAUTIONS

• After removing the product from its packaging, make sure it is intact and there is no damage resulting from transport. If unsure, do not use the jug and contact an authorized retailer.
• Follow the instructions in this manual. Incorrect use may affect the safety of the product or cause damage to the product itself.
• The manufacturer cannot be held responsible for any damage resulting from improper or incorrect use.
• For people affected by specific illnesses and allergies or on controlled diets, consult your doctor before using the filtering system.
• Keep the plastic packaging bag away from children: danger of suffocation.
• Use this product only for its intended purpose, that is, as a DRINKABLE WATER FILTER DEVICE. Any other use is considered non-compliant and therefore hazardous.
• In the case of emergency situations reported by the competent authorities, suspend use of the filter system and contact the water mains operator for further information. As soon as the authorities declare that tap water is drinkable and safe again, the filtering system must be cleaned as indicated in the paragraph "CARE AND MAINTENANCE" and the HYDROSMART™ filter must be replaced, following the indications in the paragraph "USING THE FILTERING SYSTEM-ACTIVATING THE HYDROSMART™ FILTER".
• Keep the product out of reach of children
• The filter must be prepared, replaced and maintained only by people over the age of 12.
  Children and individuals with reduced physical, sensory or mental capacities or unskilled people may only use the product if previously instructed on its safe use and only if informed of the dangers connected to the product itself.
• In the event of faults or malfunctions, contact an authorised retailer. Information on technical support can be obtained by filling in the relevant form on the website https://www.laica.it/ in the FAQ and Support section.
• Treat the product with care, protect it from impacts, extreme variations in temperature, humidity, dust, direct sunlight and sources of heat.
• Keep the product away from stoves, hot plates, ovens, microwaves or flammable materials.
• DO NOT use this product to produce drinkable water.
• DO NOT use the product as a toy.
• DO NOT tamper with or break the filtering system and the filter for any reason.
• DO NOT expose the product to the elements (rain, sun, etc.).
• DO NOT insert objects into the openings.
• DO NOT place the device in a steriliser under operation.
  DO NOT freeze the device.
  DO NOT wash in the dishwasher.
• DO NOT use the filtering system with pre-treated water.
  DO NOT filter hot water. CAUTION:
• The flow of water at a temperature higher than 50^ through the connector may cause permanent damage.

The flow of water at a temperature higher than 35^ through the filter may cause permanent damage to its functionality.
To guarantee the best performance, the working pressure should be between 0.20 and 0.35MPa
- Filter only cold running water from the domestic water supply, with the filter properly assembled
- This device is NOT intended for professional use but for domestic use only.

IMPORTANT NOTES FOR PRODUCT USE

The HYDROSMART™ filter filters water, which IN ANY CASE MUST BE DRINKABLE. Before use, verify the water quality with the competent authority in the area for informed use of the product.
- The GENOVA filtration system maintains the pH value within the range indicated by European Directive (EU) 2020/2184 concerning the quality of water meant for human consumption.
Silver is used in the HYDROSMART™ filter system plant as a manufacturing aid in order to achieve internal bacteriostaticity. Any release of silver ions falls under the guidelines from the World Health Organization (WHO).

The filter for GENOVA HYDROSMART™ taps is designed to treat drinking water. The filter treats drinking water by reducing the amounts of any undesirable substances that may be present. The HYDROSMART™ filter can treat 900 litres (for a maximum of 10 litres filtered each day for 90 days).

After 90 days (maximum 900 litres filtered during such period) the filter must be replaced.

DECLARATION OF CONFORMITY:

Filtration systems produced by LAICA are compliant with the following standards:

Ministerial Decree no. 174 dated 6/04/2004 regarding materials and objects that may be used in collection, treatment, supply and distribution systems for water intended for human consumption.
Legislative Decree no. 18, 23rd February 2023, implementation of Directive (EU) 2020/2184 regarding the quality of water intended for human consumption.
Regulation 1935/2004/EC regarding materials in contact with food.
Regulation (EU) 10/2011 regarding plastic materials and objects intended to come into contact with food.
Ministerial Decree no. 25 dated 07/02/2012 (ITALY), technical provisions concerning equipment designed for the treatment of water intended for human consumption.
Ministerial Decree dated 21st March 1973 and subsequent amendments concerning packaging, recipients, tools, intended to come into contact with food substances or substances for personal use.

Attention: this equipment requires regular periodic maintenance in order to guarantee the potability requirements of the treated drinkable water and maintenance of the improvements as declared by the manufacturer.

PREPARING THE TAP FILTER

1) Before performing the following steps, wash your hands and thoroughly rinse all the components required to install the filtering system under running water.

Clean the outer part of the connector and the adapters with a damp sponge and delicate detergent, then rinse thoroughly with cold drinking water.

Do not use aggressive detergents, solvents, chemical or abrasive products.

2) Remove the aerator from the tap (fig. 1, 2) and choose the best adapter from the ones provided: I, L or M.

3) To install the connector using the type I or L adapters, remove the fastening ring from the connector and insert it on the tap (fig. 3).
4) Screw the adapter onto the tap using the fastening key (H) (fig. 4) to help you, taking extra care when inserting the seal (N) in the relevant seat (fig. 4).

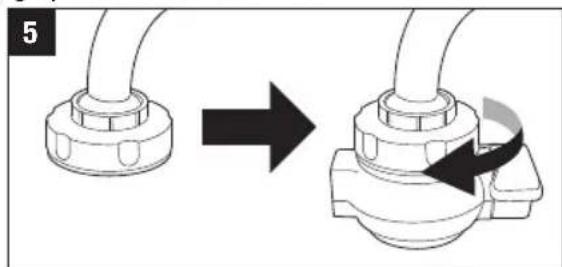

5) Lower the fastening ring until the adapter is covered (fig. 5) and screw on the connector.

6) To install the connector with the M adapter, proceed as follows:

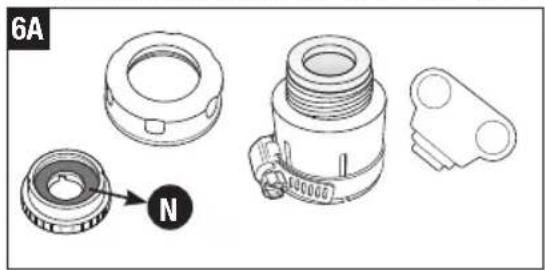

• Remove the fastening ring from the connector and take the L adapter with 021 mm diameter, then assemble the three pieces as described in figure 6A, 6B and 6C.

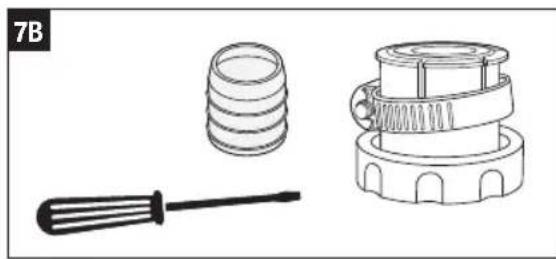

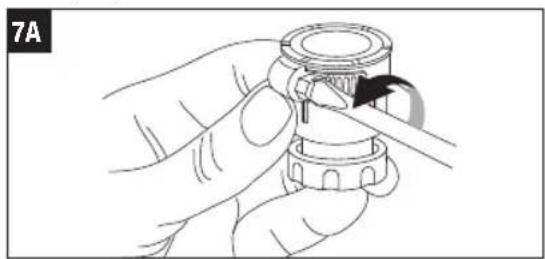

• Loosen the fastening band with a flat head screwdriver and remove the smaller seal inside the adapter M (fig. 7A, 7B).

• Choose the best seal: only the one with the largest diameter (fig. 8A) or both with one inserted inside the other, pressing firmly and taking extra care over the direction in which they are inserted (fig. 8B).

Install the adapter M on the tap and tighten the fastening band using a flat head screwdriver to secure it firmly to the tap (fig. 9A and B).

Screw the connector onto the ring (fig. 10).

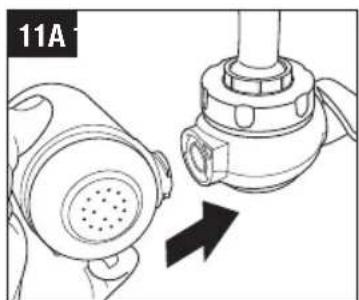

7) Remove the HYDROSMART™ filter from its packaging and rinse it under running water. Now hook the filter to the connector as shown in figure 11A, 11B, 11C.

SMART FILTRATION SYSTEM - FREE LAICA HOME WELLNESS APP - USE

List of compatible devices:

• iOS: iPhone with version 10 operating system.
• For devices with Android™ operating system: from version 6.0 (Marshmallow).

By adding the HYDROSMART filter to the free "Laica Home Wellness" app, you can receive automatic notification on your smartphone when to replace the filter.

1. Install the free "Laica Home Wellness" app on your smartphone.
2. Start the app and enter the "FILTER" section from the main screen.
3. Add the HYDROSMART™ FILTER by pressing the "+" key. It is possible to add the filter by scanning the QR code printed on the upper part of the filter or manually by pressing the "Select manually" button.4. The app adds the filter and automatically prompts the replacement date.

To optimise the effective duration of the filter based on the water treated, you can select the chlorine level in your water supply.

To use it properly, request further information from your water supplier or carry out a preliminary assessment of the local water supply.

1. Save the settings by pressing the key.

2. When the filter replacement date is reached, the notification to replace it will appear on your smartphone. The notification is also sent to the email address given during registration.

3. To scan the QR code on the upper part of the filter, you must authorise the app to access to your smartphone camera.
   To receive notifications when to replace the filter, you must enable the settings on your smartphone.
   To replace the filter, you can add a new one by scanning the QR code printed on the upper part of the filter or by updating the expiry date by clicking on the "Filter expired" button (click to replace).

USING THE FILTERING SYSTEM

Activating the HYDROSMART™ filter:

When first used and every time the HYDROSMARTTM filter is changed, turn the tap on and allow the water to flow through the filter for several minutes (at least 4-5 minutes) to correctly activate the materials of which the filter is composed. This water can be used for watering plants. If the GENOVA filtering system has not been used for 24 hours or more, allow the water to flow for 30-60 seconds before using the filtered water again.

CAUTION:

• To guarantee the performance characteristics of the filtering system, it is recommended to filter cold water only.
• The flow of water at a temperature higher than 50^ through the connector may cause permanent damage. The flow of water at a temperature higher than 35^ through the filter may cause permanent damage.
• To adjust the water flow properly, open the tap slowly.

The GENOVA filtering system has 2 different ways of dispensing the water which can be selected with the selector C:

1) Filtered water for drinking, washing fruit and vegetables, cooking and carry out all routine tasks with safe, pleasant tasting water.
2) Unfiltered water with spray head.

REPLACING THE FILTER

To replace the filter, turn the filter anticlockwise and remove it by pulling it outwards (fig. 12A, 12B, 12C).

Replace it with a new filter repeating the steps described in point 7 of the paragraph "PREPARING THE FILTERING SYSTEM" and "USING THE FILTERING SYSTEM - Activating the HYDROSMART™ filter".

To achieve the best results and guarantee the safety of the filtering system, we recommend replacing the filter every 3 months or 900 litres of filtered water.

CARE AND MAINTENANCE

Ensure your hands are clean during maintenance operations on the filtering system. Regularly clean the external part of the filter with a damp sponge and rinse with cold running drinkable water.

Regularly clean the outer part of the connector with a damp sponge and delicate detergent, then rinse thoroughly with cold drinking water.

Do not use aggressive detergents, solvents, chemical or abrasive products.

It is recommended to thoroughly clean the entire connector each time the filter is changed.

For maintenance, remove the entire filtering system by following the installation instructions in reverse order.

1) Rinse the connector under unfiltered running drinking water.
Do not use detergents, solvents, chemical or abrasive products to clean the connector.
If necessary, remove the fastening ring (E), the rubber

seal (F) and rinse the stainless steel strainer (G) under running drinking water.

2) Use a small brush to remove any impurities and/or limescale deposits in the unfiltered water outlet holes, and rinse all under running drinkable water.
3) Do not wash the connector or the HYDROSMARTTM filter in the dishwasher.

REPLACING ANY DAMAGED PARTS

In the event of breakage or damage to the adapters, you can purchase spare parts at authorised retailers (consult the list of all the LAICA authorised retailers on the website www.laica.it). Then, dispose of the damaged components as described in the paragraph "DISPOSAL PROCEDURE".

TROUBLESHOOTING

Problem	Possible cause	Solution
The device does not dispense unfiltered water, or does but it is uncontrollably sprayed	The steel strainer is blocked by sediment	Deinstall the connector and clean the steel strainer as indicated in the section “CARE & MAINTENANCE”
	The unfiltered water outlet holes are clogged	Deinstall the connector and clean the holes as indicated in the section “CARE & MAINTENANCE”
The device does not dispense filtered water	The filtering system has captured micro-sediment in the water and become clogged	Replace the HYDROSMARTTM filter
None of the adapters provided can be attached to the tap	The tap is non-standard size or damaged	Use the adapter M
There is a leak between the adapter and the tap	The adapter has not been tightened sufficiently	Remove the connector and fix the adapter using the appropriate tool, then remount the connector
	No seal Insert the seal N
There is a leak between the adapter and the connector	The fastening ring has come loose	Tighten the fastening ring
	Sediment between the adaptor and the connector	Remove the connector and clean all components as indicated in the section “CARE & MAINTENANCE”

Problem	Possible cause	Solution
There are leaks between the connector and the HYDROSMARTTM filter	The filter has not been correctly assembled	Dismantle the filter and reassemble it following the instructions
The selector does not turn or work	The connector is damaged	Replace the connector
The filtered water has an unpleasant taste	The filter has not been correctly activated	Activate the filter again as described in the paragraph “USING THE FILTERING SYSTEM”

DISPOSAL PROCEDURE

• The HYDROSMART™ filter, which must be replaced every 900L/3 months of filtered water, should be disposed of as non-recyclable waste.
• The connector, only in the event it breaks, must be disposed of as non-recyclable dry waste.

WARRANTY

This appliance is guaranteed for 2 years from the time of delivery of the goods, or another longer term envisaged by the national legislation of the consumer's residence. This provision complies with Italian and European legislation. The LAICA products are designed for home use and must not be used in public venues. The warranty only covers manufacturing defects and does not apply if the damage is caused by an accidental event, incorrect use, negligence or misuse of the product. Use only the accessories supplied; the use of different accessories may result in invalidity of the warranty. Do not open the unit for any reason; in the case of opening or tampering, the warranty is definitively voided. This warranty does not apply to parts subject to wear or to the batteries when supplied. After 2 years from delivery, or another longer term envisaged by the national legislation of the consumer's residence, the warranty expires; in this case, the technical assistance interventions will be carried out against a fee. Information on technical assistance, whether under warranty or for a fee, can be requested by contacting [e-mail]. No payment will be due for repairs or replacements of products that fall within the terms of the warranty. In the event of faults, contact the retailer. Do NOT send the appliance directly to LAICA. All the operations under warranty (including those of replacement of the product or part thereof) will not prolong the duration of the original period of warranty of the product replaced. The manufacturer declines any liability for any damage that may, directly or indirectly, be caused to persons, property or animals as a result of the non-observation of all the requirements established in the relevant instructions manual and concerning, especially, warnings relating to installation, use and maintenance of the appliance. LAICA, in its constant commitment to improving its products, is entitled to changing without any notice, in whole or in part, its products in relation to production requirements, without this entailing any liability for LAICA towards its dealers. For further information: www.laica.it.

COMPONENTES

A) Conector

SYNTHPHSEKAIΦPONTIΔA

Bebaiwtheta OTa Xepia Oc Eivai KaBapKaTAtn
diakpkeia Tuv Evpeiyiwu uvtnpnnc Tou ouatntmuatoc
QIATPAPIAOATOC. KatoXeTe AovkTA DIOATNmuata To
EeWTEPIKo MEOC TO UAIPTou EVA Bpeyueo aouuyaki
KAI EIIAUVETe ME Kpu TPEXOUevo NAOUPO
KaoXeCTe TAKTKA To EeWTEPIKOePoc Tou uovdeauou
ME Bpeyueo ofoouyyaki KAI nIO ANoppunavtiko
KAI EByACTe EITMeAWC ME Kpu NAOUPO Mny
XpOAIOTAOIE Te IMETIKA ANPPUNAVTIA, DIAUTEC,
XmikA h AEAVTAKI TPOIOVTO.SUVIATATi VA KBOApICETe
OxOAATIKo OLoknpo TO uovDegoko K0e FOpA IOU
OALACTe To FIATPO. IaTN uovtnpon, Oaipate
OALOKno TO OUIrtnu KaTPAPIAUATOC AkoAouWvTAC
TIG ODYIEc EVKAtaTAnC AVTIOTPOWC

1）EπAuVETov auδeμo μe noiμn φIATpApioEv opeβpuoc. Mny xnoiOIOIE xtoppunavtkα, δiauTEc,χnikα n AEiavTik npoiovTa vα καθaipiaεTe tv auδeμo. Eav evai anapaiitnto αφaipéTe tv doKTUIO Otepeoans (E),to EaotIKo πapeμuaμα(F) kai EπAuVETe μe Tpeoumevo noiμo

vpo to nAeyuα oio aoEiδwTo xauβα (G).

2) Xpoupoioote eva Bouptaaki yia va aphiapeete KcE ixVoc bpomega n/kaevantoaeawv aaTov Tou mtopei va unxpoxouv eo aotic otnc efoou Tou un fItpaoieou vepou Ka Eeauve To oTo outnmae Tepeouevo noaiu vepo.
3) Min vieve teov ouoecuo n to oIATpo HYDROSMARTM 0e Tnio Ttow.

ANTIKATAA TAH KATEPTPAMMENON EAPTHMATON

1. Guidelines for drinking-water quality - 4th ed. ISBN 978 92 4 154815 1 (NLM classification: WA 675), World Health Organization, WHO Library Cataloguing-in-Publication Data.
2. Nutrients in Drinking Water ISBN 92 4 159398 9 (NLM classification: WA 687), Water, Sanitation and Health, Protection and the Human Environment, World Health Organization, Geneva. World Health Organization, WHO Library Cataloguing-in-Publication Data.
