Safety instructions 0

1. Parts and components 49

2. Before use 49

3. Product assembly

4. Operation 50

5. Storage suggestions 52

6. Cleaning and maintenance 53

7 Troubleshooting 54

B. Technical specifications 55

1. Disposal of old electrical appliances 56

2. Technical support and warranty 56

3. Copyright 56

SOMMAIRE

• Read the instructions carefully before using the device for the first time and keep this instruction manual for future reference or new users.
• It is important to make sure all users are familiar with the device operation and safety features to prevent faults and unnecessary accidents.
• Make sure that the mains voltage in your house matches the voltage stated on the rating label of the product.
• This appliance can be used by children aged 8 and above, and persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge, as long as they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. The cleaning and maintenance of the appliance should not be carried out by children without supervision.
• Keep this appliance and its power cord out of reach of children under the age of 8.
• Keep the packaging material away from children, as there is a risk of suffocation.
• Device intended to be used exclusively for the preservation of wine.
• This appliance is not intended to be used as a built-in appliance.
• This device is not suitable to freeze food.
• Do not expose the electrical connections to water. Make sure

your hands are dry before handling the plug or switching on the appliance.

• Do not use the appliance if its cord, plug or housing are damaged, nor after it malfunctions or has been dropped or damaged in any way.
• This appliance is intended for home use only. Any other use will void the warranty. It is not suitable for commercial or industrial use. Do not operate it outdoors.
• Keep the ventilation openings clear from obstructions.
• WARNING: do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by Cecotec.
• WARNING: do not damage the refrigeration circuit.
• We recommend you check the power cord regularly to detect any sign of possible damage, do not use the device if the cord is damaged, contact the Technical Support Service of Cecotec.
• If the cable is damaged, it must be replaced by the manufacturer, the supplier, or qualified personnel in order to avoid a hazard.
• WARNING: do not use electrical appliances inside the device.
• Do not store explosive substances such as aerosols or flammable propellants in this appliance.
• WARNING: if the interior light is damaged, contact the Cecotec Technical Support Service. Do not try to repair it on your own.
• WARNING: when positioning the appliance, make sure the power cord is not trapped or damaged. A crushed or damaged connector may heat up and cause a fire.
• WARNING: do not attach multi-socket adaptors or multiple power supplies to the rear part of the device.
• You should never use this device with an extension cord or

a multi-socket adaptor. Make sure the device is plugged in directly to a power supply.
- This device has a built-in earthed plug. Make sure the power supply in your house is properly grounded.
- Prolonged opening of the door can cause a significant increase in the temperature inside the appliance.
- Regularly clean the shelves and accessible drainage systems.
- If the appliance is left empty for a long time, turn it off, defrost it, clean it, dry it, and leave the door open to prevent mould from forming inside the appliance.
- Before carrying out any maintenance and cleaning task, turn off the device and unplug it from the main power socket.
- Air must flow around the device: lack of air leads to overheating. To achieve a good ventilation, follow the installation instructions.
- Do not try to disassemble or repair the product by yourself. All electrical work required to maintain this appliance must be carried out by a qualified electrician. Contact the official Technical Support Service of Cecotec.
- This product is designed exclusively for household use.
- Place the appliance on a dry, stable, flat and heat-resistant surface.
- Do not use any accessory that has not been recommended by Cecotec, as they may cause injuries or damage.
- Cleaning and maintenance must be carried out according to this instruction manual to make sure the device operates properly.
- No liability is accepted for any eventual damage or personal injuries derived from misuse or non-compliance with this instruction manual.

Refrigerant

• Isobutane refrigerant (R600a) is contained within the refrigeration circuit of the appliance; it is a natural gas with a high level of environmental compatibility, however, it is flammable. Make sure that no components of the refrigeration circuit have been damaged during the transport and installation of the appliance.
• WARNING: the refrigerant and the insulator gas are flammable. When disposing of the device, only dispose of it at an authorised waste disposal facility. Do not expose it to flames.
• WARNING: the devices contain refrigerant and gases in the insulation. The device and gases must be disposed of professionally as they may cause injuries to eyes or ignition. Make sure the refrigeration circuit pipe is not damaged before disposing of it correctly.
• WARNING: risk of fire. If the refrigeration circuit is damaged:
• Avoid open flames and sources of ignition.
• Completely air the room where the device is located.

INSTRUCTIONS DE SÉCURITÉ

1. Housing
2. Inner cover
3. Shelf
4. Control panel
5. Sensor
6. Adjustable legs
7. Lower hinge
8. Door
9. Handle
10. Door sealing

PLEASE NOTE:

• The graphics in this manual are schematic representations and may not exactly match the product.
• To make the most out of the device in terms of energy, place all the shelves and drawers in their original position, that is, as shown in figure 1.

2. BEFORE USE

• This appliance is packaged in a way as to protect it during transport. Take the device out of its box and remove all packaging materials. You can keep the original box and other packaging elements in a safe place. This will help you prevent product damage when transporting it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.
• Make sure all parts and components are included and in good conditions. If there is any piece missing or not in good condition, immediately contact the Technical Support Service of Cecotec.

3. PRODUCT ASSEMBLY

• This appliance is designed to operate upright and should not be built-in
• Place the device on a flat, stable surface. To level the appliance, adjust its legs.
• Do not install the appliance inside of a cabinet or any other place where you cannot see the front part of the appliance.

ENGLISHENGLISH

• Leave a distance of 10 cm above the appliance, at the rear and sides.
• Do not place the appliance on a moist room or under direct sunlight or any other source of heat.

Changing the opening direction of the door. Fig. 2

Fig. 2 key

1. Hinge cover
2. Wide screw
3. Door hinge
4. Lid
5. Lower hinge
6. Handle screw
7. Handle

The appliance is mounted so that the door opens from left to right. In case you want to change the opening direction:

1. Make sure that the appliance is not connected to a mains socket.
2. Close the door.
3. Remove the hinge cover (1), unscrew the wide screws (2), remove the hinge (3) and remove the cover (4).
4. Raise the door until it disengages from the bottom hinge.
5. Unscrew the lower hinge and put it on the opposite side
6. Fit the door on top and repeat the process for the hinges in reverse.

Handle assembly. Fig. 3

To install the handle, remove the door seal slightly from the door and match the holes under the seal with the holes in the handle. Screw on the handle and cover the screws again with the door seal.

After plugging the appliance in, allow it to cool down for 2-3 hours before storing any bottle inside it.

Warning

Remember to keep some water inside the appliance to keep the humidity.

4. OPERATION

Fig. 4

1. On/off

2. Light

3. Change of zone

4. Display
5. Increase
6. Decrease
7. No. of units

On/off

Touch this button to turn the device on or off. Press and hold this button for 3 seconds to activate the standby mode and switch off the display. To switch the display back on, press and hold this button again for 3 seconds.

Light

Touch this button to turn on the light. During standby mode, this button will not function.

Change of zone

- Touch this button to change zones and set the desired temperature in each zone. Touch once and the LED of the selected zone will flash. Use the increase and decrease buttons to select the temperature and press this button again to set the temperature zone. - The temperature of the lower zone may not be lower than that of the upper zone. Therefore, if a lower temperature is selected in the lower zone than in the upper zone, the temperature of the lower zone will automatically change to the same temperature as the upper zone. In addition, when the same temperature is selected in both zones, the actual temperature of the lower zone will always be 1 or 2 degrees higher than that of the upper zone.

Increase and decrease

Press any of these buttons once and the set temperature will be displayed. Continue pressing to set a new temperature. You can select between 5°C and 22°C, depending on the type of wine you want to store.

Change the temperature unit

To change the temperature unit shown on the display between degrees Celsius (°C) and degrees Fahrenheit (°F), press and hold this button for 2 seconds.

Lock function

Press the on/off buttons and the light button at the same time for 3 seconds to activate the device lock. In this mode, the temperature increase and decrease buttons will not work. To deactivate the lock, press the on/off and light buttons again for 3 seconds.

Adjustable range

Minimum value: 5 °C/41 °F

Maximum value: 22 °C/72 °F

ENGLISHENGLISH

Display range

Control panel's temperature display range: 0-37 °C/32-99 °F

The temperature measured by the temperature sensor will be displayed =1 °C (if the user has selected Celsius as the temperature unit) and ±2 °C (if Fahrenheit) from the set temperature.

Fig. 5

In order to make the best use of storage space, it is recommended to follow this bottle placement scheme. The shelves are designed to support the weight of two rows of bottles; as a precaution, do not load the shelves with more rows of bottles.

5. STORAGE SUGGESTIONS

- This device intended to be used exclusively for wine preservation.

- The Bolero GrandSommelier Duo 77000 Black is designed to hold a maximum of 77 750 ml Bordeaux bottles, following the layout shown in figure 5. You can store larger bottles, but you must first ensure that they do not prevent the door from closing properly.

- Capacity will vary depending on how you store your bottles or the size of your bottles.

Wines and suggested temperatures:

Temperature (°C) Temperature (°F)
Red wine	14-18	57-64
Dry/white wine 9-14 4B-57
Rose wine 10-11	50-52
Sparkling wine	5.9	41.48

PLEASE NOTE:

These temperatures are approximate as it depends on many factors. Always take into account the manufacturer's indications.

• Exposure to light, vibrations or fluctuations in temperature and humidity can cause the wine to spoil. When properly stored, wines not only maintain their quality, but many improve in aroma, flavour and complexity as they mature.

• Wines kept at higher temperatures age faster. Wines exposed to temperatures above 18°C (64°F) will lose flavour and aroma.

• If the wine is kept at too low a temperature, it can lead to the appearance of harmful deposits. A humidity of 60% - 70% is ideal to prevent corks from shrinking.

• After opening a bottle of wine, the wine comes into contact with air. Therefore, it is best to store the rest of the bottle in an upright position, to minimise the surface area of the wine that comes into contact with the air.
• Once opened, the wine will remain drinkable for two days in the case of whites or three days in the case of reds, provided that the bottle has been resealed. Make sure that the seal is tight by checking the stop.
• In most wine shops you can buy special stoppers that keep sparkling wine and champagne bubbly for a day or two after opening.
• If stored correctly, white wines can keep well for up to two years. Full-bodied reds age well for ten years and dessert wines keep well for up to twenty years.
• When you buy a bottle of wine, you should immediately store it in the wine cooler.
• Cheaper bottles of wine do not age as well as more expensive ones.
• To make the most of the wine's aroma and flavour, never fill more than half a glass at a time. It will also help if the shape of the glass is suitable for the wine. The size and shape of the wine glass will determine the intensity and complexity of the aroma. The stem should be long enough to avoid hand contact with the bowl of the cup and should be tulip-shaped or tapered at the top.

6. CLEANING AND MAINTENANCE

• Unplug the appliance from the mains and let it cool down before cleaning it.
• Use a soft, damp cloth to clean the device surface.
• Never immerse the appliance in water or other liquids.
• Do not use sponges, powder products, or abrasive cleaning agents to clean the product.

If the device is not to be used for a long period of time:

• Switch off the appliance and unplug it from the power outlet. Empty the device.
• Clean and dry the interior completely. To avoid mould or unpleasant colours, leave the door slightly open.
• Store the appliance in a ventilated and dry place, away from heat sources; place the appliance carefully and do not place heavy objects on it.
• The device must be kept out of the reach of children to prevent them from playing with it.

Interior and exterior cleaning

• Empty the interior and clean it with a soft cloth or sponge dampened with lukewarm water or neutral detergent. After using detergent, make sure you rinse it with clean water, and then dry it with a cloth.
• Do not use strong cleaners, scouring pads, or solvents to clean any of the device's parts.
• Often clean dust that may accumulate.

ENGLISHENGLISH

Light bulb substitution

The device uses a LED light characterised by its low energy consumption and long life. In case of malfunction, contact the official Technical Support Service of Cecotec. Only the manufacturer or authorised personnel may replace the light.

1. TROUBLESHOOTING

Problem	Possible cause
The device does not work.	Check that the device is switched on.The circuit breaker tripped or a fuse is blown.
Turns on and off frequently.	The room temperature is too hot.The device is too full.The door is opened too often.The door is not totally closed.The temperature control is not set correctly.The door's gasket does not seal properly.The appliance is too close to the wall or other objects.
The device vibrates.	The device is not set on a stable surface.
The appliance makes too much noise.	The rattling noise may be caused by the refrigerant's flow, which is perfectly normal.As each cycle ends, you may hear a gurgling sound caused by the flowing of the cooling fluid in your device.The device is not set on a stable surface.The inside walls may contract and expand, and this may produce a cracking noise.
The door does not close properly.	The device is not set on a stable surface.Dust tank is not installed correctly.The door's gasket is dirty or bent.The shelves, bins or baskets are out of position.

Condensation droplets have been created	Condensation is a natural phenomenon produced by the relative humidity of the environment. Make sure that the door is properly closed and, if necessary, move the wine cooler to a more ventilated area.
An ice sheet has been created	Turn the appliance off for 30–40 minutes and pour out the water inside it.

1. TECHNICAL SPECIFICATIONS

Reference 02299
Model Bolero GrandSommelier Duo 77000 Black
QR code
Capacity 77 bottles
Voltage 220-240 V ~
Rated frequency 50 Hz
Rated current 0.8 A
Climate class 5N/N/5T (*)
Refrigerant R600a (35 g)
Insulating foam	Cyclopentane
Lamp power	1W

(*) Refrigerating appliance intended for use at room temperatures between 10°C and 38°C

ENGLISH

FRANÇAIS

Technical specifications may change without prior notification to improve product quality. Made in China | Designed in Spain

9. DISPOSAL OF OLD ELECTRICAL APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or battery must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the batteries/accumulators and take them to a collection point designated by the local authorities.

Consumers must contact their local authorities or retailer for information

concerning the correct disposal of old appliances and/or their batteries.

Compliance with the above guidelines will help protecting the environment.

10. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions, and deadlines established by the applicable regulations.

It is recommended that repairs be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact Cecotec official Technical Support Service at [phone].

11. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

1. PIÈCES ET COMPOSANTS

Img.1

Diagram showing seven labeled mechanical components with numbered parts, likely illustrating a gear or tool assembly.

Fig./Img./Abb./Rys./Obr.2

Technical diagram showing labeled components of a cable or wire structure with numbered parts 1 to 4.

Fig./Img./Abb./Rys./Obr.3

1 2 3 4567 - B - △ ▽ °C10F

Fig./Img./Abb./Rys./Obr. 4

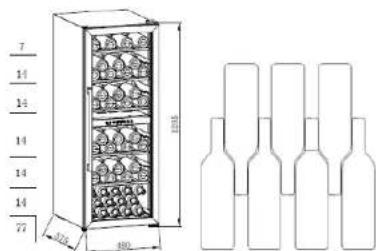

7 14 14 14 14 14 77 200 1000

Fig./Img./Abb./Rys./Obr.5
