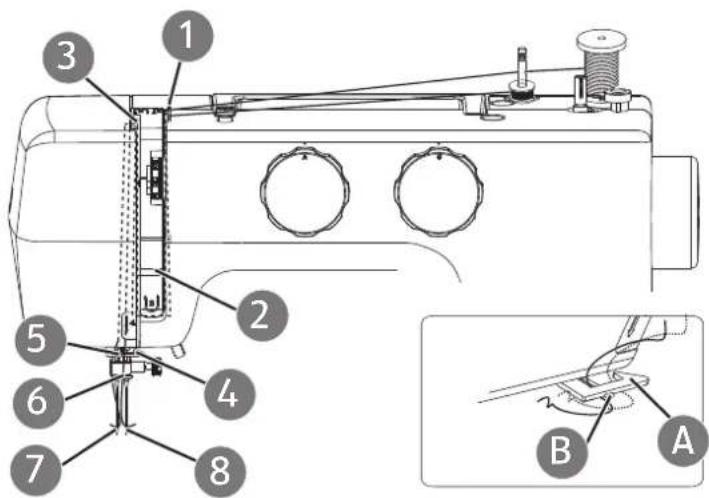

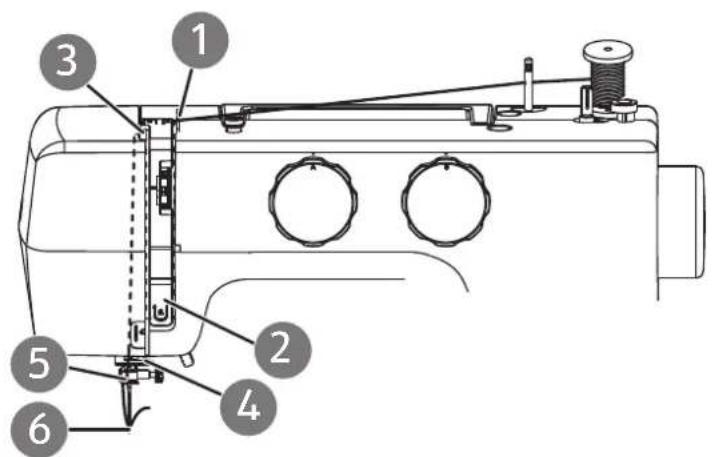

8.7. Illustration of the upper thread guide 217
8.8. Automatic needle threads 218
8.9. Bringing up the bobbin thread 219

1. Settings 220

9.1. Setting the thread tension 220
9.2. Adjusting the upper thread tension 220
9.3. Adjusting the bobbin thread tension 220
9.4. Checking the thread tension 221

1. Sewing 222

10.1. General information 222
10.2. Selecting the right needle 222
10.3. Raising and lowering the presser foot 222
10.4. Reverse stitching 223
10.5. Removing fabric from the sewing machine 223
10.6. Changing the sewing direction 223
10.7.Cutting the thread 223
10.8. The program selection dial 223
10.9.Stitch length adjustment 224
10.10.Stitch type settings 224
10.11. Reverse blind hem 227

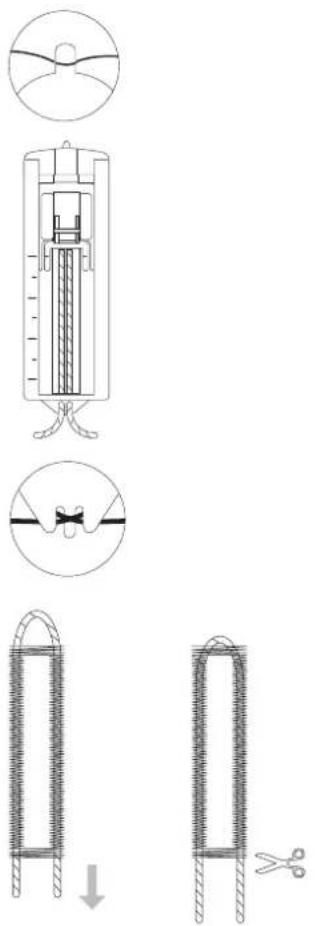

10.12. Buttonholes 228
10.13. Sewing on buttons and eyelets 230
10.14. Sewing in zips 230
10.15. Gathering 231
10.16. Sewing with a twin needle 231
10.17. Sewing with the free arm 232
10.18. Raising and lowering the feeder 233

1. Maintenance, care and cleaning 234

11.1. Replacing the needle 234
11.2. Removing and fitting the presser foot 234

11.3. Removing and fitting the presser foot holder 235
11.4.Maintaining the sewing machine 235
11.5. Oiling the machine 238

1. Faults 240

12.1. Fabric, thread and needle table 241
12.2.Useful sewing tips 242

1. Programme selection 242
   13.1. 242

2. Disposal 242

3. Technical specifications 243

4. Service information 243
5. Legal Notice 244

1. About this user manual

Thank you for choosing our product. We hope you enjoy using this appliance.

Read the safety instructions carefully before using the appliance for the first time. Note the

warnings on the appliance and in the user manual.

Always keep the user manual close to hand. If you sell the appliance or give it away, please ensure that you also pass on this user manual. It is an essential component of the product.

1.1. Explanation of symbols

If a block of text is marked with one of the warning symbols listed below, the hazard described in that text must be avoided to prevent the potential consequences described there from occurring.

DANGER!

Warning: risk of fatal injury!

WARNING!

Warning: risk of possible fatal injury and/or serious irreversible injuries!

CAUTION!

Warning: risk of minor and/or moderate injuries!

NOTICE!

Follow these instructions to prevent damage to the appliance!

More detailed information about using the appliance!

Follow the instructions in the user manual!

TIP

Sewing tips to make work easier

Symbol for protection class II

Indoor use

2. Proper use

Your appliance can be used in a range of ways:

The sewing machine can be used to sew together and embellish seams on light to heavy-weight material.

The material can be made of textile fibres, composite materials or lightweight leather.

• The appliance is only intended for private use and not for industrial/commercial use.
• Please note that we shall not be liable in cases of improper use:
• Do not modify the appliance without our consent and do not use any auxiliary equipment that we have not approved or supplied.
• Only use replacement parts or accessories that we have supplied or approved.
• Comply with all the information in this user manual, especially the safety instructions. Any other use is considered improper and can cause personal injury or property damage.
• Do not use the device in extreme environmental conditions.

3. Declaration of conformity

Medion AG hereby declares that the product conforms to the following European requirements:

EMC Directive 2014/30/EU
Low Voltage Directive 2014/35/EU
- Ecodesign Directive 2009/125/EC
RoHS Directive 2011/65/EU

4. Safety instructions

4.1. Keep children away from electrical appliances

• This appliance can be used by children of 8 years and older, and by people with reduced physical, sensory or mental capacity, or with a lack of experience and/or knowledge, but only with proper supervision, or if they have been told how to use the appliance safely, and have understood the risks involved if they use it improperly. Children must not be allowed to play with the appliance. Do not allow children to clean the appliance or perform maintenance tasks on it unless they are aged 8 years or older, and properly supervised.
• Do not allow children younger than 8 years old near the appliance and its power cable.

DANGER!

Risk of choking and suffocation!

Packaging film can be swallowed or

used improperly, creating a risk of choking and suffocation.

• Keep packaging material such as plastic film or plastic bags away from children.

4.2. Mains cable and power supply

• Only connect the appliance to an easily accessible socket (220–240 V ~ 50 Hz) that is close to where you have set up the appliance. The power socket must be easily accessible so that you can unplug the appliance from the mains quickly if necessary.
• When unplugging, always hold the plug itself and never pull on the cable.
• Fully unwind the cable during use.
• You must position the mains cable and extension cable so that no one can trip over them.
• The cable may not touch any hot surfaces.

• If you leave the sewing machine unattended, unplug the mains plug to prevent accidents due to unintentional start-up of the machine.

• Switch off the sewing machine and unplug the mains plug for the following tasks: threading the needle, replacing the needle, setting the presser foot, cleaning and maintenance work, at the end of sewing work and when work is interrupted.

4.3. General information

• The sewing machine must not get wet – there is a risk of electric shock!
• Never leave the sewing machine unattended when switched on.
• Do not use the sewing machine outdoors.
• Do not use the sewing machine when damp or in damp environments.
• The appliance may only be operated with the supplied type HKT72C foot control pedal.

4.4. Never carry out repairs yourself

WARNING!

Risk of electric shock!

There is a risk of electric shock if repairs are not carried out by qualified personnel!

Never attempt to open or repair the appliance yourself.
In the event of a fault or damage to the power cable, contact our Service Centre or another suitable professional repair workshop to prevent hazards.

• If the appliance or power cable is damaged, remove the mains plug from the socket immediately.
• If there is visible damage to the sewing machine, or power cable, the appliance may not be used. This is to avoid hazards.

4.5. Handle the appliance with care

• Place the sewing machine on a sturdy, level work surface.
• When the appliance is in use, the ventilation openings must remain free: do not allow any foreign objects (e.g. dust, pieces of thread etc.) to get into the openings.

• Keep the foot control pedal free from fluff, dust and offcuts of fabric.

• Never place anything onto the foot control pedal.

• Use only the supplied accessories.
• Only use specialist sewing machine oil to lubricate the machine. Do not use any other liquids.
  Take care when operating the moving parts of the machine, particularly the needle. There is also risk of injury when the machine is not connected to the power supply!
• When sewing, ensure that you do not place your fingers under the needle clamp screw.
• Do not use bent or blunt needles.
• When sewing, do not hold the fabric tight and do not pull on the fabric. This could cause the needle to break.
  Always place the needle in the highest position at the end of sewing work.
• When leaving the machine and before maintenance work, always switch off the machine and pull the mains plug from the socket.

4.6. Cleaning and storage

• Before cleaning, pull the plug out of the mains socket.
• Use a soft, damp cloth to clean the appliance.
• Avoid the use of chemical solutions and cleaning products because these may damage the appliance surface and/or the labels on it.
• Store the machine in a dry place away from children. Always cover the sewing machine with the enclosed cover to protect it from dust.

5. Package contents

NGER!

Risk of choking and suffocation!

Packaging film can be swallowed or used improperly, creating a risk of choking and suffocation.

• Keep packaging material such as plastic film or plastic bags away from children.

Please check the package contents to ensure that all items are included. If anything is missing, please contact us within 14 days of purchase.

• Sewing machine
• Foot control, type HKT72C
• Short manual
• Accessories in the accessory box (overview of contents on the following page)

6. Appliance overview

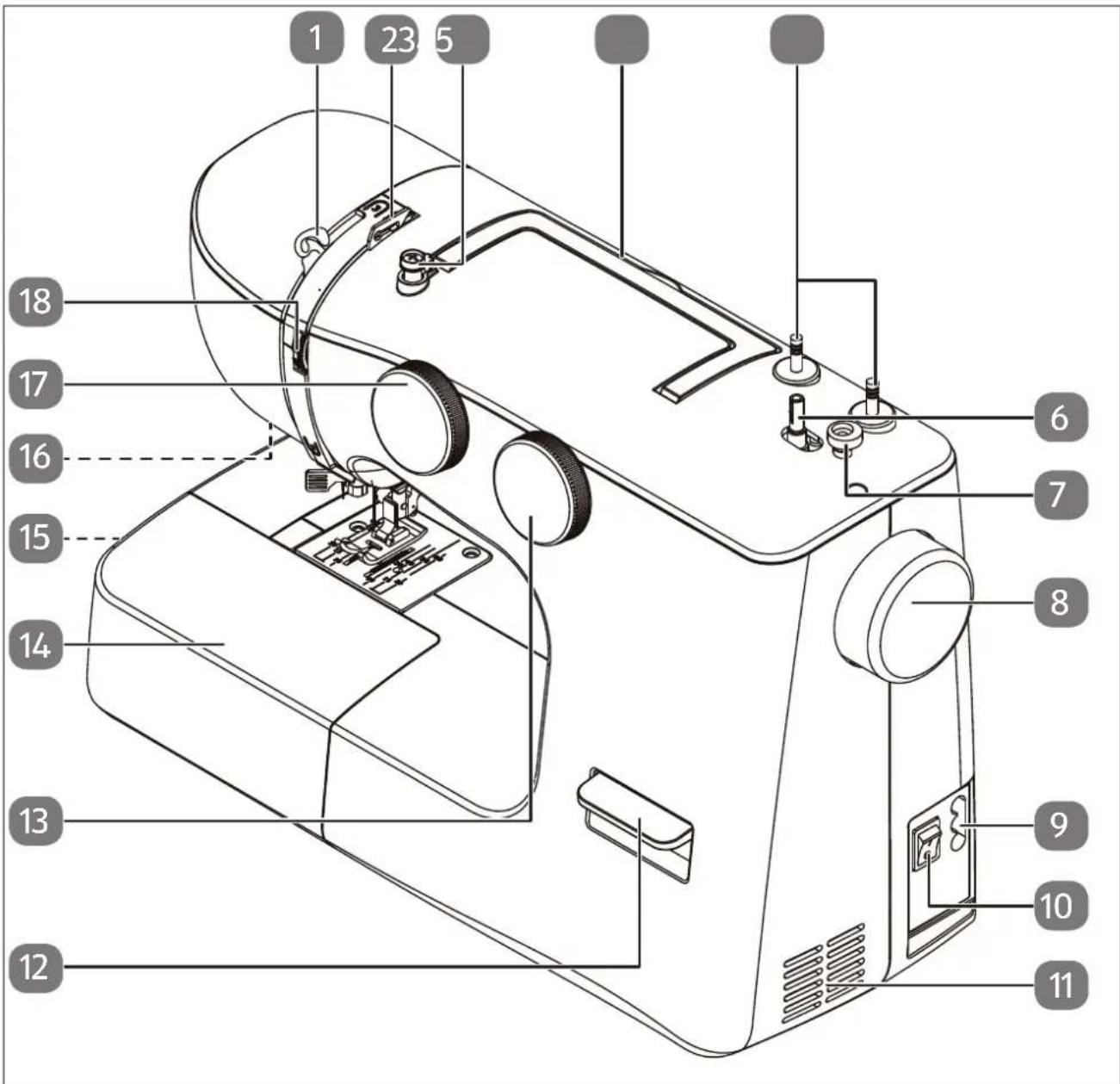

Abb. 1 - Appliance overview

1. Thread take-up
2. Upper thread guide
3. Bobbin winder thread guide
4. Folding carry handle
5. Spool holder
6. Bobbin spindle
7. Winding stop
8. Handwheel

9. Plug housing for mains plug

10. Main switch (motor and light)

11. Ventilation slots
12. Reverse lever
13. Stitch length control
14. Accessory box
15. Bobbin case (behind the accessory box)
16. Thread cutter (on the rear)
17. Program selection dial
18. Upper thread tension regulator

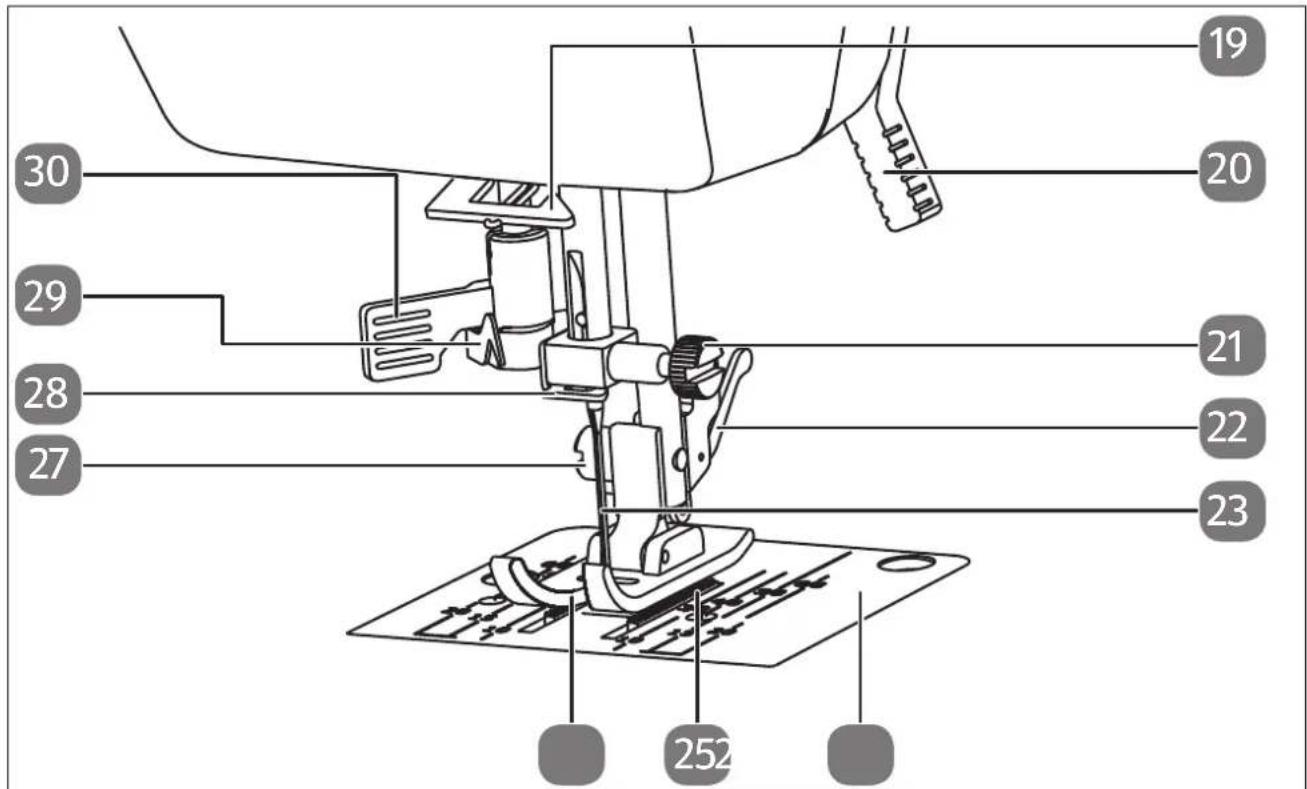

Abb. 2 - Sewing mechanics

1. Thread guide
2. Presser foot lever
3. Needle clamp screw
4. Presser foot release lever
5. Needle

6. Needle plate

7. Fabric feeder

8. Presser foot
9. Sewing foot holding screw
10. Needle holder thread guide
11. Threading mechanism
12. Automatic threading lever

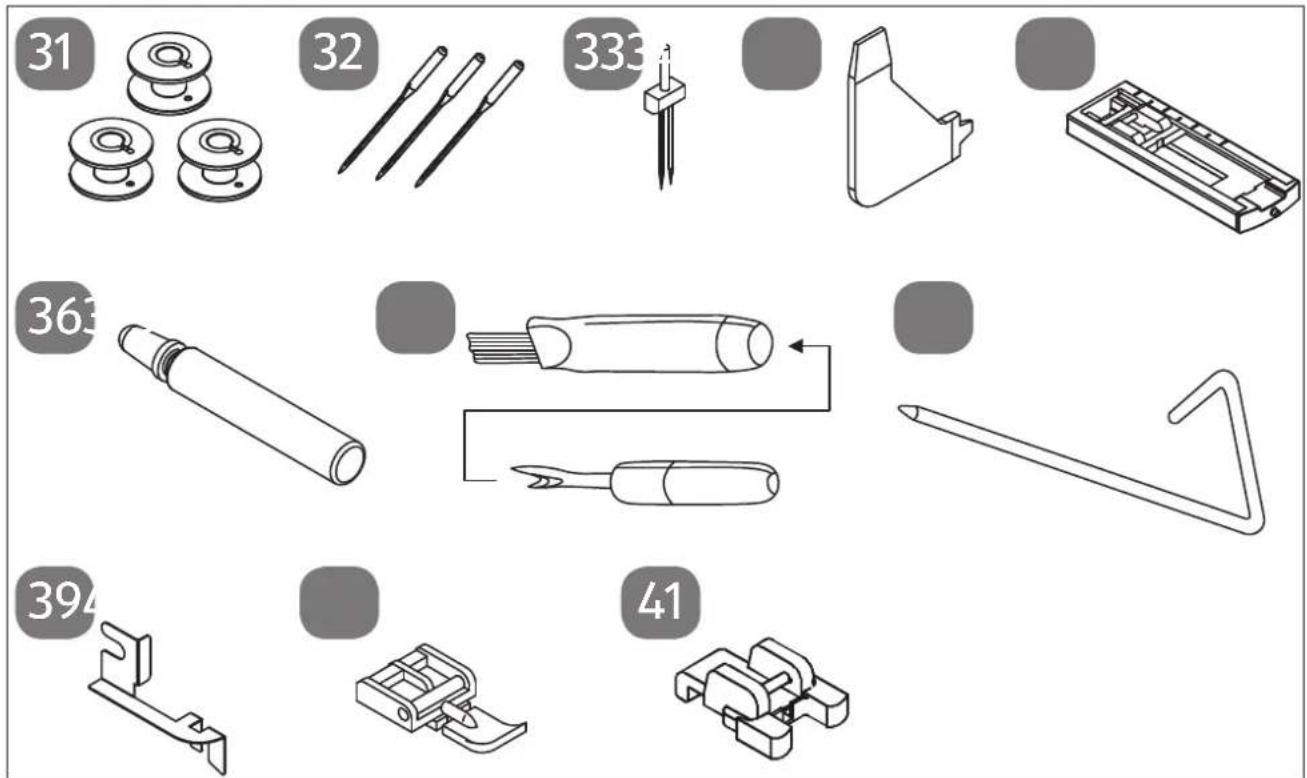

Abb. 3 - Contents of the accessory box

1. 4 bobbins (3 in the accessory compartment and 1 pre-assembled)
   32.3 needles 90/14 (in needle box)
2. Twin needle (in needle box)
3. Multi-functional screw driver
4. Buttonhole presser foot

5. Oil can (without contents)

6. Lint brush with seam ripper

7. Seam guide
8. Guide attachment
9. Zipper presser foot
10. Button sewing foot

not illustrated

• Standard foot (straight stitch/zigzag stitch) (already attached)
  Cover

7. Electrical connections

CAUTION!

Risk of injury!

There is a risk of injury from accidental operation of the foot control pedal.

After finishing work or before maintenance work, always switch off the machine and unplug the mains plug from the socket.

Plug the coupling connector on the mains cable supplied into the connector housing (9) on the machine
Plug the mains plug into the socket.
- Switch on the sewing machine using the mains switch (10). The mains switch turns on both the sewing machine and the sewing light.

Use only the supplied type HKT72C foot control pedal.

7.1. Controlling the sewing speed

The sewing speed is controlled using the foot control pedal.

This means that the sewing speed can be changed by exerting more or less pressure on the foot control.

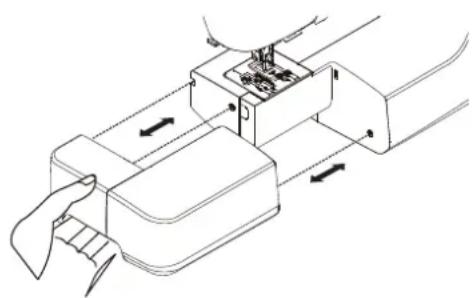

7.2. Attaching and removing the extension table

The machine is supplied with a work table attached.

The extension table is removed by pushing it carefully to the left.
To attach the extension table, carefully place the extension table onto the machine and push it to the right until it audibly clicks into place.

7.3. Accessory box

The accessory box (14) is integrated into the extension table.

To open, fold the cover of the extension table forwards. This gives you access to the accessories contained inside.

8. Preparatory work

8.1. Fitt ing a spool

TIP

Most spools have a notch to hold the thread in place after use. Make sure that this notch is pointing downwards in order to ensure that the thread will run evenly and will not catch.

Pull the spool holder (5) up out of the machine until it audibly clicks into place.
Place the spool onto the spool holder.

8.2. Winding thread onto the bobbin

Bobbins can be wound onto the sewing machine quickly and easily.

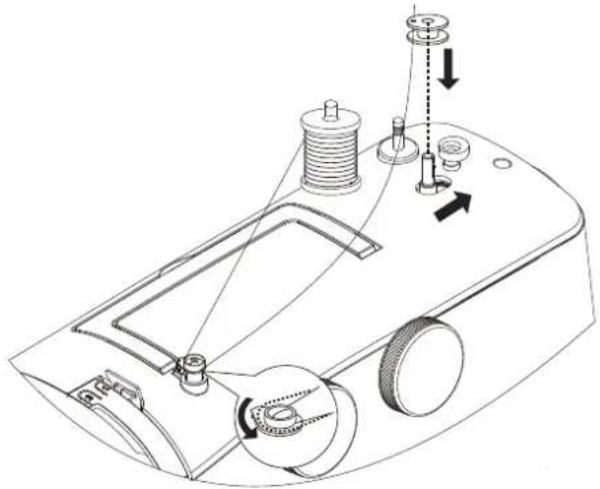

To do this, guide the thread from the spool through the bobbin-winding thread guide (3) to the bobbin.

The exact procedure for winding thread onto the bobbin is described in the following points:

Place the spool onto the spool holder.
Guide the thread from the spool around the bobbin-winding thread guide as shown in the diagram.
Feed the end of the thread through the hole in the bobbin, as illustrated, and wind the thread around the bobbin a few times by hand.

• Place the bobbin on the spindle (6) with the end of the thread facing upwards to the bobbin. Move the bobbin spindle to the right towards the winding stop (7) until it audibly clicks into place.
• Hold the end of the thread firmly and press the foot control pedal. Once some thread has been wound onto the bobbin, let go of the end of the thread. Wind until the bobbin spindle stops turning.

Once the bobbin spindle has been moved to the right, the sewing mechanism is disabled so that the needle does not move while the thread is being wound onto the bobbin.

• Move the bobbin spindle to the left and remove the bobbin.
  Cut off excess threads.

8.3. Removing the bobbin case

Remove the extension table.
- Set the needle (23) by turning the handwheel (8) and the presser foot to the top position and open the bobbin case (15) behind the accessory box (14) as shown in the diagram.

Open the bobbin case toggle lever and pull it out of the machine.
- When you release the toggle lever, the bobbin falls out of the bobbin case by itself.

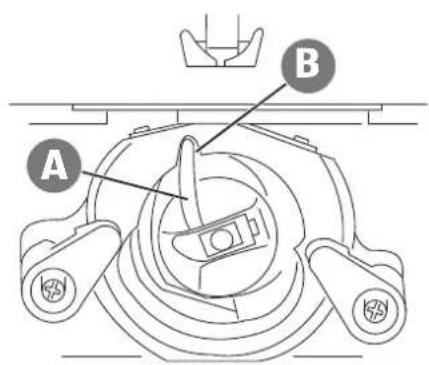

8.4. Threading the bobbin case

Hold the bobbin between the thumb and index finger of your right hand and pull the thread approx. 15 cm out of the bobbin.
- Hold the bobbin case in your left hand and insert the bobbin into the bobbin case.
Insert the end of the thread into the slot on the edge of the bobbin case.

Now guide the thread under the tension spring and into the thread hole. Make sure that the end of the thread is approx. 15cm long.

Check that the bobbin is inserted correctly and can be turned clockwise in the capsule.

8.5. Inserting the bobbin case

• Hold the bobbin case so that the finger (A) of the case is pointing upwards.
  Open the bobbin case toggle lever.
• Place the bobbin case on the centre pin and press the bobbin case in carefully until the finger of the bobbin case enters the recess (B) in the shuttle track ring.
  Release the toggle lever and press it onto the bobbin case.
  Close the bobbin case (15).

8.6. Threading the upper thread

Please read the following instructions carefully as an incorrect sequence or thread guiding can lead to broken threads, missed stitches and gathered fabric.

Before threading the needle, raise the needle to its top position by turning the handwheel (8).
- Also move the presser foot lever (20) to the upper position (2). This releases the thread tension and allows the upper thread to be threaded in easily.

Place a spool onto one of the spool holders (5).
Now pass the thread through the upper thread guide (2).

• Then allow the thread to pass between the tension discs of the upper thread tension regulator (18). Guide the thread upwards under the front thread guide and the inner guide spring is automatically pushed upwards.

Unlike most sewing machines, the tension discs of the upper thread tension regulator are not directly visible. Therefore, be very careful that the thread lies between the tension discs and does not run through the machine anywhere else.

Then insert the thread from right to left into the hook of the of the thread take-up (1).

If necessary, turn the handwheel to raise the thread take-up (1).

Guide the thread back down towards the needle, passing it through the internal thread guide (19).
Guide the thread through the thread guide of the needle holder (28).
Finally pass the thread through the eye of the needle.

8.7. Illustration of the upper thread guide

For a better overview, you will find a schematic representation of the thread path of the upper thread here.

The numbers indicate the sequence of steps in the threading process.

8.8. Automatic needle threads

The sewing machine has an automatic threads that makes threading the upper thread easier.

NOTICE!

Risk of damage!

Using a twin needle can damage the automatic threads.

Only use the automatic threadser in conjunction with a normal needle.

If necessary, turn the handwheel to move the needle to the upper position. Place the thread around the thread guide of the threading mechanism (29).

Carefully pull the lever (30) of the threads down as far as possible.

Turn the lever of the threads clockwise to the rear.

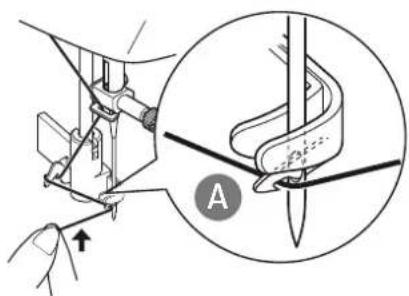

The threads hook A is automatically inserted into the needle eye. Place the thread under the threads hook.

Carefully return the lever of the threads to its original position. The threads hook A pulls the upper thread through the needle eye and forms a loop behind the needle.

• Push the lever of the threads back up and pull the loop completely through the eye of the needle by hand to thread the upper thread completely.

8.9. Bringing up the bobbin thread

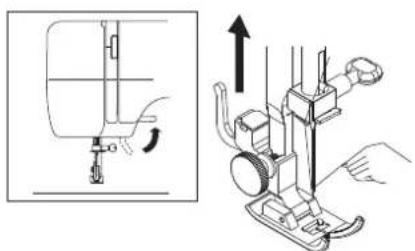

Move the presser foot (26) to the upper position.

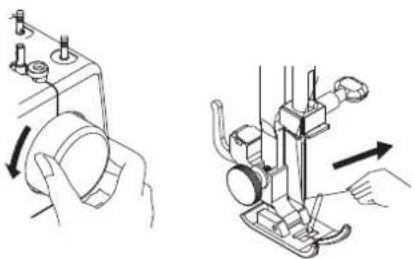

Turn the handwheel towards you with your right hand until the needle is in the upper position.
- Hold the upper thread loosely with your left hand and turn the handwheel towards you with your right hand until the needle has moved down and back up again.
Stop turning the handwheel as soon as the needle has reached its highest position.
Pull the upper thread upwards slightly so that the bobbin thread forms a loop.
Pull around 15cm of both threads out and back from under the presser foot.

9. Settings

9.1. Sett ing the thread tension

If the thread tears while you are sewing, the thread tension is too high. If small loops are formed when you are sewing, the thread tension is too low.

In both cases, you need to set the thread tension.

The tensions of the upper thread and bobbin thread must be in the correct proportion to each other.

9.2. Adjusting the upper thread tension

An upper thread tension of 3-4 is suitable for most sewing work.

The tension is created by the discs through which the thread is guided. The pressure on these discs is controlled by the upper thread tension regulator (18).

The higher the number, the higher the tension.

The upper thread tension is not activated until the presser foot is lowered.

There are a number of reasons why you might need to adjust the tension.

For example, different tensions are required for different fabrics.

The tension required depends on the strength and thickness of the fabric, the number of layers of fabric you want to sew and the type of stitch you choose.

Please make sure that the tensions of the upper thread and bobbin thread match, as otherwise the fabric may gather.

We recommend that you carry out a test on a scrap of fabric before starting work.

9.3. Adjusting the bobbin thread tension

The tension of the bobbin thread is regulated by the spring on the bobbin case.

Turn the spring screw clockwise to increase the thread tension.
Turn the spring screw anti-clockwise to reduce the thread tension.

9.4. Checking the thread tension

9.4.1. Correct stitching

The correct setting of upper and bobbin thread tension is achieved when the interlacing of the threads is in the centre of the fabric.

The fabric remains smooth and does not pucker.

9.4.2. Incorrect stitching

The upper thread is too tight and pulls the bobbin thread up. The bobbin thread is visible on the upper fabric layer.

Solution:

Reduce the upper thread tension by turning the upper thread tension regulator to a lower number.

Upper thread is too loose. The bobbin thread pulls the upper thread down. The upper thread is visible on the underside of the fabric layer.

Solution:

Increase the upper thread tension by turning the upper thread tension regulator to a higher number.

10. Sewing

10.1. General information

• Switch on the main switch (10).
• When changing the stitch type, always move the needle to its highest position.
• Push the fabric sufficiently far under the presser foot (26).
  Make sure there is a length of around 10cm of upper thread and bobbin thread behind the needle.
• Lower the presser foot lever (20). Holding the thread with your left hand, turn the handwheel (8) towards you and lower the needle to the point on the fabric where you want to start sewing.
• Press the foot control pedal – the further the foot control pedal is pressed, the faster the machine runs. While sewing, guide the fabric gently by hand.
• Sew a few reverse stitches by actuating the reverse lever (12) to fix the first stitches in place.

TIP

If you are not sure whether the thread tension or stitch type, for example, is correct, test the settings on a swatch.

The fabric will run through automatically under the presser foot. It should not be held fast or pulled by hand, but should only be gently guided so that the stitches go in the desired direction.

10.2. Selecting the right needle

NOTICE!

Risk of damage!

Using a defective needle can cause damage to the material.

Replace defective needles immediately.

The number indicating the needle thickness is written on the shaft.

The higher the number, the thicker the needle.

10.3. Raising and lowering the presser foot

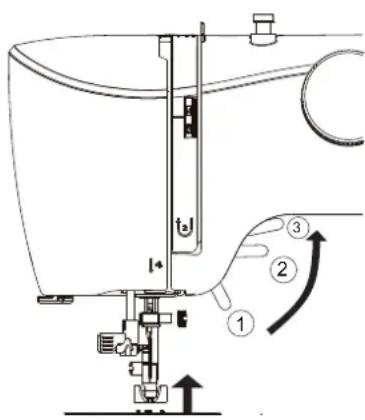

Raising or lowering the presser foot lever moves the presser foot up or down accordingly.

Position 1: The presser foot presses the fabric onto the feeders, the thread tension is activated.

You can start sewing.

Position 2: The presser foot is in the top position and the thread tension is released.

You can take the fabric out of the machine, put it in the machine, or change the presser foot.

For sewing thick fabrics, the presser foot can be raised to position 3 for additional clearance.

10.4. Reverse stitching

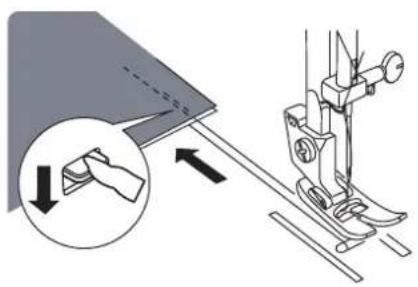

Use reverse stitches to reinforce the first and last stitches on a seam.

Press the reverse lever and hold it down.

• Press the foot pedal – the more pressure you apply to the foot pedal, the faster the machine will run.
• When you want to change back to forward stitching, simply release the reverse lever.

10.5. Removing fabric from the sewing machine

When you finish sewing, make sure that the needle is at its highest position.

To remove the fabric, raise the presser foot and pull the fabric away from you out of the machine.

10.6. Changing the sewing direction

Proceed as follows to change direction when you reach the corners of the material:

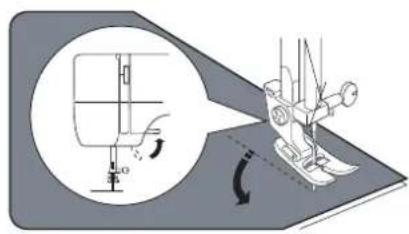

• Stop the machine and turn the handwheel towards you until the needle is in the fabric.
  Raise the presser foot.
  Pivot the fabric around the needle to change the direction as desired.
  Lower the presser foot again and continue sewing.

10.7.Cutting the thread

Cut the threads using the thread cutter (16) on the back of the sewing machine or using scissors. Leave around 15cm of the thread hanging behind the eye of the needle.

10.8. The program selection dial

NOTICE!

Risk of damage!

The program selection dial cannot be rotated 360^ . Overwinding the dial may damage the mechanism.

Do not turn the programme selector beyond the respective end point markings " " and " "

On this sewing machine, you can select a number of different functional and decorative stitches. You can use the program selection dial (17) to simply select the stitch pattern you want.

Before changing the stitch, always make sure that the needle is at its highest position.
- Turn the program selection dial so that the marker is lined up with the stitch type you want to use.

10.9. Stitch length adjustment

You can use the stitch length control (13) to select the length of the stitch pattern you have set.

• Turn the stitch length control so that the number of the desired stitch length is at the marking.

The numbers show the approximate stitch length in millimetres.

10.10. Stitch typesettings

The program selection dial is used to set the stitch types. Make sure that the needle is at its highest position before changing the stitch type.

Always test the stitching on a swatch before using a stitch program for your actual work.

An overview of all stitch patterns can be found in the programme table in section "13. Programme selection" on page 242.

For instructions on attaching and removing the presser foot, please see "11.2. Removing and fitting the presser foot" on page 234.

10.10.1.Straightstitch

Suitable for general sewing and for top-stitching.

Presser foot: Standard foot

Programme: A and B

Stitch length: 0 to 4

10.10.2.

Zigzag

stitch

The zigzag stitch is one of the most commonly used stitches. It can be used for many different things, for example hemming, appliqué and monograms.

Before you use the zigzag stitch, sew a few straight stitches to reinforce the stitching.

Presser foot: Standard foot

Programme: C

Stitch width: CllnB

Stitch length: 1 to 4

Between programmes B and C, there are five different stitch widths that are only available for zigzag stitch.

Slowly turn the programme selector after programme B to set a different stitch width.

TIPS FOR ZIGZAG STITCHES

For better results when using zigzag stitch, the upper thread tension must be lower than when sewing straight stitches.

The upper thread should be slightly visible on the underside of the fabric.

10.10.3.

Satin

stitch

So-called satin stitch, a zigzag stitch in which the stitches are very close together, is particularly suitable for appliqué, monograms, and various decorative stitches.

Presser foot: Standard foot

Programme: K and L

Stitch length: 0 to 1

TIP

Whenever you use this stitch, reduce the upper thread tension slightly. The wider the stitch, the lower the upper thread tension should be. If you are sewing very thin or soft fabrics, you should place a thin piece of paper under the fabric and sew this too. This prevents stitches being missed and the material gathering.

10.10.4.

Blind

stitch

TIP

Sewing blind stitch requires some practice and should be practised on remnants of fabric before sewing.

For blind hemming.

Presser foot: Standard foot with guide attachment

Programme: E or F

Stitch length: 0 to 1

Use a thread colour that exactly matches the fabric.

If you are sewing very light or transparent fabrics, use a transparent nylon thread.

To attach the guide attachment, loosen the screw (27) on the presser foot holder and slide the guide attachment under the screw as shown in the diagram.
- Tighten the screw again.

Place the fabric down in front of you with the top facing down.
- Fold the seam allowance onto the underside of the fabric (A), as shown in the diagram.
Now fold the hem allowance onto the underside as well and pin the seam allowance and hem allowance in place (see diagram opposite).
- Then fold the entire blind hem over at the edge of the fabric, as illustrated in the diagram. The edge of the fabric should overlap the seam allowance slightly.

Sew carefully along the fold,
making sure that the straight stitches are sewn on the hem and that the tips of each of the zigzag stitches only pierce the top fold of the fabric. If you are using the guide attachment, the seam fold must be lined up exactly with the guide attachment.
Now take the fabric out of the machine and straighten it out. The folded-out fabric now has a blind hem stitch.

10.10.5. Shell hem

A shell hem is a blind stitch which is mirrored to form a decorative hem. Particularly suitable for fabric cut on a bias.

Presser foot: Standard foot

Programme: H

Stitch length: 2 to 3

The needle should be positioned in relation to the right-hand edge of the fabric so that the stitches loop over the outer edge of the hem.

10.10.6. Stretch stitch

This stitch is particularly suitable for sewing two pieces of fabric together using a flat seam.

It can also be used to reinforce elastic materials and to sew on pieces of fabric. It is also suitable for sewing on elastic (e.g. elastic bands).

Presser foot: Standard foot

Programme: C to K

Stitch length: SS

TIP

Use a synthetic thread, as this makes the stitches practically invisible.

10.10.7. Sewing on elastic bands

Position the elastic band as required.

Sew on the elastic band with stretch stitch, using your hands to stretch out the elastic band in front of and behind the presser foot. The more you stretch it, the more it will gather.

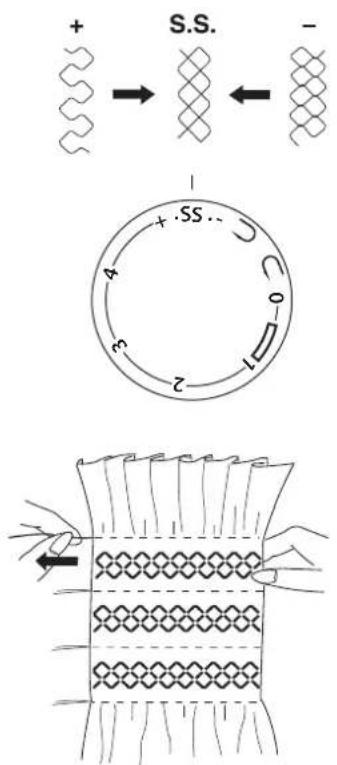

10.10.8. Stitch pattern compensation

Depending on which fabrics you use, this may result in an uneven stitch pattern. If this is the case, you can compensate the stitch pattern manually.

Turn the stitch length control in the direction of the ^+ symbol if the pattern appears too compressed.
- Turn the stitch length control in the direction of the - symbol if the pattern is too far apart.

10.10.9. Diamond stitch or smocking stitch

Diamond stitch is versatile and decorative, e.g. for sewing on lace or elastic bands or for sewing on stretch and other elastic materials.

Presser foot: Standard foot

Programme: D

Stitch length: SS

For diamond work, please note:

Gather the fabric evenly.

Underlay the ruffles with a narrow strip of fabric and sew over them using diamond stitch.
Finish sewing the diamond pattern before inserting the decorated part into the whole garment.
- With very light fabrics, the same effect can be achieved by winding an elastic thread onto the bobbin.

10.10.10.

Overlock

stitch

This stitch is particularly suitable for sewing and mending jersey and track-suits. This stitch is as decorative as it is useful. It consists of smooth side lines with cross connections and is fully elastic.

Presser foot: Standard foot

Programme: E

Stitch length: SS

• Place the edge of the fabric under the presser foot so that the needle is just touching the edge of the fabric with the right deflection and a zig-zag stitch is sewn with the left deflection.

10.10.11. Zigzag with three stitches

This type of stitch is used to finish edges.

Presser foot: Standard foot

Programme: D

Stitch length: 0 to 1

10.10.12. Triple straight stitch

Two stitches are always sewn forwards and one stitch backwards. This creates an extremely stable seam.

Presser foot: Standard foot

Programme: A or B

Stitch length: SS

10.11. Reverse blind hem

This type of stitch can be used to sew padded quilting fabrics or loden and to finish edges.

Presser foot: Standard foot

Programme:

Stitch length: 1 to 2

For heavy linings, place the fabric panels on top of each other and sew along the seam line.

When finishing edges, the right side of the stitch must be close to the edge of the fabric.

10.12. Butt onholes

TIP

To determine the correct stitch length, we recommend sewing a test buttonhole on a scrap of fabric.

Pressor foot: Buttonhole pressor foot

Programme: Buttonhole programs

Stitch length: 0.5 to 1

Set the foot and needle to their highest position.
Replace the foot with the buttonhole presser foot.

Please read section "11.2. Removing and fitting the presser foot" on page 234 for more information.

Using a pencil or tailor's chalk, mark the place on the fabric where you want to sew the buttonhole and mark the required length of the buttonhole.

Line up the buttonhole presser foot with the slide at the rear end of the buttonhole.
Pass the upper thread through the opening on the buttonhole presser foot and pull both the upper thread and bobbin thread to the left-hand side.

10.12.1.Procedure

Select the program for the left bar on the program selection dial.
Lower the foot and sew slowly until the bar is the required length.

• Raise the needle to its highest position and switch to the program for the bottom bar.
  Sew a few stitches of the bottom bar.

• Raise the needle to its highest position again and switch to the program for the right-hand bar.
  Now sew the right-hand bar exactly the same length as the bar on the left-hand side.

• Raise the needle to its highest position and select the program for the top bar again.
  Then sew a few stitches for the top bar as you did for the bottom bar.
  Finally, we recommend setting the stitch length to "0" and sewing a few more stitches so that the threads are better linked and the buttonhole does not fray so quickly.
  Finally, separate the fabric between the seams with the enclosed cutter. Do this carefully to ensure you do not damage any of the bars.

TIP

We recommend putting a pin in front of the top bar to stop you cutting through it.

10.12.2.

Reinforced

butt onholes

We recommend reinforcing heavy-duty buttonholes with thread (crochet thread, reinforcement yarn or buttonhole yarn).

Cut a piece of reinforcement yarn to fit the size of the buttonhole and place it around the buttonhole foot.
Feed the yarn into the hook at the rear end of the presser foot and then bring the yarn forwards and fasten it on the front hook with a knot.
Sew the buttonhole as usual. Ensure that the stitches catch the reinforcement yarn completely.

• When the buttonhole program is finished, take the fabric out of the sewing machine and cut off the ends of the reinforcement yarn.

TIP

You should practise a few buttonholes on a piece of cloth first in order to learn how to use reinforcement yarn.

10.13. Sewing on butt ons and eyelets

Buttons, hooks and eyelets can be sewn on effortlessly with the button sewing foot.

Lower the fabric feeder as explained in section "10.18. Raising and lowering the feeder" on page 233.

Presser foot: .Button sewing foot Programme: CInmB

Stitch length: 0

Lower the presser foot and place the button between the fabric and the presser foot so that the stitch hits the holes in the button, as shown in the diagram.
- Check that the button is in the correct position by turning the handwheel. The needle must be inserted exactly into the holes of the button to avoid damaging the needle.
- Between programmes B and C there are five different stitch widths for the different buttonhole distances.
Sew 6 to 7 stitches per hole at low speed.

For buttons with four holes, the fabric is moved with the button: 6 to 7 stitches are then also sewn in the other holes. After removing the fabric, place the generously cut top thread on the underside of the fabric and tie it to the bobbin thread.

10.13.1. Sewing on butt ons with shank

A button shank is often required for heavy materials.

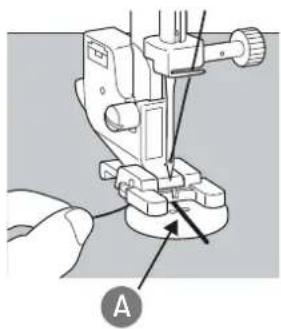

• Place a needle or, in the case of a thicker shank, a match (A) on the button and then proceed in exactly the same way as for sewing on a normal button.
  Remove the fabric from the machine after approx. 10 stitches.
  Pull the needle or the match out of the fabric.
  Leave the upper thread slightly longer and cut the upper thread.
• Thread the upper thread through the button and wrap it around the resulting shank a few times, then guide it to the underside of the fabric and tie it to the bobbin thread.

10.14. Sewing in zips

Presser foot: Zipper presser foot

Programme: A

Stitch length: 1 to 4

Stitch width: 0

Depending on which side of the zip you are sewing, the presser foot must always rest on the fabric.

For this reason, the presser foot is attached either on the left or right side, not in the centre like all other presser feet.

• Set the presser foot and needle to the highest position to replace the presser foot.
• Pin the zip to the fabric and place the workpiece in position under the foot.
  To sew on the right-hand side of the zip, set the zipper presser foot so that the needle sews on the left-hand side.
  Sew on the right-hand side of the zip, bringing the seam as close as possible to the teeth.
  Sew the zip around 0.5 centimetres below the teeth with a bar.
  To sew on the left-hand side of the zip, change the foot position on the presser foot holder.
  Sew in the same way as on the right-hand side of the zip.
  Before the foot reaches the slider on the zip, lift the foot upwards and open the zip, leaving the needle in the material.

10.14.1. Sewing cords

You can also easily sew in cords using the zip sewing foot, as shown in the diagram.

• Fold the fabric over once to create a drawstring tunnel and then sew along the drawstring with the zipper presser foot behind the drawstring.

10.15. Gathering

Presser foot: Standard foot

Programme: A

Stitch length: 4

Reduce the upper thread tension (see Page 220) so that the bobbin thread is loose on the back of the fabric and is looped by the upper thread.

Sew one or more rows of stitches. Do not cut the threads off right at the edge of the fabric but leave a length of about 10 centimetres on the ends.
At the start of each row, knot the upper thread and bobbin thread.
Hold on to the fabric on the side with the knots and, on the other side, pull one or more lower threads taut at the same time. Now push the fabric together on the bobbin thread. Once the fabric has been gathered to the desired width, knot the upper and lower threads of the second side.
Make sure the gathering is even.
Sew the gathers in place with one or more rows of straight stitches. The diamond stitch or smocking stitch can also be used for this.

10.16. Sewing with a twin needle

The twin needle is available from well-stocked specialist retailers. When purchasing, make sure that the distance between the two needles does not exceed 4mm .

The twin needle can be used to create beautiful two-colour patterns if you use different coloured threads for sewing.

Presser foot: Standard foot

Programme: A to L

Stitch length: 1 to 4

NOTICE!

Risk of damage!

Using the wrong sewing programme can cause the twin needle to bend or break.

Only use the twin needle in the programme specified here.

Insert the twin needle in the same way as a single needle (see Page 234).

Pull the spool holder (5) up out of the machine until it audibly clicks into place.
Place two spools of thread of the same weight on the spool holders.
Now feed the thread of the front spool up to the thread guide (19) as described in section "8.6. Threading the upper thread" on page 216.
As shown in the adjacent diagram, there is an eyelet (B) on the thread guide for the thread on twin needles, pass the thread through here.
Now proceed as described for the single thread and thread the thread into the right needle (8).
Feed the thread of the rear spool holder as described in section "8.6. Threading the upper thread" on page 216 and end in the left needle.

NOTICE!

Risk of damage!

When sewing a corner with the twin needle, it may bend or break.

Always lift the needle out of the fabric.

10.17. Sewing with the free arm

The free arm enables you to sew tube-shaped pieces more easily. This function is very useful when sewing sleeves and trouser legs, for example.

You can easily turn your sewing machine into a free-arm machine by removing the extension table and accessories box (14) from the sewing machine.

The free arm is particularly useful for the following work:

• Repairing elbows and knees in garments.
• Sewing sleeves, especially in smaller garments
• Appliqué, embroidery or hemming edges, cuffs or trouser legs.
• Sewing elasticated waistbands on skirts or trousers.

10.18. Raising and lowering the feeder

For free-motion sewing, it is helpful to lower the feeder so that the fabric feed is not influenced by the machine.

Without the support of the feeder, you can move the fabric freely under the needle.

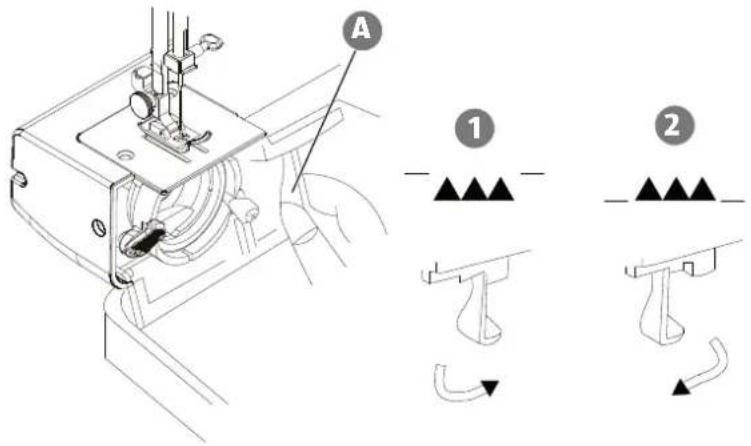

Press the lever (A) down and slide it to the right to the position (1) " -▲▲-"; the feeder lowers.
Press the lever (A) down again and slide it to the left to the position (2) " --"; the feeder is raised again and the sewing machine is ready for normal sewing.

i

If the feeder is not raised immediately, turn the handwheel fully once. This raises the feeder.

11. Maintenance, care and cleaning

CAUTION!

Risk of injury!

There is a risk of injury from accidental operation of the foot control pedal.

After finishing work or before maintenance work, always switch off the machine and unplug the mains plug from the socket.

11.1. Replacing the needle

Turn the handwheel (8) towards you until the needle has reached its highest position.
Loosen the needle clamp screw (21) by turning it (anti-clockwise) towards you.
Remove the needle from the needle holder.
Insert a new needle with the flat side facing backwards. Push the needle upwards until it can go no further.
- Tighten the needle clamp screw again (by turning clockwise).

Needles are available from specialist retailers.

Information on types and sizes can be found in section "12.1. Fabric, thread and needle table" on page 241.

11.2. Removing and fitting the presser foot

11.2.1. Removal

• Turn the handwheel towards you until the needle has reached its highest position.
• Lift the presser foot (26) by raising the presser foot lever (20) to the highest position.

The presser foot will drop out if you push the presser foot release lever (22) behind the presser foot holder.

11.2.2. Fitting

• Fit the presser foot so that the pin on the foot is directly under the groove of the presser foot holder.
  Lower the presser foot lever. The sewing foot will then click into place automatically.
  Raise the presser foot lever again.

11.3. Removing and fitting the presser foot holder

The presser foot holder does not need to be removed unless you want to make space to clean the fabric feeder (25).

11.3.1. Removal

• Move the needle to its highest position by turning the handwheel towards you and move the presser foot lever upwards.
• Remove the foot from the presser foot holder and loosen the presser foot holder screw (27) with the enclosed screwdriver.

11.3.2. Fitting

• Move the needle to its highest position by turning the handwheel towards you and move the presser foot lever upwards.
• When you now insert the presser foot holder, push it up as far as possible and tighten the presser foot holder screw with the enclosed screwdriver.

11.4. Maintaining the sewing machine

The sewing machine is a sensitive mechanical product and requires regular maintenance to ensure it always functions perfectly.

You can carry out this maintenance yourself.

Maintenance primarily refers to: Cleaning and oiling.

Only use special sewing machine oils of the best quality for oiling, as other oils are not suitable.

Please note that there may be residues in the appliance after oiling. To remove these residues, sew a few stitches on a sample piece of fabric or a fabric remnant. This way you avoid soiling your fabric.

11.4.1. Cleaning the housing and foot control pedal

Before cleaning, pull the plug out of the mains socket.

Use a soft, dry cloth to clean the appliance and the foot control pedal.

Avoid the use of chemical solutions and cleaning products because these may damage the appliance surface and/or the labels on it.

11.4.2. Cleaning the feeder

It is necessary to keep the fabric feeder teeth clean at all times to ensure perfect stitching.

Remove the needle and presser foot (see Page 234 onwards).
- Undo the screws on the needle plate to remove the needle plate from the machine.

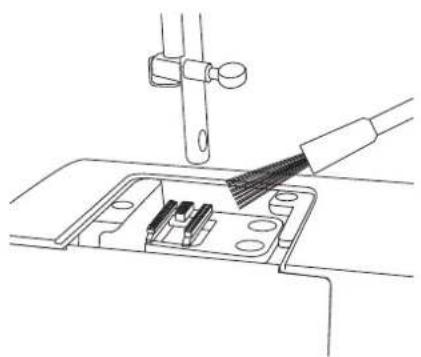

Use the brush to remove dust and loose threads from the feeder teeth.

Refit the needle plate.

11.4.3. Cleaning and oiling the bobbin housing

• Move the needle to the highest position, otherwise the looper cannot be removed.
  Remove the bobbin case.

Turn the snap levers outwards as shown
Remove the shuttle track ring.

Remove the looper by holding the pin in the centre of the looper.
- Remove all dirt particles from the shuttle track ring of the shuttle track and oil the parts with a cloth.
Apply one or two drops of oil to the bobbin shuttle track as shown.
Replace the looper by holding the pin in the centre of the looper.
Replace the shuttle track ring.
Turn the snap levers inwards as shown
Finally, reinsert the bobbin case.

TIP

Depending on the frequency of use, this part of the machine is to be oiled more often.

11.5.Oilingthemachine

Your sewing machine is already oiled at the factory and ready for use.

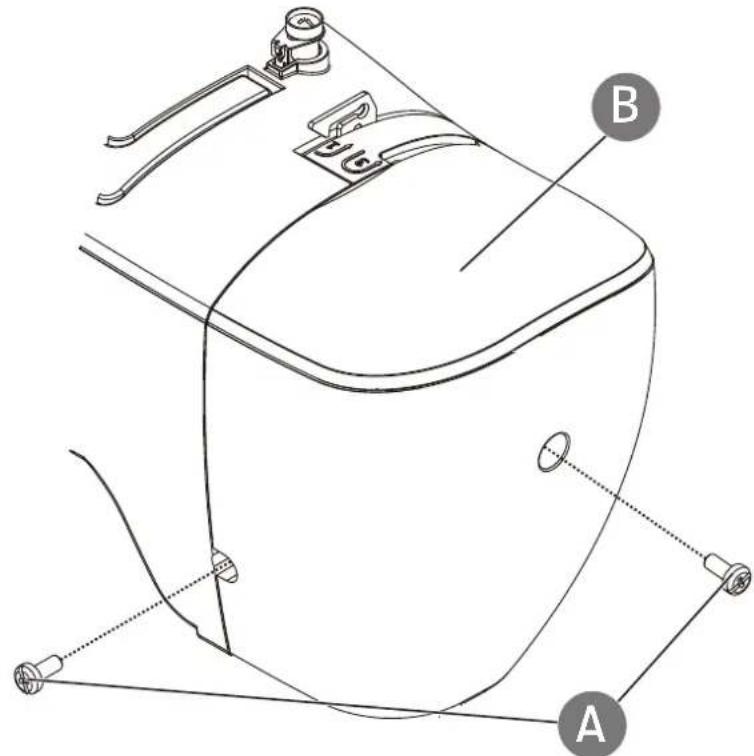

11.5.1. Oil the needle mechanism behind the front fl ap

Loosen the screws (A) of the front flap.

Remove the front flap (B).

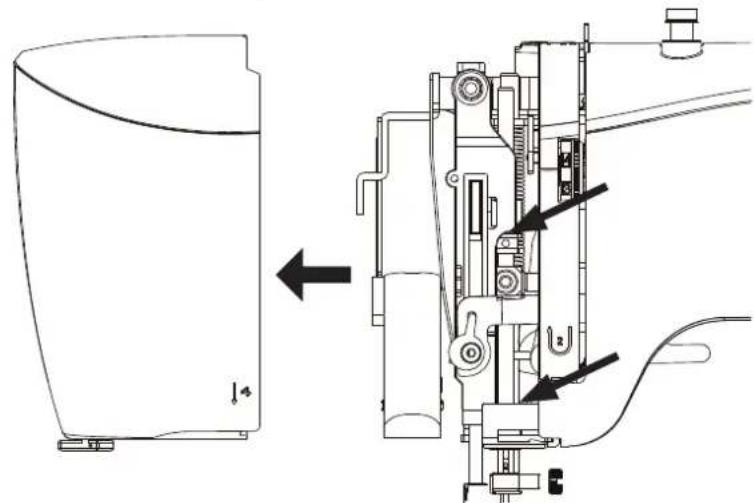

Before oiling, the areas marked with arrows in the figure above should be cleaned.
After cleaning, re-oil the marked areas.
Apply one or two drops of a good-quality sewing machine oil to these areas.

Don't forget to sew on a scrap of fabric first to soak up any oil that may escape.

11.5.2. Oil the mechanism under the top cover

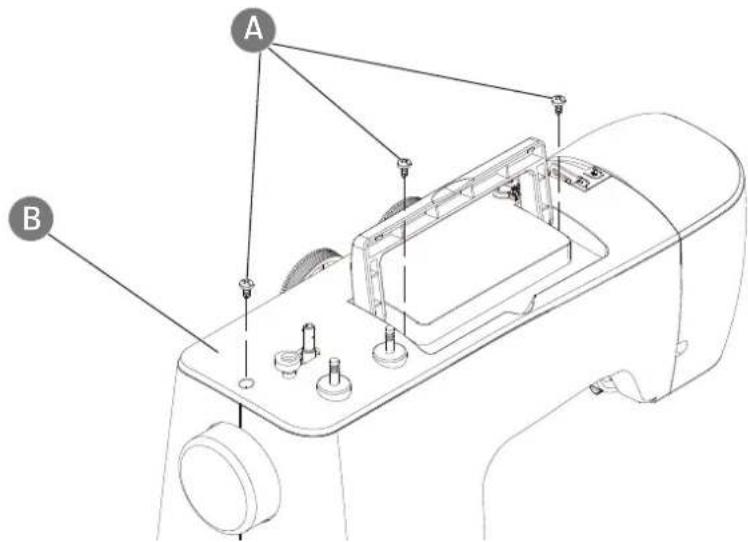

Loosen the screws (A) on the top of the sewing machine.
Lift off the top cover (B).

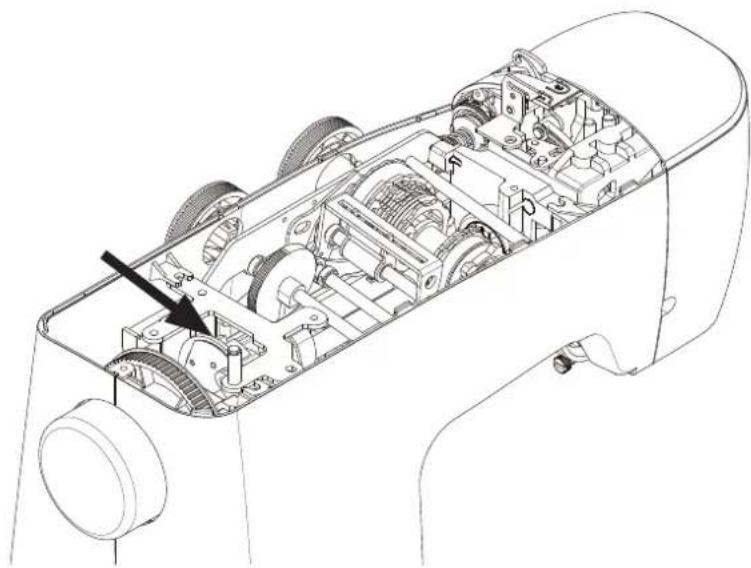

Before oiling, the area marked with an arrow in the figure below should be cleaned.

After cleaning, re-oil the marked area.
Apply one or two drops of a good-quality sewing machine oil to this area.

TIP

Depending on the frequency of use, this part of the machine is to be oiled more often. We recommend oiling the machine two to three times a year if it is used regularly.

If the machine does not run smoothly after a long period of inactivity, run the oiled machine quickly for about one minute with the front flap closed. Don't forget to sew on a scrap of fabric first to soak up any oil that may escape.

12.Faults

If faults occur, please read this user manual to determine whether you have followed all instructions correctly.

Please only contact our customer services if none of the solutions provided are successful.

Fault Cause Page
Machine does not run smoothly The	machine must be oiled Page 236
	Dust and threads in shuttle track Page 236	onwards.
	Fabric remains on the teeth of the fabric feeder Page 236
	The wrong oil was used and clogged the machine Page 238	onwards.
Upper thread breaks Upper thread not threaded correctly Page 216
		Thread tension is too high Page 220
		Needle is bent or blunt Page 222
		Thread thickness not right for the needle Page 241
		Needle not inserted correctly Page 234
		Fabric not pulled through from back at end of seam Page 223
		Needle plate, bobbin or presser foot is damaged	Contact customer ser-vices
Bobbin thread breaks	Lower thread tangles because the thread is wound on to bob- bin incorrectly	Page 214
	Lower thread is not under the tension spring in the bobbin case	Page 215
Needle breaks	Needle is inserted incorrectly Page 234
	Needle is bent	Page 222 & 234
	Needle is too fine	Page 241
	Fabric pulled while sewing	Page 222
	Knot in the thread	Page 216
	Upper thread is threaded incorrectly Page 216
Machine misses stitches	Needle is inserted incorrectly Page 234
	Upper thread is threaded incorrectly Page 216
	Needle and/or thread not suitable for fabric	Page 241
	Fabric too heavy or rigid	Page 241
	Fabric pulled while sewing	Page 222
Puckering or gathering of seam	Upper thread tension too high	Page 220
	Machine threaded incorrectly	Page 216 onwards.
	Needle too large for the fabric	Page 241
Thread makes loops Thread tension	not adjusted Page 220
	Upper thread not threaded correctly and/or bobbin thread not wound on to bobbin correctly	Page 214, 12
	Thread thickness not suitable for the fabric Page 241
Fabric feed irregular The stitch length	is set to “0” Page 224
	Thread ends are in the shuttle track Page 236
Machine does not run Sewing machine	ne not connected correctly or there is no power from the socket	Page 213
	Thread ends in shuttle track Page 236

12.1. Fabric, thread and needle table

As a general rule, fine threads and needles are used to sew thin fabrics, thicker threads and needles are used for heavier fabrics. Always test the thread and needle thickness on a scrap of the fabric you intend to use. Use the same thread for needle and bobbin. If you sew stretch stitches on fine fabrics or synthetics, use a needle with a blue shaft (available from specialist retailers). These prevent stitches from being missed.

Fabric type Thread Needle
Very lightweight fabrics	Chiffon, georgette, fine lace, organza, net, tulle	50 Synthetics, silk	65
Lightweight fabrics	Batiste, voile, nylon, satin, lightweight linen	80 Cotton	65
	Silk, crépe de Chine, sheer crépe	50 Silk, synthetics
	Jersey, swimwear, stockinette	60 Synthetics
	Suede	80 Cotton	75 (Leather needle or jeans needle)
Medium fabrics	Flannel, velours, velvet, muslin, poplin, linen, wool, felt, towelling, gaberdine	60-80 Cotton, silk	75-90
	Knitted fabrics, stretch fabrics, jersey	60 Synthetics	90
	Leather, vinyl, suede	80 Cotton	90 (Leather needle or jeans needle)
Heavy fabrics	Denim, coating	50 Cotton	100
	Jersey	50 Synthetics
	Wool, tweed	50 Silk
Very heavy fabrics	Canvas, sailcloth, upholstery fabrics	80-100 Cotton	100

12.2. Useful sewing tips

12.2.1. Sewing thin and lightweight fabrics

Lightweight and thin fabrics can ride up in the machine as these materials are not always fed through the machine evenly.

• When sewing these kinds of fabrics, lay some embroidery backing (available from specialist shops) or a piece of tissue paper under the material. This prevents irregular feeding.

12.2.2. Sewing elasticated fabrics

It can be easier to work with elastic materials if you sew the pieces of material together first with basting cotton or tacking yarn and then sew them together with small stitches without stretching the material.

Good results can also be obtained if you use special threads for sewing knitwear and stretch stitches.

13. Programmeselection

13.1. Stitch programmes

The table below shows all stitch patterns and the respective programme number.

Programme number

A

B

C

D

E

F

G

H

I

J

Stitch pattern

Programme number

A

B

C

D

E

F

G

H

I

J

Stitch pattern*

*This stitch pattern also requires the "SS" setting for stretch stitches.

14.Disposal

PACKAGING

Your appliance has been packaged to protect it from damage in transit. The packaging is made of materials that can be recycled in an environmentally friendly manner.

APPLIANCE

All old appliances marked with the symbol shown must not be disposed of in normal household waste. In accordance with Directive 2012/19/EU, the appliance must be properly disposed of at the end of its service life.

This involves separating the materials in the appliance for the purpose of recycling as well as minimising the environmental impact and negative effects on human health.

Take old appliances to an electrical scrap collection point or a recycling centre. Contact your local waste disposal company or your local authority for more information on this subject.

15. Technicalspecifications

Sewing machine
Rated voltage: 220-240 V ~ 50 Hz
Rated power: 62 W
Motor: 60 W
Light: 2 W (LED, not replaceable)
Dimensions (W×D×H): 42 × 17 × 30 cm
Weight: approx. 5,8 kg
Foot control
Type: HKT72C
Rated voltage: 200-240 V ~ 50 Hz - 0.5 A
Protection class:	II ☑
TÜV Rheinland ZERTIFIZIER TÜV Rheinland ZERTIFIZIER TÜV Rheinland ZERTIFIZIER TÜV Rheinland ZERTIFIZIER TÜV Rheinland ZERTIFIZIER TÜV Rheinland ZERTIFIZIER TÜV Rheinland ZERTIFIZIER TÜV Rheinland ZERTIFIZIER TÜV Rheinland ZERTIFZIER TÜV Rheinland ZERTIFZIER TÜV Rheinland ZERTIFZIER TÜV Rheinland ZERTIFZIER TÜV Rheinland ZERTIFZIER TÜV Rheinland ZERTIFZIER TÜV Rheinland ZERTIFZIER TÜV Rheinland ZERTIFZIER TÜV Rheinland

16. Service information

Please contact our Customer Service team if your device ever stops working the way you want or expect it to. There are several ways for you to contact us:

• In our Service-Community, you can meet other users, as well as our staff, and you can exchange your experiences and pass on your knowledge there.
  You will find our Service-Community at community.medion.com.
• Alternatively, use our contact form at www.medion.com/contact.
• You can also contact our Service team via our hotline or by post.

Opening times Hotline number UK
Mon - Fri: 08.00 – 20.00Sat - Sun: 10.00 – 16.00	1) 0333 3213106
Service address
MEDION Electronics Ltd. 120 Faraday Park, Faraday Road, Dorcan Swindon SN3 5JF, Wiltshire United Kingdom

You can download this and many other sets of operating instructions from our service portal at www.medionservice.com.

We have stopped providing printed copies of our warranty terms and conditions as part of our commitment to sustainability, but you can access the warranty terms and conditions on our service portal.

You can also scan the QR code on the side of the screen, to download the operating instructions onto your mobile device from the service portal.

17. Legal Notice

Copyright 2024

Date: 21. May 2024

All rights reserved.

These operating instructions are protected by copyright.

Mechanical, electronic and any other forms of reproduction are prohibited without the written permission of the manufacturer.

Copyright is owned by the company:

MEDION AG

Am Zehnhof 77

45307 Essen

Germany

Please note that you cannot use the address above for returns. Please always contact our Customer Service team first.
