1. Information about this user manual

Thank you for choosing our product. We hope you enjoy using this appliance.

Please read the safety instructions and the user manual carefully before using the appliance for the first time. Note the warnings on the appliance and in the user manual.

Always keep the user manual close to hand. If you sell the appliance or give it away, please ensure that you also pass on this user manual. It is an essential component of the product.

1.1. Explanation of symbols

If a block of text is marked with one of the warning symbols listed below, the hazard described in that text must be avoided to prevent the potential consequences described there from occurring.

DANGER!

Warning: risk of fatal injury!

WARNING!

Warning: risk of possible fatal injury and/or serious irreversible injuries!

WARNING!

Warning: risk of electric shock!

Warning: danger due to combustible and/or highly flammable substances!

Warning: risk of explosive materials!

NOTICE!

Follow the instructions to avoid property damage.

Notes regarding assembly or operation

Follow the instructions in the user manual!

AC (alternating current)

Optional marking

Optional marking

Optional marking

This symbol indicates the coldest zone in your refrigerator.

▶ To keep the temperature constant in this area, do not change the position of the shelf.

Temperature display: the temperature in the refrigerator is too high.

▶ Reduce the temperature.

Temperature display: appropriate temperature in the refrigerator.

2. Proper use

This appliance is intended to be used for cooling food. However, this appliance is not intended for freezing food. This appliance is designed for use in private households and similar household applications, such as:

- Staff kitchens in shops, offices and other workplaces

- In agriculture and by guests in hotels, motels and other types of accommodation

• Bed-and-breakfast establishments

- Catering establishments and wholesale use.

The manufacturer accepts no liability for damages if the appliance is used for commercial purposes or for any purpose other than cooling food.

Please note that we shall not be liable in cases of improper use:

Do not modify the appliance without our consent and do not use any auxiliary equipment that we have not approved or supplied.

▶ Only use replacement parts or accessories that we have supplied or approved.

Comply with all the information in this user manual, especially the safety instructions. Any other use is considered improper and can cause personal injury or property damage.

3. Safety instructions

IMPORTANT SAFETY INSTRUCTIONS – READ CAREFULLY AND KEEP FOR FUTURE REFERENCE!

■ This appliance may be used by children over the age of 8 and by persons with reduced physical, sensory or mental abilities or by those with limited experience and/or knowledge, provided that they are supervised or have been instructed in the safe use of the appliance and have understood the associated risks.

■ Children must not be allowed to play with the appliance.
■ Children between the ages of 3 and 8 are allowed to load and remove items from refrigerating appliances.
■ Cleaning and user maintenance must not be carried out by children unless they are supervised.
- Keep children away from the appliance inner. If the door is closed, there is a risk of choking and suffocation!

3.1. General safety instructions

Warning! Risk of injury!

The appliance's refrigeration system contains R600a refrigerant. If the refrigerant escapes, there is a risk of injuries.

■ WARNING! Do not damage the refrigerant circuit.
■ If the refrigeration system has nevertheless become damaged, ventilate the room. Avoid naked flames and ignition sources. Have the appliance repaired by a qualified technician before using it again.
■ If refrigerant comes into contact with the skin or eyes, this can lead to injuries. If necessary, rinse the eyes with clean water and consult a doctor.

■ WARNING! Do not operate electrical appliances inside the cooling chamber that do not conform to the design recommended by the manufacturer.

■ Do not use any other electrical appliances inside the refrigerating appliance unless they are approved for this purpose by the manufacturer.
■ Tampering with the refrigerant circuit is prohibited and invalidates the warranty.

WARNING!

Risk of fire!

There are flammable liquids in the coolant circuit and the compressor.

■ Note the "Fire hazard" warning signs on the back of the appliance or the compressor.
■ Avoid naked flames and ignition sources when using, maintaining and disposing of the appliance.

3.2. Installation and electrical connection

WARNING!

Risk of fire!

Insufficient air circulation can lead to heat accumulation.

■ WARNING! Make sure that the ventilation openings in the housing, around the appliance and in the installation niche are not blocked.
■ The appliance is not designed to be an integrated appliance.
■ To ensure adequate ventilation, a minimum clearance of 30 cm to the top, 30 cm to the sides and 13 cm to the back must be observed.
■ Do not install near heat sources such as hobs, radiators, underfloor heating etc. If installation near a heat source cannot be avoided, use an appropriate insulation panel or maintain the following minimum clearances from the heat source:

– from electric ovens or similar: approx. 30 cm
– from oil, gas or coal-fired ovens: approx. 50 cm

- If installed next to another refrigerating appliance, a minimum distance of 30~cm from the side is required.

WARNING!

Risk of electric shock!

There is a risk of electric shock due to live parts.

■ After installing the appliance, check that the mains cable is not squashed or damaged.
■ Do not operate the appliance if it has been visibly damaged or the mains cable or plug is defective.
■ In the event of damage, contact the Service Centre.

■ Only connect the appliance to a properly installed and easily accessible earthed mains socket that is close to where you are using the appliance. The local mains voltage must correspond to the technical specifications for the appliance.

■ The power socket must be easily accessible so that you can unplug the appliance from the mains quickly if necessary.

■ WARNING! Ensure the mains cable is out of harm's way and will not trip people up. Do not use an extension cable.

■ WARNING! Do not allow the mains cable to become trapped or damaged during installation.

■ WARNING! Do not connect portable multiple sockets or power supplies to the back of the appliance.

In order to disconnect the appliance completely from the electrical circuit, pull the mains plug out of the socket.

3.3. Use of the appliance

WARNING!

Risk of explosion!

Flammable gases and liquids can cause explosions if stored in the appliance.

■ Do not store any explosive materials, e.g. aerosol containers containing propellant gas, in the appliance.

WARNING!

Risk of injury/risk to health!

Improper handling of the appliance can lead to injuries.

■ Do not misuse the plinth, drawer compartments, doors etc. as a step or for support.

The appliance may not work properly (temperature increase) if the appliance is exposed to temperatures that fall below the specified intended temperature range for a prolonged period of time (below 16^ C). In case of power failure or a switched off appliance, stored foodstuffs may spoil. There is a risk of food poisoning.

■ If there has been a power failure, check that the food which is stored in the appliance still looks and smells safe to eat.

■ If the door is left open for a long time, this can cause the temperature inside the appliance zones to increase significantly.

■ Regularly clean surfaces that may come into contact with food and accessible drain systems.

■ Ensure cleanliness and correct storage of food.

■ If the appliance is not going to be used for a longer period of time, pull the mains plug out of the mains socket, defrost and clean the appliance, leaving the refrigerator door open to avoid unpleasant odours and to prevent mould from forming.

4. Package contents

DANGER!

Risk of choking and suffocation!

There is a risk of choking and suffocation due to swallowing or inhaling small parts or plastic wrap.

• Keep all packaging materials used (bag, pieces of polystyrene etc.) out of the reach of children.
  ■ Do not allow children to play with the packaging material.

Remove the product from the packaging and remove all packaging material.
▶ Please check the package contents to ensure that all items are included and in perfect condition. If anything is missing, please contact us within 14 days of purchase.

The following items are supplied with your product:

• Refrigerator
• 2 glass shelves
  • 1 vegetable drawer with glass cover
  • 3 door compartments
• 1 egg tray
• Short manual

5. Appliance overview

1 2 3 4 5 6 7 8 9 A B C D E F G

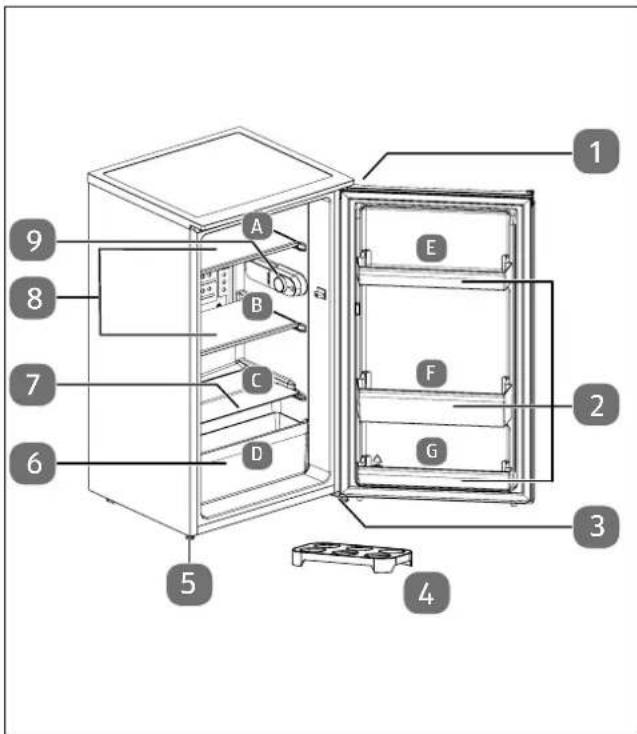

Fig. 1 - Front view with door open

1. Upper hinge
2. Door compartment/beverage compartment
3. Lower hinge
4. Egg tray
5. Adjustable foot
6. Fruit/vegetable drawer
7. Glass cover for fruit/vegetable drawer
8. Glass shelf
9. Lighting/temperature control

The type plate is located in the refrigerator compartment.

Marking in the refrigerator compartment	Recommended storage (see Fig. 1)
Fresh Zone	A) Recommended for pastries, ready meals
	B) Recommended for sausage products, eggs, dairy products
	C) Recommended for fish, meat and poultry
	D) Recommended for fruit and vegetables
	E) Recommended for butter, spices
	F) Recommended for jam, tins, glass containers
	G) Recommended for milk, drinks

Marking in the refrigerator compartment	Recommended storage (see Fig. 1)
Fresh Zone	A) Recommended for pastries, ready meals
	B) Recommended for sausage products, eggs, dairy products
	C) Recommended for fish, meat and poultry
	D) Recommended for fruit and vegetables
	E) Recommended for butter, spices
	F) Recommended for jam, tins, glass containers
	G) Recommended for milk, drinks

6. Before operation

▶ Unpack the appliance and remove the adhesive tape. Use a mild cleaning agent to remove any adhesive residues.
▶ Dispose of the expanded polystyrene padding separately from the other packaging.
- Rinse the inside of the appliance and the fittings with lukewarm water and mild cleaning agent and allow to dry (see section "10. Cleaning the appliance" on page 85).

6.1. Changing the door hinge over to the opposite side

The refrigerator is supplied with a door hinged on the right-hand side. If you would like to change the opening direction, proceed as follows.

Required tools:

• Small flat-head screwdriver
  • Phillips screwdriver
• 10 mm Allen key
• 10 mm spanner

The mains plug has been unplugged.

▶ Empty the refrigerator, including the shelves, the fruit/ vegetable drawer and all food.

Exploded view diagram of a refrigerator with labeled parts including doors, shelves, and accessories

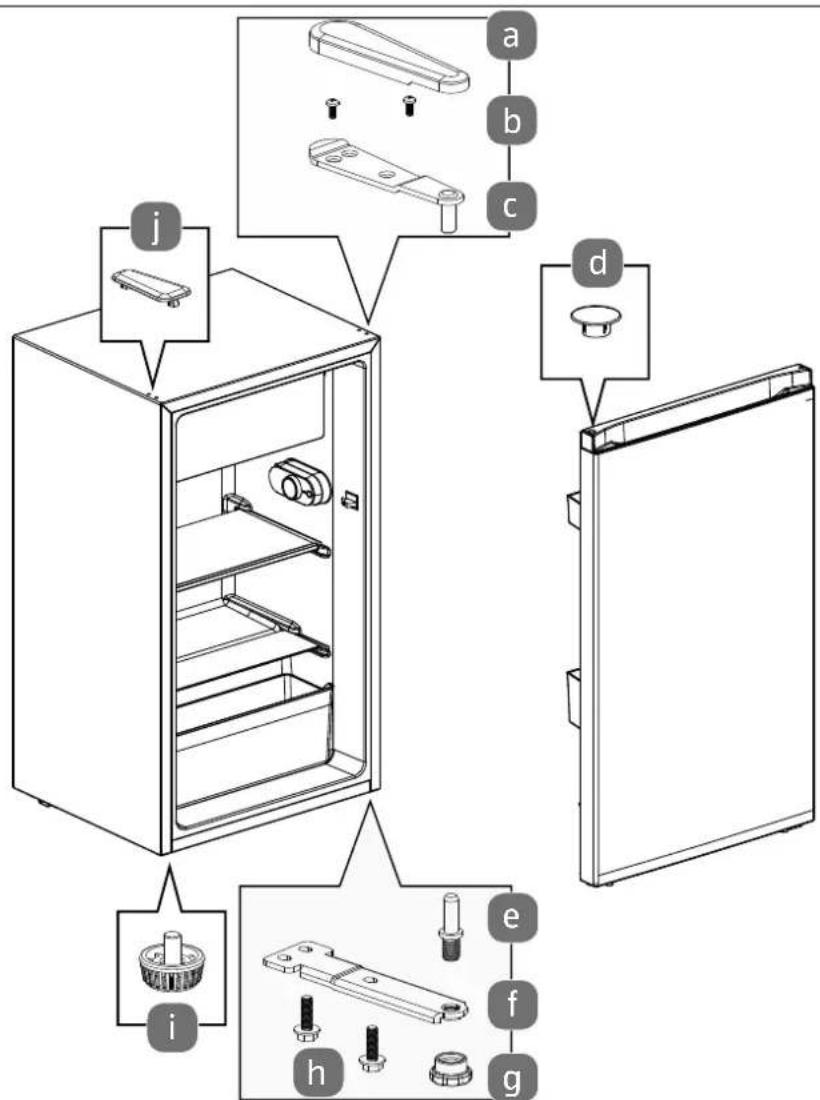

Fig. 2 - Changing opening direction

i

Put all parts safely to one side while changing the door hinges. They will be required when reinstalling the door.

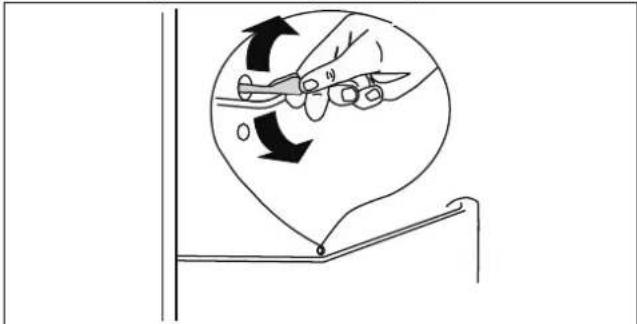

Remove the hinge cover (a) on the right-hand side, for example using a flat-head screwdriver.
▶ Loosen the two screws (b) on the hinge (c) using a Phillips screwdriver.
Remove the screw hole cover (j) on the left-hand side, for example using a flat-head screwdriver.
Remove the blind plug (d) for the hinge pin from the left-hand side and insert it in the hole on the right-hand side.
Then lift the door to close it. Place the door on a soft surface to protect it from scratches.
▶ Tilt the refrigerator backwards so that you can move the bottom hinge.

▶ Loosen the two retaining screws (h) of the lower hinge (f) and remove it. Use an 8 mm spanner or a Phillips screwdriver.
▶ Also remove the adjustable foot (i) on the opposite side by hand or using a 10 mm Allen key and reinsert it on the opposite side.
▶ Screw the lower hinge (f) on the opposite side tight with the two screws (h).
Now place the door on the hinge pin (e) of the lower hinge and make sure that the hinge pin is in the hinge bush of the door.
Before screwing the upper hinge (c) back on, ensure that the door closes flush with the refrigerator body horizontally and vertically so that all seals close.
▶ Then replace the upper hinge (c) and screw it tight.
▶ Then place the hinge cover (a) and the screw cover (j) back into position.

i

Please note: The door seal will adapt to the new door hinge after a few hours.

If tilted to an angle of more than 40^ during transport or when changing the door fittings, wait 30 minutes before connecting it to the mains and switching it on to enable the refrigerant circuit to settle.

6.2. Removing and replacing the vegetable drawer/glass shelf

To remove or insert the vegetable drawer or a glass shelf, open the door fully.

Removal

▶ Pull out the vegetable drawer with both hands and remove the vegetable drawer from the refrigerator compartment at a slight angle.
▶ Lift the shelf with both hands and pull the shelf out of the refrigerator compartment at a slight angle.

Fitting

To reinsert the glass shelf, slide it at a slight angle from the front into the front into the recesses in the refrigerator compartment wall.
To reinsert a vegetable drawer, slide the vegetable drawer into the appliance at a slight angle.

6.3. Removing/inserting door compartments

▶ Lift a door compartment to remove it.
To fit a door compartment, slide the door compartment from top to bottom onto the door compartment guide until it is firmly in place.

6.4. Sett ing up the appliance

NOTICE!

Possible material damage!

Risk of damage to the appliance due to improper handling

■ Install the refrigerating appliance in a dry and ventilated room. The room should be approx. 4 m^2 to ensure that sufficient air volume is available if the refrigeration system becomes damaged.
■ Take the space requirements into consideration when setting up the appliance:

To ensure adequate ventilation, a minimum clearance of 10 cm to the top, 10 cm to the sides and 5–7 cm to the back must be observed. To be able to open the refrigerator compartment door fully, the following room dimensions must be available (see Fig. 3).

The appliance is suitable for climate classes N, ST and T (see the type plate). The cooling performance of the appliance is guaranteed at ambient temperatures from 16°C to 43°C. If temperatures deviate from this range, the appliance performance may be reduced.
■ Do not expose the appliance to extreme conditions. Avoid:

– high humidity or wet conditions
– extremely high or low temperatures
- direct sunlight
- naked flames.

▶ Move the appliance to a suitable location.

100mm 50-70mm 100mm 100mm 100 mm 500 mm 135° 810 mm

Fig. 3 - Necessary room dimensions

▶ Ensure that the appliance is level, compensate for any unevenness in the floor by screwing in the adjustable feet.
▶ Level the refrigerator with a spirit level.

7. Operating the appliance

Connect the appliance to an earthed mains socket. local mains voltage must correspond to the technical specifications for the appliance.

Audible noises, such as cracking, are caused by the expansion and contraction of the components as a result of temperature changes.

The temperature control setting automatically adjusts the temperature in the refrigerator compartment.

MSTXMM

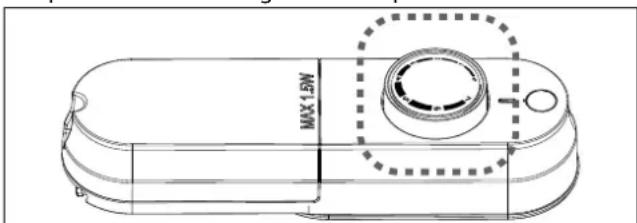

Fig. 4 - Temperature controller

The refrigeration temperature can be set as follows:

0 The appliance is switched off

1 The maximum refrigerator temperature (the warmest)

Use in cold ambient temperatures

2 to 6 Intermediate position

Use at normal ambient temperatures

7 The lowest refrigerator compartment temperature (coldest)

Use in warm ambient temperatures

Fluctuating ambient temperatures can cause the energy consumption and temperature inside the refrigerator to rise.

After switching on for the first time, the appliance requires approx. 2 hours when set to position 4 to cool down to 4°C on the lower shelf in the refrigerator compartment.

The internal temperatures can be influenced by factors such as the installation location, ambient temperature and the number of times the door is opened. Take these factors into account when setting the temperature control.

^e The maximum level of cooling on the temperature control should only be set for short periods in the event of high external temperatures or when filling the refrigerator with food that must be cooled quickly. Once the required interior temperature has been reached, the thermostat should be turned down, otherwise temperatures inside the appliance fall below 0^ C and can damage the chilled goods.

Place food or drinks, which are at max. room temperature, into the refrigerator. Do not place hot food or drinks into the cooling chamber.

7.1. Switching off the appliance

To de-energise the appliance, set the temperature control to 0 and unplug the mains plug from the socket.

▶ Wait approx. 10 minutes before switching on the appliance again.

8. Optimising energy consumption

In order to achieve the best possible cooling performance with low energy consumption, observe the following:

Do not position the appliance near a heat source (radiator or cooker etc.).
The location should be not too warm, dry, dust-free and well ventilated.
▶ Ensure that air can circulate freely around the refrigerating appliance.
The energy consumption will be lowest if the shelf and fruit/vegetable drawer are left inside the appliance when it is in use.
If the door is left open for a long time, this can cause the temperature inside the appliance zones to increase significantly. Only open the door briefly when loading and removing foodstuffs. Less cold can escape if the door is left open for only a short time and therefore the appliance requires less energy.
▶ Select the temperature setting according to how full the appliance is.
▶ Ensure that the door seals are undamaged and that the door closes properly.
If the appliance is left empty for an extended period of time, switch it off. Defrost and clean the appliance and allow it to dry. Leave the door open to prevent mould from forming in the appliance.

9. Storing food in the refrigerator

NOTICE!

Possible material damage!

Possible risk of damage to the door seal

■ Sensitive surfaces: Do not allow oil and grease to come into contact with the plastic parts and the door seal as the surface can become porous and brittle.

WARNING!

Risk to health!

To avoid food from becoming contaminated, please observe the following instructions:

■ Ensure cleanliness and correct storage of food. Regularly clean surfaces that may come into contact with food and accessible drain systems.
■ Do not store medicines, laboratory specimens or other temperature-sensitive products that are subject to the Medical Devices Directive 2007/47/EC inside the fridge freezer.
■ Store raw meat and fish in suitable, sealable containers in the refrigerator to ensure that they do not come into contact with or drip onto other food.
■ Distribute the food evenly throughout the appliance. Please note that food must not touch the rear wall of the cooling chamber, as this could cause frost and condensation to form.

■ Allow hot foods to cool down before placing them into the fridge to avoid increasing the energy consumption.

■ Ensure that foods that take on other smells easily, such as butter, milk and quark, are well packaged. i.e. in tightly sealed containers.

■ Store food in the correct cooling zone according to its type and sensitivity, see "5. Appliance overview" on page 81.

■ Storing vegetables with a high water content causes condensation to form on the vegetable containers. This does not impair the proper function of the cooling chamber.

■ Dry vegetables thoroughly before placing them in the refrigerator compartment. The storage time is reduced for vegetables with a high water content (e.g. leaf vegetables, cucumbers).

9.1. Recommended temperature setting

The ideal temperature is 4^ C on the lower shelf in the refrigerator compartment. Once this temperature is reached, you can load it with fresh food.

Ambient temperature Temperature setting

Summer (28–38°C) Setting 3–4

Normal (22–28°C) Setting 3–4

Winter (16–22°C) Setting 2–3

Effects of storage on food

At the recommended setting, the optimal storage time of the refrigerator is no longer than 3 days.

Other settings can shorten the optimal storage time. The optimal storage time varies depending on the food. Pay attention to the storage times recommended by the food manufacturers.

10. Cleaning the appliance

WARNING!

Risk of electric shock!

There is a risk of electric shock from electrified parts.

Before starting any cleaning work, you must set the temperature control to 0 and pull the mains plug out of the socket (pull on the plug, not the cable). If the plug is not accessible, the corresponding fuse for the mains electricity supply to the house needs to be switched off.
■ Do not touch the mains plug with wet or damp hands.

DANGER!

RISK OF EXPLOSION AND FIRE!

An accumulation of gas can lead to explosions.

■ Do not use any flammable liquids to clean the appliance or appliance parts.
■ Do not use de-icer sprays. They may produce explosive gases.

NOTICE!

Possible material damage!

Damage to the appliance due to improper handling of the sensitive surfaces of the appliance.

■ Sensitive surfaces: Do not allow oil and grease to come into contact with the plastic parts and the door seal as the door seal can become porous and brittle.
■ Never use acidic, abrasive or granular, acetic-acid-, soda- or solvent-based cleaning agents. These may damage the surfaces of your appliance.
■ Do not use any other mechanical equipment or synthetic agents to accelerate the defrosting process, e.g. electric heaters, hot air blowers or hair-dryers or pointed or hard objects. The heat insulation and appliance interior are sensitive to scratches and heat and can melt.
■ Do not operate any electrical appliances inside the fridge freezer. Both appliances may be damaged irreparably.

▶ Empty the cooling chamber.
▶ Set the temperature control to 0 and pull out the mains plug.
Remove the shelves and the fruit and vegetable compartment from the refrigerator compartment.

To prevent mould, vinegar (cleaning vinegar, household vinegar or vinegar essence) can be added to the water for cleaning.

▶ Wash the refrigerator compartment with a mild cleaning agent (e.g. washing-up liquid or a sodium carbonate solution of 3 teaspoons soda to 1 litre of water) and leave to dry completely.
▶ Carefully clean and dry all fittings.

Diagram showing a hand cutting scissors inside a balloon with rotation arrows, no text or symbols present

Fig. 5 – Cleaning the drainage channel (similar to illustration)

▶ Also clean the drainage channel for condensation, e.g. with a cotton bud.

During defrosting, condensation flows via the drainage channel into the evaporation container on the back of the appliance and evaporates automatically.

▶ Clean the appliance surfaces, except the door seal, with a mild cleaning agent. If necessary, the appliance surfaces can be treated with silicone grease.
▶ Clean the door seal with clean water, wipe it off and allow to dry.
▶ Plug the mains plug back into the socket.
As soon as the appliance has reached operating temperature, you can put the food back into the appliance.

11. Replacing the interior light

CAUTION!

Risk of injury/damage to the appliance!

■ The replacement of the LED interior light is the responsibility of the manufacturer, its customer service or a similarly qualified person.
■ If the interior light does not work, contact customer service.

12. Transport

CAUTION!

Risk of injury!

The appliance is very heavy. There is a risk of injury from straining to lift the appliance.

- Seek the assistance of at least one other person in order to move the appliance. Do not transport the appliance alone.

NOTICE!

Possible material damage!

Risk of damage to the appliance if transported incorrectly

■ Make sure that the packaging is not damaged. ■ Carefully remove the packaging material and check the appliance for transport damage.
■ Never connect a damaged appliance. In the event of damage, contact the Service Centre.
■ Always transport the freezer in its packaging and with the transport lock.
■ Ensure that no part of the refrigerant circuit is damaged when transporting and installing the appliance.
■ Where possible, always transport the appliance upright. If tilted to an angle of more than 45^ during transport, wait 2 hours before connecting the appliance to the mains and switching it on to enable the refrigerant circuit to return to normal after transport.
■ Do not place the appliance on its side or back, as this can cause oil from the compressor to enter and block the refrigerant circuit.
■ Do not expose the appliance to rain or spray water.

▶ Pull the plug out of the earthed mains socket.
Remove all objects and inserts from the interior of the appliance.
▶ Screw in the adjustable feet.
▶ Tape the door shut.

13. Measures in case of power failure

In case of a power failure, check the condition of food before eating (see also "3.3. Use of the appliance" on page 80).

14. Troubleshooting

WARNING!

Risk of electric shock!

There is a risk of electric shock due to live parts.

■ Never try to open and/or repair an appliance component yourself.
If there is damage to the mains connection cable on this appliance, it must be replaced by the manufacturer, its customer service department or another suitably qualified person. This is necessary to avoid hazards.
In the event of a fault, contact the Service Centre or another suitable professional repair workshop.

Faults may occur during operation. Please use the following table to check whether you can resolve the problem yourself. All other repairs are prohibited and invalidate the warranty.

Fault Cause Solution
The appliance is not working.	Interruption in the electrical circuit.	▸ Check whether the mains plug is plugged in.▸ Check that the connection cable is not damaged.
The interior light is not working.	Interior light defective.	▸ Contact the Service Centre.
The temperature is not low enough.	The door does not seal properly or is opened too often.	▸ Arrange chilled goods so that the door is not prevented from closing properly.▸ Open the door fo less time.▸ Check the door seal.
	The ambient temperature is higher than +43°C.	▸ The appliance is designed to work in a temperature range from +16°C to +43°C.
The temperature is not low enough.	The appliance has been set up in a location exposed to direct sunlight or next to a heat source.	▸ Place the appliance in a different position.▸ Set the appliance to a higher refrigeration level.
The appliance makes too much noise or vibrates.	The appliance has not been set up properly.	▸ Level the appliance.
Temperature control is not working.	The temperature sensor is defective.	▸ Contact the Service Centre.

15. Longer periods without use

If the appliance is not going to be used for a longer period of time, proceed as follows to safely store and protect the appliance:

▶ First set the temperature control to 0 and then remove the mains plug from the socket.
▶ Clear out the appliance.
▶ Clean the refrigerator compartment and allow to dry.
▶ Clean all the fittings carefully.
Leave the door open to avoid unpleasant odours and to prevent mould from forming.

16. Transport

CAUTION!

Risk of injury!

The appliance is very heavy. There is a risk of injury from straining to lift the appliance.

- Seek the assistance of at least one other person in order to move the appliance. Do not transport the appliance alone.

NOTICE!

Possible material damage!

Risk of damage to the appliance if transported incorrectly

■ Make sure that the packaging is not damaged.
■ Carefully remove the packaging material and check the appliance for transport damage.
■ Never connect a damaged appliance. In the event of damage, contact the Service Centre.
■ Always transport the refrigerator in its packaging and with the transport lock.

■ Ensure that no part of the refrigerant circuit is damaged when transporting and installing the appliance.

■ Where possible, always transport the appliance upright. If tilted to an angle of more than 40^ during transport, wait 4 hours before connecting it to the mains and switching it on to enable the refrigerant circuit to return to normal after transport.

■ Do not place the appliance on its side or back, as this can cause oil from the compressor to enter and block the refrigerant circuit.

■ Do not expose the appliance to rain or spray water.

17. Disposal

DANGER!

Risk of choking and suffocation! Risk of injury!

To avoid risks to children, proceed as follows before disposing of the appliance:

■ Remove the refrigerator compartment door and the seal or tape the refrigerator door closed.
■ Leave the vegetable drawer/shelves in the appliance so that no-one, for example children, can climb into the appliance.

■ During disposal, please note that the appliance/insulation contains cyclopentane (a flammable expanded gas for insulation).
■ The appliance/insulation must be disposed of correctly.

PACKAGING

Your appliance has been packaged to protect it from damage in transit. The packaging is made of materials that can be recycled in an environmentally friendly manner.

Observe the following labels on the packaging materials regarding waste separation with the abbreviations (a) and numbers (b): 1–7: plastics/20–22: paper and cardboard/80–98: composite materials

(France only)

The “Triman” symbol tells the consumer that the product can be recycled, is covered by an extended system of manufacturer's responsibility and must be sorted by material type in France.

APPLIANCE

All old appliances marked with the symbol shown must not be disposed of in normal household waste.

In accordance with Directive 2012/19/EU, the appliance must be properly disposed of at the end of its service life.

This involves separating the materials in the appliance for the purpose of recycling as well as minimising the environmental impact and negative effects on human health.

Take old appliances to an electrical scrap collection point or a recycling centre.

Contact your local waste disposal company or your local authority for more information on this subject.

18. Technical specifications

Supplier's address: MEDION AG

Am Zehnthof 77

45307 Essen

Germany

Model identifier: MD 37767

Rated voltage: 220 - 240 V \~

Rated frequency: 50 Hz

Rated current: 0.5 A

Refrigerant: R600a

Refrigerant quantity: 22 g

Insulation gas: Cyclopentane

Protection class: I

Dimensions WxDxH: Approx. 47.3 x 45.3 x 84.5 cm

Weight: Approx. 20.14 kg

19. Product data sheet

Scan the QR Code shown to download the product data sheet or contact the service department at www.medion.com/contact to obtain a printed copy of the product data sheet. You will also find the QR code on the energy label.

20. EU declaration of conformity

MEDION AG hereby declares that the product conforms to the following requirements of the European Union:

• EMC Directive 2014/30/EU
• Low Voltage Directive 2014/35/EU
• Ecodesign Directive 2009/125/EC
• RoHS Directive 2011/65/EU

21. Spare parts

Please visit our MEDION Service Shop at https://www.medion.com/medionserviceshop to order any spare parts you need.

You will be able to find all suitable spare parts for your product there.

All available spare parts can be purchased for a period of 7 years, seals can be purchased for a period of 10 years.

22. Information on the appliance

• The appliance uses refrigerant R600a (HCFC- and CFC-free) in the refrigerant circuit.
• The refrigerant circuit has been checked for leaks. This complies with the relevant safety regulations for electrical appliances.
  • Energy efficiency class E
  • Climate class N/ST/T

The different climate classes are explained in the following table.

Climate class	Meaning	Ambient temperature
SN Appliances for subnormal climate		+10°C to +32°C
N Appliances for normal climate		+16°C to +32°C
ST Appliances for subtropical climate		+16°C to +38°C
T Appliances for tropical climate		+16°C to +43°C

22.1. Information on the R600a refrigerant used

R600a and cyclopentane are used as 100% HCFC-free refrigerant and insulating materials in this appliance. This helps to protect the ozone layer and reduces the so-called greenhouse effect.

These appliances can be identified by the "Refrigerant R600a" notice on the type plate.

▶ Ensure that the refrigerant circuit is not damaged, as small quantities of R600a can contribute to the greenhouse effect if released.
This applies both when transporting the appliance and throughout its service life. Also ensure that you dispose of this appliance correctly according to local regulations.

23. Service information

Please contact our Customer Service team if your device ever stops working the way you want or expect it to. There are several ways for you to contact us:

• In our Service-Community, you can meet other users, as well as our staff, and you can exchange your experiences and pass on your knowledge there. You will find our Service-Community at community.medion.com.
  • Alternatively, use our contact form at www.medion.com/contact.
• You can also contact our Service team via our hotline or by post.

Opening times Hotline number UK
Mon – Fri: 08.00 – 20.00Sat – Sun: 10.00 – 16.00	1 0333 3213106
Service address
MEDION Electronics Ltd.120 Faraday Park, Faraday Road, DorcanSwindon SN3 5JF, WiltshireUnited Kingdom

You can download this and many other sets of operating instructions from our service portal at www.medionservice.com.

We have stopped providing printed copies of our warranty terms and conditions as part of our commitment to sustainability, but you can access the warranty terms and conditions on our service portal.

You can also scan the QR code on the side of the screen, to download the operating instructions onto your mobile device from the service portal.

24. Legal Notice

Copyright 2024

Date: 6. June 2024

All rights reserved.

These operating instructions are protected by copyright. Mechanical, electronic and any other forms of reproduction are prohibited without the written permission of the manufacturer.

Copyright is owned by the company:

MEDION AG

Am Zehnthof 77

45307 Essen

Germany

Please note that you cannot use the address above for returns. Please always contact our Customer Service team first.
