USER MANUAL Monitor XT10 DENON

Check that the following items came in the box.

Simple line drawing of a rectangular box with four legs and a small protrusion on top (no text or symbols)

Monitor XT10 Subwoofer

Illustration of a plug and two separate electrical circuit boards (no text or symbols)

Power Cable Documentation

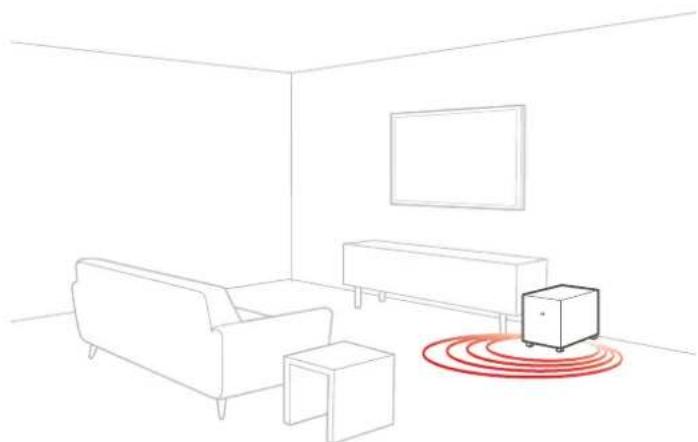

2 Position the subwoofer

For an optimal listening experience, placement is everything. Place the subwoofer in one of the configurations below, and make adjustments according to your preferences.

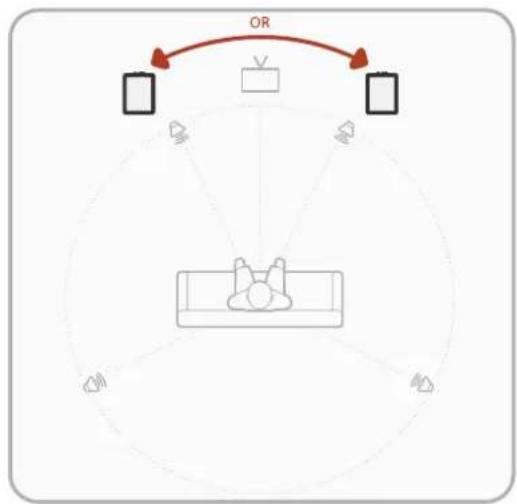

Listening with one subwoofer

For a single-subwoofer setup, position the subwoofer on either side of the front speakers and along the same wall. For the best sound and minimal distortion, the subwoofer should be positioned approximately 6 inches from the wall.

For optimal performance:

• Do not place the subwoofer in the middle of the listening area.
• Ensure each subwoofer is at least 6 inches from the wall.
• Experiment with placement. Moving the subwoofer a few feet in any direction can make a big difference.

OR V

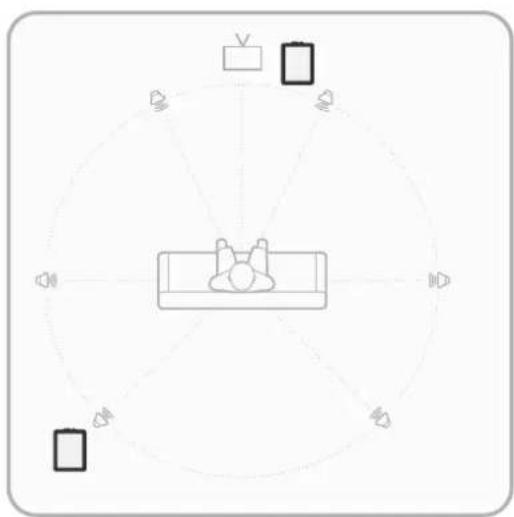

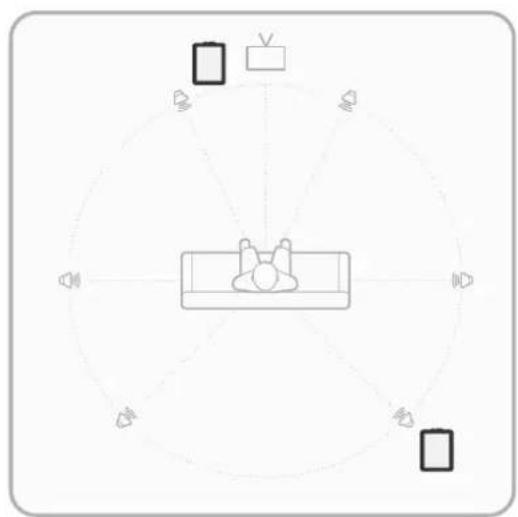

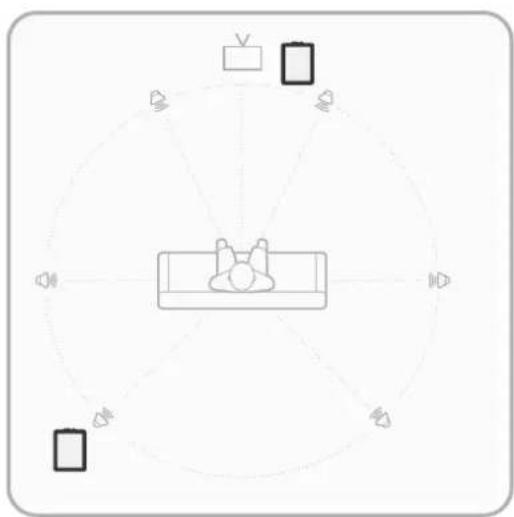

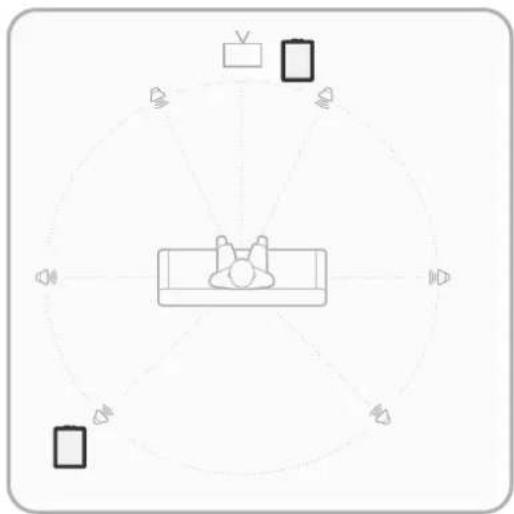

Listening with multiple subwoofers

For a multi-subwoofer setup, position the first subwoofer on either side of the front speakers and along the same wall. Position the second subwoofer in an opposite, diagonal position from the first subwoofer.

Top-down diagram of a person sitting on a sofa with sound waves and a TV, no text or symbols present

OR

Top-down diagram of a person reclining in a bed with circular layout and directional arrows, no text or symbols present.

3 Connect the subwoofer to your amplifier or AVR

Select one of the two options below to connect the subwoofer to your amplifier or receiver.

NOTE: Make sure the subwoofer isn't plugged into AC power before connecting it to your amplifier/receiver.

Line in setup

This method is recommended for systems with no LFE/subwoofer output jack, such as 2-channel systems.

1. Turn off the power on your amplifier/receiver.
2. Connect standard RCA cables from the front left and right pre-out jacks of the amplifier/receiver.
3. Set the volume knob to the 12 o'clock position.
4. Adjust the low-pass filter knob to blend the subwoofer and main speakers to your preferences.

LFE setup

1. Turn off the power on your amplifier/receiver.
2. Connect the LFE cable from your receiver to the left white RCA line input on the subwoofer.
   NOTE: The 'left white RCA line input' is labeled as 'L/LFE'.
3. Turn the low-pass filter knob on the subwoofer to 160 Hz.
4. Set the volume knob to the 12 o'clock position.
5. Follow the bass management instructions on your amplifier or AVR to integrate the subwoofer.

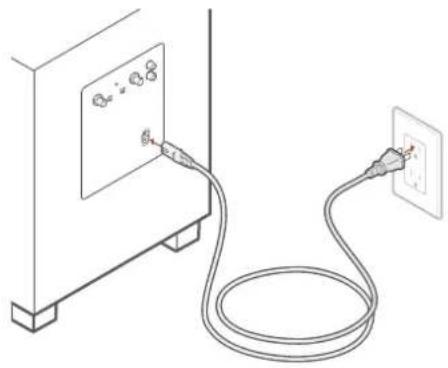

4 Plug in the power cable

Plug the power cable into the subwoofer, then into a wall outlet.

Line drawing of a cable being inserted into a wall-mounted power outlet (no text or symbols)

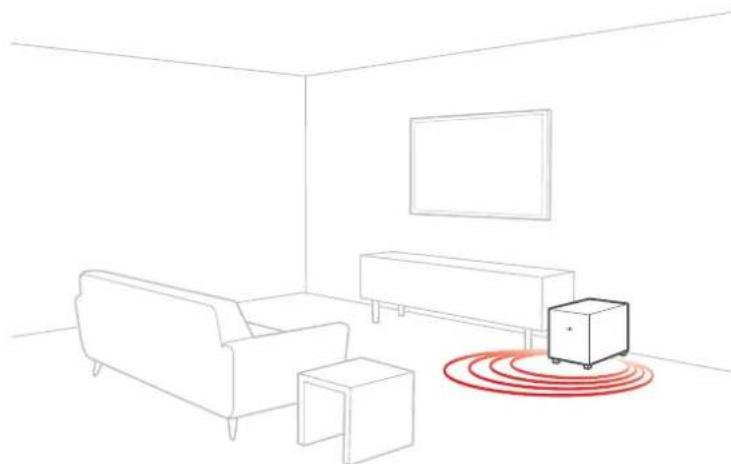

5 Setup is now complete!

Watch TV or listen to music and adjust the subwoofer settings to your preferences. See the next page for a diagram of the subwoofer back panel.

For support, FAQs, and more information about the subwoofer, visit polkaudio.com/MonitorXT10.

Interior layout diagram showing a room with a QR code, armchairs, TV, and a red sound wave indicator (no text or symbols)

Subwoofer features

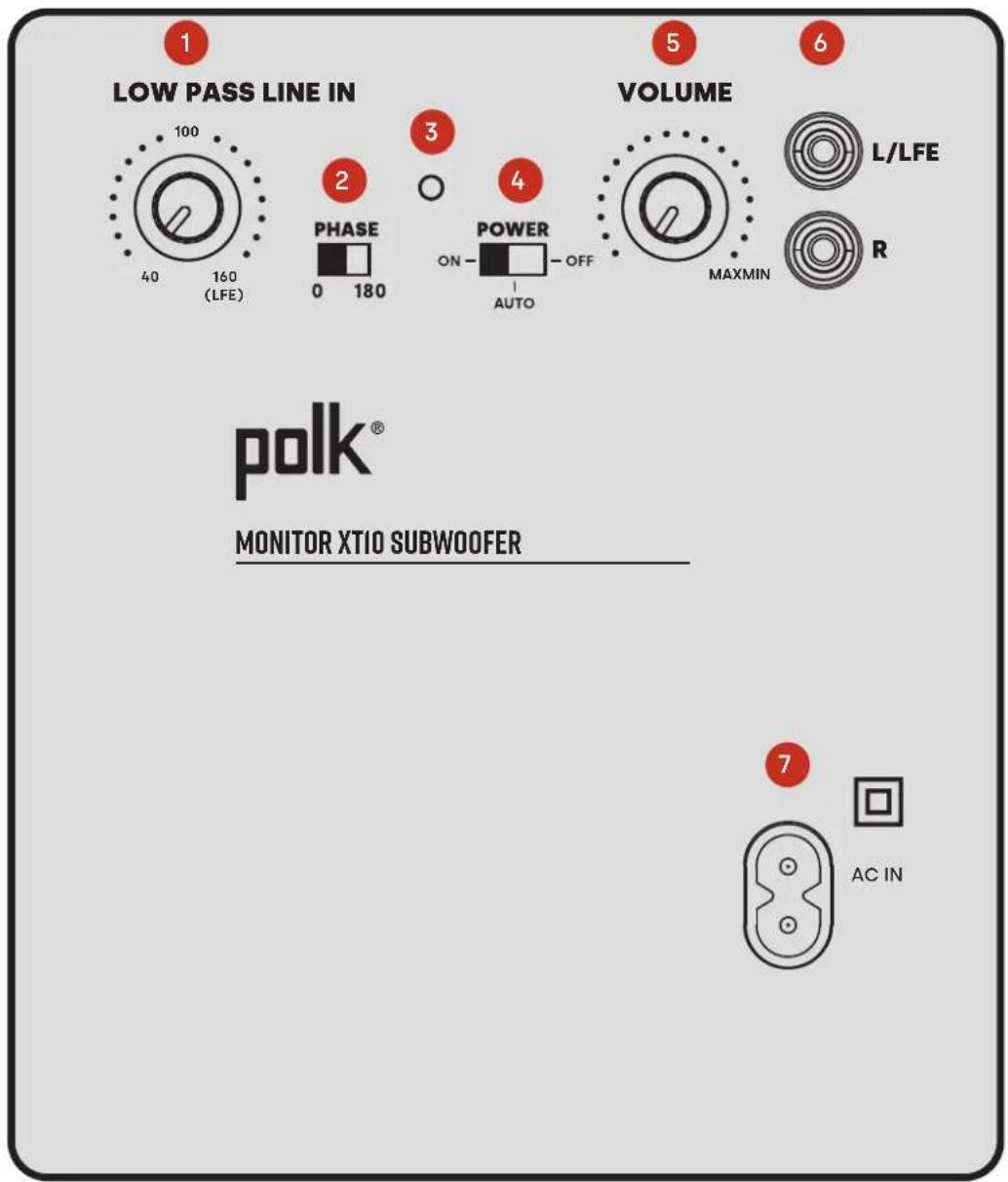

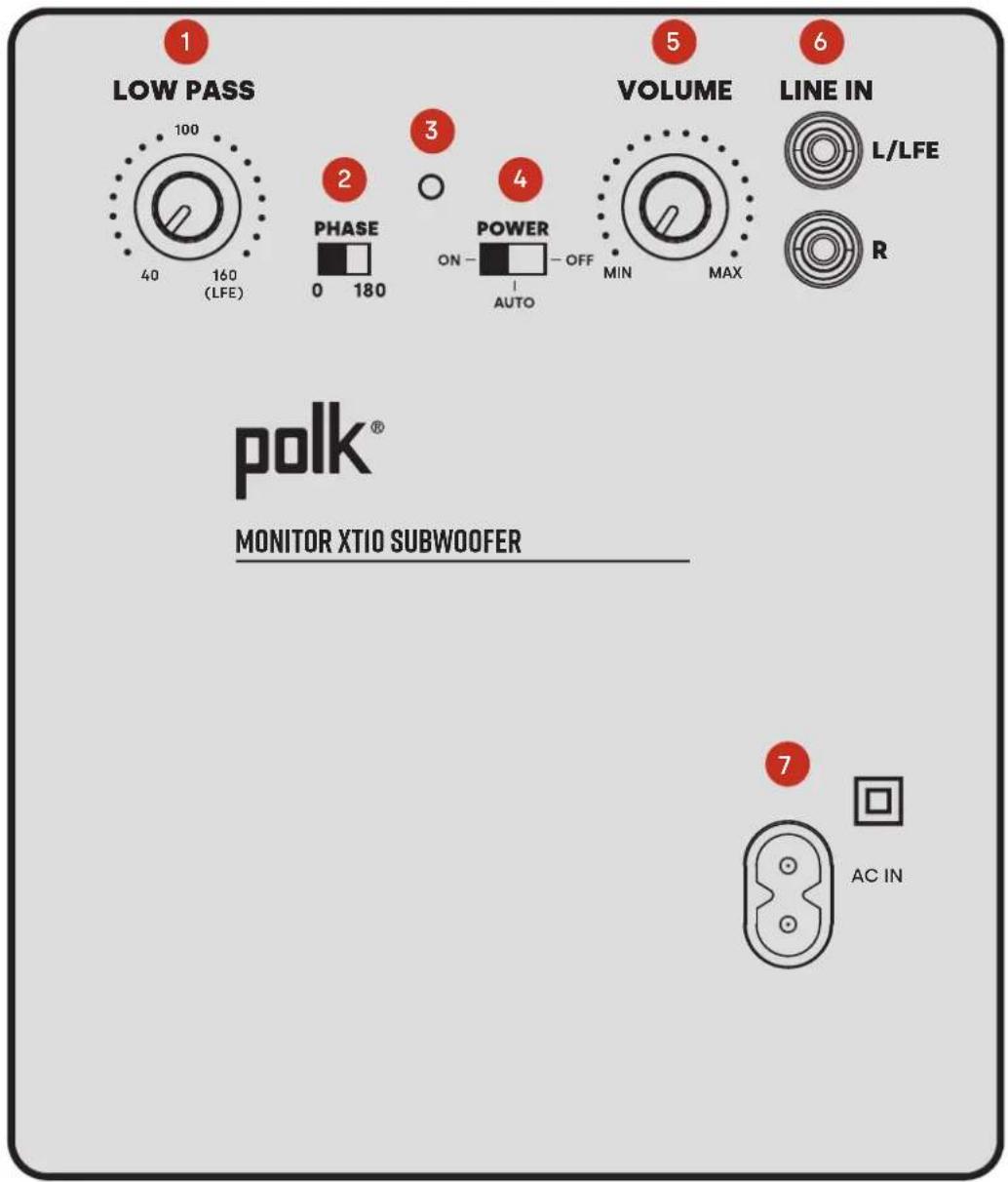

Subwoofer back-panel controls

1 LOW PASS LINE IN 100 40 160 (LFE) 2 PHASE 0 180 3 VOLUME ON - AUTO OFF 4 MAXMIN L/LFE R 7 AC IN polk® MONITOR XT10 SUBWOOFER

1. Low pass filter knob
2. Phase switch
3. LED power indicator
4. On/auto/off power switch
5. Volume control knob
6. Line in (LFE = White RCA)
7. AC power inlet

Subwoofer specifications

Type, power, and frequency
Speaker type Subwoofer
Base type Bass reflex (ported)
Overall frequency response 24 Hz–160 Hz
Continuous (RMS) 50 W
Peak power 100 W
Amplifier type Class D
Phase adjustment 0°/180°
Europe (<.5W compliance) Yes
Low-pass crossover frequency 40 Hz–160 Hz / LFE
Dimensions and weight
Product dimensions (W x H x D) 11.9" x 15.7" x 16.6" (302 x 400 x 421 mm)
Product weight (each) 23 lbs (10.4 kg)
Cabinetry
Available finishes Black vinyl PICA
Feet Permanently installed feet (no levelling)
Inputs
Line level Yes
LFE	Single RCA
Controls
Main power Auto on/off
Volume	Potentiometer
Low-pass filter	Potentiometer

Specifications are subject to change without notice.

Technical assistance

If your product was damaged during shipping, please contact the authorized Polk Audio retailer where you purchased your product. For technical support, FAQs, and repair information, visit support.polkaudio.com. Support email addresses and phone numbers vary based on the region where you purchased your product.

Important product information

WARNING: Listen carefully

Polk Audio loudspeakers are capable of playing at extremely high volume levels, which could cause serious or permanent hearing damage. Polk Audio accepts no liability for hearing loss, bodily injury, or property damage resulting from the misuse of its products. Keep these guidelines in mind and always use good judgment when controlling volume:

Limit prolonged exposure to volume levels that exceed 85 decibels (dB). For more information about safe volume levels, please review the Occupational Health and Safety Administration (OSHA) guidelines at www.osha.gov/.

Care and cleaning

The only thing you should ever need to do to your speakers is dust them occasionally. Never apply any abrasive or solvent-based cleaner or any harsh detergent.

Safety precautions

1. CAUTION! To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. The apparatus shall not be exposed to dripping or splashing and that objects filled with liquids, such as vases, shall not be placed on apparatus.

2. Read these instructions.

3. Keep these instructions.

4. Heed all warnings.

5. Follow all instructions.

6. Do not use this apparatus near water.

7. Clean only with a dry cloth.

8. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

9. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

10. No naked flame sources, such as lighted candles, should be placed on the apparatus.

11. Place the subwoofer close to your AC power socket for easy plugging and unplugging.

12. Protect the power cord from being walked on or pinched particularly at the plugs, convenience receptacles, and at the point where they exit from the apparatus.

13. Use only attachments/accessories specified by the manufacturer.

14. Unplug the apparatus during lightning storms or when unused for long periods of time.

15. Refer all servicing to qualified personnel. Servicing is required when the apparatus has been damaged in any way, such as when power supply cord or plug is damaged, when liquid has been spilled or objects have fallen into the apparatus, when the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

16. WARNING! The mains plug/appliance coupler is used as the disconnect device. The disconnect device shall remain readily operable.

17. CAUTION! To completely disconnect this product from the mains, disconnect the plug from the wall socket outlet. The mains plug is used to completely interrupt the power supply to the unit and must be within easy access by the user.

18. The equipment can be used at a maximum ambient temperature of 95^ F ( 35^ C).

19. The product is designed for altitudes up to and including 2000m above sea level.

20. CAUTION! To completely disconnect this product from the mains, disconnect the plug from the wall socket outlet. The mains plug is used to completely interrupt the power supply to the unit and must be within easy access by the user.

21. CAUTION! Neutral fusing. After fuse is blown, there is still a risk of electrical shock. Disconnect power cord before service. When replacing, use a fuse with the same current rating (China/Europe: T 1AL 250V; Japan: T 2AL 250V).

Notes on use

• Avoid high temperatures.
• Allow for sufficient heat dispersion when installed in a rack.
• Handle the power cord carefully.
• WARNING! Hold the plug when unplugging the cord.
• Keep the unit free from moisture, water, and dust.
• Unplug the power cord when not using the unit for long periods of time.
• Do not obstruct the ventilation holes.
• Do not let foreign objects into the unit.
• Do not let insecticides, benzene, and thinner come in contact with the unit.

- WARNING! Never disassemble or modify the unit in any way.

- Ventilation should not be impeded by covering the ventilation openings with items such as newspapers, tablecloths or curtains.

- Naked flame sources such as lit candles should not be placed on the unit.

- Do not expose the unit to dripping or splashing fluids.

- Do not place objects filled with liquids, such as vases, on the unit.

- WARNING! Do not handle the mains cord with wet hands.

- WARNING! When the switch is in the OFF (STANDBY) position, the equipment is not completely switched off from MAINS.

- The equipment shall be installed near the power supply so that the power supply is easily accessible.

• CAUTION! HOT SURFACE.

• DO NOT TOUCH.

- The rear metal panel over the internal heat sink may become hot when operating this product continuously. Do not touch hot areas, especially around the "Hot surface" mark and the rear metal panel.

EU Declaration of Conformity

CE

Hereby, Sound United, LLC declares that our product complies with the following EU/EC directives:

• EMC:2014/30/EU
• LVD:2014/35/EU
• RoHS: 2011/65/EU and amendment Directive (EU) 2015/863
- ErP: EC regulation 1275/2008 and its framework directive 2009/125/EC including amendment 801/2013

The full text of the EU declaration of conformity is available at the following internet address: https://www.polkaudio.com/declarations-of-conformity.

Sound United, LLC

5541 Fermi Court

Carlsbad, CA 92008, USA

EU Contact:

Sound United Europe

A division of D&M Europe B.V.

UKCA Declaration of Conformity

UK CA

Hereby, Sound United, LLC declares that our product is in compliance with UK regulations.

• Electrical Equipment (Safety) Regulations 2016
• Electromagnetic Compatibility Regulations 2016
- The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012
• Eco design for Energy-Related Products Regulations 2010

The full text of the UKCA declaration of conformity is available at the following internet address: https://www.polkaudio.com/declarations-of-conformity.

Sound United, LLC

5541 Fermi Court

Carlsbad, CA 92008, USA

UK Importer:

D&M Audiovisual Ltd

Dale Road, Worthing, West Sussex, United Kingdom,

BN11 2BH

Product disposal

Certain international, national and/or local laws and/or regulations may apply regarding the disposal of this product. For more information, please contact the retailer where you purchased this product or the Polk importer/distributor in your country. More information is also available at www.polkaudio.com or by contacting Polk Audio at 5541 Fermi Court, Carlsbad, California, 92008, USA. Phone: [phone].

This symbol on our electrical products or their packaging indicates that it is prohibited in Europe to discard this product(s) as domestic waste. To ensure that you dispose of the product(s) correctly, please dispose of the product(s) according to local laws and regulations on the disposal of electrical and electronic equipment. In doing so, you are contributing to the retention of natural resources and to the promotion of environmental protection by the treatment and disposal of electronic waste.

Correct disposal of this product. This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Pour en savoir plus

www.quefairedemesdechets.fr

Configurer le caisson de basses

1 Déballer

Simple line drawing of a rectangular box with four legs and a side panel (no text or symbols)

Monitor XT10 Caisson de basses

Top-down diagram of a person sitting on a sofa with circular sound waves and a battery, no text or symbols present.

OR

Top-down diagram of a person sitting in a circle with directional arrows and battery symbols (no text or labels)

Line drawing of a cable being inserted into a wall-mounted power outlet (no text or symbols)

QR code with red border, likely for digital scanning and linking

Line drawing of a modern living room with sofa, TV, and red sound wave indicator (no text or symbols)

Assistance technique

• EMC:2014/30/EU
• LVD:2014/35/EU
• RoHS: 2011/65/EU and amendment Directive (EU) 2015/863
- ErP: EC regulation 1275/2008 and its framework directive 2009/125/EC including amendment 801/2013

A division of D&M Europe B.V.

• Electrical Equipment (Safety) Regulations 2016
• Electromagnetic Compatibility Regulations 2016
- The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012
• Eco design for Energy-Related Products Regulations 2010

: https://www.polkaudio.com/declarations-of-conformity.

Sound United, LLC

5541 Fermi Court

Carlsbad, CA 92008, USA

Dale Road, Worthing, West Sussex, United Kingdom,

BN11 2BH

Simple line drawing of a rectangular box with four legs and a side panel (no text or symbols)

Monitor XT10 altavoz de subgraves

Cable de energía

Documentación

Top-down diagram of a person sitting on a sofa with circular sound waves and a battery, no text or symbols present.

OR

Top-down diagram of a person sitting in a circle with directional arrows and battery symbols (no text or labels)

Line drawing of a cable being inserted into a wall-mounted power outlet (no text or symbols)

Line drawing of a living room interior with a QR code and a red sound wave indicator (no text or symbols)

• EMC:2014/30/EU
• LVD:2014/35/EU
• RoHS: 2011/65/EU and amendment Directive (EU) 2015/863
- ErP: EC regulation 1275/2008 and its framework directive 2009/125/EC including amendment 801/2013

A division of D&M Europe B.V.

• Electrical Equipment (Safety) Regulations 2016
• Electromagnetic Compatibility Regulations 2016
- The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012
• Eco design for Energy-Related Products Regulations 2010

Dale Road, Worthing, West Sussex, United Kingdom, BN11 2BH

Simple line drawing of a rectangular box with four legs and a side panel (no text or symbols)

Monitor XT10 Subwoofer

Top-down diagram of a person sitting on a sofa with circular sound waves and a battery, no text or symbols present.

OR

Top-down diagram of a person reclining in a circle with directional arrows and device icons (no text or labels)

Line drawing of a cable being inserted into a wall-mounted power outlet (no text or symbols)

QR code with red border, likely for digital scanning and linking

Line drawing of a living room interior with sofa, TV, and sound unit (no text or symbols)

Caratteristiche del subwoofer

Controlli del pannello posteriore del subwoofer

1

LOW PASS LINE IN

2

3

O

5

VOLUME

6

polk®

MONITOR XTIO SUBWOOFER

7

AC IN

• EMC:2014/30/EU
• LVD:2014/35/EU
• RoHS: 2011/65/EU and amendment Directive (EU) 2015/863
- ErP: EC regulation 1275/2008 and its framework directive 2009/125/EC including amendment 801/2013

A division of D&M Europe B.V.

• Electrical Equipment (Safety) Regulations 2016
• Electromagnetic Compatibility Regulations 2016
- The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012
• Eco design for Energy-Related Products Regulations 2010

Dale Road, Worthing, West Sussex, United Kingdom, BN11 2BH

Simple line drawing of a rectangular box with four legs and a side panel (no text or symbols)

Monitor XT10 Subwoofer

Illustration of a plug and two separate electrical circuit boards (no text or symbols)

Top-down diagram of a person sitting on a sofa with sound waves and a TV, no text or symbols present

OR

Top-down diagram of a person sitting in a circle with directional arrows and device icons (no text or labels)

3

Line drawing of a cable being inserted into a wall-mounted device, with an outlet plug nearby (no text or symbols)

5

QR code with red border, likely for digital scanning and linking

Line drawing of a living room interior with sofa, TV, and a small box emitting red sound waves (no text or symbols)

• EMC:2014/30/EU
• LVD:2014/35/EU
• RoHS: 2011/65/EU and amendment Directive (EU) 2015/863
- ErP: EC regulation 1275/2008 and its framework directive 2009/125/EC including amendment 801/2013

A division of D&M Europe B.V.

• Electrical Equipment (Safety) Regulations 2016
• Electromagnetic Compatibility Regulations 2016
- The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012
• Eco design for Energy-Related Products Regulations 2010

Dale Road, Worthing, West Sussex, United Kingdom, BN11 2BH

Produktentsorgung

Simple line drawing of a rectangular box with four legs and a small protrusion on top (no text or symbols)

Monitor XT10 Subwoofer

Przewód zasilający

Dokumentacja

2 Ustaw subwoofer

Top-down diagram of a person sitting on a sofa with circular layout and sound wave indicators (no text or symbols)

OR

Top-down diagram of a person reclining in a bed with circular layout and directional arrows, no text or symbols present.

Line drawing of a cable being inserted into a wall-mounted power outlet (no text or symbols)

QR code with red border, likely for digital scanning and linking to online content

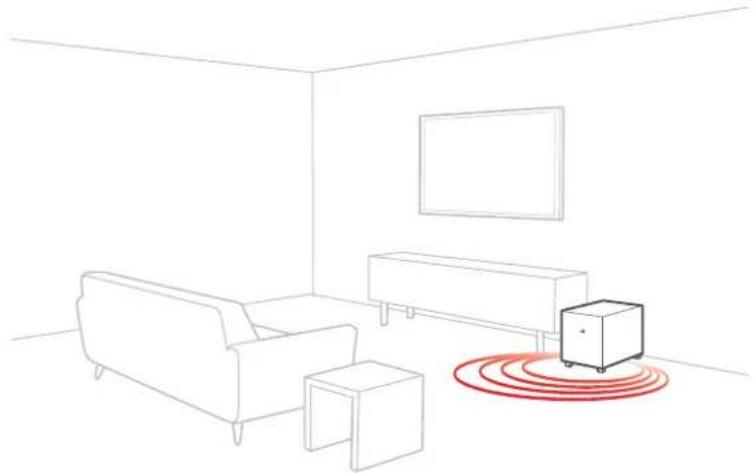

Line drawing of a living room interior with sofa, TV, and a red sound wave indicator (no text or symbols)

Funkcje subwoofera

• EMC:2014/30/EU
• LVD:2014/35/EU
• RoHS: 2011/65/EU and amendment Directive (EU) 2015/863
- ErP: EC regulation 1275/2008 and its framework directive 2009/125/EC including amendment 801/2013

A division of D&M Europe B.V.

• Electrical Equipment (Safety) Regulations 2016
• Electromagnetic Compatibility Regulations 2016
- The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012
• Eco design for Energy-Related Products Regulations 2010

Dale Road, Worthing, West Sussex, United Kingdom, BN11 2BH

Utylizacja produktu

Simple line drawing of a rectangular box with four legs and a small protrusion on top (no text or symbols)

Monitor XT10 Subwoofer

Illustration of a plug and two separate documents (no text or symbols visible)

Top-down diagram of a person sitting in a circle with sound waves and a battery, no text or symbols present

OR

Top-down diagram of a person reclining in a circle with directional arrows and devices (no text or symbols)

Line drawing of a cable being inserted into a wall-mounted power outlet (no text or symbols)

Interior layout diagram showing a room with a QR code, armchairs, TV, and a red sound wave indicator (no text or symbols)

Subwooferfunktioner

Important product information

WARNING: Lyssna noga

• EMC:2014/30/EU
• LVD:2014/35/EU
• RoHS: 2011/65/EU and amendment Directive (EU) 2015/863
- ErP: EC regulation 1275/2008 and its framework directive 2009/125/EC including amendment 801/2013

A division of D&M Europe B.V.

• Electrical Equipment (Safety) Regulations 2016
• Electromagnetic Compatibility Regulations 2016
- The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012

- Eco design for Energy-Related Products Regulations 2010

Dale Road, Worthing, West Sussex, United Kingdom, BN11 2BH

Simple line drawing of a rectangular box with four legs and a small protrusion on top (no text or symbols)

Monitor XT10 Subwoofer

Illustration of a plug and two separate documents (no text or symbols visible)

Stroomkabel Documentatie

Top-down diagram of a person sitting in a circle with sound waves and a battery, no text or symbols present

OR

Top-down diagram of a person sitting in a circle with directional arrows and battery symbols (no text or labels)

Diagram showing a cable being inserted into a wall-mounted power outlet (no text or symbols present)

5 De installatie is nu voltooid!

QR code with red border, likely for digital scanning and linking

Line drawing of a living room interior with sofa, TV, and a red sound wave indicator (no text or symbols)

Subwooferfuncties

• EMC:2014/30/EU
• LVD:2014/35/EU
• RoHS: 2011/65/EU and amendment Directive (EU) 2015/863
- ErP: EC regulation 1275/2008 and its framework directive 2009/125/EC including amendment 801/2013

A division of D&M Europe B.V.

• Electrical Equipment (Safety) Regulations 2016
• Electromagnetic Compatibility Regulations 2016
- The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012
• Eco design for Energy-Related Products Regulations 2010

Dale Road, Worthing, West Sussex, United Kingdom, BN11 2BH

Productverwijdering

Simple line drawing of a rectangular box with four legs and a side panel (no text or symbols)

Monitor XT10
Subwoofer

Illustration of a plug and two separate documents (no text or symbols visible)

电源线文档

2 放置低音炮

Top-down diagram of a person sitting in a circle with sound waves and a battery, no text or symbols present

OR

Top-down diagram of a person reclining in a bed with circular layout and directional arrows, no text or symbols present.

3 将低音炮连接到您的放大器或 AVR

Line drawing of a cable being inserted into a wall-mounted power outlet (no text or symbols)

5 设置已经完成!

Line drawing of a living room interior with sofa, TV, and a small box emitting red sound waves (no text or symbols)

低音炮特点

低音炮背面板控制

1 LOW PASS LINE IN 100 40 160 (LFE) 2 PHASE 0 180 3 VOLUME ON - OFF AUTO POWER MAXMIN L/LFE R 7 AC IN polk® MONITOR XT10 SUBWOOFER

Simple line drawing of a rectangular box with four legs and a small protrusion on the side (no text or symbols)

Top-down diagram of a person sitting in a circle with sound waves and a battery, no text or symbols present

OR

Top-down diagram of a person sitting in a circle with directional arrows and battery symbols (no text or labels)

Line drawing of a cable being inserted into a wall-mounted power outlet (no text or symbols)

5 これでセットアップは完了です

Interior layout diagram with a QR code, a TV screen, and a red sensor icon labeled '日本' (Japan)

サブウーファーの機能

サブウーファー の 背 面 パ ネル

1 LOW PASS 100 40 160 (LFE) PHASE 0 180 3 VOLUME ON - OFF AUTO MIN MAX LINE IN L/LFE R polk® MONITOR XTIO SUBWOOFER 7 AC IN

Sound United Europe,

A division of D&M Europe B.V.

Eindhoven, The Netherlands

UK Importer:

D&M Audiovisual Ltd

Dale Road, Worthing,

West Sussex, United

Kingdom, BN11 2BH
