1. SAFETY INSTRUCTIONS

Read the enclosed safety warnings, the additional safety warnings and the instructions. Failure to follow the safety warnings and the instructions may result in electric shock, fire and/or serious injury. Save the safety warnings and the instructions for future reference.

The following symbols are used in the user manual or on the product:

Read the user manual.

Denotes risk of personal injury, loss of life or damage to the tool in case of nonobservance of the instructions in this manual.

Risk of electric shock.

Indoor use only.

Class II machine - Double insulation - You don't need any earthed plug.

Time-lag miniature fuse-link.

Max temperature 45°C

Do not throw the battery into fire.

Do not throw the battery into water.

Before cleaning and maintenance, always switch off the machine and remove the battery pack from the machine.

DO NOT direct the water jet towards people or animals. DO NOT direct the water jet towards the unit itself, electrical parts or towards other electrical.

The machine is not intended to be connected to the potable water mains.

Protect the appliance against frost.

Separate collection for Li-ion battery.

Do not dispose of the product in unsuitable containers.

The product is in accordance with the applicable safety standards in the European directives.

SAFETY WARNINGS

When using electric machines always observe the safety regulations applicable in your country to reduce the risk of fire, electric shock and personal injury. Read the following safety instructions and also the enclosed safety instructions.

WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Immediately switch off the machine when:

• Defect switch.
• Smoke or stench of scorched isolation.

Specific safety rules

The USE and MAINTENANCE manual constitutes an essential part of the cleaner equipment and should be kept in a safe place for future reference. If you sell the cleaner, the manual should be handed on to the new owner.

• Before starting the cleaner, make sure that it is receiving water correctly. Operating the cleaner without water could damage the seals.
• Protect the cleaner from freezing during the winter.
• Do not obstruct the ventilation grilles during operation.
• Position the cleaner AS NEAR POSSIBLE to the water supply.
• The packaging is easily recyclable, and must be disposed of in compliance with the regulations in force in the country of installation.
• Use the cleaner only with accessories and replacement parts authorized by the manufacturer. The use of original accessories and replacement parts will ensure safe, trouble free operation.
• Avoid unintentional firing of the trigger. Do not carry the lance/ trigger assembly with your hand over the trigger. Always use the trigger lock mechanism.
• Ensure that the safety lock on the trigger is

used, when you have stopped using the pressure washer to prevent accidental operation.

- Machines shall not be used by children. Children should be supervised to ensure that they do not play with the machine. This machine is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge.

- The machine is intended to be used at a temperature above 5 degree.

- The operating method to be followed in the event of accident (e.g. contact with detergents: rinse with an abundance of clean water) or breakdown to prevent unsafe situations.

- Do not use the machine within range of persons unless they wear protective clothing.

- Do not direct the jet against yourself or others in order to clean clothes or foot-wear.

- Risk of explosion-Do not spray flammable liquids.

- High pressure hoses, fittings and couplings are important for the safety of the machine. Use only hose, fittings and couplings recommended by the manufacturer.

- To ensure machine safety, use only original spare parts from the manufacturer or approved by the manufacturer.

- Water that has flown through backflow preventers is considered to the non-potable.

- Observe a distance of at least 30cm when using the jet to clean painted surfaces to avoid damaging paintwork.

- Do not use the device if important parts such as the suction hose, nozzles or the spray lance are damaged.

- To ensure the machine safety, please only use original spare parts (including nozzle) from the manufacturer or approved by the manufacturer. Do not use the machine before you changed them if they are damaged.

- Be care of the danger of the kickback force on the pressure washer when starting and grasp the pressure washer with hands firmly.

- To reduce the risk of injury, close supervision is necessary when a machine is used near children. Pressure cleaner shall not be used by children or untrained person.

- Know how to stop the machine and bleed pressures quickly. Be thoroughly familiar with the controls.

• Stay alert and watch what you are doing.
• Do not use for cleaning windows.
• Do not operate the machine when fatigued or under the influence of alcohol or drugs.
• Keep operating area clear of all persons.
• Do not overreach or stand on unstable support. Keep good footing and balance at all times.
• Follow the maintenance instructions specified in the manual.
• When the machine is running, please maintain a constant water supply. Without water circulation will damage the sealing rings of the machine.
• Don't start and run the machine in a place excessively cold so as to prevent the machine from the freezing current.
• This machine has been designed for only using cleaning water, do not use corrosive chemicals.
• High-pressure jets can be dangerous if subject to misuse. The jet must not be directed at persons, animals, live electrical equipment or the machine itself. Pressure washers should not be pointed at tire walls, as it may be possible to damage them.
• Do not direct the jet against yourself or others in order to clean clothes or footwear.
• Disconnect the battery before carrying out user maintenance.
• Be aware of the recoil caused by the water jet when the machine is switched on.
• Do not use the pipe if the pipe is damaged. If you want connect this machine to portable water mains, you must install a backflow preventer in the water pipe to prevent dirty water flow back to the drinking water system. The backflow preventer shall comply with EN 60335-2-54.

SAFETY WARNINGS FOR BATTERY

a) Do not open the battery. Danger of short-circuiting.
b) Protect the battery against heat, e. g., against continuous intense sunlight, fire, water, and moisture. Danger of explosion.
c) In case of damage and improper use of the battery, vapours may be emitted. Ventilate the area and seek medical help in case of complaints.

The vapours can irritate the respiratory system.

d) Use the battery only in conjunction with your Vonroc product. This measure alone protects the battery against dangerous overload.

e) The battery can be damaged by pointed objects such as nails or screwdrivers or by force applied externally. An internal short circuit can occur and the battery can burn, smoke, explode or overheat.

SAFETY WARNINGS FOR CHARGER

Intended use

Charge only CD801AA and CD803AA type rechargeable Battery packs with the charger. Other types of batteries may burst causing personal injury and damage.

a) The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.
b) Children being supervised not to play with the appliance.
c) Do not recharging non-rechargeable batteries!
d) During charging, batteries must be placed in the well ventilated area!

Electrical safety

Always check that the voltage of the power supply corresponds to the voltage on the rating plate.

• Do not use the machine if the mains cable or the mains plug is damaged.
• Only use extension cables that are suitable for the power rating of the machine with a minimum thickness of 1.5 mm ^2 . If you use an extension cable reel, always fully unroll the cable.

2. MACHINE INFORMATION

Intended use

The pressure washer 20V is portable and ideal for cleaning bikes, garden furniture and other objects that require low/medium pressure.

TECHNICAL SPECIFICATIONS

This manual has been drawn up for different sets / article numbers. Check the corresponding article number in below specifications table for the correct composition and contents of your set.

Model No.	Batteries included	Chargers included
PW508DC	-	-
S_PW508DC	CD801AA CD802AA
S2_PW508DC	2 x CD801AA CD802AA
S3_PW508DC	CD803AA CD802AA

Machine information
Voltage 20V	---
Max. pressure water supply 5 bar
Max. water temperature 40°C
Max. flow rate	3.3 l/min
Max. pressure	24 bar
IP class	IPX1
Weight	1.5 kg
Lpa (sound pressure)	71.9dB(A) K=3dB(A)
Lwa (sound power)	82.9dB(A) K=3dB(A)
Vibration	1.075 m/s2, K=1.5 m/s2

Model No.	CD801AA
Battery Type	Lithium-Ion
Voltage	20V=
Capacity	2.0 Ah
Recommended charger	CD802AA
Weight	0.3 kg

Model No.	CD802AA
Charger input	220-240V, 50Hz 0.4A
Charger output	21V=2.5A
Charging time 2Ah battery	60 minutes
Charging time 4Ah battery	120 minutes
Recommended batteries	CD801AA, CD803AA
Weight	0.36 kg

Model No.	CD803AA
Battery Type	Lithium-Ion
Voltage	20V=
Capacity	4.0 Ah
Recommended charger	CD802AA
Weight	0.65 kg

Only use the following batteries of the VONROC VPOWER 20V battery platform. Using any other batteries could cause serious injury or damage the tool. CD801AA 20V, 2Ah Lithium-Ion CD803AA 20V, 4Ah Lithium-Ion

The following charger of the can be used to charge these batteries. CD802AA Quick charger

The batteries of the VONROC VPOWER 20V battery platform are interchangeable with all the VONROC VPOWER 20V battery platform tools.

DESCRIPTION

The numbers in the text refer to the diagrams on pages 2-4.

1. Pressure washer
2. Lance extension
3. Adjustable spray nozzle
4. Water inlet
5. Hose connector
6. Hose connector ring
7. Suction hose
8. Floating ball
9. Suction filter
10. Switch lever
11. Release button
12. Bucket clamp
13. Detergent bottle
14. Battery unlock button
15. Battery
16. Battery LED indicators button
17. Battery LED indicators
18. Charger
19. Charger LED indicators

3. ASSEMBLY

Before any work on the power tool, remove the battery.

The battery must be charged before first use.

Assembly adjustable spray nozzle and lance extension (Fig. B)

1. Assembly the lance extension (2) on to the pressure washer (1).
2. Assembly the adjustable spray nozzle (3) on to the lance extension (2).

Inserting the battery into the machine (Fig. C)

Ensure that the exterior of the battery is clean and dry before connecting to the charger or machine.

1. Insert the battery (15) into the base of the machine as shown in Fig. C.
2. Push the battery further forward until it clicks into place.

Removing the battery from the machine (Fig. C)

1. Push the battery unlock button (14).

2. Pull the battery out of the machine like shown in Fig. C.

Checking the battery charging status (Fig. D)

• To check the battery charge status, push the button (16) on battery shortly.
• The battery has 3 lights indicating the charge level, the more lights that burn, the more charge the battery has left.
• When the lights are not burning it means the battery is empty and must be charged immediately.

Charging the battery with the charger (Fig. D)

1. Take the battery (15) from the machine.
2. Turn the battery (15) to upside down position and slide it onto the charger (18) as shown in Fig. D.
3. Push the battery until it is fully pushed into the slot.
4. Plug the charger plug into an electrical outlet and wait for a while. The LED indicators (19) on the charger (18) will lighten up and show the charger status.

The charger has 2 LED indicators (19) which indicate the status of the charging process:

Red LED Status	Green LED status	Charger status
Off Off No power
Off On		Standby mode:- No battery is inserted or,- Battery inserted but charging has finished
On Off		Battery charging in progress

• Fully charging the 2Ah battery may take up to 60 minutes.
• Fully charging the 4Ah battery may take up to 120 minutes.

After the battery is fully charged remove the charger plug from the outlet and remove the battery from the charger.

When the machine is not being used over a longer period of time it is best to store the battery in charged condition.

4. OPERATION

Connecting the watersupply

This unit is to be used with a cold-water source only!

The pressure washer must only be used with clean water; use of unfiltered water or corrosive chemicals will damage the pressure washer.

Ensure that you have a suitable water supply to feed the pressure washer. Check that all connections are tight and there are no leaks in the hose.

You can enable the water supply via a water tank (or pond, rain barrel, etc.) or via a water tap.

Water tank (water suction function) (Fig. E1)

Clean the suction filter (9) at regular intervals, and check it for damage. Otherwise, its function can be impaired.

When water is supplied via a water tank, pond, rain barrel, etc., the assembled suction hose (7) must be used. Only clear fresh water may be used.

1. Connect the assembled suctionhose (7) to the pressure washer, place the hose connector (5) on to the water inlet (4).
2. Lower the suction filter (9) into water. Ensure there are no obstructions around the suction filter (9). Move the float ball (8) in such a way that the suction filter (9) does not touch the water bottom. The suction filter (9) must be placed at least 20 cm from the water bottom to prevent the suction of sand. When using a water tank,

rain barrel or bucket, you can secure the hose by using the bucket clamp (12).

1. Check that the hose has no kinks in it.
2. The pressure washer is now ready for use.

Water tap (Fig. E2)

Use the device on a domestic water connection with maximum pressure of 5 bar.

The supply tap should be fully open.

1. Ensure that you have a suitable water supply to feed the pressure washer.
2. Connect the water supply hose (not included) to to the water inlet (4).
3. Connect the water supply hose (not included) to the water supply.
4. Turn on water and heck that the hose has no kinks in it.
5. The pressure washer is now ready for use.

Switching the pressure washer on/off (Fig. A)

The motor of this pressure washer will NOT run. It will only operate when the trigger is squeezed.

Before starting make sure the pressure washer is connected to a water source. Dry running will damage the pressure washer!

• To start the pressure washer, press and hold the release button (11) and press the switch lever (10).
• To stop the pressure washer, release the switch lever (10).

Adjusting the nozzle (Fig. F)

Water may be sprayed out of the nozzle (3) either linearly or in a fan shape. Turn on the pressure first, and then adjust the nozzle (3).

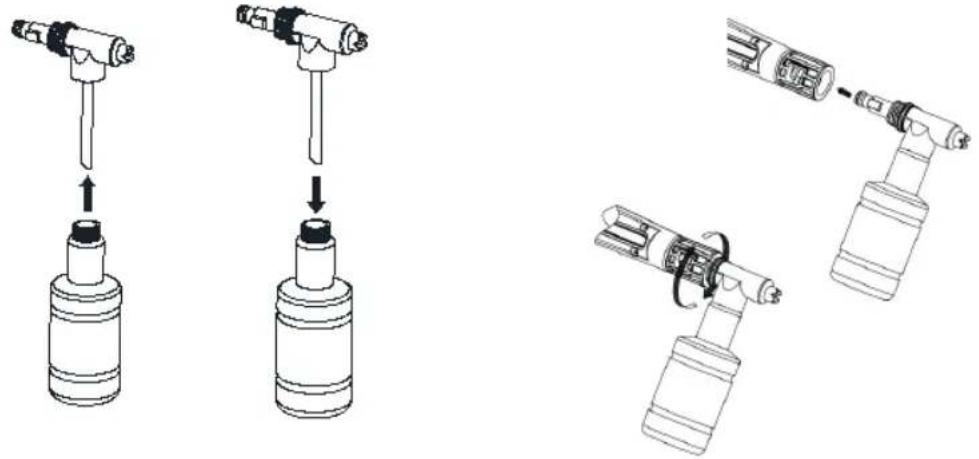

Using detergents (Fig G, A)

The detergent bottle (13) will allow you to apply many forms of liquid detergent onto the work surface.

1. Remove the detergent dispenser of the detergent reservoir and fill with liquid detergent only. Do not put any water into the reservoir. The detergent bottle (13) will mix water and detergent automatically.

2. Insert the end of the detergent bottle (13) into the pressure washer, push and turn in the clockwise direction to lock the detergent bottle (13) and pressure washer together.

When finished applying the detergent to the work surface, it is possible to spray off the detergent by using the adjustable spray nozzle (3).

Finish operation (Fig. A)

1. After use (when water is supplied via a water tank, pond, rain barrel, etc.) allow the pressure washer to run using clean water for 2 - 3 minutes in order to remove residues and particles that may have accumulated in the machine and hose. This is not necessary when used with clean tap water.
2. To stop the pressure washer, release the switch lever (10).
3. Turn off the water supply.
4. Remove the battery from the machine.
5. Press and hold the release button (11) and press the switch lever (10) to depressurize and drain the system.
6. Disconnect the hose from the pressure washer.
7. Wipe all surfaces of the unit and accessories with a damp clean cloth.

5. MAINTENANCE

Before cleaning and maintenance, always switch off the machine and remove the battery pack from the machine.

Clean the machine casings regularly with a soft cloth, preferably after each use. Make sure that the ventilation openings are free of dust and dirt. Remove very persistent dirt using a soft cloth moistened with soapsuds. Do not use any solvents such as gasoline, alcohol, ammonia, etc. Chemicals such as these will damage the synthetic components.

Suction filter

The suction filter (9) must be inspected regularly, so as to avoid blockage and restriction of the water supply to the pressure washer.

Cleaning nozzle

When the nozzle (3) is clogged, it may cause failure. The nozzle can be cleaned by inserting a small pin into the tip to remove filth.

Storage and frost protection

The pressure washer and accessories that are not completely drained can be destroyed by frost. Completely drain the pressure washer and accessories and protect them against frost.

Keep the pressure washer in well-ventilated dry premises with temperature not going below +5°C.

When not in use, keep this appliance stored in a safe place out of reach of children.

ENVIRONMENT

and/or discarded electrical or electronic apparatus have to be collected at the appropriate recycling locations.

Only for EC countries

Do not dispose of power tools into domestic waste. According to the European Guideline 2012/19/EC for Waste Electrical and Electronic Equipment and its implementation into national right, power tools that are no longer usable must be collected separately and disposed of in an environmentally friendly way.

WARRANTY

VONROC products are developed to the highest quality standards and are guaranteed free of defects in both materials and workmanship for the period lawfully stipulated starting from the date of original purchase. Should the product develop any failure during this period due to defective material and/or workmanship then contact VONROC directly.

The following circumstances are excluded from this guarantee:

• Repairs and or alterations have been made or attempted to the machine by unauthorized service centers;
• Normal wear and tear;
• The tool has been abused, misused or improperly maintained;
• Non-original spare parts have been used.

This constitutes the sole warranty made by company either expressed or implied. There are no other warranties expressed or implied which extend beyond the face hereof, herein, including the implied warranties of merchantability and fitness for

a particular purpose. In no event shall VONROC be liable for any incidental or consequential damages. The dealers remedies shall be limited to repair or replacement of nonconforming units or parts.

The product and the user manual are subject to change. Specifications can be changed without further notice.

VEILIGHEIDSWAARSCHUWINGEN

VEILIGHEIDSWAARSCHUWINGEN VOOR DE ACCU

2. INFORMATIE OVER HET APPARAAT

Bedoeld gebruik

DECLARATION OF CONFORMITY

PW508DC / S\_PW508DC / S2\_PW508DC / S3\_PW508DC - PRESSURE WASHER

(EN) We declare under our sole responsibility that this product is in conformity with directive 2011/65/EU of the European parliament and of the council of 8 June on the restriction of the use of certain hazardous substances in electrical and electronic equipment is in conformity and accordance with the following standards and regulations:
(DE) Der Hersteller erklärt eigenverantwortlich, dass dieses Produkt der Direktive 2011/65/EU des Europäischen Parlaments und des Rats vom 8. Juni 2011 über die Einschränkung der Anwendung von bestimmten gefährlichen Stoffen in elektrischen und elektronischen Geräten entspricht und den folgenden Standards und Vorschriften entspricht:
(NL) We declare under our sole responsibility that this product is in conformity with directive 2011/65/EU of the European parliament and of the council of 8 June on the restriction of the use of certain hazardous substances in electrical and electronic equipment is in conformity and accordance with the following standards and regulations:
(FR) Nous déclarons, sous notre propre responsabilité, que ce produit est conforme à la Directive 2011/65/UE du Parlement et du Conseil Européens du 8 Juin relative à la limitation de l'utilisation de certaines substances dangereuses dans les équipements électriques et électroniques et qu'il est conforme aux normes et règlements suivants :
(ES) Declaramos bajo nuestra exclusiva responsabilidad que este producto es conforme a la Directiva 2011/65/UE del Parlamento Europeo y del Consejo, de 8 de junio, sobre restricciones a la utilización de determinadas sustancias peligrosas en aparatos eléctricos y electrónicos, y que cumple y se ajusta a las siguientes normas y directivas:
(IT) VONROC dichiara, sotto la sua sola responsabilità, che questo prodotto è conforme alla Direttiva 2011/65/UE del Parlamento europeo e del Consiglio dell'8 giugno, relativa alla limitazione d'uso di determinate sostanze pericolose e apparecchiature elettriche ed elettroniche, ed è conforme alle norme e ai regolamenti seguenti:
(SV) Vi försäkrar under vårt eget ansvar att denna produkt överensstämmer med Europaparlamentets och rådets direktiv 2011/65/EU av den 8 juni om begränsning av användningen av vissa farliga ämnen i elektrisk och elektronisk utrustning och är i överensstämmelse och enlighet med följande standarder och föreskrifter:

(DA) Vi erklærer under eget ansvar, at dette produkt er i overensstemmelse med Europa-Parlamentets og Rådets direktiv 2011/65/EU af 8. juni om begrænsning af brugen af visse farlige stoffer i elektrisk og elektronisk udstyr og overholder og er i overensstemmelse med følgende standarder og regler:
(PL) Oświadczamy na własną i wyłączną odpowiedzialność, że ten produkt jest zgodny z dyrektywą 2011/65/UE Parlamentu Europejskiego i Rady z dnia 8 czerwca 2011 r. w sprawie ograniczenia stosowania niektórych niebezpiecznych substancji w sprzęcie elektrycznym i elektronicznym oraz następującymi normami i przepisami:
(RO) Declarăm sub responsabilitatea exclusivă că acest produs este în conformitate cu Directiva 2011/65/UE a Parlamentului și a Consiliului European din 8 iunie privind restricționarea utilizării anumitor substanțe periculoase în echipamentele electrice și electronice și în conformitate cu următoarele standarde și reglementări:
(PT) Declaramos, sob nossa exclusiva responsabilidade, que este produto está em conformidade com a directiva 2011/65/UE do Parlamento Europeu e com a do conselho de 8 de Junho sobre a restrição da utilização de determinadas substâncias perigosas em equipamento eléctrico e electrónico está em conformidade e de acordo com as seguintes normas e regulamentações:
(HU) Kizárólagos felelősségünk tudatában kijelentjük, hogy ez a termék megfelel az Európai Parlamentnek és a Tanácsnak az egyes veszélyes anyagok elektromos és elektronikus berendezésekben való alkalmazásának korlátozásáról szóló 2011/65/EU irányelvének (2011. június 8.), valamint a következő szabványoknak és jogszabályoknak:
(CS) Prohlašujeme na svou výhradní odpovědnost, že tento výrobek splňuje požadavky směrnice 2011/65/EU Evropské rady a parlamentu ze dne 8. června, která se týká omezení používání určitých nebezpečných látek v elektrických a elektronických zařízeních, a splňuje také všechny požadavky následujících norem a předpisů:

PW508DC:

EN 55014-1, EN 55014-2, EN 60335-1, EN 60335-2-54, EN ISO 12100, EN 62233, 2006/42/EC, 2014/30/EU, 2011/65/EU, 2012/19/EU

S_PW508DC / S2_PW508DC / S3_PW508DC:

EN 55014-1, EN 55014-2, EN 60335-1, EN60335-2-29, EN 60335-2-54, EN ISO 12100, EN 62233, 2006/42/EC, 2014/30/EU, 2011/65/EU, 2012/19/EU, 2014/35/EU

Zwolle, 01-05-2022 H.G.FRosberg

CEO

VONROC • Lingenstraat 6 • 8028 PM Zwolle • The Netherlands

VONROC®

BUILD YOUR FUTURE

©2022 VONROC

WWW.VONROC.COM

2205-02
