1. SAFETY INSTRUCTIONS

Read the enclosed safety warnings, the additional safety warnings and the instructions. Failure to follow the safety warnings and the instructions may result in electric shock, fire and/or serious injury. Save the safety warnings and the instructions for future reference.

The following symbols are used in the user manual or on the product:

Read the user manual.

Immediately remove the mains plug from the mains if the mains cable becomes damaged and during cleaning and maintenance.

Indoor use only.

Class II machine - Double insulation - You don't need any earthed plug.

Do not dispose of the product in unsuitable containers.

The product is in accordance with the applicable safety standards in the European directives.

ADDITIONAL SAFETY WARNINGS FOR AIR FAN

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Children should be kept away unless continuously supervised to ensure that they do not play with the air fan.
- Children shall not plug in, position, operate, regulate and clean the appliance or perform user maintenance.
- The tower fan is not suitable for use outdoors in damp weather, in bathrooms or in other wet or damp environments.

• Do not move the tower fan when it is operating.
• Do not cover the tower fan.
• Do not use the heater in immediate surroundings of a bath, a shower or a swimming pool.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Make sure the tower fan is always under surveillance and keep children and animals away.
• When the tower fan is not used for a long time, unplug the tower fan form its means. Pull the plug straight out, never remove the plug by pulling the cord.
• Keep the tower fan far from curtain or places where the air inlet an easily be blocked.
• The power coupler is waterproof when not in use. In order to prevent possible electric shock or leakage current, never use the heater with wet hands or operate the tower fan when there is water on the power cord.
• Do not insert things to air outlets and inlets, in order to avoid damage.
• Do not use the appliance near explosive and combustible gas.
• Do no turnover the appliance. Unplug the power supply If it is toppled over and there have some water in the body. Dry the body before use.
• Clean the appearance with a lightly damp cloth. It can clean with neutral detergents. Do not rinse with water.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities or lack of experience and knowledge unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Ensure that the fan is switched off from the supply mains before removing the guard.

Electrical safety

When using electric machines always observe the safety regulations applicable in your country to reduce the risk of fire, electric shock and personal injury. Read the following safety instructions and also the enclosed safety instructions.

Always check that the voltage of the power supply corresponds to the voltage on the rating plate.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

2. MACHINE INFORMATION

Intended use

The Air fan is intended for indoor, non-commercial, household use for cooling residential rooms. Do not use the product for any other purpose. The tower fan can be used in enclosed of open rooms in a free standing position. The tower fan may only be used completely mounted and standing vertically on a stable surface.

TECHNICAL SPECIFICATIONS

Model No.	AF501AC / AF501AC WHITE AF502AC / AF502AC WHITE AF503AC / AF503AC WHITE
Power supply 220-240V~
Frequency 50-60Hz
Power rating 50W
Timer 12 hours
Protection class Class II
Length of cord 1.6 m

DESCRIPTION

The numbers in the text refer to the diagrams on page 2-4.

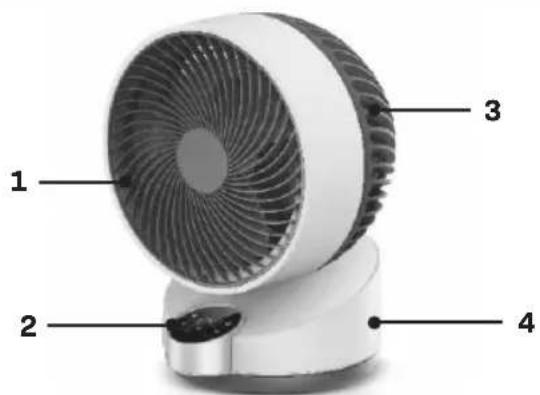

1. Front cover
2. Control panel
3. Back cover
4. Base
5. Column

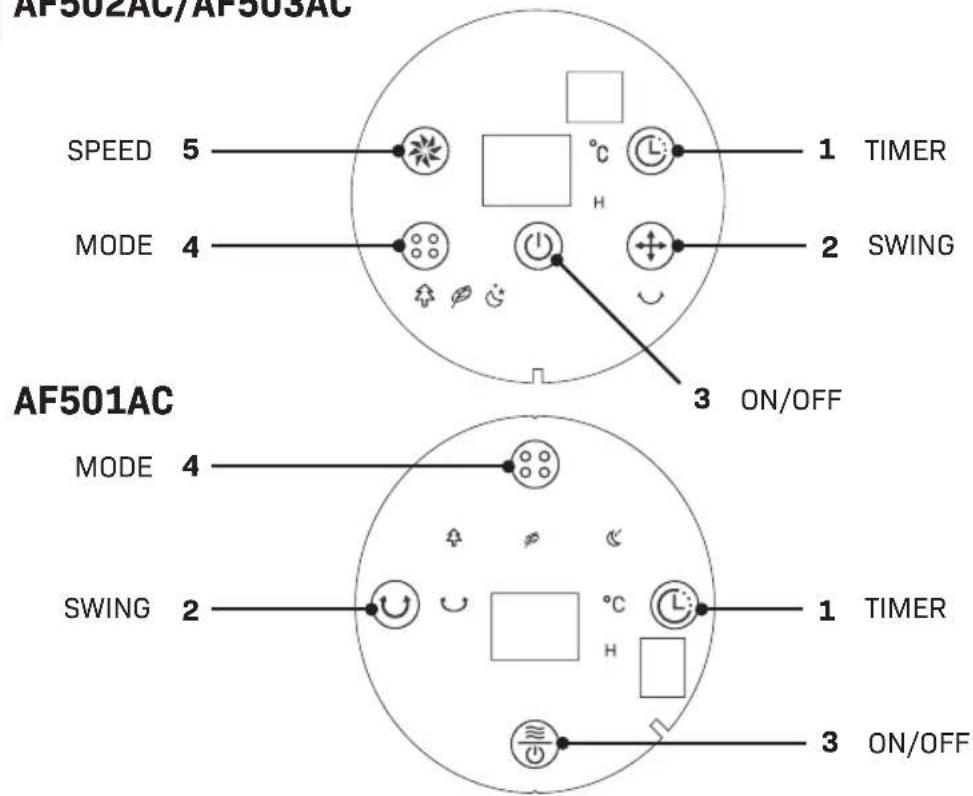

Fig. B (Control panel)

1. Timer
2. Swing
3. On/off
4. Mode
5. Speed

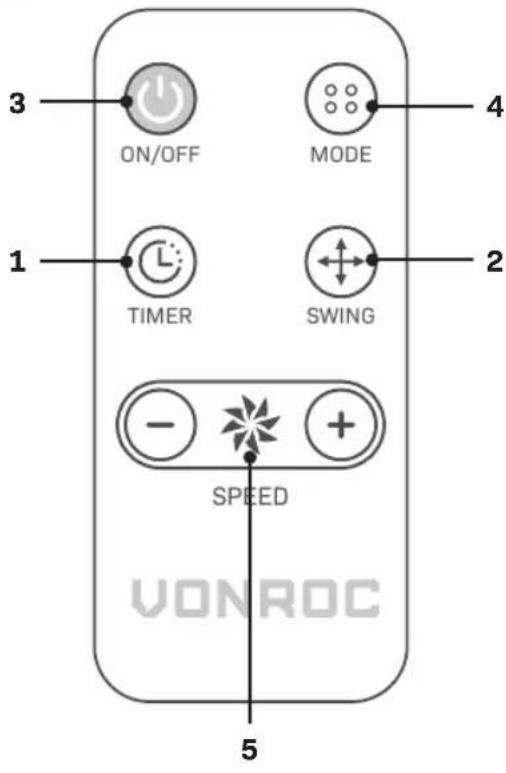

Fig. C (Remote control)

1. Timer
2. Swing

3. On/off

4. Mode

5. Speed

3. ASSEMBLY

Before assembly, always switch off the machine and remove the mains plug from the mains.

Assembling air fans AF502AC, AF502AC Whites, AF503AC and AF503AC WHITE (Fig. A)

Take out the pedestal base (4), steel column (5) and fan head (3).
- Taking off the screw stem from the lower steel column clockwise and unscrew the screw stem on the upper steel column.
- Install the steel column (5) into the hole in the pedestal base (4) and fasten the screw stem.
- Mounting the upper steel column (5) into the fan head (3) and fasten the screw stem.

Note: When installing the base, place the fan upside down on the packaging foam or other soft surface for avoid scratching.

For AF503AC, AF503AC Whites, connect the short steel column and the long column with the screw nut before fix it to the base.

Remote control

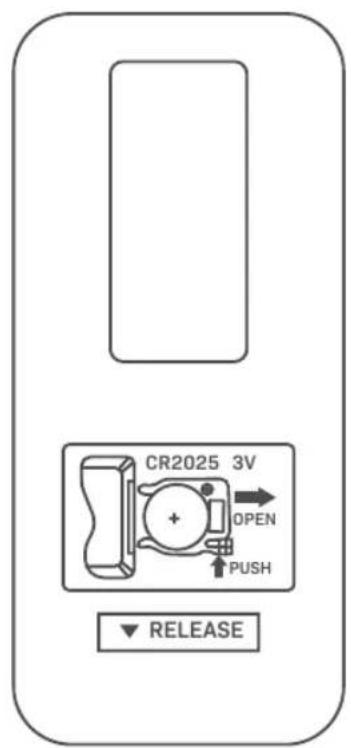

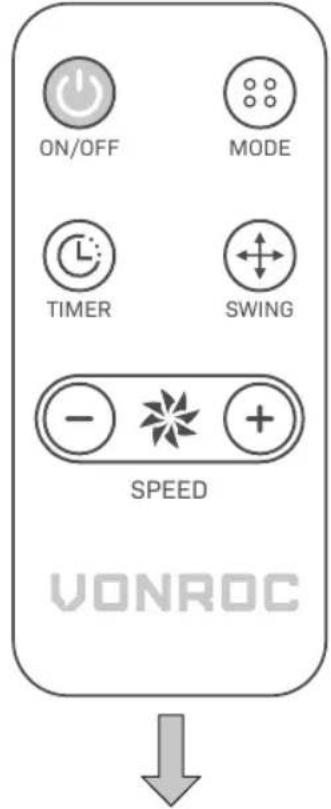

• Remove the insulating layer before inserting battery (Fig. D).
• Install a 3V CR2025 battery. We recommend the use of Lithium type battery for longer use (Fig. E).

Note: Please follow battery disposal instruction on battery packaging, or contact your local councils for safely disposal of batteries.

4. OPERATION

Check the device for damage before use and only use in good working condition.

• Plug in the cable to the mains power outlet. Product is in standby modus.

Function of the control panel (Fig. B)

• Push the "ON/OFF" button (3) to working state, push it again to turn it off.

• Speed button (5): push to cycle between high, medium or low fan speed. The display will show the speedsetting: 1 slow, 2 medium and 3 high.

• Oscillation button (2): Press the oscillation button to activate the heater to swing. The light below the button will light up when the oscillation is active. Press it again to deactivate. Don't force to swing the fan head by hand, or it will be damaged permanently.
  Mode button (4): Press the mode button to change between 3 modes 'Natural Wind', Sleeping wind' and 'Ordinary wind'.
• Timer button (1): Press this key when power is on, timer increases one hour by one pressing, time of timer varies with different models. And the product turns off automatically when time is up. By pressing this key continuously until it displays '00', the timer will be canceled.
• All indication lights on the screen lights out after 3 minutes without operations. Screen awakes when press any key.

Function of the remote control (Fig. C)

• Push the "ON/OFF" button (3) to working state, push it again to turn it off.
• Speed button (5): push to cycle between high, medium or low fan speed. The display will show the speedsetting: 1 slow, 2 medium and 3 high.
• Oscillation button (2): Press the oscillation button to activate the heater to swing. The light below the button will light up when the oscillation is active. Press it again to deactivate. Don't force to swing the fan head by hand, or it will be damaged permanently.
  Mode button (4): Press the mode button to change between 3 modes 'Natural Wind', Sleeping wind' and Ordinary wind'.
• Timer button (1): Press this key when power is on, timer increases one hour by one pressing, time of timer varies with different models. And the product turns off automatically when time is up. By pressing this key continuously until it displays '00', the timer will be canceled.

5. MAINTENANCE

Before cleaning and maintenance, always switch off the machine and remove the mains plug from the mains.

Always remove the plug from the socket when the device is not being used.

Clean with neutral detergent and soft cloth.

TROUBLESHOOTING

In case the tower fan does not work well, we give you subjoined some possible causes and their solutions.

Problem Possible cause Treatment

The tower fan does not operate, even when it is plugged in and the switch is turned on.	The plug is loose, bad connection.	Pull out the plug, check the connection of the plug and socket. Then connect again.
	No power in socket outlet.	Insert the plug in a proper socket.
Abnormal noise.	The appliance is not standing upright.	Put the tower fan on a level surface.

ENVIRONMENT

ulty and/or discarded electrical or electronic apparatus have to be collected at the appropriate recycling locations.

Only for EC countries

Do not dispose of power tools into domestic waste. According to the European Guideline 2012/19/EU for Waste Electrical and Electronic Equipment and its implementation into national right, power tools that are no longer usable must be collected separately and disposed of in an environmentally friendly way.

WARRANTY

VONROC products are developed to the highest quality standards and are guaranteed free of defects in both materials and workmanship for the period lawfully stipulated starting from the date of original purchase. Should the product develop any failure during this period due to defective material and/or workmanship then contact VONROC directly.

The following circumstances are excluded from this guarantee:

• Repairs and or alterations have been made or attempted to the machine by unauthorized service centers;
  Normal wear and tear;
• The tool has been abused, misused or improperly maintained;
• Non-original spare parts have been used.

This constitutes the sole warranty made by company either expressed or implied. There are no other warranties expressed or implied which extend beyond the face thereof, herein, including the implied warranties of merchantability and fitness for a particular purpose. In no event shall VONROC be liable for any incidental or consequential damages. The dealers remedies shall be limited to repair or replacement of nonconforming units or parts.

The product and the user manual are subject to change. Specifications can be changed without further notice.
