USER MANUAL AF505AC Vonroc

White vertical outdoor air conditioner tower with black ventilation grille and control knob (no text or symbols visible)

B

6 11 3 5 7 8 9 10 4 2 1 88 WIND SPEED ON/OFF

C

1 ON/OFF WIND SPEED 3 4 TIMER OSC 2 5 VONROC

D

E

CR2025 ② OPEN ① PUSH RELEASE

1. SAFETY INSTRUCTIONS

Read the enclosed safety warnings, the additional safety warnings and the instructions. Failure to follow the safety warnings and the instructions may result in electric shock, fire and/or serious injury. Save the safety warnings and the instructions for future reference.

The following symbols are used in the user manual or on the product:

Read the user manual.

Immediately remove the mains plug from the mains if the mains cable becomes damaged and during cleaning and maintenance.

Indoor use only.

Class II machine - Double insulation - You don't need any earthed plug.

Do not dispose of the product in unsuitable containers.

The product is in accordance with the applicable safety standards in the European directives.

GENERAL SAFETY WARNING

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

ADDITIONAL SAFETY WARNINGS FOR TOWER FAN

• Children should be kept away unless continuously supervised to ensure that they do not play with the tower fan.
• Children shall not plug in, position, operate, regulate and clean the appliance or perform user maintenance.
• The tower fan is not suitable for use outdoors in damp weather, in bathrooms or in other wet or

damp environments3.

• Do not move the tower fan when it is operating.
• Do not cover the tower fan.
• Do not use the tower fan in immediate surroundings of a bath, a shower or a swimming pool.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Make sure the tower fan is always under surveillance and keep children and animals away.
• When the tower fan is not used for a long time, unplug the tower fan form its means. Pull the plug straight out, never remove the plug by pulling the cord.
• Keep the tower fan far from curtain or places where the air inlet an easily be blocked.
• The power coupler is waterproof when not in use. In order to prevent possible electric shock or leakage current, never use the tower fan with wet hands or operate the tower fan when there is water on the power cord.
• Do not insert things to air outlets and inlets, in order to avoid damage.
• Do not use the appliance near explosive and combustible gas.
• Do no turnover the appliance. Unplug the power supply If it is toppled over and there have some water in the body. Dry the body before use.
• Clean the appliance with a lightly damp cloth. It can be cleaned with neutral detergents. Do not rinse with water.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities or lack of experience and knowledge unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Ensure that the fan is switched off from the supply mains before removing the guard.

Electrical safety

When using electric machines always observe the safety regulations applicable in your country to reduce the risk of fire, electric shock and personal injury. Read the following safety instructions and also the enclosed safety instructions.

ys check that the voltage of the power supply corresponds to the voltage on the rating plate.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

2. MACHINE INFORMATION

Intended use

The tower fan is intended for indoor, non-commercial, household use for cooling residential rooms. Do not use the product for any other purpose. The tower fan can be used in enclosed of open rooms in a free standing position. The tower fan may only be used completely mounted and standing vertically on a stable surface.

TECHNICAL SPECIFICATIONS

Model No.	AF504 / AF504_WHITEAF505 / AF505_WHITE
Power supply 220~240V
Frequency 50-60Hz
Power rating 50W
Cable length 1.3 - 1.5m
Timer 15 hours

DESCRIPTION

The numbers in the text refer to the diagrams on page 2.

Fig. A (Tower fan)

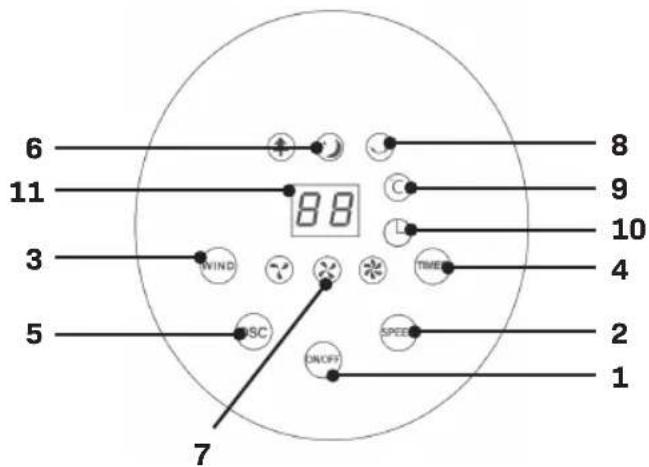

Fig. B (Control tower fan)

1. On/off button
2. Speed button
3. Wind button
4. Timer button
5. Oscillation button
6. Indication lights wind setting
7. Indication lights speed setting
8. Indication light oscillation
9. Indication light temperature
10. Indication light timer
11. Display

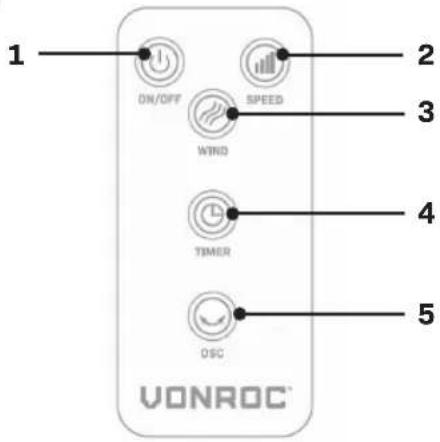

Fig. C (Remote control)

1. On/off button
2. Speed button
3. Wind button
4. Timer button
5. Oscillation button

3. ASSEMBLING

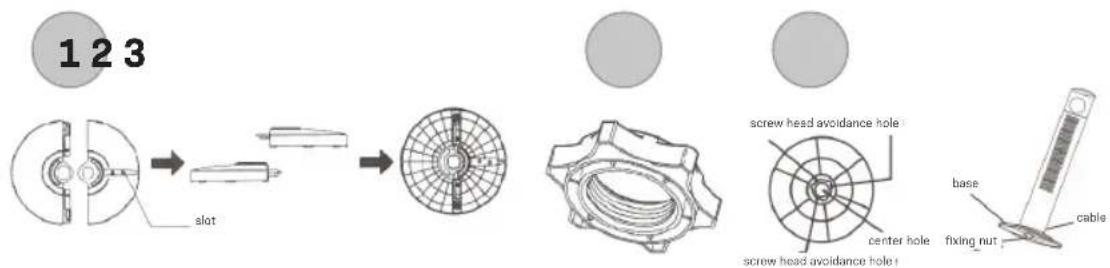

Tower fan (Fig. D)

• Take the two parts of the base out of the packing box, and align the two holes in the base and connect. Well assembled into a base. (1)
• Remove the base nut from the fan. (2)
• Place the power cord in the assembled base slot, align the bottom of the fan with the center hole of the base and three screw head avoidance holes, install the base in the correct direction on the body.
• Tighten the nut. (3)

Note: When installing the base, place the fan upside down on the packaging foam or other soft surface for avoid scratching.

Remote control (Fig. E)

The remote control use one button cells, model No. CR2025 (3V). We recommend the use of Lithium type battery for longer use.

Note: Please follow battery disposal instruction on battery packaging, or contact your local councils for safely disposal of batteries.

4. OPERATION

Check the device for damage before use and only use in good working condition.

• Plug in the calbe to the mains power outlet. Product is in standby modus, power indicating light is on.

Function of the control panel (Fig B)

• Push the "ON/OFF" button (1) to working state, push it again to standby modus.

• Speed button (2): push to cycle between high, medium or low fan speed. The speed indicator (7) will show the setting.

• Oscillation button (5): Press the oscillation button to activate the tower fan to swing. The oscillate indicator (8) will light up. Press it again to deactivate.

• Wind button (3): Press Press the mode button to change between 3 modes ‘Natural Wind’, ‘Night mode’ and ‘Ordinary wind.
• Timer button (4): The timer can be set between 0 hour and 15 hours. The display will show the duration currently set. The timer indicator (10) will light up if it is active.
• After 60 seconds the display will automatically turn off.

Function of the remote control (Fig C)

• Push the "ON/OFF" button (1) to working state, push it again to standby modus.
• Speed button (2): push to cycle between high, medium or low fan speed.
• Oscillation button (5): Press the oscillation button to activate the heater to swing. The oscillate indicator (8 in Fig. B) will light up. Press it again to deactivate.
• Wind button (3): Press Press the mode button to change between 3 modes 'Natural Wind', Sleeping wind' and 'Ordinary wind.
• Timer button (4): The timer can be set between 0 hour and 15 hours. The display will show the duration currently set. Put the plug into the socket, products in standby, power indicating light is on.
• After 60 seconds the display will automatically turn off.

5. MAINTENANCE

Before cleaning and maintenance, always switch off the machine and remove the mains plug from the mains.

Always remove the plug from the socket when the device is not being used.

Clean with neutral detergent and soft cloth.

TROUBLESHOOTING

In case the tower fan does not work well, we give you subjoined some possible causes and their solutions.

Problem Possible cause Treatment
The tower fan does not operate, even when it is plugged in and the switch is turned on.	The plug is loose, bad connection.	Pull out the plug, check the connection of the plug and socket. Then connect again.
	No power in socket outlet.	Insert the plug in a proper socket.
Abnormal noise.	The appliance is not standing upright.	Put the tower fan on a level surface.

ENVIRONMENT

y and/or discarded electrical or electronic apparatus have to be collected at the appropriate recycling locations.

Only for EC countries

Do not dispose of power tools into domestic waste. According to the European Guideline 2012/19/EU for Waste Electrical and Electronic Equipment and its implementation into national right, power tools that are no longer usable must be collected separately and disposed of in an environmentally friendly way.

WARRANTY

VONROC products are developed to the highest quality standards and are guaranteed free of defects in both materials and workmanship for the period lawfully stipulated starting from the date of original purchase. Should the product develop any failure during this period due to defective material and/or workmanship then contact VONROC directly.

The following circumstances are excluded from this guarantee:

• Repairs and or alterations have been made or attempted to the machine by unauthorized service centers;
• Normal wear and tear;
• The tool has been abused, misused or improperly maintained;
• Non-original spare parts have been used.

This constitutes the sole warranty made by company either expressed or implied. There are no other warranties expressed or implied which extend beyond the face hereof, herein, including the implied warranties of merchantability and fitness for a particular purpose. In no event shall VONROC be liable for any incidental or consequential damages. The dealers remedies shall be limited to repair or replacement of nonconforming units or parts.

The product and the user manual are subject to change. Specifications can be changed without further notice.

ALGEMENE VEILIGHEIDSWAARSCHUWING

2. INFORMATIE OVER HET APPARAAT

Bedoeld gebruik

DECLARATION OF CONFORMITY AF504 (\_WHITE) / AF505 (\_WHITE) - TOWER FAN

(EN) We declare under our sole responsibility that this product is in conformity with directive 2011/65/EU of the European parliament and of the council of 8 June on the restriction of the use of certain hazardous substances in electrical and electronic equipment is in conformity and accordance with the following standards and regulations:
(DE) Der Hersteller erklärt eigenverantwortlich, dass dieses Produkt der Direktive 2011/65/EU des Europäischen Parlaments und des Rats vom 8. Juni 2011 über die Einschränkung der Anwendung von bestimmten gefährlichen Stoffen in elektrischen und elektronischen Geräten entspricht. den folgenden Standards und Vorschriften entspricht:
(NL) Wij verklaren onder onze volledige verantwoordelijkheid dat dit product voldoet aan de conform Richtlijn 2011/65/EU van het Europees Parlement en de Raad van 8 juni 2011 betreffende beperking van het gebruik van bepaalde gevaarlijke stoffen in elektrische en elektronische apparatuur en in overeenstemming is met de volgende standaarden en reguleringen:
(FR) Nous déclarons sous notre seule responsabilité que ce produit est conforme aux standards et directives suivants: est conforme à la Directive 2011/65/EU du Parlement Européen et du Conseil du 8 juin 2011 concernant la limitation d'usage de certaines substances dangereuses dans l'équipement électrique et électronique.
(ES) Declaramos bajo nuestra exclusiva responsabilidad que este producto cumple con las siguientes normas y estándares de funcionamiento: se encuentra conforme con la Directiva 2011/65/UE del Parlamento Europeo y del Consejo de 8 de junio de 2011 sobre la restricción del uso de determinadas sustancias peligrosas en los equipos eléctricos y electrónicos.
(IT) Dichiariamo, sotto la nostra responsabilità, che questo prodotto è conforme alle normative e ai regolamenti seguenti: è conforme alla Direttiva 2011/65/UE del Parlamento Europeo e del Consiglio dell'8 giugno 2011 sulla limitazione dell'uso di determinate sostanze pericolose nelle apparecchiature elettriche ed elettroniche.
(SV) Vi garanterar på eget ansvar att denna produkt upp fyller och följer följande standarder och bestämmelser: uppfyller direktiv 2011/65/EU från Europeiska parlamentet och EG-rådet från den 8 juni 2011 om begränsningen av användning av farliga substanser i elektrisk och elektronisk utrustning.

(DA) Vi erklærer under eget ansvar, at dette produkt er i overensstemmelse med følgende standarder og bestemmelser: er i overensstemmelse med direktiv 2011/65/EU fra Europa-Parlamentet og Rådet af 8. juni 2011 om begrænsning af anvendelsen af visse farlige stoffer i elektrisk og elektronisk udstyr.
(PL) Deklarujemy na własną odpowiedzialność, że ten produkt spełnia wymogi zawarte w następujących normach i przepisach: jest zgodny z Dyrektywą 2011/65/UE Parlamentu Europejskiego i Rady z dnia 8 czerwca 2011 r. w sprawie ograniczenia stosowania niektórych niebezpiecznych substancji w sprzęcie elektrycznym i elektronicznym.
(RO) Declarăm prin aceasta cu răspunderea deplină că produsul acesta este în conformitate cu următoarele standarde sau directive: este în conformitate cu Directiva 2011/65/UE a Parlamentului European și a Consiliului din 8 iunie 2011 cu privire la interzicerea utilizării anumitor substanțe periculoase la echipamentele electrice și electronice.
(PT) Declaramos por nossa total responsabilida-de que este produto está em conformidade e cumpre as normas e regulamentações que se seguem: está em conformidade com a Directiva 2011/65/EU do Parlamento Europeu e com o Conselho de 8 de Junho de 2011 no que respeita à restrição de utilização de determinadas substâncias perigosas existentes em equipamento eléctrico e electrónico.
(HU) Kizárólagos felelősségünk tudatában kijelentjük, hogy a termék megfelel az Európai Parlamentnek és a Tanácsnak az egyes veszélyes anyagok elektromos és elektronikus berendezésekben való alkalmazásának korlátozásáról szóló 2011/65/EU irányelvének (VI.8.), valamint a következő szabványoknak és jogszabályoknak.
(CS) Prohlašujeme na svou výhradní odpovědnost, že tento výrobek splňuje požadavky směrnice 2011/65/EU Evropské rady a parlamentu ze dne 8. června, která se týká omezení používání určitých nebezpečných látek v elektrických a elektronických zařízeních, a splňuje také všechny požadavky následujících norem a předpisů.

EN 60335-1, EN 60335-2-80, EN 62233, 2014/35/EU, EN 55014-1, EN 55014-2, EN 61000-3-2, EN 61000-3-3, 2014/30/EU, 2011/65/EU, 2012/19/EU, (EU)No 206/2012&(EU)2016/2282

Zwolle, 01-03-2023 H.G.FRosberg CEO
