USER MANUAL PKS 40 BOSCH

Technical illustration of a Bosch cutting cutter with a measuring scale (no text or symbols)

Robert Bosch GmbH

Power Tools Division

70745 Leinfelden-Echterdingen

www.bosch-pt.com

1 609 929 N78 (2008.02) O / 152

PKS 40

BOSCH

Illustration of a hand using a Bosch tool on a cutting board, with ruler and workpiece (no text or symbols)

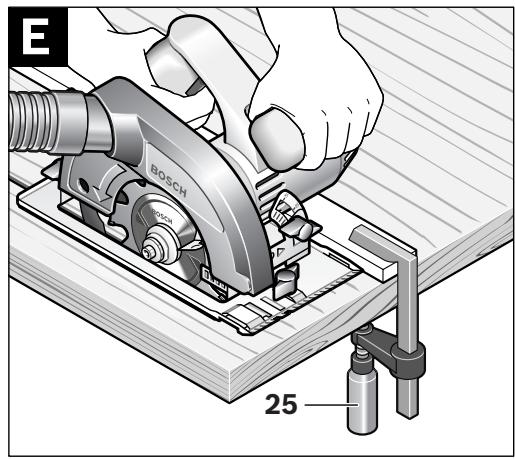

E BOSCH 25

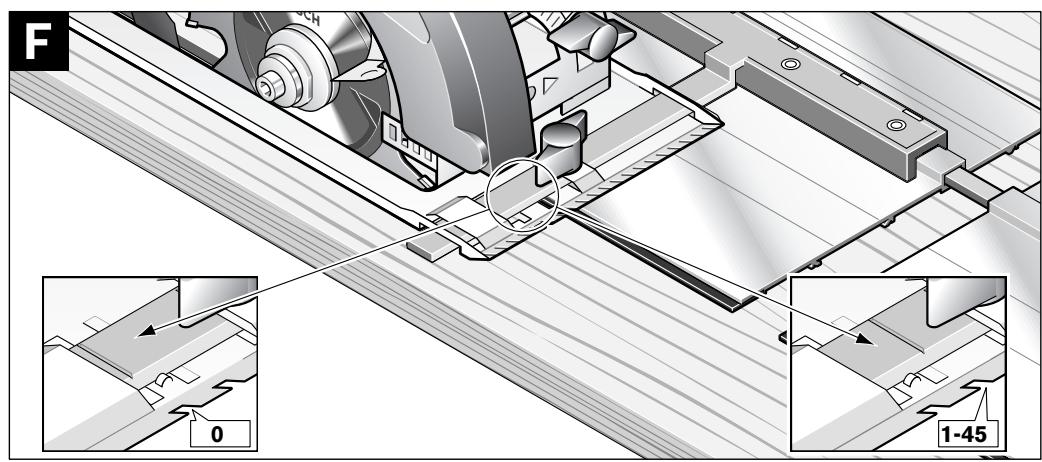

F 0 1-45

1 609 929 N78 | (7.2.08)
Bosch Power Tools

G 25 BOSCH 26 27 28 29 X

6 | Deutsch

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen Head of Product Certification

ppa. Macaca i.v. Nuoyen

10.01.2008, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

Montage

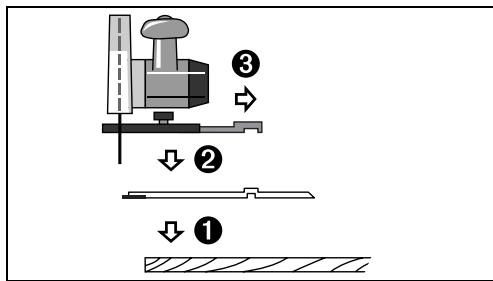

Technical diagram showing a mechanical assembly with numbered components and directional arrows indicating motion or flow.

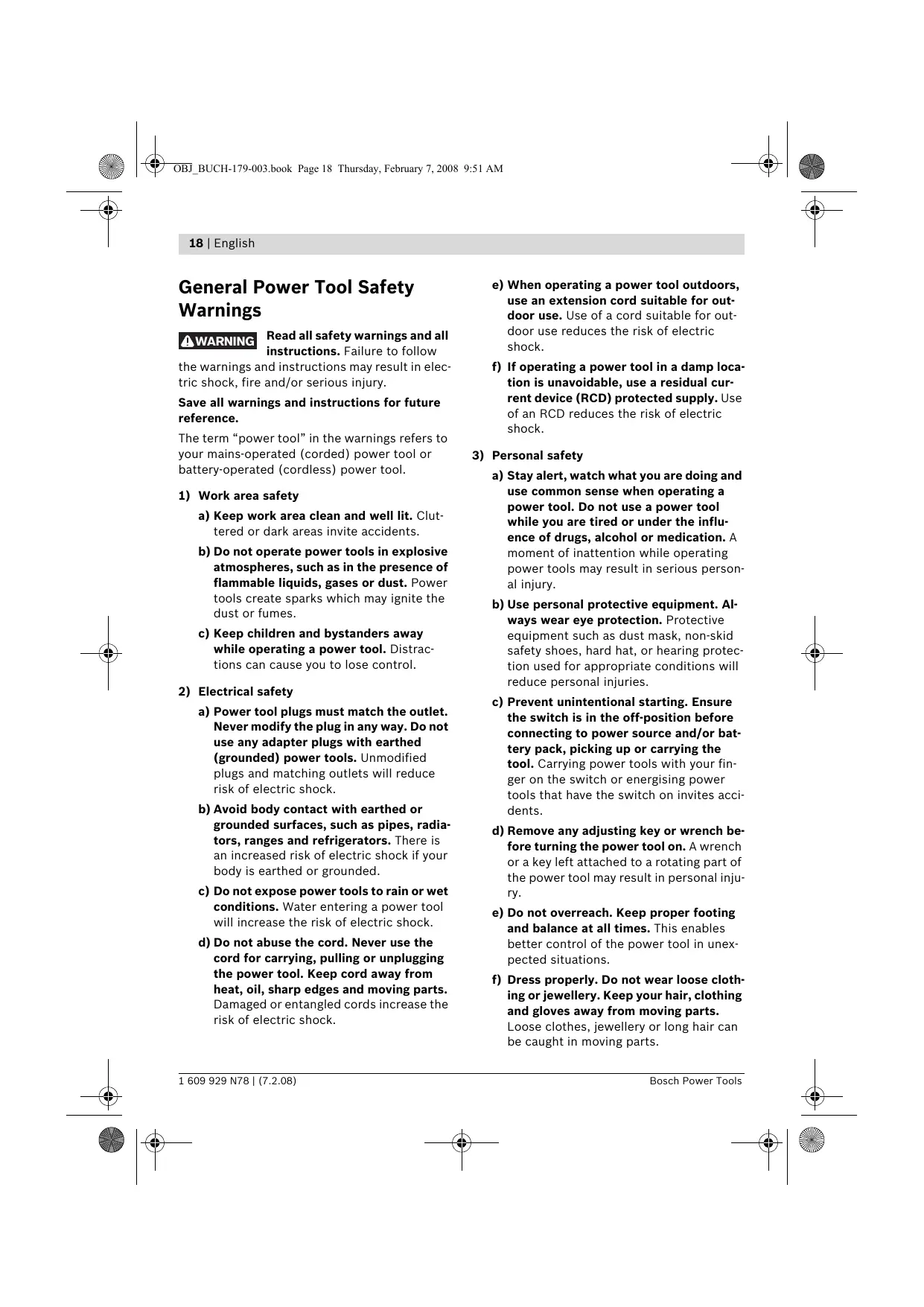

General Power Tool Safety Warnings

WARNING Read all safety warnings and all instructions. Failure to follow

the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) Work area safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges and moving parts. Damaged or entangled cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3) Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

5) Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Machine-specific Safety Warnings

▶ DANGER: Keep hands away from cutting area and the blade. Keep your second hand on auxiliary handle, or motor housing. If both hands are holding the saw, they cannot be cut by the blade.
▶ Do not reach underneath the workpiece. The guard cannot protect you from the blade below the workpiece.
▶ Adjust the cutting depth to the thickness of the workpiece. Less than a full tooth of the blade teeth should be visible below the workpiece.
▶ Never hold the workpiece being cut in your hands or across your leg. Secure the workpiece to a stable platform. It is important to support the work properly to minimize body exposure, blade binding, or loss of control.
Hold the power tool only by the insulated gripping surfaces when performing an operation where the cutting tool may contact hidden wiring or its own cord. Contact with a “live” wire will also make exposed metal parts of the power tool “live” and shock the operator.
▶ When ripping always use a rip fence or straight edge guide. This improves the accuracy of cut and reduces the chance of blade binding.
▶ Always use blades with correct size and shape (diamond versus round) of arbour holes. Blades that do not match the mounting hardware of the saw will run eccentrically, causing loss of control.
▶ Never use damaged or incorrect blade washers or bolt. The blade washers and bolt were specially designed for your saw, for optimum performance and safety of operation.

20 | English

▶ Causes and operator prevention of kick-back:

- Kickback is a sudden reaction to a pinched, bound or misaligned saw blade, causing an uncontrolled saw to lift up and out of the workpiece toward the operator. - When the blade is pinched or bound tightly by the kerf closing down, the blade stalls and the motor reaction drives the unit rapidly back toward the operator.

- If the blade becomes twisted or mis-aligned in the cut, the teeth at the back edge of the blade can dig into the top surface of the wood causing the blade to climb out of the kerf and jump back toward the operator. Kickback is the result of saw misuse and/or incorrect operating procedures or conditions and can be avoided by taking proper precautions as given below.

Maintain a firm grip with both hands on the saw and position your arms to resist kickback forces. Position your body to either side of the blade, but not in line with the blade. Kickback could cause the saw to jump backwards, but kickback forces can be controlled by the operator, if proper precautions are taken.
When blade is binding, or when interrupting a cut for any reason, release the trigger and hold the saw motionless in the material until the blade comes to a complete stop. Never attempt to remove the saw from the work or pull the saw backward while the blade is in motion or kickback may occur. Investigate and take corrective actions to eliminate the cause of blade binding.
When restarting a saw in the workpiece, centre the saw blade in the kerf and check that saw teeth are not engaged into the material. If saw blade is binding, it may walk up or kickback from the workpiece as the saw is restarted.
▶ Support large panels to minimise the risk of blade pinching and kickback. Large panels tend to sag under their own weight. Supports must be placed under the panel on both sides, near the line of cut and near the edge of the panel.

▶ Do not use dull or damaged blades. Unsharpened or improperly set blades produce narrow kerf causing excessive friction, blade binding and kickback.
▶ Blade depth and bevel adjusting locking levers must be tight and secure before making cut. If blade adjustment shifts while cutting, it may cause binding and kickback.
▶ Use extra caution when making a “plunge cut” into existing walls or other blind areas. The protruding blade may cut objects that can cause kickback.
▶ Check lower guard for proper closing before each use. Do not operate the saw if lower guard does not move freely and close instantly. Never clamp or tie the lower guard into the open position. If saw is accidentally dropped, lower guard may be bent. Raise the lower guard with the retracting handle and make sure it moves freely and does not touch the blade or any other part, in all angles and depths of cut.
▶ Check the operation of the lower guard spring. If the guard and the spring are not operating properly, they must be serviced before use. Lower guard may operate sluggishly due to damaged parts, gummy deposits, or a build-up of debris.
▶ Lower guard should be retracted manually only for special cuts such as “plunge cuts” and “compound cuts”. Raise lower guard by retracting handle and as soon as blade enters the material, the lower guard must be released. For all other sawing, the lower guard should operate automatically.
▶ Always observe that the lower guard is covering the blade before placing saw down on bench or floor. An unprotected, coasting blade will cause the saw to walk backwards, cutting whatever is in its path. Be aware of the time it takes for the blade to stop after switch is released.
▶ Use the appropriate riving knife for the blade being used. For the riving knife to work, it must be thicker than the body of the blade but thinner than the tooth set of the blade.

▶ Adjust the riving knife as described in this instruction manual. Incorrect spacing, positioning and alignment can make the riving knife ineffective in preventing kickback.
▶ Always use the riving knife except when plunge cutting. Riving knife must be replaced after plunge cutting. Riving knife causes interference during plunge cutting and can create kickback.
For the riving knife to work, it must be engaged in the workpiece. The riving knife is ineffective in preventing kickback during short cuts.
▶ Do not operate the saw if riving knife is bent. Even a light interference can slow the closing rate of a guard.
▶ Do not reach into the saw dust ejector with your hands. They could be injured by rotating parts.
▶ Do not work overhead with the saw. In this manner you do not have sufficient control over the power tool.
▶ Use suitable detectors to determine if utility lines are hidden in the work area or call the local utility company for assistance.
Contact with electric lines can lead to fire and electric shock. Damaging a gas line can lead to explosion. Penetrating a water line causes property damage or may cause an electric shock.
▶ Do not operate the power tool stationary. It is not designed for operation with a saw table.
▶ Do not use high speed steel (HSS) saw blades. Such saw blades can easily break.
▶ Do not saw ferrous metals. Red hot chips can ignite the dust extraction.
▶ When working with the machine, always hold it firmly with both hands and provide for a secure stance. The power tool is guided more secure with both hands.

• Secure the workpiece. A workpiece clamped with clamping devices or in a vice is held more secure than by hand.
  ▶ Always wait until the machine has come to a complete stop before placing it down. The tool insert can jam and lead to loss of control over the power tool.
  ▶ Never use the machine with a damaged cable. Do not touch the damaged cable and pull the mains plug when the cable is damaged while working. Damaged cables increase the risk of an electric shock.

Functional Description

Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Intended Use

The machine is intended for lengthways and crossways cutting of wood with straight cutting lines as well as mitre cuts in wood while resting firmly on the workpiece. With suitable saw blades, thin-walled non-ferrous metals, e. g., profiles, can also be sawed.

Working ferrous metals is not permitted.

22 | English

Product Features

The numbering of the product features refers to the illustration of the machine on the graphics page.

1 On/Off switch
2 Safety switch for On/Off switching
3 Allen key
4 Auxiliary handle
5 Scale for mitre angle
6 Wing bolt for bevel-angle preselection
7 Wing bolt for parallel guide
8 Cutting mark, 45°
9 Cutting mark, 0°
10 Parallel guide
11 Retracting blade guard
12 Riving knife
13 Base plate
14 Wing bolt for cutting depth preselection
15 Cutting-depth scale
16 Blade guard
17 Sawdust ejector
18 Clamping bolt with washer
19 Open-end spanner, size 22 mm*
20 Clamping flange
21 Saw blade*
22 Mounting flange
23 Saw spindle
24 Screw for attachment of riving knife
25 Set of screw clamps*
26 Guide-rail adapter*
27 Guide rail*
28 Connection piece*
29 Vacuum hose*

*The accessories illustrated or described are not included as standard delivery.

Technical Data

Circular Saw		PKS 40
Article number		3 603 C28 0..
Rated power input	W	600
Output power	W	350
No-load speed	rpm	4500
Rotational speed under load, max.	rpm	2450
Riving knife thickness, max.	mm	1.5
Cutting depth, max.- for 0° bevel angle- for 45° bevel angle	mm mm	40 26
Base plate dimensions	mm	120 x 260
Saw blade diameter, max.	mm	130
Saw blade diameter, min.	mm	122
Blade thickness, max.	mm	1.4
Tooth thickness/setting, max.	mm	2.7
Tooth thickness/setting, min.	mm	1.7
Mounting bore	mm	16
Weight according to EPTA-Procedure 01/2003	kg	2.4
Protection class		☐ / II

The values given are valid for nominal voltages [U] of 230/240 V. For lower voltage and models for specific countries, these values can vary.

Please observe the article number on the type plate of your machine. The trade names of the individual machines may vary.

Noise/Vibration Information

Measured values determined according to EN 60745.

Typically the A-weighted noise levels of the product are: Sound pressure level 97 dB(A); Sound power level 108 dB(A). Uncertainty K = 3 dB.

Wear hearing protection!

Vibration total values (triax vector sum) determined according to EN 60745:

Vibration emission value a_h<2.5 m/s^2 , Uncertainty K=1.5 m/s^2 .

The vibration emission level given in this information sheet has been measured in accordance with a standardised test given in EN 60745 and may be used to compare one tool with another. It may be used for a preliminary assessment of exposure.

The declared vibration emission level represents the main applications of the tool. However if the tool is used for different applications, with different accessories or poorly maintained, the vibration emission may differ. This may significantly increase the exposure level over the total working period.

An estimation of the level of exposure to vibration should also take into account the times when the tool is switched off or when it is running but not actually doing the job. This may significantly reduce the exposure level over the total working period.

Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns.

Declaration of Conformity CE

We declare under our sole responsibility that the product described under “Technical Data” is in conformity with the following standards or standardization documents: EN 60745 according to the provisions of the directives 2004/108/EC, 98/37/EC (until Dec. 28, 2009), 2006/42/EC (from Dec. 29, 2009 on).

Technical file at:

Robert Bosch GmbH, PT/ESC,

D-70745 Leinfelden-Echterdingen

Dr. Egbert Schneider

Senior Vice President

Engineering

Dr. Eckerhard Strötgen

Head of Product

Certification

10.01.2008, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

Assembly

Mounting/Replacing the Saw Blade

▶ Before any work on the machine itself, pull the mains plug.
- When mounting the saw blade, wear protective gloves. Danger of injury when touching the saw blade.
▶ Only use saw blades that correspond with the characteristic data given in the operating instructions.
▶ Do not under any circumstances use grinding discs as the cutting tool.

Selecting a Saw Blade

An overview of recommended saw blades can be found at the end of this manual.

Removal of the Saw Blade (see figure A)

• Tilt back the retracting blade guard 11 and hold firmly.
• Lock the clamping flange 20 using an open-end spanner 19 (size 22 mm) or position the saw blade 21 onto a piece of wood.
• With the Allen key 3, unscrew the clamping bolt 18 turning in rotation direction ①.
• Remove the clamping flange 20 and the saw blade 21 from the saw spindle 23.

Mounting the Saw Blade (see figure A)

• Clean the saw blade 21 and all clamping parts to be assembled.
• Tilt back the retracting blade guard 11 and hold firmly.
• Place the saw blade 21 on to the mounting flange 22. The cutting direction of the teeth (direction or arrow on saw blade) and the direction-of-rotation arrow on the blade guard 16 must correspond.
• Mount the clamping flange 20 and screw in the clamping bolt 18 turning in rotation direction ②. Observe correct mounting position of mounting flange 22 and clamping flange 20.
• Lock the clamping flange 20 using an open-end spanner 19 (size 22 mm) or position the saw blade 21 onto a piece of wood.

24 | English

- With the Allen key 3, tighten the clamping bolt 18 turning in rotation direction ②. The tightening torque is between 6–9 Nm, which corresponds to hand tight plus 14 turn.

Adjusting the Riving Knife (see figure B)

▶ Before any work on the machine itself, pull the mains plug.
▶ Always work with the riving knife, except when carrying out plunge cuts. The riving knife prevents jamming of the saw blade while sawing.

Adjustment is carried out at maximum cutting depth, see Section “Adjusting the Cutting Depth”.

Loosen screw 24, adjust the riving knife 12 to the measure shown in the figure and tighten screw 24 with a tightening torque between 3.5–5 Nm.

Dust/Chip Extraction

▶ Before any work on the machine itself, pull the mains plug.
Dusts from materials such as lead-containing coatings, some wood types, minerals and metal can be harmful to one's health. Touching or breathing-in the dusts can cause allergic reactions and/or lead to respiratory infections of the user or bystanders.

Certain dusts, such as oak or beech dust, are considered as carcinogenic, especially in connection with wood-treatment additives (chromate, wood preservative). Materials containing asbestos may only be worked by specialists.

• Use dust extraction whenever possible.
• Provide for good ventilation of the working place.
• It is recommended to wear a P2 filter-class respirator.

Observe the relevant regulations in your country for the materials to be worked.

External Dust Extraction

Mount the vacuum hose 29 (accessory) on to the saw dust ejector 17. Connect the vacuum hose 29 to a vacuum cleaner (accessory). An overview for connecting to various vacuum cleaners can be found at the end of this manual.

The machine can be plugged directly into the receptacle of a Bosch all-purpose vacuum cleaner with remote starting control. The vacuum cleaner starts automatically when the machine is switched on.

The vacuum cleaner must be suitable for the material being worked.

When vacuuming dry dust that is especially detrimental to health or carcinogenic, use a special vacuum cleaner.

Integrated Dust Extraction with Dust Bag

For smaller jobs, a dust bag (accessory) can be mounted. Insert the dust bag sleeve firmly into the saw dust ejector 17. Empty the dust bag at regular intervals to maintain optimum dust collection.

Operation

Operating Modes

▶ Before any work on the machine itself, pull the mains plug.

Adjusting the Cutting Depth (see figure C)

▶ Adjust the cutting depth to the thickness of the workpiece. Less than a full tooth of the blade teeth should be visible below the workpiece.

Loosen wing bolt 14. For a smaller cutting depth, pull the saw away from the base plate 13; for a larger cutting depth, push the saw toward the base plate 13. Adjust the desired cutting depth at the cutting-depth scale. Tighten wing bolt 14 again.

Adjusting the Cutting Angle

Loosen wing bolt 6. Tilt the saw sidewards. Adjust the desired setting at the scale 5. Tighten wing bolt 6 again.

Note: For bevel cuts, the cutting depth is smaller than the setting indicated on the cutting-depth scale 15.

Cutting Marks

45 0

45 0

The 0^ cutting mark (9) indicates the position of the saw blade for right-angled cuts. The 45^ cutting mark (8) indicates the position of the saw blade for 45^ cuts.

For precise cuts, position the circular saw against the workpiece as shown in the figure. It is best to carry out a trial cut.

Starting Operation

▶ Observe correct mains voltage! The voltage of the power source must agree with the voltage specified on the nameplate of the machine. Power tools marked with 230 V can also be operated with 220 V.

Switching On and Off

To start the machine, first push the lock-off button for the On/Off switch 2 and then press the On/Off switch 1 and keep it pressed.

To switch off the machine, release the On/Off switch 1.

Note: For safety reasons, the On/Off switch 1 cannot be locked; it must remain pressed during the entire operation.

Working Advice

Protect saw blades against impact and shock.

Guide the machine evenly and with light feed in the cutting direction. Excessive feed significantly reduces the service life of the saw blade and can cause damage to the power tool.

Sawing performance and cutting quality depend essentially on the condition and the tooth form of the saw blade. Therefore, use only sharp saw blades that are suited for the material to be worked.

Sawing Wood

The correct selection of the saw blade depends on the type and quality of the wood and whether lengthway or crossway cuts are required.

When cutting spruce lengthways, long spiral chips are formed.

Beech and oak dusts are especially detrimental to health. Therefore, work only with dust extraction.

Sawing with Parallel Guide (see figure D)

The parallel guide 10 enables exact cuts along a workpiece edge and cutting strips of the same dimension.

Loosen wing bolt 7 and slide the scale of the parallel guide 10 through the guide in the base plate 13. Adjust the desired cutting width as the scale setting at the respective cutting mark 9 or 8; see Section “Cutting Marks”. Tighten wing bolt 7 again.

Sawing with Auxiliary Guide (see figure E)

For sawing large workpieces or straight edges, a board or strip can clamped to the workpiece as an auxiliary guide; the base plate of the circular saw can be guided alongside the auxiliary guide.

Sawing with Guide Rail (see figure G)

The guide rail 27 is used to carry out straight cuts.

The adhesive coating prevents the guide rail from slipping and protects the surface of the workpiece. The coating of the guide rail allows the circular saw to glide easily.

The rubber lip on the guide rail acts as a splinter guard that prevents fraying or tearing out of the surface when sawing wooden materials. For this, the teeth of the saw blade must face directly against the rubber lip.

The guide rail 27 must not extend beyond the face side of the workpiece where the cut is to be started.

26 | English

The guide-rail adapter 26 is required for working with the guide rail 27. The guide-rail adapter 26 is mounted in the same manner as the parallel guide 10.

The following work steps are required for exact cuts using the guide rail 27:

- Place the guide rail 27 on to the workpiece projecting lightly over the side. Pay attention that the side with the rubber lip faces to the workpiece.

Technical diagram showing a mechanical assembly with numbered components and directional arrows indicating motion or flow.

• Set the circular saw with the premounted guide-rail adapter 26 on to the guide rail 27.
• Adjust the desired cutting depth and the bevel angle. Observe the marks on the guide-rail adapter 26 for preadjustment of the various bevel angles; see figure F.
• Align the circular saw with guide-rail adapter in such a manner that the teeth of the saw blade 21 face against the rubber lip. The position of the saw blade 21 depends on the selected cutting angle. Do not saw into the guide rail.

0° 1-45°

• Tighten wing bolt 7 to lock the position of the guide-rail adapter.
• Remove the circular saw with the premounted guide-rail adapter 26 from the guide rail 27.

• Align the guide rail 27 on the workpiece in such a manner that the rubber lip lies exactly alongside the cutting edge.

• Fasten the guide rail 27 with suitable clamping devices, e. g., screw clamps, on the workpiece. Set the circular saw with the pre-mounted guide-rail adapter 26 on to the guide rail.

• Switch the machine on and guide it in the cutting direction applying moderate and steady feed.

Two guide rails can be connected to one with use of the connection piece 28. Clamping is carried out with the four screws located in the connection piece.

Maintenance and Service

Maintenance and Cleaning

▶ Before any work on the machine itself, pull the mains plug.
▶ For safe and proper working, always keep the machine and ventilation slots clean.

The retracting blade guard must always be able to move freely and retract automatically. Therefore, always keep the area around the retracting blade guard clean. Remove dust and chips by blowing out with compressed air or with a brush.

Saw blades that are not coated can be protected against corrosion with a thin coat of acid-free oil. Before use, the oil must be removed again, otherwise the wood will become soiled.

Resin and glue residue on the saw blade produces poor cuts. Therefore, clean the saw blade immediately after use.

If the machine should fail despite the care taken in manufacturing and testing procedures, repair should be carried out by an after-sales service centre for Bosch power tools.

In all correspondence and spare parts order, please always include the 10-digit article number given on the type plate of the machine.

WARNING! Important instructions for connecting a new 3-pin plug to the 2-wire cable.

The wires in the cable are coloured according to the following code:

strain relief live = brown neutral = blue To be fitted by qualified professional only

Do not connect the blue or brown wire to the earth terminal of the plug.

Important: If for any reason the moulded plug is removed from the cable of this power tool, it must be disposed of safely.

After-sales Service and Customer Assistance

Our after-sales service responds to your questions concerning maintenance and repair of your product as well as spare parts. Exploded views and information on spare parts can also be found under:

www.bosch-pt.com

Our customer consultants answer your questions concerning best buy, application and adjustment of products and accessories.

Great Britain

Robert Bosch Ltd. (B.S.C.)

P.O. Box 98

Broadwater Park

North Orbital Road

Denham

Uxbridge

UB 9 5HJ

Tel. Service: [phone]

Fax: [phone]

Australia, New Zealand and Pacific Islands

Robert Bosch Australia Pty. Ltd.

Power Tools

Locked Bag 66

Clayton South VIC 3169

Customer Contact Center

Inside Australia:

Phone: [phone]

Fax: [phone]

Inside New Zealand:

Phone: [phone]

Fax: [phone]

Outside AU and NZ:

Phone: [phone]

www.bosch.com.au

Disposal

The machine, accessories and packaging should be sorted for environmental-friendly recycling.

Only for EC countries:

Do not dispose of power tools into household waste! According to the European Guideline 2002/96/EC for Waste Electrical and Electronic Equipment and its implementation into national

right, power tools that are no longer usable must be collected separately and disposed of in an environmentally correct manner.

Subject to change without notice.

28 | Français

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen Head of Product Certification

ppa. Macaca i.v. Nuoyen

10.01.2008, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

Montage

Technical diagram showing a mechanical assembly with numbered components and directional arrows indicating motion or flow.

Robert Bosch (France) S.A.S.

Senior Vice President

Engineering

Dr. Eckerhard Strötgen

Head of Product

Certification

10.01.2008, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

Montaje

Technical diagram showing a mechanical assembly with numbered components and directional arrows indicating motion or flow.

Pure geometric lines and crosshair symbols without any text or labels

[Non-Text]

52 | Português

Senior Vice President

Engineering

Dr. Eckerhard Strötgen

Head of Product

Certification

ppa. Macaca i.v. Nuoyen

10.01.2008, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

Montagem

Technical diagram showing a mechanical assembly with numbered components and directional arrows indicating motion or flow.

Senior Vice President

Engineering

Dr. Eckerhard Strötgen

Head of Product

Certification

10.01.2008, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

Montaggio

Diagram illustrating a machining process with numbered steps and directional arrows indicating movement

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen Head of Product Certification

ppa. Macau i.v. Nuoyen

10.01.2008, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

Montage

Technical diagram showing a mechanical assembly with numbered components and directional arrows indicating motion or flow.

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen Head of Product Certification

ppa. Macaca i.v. Macyza

10.01.2008, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

Montering

Technical diagram showing mechanical assembly steps with numbered components and directional arrows

Bosch Service Center

Telegrafvej 3

2750 Ballerup

Tel. Service Center: [phone]

Fax: [phone]

E-Mail: [e-mail]

Bortskaffelse

Dr. Egbert Schneider Dr. Eckerhard Strötgen Senior Vice President Head of Product Engineering Certification

ppa. Macau i.v. Nuoyen

10.01.2008, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

Montage

Diagram illustrating a machining process with numbered steps and directional arrows indicating movement

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen Head of Product Certification

ppa. Macaca i.v. Macyza

10.01.2008, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

Montering

Technical diagram showing a mechanical assembly with numbered components and directional arrows indicating motion or flow.

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen Head of Product Certification

ppa. Jauuwa i.v. Noyen

10.01.2008, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

Asennus

Technical diagram showing mechanical assembly steps with numbered components and directional arrows

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen Head of Product Certification

ppa. Macau i.v. Nuoyen

10.01.2008, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

Συναρμολόγηση

Technical diagram showing a mechanical assembly with numbered components and directional arrows indicating motion or flow.

Mechanical diagram showing a lever mechanism with pivot point and dimension lines (no text or symbols)

1-45°

The Ground Truth image displays a single, continuous horizontal line, which is a stylistic or background element (like a rule line on paper). According to Rule 2, such lines must be ignored by the OCR result. The provided OCR content is "____", which consists of underscores. Underscores are not equivalent to a solid line and are not permitted under the “Stylistic/Background Lines (Ignore)” rule. Outputting underscores for a stylistic line is incorrect because it misinterprets the line as a placeholder fill-in-the-blank area. Since the OCR output incorrectly rendered underscores (it’s a continuous line), this violates the rule that stylistic lines must be ignored. Therefore, the OCR result is inconsistent with the Ground Truth.

|

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

|

|

[NO TEXT]

[Non-Text]

[Non-Text]

X

-

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

1

©

The Ground Truth image displays a single, solid horizontal line, which is a stylistic or background element (like a rule line on paper). According to Rule 2, such lines must be ignored by the OCR result. The provided OCR content is "____", which consists of underscores. Underscores are not equivalent to a solid line and are not permitted under the “Stylistic/Background Lines (Ignore)” rule. Outputting underscores for a solid line constitutes an error, as it misrepresents the visual element and violates the instruction to ignore stylistic lines. Therefore, the OCR result is inconsistent with the Ground Truth.

|

[Non-Text]

138 | Ελληνικά

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen

Head of Product

Certification

10.01.2008, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

Montaj

Technical diagram showing a mechanical assembly with numbered components and directional arrows indicating motion or flow.

148 | Türkçe

Bosch San. ve Tic. A.S.

Ahi Evran Cad. No:1 Kat:22

Polaris Plaza

80670 Maslak/Istanbul

Line drawing of a cleaver blade with a handle, showing blade geometry and cutting edge (no text or symbols)

2 602 317 031 (1,4 m)
2 602 317 030 (0,7 m)

1 602 319 003

Isometric line drawing of a T-shaped tool with evenly spaced teeth and mounting holes (no text or symbols)

2 607 001 375

1 607 960 008

Line drawing of a mechanical measuring tool with a fulcrum and scale (no text or symbols)

2 608 005 018

1 605 411 029

Technical line drawing of a mechanical device with no visible text or symbols

∅ 35 mm

3 m 2 600 002 149
5 m 1 610 002 150

PAS 11-21
PAS 12-27
PAS 12-27 F

optiline WOOD

speedline WOOD

MULTI MATERIAL

CONSTRUCT WOOD
