USER MANUAL Black Hawk+ GoXtreme
To ensure the optimal functioning of your camera, please note the following important information:
MicroSD card:
- Please ensure your memory card is formatted in the camera before first using the card for the first time (Settings > Format).
- The maximum capacity memory card supported is 64GB.
Use of memory cards exceeding the maximum recommended capacity may result in file errors.
- For best results, we recommend using high quality Micro SD cards Class 10 with U3 High Speed or higher.
Ensure a U3 rated memory card is used when recording 4K video. Using a lower rated card may present data transfer speed issues due to the large file size a 4K video produces.
- The recording time depends on the selected resolution.
- After reaching a max. video recording time of approx. 29 minutes, the camera will stop recording automatically. A new recording must be restarted manually.
Charging:
- Ensure the camera is charged completely before first use.
- Keep the device away from children while charging.
- Ensure the camera is switched off when charging. If the camera turns on automatically when connected to a power source please turn it off to complete charging. A camera plugged into power and switched on will not charge.
- The camera should only be charged via the USB port of a computer or a USB power adapter with a maximum capacity of 1000mAh.
- Unplug the USB cable connected to the camera before using the camera.
- The battery life is - depending on the settings and outside temperature - up to 90 minutes under optimal conditions.
EN
WiFi connection:
- Ensure you have downloaded the correct companion app for your camera model.
- Please note that wireless transfer of files using the app is not possible for video with resolution higher than 1080p. Files using any resolution higher then 1080p can only be accessed via your computer using a card reader.
Safety instructions:
WARNING: The camera is not suitable for children under 36 months because of choking hazard.
WARNING: Always protect your camera from falls, blows and bumps.
- Keep a sufficient distance from objects that generate strong magnetic fields or radio waves, such as electrical appliances to prevent them from damaging the product or affecting the sound and image quality.
- Store the device cool (at room temperature) in a dry and dust-free location and never expose the product to high temperatures or permanently direct sunlight.
- In the unlikely event of overheating, smokes or unpleasant odors coming out of the unit, disconnect it immediately from the charging cable and remove the battery to avoid a fire.
WARNING: Before using the camera in the water, make sure that all lids and closures on the camera underwater housing are closed and sealed.
• After using it in salty or chlorinated water, clean the case and let it dry.
- The camera should not be exposed to high temperature and humidity differences to prevent condensation inside the case or behind the lens.
- After under water use, the housing must be left open to avoid condensation or rusting.
EN
Preface
This product is a high-definition digital motion video recording device. It uses class leading components to deliver a broad range of high end features including: high frame rate 4K video recording, photo shooting, a 2" colour display and built-in WiFi.
Product Features
- Full high definition 2" screen to frame your shots and view your videos and photos
- 14MP max. resolution
- WiFi for live view and file transfer
- HDMI HD output, supporting FPV mode
- Supports storage cards up to 64GB maximum (not included)
- Multiple video recording formats: 4K /2.7K/1080P/720P
- Supports MOV video recording format
- Support remote control function (remote control is not included)

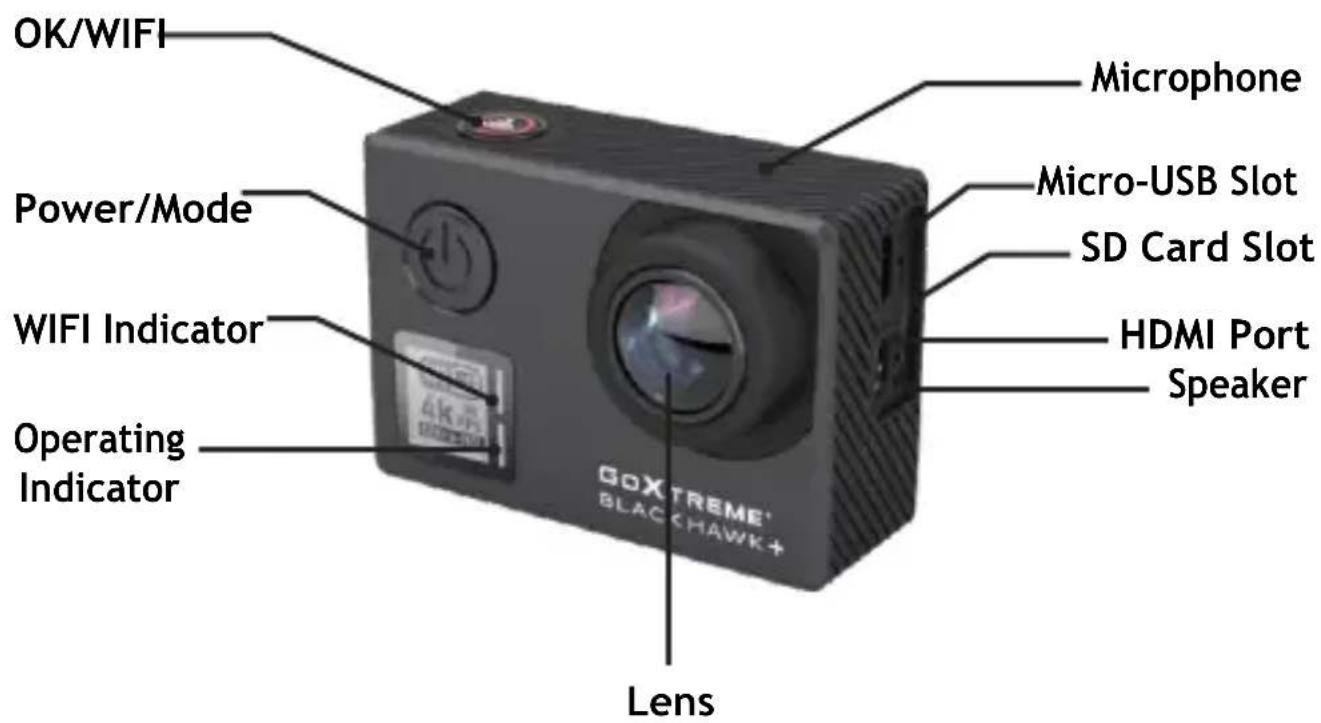

Product Discription


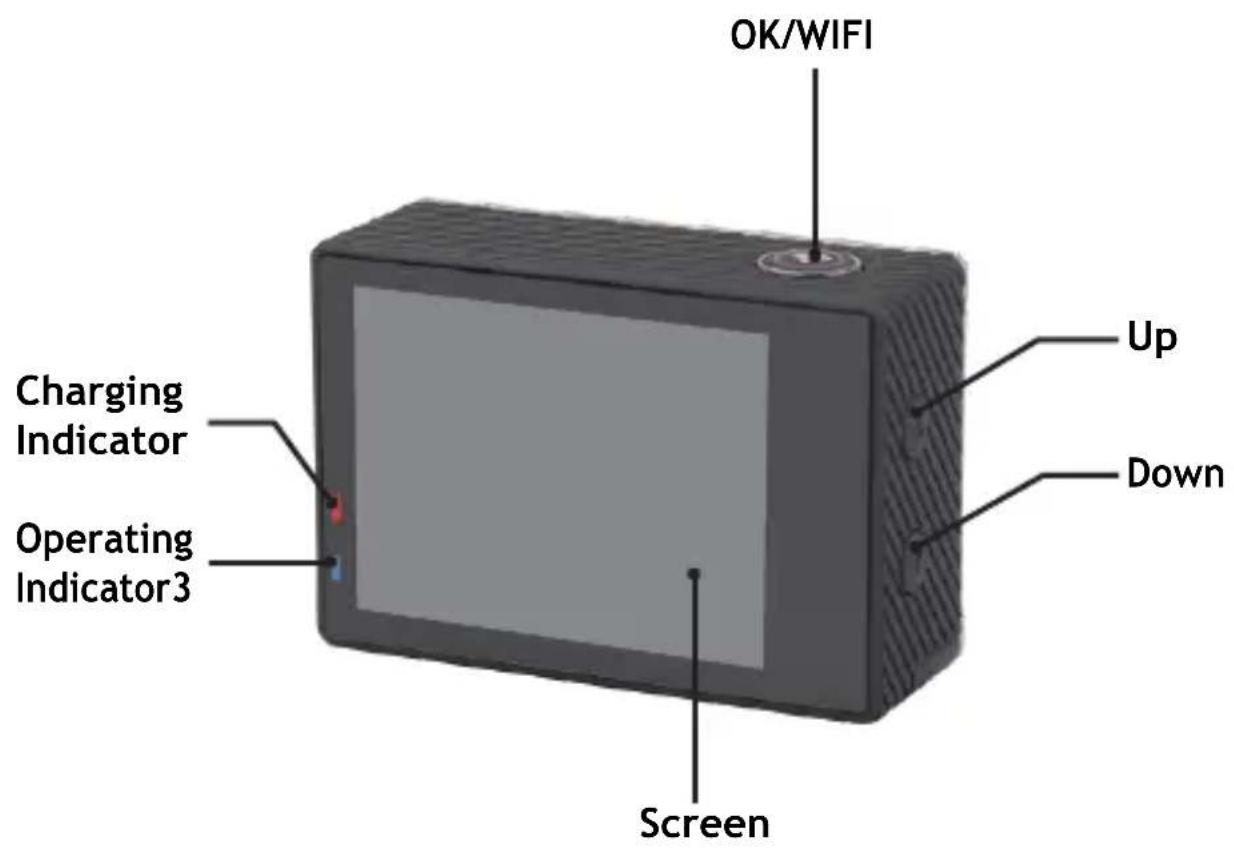

EN

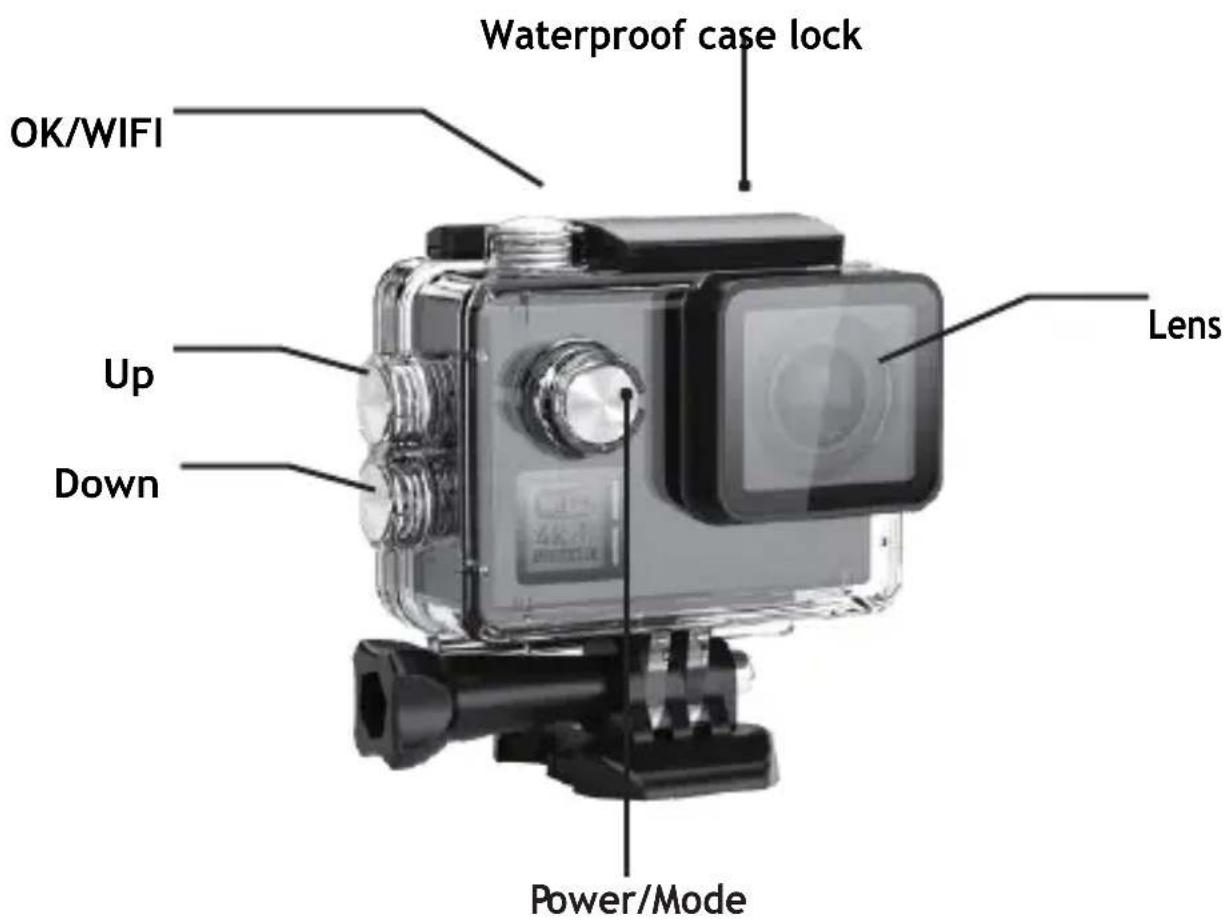

- Inserting micro SD Card
Note: Please choose a branded U3 micro SD card and format the memory card using the camera before the first use.
- Installing and removing the battery
A. The battery compartment can be secured against accidental opening. You will find a lock button on the battery compartment. To open the battery compartment unlock it and slide it in the direction shown on the cover.
B. Install the battery into the camera as indicated by the +/- symbols and in the direction of the arrows marked on battery.
C. Battery status is indicated as follows: Full power mode "1" / low powermode".
D. Removing the battery: Open the battery cover and take the battery out.
Note: Please engage the lock on the battery compartment cover before each use.
- Charging the battery
A. The battery can be charged by connecting it to a computer or a power adapter.
B. The camera can record videos while charging (switch into vehicle-mounted mode in the Menu).
C. The camera can also be charged while the camera is turned off.
- Turning the camera on and off
Press and hold the power button for 3-5 seconds to turn it on/off.
- Mode Switching
Short pressing the power button repeatedly changes the cameras operating mode in the following
sequence: video recording / photo shooting / playback / menu
EN
6.WiFi Control
Before using the WiFi Control function, please install the app iSmart DV to your smartphone or tablet PC. After turning the camera on, press the WiFi button for 2 seconds to activate or deactivate the WiFi function. When the WiFi is turned on, the WiFi symbol will be shown on the display. When the WiFi indicator turns green your camera is ready to be connected to your smartphone or tablet.
Open the WiFi settings on your mobile phone to search for the camera device: GoXtreme from the available wireless networks. (The password to complete the connection is 1234567890).
Start the iSmart DV software.
- How to record videos and configure the recording settings
8-1. Video Recording
Switch to recording mode and there will be an icon in the upper left corner of the screen. Press OK to start recording and the icon will start to flash.
Press "OK" again to stop recording and the icon will disappear.
8-2. Photo Shooting & Setting
Switch the camera on and press "Mode" to select "Photo shooting Mode".
The icon in the upper left corner of the screen shows, that the camera is in the photo shooting mode. Press "OK" to take photos.
EN
8-3. Burst Mode & Setting
Switch the camera on and press "Mode" to select "Burst shooting Mode".
The icon in the upper left corner of the screen shows, that the camera is in the Burst photo shooting mode.
Press "OK" to take photos.
8-4. File Storage & Playing
Switch the camera to the "Playback Mode" ("") is shown on the top left corner of video preview mode, and " " is shown on the top left corner of photopreviewmode.)
Selectfilesby using the UP and DOWNarrows, then replay and stop videos or review photos by pressing the shutter (OK) button.
You can also review your files on your smartphone via WiFi.
Note: In the unlikely event that the camera freezes during use, please remove and re-insert the battery.
EN
| Specifications | ||
| Image Sensor | Type | 12MP CMOS |
| Lens | Focal Length | Lens f= 3.21mm |
| F No. | F= 2.8 | |
| F.O.V(D) | 170° | |
| LCD Display | 2” 320x240 TFT LCD | |
| Focusing | Type | Fixed |
| Exposure | Control | Programmed AE |
| Compensation | ± 2EV (0,33 EV) -2,0 / -1,0 / + 0,0 / + 1,0 / 2,0 | |
| ISO Equivalent | Auto, 100, 200, 400, 800, 1600 | |
| White Balance | Auto /Daylight / Shade/Tungsten Light / Fluorescent/ Underwater | |
EN
| Video resolution | 4K 3840x2160 60fps / EIS 30fps2.7K 2704x1520 60fps / 30fps1920x1080 120fps / EIS 60fps / EIS 30fps1280x720 240fps / 200fps / 120fps / 60fps / 30fps | |
| Image Stabilization | On/Off | |
| Memory | External memory: supporting U3 micro SDHC cards upto 64GB (not included) | |
| Video Encoder | H.264 | |
| Image Size | 14M (4320x3240) interpolated12M (4032x3024), 10MP(3648x2736)8M (3840x2160)5M (2592x1944)2M (1920x1080) | |
| Video Output | HDMI: Support 1920x1080 P60, output With CECComposite: NTSC/PAL | |
| Time Lapse Function | OFF / 1 sec. / 3 sec. / 5 sec. / 10 sec. / 30 sec./ 60 sec. | |
EN
| Photo Functions | Self Timer: OFF / 3 sec. / 5 sec. / 10 sec. / 20 sec.Burst Rate: OFF / 3 P/s / 7 P/s / 15 P/s /30P/sTime Lapse Photo Interval: OFF / 3 sec. / 5 sec. /10 sec. / 30sec. / 60 sec.Time Lapse photo shooting time: 5Min/10Min/15Min/20Min | |
| Default Mode | Video | |
| EIS | On / OFF | |
| Motion Detection | Off / Low / Medium / High | |
| TV Mode | NTSC / PAL | |
| Light Freq. | 50HZ / 60HZ | |
| Screen-Off | OFF / 30 Seconds / 1 Min. / 2Min | |
| WiFi LED | ON / OFF | |
| Sharpness | Strong / Normal / Soft | |
| Scene Mode | Normal/Indoor/Outdoor/Landscape/Portrait/Night | |
| ISO | Auto / 100 / 200 / 400 / 800 / 1600 / 3200 | |
| EV : 0.0 | EV : -2.0 / -1.0 / +0.0 / +1.0 / +2.0 | |
| Time Setup | set-up time | |
EN
| Date Format | Y/M/D,D/M/Y,M/D/Y | |
| Wi-Fi | ON / OFF | |
| WiFi SSID | GOXTREME | |
| WiFi Password | 1234567890 | |
| Format | YES/NO | |
| Default Setting | YES/NO | |
| Version | GOXTREME V1.0 | |
| Interface | USB 2.0: Recharging/File Transfer | |
| Power Source | Li-ion rechargeable battery 1050mAh | |
| Dimensions (W*H*D) | L: 61mm, W:42mm, H:23 mm(with lens part will be33mm) | |
| Weight | about 78.5g (with battery) | |
| Support | Mass Storage DriverWindows XP (Service pack2) orlater Mac OSX 10.5.11 or later | |
| System Requirements | ||
| For Windows | *PC with processor better than Pentium 4 3.2GHz*WindowsXP (Service pack 2) orlater*Minimum 1 GB System RAM*Minimum 256 MB RAM Video Card*USB port, CD-ROM drive*1024*768 pixels, 32-bit color display compatible monitor | |
EN
All product specifications are correct at time of print and are subject to change without prior notice.
Easypix GmbH reserve the right for errors or omissions.
For technical help please visit our support area on www.easypix.eu.
CONFORMITY
The manufacturer hereby declares that the CE marking was applied to the product GoXtreme Black Hawk+ in accordance with the basic requirements and other relevant provisions of the following CE Directives:
2014/53/EU
2011/65/EC RoHs
2014/30/EU EMV
2012/19/EC WEEE
The EC Declaration of Conformity can be downloaded here:
http://www.easypix.info/download/pdf/doc_goxtreme_blackhawkplus.pdf
DISPOSAL
EN
Dispose of packaging
For disposal, separate packaging into different types. Cardboard and board must be disposed of as paper and foil must be recycled.
Disposal of Waste Electrical and Electronic Equipment and/or Battery by users in private
households in the European Union. This symbol on the product or on the packaging indicates that this cannot be disposed of as a household waste. You must dispose of your waste equipment and/or battery by handling it over to the applicable take-back scheme for the recycling of electrical and electronic equipment and/or battery. For more information about recycling of this equipment and/or battery, please contact your city office, the shop where you purchased the equipment or your household waste disposal service. The recycling of materials will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and environment.
EN
Battery warning
- Never dismantle, crush, or pierce the battery, or allow the battery to short-circuit. Do not expose battery being placed in high temperature environment, if battery leaks or bulges, stop continue to use.
• Always charge using the charger. Risk of explosion if battery is replaced by an incorrect type. - Keep the battery out of reach of children.
- Batteries may explode if exposed to naked fire. Never dispose of batteries in a fire.
- Disposed of used batteries observing local regulations.
- Before disposing the device, please remove the battery.
The camera is not suitable for children under 3 years because of choking hazard.
Made in China / Only for EU
