USER MANUAL AD 1350 ADLER

Black ADLER water heater with digital display and control buttons (no visible text or symbols on the device itself)

AD 1350

(GB) user manual	- 3	(DE) bedienungsanweisung	- 6
(FR) mode d'emploi	- 11	(ES) manual de uso	- 15
(PT) manual de serviço	- 19	(LT) naudojimo instrukcija	- 23
(LV) lietošanas instrukcija	- 51	(EST) kasutusjuhend	- 27
(HU) felhasználói kézikönyv	- 83	(BS) upute za rad	- 79
(RO) Instructiunea de deservire	- 34	(CZ) návod k obsluze	- 30
(RUS) инструкция обслуживания	- 99	(GR) odnyíes хрóseως	- 38
(MK) упатство за корисникот	- 74	(NL) handleiding	- 91
(SL) navodila za uporabo	- 71	(FI) manwal ng pagtuturo	- 87
(PL) instrukcja obsługi	- 122	(IT) istruzioni operative	- 107
(HR) upute za uporabu	- 95	(SV) instruktionsbok	- 47
(DK) brugsanvisning	- 112	(UA) інструкція з експлуатації	115
(SR) Корисничко упутство	- 42	(SK) Používatel'ská príručka	- 104
(AR) دلیل التعليمات	- 54	(BG) Инструкция за употреба	- 58
(AZ) İstifadəyə dair göstərişlər	- 63	(ALB) Udhezime për përdorim	- 57

1 6 4 3 12 88°C 70 80 90 Boil + - Warm ADLER 5

88°C 2 A 70 80 B C 90 Boil D E + - F G Warm 7 8

(GB) ENGLISH

SAFETY CONDITIONS IMPORTANT INSTRUCTIONS ON SAFETY OF USE PLEASE READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

The warranty conditions are different if the device is used for commercial purposes."

1. Before using the product please read carefully and always comply with the following instructions. The manufacturer is not responsible for any damages due to any misuse.
2. The product is only to be used indoors. Do not use the product for any purpose that is not compatible with its application.
3. The device should only be connected to a 220-240V \~50/60Hz grounding outlet.. For safety reasons, it is not appropriate to connect multiple devices to one power outlet.
4. Please be cautious when using children. Do not let the children play with the product. Do not let children or people who do not know the device use it without supervision.
5. WARNING: This device may be used by children over 8 years of age and persons with reduced physical, sensory or mental capabilities, or persons without experience or knowledge of the device, only under the supervision of a person responsible for their safety, or if they were instructed on the safe use of the device and are aware of the dangers associated with its operation. Children should not play with the device. Cleaning and maintenance of the device should not be carried out by children unless they are over 8 years of age and these activities are carried out under supervision.
6. After you are finished using the product always remember to gently remove the plug from the power outlet holding the outlet with your hand. Never pull the power cable!!!
7. Never put the power cable, the plug, or the whole device into the water. Never expose the product to atmospheric conditions such as direct sunlight or rain, etc. Never use the product in humid conditions.
8. Periodically check the power cable condition. If the power cable is damaged the product should be turned to a professional service location to be replaced in order to avoid hazardous situations.
9. Never use the product with a damaged power cable or if it was dropped or damaged in any other way or if it does not work properly. Do not try to repair the defective product yourself because it can lead to electric shock. Always turn the damaged device to a professional service location in order to repair it. All the repairs can be done only by authorized service professionals. The repair that was done incorrectly can cause hazardous situations for the user.
10. Never put the product on or close to hot or warm surfaces or the kitchen appliances like the electric oven or gas burner.
11. Never use the product close to combustibles.
12. Do not let the cord hang over the edge of a counter or touch hot surfaces.
13. Never leave the product connected to the power source without supervision. Even when use is interrupted for a short time, turn it off from the network, and unplug the power.
14. In order to provide additional protection, it is recommended to install a residue current device (RCD) in the power circuit, with a residual current rating of not more than 30 mA.

Contact a professional electrician in this matter.

1. If the kettle is overfilled it may spurt boiling water.
2. WARNING: Do not open the lid if the water is boiling.
3. The kettle must only be used with the provided base.
4. CAUTION: Before lifting the kettle from the base make sure that the kettle is turned off.
5. This equipment is intended for domestic and similar use, such as staff kitchens in stores, offices, and other work environments, utility rooms, by customers in hotels, motels, and other residential environments of this type, in bedrooms and dining rooms.
6. Always use caution when boiling water in the kettle. Do not touch the housing of the kettle or lid. Do not open the lid during boiling in a kettle or immediately after boiling, because steam coming out of the lid can cause burns.
7. Move the kettle only by holding it by the handle.
8. Never fill kettle above MAX level and below MIN level. It may cause damage to the kettle.
9. Never switch on a kettle without water.
10. Never use the kettle without a filter or with an open cover (automatic shutdown will not work).
11. Descale your kettle regularly. Using a kettle with a heating element covered by a scale may cause damage.
12. Do not use aggressive detergents to wash the kettle housing - they can damage the kettle or remove the markings.
13. The device is not designed to work with external schedulers or separate remote control systems.
14. Do not wash the base of the kettle directly in the water, just wipe with a dry cloth.
15. Children aged 3 to 8 years old can enable and disable the device only when it is in its normal position of use, they are supervised or instructed on the safe use and understand the resulting risks. Children aged 3 to 8 years old cannot connect devices, operate, clean, or maintain.

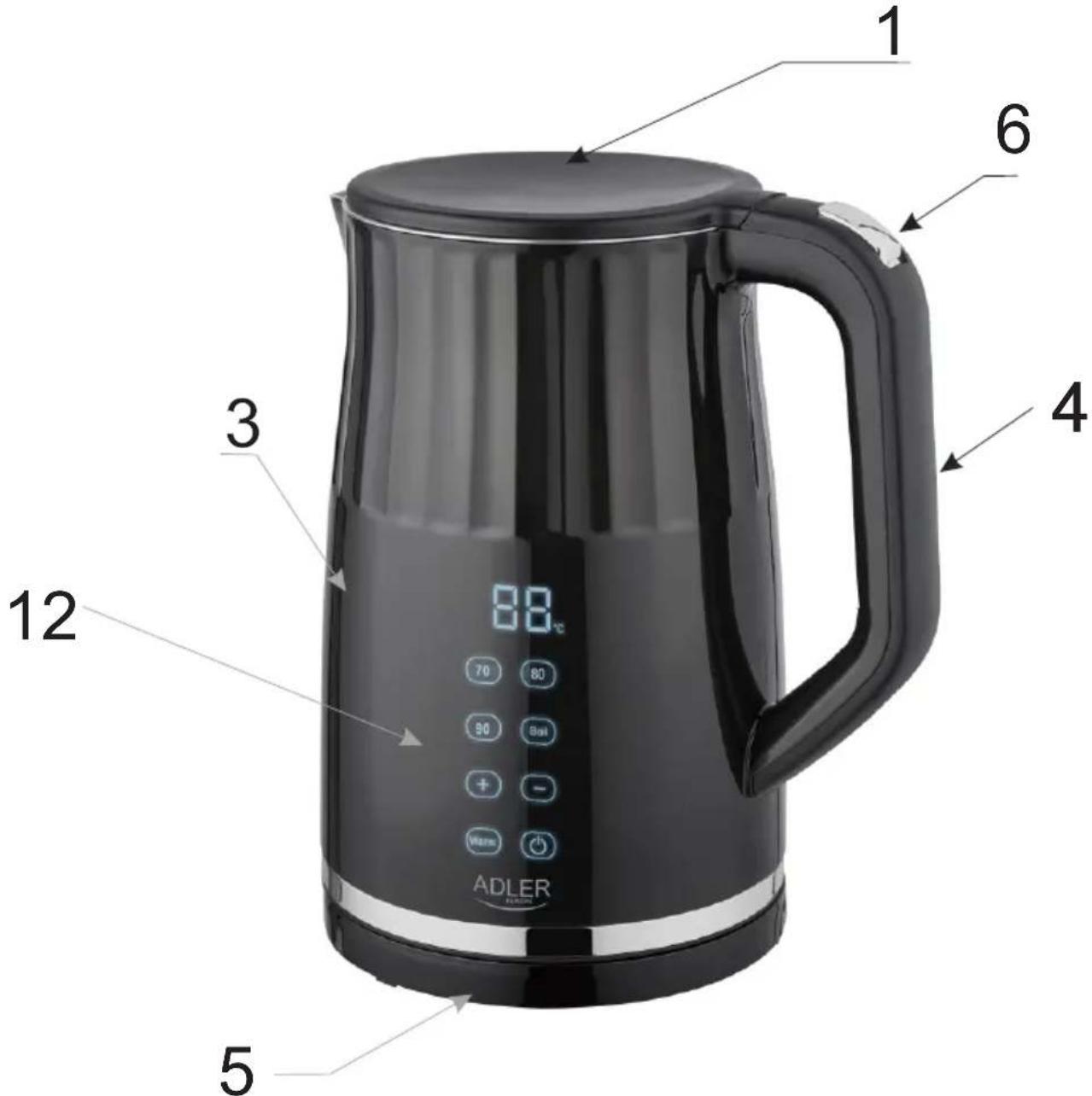

DESCRIPTION OF THE DEVICE ELECTRIC KETTLE AD1350

1. Lid
2. LCD display
3. Housing
4. Handle
5. Basics
6. Lid opening button
7. On/Off button
8. MIN/MAX water level indicator

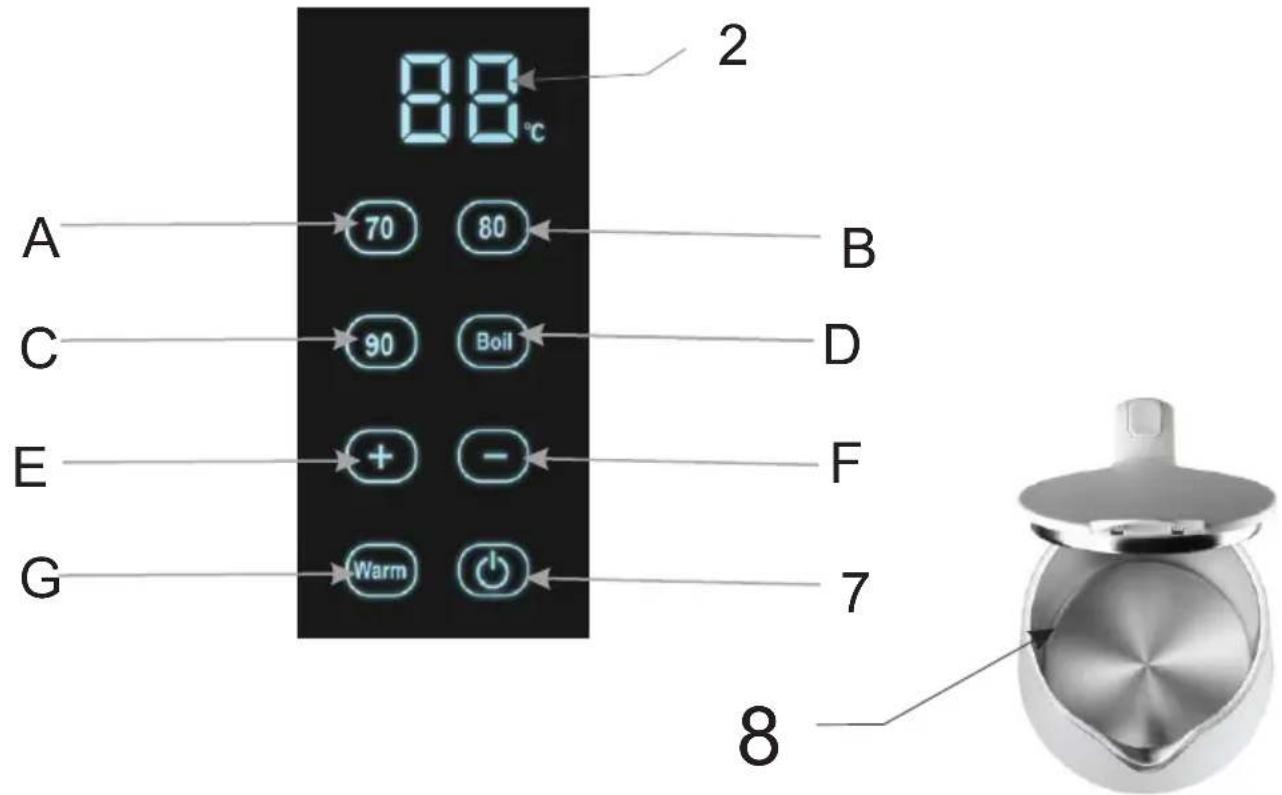

9. Touch panel

A. Temperature setting button 70°C

B. Temperature setting button 80°C
C. Temperature setting button 90°C
D. Temperature setting button 100°C
E. Temperature setting button +5°C
F. Temperature setting button - 5°C
G. Maintain temperature button

BEFORE FIRST USE

Fill the kettle with water three times to the maximum level, boil it and pour it out. To remove any factory odor.

The buttons on the touch panel (9) should only be touched with your fingertips, touching them with your fingernails may damage the panel!

BASIC OPERATION: SINGLE WATER BOILING UP TO 100°C

1. Place the base (5) on a stable, flat and heat-resistant surface.
2. Fill the kettle with water so that the water level is between the maximum and minimum levels on the water level indicator inside the kettle (8).
3. Remember to close the kettle with the lid (1) after filling, otherwise the kettle will not turn off automatically after the water boils.
4. Plug the power cord into a 220-240V \~50/60Hz grounded socket. Place the kettle on the base (5), you will hear the sound "di", the LCD display (2) will show the current water temperature.
5. Press the (D) "Boil" button, the (D) "Boil" and (G) "Warm" and On/off indicators (7) will light up, then the kettle will start heating the water and the LCD display (2) will show the current water temperature. The water temperature will increase until it boils, i.e. up to 100^ C.
6. After the water boils, the kettle will automatically turn off and you will hear the "di-di" sound twice.
   The LCD display (2) will indicate 100^ C, then after 15 seconds it will turn off and the On/off icon (7) will flash.
7. If you want to turn the kettle off before the water has finished boiling, lift it from the base (5) or press the On/Off button (7).
8. The kettle can be turned on again approximately 2 minutes after the last use.

ADVANCED OPERATION: BOILING WATER TO A SELECTED TEMPERATURE 70°C 80°C 90°C

Place the kettle on the base (5), you will hear the sound "di". Press the temperature selection button 70°C (A), 80°C (B) or 90°C (C), the LCD display (2) will show your selected temperature of 70°C or 80°C / or 90°C, then the LCD display (2) will indicate the current water temperature inside the kettle.

The "Warm" indicator (G) and On/off (7) will light up and the kettle will start heating the water,

The kettle will stop boiling water when it reaches the selected temperature level of 70^ C 80^ C 90^ C, you will hear "di-di" sound twice.

The LCD display (2) will indicate the temperature reached, then after 15 seconds it will turn off and the On/Off indicator (7) will flash.

If you want to turn the kettle off before the water has finished boiling, lift it from the base (5) or press the On/Off button (7).

You can start turning the kettle back on approximately 2 minutes after it was last used.

The kettle also has a temperature setting function from 40^ C to 100^ C every 5^ C, use the E (+) and F (-) buttons to increase the temperature E (+) or decrease the temperature F (-).

TEMPERATURE MAINTAIN FUNCTION

Place the kettle on the base (5), you will hear the sound "di". Press one of the temperature selection buttons on the additional panel (9),

then press the (G) "Warm" button, the (G) "Warm" indicator will start flashing, it means that the temperature maintenance function is turned on.

After reaching the set temperature, the kettle will enter the temperature maintenance mode and will heat the water cyclically when the water temperature drops by 5^ C in relation to the selected temperature level.

If the temperature of the water in the kettle is higher than the desired temperature (more than 5^ C), the "Warm" function indicator (G) will flash until the water cools down to the previously set temperature, remaining in the temperature maintenance mode all the time.

To interrupt the keep-warm function, remove the kettle from the base (5) or press the button (7). The keep-warm function is maintained for 2 hours after the last cooking.

SECURITY

The device is equipped with an automatic overheating fuse, the fuse will turn on when used with insufficient water. Always make sure that the amount of water in the device is above the minimum level. If the fuse trips, turn off the kettle by pressing the button (7), then remove the plug from the power socket and let the kettle cool down for 5-10 minutes. Then fill the kettle with water and turn on the device and it will work normally.

Switching on an empty or insufficiently filled kettle insufficient water will automatically turn off the device. In this case, wait several minutes. Pour the appropriate amount of water and turn the kettle back on.

Do not leave the kettle switched on unattended.

The kettle is an electrical device not intended to store water or any other liquids. After boiling the water, pour it immediately into another vessel. After boiling in the kettle, water cannot remain in it for longer than 10 minutes. Before each use, fill the kettle with fresh water above the minimum level and below the maximum level.

CLEANING AND MAINTENANCE

The scale that accumulates inside the kettle should be removed regularly. This activity is not covered by warranty service. Lack of regular descaling will damage the kettle and void the warranty. For descaling, use specially designed preparations in accordance with the instructions for the use of the descaling agent. After descaling, rinse the kettle very thoroughly three times.

TECHNICAL DATA

Capacity max: 1.7L min: 0.5L

Voltage: 220-240V \~50/60Hz Power: 1850-2200W

Please transfer cardboard packaging to waste paper. Pour the polyethylene bags (PE) into the plastic container Worn device should be returned to the appropriate point storage because it is dangerous in the device ingredients may pose a threat to the environment. The electrical device should be handed over to limit its reuse and use. If in the device there are batteries you have to take out and give to the point stored separately.
