XXL Camera - Inspection camera Laserliner - Free user manual and instructions

Product Type	Inspection Camera
Brand	Laserliner
Model	XXL Camera
Camera Resolution	640 x 480 pixels
Head Diameter	9 mm
Probe Diameter	6 mm
Probe Length	5 m
Head Length	50 mm
Protection Rating	IP68 (1.5 m, 60 min)
Field of View	53°
Depth of Field	1 to 6 cm
Weight	550 g
Dimensions (L x diameter)	5000 x 19 mm
Operating Conditions	0°C to 45°C, humidity 20-85% rH
Storage Conditions	-10°C to 60°C, max. humidity 80% rH
Power Supply	Via VideoFlex base unit
Head Material	Metal (acid-resistant?)
Lighting	4 ultra-bright LEDs (RG 0)
Maintenance	Clean with a slightly damp cloth
Safety Instructions	Do not use near dangerous voltages
Certifications	CE, WEEE directive

Frequently Asked Questions - XXL Camera Laserliner

How to connect the XXL camera to the base unit?

Connect the camera to the VideoFlex base unit using the dedicated connector (see diagram in the manual). Make sure the connection is locked before use.

What is the depth of field of the camera?

The depth of field is between 1 and 6 cm from the camera head. Objects beyond this range may appear blurry.

Can I use the camera underwater?

Yes, the camera is rated IP68, allowing immersion up to 1.5 m for 60 minutes. However, the base unit must not be submerged.

How to clean the camera after use?

Use a slightly damp cloth to clean the head and cable. Avoid chemicals, solvents, or abrasive cleaners.

What are the important safety precautions?

Do not use near dangerous electrical voltages, chemicals, hot or moving parts. Do not modify the device and keep out of reach of children.

What is the image resolution?

The camera offers a resolution of 640 x 480 pixels for color video images.

What to do if the image is blurry?

Check that the object is within the focus zone (1 to 6 cm). If the object is too close or too far, the image may be blurry. Move the camera closer or farther accordingly.

Is the camera compatible with other base units?

The camera is specifically designed for use with the Laserliner VideoFlex base unit. Use with other systems is not guaranteed.

How to store the camera long-term?

Store the device in a dry, clean place at temperatures between -10°C and 60°C, with a maximum relative humidity of 80%.

What is the cable length of the XXL camera?

The flexible cable of the XXL camera is 5 meters long, with a diameter of 6 mm.

USER MANUAL XXL Camera Laserliner

Laserliner

Laserliner

!

Completely read through the operating instructions, the "Warranty and Additional Information" booklet as well as the latest information under the internet link at the end of these instructions. Follow the instructions they contain. This document must be kept in a safe place and passed on together with the device.

Function / Application

The Flex / XXL / Ultra Camera is a camera unit for connection to the base VideoFlex unit. When combined with the base unit, colour video images are sent to the LCD for inspecting highly inaccessible locations such as cavities, shafts, masonry or in vehicles.

General safety instructions

• The device must only be used in accordance with its intended purpose and within the scope of the specifications.
• The measuring tools and accessories are not toys. Keep out of reach of children.
• The structure of the device must not be modified in any way.
• Do not expose the device to mechanical stress, extreme temperatures or significant vibration.
• The device must no longer be used if one or more of its functions fail or the battery charge is weak.
• The camera head is not acid-resistant or fireproof.
• It is absolutely vital to ensure that the Flex / XXL / Ultra Camera does not come into contact with chemicals, voltage, moving or hot objects. This can damage the device and put its user at risk of serious injury.
• The Flex / XXL / Ultra Camera must not be used for medical examinations / examining people.
• Please ensure compliance with the safety regulations set out by local and national authorities with regard to the correct and proper use of the device.
• The unit is not suitable for taking measurements close to dangerous voltages. Therefore always make sure that conductive parts are at zero potential when carrying out measurements in the vicinity of electrical systems. Safe isolation from the power supply and precautions to prevent systems being switched on again must be ensured by implementing suitable measures.

Safety instructions

Using artificial, optical emission (OStrV)

LED outlet

- The device works with LEDs of risk group RG 0 (exempt, no risk) in accordance with the latest versions of applicable standards relating to photobiological safety (EN 62471:2008-09ff / IEC/TR 62471:2006-07ff).

- When used for the intended purpose and under reasonably foreseeable conditions, the accessible radiation of the LEDs is safe for the human eye and skin.

Safety instructions

Dealing with electromagnetic radiation

- The measuring device complies with electromagnetic compatibility regulations and limit values in accordance with EMC-Directive 2014/30/EU.

Laserliner

- Local operating restrictions – for example, in hospitals, aircraft, petrol stations or in the vicinity of people with pacemakers – may apply. Electronic devices can potentially cause hazards or interference or be subject to hazards or interference.

Information on maintenance and care

Clean all components with a damp cloth and do not use cleaning agents, scouring agents and solvents. Store the device in a clean and dry place.

1 Base unit connection

2 Flexible cable

3 Camera head with 4 high-power LEDs

1 Focal depth

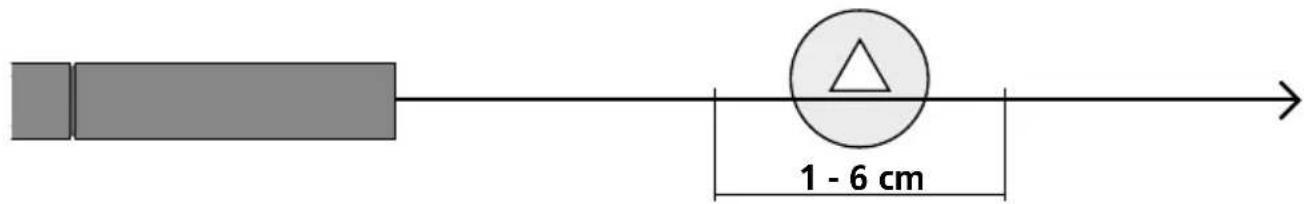

The Flex / XXL / Ultra Camera delivers sharp images in a range between 1 and 6 cm from the camera head.

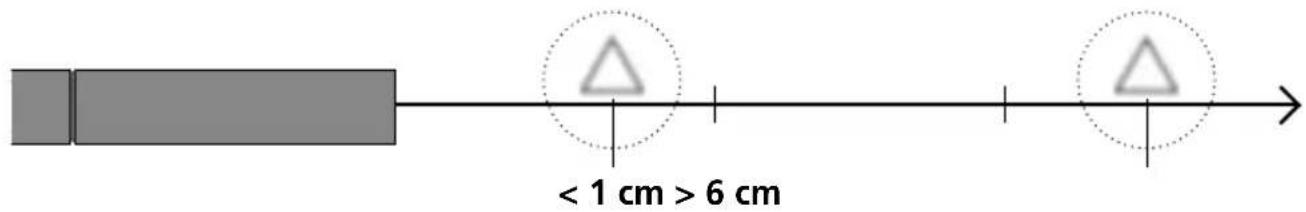

Objects well beyond the focus range may appear blurred.

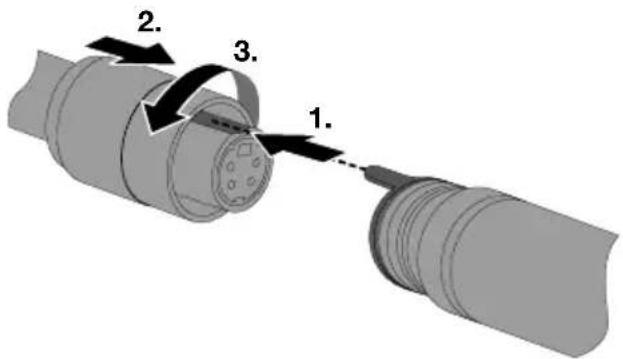

2 Connection for flexible cable

Technical data

Subject to technical alterations. 20W50

Camera resolution 640 x 480 pixels
Camera head ø 9 mm
Protection class IP 68 (immersion depth 1.5 m, 60 min.)
Min. bending radius camera probe 70 mm
Field of view (FOV) 53°
Depth of field (DOF) 1 ... 6 cm
Camera probe diameter 6 mm
Camera probe length Flex 1.5 m
Camera probe length XXL 5 m
Camera probe length Ultra 10 m
Length camera head 50 mm
Operating conditions	0°C ... 45°C, max. humidity 20 ... 85% rH,no condensation, max. working altitude 4000 mabove sea level
Storage conditions -10°C ... 60°C, max. humidity 80% rH
Dimensions (W x H x D) Flex 1500 x 19 x 19 mm
Dimensions (W x H x D) XXL	5000 x 19 x 19 mm
Dimensions (W x H x D) Ultra	10000 x 19 x 19 mm
Weight Flex	165 g
Weight XXL	550 g
Weight Ultra 1100 g

EU directives and disposal

This device complies with all necessary standards for the free movement of goods within the EU.

This product is an electric device and must be collected separately for disposal according to the European Directive on waste electrical and electronic equipment.

Further safety and supplementary notices at:

http://laserliner.com/info?an=AKV

!
