MaxView Camera - Inspection camera Laserliner - Free user manual and instructions

Product type	Inspection camera
Brand	Laserliner
Model	MaxView Camera
Sensor type	CMOS
Camera head diameter	17 mm
Head protection	Water resistant, IP67
Number of LEDs	4 ultra-bright LEDs (RG0 group)
Camera resolution	640 x 480 pixels
Field of view	57°
Focal distance	2 cm to 30 cm
Cable diameter	9.5 mm
Flexible hose length	1.5 m
Minimum bending radius	75 mm
Weight	298 g
Dimensions (L x H x D)	1580 x 18 x 18 mm
Working conditions	0°C to 45°C, 20-90% RH non-condensing, max altitude 4000 m
Storage conditions	-10°C to 60°C, max 80% RH
Power supply	Via the VideoFlex base unit (not included)
Care and cleaning	Clean with a slightly damp cloth, avoid chemicals and solvents
Safety	Do not use near hazardous voltages or on people
Spare parts and repairability	No detachable parts planned; device not user-serviceable
General information	EU compliant, disposal according to WEEE

Frequently Asked Questions - MaxView Camera Laserliner

What types of places can I inspect with the MaxView Camera?

The MaxView Camera is designed to inspect hard-to-reach places like cavities, shafts, masonry, conduits, or vehicles.

Is the camera waterproof?

Yes, the camera head is water resistant with an IP67 rating, allowing temporary immersion. Note that the rest of the unit (flexible hose and connector) is not necessarily waterproof.

What is the optimal focal distance?

The camera provides sharp images between 2 cm and 30 cm from the head. Beyond that, objects may appear blurry.

Can I use the camera for medical examinations on people?

No, it is prohibited to use the MaxView Camera for medical examinations or on people. It is reserved for industrial and technical inspection.

How do I clean the camera?

Clean the components with a slightly damp cloth. Do not use cleaning agents, scouring products, or solvents. Store the device in a dry, clean place.

Does the camera work alone or does it require another device?

The MaxView Camera is an accessory that connects to the VideoFlex base unit (not included). It cannot function independently.

What are the temperature conditions for using the camera?

The working temperature range is 0°C to 45°C with relative humidity 20-90% non-condensing. Maximum altitude: 4,000 m.

What if the camera is exposed to chemicals or an electrical source?

Avoid any contact with chemicals, electrical voltage, hot or moving parts. This can damage the device and cause serious injury. In case of contact, stop using immediately.

What is the camera resolution?

The resolution is 640 x 480 pixels, providing color video images for detailed visual inspection.

Are there spare parts available?

The MaxView Camera contains no user-serviceable parts. In case of malfunction, contact Laserliner customer service.

USER MANUAL MaxView Camera Laserliner

Laserliner

Laserliner

!

Completely read through the operating instructions, the "Warranty and Additional Information" booklet as well as the latest information under the internet link at the end of these instructions. Follow the instructions they contain. This document must be kept in a safe place and passed on together with the device.

Function / Application

The MaxView Camera is a camera unit for connection to the base VideoFlex unit. When combined with the base unit, colour video images are sent to the LCD for inspecting highly inaccessible locations such as cavities, shafts, masonry or in vehicles.

General safety instructions

• The device must only be used in accordance with its intended purpose and within the scope of the specifications.
• The measuring tools and accessories are not toys. Keep out of reach of children.
• The structure of the device must not be modified in any way.
• Do not expose the device to mechanical stress, extreme temperatures or significant vibration.
• The device must no longer be used if one or more of its functions fail or the battery charge is weak.
  – The camera head is not acid-resistant or fireproof.
• It is absolutely vital to ensure that the MaxView Camera does not come into contact with chemicals, voltage, moving or hot objects. This can damage the device and put its user at risk of serious injury.
  – The MaxView Camera must not be used for medical examinations / examining people.
• Please ensure compliance with the safety regulations set out by local and national authorities with regard to the correct and proper use of the device.
• The unit is not suitable for taking measurements close to dangerous voltages. Therefore always make sure that conductive parts are at zero potential when carrying out measurements in the vicinity of electrical systems. Safe isolation from the power supply and precautions to prevent systems being switched on again must be ensured by implementing suitable measures.

Safety instructions

Using artificial, optical emission (OStrV)

LED outlet

- The device works with LEDs of risk group RG 0 (exempt, no risk) in accordance with the latest versions of applicable standards relating to photobiological safety (EN 62471:2008-09ff / IEC/TR 62471:2006-07ff).

- When used for the intended purpose and under reasonably foreseeable conditions, the accessible radiation of the LEDs is safe for the human eye and skin.

Safety instructions

Dealing with electromagnetic radiation

- The measuring device complies with electromagnetic compatibility regulations and limit values in accordance with EMC-Directive 2014/30/EU.

Laserliner

- Local operating restrictions – for example, in hospitals, aircraft, petrol stations or in the vicinity of people with pacemakers – may apply. Electronic devices can potentially cause hazards or interference or be subject to hazards or interference.

Information on maintenance and care

Clean all components with a damp cloth and do not use cleaning agents, scouring agents and solvents. Store the device in a clean and dry place.

1 Base unit connection

3 Camera head with 4 high-power LEDs

2 Flexible cable

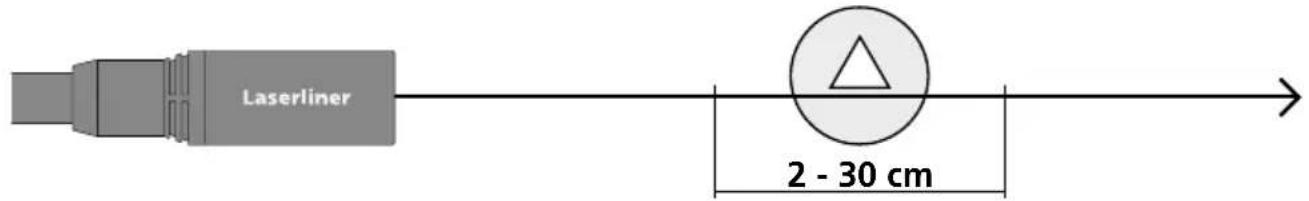

1 Focal depth

The MaxView Camera delivers sharp images in a range between 2 and 30 cm from the camera head.

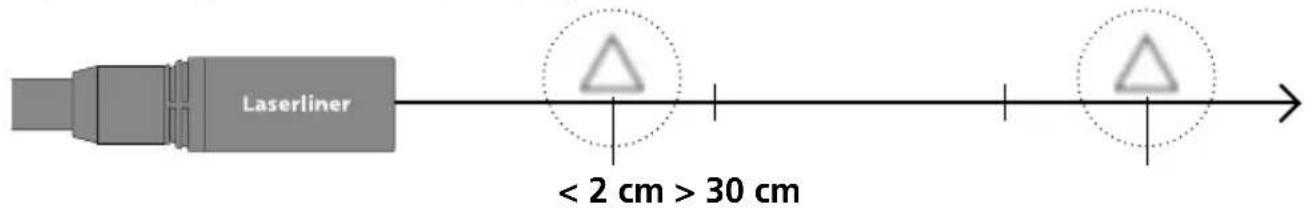

Objects well beyond the focus range may appear blurred.

2 Connection for flexible cable

Technical data
Subject to technical alterations. 20W41

Type of camera CMOS image sensor
Camera head ø 17 mm
Camera head protection class water-resistant, IP 67
Camera head LEDs 4
Camera resolution 640 x 480 pixels
Field of vision 57°
Camera focus F2 cm - F30 cm
Cable diameter 9,5 mm
Length of flexible cable 1,5 m
Minimum bending radius 75 mm
Operating conditions	0°C ... 45°C, max. humidity 20 ... 90% rH,no condensation, max. working altitude 4000 mabove sea level
Storage conditions -10°C ... 60°C, max. humidity 80% rH
Weight 298 g
Dimensions (W x H x D) 1580 x 18 x 18 mm

EU directives and disposal

This device complies with all necessary standards for the free movement of goods within the EU.

This product is an electric device and must be collected separately for disposal according to the European Directive on waste electrical and electronic equipment.

Further safety and supplementary notices at:

http://laserliner.com/info?an=AlF

!

SERVICE

Umarex GmbH & Co. KG

- Laserliner -
