Product type	Kitchen hood
Brand	Haier
Model	HATS9CBS4BWIFI
Supply voltage	220-240 V ~ 50 Hz
Recommended fuse	3 A
Number of speeds	5 (min, medium, max, boost 1, boost 2)
LED lighting	Yes, max. power 1.5 W
Integrated Wi-Fi	Yes, standard 802.11 b/g/n, band 2.4 GHz
Network standby consumption	2 W
Evacuation type	External (duct Ø150 mm) or recirculation
Grease filter	Washable monthly with household detergent
Activated carbon filter	Annual replacement (for recirculation)
Minimum distance above cooking surface	65-75 cm
Timer function	Yes, delayed shut-off of 5 minutes
Boost function	Yes, two levels (speed 4 and 5)
Appliance class	Class I (grounding mandatory)
Compatible app	hOn (iOS/Android)
Included accessories	Wall brackets, ducts, carbon filters (2), air deflector
Serial number	16-digit code starting with 3

Frequently Asked Questions - HATS9CBS4BWIFI HAIER

How to install the hood?

Installation must be carried out by a qualified professional. The hood should be placed 65-75 cm above the cooking surface. Drill holes for the wall bracket, fix it, then hang the hood. Connect the exhaust duct (diameter 150 mm) or install the carbon filters for recirculation. Follow the wiring diagram for electrical connection.

How to clean the grease filters?

The grease filters should be cleaned monthly to avoid fire hazards. Use a soft cloth dampened with soapy water or household detergent. Do not use metal brushes or abrasive products.

When to replace the activated carbon filter?

The activated carbon filter should be replaced at least once a year, or more often if the hood is heavily used. It is only necessary in recirculation mode (without external evacuation).

How to connect the hood to Wi-Fi?

Download the hOn app on your smartphone. Press and hold the Wi-Fi icon on the hood until it flashes. Follow the instructions in the app to pair the device. Once connected, the Wi-Fi icon remains lit.

What to do if the hood stops working?

Check that the appliance is plugged in and that the fuse has not blown. If the light is on but the motor is not, the fan blade may be blocked. If nothing works, the motor may be damaged. Contact a qualified technician.

How to activate the boost function?

On configuration 1, press the B or B+ buttons for boost speeds (4 and 5). On configuration 2, press B to activate the booster for 5 minutes. The hood runs at full power then returns to the previous speed.

How to change the LED bulb?

Unscrew the hood glass, remove it. Locate the LED light fixture inside. Disconnect the wiring and remove the bulb holder and wiring assembly. Replace with a complete part (LED max. 1.5 W). Reconnect and replace the glass, tightening the screws firmly.

The hood is noisy or vibrates, what to do?

Check that the hood is properly attached to the wall bracket. If vibrations persist, the fan blade may be damaged or the motor poorly fixed. Turn off the appliance and have it repaired by a professional.

What is the ideal distance between the hood and the cooktop?

The recommended distance is 65 to 75 cm between the hood and the cooktop for optimal extraction.

How to use the timer?

Press and hold the light button for 3 seconds. The speed buttons flash, then the hood turns off automatically after 5 minutes. An audible signal sounds.

USER MANUAL HATS9CBS4BWIFI HAIER

INSTALLATION AND USER'S MANUAL

CONTENT

INTRODUCTION 02

SAFETY PRECAUTION 02

ELECTRICAL INSTALLATION 04

SPECIFICATION 05

INSTALLATION (VENT OUTSIDE) 06

INSTALLATION (VENT INSIDE) 13

DESCRIPTION OF COMPONENTS 14

OPERATION 14

MAINTENANCE 17

TROUBLESHOOTING 18

CONFORMITY WITH DIRECTIVES 19

ENVIRONMENTAL PROTECTION 19

INTRODUCTION

Thank you for choosing this cooker hood.

This instruction manual is designed to provide you with all required instructions related to the installation, use and maintenance of the appliance. In order to operate the unit correctly and safely, please read this instruction manual carefully before installation and usage.

The cooker hood uses high quality materials, and is made with a streamlined design. Equipped with a large power electric motor and centrifugal fan, it also provides strong suction power, low noise operation, non-stick grease filter and easy assembly installation.

Hereby, Candy Hoover Group Srl declares that the radio equipment is in compliance with Directive 2014/53/EU and with the relevant Statutory Requirements (for the UKCA market).

The full text of the declaration of conformity is available at the following internet address: www.candy-group.com

SAFETY PRECAUTION

Never let children operate the machine. The cooker hood is for home use only, not suitable for barbecue, roast shop and other commercial purposes. The cooker hood and its filter should be cleaned regularly in order to keep in good working condition. Clean the cooker hood according to the instruction manual and keep the unit from danger of burning. Forbid the direct baking from the gas cooker. Please keep the kitchen room a good convection. Before connecting this appliance check that the power supply cord is not damaged. A damaged supply cord must be replaced by qualified service personnel only. There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels; The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels; Regulations concerning the discharge of air have to be fulfilled.

• Children should be supervised to ensure that they do not play with the appliance.
• Do not flambe under the range hood.

The range hood is not intended to be installed over a hob having more than four hob elements.

• There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room);
• The details concerning the method and frequency of cleaning.
• There is a fire risk if cleaning is not carried out in accordance with the instructions;
• Do not flame under the range hood;
• CAUTION: Accessible parts may become hot when used with cooking appliances.

Electrical Shock Hazard

Only plug this unit into a properly earthed outlet. If in doubt, seek advice from a suitably qualified engineer. Failure to follow these instructions can result in death, fire, or electrical shock.

The lamp used in this product is not suitable for use in the lighting of a room.

The purpose of this lamp is to provide illumination for using the product.

Electrical Installation

All installation must be carried out by a competent person or qualified electrician. Before connecting the mains supply, ensure that the mains voltage corresponds to the voltage on the rating plate.

Direct Connection

The appliance must be connected directly to the mains using an omnipolar circuit breaker with a minimum opening of 3 mm between the contacts.

The installer must ensure that the correct electrical connection has been made and that it complies with the wiring diagram.

The cable must not be bent or compressed.

Regularly check the power plug and power cord for damage. If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent.

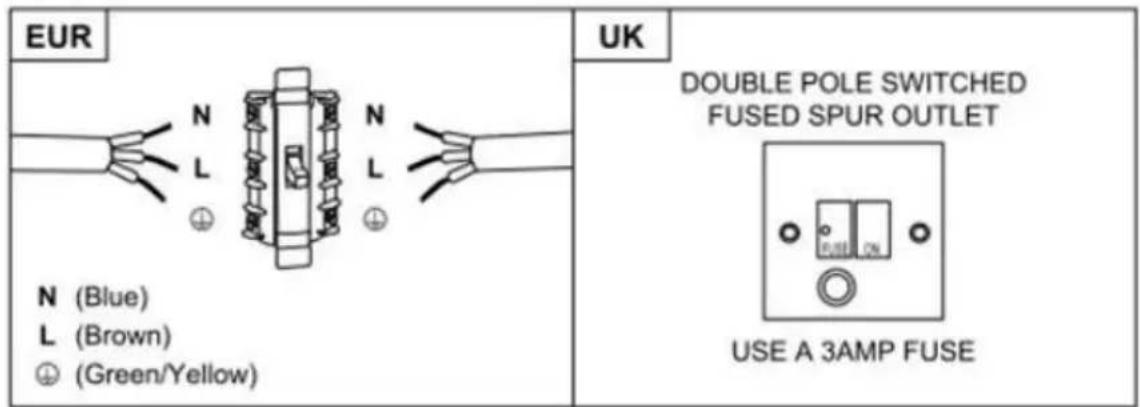

WARNING: This is a Class I appliance and MUST be earthed.

This appliance is supplied with a 3-core mains cable coloured as follows:

Brown = L or Live

Blue = N or Neutral

Green and Yellow = E or Earth

The fuse must be rated at 3 Amps.

Standard Installation Accessories List

Spec. Qty	Illustration Picture
Casing 1
Upper Chimney 1
Lower Chimney 1
Lower chimney bracket 1
Upper chimney bracket 1
Hanging Board 1
φ8 rawl plugs φ8×φ6 white color		9
Screws ST4.0×30		9
φ7.2screws ST4.0×8		2
Air outlet 1
Carbon filter		2

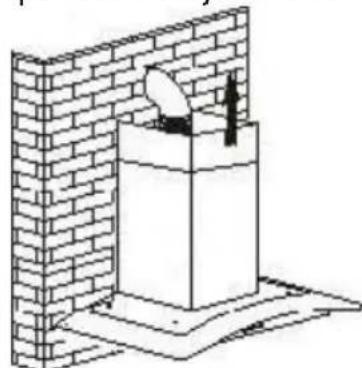

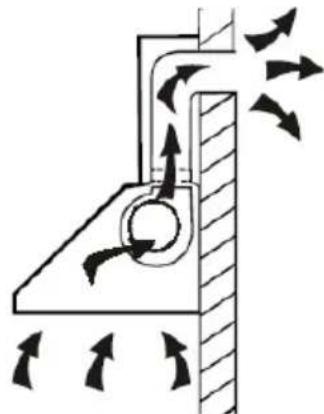

If you have an outlet to the outside, your cooker hood can be connected as shown in the picture below by means of an extraction duct (enamel, aluminum, or flexible pipe, non-flammable, with an interior diameter of 150mm).

1. Before installation, turn the unit off and unplug it from the outlet.

1. The cooker hood should be placed at a distance of 65-75 cm above the cooking plane for best effect.

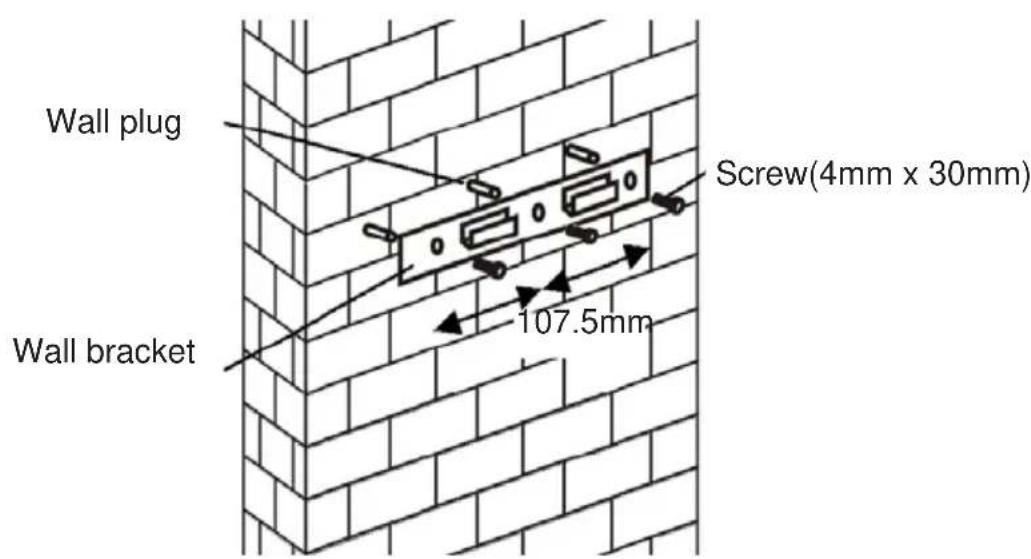

1. Drill 3 x 8mm holes to accommodate the bracket. Screw and tighten the bracket onto the wall with the screws provided.

1. Lift up the cooker hood and hang it onto the wall bracket hook.

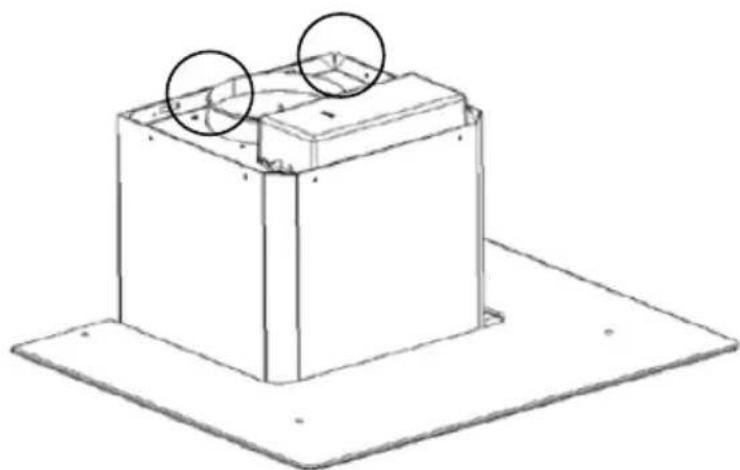

1. Fix the one-way valve to the air outlet of the cooker hood. Then, attach the exhaust pipe onto the one-way valve as shown below.

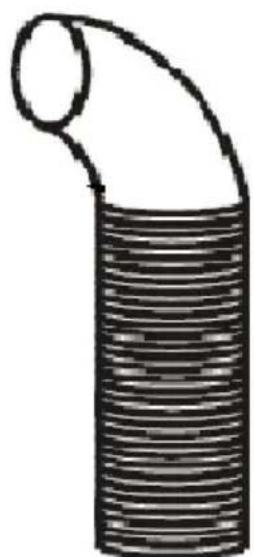

Exhaust pipe

Cooker hood

6.

i. Place the glass in the appropriate position on top of the cooker hood.

ii. Fix with 4 screws and washers. To avoid cracking the glass, do not overtighten the screws.

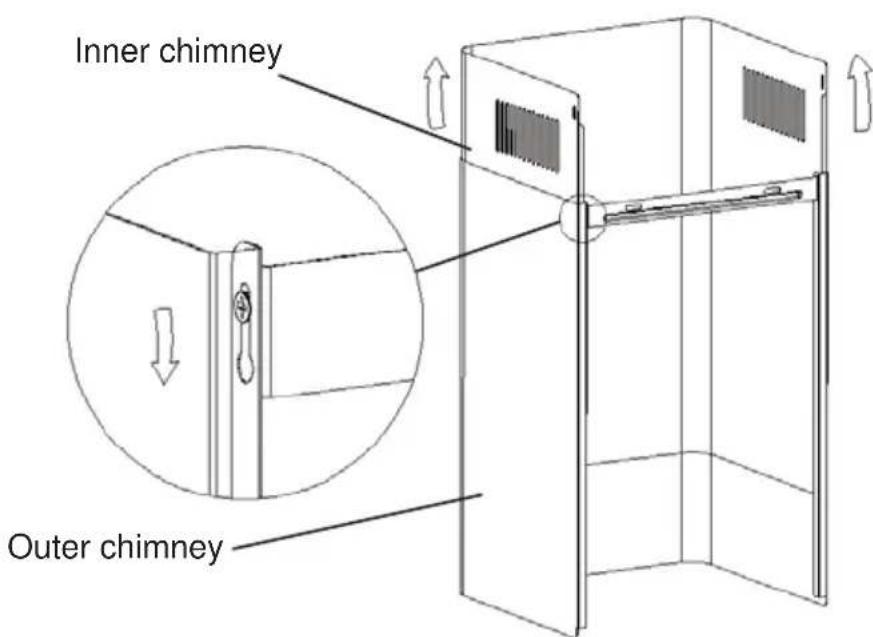

i. Insert the inner chimney into the outer chimney, then pull the inner chimney upwards. Adjust to reach the required height.

ii. Slide the chimney to adjust its height. When the desired height is reached, hang the fixing hole onto the fixing screws as shown in the pictures below.

8.

i. Drill 2 x 8 mm holes to accommodate plate II. Screw and tighten plate II onto the wall using the 2 screws provided. ii. Assemble the chimney onto the unit and fix it with 2 screws.

Standard Installation Accessories List

Spec. Illustration	Picture Qty
Air Deflector		1
Bracket		1
φ8 rawl plugs φ8×φ6 white color		2
Screws ST4.0×30		2
Screws ST3.5×12		2

INSTALLATION (AIR DEFLECTOR):

The air deflector is included and is not optional.

1. Before installation, bend both ends of the bracket as shown below:

1. Fix the bracket to the T-shaped plastic outlet using the 2 pcs ST3.5x12mm screws provided.

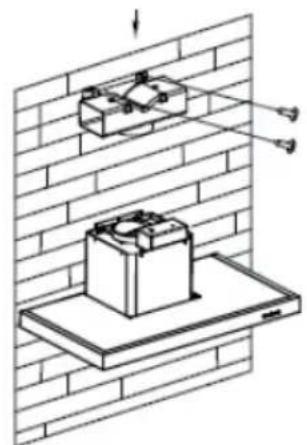

3. Drill 2 holes for the wall plugs, then screw and tighten the bracket onto the wall using the 2 pcs ST4x30mm screws provided.

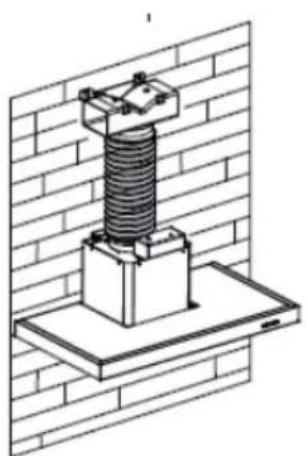

1. Attach the exhaust pipe onto the air outlet of the cooker hood as shown below:

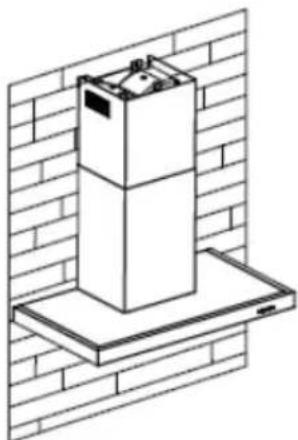

5. Install the chimney onto the unit and fix it.

Please note: The T-shaped plastic outlet and the v-flaps cannot be used at the same time. You can use them in two ways: 1) Add the v-flap to the existing outlet; 2) Use the T-shaped plastic outlet without adding the v-flap.

Note: The product is provided with a v-flap accessory. This accessory is not mandatory for installation, operation, or use of the product.

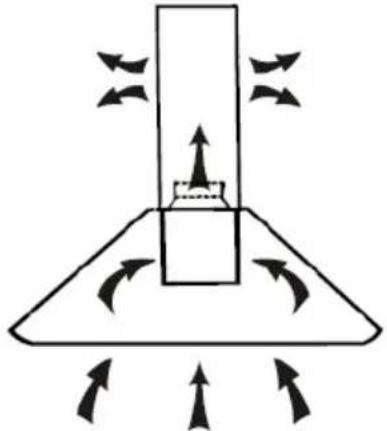

INSTALLATION (VENT INSIDE)

If you do not have an outlet to the outside, exhaust pipe is not required and the installation is similar to the one shown in section "INSTALLATION (VENT OUTSIDE)".

Activated carbon filter can be used to trap odors.

In order to install the activated carbon filter, the grease filter should be detached first. Press the lock and pull it downward.

Plug the activated carbon filter into the unit and turn it in clockwise direction. Repeat the same on the other side.

NOTE:

o Make sure the filter is securely locked. Otherwise, it would loosen and cause dangerous. When activated carbon filter attached, the suction power will be lower.

DESCRIPTION OF COMPONENTS

CONFIGURATION 1

OPERATION

1 Low Speed button

It's used for Ventilation on the kitchen. It is suitable for simmering and cooking which do not make much steam.

2 Medium Speed button

Airflow speed is ideally for ventilation in standard cooking operation.

3 High Speed button

When high density of smoke or steam is produced, press the high-speed button for effective ventilation.

B Boost 1 (speed 4)

Press speed B button 1, the backlight of speed B button is on, and the cooker hood is working at boost mode.

B+ Boost 2 (speed 5)

Press speed B+ button 2, the backlight of speed B+ button is on, and the cooker hood is working at boost mode.

Light: Short press for lighting on & off.

Quick timer: Long press the light button for 3 seconds, fan speed buttons will flash and enter into 5-minute countdown. After 5 minutes, motor and light will turn off automatically with three buzzer sounds.

Wi-Fi Connection

Long press the Wi-Fi icon to enter connecting mode: the backlight of the Wi-Fi icon keeps flashing to indicate the connection is in progress, the backlight of the Wi-Fi icon is lit to indicate it is connected, same for standby mode; long press the Wi-Fi icon again to stop the connection.

CONFIGURATION 2

1

2

3

B

·

STANDBY MODE.

After plugging in, all lighting and the system are in STANDBY MODE.

1

Low Speed button

It is used for ventilation in the kitchen. It is suitable for simmering and cooking that do not produce much steam.

2

Medium Speed button

The airflow speed is ideal for ventilation during standard cooking operations.

3

High Speed button

When high density of smoke or steam is produced, press the high-speed button for effective ventilation.

B

Booster function

This hood has a booster function. To activate the booster, press B to speed 4, entering the highest speed while the hood is in use, and it will increase speed for 5 minutes before slowing down again.

Light

Short press for lighting on & off

Quick timer: Long press the light button for 3 seconds, the fan speed buttons will flash and enter a 5-minute countdown. After 5 minutes, the motor and light will turn off automatically with three buzzer sounds.

Wi-Fi Connection

Long press the WiFi icon to enter connecting mode: the backlight of the WiFi icon keeps flashing to indicate that the connection is in progress, the backlight of the WiFi icon is lit to indicate that it is connected, same for standby mode; long press the WiFi icon again to stop the connection.

Download hOn App

First of all, you should download the hOn APP and install it on your portable device. Then enroll your hood.

NOTE

Get ready to add your appliance

Stay close to your appliance. While in front of your appliance, ensure that your smartphone is connected to a 2.4GHz Wi-Fi network with a strong signal.

CHANGE WI-FI SETTINGS

Public networks are not allowed due to low security and reliability. Prepare to enter your Home Wi-Fi password.

The image of the hood is for presentation purposes only and may not be perfectly representative.

1- Press the WiFi button until the icon starts blinking. When the pairing is completed, the WiFi icon will be on.

MAINTENANCE

Before cleaning, switch the unit off and pull out the plug.

I. Regular Cleaning

Use a soft cloth moistened with hand-warm mildly soapy water or household cleaning detergent. Never use metal pads, chemical, abrasive material or stiff brush to clean the unit.

II. Monthly Cleaning for Grease Filter

ESSENTIAL: Clean the filter every month can prevent any risk of fire.

The filter collects grease, smoke and dust.... so the filter is directly affecting the efficiency of the cooker hood. If not cleaned, the grease residue (potential flammable) will saturate on the filter. Clean it with household cleaning detergent.

III. Annual Cleaning for Activated Carbon Filter

Apply SOLELY to unit that installed as a recirculation unit (not vented to the outside). This filter traps odors and must be replaced at least once a year

depending on how frequent the cooker hood used.

IV. Changing a light bulb

Remove the screws on the glass, take off the hood glass. Find the bulb that requires replacement, you will find it located in the light fixture which is inside the exposed section of the canopy.

Disconnect the light wiring point and remove the bulb holders and wiring from the hood. Important: It's not possible to replace the bulbs individually, it will be necessary to obtain the bulbs, bulb holders and wiring as a complete part. (LED light: MAX 1.5W)

Fit the replacement bulbs, bulb holders and wiring in the same manners as the originals. Then reconnect the light wiring point.

Refit the hood glass and fasten the glass screws. Make sure the screws are fully tightened.

TROUBLESHOOTING

Fault	Cause	Solution
Light on, but fan does not work	The fan blade is jammed.	Switch off the unit and repair by qualified service personnel only.
	The motor is damaged.
Both light and fan do not work	Halogen light bulb burn.	Replace the bulb with correct rating.
	Power cord looses.	Plug in to the power supply again.
Serious Vibration of the unit	The fan blade is damaged.	Switch of the unit and repair by qualified service personnel only.
	The fan motor is not fixed tightly.	Switch off the unit and repair by qualified service personnel only.
	The unit is not hung properly on the bracket.	Take down the unit and check whether the bracket is in proper location.
Suction performance not good	Too long distance between the unit and the cooking plane	Readjust the distance to 65-75cm

Technology Wi-Fi
Standard 802.11 b/g/n
Frequency Band(s)[MHz]	2400 MHz - 2483.5 MHz
Maximum Power[mW]	100 mW

Product information for networked equipment
power consumption of the product in networked standby if all wired network ports are connected and all wireless network ports are activated:	2W
How to activate wireless network port:	If the Hood has been enrolled with the APP, turn on the Hood to activate wireless network port.
How to deactivate wireless network port:	If the Hood has been enrolled with the APP, turn off the Hood to deactivate wireless network port. If the Hood hasn't been enrolled with the APP, wireless network port will be deactivated even the Hood is on.

CUSTOMER ASSISTANCE SERVICE

If you cannot identify the cause of the operating anomaly, switch off the appliance and contact the Assistance Service.

PRODUCT SERIAL NUMBER. Where can I find it?

It is important that you inform the Assistance Service of your product code and its serial number (a 16-character code that begins with the number 3); this can be found on the guarantee certificate or on the data plate located on the appliance.

This will help avoid wasted journeys to technicians, thereby (and most significantly) saving the corresponding callout charges.

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE).

WEEE contains both polluting substances (which can cause negative consequences for the environment) and basic components (which can be re-used). It is important to have WEEE subjected to specific

treatments, in order to remove and dispose of all pollutants properly, and recover and recycle all materials.

Individuals can play an important role in ensuring that WEEE does not become an environmental issue; it is essential to follow some basic rules:

WEEE should not be treated as household waste;

WEEE should be handed over to the relevant collection points managed by the municipality or by registered companies. In many countries, for large WEEE, home collection could be present.

In many countries, when you buy a new appliance, the old one may be returned to the retailer who has to collect it free of charge on a one-to-one basis, as long as the equipment is of equivalent type and has the same functions as the supplied equipment.

Get ready to add your appliance

Stay close to your appliance. While in front of your appliance, ensure that your smartphone is connected to a 2.4GHz Wi-Fi network with a stronger signal

CHANGE WI-FI SETTINGS

Public networks are not allowed due to low security and reliability. Prepare to enter your Home Wi-Fi password.

HAIER HOOD REGISTRATION

Brown = Live (phase)

Blue = N or Neutral

Get ready to add your appliance

Stay close to your appliance. While in front of your appliance, ensure that your smartphone is connected to a 2.4GHz Wi-Fi network with a stronger signal.

CHANGE WI-FI SETTINGS

Public networks are not allowed due to low security and reliability. Prepare to enter your Home Wi-Fi password.

HAIER HOOD REGISTRATION

Blue = N (Neutral) or NEUTRAL

Green and yellow = E (Earth) or GROUND

Get ready to add your appliance

Stay close to your appliance

While in front of your appliance, ensure that your smartphone is connected to a 2.4GHz Wi-Fi network with a stronger signal.

CHANGE WI-FI SETTINGS

Public networks are not allowed due to low security and reliability.

Prepare to enter your Home Wi-Fi password.

Get ready to add your appliance

Stay close to your appliance. While in front of your appliance, ensure that your smartphone is connected to a 2.4GHz Wi-Fi network with a stronger signal.

CHANGE WI-FI SETTINGS

Public networks are not allowed due to low security and reliability. Prepare to enter your Home Wi-Fi password.

Get ready to add your appliance

Stay close to your appliance. While in front of your appliance, ensure that your smartphone is connected to a 2.4GHz Wi-Fi network with a stronger signal.

CHANGE WI-FI SETTINGS

Public networks are not allowed due to low security and reliability. Prepare to enter your Home Wi-Fi password.

HAIER HOOD REGISTRATION

The sole purpose of the image is to present the hood. It may not be fully representative.

1- Press the WiFi button until the icon starts blinking. Once pairing is complete, the WiFi icon will be on.

MAINTENANCE

Get ready to add your appliance

Stay close to your appliance. While in front of your appliance, ensure that your smartphone is connected to a 2.4GHz Wi-Fi network with a stronger signal.

CHANGE WI-FI SETTINGS

Public networks are not allowed due to low security and reliability. Prepare to enter your Home Wi-Fi password.

HAIER HOOD REGISTRATION

INSTALLATION (RECIRCULATION) 146

INSTALLATION (Wall mounting)

INSTALLATION (RECIRCULATION)

Get ready to add your appliance

Stay close to your appliance. While in front of your appliance, ensure that your smartphone is connected to a 2.4GHz Wi-Fi network with a stronger signal.

CHANGE WI-FI SETTINGS

Public networks are not allowed due to low security and reliability. Prepare to enter your Home Wi-Fi password.

Get ready to add your appliance

Stay close to your appliance. While in front of your appliance, ensure that your smartphone is connected to a 2.4GHz Wi-Fi network with a stronger signal.

CHANGE WI-FI SETTINGS

Public networks are not allowed due to low security and reliability. Prepare to enter your Home Wi-Fi password.

REGISTRATION OF HAIER HOOD

INSTALLATION (EXTERNAL EXHAUST) 177

INSTALLATION (RECIRCULATION) 184

DESCRIPTION OF PARTS 185

OPERATION 185

MAINTENANCE 188

TROUBLESHOOTING 189

COMPLIANCE WITH DIRECTIVES 190

ENVIRONMENTAL PROTECTION 190

INTRODUCTION

INSTALLATION (INDOOR VENTILATION)

Get ready to add your appliance

Stay close to your appliance

While in front of your appliance, ensure that your smartphone is connected to a 2.4GHz Wi-Fi network with a stronger signal

Public networks are not allowed due to low security and reliability.

Prepare to enter your Home Wi-Fi password.

REGISTRATION HAIER EXTRACTOR HOOD

Get ready to add your appliance

Stay close to your appliance 2 While in front of your appliance, ensure that your smartphone is connected to a 2.4GHz Wi-Fi network with a stronger signal

CHANGE WI-FI SETTINGS

3 Public networks are not allowed due to low security and reliability. Prepare to enter your Home Wi-Fi password.

Before starting the appliance, read the safety instructions and contact the support service.

Get ready to add your appliance

Stay close to your appliance

While in front of your appliance, ensure that your smartphone is connected to a 2.4GHz Wi-Fi network with a stronger signal

CHANGE WI-FI SETTINGS

Public networks are not allowed due to low security and reliability.

Prepare to enter your Home Wi-Fi password.

REGISTER YOUR HAIER APPLIANCE

Get ready to add your appliance

Stay close to your appliance

While in front of your appliance, ensure that your smartphone is connected to a 2.4GHz Wi-Fi network with a stronger signal

CHANGE WI-FI SETTINGS

Public networks are not allowed due to low security and reliability.

Prepare to enter your Home Wi-Fi password.

REGISTER YOUR HAIER APPLIANCE

Get ready to add your appliance

Stay close to your appliance

While in front of your appliance, ensure that your smartphone is connected to a 2.4GHz Wi-Fi network with a stronger signal

CHANGE WI-FI SETTINGS

Public networks are not allowed due to low security and reliability.

Prepare to enter your Home Wi-Fi password.

REGISTERING YOUR HAIER AIR PURIFIER

The image of the air purifier is for presentation purposes only. It may not fully represent the model.

Get ready to add your appliance

Stay close to your appliance

While in front of your appliance, ensure that your smartphone is connected to a 2.4GHz Wi-Fi network with a stronger signal

CHANGE WI-FI SETTINGS

Public networks are not allowed due to low security and reliability.

Prepare to enter your Home Wi-Fi password.

Get ready to add your appliance

Stay close to your appliance

While in front of your appliance, ensure that your smartphone is connected to a 2.4GHz Wi-Fi network with a stronger signal

CHANGE WI-FI SETTINGS

Public networks are not allowed due to low security and reliability.

Prepare to enter your Home Wi-Fi password.

The image of the steam hood is for illustration purposes only. It may not be fully representative.

Get ready to add your appliance

Stay close to your appliance. While in front of your appliance, ensure that your smartphone is connected to a 2.4GHz Wi-Fi network with a stronger signal.

CHANGE WI-FI SETTINGS

Public networks are not allowed due to low security and reliability. Prepare to enter your Home Wi-Fi password.
