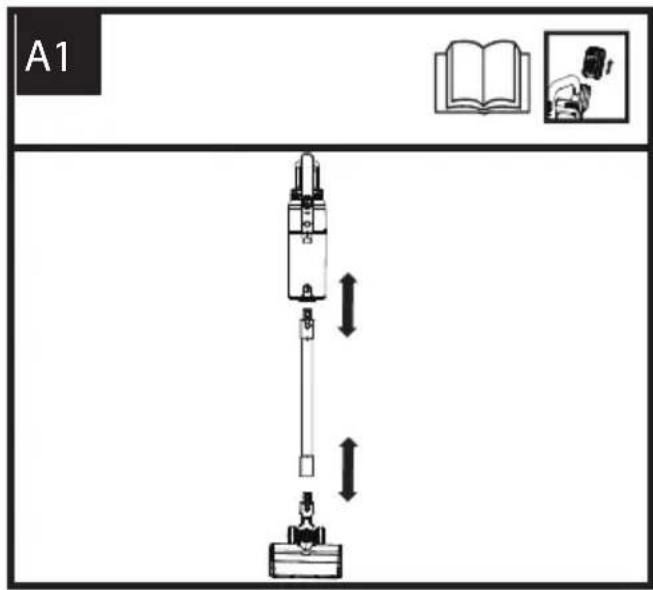

A1

A2

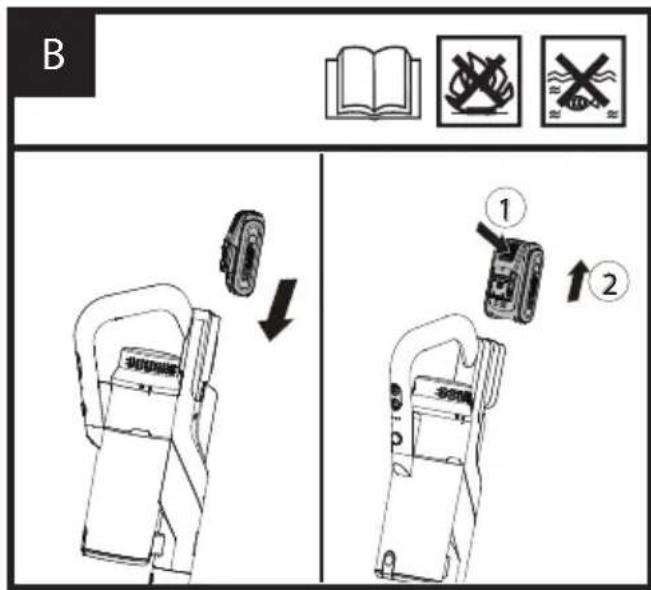

B ① ②

C High Mode Medium Mode Low Mode

Diagram of a mechanical device with a lever and a separate open book icon, no text or symbols present

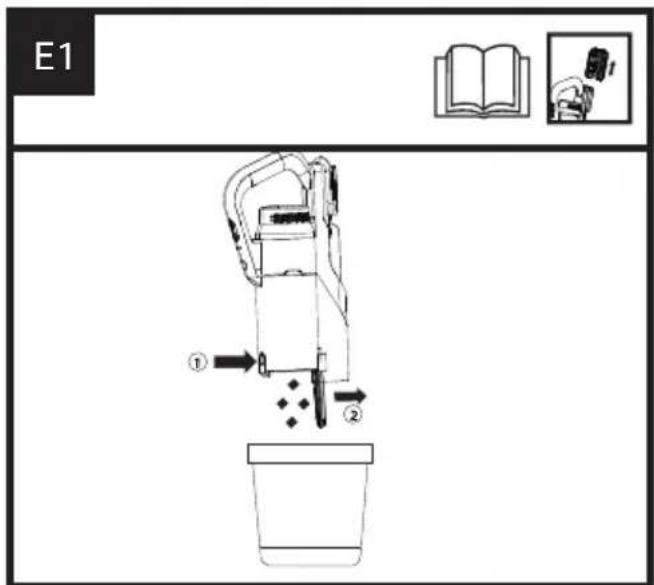

E1 ① ②

Diagram showing a mechanical device with numbered parts and an inset image of a book and a person, likely illustrating a mechanical or electrical assembly.

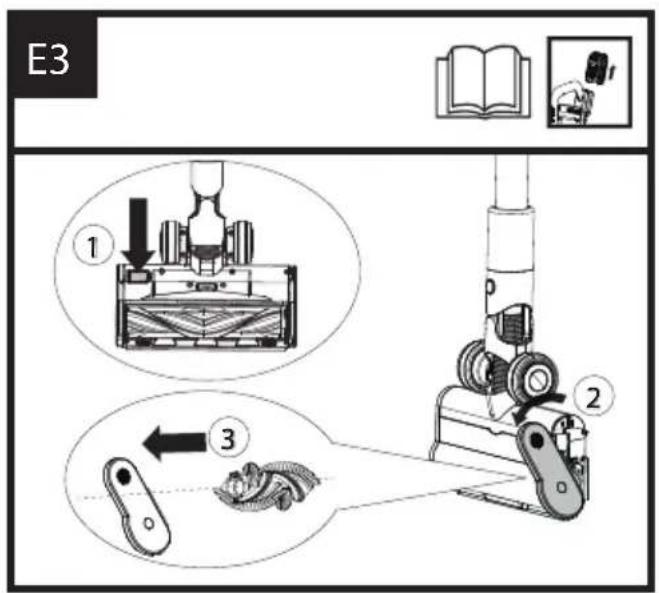

E3 ① ② ③

E4 1 2

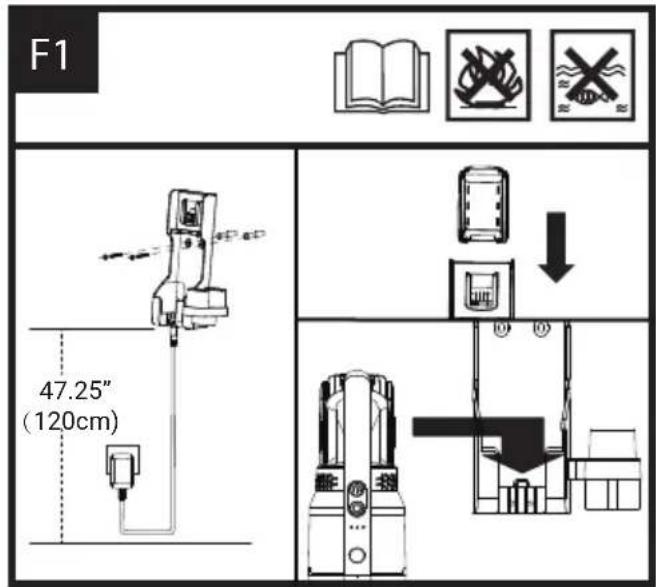

F1 47.25" (120cm)

F2 100% 0%~99.9% 100% 66.6% 33.3% 0%

F3 31.5" (80cm)

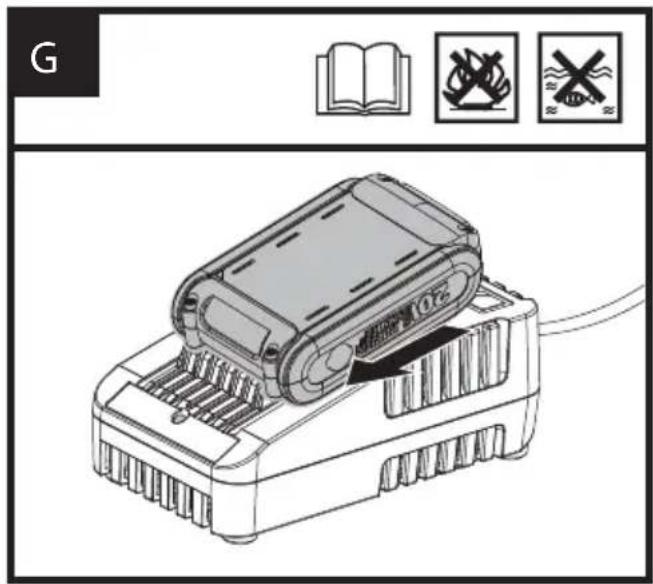

G

Users can view the electronic instructions at : https://eu.worx.com

TABLE OF CONTENT

1. PRODUCT SAFETY
2. COMPONENT LIST
3. TECHNICAL DATA
4. INTENDED USE
5. OPERATING INSTRUCTIONS
6. MAINTENANCE
7. TROUBLESHOOTING
8. ENVIRONMENTAL PROTECTION
9. DECLARATION OF CONFORMITY

1.PRODUCT SAFETY GENERAL SAFETY WARNINGS

⚠ WARNING: Read all safety warnings and all instructions.

Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

-The appliance is only to be used with the power supply unit provided with the appliance.

This is a class III appliances and it must only be supplied at safety extra low voltage corresponding to the marking on the appliance.

WARNING: For the purposes of recharging the battery, only use the detachable supply unit provided with this appliance.

SAFETY WARNINGS FOR BATTERY PACK

a) Do not dismantle, open or shred cells or battery pack.
b) Do not short-circuit a battery pack. Do not store battery packs haphazardly in a box or drawer where they may short-circuit each other or be short-circuited by conductive materials.
When battery pack is not in use, keep it away from other

metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

c) Do not expose battery pack to heat or fire. Avoid storage in direct sunlight.
d) Do not subject battery pack to mechanical shock.
e) In the event of battery leaking, do not allow the liquid to come into contact with the skin or eyes. If contact has been made, wash the affected area with copious amounts of water and seek medical advice.
f) Keep battery pack clean and dry.
g) Wipe the battery pack terminals with a clean dry cloth if they become dirty.
h) Battery pack needs to be charged before use. Always refer to this instruction and use the correct charging procedure.
i) Do not maintain battery pack on charge when not in use.
j) After extended periods

of storage, it may be necessary to charge and discharge the battery pack several times to obtain maximum performance.

k) Recharge only with the charger specified by Worx. Do not use any charger other than that specifically provided for use with the equipment.

I) Do not use any battery pack which is not designed for use with the equipment.

m) Keep battery pack out of the reach of children.

n)Retain the original product literature for future reference.

o) Remove the battery from the equipment when not in use.

p) Dispose of properly.

q) Do not mix cells of different manufacture, capacity, size or type within a device.

r) Keep the battery away from microwaves and high pressure.

s) Warning! Do not use non-rechargeable batteries.

SYMBOLS

	Warning
	Read operator's manual
	Remove battery from the socket before carrying out any adjustment, servicing or maintenance.
	Waste electrical products must not be disposed of with household waste. Please recycle where facilities exist. Check with your local authorities or retailer for recycling advice.
	Li-Ion battery This product has been marked with a symbol relating to 'separate collection' for all battery packs and battery pack. It will then be recycled or dismantled in order to reduce the impact on the environment. Battery packs can be hazardous for the environment and for human health since they contain hazardous substances.
	Do not burn
	Batteries may enter water cycle if disposed improperly, which can be hazardous for ecosystem. Do not dispose of waste batteries as unsorted municipal waste.

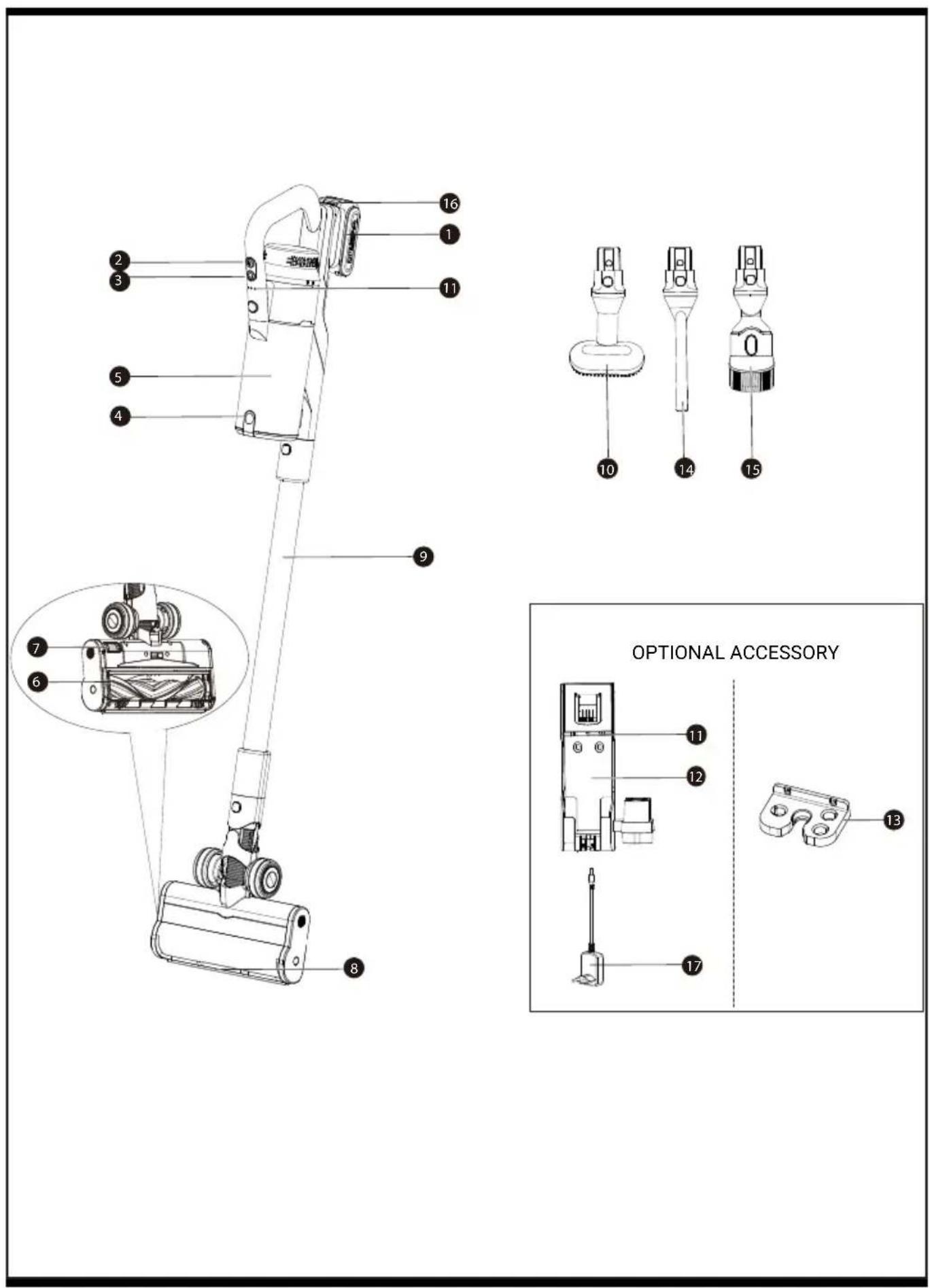

2.COMPONENT LIST

1. BATTERY PACK *

2. ON/OFF BUTTON

3. SPEED CONTROL BUTTON

4. DEBRIS EMPTYING BUTTON

5. DUSTBIN

6. BRUSH ROLL

7. BRUSH ROLL RELEASE BUTTON

8. LED LIGHT

9. TUBE

10. PET BRUSH

11. INDICATOR LIGHT

12. WALL MOUNT & DUAL CHARGER *

13. WALL MOUNT *

14. CREVICE TOOL

15. DUSTING BRUSH

16. BATTERY RELEASE BUTTON *

17. ADAPTER *

* Not all the accessories illustrated or described are included in standard delivery.

3.TECHNICAL DATA

Type WX038 WX038.X (038-designation of machinery, representative of Vacuum Cleaner)

	WX038WX038.X**
Rated Voltage 20 V Max***	---
Suction Power 105 W
Machine Weight (Bare Tool) 2.1 kg

** X=1-999,A-Z,M1-M9 there are only used for different customers, there are no safe relevant changes between these models.
*** Voltage measured without workload. Initial battery voltage reaches maximum of 20 volts. Nominal voltage is 18 volts.

SUGGESTED BATTERIES AND CHARGERS

Category Model Capacity
20V Battery	WA3639 2.0 Ah
	WA3644 4.0 Ah
20V Charger	WA3880 2.0 A
AC Adapter ZD012A216050EU		0.5 A

We recommend that you purchase your accessories from the same store that sold you the tool. Refer to the accessory packaging for further details. Store personnel can assist you and offer advice.

4. INTENDED USE

The machine is intended for household cleaning or similar purposes.

5. OPERATING INSTRUCTIONS

NOTE: Before using the tool, read the instruction book carefully.

ASSEMBLY AND OPERATION

ACTION FIGURE
BEFORE OPERATION
Assembling the machineNOTE: Make sure the machine is locked into place before operation.	See Fig. A1

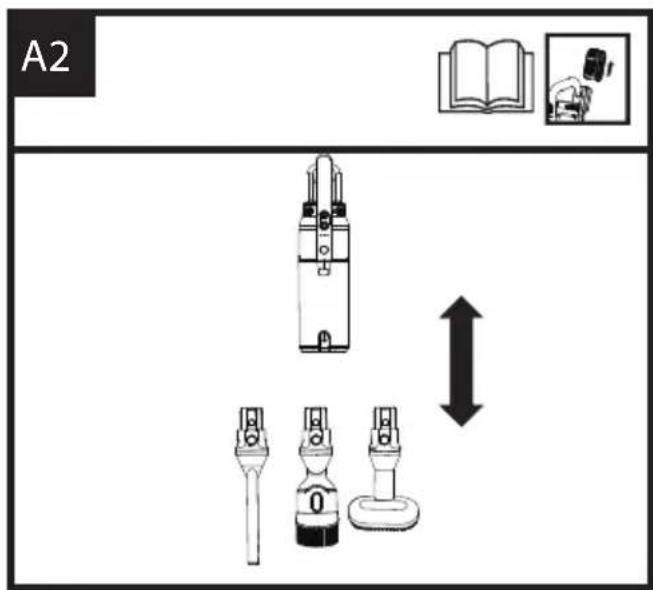

Connecting the Pet Brush/Dusting Brush/Crevice Tool	See Fig. A2
Install the Battery Pack to supply power to the Vacuum Cleaner.After using the machine, please press the Battery Release Button, then remove the Battery Pack.	See Fig. B
OPERATION
ON/OFFPress the On/Off button to turn the vacuum on low mode. Press the On/Off button again to turn off the vacuum.NOTE:Please do not use a vacuum cleaner to vacuum hot objects such as carbon, cigarette butts, etc.; liquid substances; sharp objects such as broken glass; ultra-fine substances such as lime, cement, flour, etc.; corrosive liquids such as disinfectants, acidic and alkaline cleaning agents, laundry detergents, etc.; flammable and explosive items such as gasoline, alcohol, etc. Otherwise, it may cause damage to the machine or accidental fire leading to personal injury.

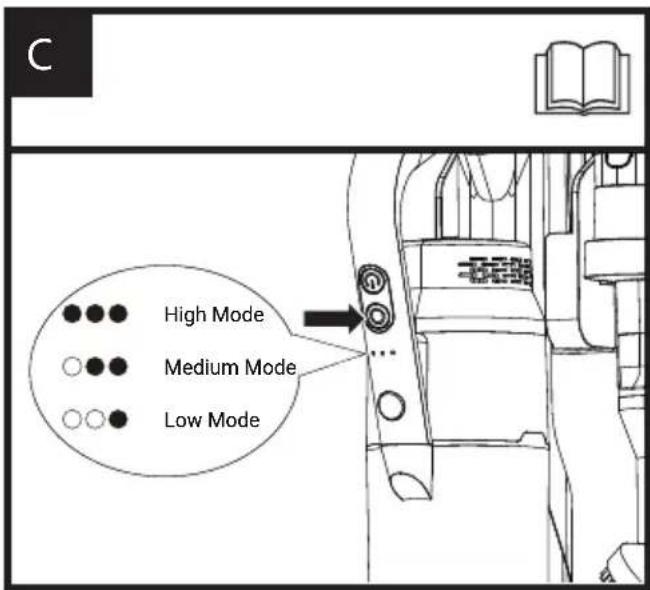

Adjusting the speedPress the Speed Control Button to choose the speed mode.	See Fig. C

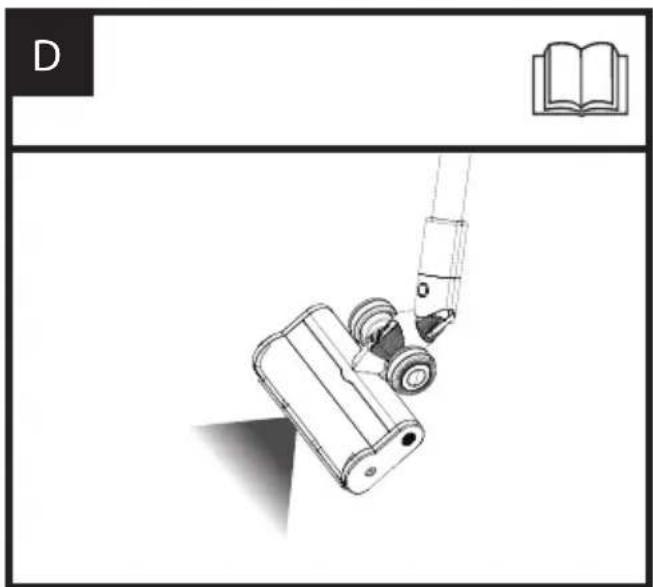

LED lightWhen the machine is working, the LED Light will be on.	See Fig. D
AFTER OPERATION

Empty the dustbin after each use.NOTE: Please clean the dustbin before the debris inside reaches the MAX line.	See Fig. E1
Cleaning the dustbinPress the release button to completely remove the dustbin.Remove the filter from the top and pull out the cyclone. You can rinse the dustbin with water. Ensure it is completely dry before reassembling.	See Fig. E2
Cleaning the Brush RollPress the brush roll release button on the bottom of the floor nozzle to access the brushroll. Pull out the brush roll and untangle any hair.You can also rinse it with water. It is recommended to clean the brushroll once a month.	See Fig. E3

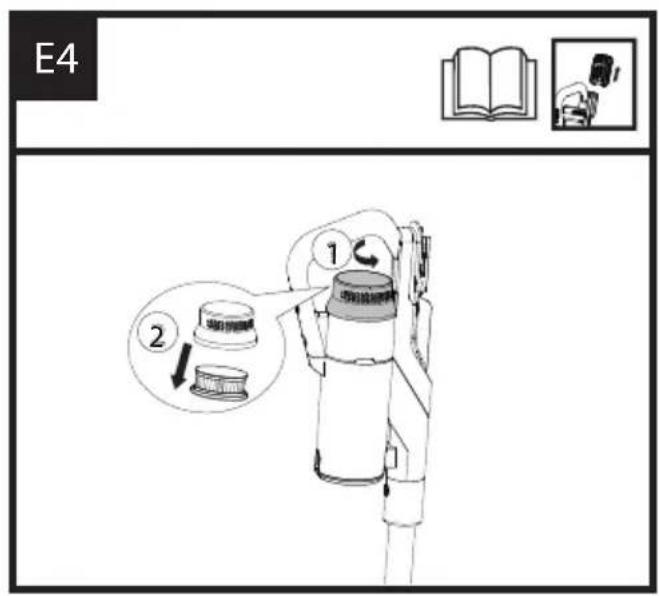

CLEANING THE FILTERPress the release button to completely remove the dustbin.Remove the filter from the top. Rinse the filter with water and ensure it is completely dry before reassembling.It is recommended you rinse your filter every 3 months.	See Fig. E4

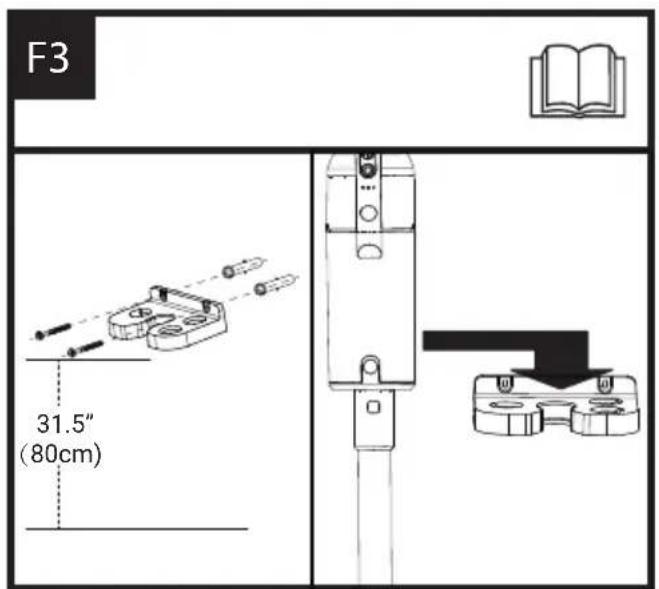

ASSEMBLING THE WALL MOUNTChoose a hard wall surface. Drill a pilot hole in the wall, align the wall mount, insert the screw into the drilled hole and tighten.	See Fig.F1, F3
LAGERUNGEs wird empfohlen, die Wandhalterung und den Doppel-Ladegerät 120 cm (47,25 Zoll) über dem Boden zu platzieren.HINWEIS:Lassen Sie das Netzkabel nicht durch scharfe Gegenstände führen und vermeiden Sie es, das Netzkabel zum Bewegen des Geräts zu ziehen, um Beschädigungen am Netzkabel zu verhindern.	See Fig. F1

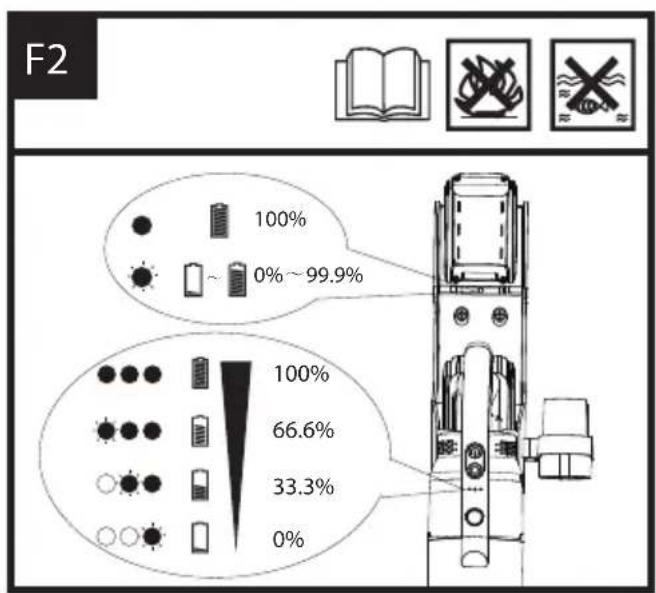

CHARGINGBattery pack:1.During charging:Three white lights will flash.2.After charging is completed, 3 white lights will be on for 1 min, and then go out.Wall Mount & Dual charger :The white light flashes during charging. When fully charged, the green light illuminates for 1 minute and then will go out.NOTE:The Wall Mount & Dual charger and the Adapter need to be used together.	See Fig. F2
Place the Vacuum Cleaner on the Wall Mount.It is recommend to place the Wall Mount 80 cm (31.5") above the ground.NOTE:If you need to charge, please plug the battery pack into the Charger.	See Fig.F3, G

6.MAINTENANCE

WARNING: Remove the battery before carrying out any servicing or maintenance.

Never use water or chemical cleaners to clean your power tool. Wipe clean with a dry cloth. Always store your power tool in a dry place. Keep the motor ventilation slots clean. Keep all working controls free of debris. If you see some sparks flashing in the ventilation slots, this is normal and will not damage your power tool.

Operation instructions for the accessories

Included accessories can be attached to clean upholstery, stairs, cars and more.

Precautions when using the machine

Cannot be used to absorb water.

Cannot be washed in water.

When cleaning or maintaining, remove the battery pack.

The product is intended for use on flat surfaces in indoor environments, and may not achieve optimal results if used on uneven surfaces.

Do not get the body of the machine wet, as this may cause a short circuit and result in fire or electric shock.

FOR BATTERY TOOLS

The ambient temperature range for tool and battery use and storage is (0 °C-45 °C).

The recommended ambient temperature range for the charging system during charging is (0 °C-40 °C).

Details regarding safe disposal of used batteries

At the end of the life of the appliance, remove the battery pack safely before disposing of the appliance. Do not throw batteries away or throw them in the normal trash can. Also do not dispose of the battery with the machine. Remove the used battery pack from the appliance and dispose of it at the nearest or convenient dedicated recycling facility. If in doubt, consult your local environmental protection department. Batteries may enter water cycle if disposed improperly, which can be hazardous for ecosystem. Do not dispose of waste batteries as unsorted municipal waste.

7. TROUBLESHOOTING

Issue Causes Solution
Motor does not operate.	The Battery Pack is not installed.	Check whether the battery pack is installed correctly.
	The battery has run out.	Charge the machine or the Battery Pack.
Decreased suction	Dust cup is full of debris.	Clean the dustbin.
	The filter of the dustbin is full of debris.	Clean or replace filter element of dustbin.
	Battery low Charge the machine or the Battery Pack.
Machine heating	Machine run Slight heating-up is normal.
The battery is fully charged and the debris in the dustbin does not rotate.	The airway is blocked by foreign bodies.	Clean up objects in the airway in time.

8. ENVIRONMENTAL PROTECTION

Waste electrical products must not be disposed of with household waste. Please recycle where facilities exist. Check with your local authorities or

retailer for recycling advice.

9. DECLARATION OF CONFORMITY

We,

Positec Germany GmbH

Postfach 32 02 16, 50796 Cologne, Germany

On behalf of Positec declare that the product

Description Battery operated vacuum cleaner

Type WX038 WX038.X (038-designation of machinery, representative of Battery-operated vacuum cleaner)

Function for household cleaning or similar purposes

Complies with the following Directives:

2014/35/EU,

2014/30/EU,

2011/65/EU&(EU)2015/863

Standards conform to

EN 60335-1, EN 60335-2-2, EN 62233, EN IEC

55014-1, EN IEC 55014-2, EN IEC 63000

M A

C€

2023/08/15

Allen Ding

Deputy Chief Engineer, Testing & Certification

Positec Technology (China) Co., Ltd

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China
