USER MANUAL WX031L.9 WORX

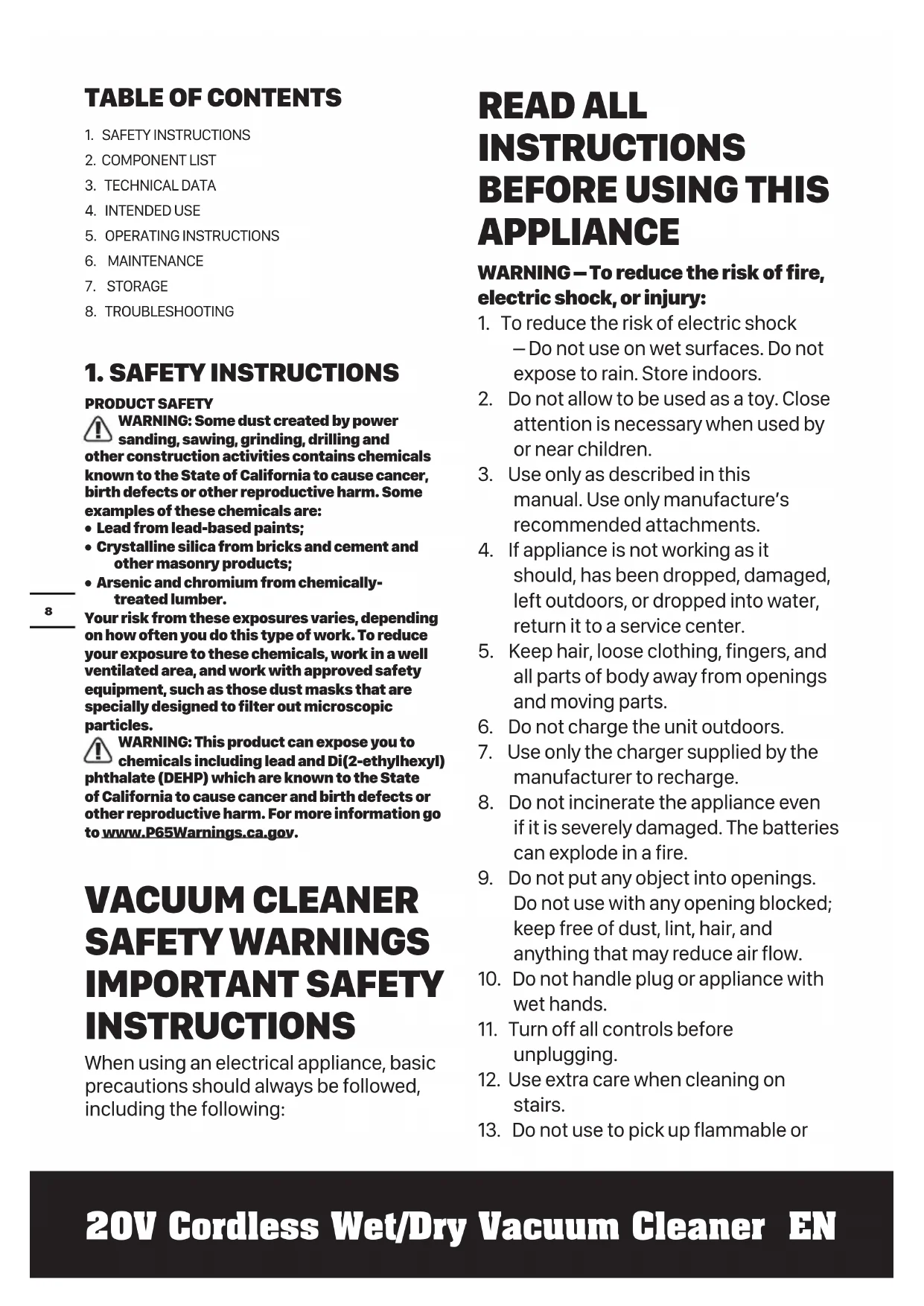

1. SAFETY INSTRUCTIONS

PRODUCT SAFETY

WARNING: Some dust created by power sanding, sawing, grinding, drilling and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• Lead from lead-based paints;
• Crystalline silica from bricks and cement and other masonry products;
• Arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals, work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.

WARNING: This product can expose you to chemicals including lead and Di(2-ethylhexyl) phthalate (DEHP) which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

VACUUM CLEANER SAFETY WARNINGSG IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliance, basic precautions should always be followed, including the following:

READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE

WARNING - To reduce the risk of fire, electric shock, or injury:

1. To reduce the risk of electric shock - Do not use on wet surfaces. Do not expose to rain. Store indoors.
2. Do not allow to be used as a toy. Close attention is necessary when used by or near children.
3. Use only as described in this manual. Use only manufacture's recommended attachments.
4. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center.
5. Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
6. Do not charge the unit outdoors.
7. Use only the charger supplied by the manufacturer to recharge.
8. Do not incinerate the appliance even if it is severely damaged. The batteries can explode in a fire.
9. Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow.
10. Do not handle plug or appliance with wet hands.
11. Turn off all controls before unplugging.
12. Use extra care when cleaning on stairs.
13. Do not use to pick up flammable or

combustible liquids, such as gasoline, or use in areas where they may be present.

1. Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
2. Do not use for dry vaccuuming without filter in place.
3. Protect your lungs. Wear a face or dust mask if the operation is dusty. Following this rule will reduce the risk of serious personal injury.

GENERAL SAFETYWARNINGS

WARNING: Read all safety warnings and instructions. Failure to follow the warnings or instructions may result in electric shock, fire, or serious injury.

Save all warnings and instructions for future reference.

FOR ALL BATTERY - OPERATED APPLIANCES:

1. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to battery pack, picking up or carrying the appliance. Carrying the appliance with your finger on the switch or energizing appliance that have the switch on invites accidents.
2. Disconnect the battery pack from the appliance before making any adjustments, changing accessories, or storing appliance. Such preventive safety measures reduce the risk of starting the appliance accidentally.
3. Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
4. Use appliances only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
5. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
6. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help.

Liquid ejected from the battery may cause irritation or burns.

1. Do not use a battery pack or appliance that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury.
2. Do not expose a battery pack or appliance to fire or excessive temperature. Exposure to fire or temperature above 130^ may cause explosion.
3. Follow all charging instructions and do not charge the battery pack or appliance outside of the temperature range specified in the instructions. Charging improperly or at temperatures outside of the specified range may damage the battery and increase the risk of fire.
4. Have servicing performed by a qualified repair person using only identical replacement parts. This will ensure that the safety of the product is maintained.
5. Do not modify or attempt to repair the appliance or the battery pack (as applicable) except as indicated in the instructions for use and care.

SAFETYWARNINGS FOR BATTERY PACK

a) Do not dismantle, open or shred battery pack.
b) Do not expose battery pack to heat or fire. Avoid storage in direct sunlight.
c) Do not short-circuit a battery pack. Do not store battery packs haphazardly in a box or drawer where they may short-circuit each other or be short-circuited by other metal objects. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or fire.
d) Do not subject battery pack to mechanical shock.
e) In the event of battery leaking, do not allow the liquid to come in contact with the skin or eyes. If contact has been made, wash the affected area with copious amounts of water and seek medical advice.
f) Do not use any battery pack which is not designed for use with the equipment.
g) Keep battery pack out of the reach of children.
h) Always purchase the battery pack recommended by the device manufacturer for the equipment.
i) Keep battery pack clean and dry.
j) Wipe the battery pack terminals with a clean dry cloth if they become dirty.
k) Battery pack needs to be charged before use. Always use the correct charger and refer to

the manufacturer's instructions or equipment manual for proper charging instructions.

I) Do not leave battery pack on prolonged charge when not in use.
m) After extended periods of storage, it may be necessary to charge and discharge the battery pack several times to obtain maximum performance.
n) Recharge only with the charger specified by WorxNITRO. Do not use any charger other than that specifically provided for use with the equipment.
p) Retain the original product literature for future reference.
q) Use only the battery pack in the application for which it was intended.
r) Remove the battery pack from the equipment when not in use.
s) Dispose of properly.
t) Keep the battery away from microwaves and high pressure.

SAVE THESE INSTRUCTIONS

SYMBOLS

	To reduce the risk of injury, user must read instruction manual
	Warning
	Batteries may enter water cycle if disposed improperly, which can be hazardous for ecosystem. Do not dispose of waste batteries as unsorted municipal waste.
	Do not burn
Li-lon	Li-lon battery, battery must be recycled

call②recycle

POSITEC Inc. has established a partnership with the RBRC Corporation to recycle any Positec batteries with the RBRC-call2recycle seal. For environmental protection, please do not discard batteries in the trash. After the batteries' life cycle is ended, then please call 1-800-822-8837 for a free service that will properly dispose of the battery.

2. COMPONENT LIST

1. HOSE WITH TAPERED NOZZLE

2. BLOWER OUTLET

3. SUCTION INLET

4. HANDLE

5. BATTERY COVER

6.LID

7.HOSE HOOK

8. TANK LATCH

9. COLLECTION CONTAINER

10. ON/OFF SWITCH

11. ECO BUTTON

12. WIDE NOZZLE

13. CREVICE NOZZLE

14. SHOULDER STRAP

Not all the accessories illustrated or described are included in standard delivery.

3. TECHNICAL DATA

	WX031L	WX031L.X**
Rated Voltage 20V
Suction 16 Kpa
Air Flow 38 CFM (1.1 m	3/min)
Dustbin Capacity 2.1 Gal (8 L)
Water Capacity	0.8 Gal (3 L)
Run Time (4.0Ah)	40 mins
Machine Weight (bare tool)	6.62 lbs (3 kg)

X may be followed by one or two characters. All models are the same except model number and trademark. The suffix in models may be number from "1" to "999" or English letter "A" to "Z" or "M1" to "M9" which means different package or the various of accessories packed in the package.
*Voltage measured without workload. Initial battery voltage reaches maximum of 20 volts. Nominal voltage is 18 volts.

Category	Type	Capacity
20V Battery	WA3578	4.0Ah
	WA3525	2.0Ah
	WA3520	1.5Ah
	WA3575	2.0Ah
	WA3012	4.0Ah
20V Charger	WA3881	2.0A
	WA3742	0.4A
	WA3875	2.0A

We recommend that you purchase your accessories from the same store that sold you the tool. Refer to the accessory packaging for further details. Store personnel can assist you and offer advice.

4. INTENDED USE

This machine can be used as both vacuum cleaner and blower. With the strong suction power, it can pick up wet and dry messes easily.

5. OPERATINGINSTRUCTIONS

NOTE: Please read the instructions carefully before use.

ASSEMBLY AND OPERATION

ACTION FIGURE
BEFORE OPERATION
Take out all accessories Unhook the tank latches on each side to open the lid and take out all the accessories.	See Fig. A1, A2
Hose hook assembly Install the hose hook onto the lid, facing it upward.	See Fig. B
Assembling the shoulder strap See Fig. C
Function selection This machine has the suction inlet (Position 1) and blower outlet (Position 2) separately. Connect the hose to the proper port depending on your work.
Function as a vacuum Insert the hose into the suction inlet (Position 1). Nozzle assembly When using as a vacuum, you can choose wide nozzle and crevice nozzle depending on different working needs.	See Fig. D1, D2
Function as a blower Insert the hose into the blower outlet (Position 2).	See Fig. E
Checking the battery charge condition NOTE: Fig. F1 only applies for the battery pack with battery indicator light.	See Fig. F1
Charging the battery pack See Fig.F2
Installing the battery pack See Fig.F3
OPERATION

Turning on the machine Press the on-off switch to start operation.	See Fig. G1, G2
Power Selection When the switch is pressed for the first time, the machine starts and works at high speed. Press the ECO button for a low speed. Press it again, the cleaner will switch to high speed. To stop, press the ON/OFF switch again. NOTE: When working under high speed, the light is not on. When working under ECO mode, the light shows green. WARNING: Please keep the air intake unobstructed, otherwise it may cause motor overheating and may damage the machine.
Using as a vacuum cleaner Dry Vacuuming Vacuum items only small enough to fit through the hose. When vacuuming, make sure that the filter stays in place. The performance of the vacuum will decrease with a full collection container. When emptying the collection container, check to see if the filter needs cleaning. Attention: 1. Do not suck sharp objects such as nails into the vacuum. 2. Do not suck objects with high temperature such as carbon ash. Please let it cool down first. 3. Clean the HEPA filter regularly. Wet Vacuuming This machine is equipped with double-probe detector, which is designed to shut off the suction when the collection container reaches full wet capacity. When the collection container is full, empty the collection container as shown in Maintenance. Attention: 1. Put the machine on the flat ground. 2. Make sure the filter is completely dry after picking up water or wet dust.	See Fig. H1, H2
Using as a blower Open the rubber cover on position 2 to start using the air blowing function and put it back to its original place after completion. WARNING: Never point the nozzle at anyone in the vicinity.	See Fig. I

6. MAINTENANCE

Remove the battery before carrying out any servicing or maintenance.

Emptying the collection container (See Fig. J1, J2, J3)

Dry Waste:

Remove the battery pack. Unhook the two locking latches and remove the lid. Inspect the filter, lightly shake any dust or dirt from it, or replace if necessary. Empty the collection container, or wash out if necessary. Before replacing the lid, make sure all pieces are completely dry. Reinstall lid and lock securely.

Liquid Waste:

Remove the battery pack. Unhook the two locking latches and remove the lid. Empty the collection container, or wash out if necessary. Before reinstalling the lid, make sure all pieces are completely dry. Reinstall lid and lock securely.

WARNING: Do not use the vacuum with

installing the filter. If suction has decreased, empty

the tank of debris or clean the filter.

Filter Cleaning (See Fig. K)

Remove the battery pack. Unlock the two locking latches and remove the lid.

To Clean/Replace: Remove the filter by loosening the screws on top of the tank lid. Lightly shake any dust or dirt off the filter or replace it if needed. Reinstall the filter by aligning it back on the lid and tightening the screws.

NOTE: Make sure the filter is seated properly.

WARNING: Never wash the filter in a washing

machine.

NOTE: Clean the filter regularly to ensure optimal suction and performance.

7. STORAGE

Store the hose and nozzles as shown in Fig. L1, L2, L3.

Clean all foreign material from the vacuum cleaner. Clean the outside of the collection container with warm water and mild soap. Empty and clean the collection container, hose, nozzles, and attachments with warm water and mild soap, and allow to completely dry before storage. The collection container should be disinfected if needed before prolonged storage. Store indoors where is dry and inaccessible to children. Keep away from corrosive agents such as garden chemicals and de-icing salts.

FOR BATTERY TOOLS:

The ambient temperature range for tool and battery use and storage is 0^ - 45^

The recommended ambient temperature range for the charging system during charging is 0^ - 40^

8. TROUBLESHOOTING

Issue Causes Solutions
Vacuum does not turn on	No battery Install	battery
	Battery is low	Charge the battery
	Filter blocked	Clean or replace the filter
	Tank lid is not firmly latched	Secure the tank lid
	Hose blocked C	clean blockage
