USER MANUAL KF96DPXEA SIEMENS

Illustration of hands connecting a cable to a door frame with shelves (no text or symbols)

Illustration of hands holding a cable with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Ремонт

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols)

Technical diagram showing mechanical assembly steps with numbered annotations (① and ②) indicating process flow.

Diagram illustrating a mechanical or electrical setup with labeled components and directional arrows, including a magnified inset showing rotational motion.

Close-up of a mechanical component with a circular arrow indicating rotational motion (no text or symbols)

Close-up of a mechanical assembly with visible wiring and components, no text or symbols present

Ремонт

Technical diagram showing a mechanical assembly with labeled parts and an inset showing a rotating component with a knob.

Close-up of a mechanical component with three circular arrows indicating rotational motion (no text or symbols)

Close-up of a metallic mechanical component with a circular arrow indicating rotation (no text or symbols visible)

Close-up of an electrical connector with wires and components, no visible text or symbols

Ремонт

Technical diagram showing electrical switch components with numbered annotations and a magnified view of the switch mechanism.

Close-up of a mechanical switch or lever mechanism with three circular arrows indicating rotational direction (no text or symbols visible)

Diagram of a blue container with black arrows indicating direction, no text or symbols present

Diagram showing two labeled components (① and ②) with directional arrows indicating movement or flow between them in a 3D layout.

Technical diagram of a mechanical assembly with layered components (no text or symbols)

Рафтът е отстранен.

Isometric architectural diagram of a multi-level building facade with internal compartments and a directional arrow (no text or symbols)

Diagram showing a blue mechanical component with labeled parts and directional arrow indicating flow or movement

Diagram showing a blue panel with two arrows labeled ① and ②, indicating direction of movement or force on a vertical structure.

Diagram showing a mechanical or structural component with labeled parts and directional arrows indicating flow or movement.

Technical diagram showing a blue component with labeled parts ① and ②, likely illustrating a mechanical or structural assembly.

Diagram showing a blue rectangular object with numbered annotations and directional arrows, likely illustrating a process or installation.

Technical diagram showing a structural component with labeled parts ① and ②, likely illustrating a mechanical or architectural assembly.

Technical diagram showing a mechanical or electrical component with labeled parts ① and ②, indicating directional flow or movement.

Close-up of a hand holding a small transparent plastic clip attached to a white wall (no text or symbols visible)

Close-up of hands holding a small white object with a red arrow, next to an open shelf (no visible text or symbols)

Ремонт

Close-up of a hand holding a small electronic component with a red annotation highlighting a feature (no readable text or symbols)

Scanned image of a white electronic device casing with visible internal components and a QR code on the cover.

Close-up of a white plastic component with a red arrow pointing to a small black tip, no visible text or symbols.

Two-panel image showing a white cabinet interior with a metal rod and a red arrow pointing to a corner detail (no text or symbols)

Ремонт

Two-panel image showing a pipe joint before and after modification, with red arrows indicating direction of movement (no text or symbols present)

Close-up of a mechanical component with a metallic bracket and internal structure (no visible text or symbols)

Close-up of a mechanical component with a white housing and red arrow indicating a specific point (no text or symbols visible)

Ремонт

Diagram of a device component with labeled parts, showing a connector and cable connection

Interior view of a modern kitchen or bathroom with numbered fixtures and lighting fixtures (no visible text or symbols)

Three-panel photo showing a hand holding a pen inside a refrigerator, with red arrows and numbered callouts indicating parts of the device.

Three-panel photo showing a hand holding a pen inside a refrigerator, with red arrows and numbered callouts indicating parts of the device.

Ремонт

Interior view of a refrigerator unit with labeled ports and internal components (no readable text or symbols)

Interior view of a refrigerator with open lid and side-mounted door, showing internal compartments and wiring (no text or symbols visible)

Close-up of hands installing or adjusting a white LED light fixture with a small component, no visible text or symbols

Close-up of a white plastic enclosure with internal compartments and a small inset showing a mechanical component (no text or symbols visible)

Ремонт

Technical diagram showing a mechanical component with labeled parts and directional arrows, including numbered annotations.

Interior view of a white appliance or enclosure with ventilation grilles and a central display unit (no visible text or symbols)

Interior view of a medical or laboratory equipment room with white plastic components and a circular annotation (no visible text or symbols)

Interior view of a mechanical device with a central fan and plastic casing (no visible text or symbols)

Interior view of a white electronic device with a fan and circuit board (no visible text or symbols)

Interior view of a medical or laboratory equipment unit with a central display and two red circles highlighting features (no visible text or symbols)

Ремонт

White plastic enclosure with red arrows pointing to a vertical structure, no visible text or symbols

Illustration of hands connecting a cable to a rectangular panel with shelves, no text or symbols present

Illustration of hands holding a cable with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon pointing to the top panel (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Popravak

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols present)

Brtva vrata je postavljena.

Popravak

Technical diagram showing mechanical assembly steps with numbered annotations (① and ②) indicating process flow.

Diagram illustrating a mechanical or electrical setup with labeled components and directional arrows, including a magnified inset showing rotational motion.

Ručica ladice je skinuta.

4.3.2 Postavljanje ručice ladice

Close-up of a mechanical component with a circular arrow indicating rotational motion (no text or symbols)

Close-up of a mechanical assembly with visible wiring and components, no text or symbols present

Popravak

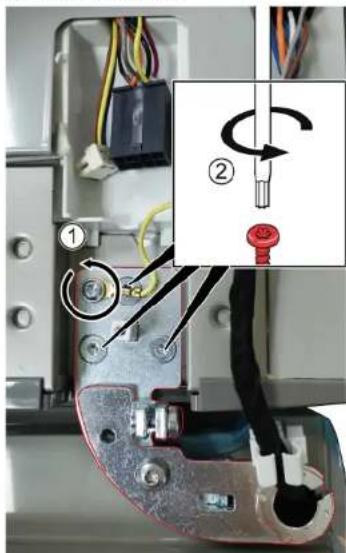

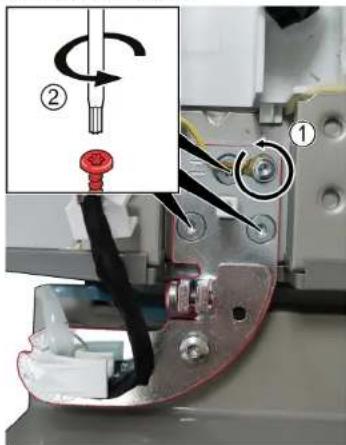

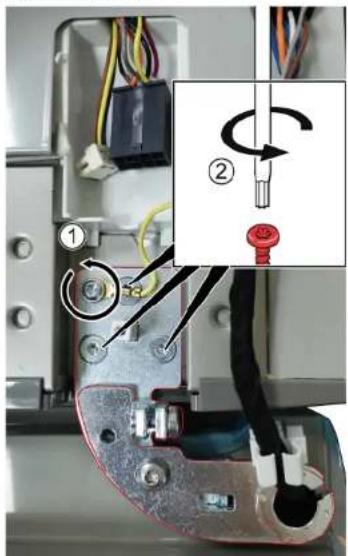

1. 1. Odvijte vijak priključka za uzemljenje (1).

2. Odvijte tri vijka (2).

3. Skinite gornji zglob.

Technical diagram showing a mechanical assembly with labeled parts and a numbered step indicator (①) for adjustment.

Gornji je zglob skinut.

1. Skinite lijeva vrata tako da ih podignete prema gore.
2. 1. Odvijte tri vijka.

3. Skinite donji zglob.

Close-up of a mechanical component with three circular arrows indicating rotational motion (no text or symbols)

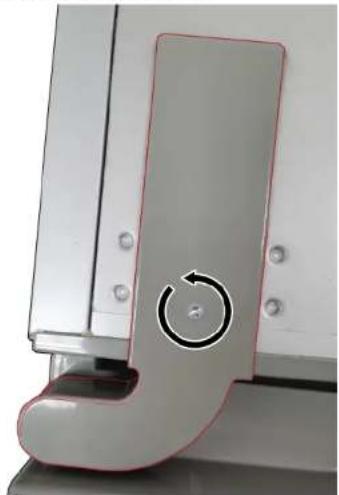

Close-up of a metallic mechanical component with a circular arrow indicating rotation (no text or symbols visible)

Close-up of an electrical connector with wires and components, no visible text or symbols

Popravak

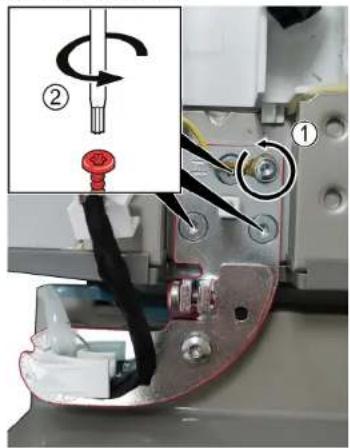

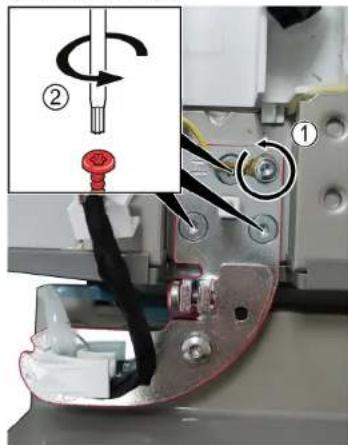

1. 1. Odvijte vijak priključka za uzemljenje (1).

2. Odvijte tri vijka (2).

3. Skinite gornji zglob.

Technical diagram showing electrical switch components with numbered annotations and a magnified view of the switch mechanism.

Gornji je zglob skinut.

1. Skinite desna vrata tako da ih podignete prema gore.

2. 1. Odvijte tri vijka.

3. Skinite donji zglob.

Close-up of a mechanical switch or lever mechanism with three circular arrows indicating rotational direction (no text or symbols visible)

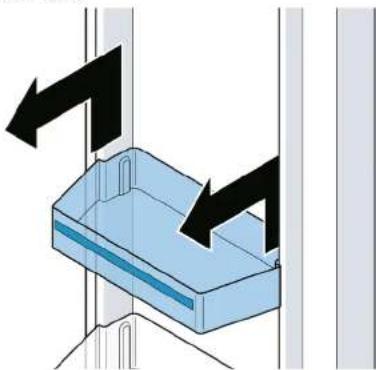

Diagram of a blue container with black arrows indicating direction, no text or symbols present

Posuda za vrata je skinuta.

4.6.2 Postavljanje posude za vrata

▶ Postavite obratnim redoslijedom.

Popravak

4.7 Zamjena police

Zahtjev:

Vrata su otvorena.

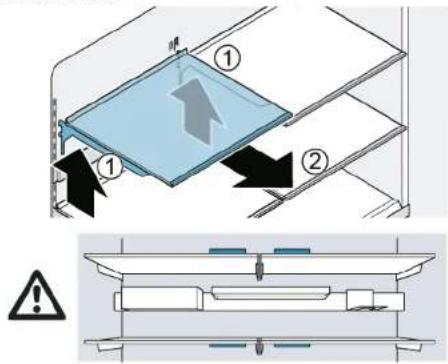

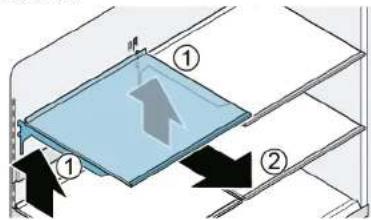

4.7.1 Skidanje police

▶ 1. Podignite policu (1). 2. Skinite policu (2).

Technical diagram showing a mechanical assembly with labeled components and warning symbol

Polica je skinuta.

4.7.2 Postavljanje police

	Nemojte prekriti ventilacijske otvore.
	Pažljivo umetnite policu da ne biste ogrebali uređaj.
	Provjerite jesu li kuke umetnute do kraja i je li polica vodoravno postavljana.

Isometric architectural diagram of a multi-level building facade with internal compartments and a directional arrow (no text or symbols)

Šipka za opremu je skinuta.

Diagram showing a blue mechanical component with labeled parts and directional arrows indicating flow or movement.

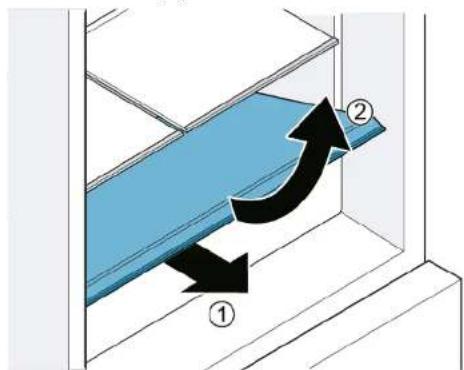

Diagram showing a blue panel with two arrows labeled ① and ②, indicating direction of movement or force on a vertical structure.

Fiksna polica je skinuta.

4.10.2 Postavljanje fiksne police

▶ Postavite obratnim redoslijedom.

Popravak

Diagram showing a mechanical or structural component with labeled parts and directional arrows indicating flow or movement.

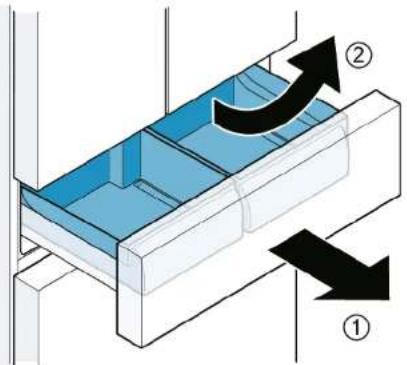

Spremnik za održavanje svježine je skinute.

Technical diagram showing a blue component with labeled parts and directional arrows indicating flow or movement.

Spremnik za zamrznute namirnice (mali) je skinut.

4.12.2 Postavljanje spremnika za zamrznute namirnice (mali)

1. Potpuno izvucite teleskopske vodilice.
2. Postavite spremnik na teleskopske vodilice i gurite u uređaj tako da se uklopi.

Popravak

4.13 Zamjena spremnika za zamrznute namirnice (ravni)

Zahtjev:

Vrata su otvorena.

4.13.1 Skidanje spremnika za zamrznute namirnice (ravni)

1. Potpuno izvucite policu odjeljka zamrzivača (1).
2. Izvucite spremnik za zamrznute namirnice (ravni) (2).
3. Podignite spremnik za zamrznute namirnice (ravni) (3).

Technical diagram showing a mechanical assembly with numbered components and directional arrows indicating flow or movement.

→ Spremnik za zamrznute namirnice (ravni) je skinut.

4.13.2 Postavljanje spremnika za zamrznute namirnice (ravni)

▶ Postavite obratnim redoslijedom.

Popravak

4.14 Zamjena spremnika za zamrznute namirnice (veliki)

Zahtjev:

Vrata su otvorena.

4.14.1 Skidanje spremnika za zamrznute namirnice (veliki)

POZORI

OŠTEĆENJE OPREME!

- Nikad nemojte skidati pregradnu stijenku sa spremnika za zamrznute namirnice.

1. Potpuno izvucite policu odjeljka zamrzivača i skinite spremnik za zamrznute namirnice (ravni) (1).
2. Podignite spremnik za zamrznute namirnice (veliki) (2).

Technical diagram showing a structural component with labeled parts ① and ②, indicating directional flow or force vectors.

Spremnik za zamrznute narminice (veliki) je skinut.

4.14.2 Postavljanje spremnika za zamrznute namirnice (veliki)

1. Potpuno izvucite teleskopske vodilice.
2. Postavite spremnik na teleskopske vodilice i gurite u uređaj tako da se uklopi.

Popravak

4.15 Zamjena spremnika za kockice leda

Zahtjev:

Vrata su otvorena.

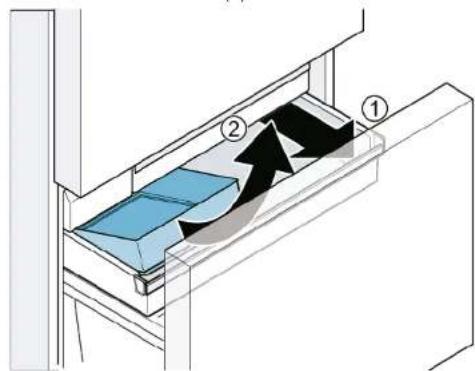

4.15.1 Skidanje spremnika za kockice leda

1. Potpuno izvucite policu odjeljka zamrzivača.
2. 1. Izvucite van spremnik za zamrznute namimice (ravni) koliko ide (1).
3. Skinite spremnik za kockice leda (2).

Technical diagram showing a mechanical or structural assembly with labeled components and directional arrows indicating flow or movement.

→ Spremnik za kockice leda je skinut.

Hand holding a small transparent plastic clip attached to a white wall (no text or symbols visible)

Close-up of hands holding a small white object with a red arrow, next to a wall-mounted device (no visible text or symbols)

Popravak

Close-up of a hand holding a small electronic component with a red annotation highlighting a green square (no visible text or symbols)

Scanned image of a device casing with visible internal components and a QR code on the cover.

Close-up of a white electronic component with a red arrow pointing to a small black component (no visible text or symbols)

Two-panel image showing a white cabinet with a metal rod and a red arrow pointing to a vertical line, no text or symbols present.

Popravak

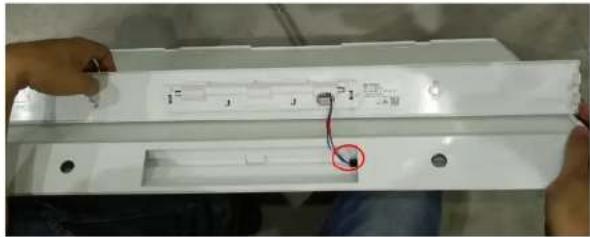

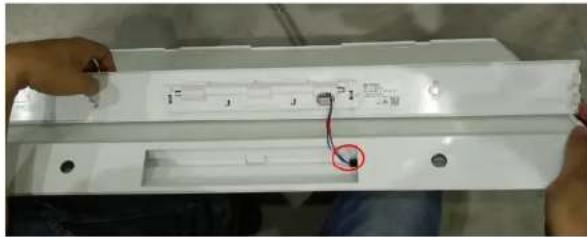

1. Na isti način skinite LED traku.

Two-panel image showing a wall-mounted device before and after installation, with red arrows indicating direction of change (no text or symbols present)

1. Skinite LED traku iz utičnice.

301866441 218

Close-up of a mechanical component with a metallic bracket and a small circular feature, mounted on a dark surface (no visible text or symbols)

Close-up of a mechanical component with a white housing and red arrow indicating a specific point (no text or symbols visible)

Popravak

1. 1. Otpustite kuku (1).

2. Skinite svjetiljku (2).

Diagram of a device component with labeled parts, showing a connector and cable connection

Interior view of a white appliance with visible door, outlets, and ceiling fixtures (no text or symbols)

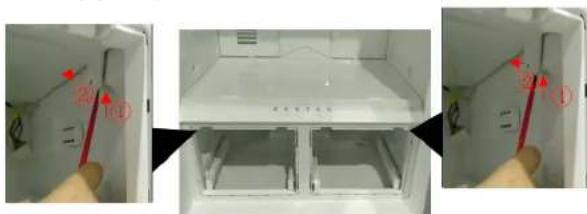

1. Na isti način uklonite drugi poklopac.

2. 1. Otpustite dvije spojnice (1).
3. Izvucite spojnice (2).

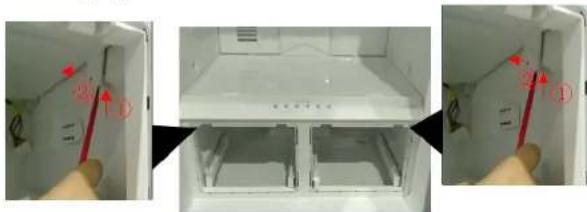

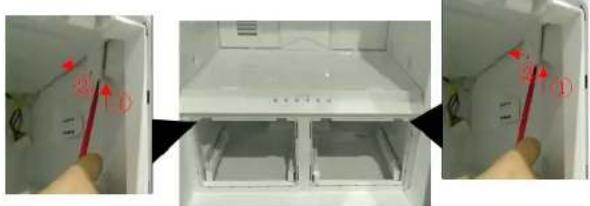

Three-panel photo showing a hand holding a red tool inside a white appliance, with annotations indicating '①' and '②'.

Popravak

Interior view of a laboratory apparatus with labeled components and red arrows indicating features (no readable text or symbols)

1. Otpustite četiri spojnice.

Interior view of a white appliance with red annotation boxes highlighting internal components (no text or symbols visible)

Close-up of hands installing or adjusting a white electronic component with a small red circle highlighting a detail (no visible text or symbols)

1. 1. Otpustite dvije spojnice (1).

2. Izvadite okvir (2).

Interior view of a white plastic enclosure with internal compartments and a labeled component (no text or symbols visible)

Popravak

1. 1. Odvijte dva vijka (1).

2. Izvadite središnju ploču (2).

Technical diagram of a mechanical assembly with labeled parts and directional arrows

Interior view of a microwave oven with ventilation grilles and a central display unit (no visible text or symbols)

Interior view of a medical or laboratory equipment room with white plastic components and a red circle highlighting a small feature (no visible text or symbols)

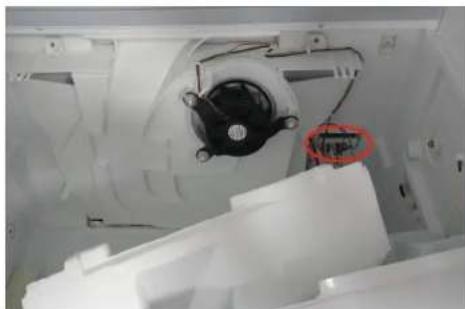

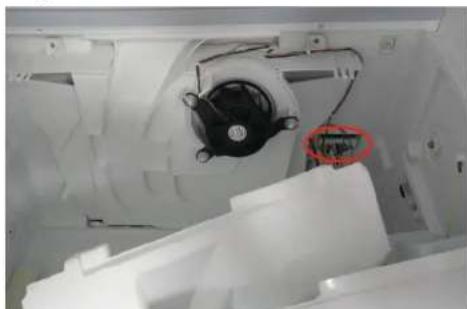

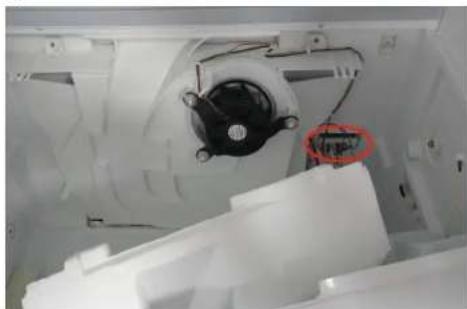

1. Odvojite električne priključke grupe prednjih poklopaca isparivača odjeljka na temperaturi od 0 °C.

Close-up of a white plastic mechanical component with a black circular component and a red circle highlighting a specific area (no visible text or symbols)

Uklanja se grupa prednjih poklopaca isparivača odjeljka na temperaturi od 0 °C.

Popravak

Interior view of a white electronic device with a fan and circuit board (no visible text or symbols)

1. Izvucite grupu stražnje stijenke (2).

Interior view of a medical or laboratory equipment unit with a central display and two red circles highlighting features (no visible text or symbols)

Popravak

1. Otkinite traku i razdvojite pjenasti vod od prednjeg poklopca isparivača odjeljka na temperaturi od 0 °C.

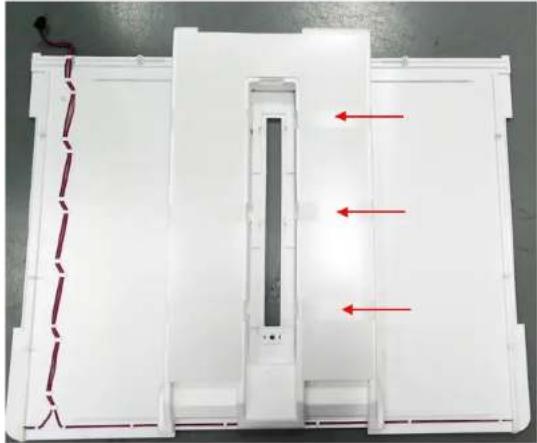

White plastic enclosure with red arrows pointing to a vertical structure, no visible text or symbols

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable inside a rectangular frame with a curved arrow indicating rotation (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Oprava

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols present)

Technical diagram showing mechanical assembly steps with labeled arrows and components

Diagram illustrating a mechanical or electrical setup with labeled components and directional arrows, including a magnified inset showing rotational motion.

Close-up of a mechanical component with a circular arrow indicating rotational motion (no text or symbols)

Close-up of a mechanical assembly with visible wiring and components, no text or symbols present

Oprava

Technical diagram showing a mechanical assembly with labeled parts and a numbered step indicator (①) for adjustment.

Close-up of a mechanical component with three circular arrows indicating rotational motion (no text or symbols)

Close-up of a metallic mechanical component with a circular arrow indicating rotation (no text or symbols visible)

Close-up of an electrical connector with wires and connectors, no visible text or symbols

Oprava

Technical diagram showing electrical wiring and a mechanical component with labeled parts and an inset illustrating the winding mechanism.

Close-up of a mechanical switch with three rotary buttons and a metallic handle (no text or symbols visible)

Diagram of a blue container with black arrows indicating direction, no text or symbols present

Technical diagram showing a mechanical assembly with labeled components and warning symbol

Isometric architectural diagram of a multi-level building facade with internal compartments and a directional arrow (no text or symbols)

Diagram showing a blue mechanical component with labeled parts and directional arrows indicating flow or movement.

Diagram showing a blue panel with two arrows labeled ① and ②, indicating direction of movement or force on a vertical structure.

Diagram showing a mechanical or structural component with labeled parts and directional arrows indicating flow or movement.

Technical diagram showing a blue component with labeled parts ① and ②, likely illustrating a mechanical or structural assembly.

Technical diagram showing a mechanical assembly with numbered components and directional arrows indicating flow or movement.

Technical diagram showing a mechanical assembly with labeled components and directional arrows indicating flow or movement.

Technical diagram showing a mechanical or structural assembly with labeled components and directional arrows indicating flow or movement.

Hand holding a small transparent plastic clip attached to a white wall (no text or symbols visible)

Close-up of hands holding a small white object with a red arrow pointing to it, next to a green tool (no visible text or symbols)

Oprava

Close-up of a hand holding a small electronic component with a red annotation highlighting a feature (no readable text or symbols)

Scanned image of an electronic device casing with visible internal components and a QR code on the cover.

Close-up of a white mechanical component with a red arrow pointing to a small feature (no text or symbols visible)

Two-panel image showing a white cabinet with a metal latch and a red arrow pointing to a corner detail (no text or symbols)

Oprava

Two-panel image showing a wall corner with red arrows pointing to a detail, before and after modification (no text or symbols)

Close-up of a mechanical component with a metallic bracket and internal structure (no visible text or symbols)

Close-up of a mechanical component with a red arrow pointing to a small illuminated component (no visible text or symbols)

Oprava

Diagram of an electronic device showing a connector with labeled parts and directional arrows indicating connection points.

Scanned image of a printed electronic component label with QR code and technical specifications visible.

Interior view of a modern kitchen or bathroom with numbered fixtures and ceiling-mounted appliances (no visible text or symbols)

Three-panel photo showing a hand inserting a component into a white appliance casing, with red arrows indicating direction (no text or symbols visible)

Oprava

Interior view of a laboratory apparatus with labeled components and red arrows indicating features (no readable text or symbols)

Interior view of a white appliance with red annotation boxes highlighting internal components (no text or symbols visible)

Close-up of hands installing or adjusting a white electronic component with a small red circle highlighting a detail (no visible text or symbols)

Interior view of a white plastic enclosure with internal compartments and a labeled component (no text or symbols visible)

Oprava

Technical diagram of a mechanical assembly with labeled components and directional arrows

Interior view of a white appliance or enclosure with ventilation grilles and a central display unit (no visible text or symbols)

Interior view of a medical imaging machine with white components and a red circle highlighting a specific area (no visible text or symbols)

Close-up of a white plastic mechanical component with a black circular annotation and red circle highlighting a specific area (no readable text or symbols)

Interior view of a white appliance with a fan and circuit board, no visible text or symbols

Interior view of a medical or laboratory equipment unit with a central vertical structure and two circled points of interest, no visible text or symbols.

Oprava

White plastic enclosure with red arrows pointing to a vertical structure, no visible text or symbols

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable inside a rectangular frame with a curved arrow indicating rotation (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Reparation

1. Tryk hele pakningen trinvist i rillen.

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols present)

Technical diagram showing mechanical assembly steps with numbered annotations (① and ②) indicating process flow.

Diagram illustrating a mechanical or electrical setup with labeled components and directional arrows, including a magnified inset showing rotational motion.

Close-up of a mechanical component with a circular arrow indicating rotational motion (no text or symbols)

Close-up of a mechanical assembly with visible wiring and components, no text or symbols present

Reparation

Technical diagram showing a mechanical assembly with labeled parts and a numbered step indicator (①) for adjustment.

Close-up of a mechanical component with three circular arrows indicating rotational motion (no text or symbols)

Close-up of a metallic mechanical component with a circular arrow indicating rotation (no text or symbols visible)

Close-up of an electrical connector with wires and components, no visible text or symbols

Reparation

Technical diagram showing electrical switch components with numbered annotations and a magnified view of the switch mechanism.

Close-up of a mechanical switch or lever mechanism with three circular arrows indicating rotational direction (no text or symbols visible)

Diagram of a blue container with black arrows indicating direction, no text or symbols present

Diagram showing a blue rectangular object with arrows indicating direction, labeled with numbers ① and ②, and an arrow symbol pointing upward.

Technical diagram of a mechanical assembly with layered components (no text or symbols)

Hylden er fjernet.

Isometric architectural diagram of a multi-level building with structural elements and a directional arrow (no text or symbols)

Diagram showing a blue mechanical component with labeled parts and directional arrows indicating flow or movement.

Diagram showing a blue panel with two arrows labeled ① and ②, indicating direction of movement or force on a surface.

Diagram showing a mechanical or structural component with labeled parts and directional arrows indicating flow or movement.

Technical diagram showing a blue component with labeled parts ① and ②, likely illustrating a mechanical or structural assembly.

Diagram showing a mechanical or structural component with numbered parts and directional arrows indicating flow or movement.

Technical diagram showing a structural assembly with labeled components and directional arrows indicating flow or movement.

Technical diagram showing a mechanical or structural assembly with labeled components and directional arrows indicating flow or movement.

Close-up of a hand holding a small white plastic clip attached to a wall-mounted panel (no text or symbols visible)

Close-up of hands holding a small white object with a red arrow pointing to it, next to a white shelf (no visible text or symbols)

Reparation

1. Afbryd LED-lampens tilslutning.

Close-up of a hand holding a small electronic component with a red annotation highlighting a feature (no readable text or symbols)

Scanned image of an electronic device casing with visible internal components and a QR code on the cover.

Close-up of a white mechanical component with a red arrow pointing to a small black tool tip (no text or symbols visible)

Two-panel image showing a white cabinet with a metal latch and a red arrow pointing to a corner detail (no text or symbols)

Reparation

Two-panel image showing a wall-mounted device before and after installation, with red arrows indicating direction of change (no text or symbols present)

Close-up of a mechanical component with a metallic bracket and internal structure (no visible text or symbols)

1. Afbryd lampens tilslutning.

Close-up of a mechanical component with a red arrow pointing to a small illuminated component (no visible text or symbols)

Reparation

Diagram of a device component with labeled parts, showing a cable inserted into a terminal block and marked with red arrows.

Interior view of a white appliance with visible fixtures and numbered arrows (no text or symbols)

Diagram showing three steps of a device interior with labeled parts and red arrows indicating movement or change.

Reparation

Interior view of a refrigerator unit with labeled ports and internal components (no readable text or symbols)

1. Frigør fire klip.

Interior view of a white appliance with open lid and side close-ups showing internal components (no text or symbols visible)

Close-up of hands installing or adjusting a white LED strip device with a small cable and a red circle highlighting a component (no visible text or symbols)

1. 1. Løsn de to clips (1).

2. Tag rammen (2) ud.

Close-up of a white plastic enclosure with internal compartments and a small inset showing a mechanical component (no text or symbols visible)

Reparation

Technical diagram of a mechanical assembly with labeled components and directional arrows

Interior view of a white appliance or enclosure with ventilation grilles and a central display unit (no visible text or symbols)

Interior view of a medical imaging machine with white equipment and a red circle highlighting a specific area (no visible text or symbols)

Close-up of a white plastic mechanical component with a black circular annotation and red circle highlighting a specific area (no readable text or symbols)

Interior view of a white electronic device with a fan and circuit board (no visible text or symbols)

Interior view of a medical or laboratory equipment unit with a central display and two red circles highlighting features (no visible text or symbols)

Reparation

1. Riv tapen af, og skille skumkanalen fra 0 °C fordamperens frontdæksel.

White plastic enclosure with red arrows pointing to a vertical panel, no visible text or symbols

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable inside a rectangular frame with a curved arrow indicating rotation (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Reparatie

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with directional arrows (no text or symbols)

Technical diagram showing mechanical assembly steps with numbered annotations (① and ②) indicating process flow.

Technical diagram showing mechanical assembly with labeled components and directional arrows, including a magnified view of a rotating component.

Close-up of a mechanical component with a circular arrow indicating rotational motion (no text or symbols)

Close-up of a mechanical assembly with visible wiring and components (no text or symbols)

Reparatie

Technical diagram showing a mechanical assembly with labeled parts and a numbered step indicator (①) for adjustment.

Close-up of a mechanical component with three circular arrows indicating rotational motion (no text or symbols)

Close-up of a metallic mechanical component with a circular arrow indicating rotation (no text or symbols visible)

Close-up of an electrical connector with wires and connectors, no visible text or symbols

Reparatie

Technical diagram showing electrical wiring and a mechanical component with labeled parts, including a magnified view of the switch mechanism.

Close-up of a mechanical switch or lever mechanism with three circular arrows indicating rotational direction (no text or symbols visible)

Diagram of a blue rectangular container with black arrows indicating direction, mounted on a vertical structure (no text or symbols)

Technical diagram showing a mechanical assembly with labeled components and warning symbol

Isometric architectural diagram of a multi-level building facade with internal compartments and a directional arrow (no text or symbols)

Diagram showing a blue mechanical component with labeled parts and directional arrows indicating flow or movement.

Diagram showing a blue panel with two arrows labeled ① and ②, indicating direction of movement or force on a surface.

Diagram showing a mechanical or structural component with labeled parts and directional arrows indicating flow or movement.

Technical diagram showing a blue component with labeled parts ① and ②, likely illustrating a mechanical or structural assembly.

Technical diagram showing a mechanical assembly with numbered components and directional arrows indicating flow or movement.

Technical diagram showing a structural component with labeled parts ① and ②, likely illustrating a mechanical or architectural design.

Technical diagram showing a mechanical or structural assembly with labeled components and directional arrows indicating flow or movement.

Hand holding a small transparent plastic clip attached to a white wall (no text or symbols visible)

Close-up of hands holding a small white object with a red arrow, next to a wall-mounted device (no visible text or symbols)

Reparatie

Close-up of a hand holding a small electronic component with a red annotation highlighting a green square (no visible text or symbols)

Scanned image of a device casing with visible internal components and a QR code on the cover.

Close-up of a white electronic component with a red arrow pointing to a small black tip, no visible text or symbols.

Two-panel image showing a white cabinet with a metal rod and a red arrow pointing to a vertical line, no text or symbols present.

Reparatie

Two-panel image showing a pipe joint before and after modification, with red arrows indicating direction of movement (no text or symbols present)

Close-up of a mechanical component with a metallic bracket and a small circular feature, mounted on a dark surface (no visible text or symbols)

Close-up of a mechanical component with a white housing and red arrow indicating a specific point (no text or symbols visible)

Reparatie

Diagram of a device component with labeled parts, showing a connector and cable connection

Interior view of a modern kitchen or bathroom with numbered fixtures and lighting fixtures (no visible text or symbols)

Three-panel photo showing a hand holding a pen inside a refrigerator with red annotations indicating parts of the interior.

Reparatie

Interior view of a laboratory apparatus with labeled components and red arrows indicating features (no readable text or symbols)

Interior view of a white appliance with red annotation boxes highlighting internal components (no text or symbols visible)

Close-up of hands installing or adjusting a white electronic component with a small red circle highlighting a detail (no visible text or symbols)

Interior view of a white plastic enclosure with internal compartments and a labeled component (no text or symbols visible)

Reparatie

Technical diagram of a mechanical assembly with labeled components and directional arrows

Interior view of a white appliance or enclosure with ventilation grilles and a central display unit (no visible text or symbols)

Interior view of a medical or laboratory device with white equipment and a circular annotation (no visible text or symbols)

Close-up of a white plastic mechanical component with a black circular component and red annotation (no readable text or symbols)

Interior view of a white electronic device with a fan and circuit board (no visible text or symbols)

Interior view of a medical or laboratory equipment unit with a central display and two red circles highlighting features (no visible text or symbols)

Reparatie

White plastic electronic device casing with red directional arrows indicating movement or flow (no text or symbols visible)

Repair hints - Fridge-freezer

i Concerning this document.... 173

1.1 Important information.... 173

1.1.1 Purpose.... 173

1.2 Explanation of symbols 173

1.2.1 Danger levels.... 173

1.2.2 Hazard symbols 173

1.2.3 Structure of the warnings.... 174

1.2.4 General symbols.... 174

Safety....

2.1 General Safety instructions 175

2.1.1 All domestic appliances 175

Tools and aids....17

Repair

4.3 Replacing drawer handle 181

4.3.1 Removing drawer handle.... 181

4.3.2 Installing drawer handle....181

4.4 Replacing left door hinges.... 182

4.8 Replacing equipment bar....190

4.8.1 Removing equipment bar 190

4.8.2 Installing equipment bar....190

4.9 Replacing pull-out container 191

4.9.1 Removing pull-out container.... 191

4.9.2 Installing pull-out container.... 191

4.10 Replacing fixed shelf 192

4.10.1 Removing fixed shelf 192

4.10.2 Installing fixed shelf 192

4.11 Replacing cool-fresh container.... 193

4.11.1 Removing cool-fresh container 193

4.11.2 Installing cool-fresh container 193

4.12 Replacing frozen food container (small).... 194

4.12.1 Removing frozen food container (small) 194

4.12.2 Installing frozen food container (small).... 194

4.13 Replacing frozen food container (flat) 195

4.13.1 Removing frozen food container (flat) 195

4.13.2 Installing frozen food container (flat) 195

4.14 Replacing frozen food container (large) 196

4.14.1 Removing frozen food container (large) 196

4.14.2 Installing frozen food container (large) 196

4.15 Replacing ice cube container 197

4.15.1 Removing ice cube container 197

4.15.2 Installing ice cube container 197

4.16 Replacing LED lamps.... 198

4.16.1 Removing refrigerator compartment LED top lamp 198

4.16.2 Removing refrigerator compartment side lamp 199

4.16.3 Removing 0 °C compartment lamp 200

4.16.4 Removing back wall lamps.... 201

4.16.5 Installing LED lamps.... 205

i Concerning this document

1.1 Important information

1.1.1 Purpose

These repair hints support consumer to repair appliances by himself according to the applicable eco-design regulation (as of 03/2021).

They contain information how to exchange defined spare parts including warnings and risks.

In case of questions, please contact our customer service. We will only be liable for damages if the repair hints have been followed properly.

1.2 Explanation of symbols

1.2.1 Danger levels

The warning levels consist of a symbol and a signal word. The signal word indicates the severity of the danger.

Warning level Meaning
Danger	Non-observance of the warning message will result in death or serious injuries.
Warning	Non-observance of the warning message could result in death or serious injuries.
Caution	Non-observance of the warning message could result in minor injuries.
Notice	Non-observance of the warning message could result in damage to property.

Table 1: Danger levels

1.2.2 Hazard symbols

Hazard symbols are symbolic representations which give an indication of the kind of danger.

The following hazard symbols are used in this document:

	Hazard symbol Meaning
		General warning message
		Danger from electrical voltage
		Risk of explosion
		Danger of cuts
		Danger of crushing

i Concerning this document

Hazard symbol Meaning
		Danger from hot surfaces
		Danger from strong magnetic field
		Danger from non-ionizing radiation

Table 2: Hazard symbols

1.2.3 Structure of the warnings

Warnings in this document have a standardised appearance and a standardised structure.

Type and source of danger!

Possible consequences of ignoring the danger / warning.

▶ Measures and prohibitions for preventing the danger.

The following example shows a warning that warns against electric shock due to live parts. The measure for avoiding the danger is mentioned.

Risk of electric shock due to live parts!

Death by electrocution

- Disconnect appliances from electrical supply at least 60 seconds before starting repairs.

1.2.4 General symbols

The following general symbols are used in this document:

Gen. symbol Meaning
	Identification of a special tip (text and/or graphic)
	Identification of a simple tip (only text)
	Identification of a link to a video tutorial

Gen. symbol Meaning
	Identification of required tools
	Identification of required preconditions
	Identification of a condition (if ..., then ...)
	Identification of a result
[Start]Identification of a key or button
[00123456] Identification of a material number
Status Identification of displayed text / window(in the appliance's display)

Table 3: General symbols

Safety

2.1 General Safety instructions

2.1.1 All domestic appliances

Risk of electric shock due to live parts!

■ Errors by repairs involving electrical components can lead to electrical shock!
■ Disconnect the appliance from the mains for at least 60 seconds before starting work.
■ After the repair have a safety test according VDE 0701 or country-specific regulations performed.

Risk of injury from sharp edges!

■ Wear protective gloves.

Risk of crushing during repair, maintenance, troubleshooting and service due to heavy and moving components

■ Wear protective shoes.
■ Secure heavy components from falling down.
■ Do not stick body parts into moving components.

Risk to the appliance's safety / function!

■ Only use original spare parts.

Risk of damage to electrostatically sensitive components (ESDs)!

- Do not touch the modules, including connections and conductor paths.

Tools and aids

Designation Details Images
Hexagon socket wrench[00340820]	2.5 mm
Slotted screwdriver	Blade 2.4 mm x 0.4 mm x60 mm, in the kit [00341820]
Slotted screwdriver	Blade 10 mm x 1.6 mm x200 mm
Torx Bit TX20[00340865]	6,3 mm (1/4")

Repair

1. Release door gasket from the groove on right and left corner.

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

1. Pull out door gasket from groove.

Illustration of hands holding a cable inside a rectangular appliance with a curved arrow indicating rotation (no text or symbols)

Door gasket is removed.

	Thickness of new door gasket may deviate slightly from thickness of old door gasket. This will not affect closing behavior and long-term function.
	If your appliance has adjustable hinges or hinge attachments, you can optimize the closing behavior subsequently.
	Small side holes in door gasket are functional (required for ventilation). These are not production faults.

Repair

1. Check groove for gasket for damage.

Isometric line drawing of a wall-mounted shelf with an eye icon (no text or symbols)

1. ① If groove for gasket is it is damaged.

2. Contact customer service.

3. i Slight deformation of door gasket is normal and does not affect its function. It is recommended to straighten door gasket before inserting it into appliance.

Heat door gasket with a hair dryer or hot water and manually reshape it.

1. Push corners of gasket at the top and bottom to the groove.

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Repair

1. Press whole gasket step by step into the groove.

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Door gasket is installed.

Repair

4.2 Replacing door handle

Required tools:

Hexagon socket wrench 2.5 mm [00340820]

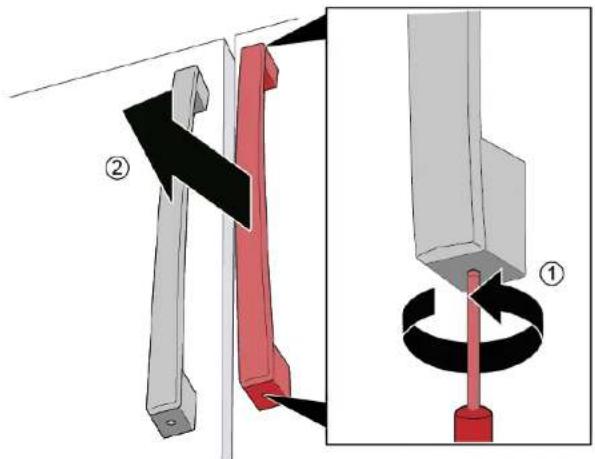

4.2.1 Removing door handle

1. Unscrew two screws (1).
2. Remove door handle (2).

Technical diagram showing mechanical assembly steps with numbered annotations (① and ②) indicating process flow.

Door handle is removed.

Second door handle can be removed in the same manner.

1. Fit handle vertically onto the pre-assembled bolts. The holes in the handle must face up and down.

1. Tighten the preassembled screws clockwise in the handle from the top and bottom.

Repair

4.3 Replacing drawer handle

Required tools:

Hexagon socket wrench 2.5 mm [00340820]

4.3.1 Removing drawer handle

1. Unscrew two screws (1).
2. Removed drawer handle (2).

Diagram illustrating a mechanical or electrical setup with labeled components and directional arrows, including a magnified inset showing rotational motion.

→ Drawer handle is removed.

4.3.2 Installing drawer handle

1. Insert the handle horizontally onto the preassembled bolts. The holes in the handle must be facing down.
2. Tighten the preassembled screws in the handle clockwise from the bottom.

Repair

4.4 Replacing left door hinges

Required tools:

Torx Bit TX20 6,3 mm (1/4") [00340865]

Heavy, bulky appliances!

Back and muscle injuries

• Appliance door removal operation should only be carried out by trained specialists.
  To move the appliance, two people are required.
  ▶ Use only suitable tools and equipment.

Sharp edges!

Cut injuries

▶ Wear protective gloves.

Slipping of tilted appliances!

Bone fractures / crush injuries

- Secure appliances against slipping.

Risk of falling parts due to released screws!

Injury because of falling parts.

- Secure component from falling down.

Risk of falling parts due to released screws!

Damage to other parts of the appliance or at customers home e.g. bottom.

- Secure component from falling down.

Risk of electric shock due to live parts!

Danger to life through electric shock in case of improper repair

▶ Electric parts should be repaired by a qualified electricians.
▶ After the repair have a safety test according VDE 0701 or country-specific regulations performed.

Risk of electric shock due to live parts!

Death by electrocution

- Disconnect appliances from electrical supply at least 60 seconds before starting repairs.

Prerequisite:

√ Appliance is disconnected from power supply.
√ Appliance interior fittings are removed.

Repair

1. 1. Unscrew the screw.

2. Remove upper hinge cover.

Close-up of a mechanical component with a circular arrow indicating rotational motion (no text or symbols)

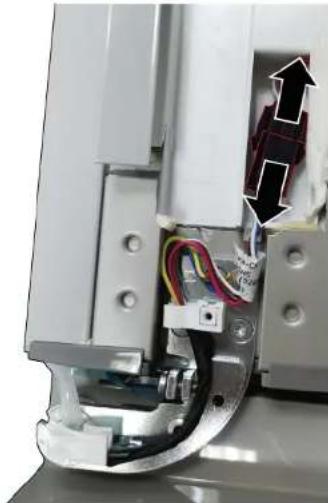

1. Disconnect door electrical connection.

Close-up of a mechanical assembly with visible wiring and components, no text or symbols present

Repair

1. 1. Unscrew ground connection screw (1).

2. Unscrew three screws (2).

3. Remove upper hinge.

Technical diagram showing a mechanical assembly with labeled parts and a numbered step indicator (①) for adjustment.

Upper hinge is removed.

1. Remove left door moving it up.
   5.1. Unscrew three screws.

2. Remove lower hinge.

Close-up of a mechanical component with three circular arrows indicating rotational motion (no text or symbols)

Lower hinge is removed.

1. Install in reverse order.
2. Align refrigerator compartment doors. For details see User Manual (AGA).

Repair

4.5 Replacing right door hinges

Required tools:

Torx Bit TX20 6,3 mm (1/4") [00340865]

Heavy, bulky appliances!

Back and muscle injuries

• Appliance door removal operation should only be carried out by trained specialists.
  To move the appliance, two people are required.
  ▶ Use only suitable tools and equipment.

Sharp edges!

Cut injuries

▶ Wear protective gloves.

Slipping of tilted appliances!

Bone fractures / crush injuries

- Secure appliances against slipping.

Risk of falling parts due to released screws!

Injury because of falling parts.

- Secure component from falling down.

Risk of falling parts due to released screws!

Damage to other parts of the appliance or at customers home e.g. bottom.

- Secure component from falling down.

Risk of electric shock due to live parts!

Danger to life through electric shock in case of improper repair

▶ Electric parts should be repaired by a qualified electricians.
▶ After the repair have a safety test according VDE 0701 or country-specific regulations performed.

Risk of electric shock due to live parts!

Death by electrocution

- Disconnect appliances from electrical supply at least 60 seconds before starting repairs.

Prerequisite:

√ Appliance is disconnected from power supply.
√ Appliance interior fittings are removed.

Repair

4.5.1 Removing right door hinges

1. 1. Unscrew the screw.

2. Remove upper hinge cover.

Close-up of a metallic mechanical component with a circular arrow indicating rotation (no text or symbols visible)

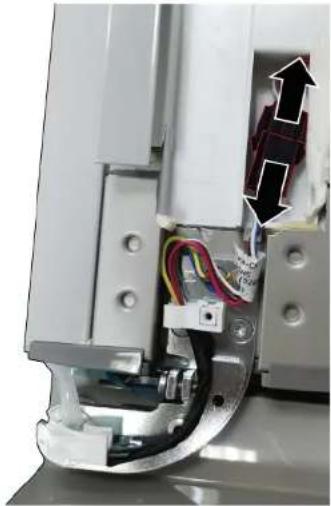

1. Disconnect door electrical connection.

Close-up of an electrical connector with wires and components, no visible text or symbols

Repair

1. 1. Unscrew ground connection screw (1).

2. Unscrew three screws (2).

3. Remove upper hinge.

Technical diagram showing electrical switch connections with labeled parts and a magnified view of the switch mechanism.

Upper hinge is removed.

1. Remove right door moving it up.

2. 1. Unscrew three screws.

3. Remove lower hinge.

Close-up of a mechanical switch with three rotary buttons and a metallic handle (no text or symbols visible)

Lower hinge is removed.

4.5.2 Installing right door hinges

1. Install in reverse order.
2. Align refrigerator compartment doors. For details see User Manual (AGA).

Repair

4.6 Replacing door rack

Prerequisite:

√ Door is open.

▶ Lift up door rack.

Diagram of a blue rectangular container with black arrows indicating direction, mounted on a vertical structure (no text or symbols)

Door rack is removed.

▶ Install in reverse order.

Repair

4.7 Replacing shelf

Prerequisite:

Door is open.

4.7.1 Removing shelf

▶ 1. Lift up shelf (1).
2. Remove shelf (2).

Diagram showing a blue tray with arrows indicating movement or force, labeled with numbers ① and ②.

Pure technical diagram of a mechanical assembly with no visible text, numbers, or symbols

Shelf is removed.

4.7.2 Installing shelf

	Do not cover the ventilation openings.
	Insert shelf carefully to avoid scratching the appliance.
	Ensure that the hooks are fully inserted and the shelf is horizontal.

▶ Install in reverse order.

Repair

4.8 Replacing equipment bar

Prerequisite:

Door is open.

4.8.1 Removing equipment bar

▶ Lift up equipment bar.

Isometric architectural diagram of a multi-level building facade with internal compartments and a directional arrow (no text or symbols)

Equipment bar is removed.

4.8.2 Installing equipment bar

	Check that the hooks are fully inserted and the equipment bar is horizontal.
	Insert the equipment bar carefully to avoid scratching the appliance.
	Check that the hooks are fully inserted and the equipment bar is horizontal.

▶ Install in reverse order.

Repair

4.9 Replacing pull-out container

Prerequisite:

√ Door is open.

4.9.1 Removing pull-out container

▶ 1. Pull out the container all the way (1).
2. Lift pull-out container at the front and remove (2).

Diagram showing a blue mechanical component with labeled parts and directional arrows indicating flow or movement.

Pull-out container is removed.

4.9.2 Installing pull-out container

1. Pull out the telescopic rails all the way.
2. Place the container on the telescopic rails and push into the appliance until it engages.

Repair

4.10 Replacing fixed shelf

Prerequisite:

√ Door is open.

4.10.1 Removing fixed shelf

1. Open the bin.
   2.1. Lift fixed shelf at the front (1).
2. Remove fixed shelf (2).

Diagram showing a blue panel with two arrows labeled ① and ②, indicating direction of movement or flow within a container.

Fixed shelf is removed.

4.10.2 Installing fixed shelf

▶ Install in reverse order.

Repair

4.11 Replacing cool-fresh container

Prerequisite:

Door is open.

4.11.1 Removing cool-fresh container

1. Pull the drawer all the way out (1).
2. Lift the container at the front (2).

Diagram showing a mechanical or structural component with labeled parts and directional arrows indicating flow or movement.

Cool-fresh container is removed.

4.11.2 Installing cool-fresh container

During insertion, the rail guide of the container and drawer must fit together.

▶ Install in reverse order.

Repair

4.12 Replacing frozen food container (small)

Prerequisite:

√ Door is open.

4.12.1 Removing frozen food container (small)

1. Pull freezer compartment drawer all the way out.
   2.1. Pull out the container all the way (1).

2. Lift the container at the front (2).

Technical diagram showing a blue component with labeled parts ① and ②, likely illustrating a mechanical or structural assembly.

Frozen food container (small) is removed.

4.12.2 Installing frozen food container (small)

1. Pull out the telescopic rails all the way.
2. Place the bin on the telescopic rails and push into the appliance until it engages.

Repair

4.13 Replacing frozen food container (flat)

Prerequisite:

√ Door is open.

4.13.1 Removing frozen food container (flat)

▶ 1. Pull freezer compartment drawer all the way out (1).
2. Pull frozen food container (flat) out (2).
3. Lift up frozen food container (flat) (3).

Diagram showing a mechanical or structural component with numbered parts and directional arrows indicating flow or movement.

→ Frozen food container (flat) is removed.

4.13.2 Installing frozen food container (flat)

▶ Install in reverse order.

Repair

4.14 Replacing frozen food container (large)

Prerequisite:

√ Door is open.

4.14.1 Removing frozen food container (large)

Notice

DAMAGE TO EQUIPMENT!

▶ Never remove the partition wall from the frozen food container.

1. Pull freezer compartment drawer all the way out and remove the frozen food container (flat) (1).
2. Lift up frozen food container (large) (2).

Technical diagram showing a structural component with labeled parts ① and ②, likely illustrating a mechanical or architectural design.

Frozen food container (large) is removed.

4.14.2 Installing frozen food container (large)

1. Pull out the telescopic rails all the way.
2. Place the bin on the telescopic rails and push into the appliance until it engages.

Repair

4.15 Replacing ice cube container

Prerequisite:

√ Door is open.

4.15.1 Removing ice cube container

1. Pull freezer compartment drawer all the way out.
   2.1. Pull out the frozen food container (flat) as far as it will go (1).
2. Remove ice cube container (2).

Technical diagram showing a mechanical or structural assembly with labeled components and directional arrows indicating flow or movement.

Ice cube container is removed.

4.15.2 Installing ice cube container

▶ Install in reverse order.

Repair

4.16 Replacing LED lamps

Required tools:

Slotted screwdriver Blade 2.4 mm x 0.4 mm x 60 mm, in the kit [00341820]
Torx Bit TX20 6,3 mm (1/4") [00340865]
Slotted screwdriver Blade 10 mm x 1.6 mm x 200 mm

Your appliance features a maintenance-free LED light. These lights may be repaired by customer service or authorised technicians only!

Danger

Risk of electric shock due to live parts!

Danger to life through electric shock in case of improper repair

Electric parts should be repaired by a qualified electricians.
After the repair have a safety test according VDE 0701 or country-specific regulations performed.

Danger

Risk of electric shock due to live parts!

Death by electrocution

- Disconnect appliances from electrical supply at least 60 seconds before starting repairs.

Caution

Sharp edges!

Cut injuries

▶ Wear protective gloves.

Prerequisite:

√ Appliance is disconnected from power supply.
Door is open.
√ Upper interior fittings are removed.

4.16.1 Removing refrigerator compartment LED top lamp

1. Create gap by working finger around the rim of LED lamp.

Close-up of a hand holding a small rectangular object against a white ceiling (no text or symbols visible)

1. Insert slotted screwdriver into the gap and remove LED top lamp in the direction shown.

Close-up of hands holding a small white object with a red arrow pointing to it, next to a green and white connector (no visible text or symbols)

Repair

1. Disconnect LED lamp terminal.

Close-up of a hand holding a small electronic component with a red annotation highlighting a feature (no readable text or symbols)

Refrigerator compartment LED top lamp is removed.

Scanned image of an electronic device casing with visible internal components and a QR code on the cover.

4.16.2 Removing refrigerator compartment side lamp

1. Use slotted screwdriver to remove side lamp upper retainer.

Close-up of a white mechanical component with a red arrow pointing to a small feature (no text or symbols visible)

1. Use slotted screwdriver to create gap on one side of the lamp cover and the other hand to remove the cover.

Two-panel image showing a white cabinet with a metal rod and a red arrow pointing to a detail on the right panel (no text or symbols)

Repair

1. Remove LED stripe in the same manner.

Two-panel image showing a pipe joint before and after modification, with red arrows indicating direction of movement (no text or symbols)

1. Remove LED stripe from the socket.

301866441 218

Refrigerator compartment side lamp is removed.

4.16.3 Removing 0 °C compartment lamp

1. Remove lamp cover by inserting slotted screwdriver in the gap between lamp cover and door to pry them apart.

Close-up of a mechanical component with a metallic bracket and internal structure (no visible text or symbols)

1. Disconnect lamp terminal.

Close-up of a mechanical component with a red arrow pointing to a small illuminated component (no visible text or symbols)

Repair

1. 1. Release hook (1).
2. Remove lamp (2)


Diagram of a device showing a connector with labeled parts and directional arrows indicating connection points.

0 °C compartment lamp is removed.

4.16.4 Removing back wall lamps

Due to technical structure back wall lamps cannot be exchanged separately. Lamps are included in back wall spare part set.

Prerequisite:

√ Door is open.

√ Refrigerator compartment interior fittings are removed.

0 °C compartment interior fittings are removed.

1. Hold the rear of the humidity adjustment cover with one hand (1).
2. Release cover with the other hand (2).

Interior view of a white room with numbered fixtures and ceiling-mounted appliances (no visible text or symbols)

1. Remove second cover in the same manner.

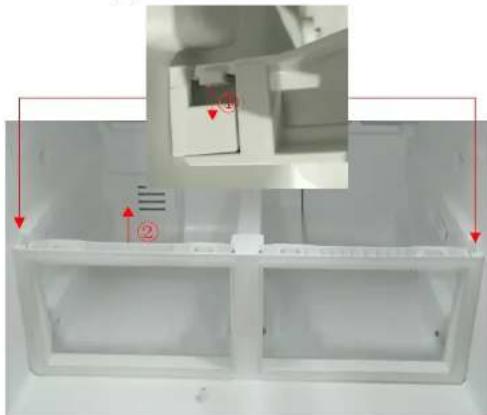

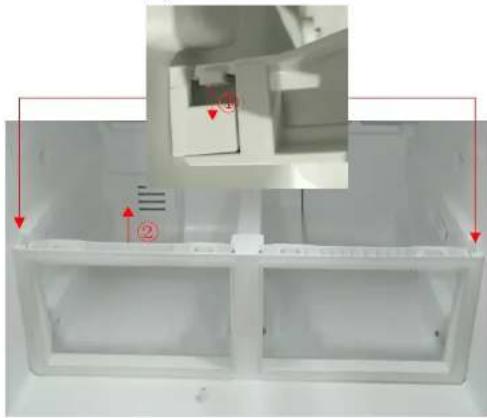

2. 1. Release two clips (1).
3. Pull out clips (2).

Three-panel photo showing a hand inserting a component into a white appliance casing, with red arrows indicating direction (no text or symbols visible)

Repair

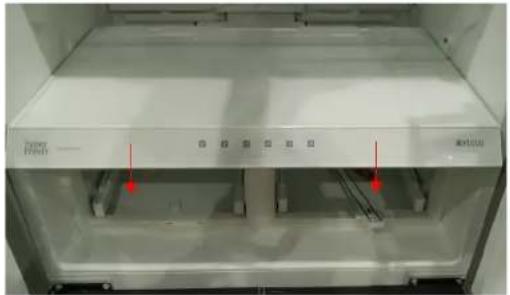

1. Pull out the central partition.

Interior view of a laboratory apparatus with labeled components and red arrows indicating features (no readable text or symbols)

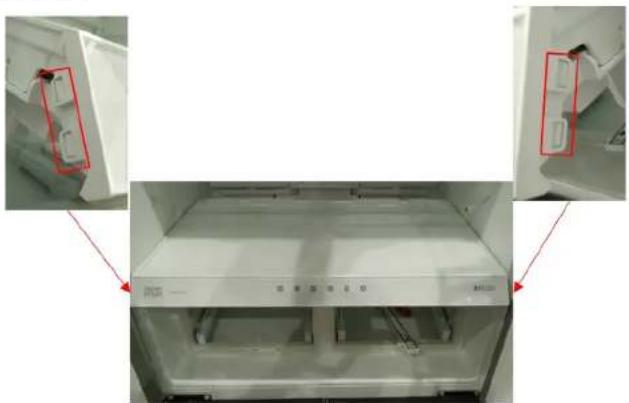

1. Release four clips.

Interior view of a white appliance with red annotation boxes highlighting internal components (no text or symbols visible)

1. Disconnect display module electrical connection.

Close-up of hands installing or adjusting a white electronic component with a small red circle highlighting a detail (no visible text or symbols)

1. 1. Release two clips (1).

2. Take out the frame (2).

Interior view of a white plastic enclosure with internal compartments and a labeled component (no text or symbols visible)

Repair

1. 1. Unscrew two screws (1)

2. Pull out middle board (2).

Technical diagram of a mechanical assembly with labeled components and directional arrows

1. Pull 0 °C compartment evaporator cover outward.

Interior view of a microwave oven with ventilation grilles and a central display unit (no visible text or symbols)

"Click" will be sound while cover is released.

1. Disconnected 0 °C compartment temperature sensor.

Interior view of a medical or laboratory equipment room with white plastic components and a red circle highlighting a feature (no visible text or symbols)

1. Disconnect electrical connections of 0 °C compartment evaporator front cover group.

Interior view of a white plastic appliance with a black circular component and a red circular mark on the side (no visible text or symbols)

0 °C compartment evaporator front cover group is removed.

Repair

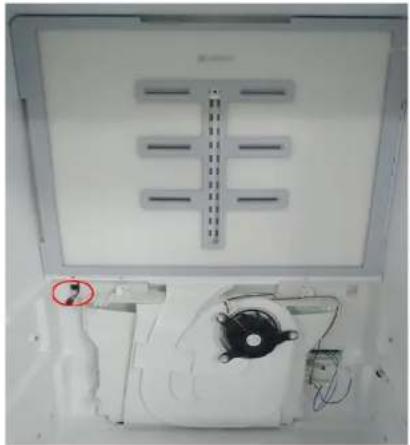

1. Disconnect back wall lamps electrical connection. 13. 1. Unscrew two screws (1).

Interior view of a white electronic device with a fan and circuit board (no visible text or symbols)

1. Pull out back wall group (2).

Interior view of a medical or laboratory device with a central vertical structure and two circled points of interest, no visible text or symbols.

Repair

1. Tear off the tape and separate the foam duct from 0 °C compartment evaporator front cover.

White plastic enclosure with red arrows pointing to a vertical slot, no visible text or symbols

Back wall with integrated lamps is removed.

4.16.5 Installing LED lamps

▶ Install in reverse order.

Remonditeave - Kombikülmik

i Selle dokumendiga seoses 207

1.1 Tähtis teave 207

Illustration of hands connecting a cable to a rectangular panel with shelves, no text or symbols present

Illustration of hands connecting a cable to a wall-mounted panel with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Remont

1. Vajutage terve tihend jupphaaval soonde.

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Technical diagram showing mechanical assembly steps with numbered annotations (① and ②) indicating process flow.

Diagram illustrating a mechanical or electrical setup with labeled components and directional arrows, including a magnified inset showing rotational motion.

Close-up of a mechanical component with a circular arrow indicating rotational motion (no text or symbols)

Close-up of a mechanical assembly with visible wiring and components (no text or symbols)

Remont

Technical diagram showing a mechanical assembly with labeled parts and an inset showing a rotating component with a knob.

Close-up of a mechanical component with three circular arrows indicating rotational motion (no text or symbols)

Close-up of a metallic mechanical component with a circular arrow indicating rotation (no text or symbols visible)

Close-up of an electrical connector with wires and connectors, no visible text or symbols

Remont

Technical diagram showing electrical switch components with numbered annotations and a magnified view of the switch mechanism.

Close-up of a mechanical switch or lever mechanism with three circular arrows indicating rotational motion (no text or symbols visible)

Diagram of a blue rectangular container with black arrows indicating direction, mounted on a vertical structure (no text or symbols)

Diagram showing a blue rectangular object with arrows indicating direction, labeled with numbers ① and ②, likely illustrating a mechanical or structural assembly.

Technical diagram of a mechanical assembly with layered components (no text or symbols)

Isometric architectural diagram of a multi-level building facade with internal compartments and a directional arrow (no text or symbols)

Diagram showing a blue mechanical component with labeled parts and directional arrows indicating flow or movement.

Diagram showing a blue panel with two arrows labeled ① and ②, indicating direction of movement or force on a vertical structure.

Diagram showing a mechanical or structural component with labeled parts and directional arrows indicating flow or movement.

Technical diagram showing a blue component with labeled parts ① and ②, likely illustrating a mechanical or structural assembly.

Technical diagram showing a mechanical assembly with numbered components and directional arrows indicating flow or movement.

Technical diagram showing a structural component with labeled parts ① and ②, likely illustrating a mechanical or architectural assembly.

Technical diagram showing a mechanical or electrical component with labeled parts ① and ②, indicating directional flow or movement.

Hand holding a small transparent plastic clip attached to a white ceiling panel (no text or symbols visible)

Close-up of hands holding a white cable with a red arrow pointing to it, next to a green connector (no text or symbols visible)

Remont

1. Lahutage LED-lambi klemm.

Close-up of a hand holding a small electronic component with a red annotation highlighting a feature (no readable text or symbols)

Scanned image of a device casing with visible internal components and a QR code on the cover.

Close-up of a white mechanical component with a red arrow pointing to a small feature (no text or symbols visible)

Two-panel image showing a white cabinet with a metal latch and a red arrow pointing to a corner detail (no text or symbols)

Remont

1. Eemaldage LED-riba samamoodi.

Two-panel image showing a wall corner with red arrows pointing to a detail, before and after modification (no text or symbols)

1. Eemaldage LED-riba pesast.

301866441 218

Close-up of a mechanical component with a metallic bracket and internal structure (no visible text or symbols)

1. Lahutage lambi klemm.

Close-up of a mechanical component with a red arrow pointing to a small illuminated component (no visible text or symbols)

Remont

1. 1. Vabastage konks (1).

2. Eemaldage lamp (2).

Diagram of a device showing a connector with labeled parts and directional arrows indicating connection points.

Interior view of a modern kitchen or bathroom with fixtures and numbered indicators (no readable text or symbols)

Diagram showing three views of a refrigerator interior with red arrows indicating directional changes, labeled with numbers ①, ②, and ③.

Remont

Interior view of a laboratory apparatus with labeled components and red arrows indicating features (no readable text or symbols)

1. Vabastage neli klambrit.

Interior view of a white appliance with red annotation boxes highlighting internal components (no text or symbols visible)

Close-up of hands installing or adjusting a white electronic component with a small red circle highlighting a detail (no visible text or symbols)

Interior view of a white plastic enclosure with internal compartments and a labeled component (no text or symbols visible)

Remont

Technical diagram of a mechanical assembly with labeled components and directional arrows

1. Tömmake 0 °C sahtli aurusti kate väljapoole.

Interior view of a white appliance or enclosure with ventilation grilles and a central display unit (no visible text or symbols)

Katte vabastamisel kölab klöps.

Interior view of a medical imaging machine with white components and a red circle highlighting a specific area (no visible text or symbols)

1. Lahutage 0 °C sahtli aurusti esiosa katete sölm.

Close-up of a white plastic mechanical component with a black circular annotation highlighting a red circle (no readable text or symbols)

Interior view of a refrigerator with open door, fan, and plastic panel (no visible text or symbols)

Interior view of a medical or laboratory equipment unit with a central display and two red circles highlighting features (no visible text or symbols)

Remont

White plastic enclosure with red arrows pointing to a vertical panel, no visible text or symbols

Diagram of hands connecting a cable to a rectangular panel with shelves, showing structural components (no text or symbols)

Illustration of hands holding a cable inside a rectangular frame with a curved arrow indicating rotation (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Korjaus

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols present)

Technical diagram showing mechanical assembly steps with numbered annotations (① and ②) indicating process flow.

Technical diagram showing mechanical assembly with labeled components and directional arrows, including a magnified view of a rotating component.

Close-up of a mechanical component with a circular arrow indicating rotational motion (no text or symbols)

Close-up of a mechanical assembly with visible wiring and components (no text or symbols)

Korjaus

Technical diagram showing a mechanical assembly with labeled parts and a numbered step indicator (①) for adjustment.

Close-up of a mechanical component with three circular arrows indicating rotational or clockwise motion (no text or symbols visible)

Alasarana on poistettu.

Close-up of a metallic mechanical component with a circular arrow indicating rotation (no text or symbols visible)

Close-up of an electrical connector with wires and components, no visible text or symbols

Korjaus

Technical diagram showing electrical wiring and a mechanical component with labeled parts, including a magnified view of the switch mechanism.

Close-up of a mechanical switch with three rotary buttons and a metallic handle (no text or symbols visible)

Alasarana on poistettu.

Diagram of a blue container with black arrows indicating direction, no text or symbols present

Technical diagram showing a mechanical assembly with labeled components and warning symbol

Hylly on poistettu.

Isometric architectural diagram of a multi-level building facade with internal compartments and a directional arrow (no text or symbols)

Diagram showing a blue mechanical component with labeled parts and directional arrows indicating flow or movement.

Diagram showing a blue panel with two arrows labeled ① and ②, indicating direction of movement or force on a surface.

Diagram showing a mechanical or structural component with labeled parts and directional arrows indicating flow or movement.

Cool-fresh-lokero on poistettu.

4.11.2 Cool-fresh-lokeron asentaminen

Technical diagram showing a blue component with labeled parts ① and ②, likely illustrating a mechanical or structural assembly.

Diagram showing a mechanical or structural component with numbered parts and directional arrows indicating flow or movement.

Technical diagram showing a structural component with labeled parts and directional arrows indicating flow or movement.

Technical diagram showing a mechanical or electrical component with labeled parts ① and ②, indicating directional flow or movement.

Close-up of a hand holding a small transparent plastic clip against a white wall (no text or symbols visible)

Close-up of hands holding a small white object with a red arrow, next to a green tool (no visible text or symbols)

Korjaus

Close-up of a hand holding a small electronic component with a red annotation highlighting a feature (no readable text or symbols)

Scanned image of a device casing with visible internal components and a QR code on the cover.

Close-up of a white mechanical component with a red arrow pointing to a small black tool tip (no text or symbols visible)

Two-panel image showing a white cabinet with a metal rod and a red arrow pointing to a vertical line, no text or symbols present.

Korjaus

1. Poista LED-nauha samalla tavoin.

Two-panel image showing a pipe joint before and after modification, with red arrows indicating direction of movement (no text or symbols)

Close-up of a mechanical component with a metallic bracket and internal structure (no visible text or symbols)

Close-up of a mechanical component with a red arrow pointing to a small illuminated component (no visible text or symbols)

Korjaus

Diagram of a device showing a connector with labeled parts and directional arrows indicating connection points.

Scanned image of a printed electronic component label with QR code and technical specifications visible.

Interior view of a white room with numbered annotations and ceiling fixtures (no readable text or symbols)

Diagram showing three steps of a device interior with red arrows indicating directional changes, labeled with numbers ①, ②, and ③.

Korjaus

Interior view of a laboratory apparatus with labeled components and red arrows indicating features (no readable text or symbols)

Interior view of a white appliance with red annotation boxes highlighting internal components (no text or symbols visible)

Close-up of hands installing or adjusting a white electronic component with a small red circle highlighting a detail (no visible text or symbols)

Interior view of a white plastic enclosure with internal compartments and a labeled component (no text or symbols visible)

Korjaus

Technical diagram of a mechanical assembly with labeled components and directional arrows

Interior view of a white appliance or enclosure with ventilation grilles and a central display unit (no visible text or symbols)

Interior view of a medical imaging machine with white components and a red circle highlighting a specific area (no visible text or symbols)

Close-up of a white plastic mechanical component with a black circular annotation and red circle highlighting a specific area (no readable text or symbols)

Interior view of a white appliance with a fan and internal components, no visible text or symbols

Interior view of a medical or laboratory equipment unit with a central display and two red circles highlighting features (no visible text or symbols)

Korjaus

White plastic enclosure with red arrows pointing to a vertical structure, no visible text or symbols

Diagram of hands connecting a cable to a door panel with shelves, showing structural components (no text or symbols)

1. Retirer le joint de porte de la rainure.

Illustration of hands holding a cable with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon (no text or symbols)

Line drawing of a door handle with arrows indicating force or movement, showing internal compartments (no text or symbols)

Réparation

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols present)

Technical diagram showing mechanical assembly steps with numbered annotations (① and ②) indicating process flow.

Diagram illustrating a mechanical or electrical setup with labeled components and directional arrows, including a magnified inset showing rotational motion.

Close-up of a mechanical component with a highlighted curved section and circular arrow indicating rotation (no text or symbols)

Close-up of a mechanical assembly with visible wiring and components (no text or symbols)

Réparation

Technical diagram showing a mechanical assembly with labeled parts and a numbered annotation indicating rotation direction.

Close-up of a mechanical component with three circular arrows indicating rotational or clockwise motion (no text or symbols visible)

Close-up of a metallic mechanical component with a circular arrow indicating rotation (no text or symbols visible)

Close-up of an electrical connector with wires and components, no visible text or symbols

Réparation

Technical diagram showing electrical switch components with numbered annotations and a magnified view of the switch mechanism.

Close-up of a mechanical switch or lever mechanism with three circular arrows indicating rotational motion (no text or symbols visible)

Diagram of a blue container with black arrows indicating direction, no text or symbols present

Technical diagram showing a mechanical assembly with labeled components and warning symbol

Isometric architectural diagram of a multi-level building facade with internal compartments and a directional arrow (no text or symbols)

Diagram showing a blue mechanical component with labeled parts and directional arrows indicating flow or movement.

Diagram showing a blue panel with two arrows labeled ① and ②, indicating direction of movement or force on a vertical surface.

Diagram showing a mechanical or structural component with labeled parts and directional arrows indicating flow or movement.

Technical diagram showing a blue component with labeled parts ① and ②, likely illustrating a mechanical or structural assembly.

Diagram showing a mechanical or structural component with numbered parts and directional arrows indicating flow or movement.

Technical diagram showing a structural assembly with labeled components and directional arrows indicating flow or movement.

Technical diagram showing a mechanical or electrical component with labeled parts ① and ②, indicating directional flow or movement.

Hand holding a small transparent plastic clip attached to a white wall (no text or symbols visible)

Close-up of hands holding a small white object with a red arrow pointing to it, next to a wall-mounted device (no visible text or symbols)

Réparation

Close-up of a hand holding a small white electronic component with a red annotation highlighting a green square (no visible text or symbols)

Scanned image of a device casing with visible internal components and a QR code on the lid.

Close-up of a white electronic component with a red arrow pointing to a small black component (no visible text or symbols)

Two-panel image showing a white cabinet with a metal rod and a red arrow pointing to a vertical line, no text or symbols present.

Réparation

Two-panel image showing a pipe joint before and after modification, with red arrows indicating direction of movement (no text or symbols present)

1. Retirer la bande LED de la prise.

301866441 218

Close-up of a mechanical component with a metallic bracket and a small circular feature, mounted on a dark surface (no visible text or symbols)

Close-up of a mechanical component with a white housing and red arrow indicating a specific point (no text or symbols visible)

Réparation

Diagram of a device component with labeled parts, showing a connector and cable connection

Interior view of a white appliance with visible door, outlets, and ceiling fixtures (no text or symbols)

Diagram showing three views of a refrigerator interior with red arrows indicating directional changes, labeled with numbers ①, ②, and ③.

Réparation

Interior view of a refrigerator unit with labeled ports and internal components (no readable text or symbols)

Interior view of a white appliance with red annotation boxes highlighting internal components (no text or symbols visible)

Close-up of hands installing or adjusting a white LED light fixture with a small component, no visible text or symbols

Close-up of a white plastic enclosure with internal compartments and a small inset showing a mechanical component (no text or symbols visible)

Réparation

Technical diagram of a mechanical assembly with labeled components and directional arrows

Interior view of a white appliance or enclosure with ventilation grilles and a central display unit (no visible text or symbols)

Interior view of a medical or laboratory equipment room with white plastic components and a red circle highlighting a feature (no visible text or symbols)

Interior view of a white plastic appliance with a black circular component and a red circular label (no readable text or symbols)

Interior view of a white electronic device with a fan and circuit board (no visible text or symbols)

Interior view of a medical or laboratory equipment setup with a central vertical structure and a motor (no visible text or symbols)

Réparation

White plastic electronic device casing with red directional arrows indicating movement or flow (no text or symbols visible)

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable inside a rectangular frame, with an arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon pointing to the top panel (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Instandsetzen

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Technical diagram showing mechanical assembly steps with labeled components and directional arrows

Technical diagram illustrating a mechanical assembly with labeled components and directional arrows, including a magnified inset showing rotational motion.

Close-up of a mechanical component with a circular arrow indicating rotational motion (no text or symbols)

Close-up of a mechanical assembly with visible wiring and components (no text or symbols)

Instandsetzen

Technical diagram showing a mechanical assembly with labeled parts and an inset showing a rotating component with a red knob.

Close-up of a mechanical component with three circular arrows indicating rotational motion (no text or symbols)

Close-up of a metallic mechanical component with a circular arrow indicating rotation (no text or symbols visible)

Close-up of an electrical connector with wires and components, no visible text or symbols

Instandsetzen

Technical diagram showing electrical wiring and a mechanical component with labeled parts and an inset illustrating the winding mechanism.

Close-up of a mechanical switch or lever mechanism with three circular arrows indicating rotational motion (no text or symbols visible)

Diagram of a blue container with black arrows indicating direction, no text or symbols present

Diagram showing a blue rectangular object with numbered arrows indicating movement or force, labeled ① and ②.

Pure technical diagram of a mechanical assembly with no visible text, numbers, or symbols

Isometric architectural diagram of a multi-level building structure with blue and gray panels, showing internal layout and a black arrow indicating direction (no text or symbols)

Diagram showing a blue mechanical component with labeled parts and directional arrows indicating flow or movement.

Diagram showing a blue panel with two arrows labeled ① and ②, indicating direction of movement or force on a vertical structure.

Diagram showing a mechanical or structural component with labeled parts and directional arrows indicating flow or movement.

Technical diagram showing a blue component with labeled parts ① and ②, likely illustrating a mechanical or structural assembly.

Technical diagram showing a mechanical assembly with numbered components and directional arrows indicating flow or movement.

Technical diagram showing a structural component with labeled parts ① and ②, likely illustrating a mechanical or architectural design.

Technical diagram showing a mechanical or structural assembly with labeled components and directional arrows indicating flow or movement.

Close-up of a hand holding a small transparent plastic clip attached to a white wall (no text or symbols visible)

Close-up of hands holding a small white object with a red arrow, next to a wall-mounted device (no visible text or symbols)

Instandsetzen

Close-up of a hand holding a small white electronic component with a red annotation highlighting a component (no visible text or symbols)

Scanned image of a device casing with visible internal components and a QR code on the cover.

Close-up of a white electronic component with a red arrow pointing to a small black tip, no visible text or symbols.

Two-panel image showing a white cabinet with a metal rod and a red arrow pointing to a vertical line on the right (no text or symbols)

Instandsetzen

Two-panel image showing a pipe joint before and after installation, with red arrows indicating direction of movement (no text or symbols)

Close-up of a mechanical component with a metallic bracket and a small circular feature, mounted on a dark surface (no visible text or symbols)

Close-up of a mechanical component with a white housing and red arrow indicating a specific point (no text or symbols visible)

Instandsetzen

Diagram of a device component with labeled parts, showing a connector and cable connection

Interior view of a modern kitchen or bathroom with numbered fixtures and lighting fixtures (no visible text or symbols)

Diagram showing three steps of a device interior with red arrows indicating directional changes, likely demonstrating a process or state change.

Instandsetzen

Interior view of a laboratory apparatus with labeled components and red arrows indicating features (no readable text or symbols)

Interior view of a white appliance with red annotation boxes highlighting internal components (no text or symbols visible)

Close-up of hands installing or adjusting a white electronic component with a small red circle highlighting a detail (no visible text or symbols)

Interior view of a white plastic enclosure with internal compartments and a labeled component (no text or symbols visible)

Instandsetzen

Technical diagram of a mechanical assembly with labeled components and directional arrows

Interior view of a microwave oven with ventilation grilles and a central display unit (no visible text or symbols)

Interior view of a medical or laboratory equipment room with white plastic components and a red circle highlighting a small feature (no visible text or symbols)

Close-up of a white plastic mechanical component with a black circular component and a red circular label (no readable text or symbols)

Interior view of a white electronic device with a fan and circuit board (no visible text or symbols)

Interior view of a medical or laboratory equipment setup with a central vertical structure and a motor (no visible text or symbols)

Instandsetzen

White plastic electronic device casing with red directional arrows indicating movement or flow (no text or symbols visible)

Illustration of hands connecting a cable to a storage unit panel (no text or symbols)

Illustration of hands connecting a cable to a wall-mounted panel with a curved arrow indicating rotation (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Επισκευή

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Technical diagram showing mechanical assembly steps with numbered annotations (① and ②) indicating process flow.

Diagram illustrating a mechanical or electrical setup with labeled components and directional arrows, including a magnified inset showing rotational motion.

Close-up of a mechanical component with a highlighted curved section and circular arrow indicating rotation (no text or symbols)

Close-up of a mechanical assembly with visible wiring and components (no text or symbols)

Επισκευή

Technical diagram showing a mechanical assembly with labeled parts and a magnified view of the switch mechanism.

Close-up of a mechanical component with three circular arrows indicating rotational motion (no text or symbols)

Close-up of a metallic mechanical component with a circular arrow indicating rotation (no text or symbols visible)

Close-up of an electrical connector with wires and connectors, no visible text or symbols

Επισκευή

Technical diagram showing electrical switch mechanism with labeled components and a magnified view of the switch mechanism.

Close-up of a mechanical switch or lever mechanism with three circular arrows indicating rotational direction (no text or symbols visible)

Diagram of a blue container with black arrows indicating direction, no text or symbols present

Technical diagram showing a mechanical assembly with labeled components and warning symbol

Το ράφι αφαιρέθηκε.

Isometric architectural diagram of a multi-level building facade with internal compartments and a directional arrow (no text or symbols)

Diagram showing a blue mechanical component with numbered arrows indicating direction, labeled ① and ②.

Diagram showing a blue panel with two arrows labeled ① and ②, indicating direction of movement or force on a vertical surface.

Diagram showing a mechanical or structural component with labeled parts and directional arrows indicating flow or movement.

Technical diagram showing a blue component with labeled parts ① and ②, likely illustrating a mechanical or structural assembly.

Diagram showing a mechanical or structural component with numbered parts and directional arrows indicating flow or movement.

Technical diagram showing a structural component with labeled parts ① and ②, likely illustrating a mechanical or architectural design.

Technical diagram showing a mechanical or structural component with labeled parts ① and ②, indicating directional flow or movement.

Hand holding a small rectangular object on a white shelf (no visible text or symbols)

Close-up of hands holding a white plastic clip with a red arrow pointing to it, against a plain background (no text or symbols visible)

Επισκευή

Close-up of a hand holding a small electronic component with a red annotation highlighting a green square (no visible text or symbols)

Scanned image of an electronic device casing with visible internal components and a QR code on the cover.

Close-up of a white electronic component with a red arrow pointing to a small black tip, no visible text or symbols.

Two-panel image showing a white room interior with a metal rod and a red arrow pointing to a vertical line, no text or symbols present.

Επισκευή

Two-panel image showing a pipe joint before and after modification, with red arrows indicating direction of movement (no text or symbols)

Close-up of a mechanical component with a metallic bracket and a small circular feature, mounted on a dark surface (no visible text or symbols)

Close-up of a white electrical connector with a red arrow pointing to a small terminal (no text or symbols visible)

Επισκευή

Diagram of a device component with labeled parts, showing a connector and cable connection

Interior view of a white appliance with visible door, outlets, and ceiling fixtures (no text or symbols)

Diagram showing three views of a refrigerator interior with red arrows indicating directional changes, labeled with numbers ①, ②, and ③.

Επισκευή

Interior view of a refrigerator unit with labeled ports and internal components (no readable text or symbols)

Interior view of a white appliance with red annotation boxes highlighting internal components (no text or symbols visible)

Close-up of hands installing or adjusting a white LED light fixture with a small component, no visible text or symbols

Close-up of a white plastic enclosure with internal compartments and a small inset showing a mechanical component (no text or symbols visible)

Επισκευή

Technical diagram of a mechanical assembly with labeled components and directional arrows

Interior view of a white appliance or enclosure with ventilation grilles and a central display unit (no visible text or symbols)

Interior view of a medical or laboratory equipment room with white plastic components and a red circle highlighting a small feature (no visible text or symbols)

Close-up of a white plastic mechanical component with a black circular component and a red circle highlighting a specific area (no visible text or symbols)

Interior view of a white appliance with a fan and internal components, no visible text or symbols

Interior view of a medical or laboratory equipment unit with a central display and two red circles highlighting features (no visible text or symbols)

Επισκευή

White plastic electronic device casing with red directional arrows indicating movement or flow (no text or symbols visible)

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Javítás

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Technical diagram showing mechanical assembly steps with labeled arrows and components

Diagram illustrating a mechanical or electrical setup with labeled components and directional arrows, including a magnified inset showing rotational motion.

Close-up of a mechanical component with a highlighted curved arrow indicating rotational motion (no text or symbols)

Close-up of a mechanical assembly with visible wiring and components (no text or symbols)

Javítás

Technical diagram showing a mechanical assembly with labeled parts and an inset showing a rotating component with a red knob.

Close-up of a mechanical component with three circular arrows indicating rotational motion (no text or symbols)

Close-up of a metallic mechanical component with a circular arrow indicating rotation (no text or symbols visible)

Close-up of an electrical connector with wires and components, no visible text or symbols

Javítás

Technical diagram showing electrical wiring connections with labeled parts and a magnified view of the switch mechanism.

Close-up of a mechanical switch or lever mechanism with three circular arrows indicating rotational motion (no text or symbols visible)

Diagram of a blue container with black arrows indicating direction, no text or symbols present

Technical diagram showing a mechanical assembly with labeled components and warning symbol

Isometric architectural diagram of a multi-level building with structural elements and a directional arrow (no text or symbols)

Diagram showing a blue mechanical component with labeled parts and directional arrows indicating flow or movement.

Diagram showing a blue panel with two arrows labeled ① and ②, indicating direction of movement or force on a vertical structure.

Diagram showing a mechanical or structural component with labeled parts and directional arrows indicating flow or movement.

Technical diagram showing a blue component with labeled parts ① and ②, likely illustrating a mechanical or structural assembly.

Diagram of a mechanical or structural assembly with numbered components and directional arrows indicating flow or movement.

Technical diagram showing a structural assembly with labeled components and directional arrows indicating flow or movement.

Technical diagram showing a mechanical or structural assembly with labeled components and directional arrows indicating flow or movement.

Hand holding a small white plastic clip attached to a white ceiling panel (no text or symbols visible)

Close-up of hands holding a small white plastic clip with a red arrow pointing to it, next to a green connector (no visible text or symbols)

Close-up of a hand holding a small electronic component with a red annotation highlighting a component (no visible text or symbols)

Javítás

Scanned image of a white plastic enclosure with visible QR code and printed labels, likely for product or packaging design.

Close-up of a white plastic component with a red arrow pointing to a small black tip, no visible text or symbols.

Two-panel image showing a white cabinet with a cable and a red arrow pointing to a corner detail (no text or symbols)

Two-panel image showing a vertical pipe or tube with red arrows pointing to features, before and after modification (no text or symbols visible)

Javítás

Close-up of a mechanical component with a tool inserted, no visible text or symbols

Close-up of a white electrical connector with a red arrow pointing to a small terminal (no text or symbols visible)

Diagram of an electronic device showing a connector with labeled parts and directional arrows indicating connection points.

Interior view of a modern kitchen or bathroom with numbered fixtures and ceiling-mounted appliances (no visible text or symbols)

Diagram showing three steps of a battery internal structure with red arrows indicating direction and labels ①, ②, ③.

Javítás

Interior view of a refrigerator unit with labeled ports and internal components (no readable text or symbols)

Interior view of a white appliance with red annotation boxes highlighting internal components (no text or symbols visible)

Close-up of hands installing or adjusting a white LED light fixture with a small component, no visible text or symbols

Close-up of a white plastic enclosure with internal compartments and a small inset showing a mechanical component (no text or symbols visible)

Javítás

Technical diagram of a mechanical assembly with labeled parts and directional arrows

Interior view of a white appliance or enclosure with ventilation grilles and a central display unit (no visible text or symbols)

Interior view of a medical or laboratory equipment room with white plastic components and a circular annotation (no visible text or symbols)

Close-up of a white plastic mechanical component with a black circular component and red circular annotation (no readable text or symbols)

Interior view of a white electronic device with a fan and circuit board (no visible text or symbols)

Interior view of a medical or laboratory equipment unit with a central display and two red circles highlighting features (no visible text or symbols)

Javítás

White plastic electronic device casing with red directional arrows indicating movement or flow (no text or symbols visible)

Diagram of hands connecting a cable to a rectangular panel with shelves, showing structural details (no text or symbols)

Illustration of hands holding a cable inside a rectangular frame with a curved arrow indicating rotation (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Riparazione

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Technical diagram showing mechanical assembly steps with numbered annotations (① and ②) indicating process flow.

Diagram illustrating a mechanical or electrical setup with labeled components and directional arrows, including a magnified inset showing rotational motion.

Close-up of a mechanical component with a circular arrow indicating rotational motion (no text or symbols)

Close-up of a mechanical assembly with visible wiring and components (no text or symbols)

Riparazione

Technical diagram showing a mechanical assembly with labeled parts and an inset showing a rotating component with a red knob.

Close-up of a mechanical component with three circular arrows indicating rotational motion (no text or symbols)

Close-up of a metallic mechanical component with a circular arrow indicating rotation (no text or symbols visible)

Close-up of an electrical connector with wires and components, no visible text or symbols

Riparazione

Technical diagram showing electrical switch components with numbered annotations and a magnified view of the switch mechanism.

Close-up of a mechanical component with three circular arrows indicating rotational motion (no text or symbols)

Diagram of a blue container with black arrows indicating direction, no text or symbols present

Diagram showing a blue rectangular object with arrows indicating direction, labeled with numbers ① and ②, and an arrow symbol pointing upward.

Technical diagram of a mechanical assembly with layered components (no text or symbols)

Isometric architectural diagram of a multi-level building facade with internal compartments and a directional arrow (no text or symbols)

Diagram showing a blue mechanical component with labeled parts and directional arrow indicating flow or movement

Diagram showing a blue panel with two arrows labeled ① and ②, indicating direction of movement or force on a surface.

Diagram showing a mechanical or structural component with labeled parts and directional arrows indicating flow or movement.

Technical diagram showing a blue component with labeled parts and directional arrows indicating flow or movement.

Diagram showing a mechanical or structural component with numbered parts and directional arrows indicating flow or movement.

Technical diagram showing a structural component with labeled parts ① and ②, likely illustrating a mechanical or architectural assembly.

Technical diagram showing a mechanical or structural assembly with labeled components and directional arrows indicating flow or movement.

Close-up of a hand holding a small rectangular object on a white surface (no text or symbols visible)

Close-up of hands holding a small white object with a red arrow pointing to it, next to a green and white connector (no visible text or symbols)

Riparazione

Close-up of a hand holding a small electronic component with a red annotation highlighting a feature (no readable text or symbols)

Scanned image of a device casing with visible internal components and a QR code on the cover.

Close-up of a white mechanical component with a red arrow pointing to a small feature (no text or symbols visible)

Two-panel image showing a white cabinet with a metal latch and a red arrow pointing to a detail on the right wall (no text or symbols)

Riparazione

Two-panel image showing a pipe joint before and after modification, with red arrows indicating direction of movement (no text or symbols present)

Close-up of a mechanical component with a metallic bracket and a small circular feature, mounted on a dark surface (no visible text or symbols)

Close-up of a white electrical connector with a red arrow pointing to a small terminal (no text or symbols visible)

Riparazione

Diagram of a device component with labeled parts, showing a cable inserted into a terminal block and marked with arrows.

Interior view of a modern kitchen or bathroom with numbered fixtures and lighting fixtures (no visible text or symbols)

Diagram showing three steps of a refrigerator interior with labeled parts and red arrows indicating features

Riparazione

1. Estrarre la divisoria centrale.

Interior view of a refrigerator unit with labeled ports and internal components (no readable text or symbols)

Interior view of a white appliance with red annotation arrows pointing to internal components (no visible text or symbols)

Close-up of hands installing or adjusting a white LED light fixture with a small component, no visible text or symbols

Interior view of a white plastic appliance housing with internal compartments and a close-up of the interior (no visible text or symbols)

Riparazione

Technical diagram of a mechanical assembly with labeled components and directional arrows

Interior view of a microwave oven or refrigerator with ventilation grilles and a central display unit (no visible text or symbols)

Interior view of a medical or laboratory device with white components and a circular marker (no visible text or symbols)

Close-up of a white plastic mechanical component with a black circular component and a red circular label (no readable text or symbols)

Interior view of a white electronic device with a fan and circuit board (no visible text or symbols)

Interior view of a medical or laboratory equipment setup with a central vertical structure and a motor (no visible text or symbols)

Riparazione

White plastic electronic device casing with red directional arrows indicating movement or flow (no text or symbols visible)

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Remonts

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols present)

Technical diagram showing mechanical assembly steps with numbered annotations (① and ②) indicating process flow.

Durvju rokturis ir nonemts.

Otru durvju rokturi var nonemt tāpat.

Diagram illustrating a mechanical or electrical setup with labeled components and directional arrows, including a magnified inset showing rotational motion.

Atvilktnes rokturis ir nonemts.

Close-up of a mechanical component with a circular arrow indicating rotational motion (no text or symbols)

Close-up of a mechanical assembly with visible wiring and components (no text or symbols)

Remonts

Technical diagram showing a mechanical assembly with labeled parts and a numbered inset indicating a rotation or adjustment mechanism.

Close-up of a mechanical component with three circular arrows indicating rotational motion (no text or symbols)

Close-up of a metallic mechanical component with a circular arrow indicating rotation (no text or symbols visible)

Close-up of an electrical connector with wires and components, no visible text or symbols

Remonts

Technical diagram showing electrical wiring and a switch mechanism with labeled components and an inset illustrating the winding mechanism.

Close-up of a mechanical switch with three rotary buttons and a metallic handle (no text or symbols visible)

Diagram of a blue container with black arrows indicating direction, no text or symbols present

Technical diagram showing a mechanical assembly with labeled components and warning symbol

Plaukts ir iznemts.

Isometric architectural diagram of a multi-level building facade with internal compartments and a directional arrow (no text or symbols)

Piederumu stienis ir iznemts.

Diagram showing a blue mechanical component with labeled parts and directional arrows indicating flow or movement.

Diagram showing a blue panel with two arrows labeled ① and ②, indicating direction of movement or force on a surface.

Diagram showing a mechanical or structural component with labeled parts and directional arrows indicating flow or movement.

Technical diagram showing a blue component with labeled parts ① and ②, likely illustrating a mechanical or structural assembly.

Technical diagram showing a mechanical assembly with numbered components and directional arrows indicating flow or movement.

Technical diagram showing a structural assembly with labeled components and directional arrows indicating flow or movement.

Technical diagram showing a mechanical or electrical component with labeled parts ① and ②, indicating directional flow or movement.

Hand holding a small white plastic clip attached to a wall-mounted panel (no text or symbols visible)

Close-up of hands holding a small white object with a red arrow pointing to it, next to a green and white tool (no visible text or symbols)

Remonts

1. Atvienojiet LED gaismekla spaili.

Close-up of a hand holding a small electronic component with a red annotation highlighting a feature (no readable text or symbols)

Scanned image of an electronic device casing with visible internal components and a QR code on the cover.

Close-up of a white mechanical component with a red arrow pointing to a small feature (no text or symbols visible)

Two-panel image showing a white cabinet with a metal latch and a red arrow pointing to a corner detail (no text or symbols)

Remonts

1. Tāpat nonemiet LED apgaismes joslu.

Two-panel image showing a pipe joint before and after modification, with red arrows indicating direction of movement (no text or symbols present)

Close-up of a mechanical component with a metallic bracket and a small circular feature, no visible text or symbols.

1. Atvienojiet gaismekla spaili.

Close-up of a white electrical connector with a red arrow pointing to a small terminal (no text or symbols visible)

Remonts

Diagram of a device component with labeled parts, showing a connector and cable connection

0 °C nodalijuma gaismeklis ir nonemts.

Interior view of a white appliance with visible door, outlets, and ceiling fixtures (no text or symbols)

Diagram showing three views of a refrigerator interior with red arrows indicating directional changes, labeled with numbers ①, ②, and ③.

Remonts

1. Izvelciet centrālo starpliku.

Interior view of a refrigerator unit with labeled ports and internal components (no readable text or symbols)

Interior view of a white appliance with red annotation boxes highlighting internal components (no text or symbols visible)

1. Atvienojiet displeja moduła elektrisko savienojumu.

Close-up of hands installing or adjusting a white LED light fixture with a small component, no visible text or symbols

Close-up of a white plastic enclosure with internal compartments and a small inset showing a mechanical component (no text or symbols visible)

Remonts

Technical diagram of a mechanical assembly with labeled components and directional arrows

Interior view of a microwave oven with ventilation grilles and a central display unit (no visible text or symbols)

Interior view of a medical or laboratory equipment room with white plastic components and a circular annotation (no visible text or symbols)

Interior view of a white plastic appliance with a black circular component and red circular mark (no visible text or symbols)

Interior view of a white electronic device with a fan and circuit board (no visible text or symbols)

Interior view of a medical or laboratory equipment setup with a central vertical structure and a motor (no visible text or symbols)

Remonts

White plastic enclosure with red arrows pointing to a vertical structure, no visible text or symbols

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands connecting a cable to a wall-mounted panel with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Remontas

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Technical diagram showing mechanical assembly steps with labeled components and directional arrows

Diagram illustrating a mechanical or electrical setup with labeled components and directional arrows, including a magnified view of the component.

Close-up of a mechanical component with a highlighted curved arrow indicating rotational motion (no text or symbols)

Close-up of a mechanical assembly with visible wiring and components (no text or symbols)

Remontas

Technical diagram showing a mechanical assembly with labeled parts and an inset showing a rotating component with a red knob.

Close-up of a mechanical component with three circular arrows indicating rotational motion (no text or symbols)

Close-up of a metallic mechanical component with a circular arrow indicating rotation (no text or symbols visible)

Close-up of an electrical connector with wires and components, no visible text or symbols

Remontas

Technical diagram showing electrical wiring and a mechanical component with labeled parts and an inset illustrating the winding mechanism.

Close-up of a mechanical switch with three rotary buttons and a metallic handle (no text or symbols visible)

Diagram of a blue rectangular container with black arrows indicating direction, mounted on a vertical structure (no text or symbols)

Technical diagram showing a mechanical assembly with labeled components and warning symbol

Lentyna išimta.

Isometric architectural diagram of a multi-level building facade with internal compartments and a directional arrow (no text or symbols)

Diagram showing a blue mechanical component with labeled parts and directional arrows indicating flow or movement.

Diagram showing a blue panel with two arrows labeled ① and ②, indicating direction of movement or force on a surface.

Diagram showing a mechanical or structural component with labeled parts and directional arrows indicating flow or movement.

Technical diagram showing a blue component with labeled parts ① and ②, likely illustrating a mechanical or structural assembly.

Diagram showing a mechanical or structural assembly with numbered components and directional arrows indicating flow or movement.

Technical diagram showing a structural component with labeled parts ① and ②, indicating directional flow or force vectors.

Technical diagram showing a mechanical or electrical component with labeled parts and directional arrows indicating flow or movement.

Hand holding a small transparent plastic clip attached to a white wall (no text or symbols visible)

Close-up of hands holding a small white object with a red arrow, next to a green and white component (no visible text or symbols)

Remontas

Close-up of a hand holding a small electronic component with a red annotation highlighting a specific part (no visible text or symbols)

Scanned image of a device casing with visible internal components and a QR code on the cover.

Close-up of a white mechanical component with a red arrow pointing to a small black tool or probe (no text or symbols visible)

Two-panel image showing a white cabinet with a metal rod and a red arrow pointing to a vertical line, no text or symbols present.

Remontas

Two-panel image showing a pipe joint before and after modification, with red arrows indicating direction of movement (no text or symbols present)

Close-up of a mechanical component with a metallic bracket and internal structure (no visible text or symbols)

Close-up of a mechanical component with a white housing and red arrow indicating a specific point (no text or symbols visible)

Remontas

Diagram of a device component with labeled parts, showing a connector and cable connection

Interior view of a white appliance with visible door, outlets, and ceiling fixtures (no text or symbols)

Diagram showing three views of a refrigerator interior with red arrows indicating directional changes, labeled with numbers ①, ②, and ③.

Remontas

Interior view of a refrigerator unit with labeled ports and internal components (no readable text or symbols)

1. Atlaisvinkite keturis gnybtus.

Interior view of a white appliance with red annotation boxes highlighting internal components (no text or symbols visible)

1. Atjunkite ekrano modulio elektros jungti.


Close-up of hands installing or adjusting a white LED light fixture with a small component, no visible text or symbols

Close-up of a white plastic enclosure with internal compartments and a small inset showing a component (no text or symbols visible)

Remontas

Technical diagram of a mechanical assembly with labeled parts and directional arrows

Interior view of a white appliance or enclosure with ventilation grilles and a central display unit (no visible text or symbols)

Atlaisvinant dangtelj pasigirs „spragtelėjimas“.

Interior view of a medical or laboratory device with white plastic components and a circular annotation (no visible text or symbols)

Interior view of a white plastic appliance with a black circular component and a red circular label (no readable text or symbols)

Interior view of a white electronic device with a fan and circuit board (no visible text or symbols)

Interior view of a medical or laboratory equipment unit with a central vertical structure and two circled points of interest, no visible text or symbols.

Remontas

White plastic enclosure with red arrows pointing to a vertical structure, no visible text or symbols

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Diagram of hands holding a refrigerator with shelves and doors, showing structural components (no text or symbols)

Reparasjon

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols present)

Technical diagram showing mechanical assembly steps with numbered annotations (① and ②) indicating process flow.

Diagram illustrating a mechanical or electrical setup with labeled components and directional arrows, including a magnified inset showing rotational motion.

Close-up of a mechanical component with a circular arrow indicating rotational motion (no text or symbols)

Close-up of a mechanical assembly with visible wiring and components, no text or symbols present

Reparasjon

1. 1. Skru ut skruen for jordkoblingen (1).

2. Skru ut tre skruer (2)

3. Demonter øvre hengsel.

Technical diagram showing a mechanical assembly with labeled parts and an inset showing a rotating component with a knob.

∅vre hengsel er demontert.

Close-up of a mechanical component with three circular arrows indicating rotational or clockwise motion (no text or symbols visible)

Close-up of a metallic mechanical component with a circular arrow indicating rotation (no text or symbols visible)

Close-up of an electrical connector with wires and components, no visible text or symbols

Reparasjon

1. 1. Skru ut skruen for jordkoblingen (1).

2. Skru ut tre skruer (2)

3. Demonter øvre hengsel.

Technical diagram showing electrical wiring and a mechanical component with labeled parts, including a magnified view of the switch mechanism.

∅vre hengsel er demontert.

Close-up of a mechanical switch with three rotary buttons and a metallic handle (no text or symbols visible)

Diagram of a blue container with black arrows indicating direction, no text or symbols present

Diagram showing a blue rectangular object with arrows indicating direction, labeled with numbers ① and ②, and an arrow symbol pointing upward.

Technical diagram of a mechanical assembly with layered components (no text or symbols)

Isometric architectural diagram of a multi-level building facade with internal compartments and a directional arrow (no text or symbols)

Utstyrsstangen er demontert.

Diagram showing a blue mechanical component with labeled parts and directional arrows indicating flow or movement.

Diagram showing a blue panel with two arrows labeled ① and ②, indicating direction of movement or force on a vertical structure.

Den faste hyllen er demontert.

Diagram showing a mechanical or structural component with labeled parts and directional arrows indicating flow or movement.

Cool-Fresh-beholderen er demontert.

Technical diagram showing a blue component with labeled parts ① and ②, likely illustrating a mechanical or structural assembly.

→ Beholderen for frysevarer (liten) er demontert.

4.12.2 Montering av beholder for frysevarer (liten)

Diagram of a mechanical or structural assembly with numbered components and directional arrows indicating flow or movement.

→ Beholderen for frysevarer (flat) er demontert.

Technical diagram showing a structural component with labeled parts ① and ②, likely illustrating a mechanical or architectural design.

Beholderen for frysevarer (stor) er demontert.

Technical diagram showing a mechanical or structural assembly with labeled components and directional arrows indicating flow or movement.

Isbitbeholderen er demontert.

Hand holding a small rectangular object on a white ceiling panel (no visible text or symbols)

Close-up of hands holding a small white object with a red arrow, next to a green and white component (no visible text or symbols)

Reparasjon

Close-up of a hand holding a small electronic component with a red annotation highlighting a feature (no readable text or symbols)

∅verste LED-lampe i kjøleskapdelen er demontert.

Scanned image of a device casing with visible internal components and a QR code on the cover.

Close-up of a white mechanical component with a red arrow pointing to a small black tool or probe (no text or symbols visible)

Two-panel image showing a white cabinet with a metal rod and a red arrow pointing to a vertical line, no text or symbols present.

Reparasjon

Two-panel image showing a pipe joint before and after modification, with red arrows indicating direction of movement (no text or symbols)

Close-up of a mechanical component with a metallic bracket and internal structure (no visible text or symbols)

Close-up of a mechanical component with a red arrow pointing to a small illuminated component (no visible text or symbols)

Reparasjon

1. 1. Løsne kroken (1).

2. Demonter lampen (2).

Diagram of a device component with labeled parts, showing a connector and cable connection

→ Lampen for 0 °C er demontert.

Interior view of a white appliance with ventilation ducts and numbered components (no visible text or symbols)

Diagram showing three steps of a refrigerator interior with red arrows indicating directional changes, labeled with numbers and symbols.

Reparasjon

1. Dra ut middelen.

Interior view of a refrigerator unit with labeled ports and internal components (no readable text or symbols)

1. Løsne fire klips.

Interior view of a white appliance with red annotation boxes highlighting internal components (no text or symbols visible)

Close-up of hands installing or adjusting a white LED light fixture with a small component, no visible text or symbols

1. 1. Løsne to klips (1).

2. Ta ut rammen (2).

Close-up of a white plastic enclosure with internal compartments and a small inset showing a mechanical component (no text or symbols visible)

Reparasjon

1. 1. Skru ut to skruer (1).

2. Dra ut det midtre brettet (2).

Technical diagram of a mechanical assembly with labeled components and directional arrows

1. Dra ut fordunstningsdekselet for 0 °C-rommet.

Interior view of a white appliance or enclosure with ventilation grilles and a central display unit (no visible text or symbols)

Interior view of a medical or laboratory equipment room with white plastic components and a red circle highlighting a small feature (no visible text or symbols)

Close-up of a white plastic mechanical component with a black circular component and a red circular label (no readable text or symbols)

Dra ut fordunstningsdekselet for 0 °C-rommet.

Reparasjon

Interior view of a white electronic device with a fan and circuit board (no visible text or symbols)

1. Dra ut bakveggrupper (2).

Interior view of a medical or laboratory equipment unit with a central display and two red circles highlighting features (no visible text or symbols)

Reparasjon

White plastic electronic device casing with red directional arrows indicating movement or flow (no text or symbols visible)

Diagram of hands connecting a cable to a rectangular panel with shelves, showing structural details (no text or symbols)

Illustration of hands holding a cable inside a rectangular frame with a curved arrow indicating rotation (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Naprawy

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Technical diagram showing mechanical assembly steps with numbered annotations

Diagram illustrating a mechanical or electrical setup with labeled components and directional arrows, including a magnified inset showing rotational motion.

Close-up of a mechanical component with a circular arrow indicating rotational motion (no text or symbols)

Close-up of a mechanical assembly with visible wiring and components, no text or symbols present

Naprawy

Technical diagram showing a mechanical assembly with labeled parts and a numbered step indicator (①) for adjustment.

Close-up of a mechanical component with three circular arrows indicating rotational motion (no text or symbols)

Close-up of a metallic mechanical component with a circular arrow indicating rotation (no text or symbols visible)

Close-up of an electrical connector with wires and components, no visible text or symbols

Naprawy

Technical diagram showing electrical switch mechanism with labeled components and a magnified view of the switch mechanism.

Close-up of a mechanical switch or lever mechanism with three circular arrows indicating rotational motion (no text or symbols visible)

Diagram of a blue rectangular container with black arrows indicating direction, mounted on a vertical structure (no text or symbols)

Technical diagram showing a mechanical assembly with labeled components and warning symbol

Półka jest wyjęta.

4.7.2 Montaż półki

Isometric architectural diagram of a multi-level building facade with internal compartments and a directional arrow (no text or symbols)

Diagram showing a blue mechanical component with labeled parts and directional arrows indicating flow or movement.

Diagram showing a blue panel with two arrows labeled ① and ②, indicating direction of movement or force on a vertical structure.

Diagram showing a mechanical or structural component with labeled parts and directional arrows indicating flow or movement.

Technical diagram showing a blue component with labeled parts ① and ②, likely illustrating a mechanical or structural assembly.

Diagram showing a mechanical or structural component with numbered parts and directional arrows indicating flow or movement.

Technical diagram showing a mechanical assembly with labeled components and directional arrows indicating flow or movement.

Technical diagram showing a mechanical or structural assembly with labeled components and directional arrows indicating flow or movement.

Close-up of a hand holding a small white object on a white surface, no visible text or symbols

Close-up of hands holding a small white object with a red arrow, next to a wall-mounted electrical outlet (no visible text or symbols)

Naprawy

Close-up of a hand holding a small electronic component with a red annotation highlighting a feature (no readable text or symbols)

Scanned image of an electronic device casing with visible internal components and a QR code on the cover.

Close-up of a white mechanical component with a red arrow pointing to a small black tool tip (no text or symbols visible)

Two-panel image showing a white cabinet with a metal latch and a red arrow pointing to a vertical panel edge, no text or symbols present.

Naprawy

Two-panel image showing a pipe joint before and after modification, with red arrows indicating direction of movement (no text or symbols)

Close-up of a mechanical component with a metallic bracket and internal structure (no visible text or symbols)

Close-up of a mechanical component with a red arrow pointing to a small illuminated component (no visible text or symbols)

Naprawy

Diagram of a device component with labeled parts, showing a connector and cable connection

Interior view of a white appliance with visible wiring and numbered components (no readable text or symbols)

Diagram showing three views of a refrigerator interior with red arrows indicating directional changes, labeled with numbers 1, 2, and 3.

Naprawy

Interior view of a refrigerator unit with labeled ports and internal components (no readable text or symbols)

Interior view of a white appliance with red annotation boxes highlighting internal components (no text or symbols visible)

Close-up of hands installing or adjusting a white LED light fixture with a small component, no visible text or symbols

Close-up of a white plastic enclosure with internal compartments and a small inset showing a mechanical component (no text or symbols visible)

Naprawy

Technical diagram of a mechanical assembly with labeled components and directional arrows

Interior view of a white appliance or enclosure with ventilation grilles and a central display unit (no visible text or symbols)

Interior view of a medical or laboratory equipment room with white plastic components and a circular annotation (no visible text or symbols)

Interior view of a white plastic appliance with a black circular component and a red circular label (no readable text or symbols)

Interior view of a white electronic device with a fan and circuit board (no visible text or symbols)

Interior view of a medical or laboratory equipment unit with a central display and two red circles highlighting features (no visible text or symbols)

Naprawy

White plastic electronic device casing with red directional arrows indicating movement or flow (no text or symbols visible)

4.16 Substituir as lâmpadas LED....606

4.16.1 Remover a lâmpada LED superior do compartimento de refrigera-

çao 606

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands connecting a cable to a wall-mounted device with a black arrow indicating rotation (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Reparação

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Technical diagram showing mechanical assembly steps with numbered annotations (① and ②) indicating process flow.

Diagram illustrating a mechanical or electrical setup with labeled components and directional arrows, including a magnified view of a rotating component.

Close-up of a mechanical component with a highlighted curved section and circular arrow indicating rotation (no text or symbols)

Close-up of a mechanical assembly with visible wiring and components (no text or symbols)

Reparação

Technical diagram showing a mechanical assembly with labeled parts and an inset showing a rotating component with a knob.

Close-up of a mechanical component with three circular arrows indicating rotational motion (no text or symbols)

Close-up of a metallic mechanical component with a circular arrow indicating rotation (no text or symbols visible)

Close-up of an electrical connector with wires and components, no visible text or symbols

Reparação

Technical diagram showing electrical switch mechanism with labeled components and a magnified view of the switch's rotation direction.

Close-up of a mechanical component with three circular arrows indicating rotational motion (no text or symbols)

Diagram of a blue container with black arrows indicating direction, no text or symbols present

Diagram showing a blue tray with arrows indicating direction and numbered components, likely illustrating a physics or engineering concept.

Technical diagram of a mechanical assembly with layered components (no text or symbols)

Isometric architectural diagram of a multi-level building with internal compartments and structural elements (no text or symbols)

Diagram showing a blue mechanical component with labeled parts and directional arrows indicating flow or movement.

Diagram showing a blue panel with two arrows labeled ① and ②, indicating direction of movement or force on a vertical structure.

4.11.1 Remover o recipiente "cool-fresh"

Diagram showing a mechanical or structural component with labeled parts and directional arrows indicating flow or movement.

4.11.2 Instalar o recipiente "cool-fresh"

Technical diagram showing a blue component with labeled parts and directional arrows indicating flow or movement.

Diagram showing a mechanical or structural component with numbered parts and directional arrows indicating flow or movement.

Technical diagram showing a structural component with labeled parts ① and ②, indicating directional flow or force vectors.

Technical diagram showing a mechanical or electrical component with labeled parts ① and ②, indicating directional flow or movement.

4.16 Substituir as lâmpadas LED

Close-up of a hand holding a small white plastic clip attached to a white ceiling panel (no text or symbols visible)

Close-up of hands holding a white plastic clip with a red arrow pointing to it, against a plain background (no text or symbols visible)

Reparação

1. Desconecte o terminal da lâmpada LED.

Close-up of a hand holding a small electronic component with a red annotation highlighting a feature (no readable text or symbols)

Scanned image of an electronic device casing with visible internal components and a QR code on the cover.

Close-up of a white mechanical component with a red arrow pointing to a small feature (no text or symbols visible)

Two-panel image showing a white cabinet with a metal latch and a red arrow pointing to a corner detail (no text or symbols)

Reparação

Two-panel image showing a pipe joint before and after modification, with red arrows indicating direction of movement (no text or symbols)

Close-up of a mechanical component with a metallic bracket and a small circular feature, mounted on a dark surface (no visible text or symbols)

Close-up of a white electrical connector with a red arrow pointing to a small terminal (no text or symbols visible)

Reparação

1. 1. Solte o gancho (1).

2. Remova a lâmpada (2).

Diagram of a device component with labeled parts, showing a connector and cable connection

Interior view of a white appliance with visible door, outlets, and ceiling fixtures (no text or symbols)

Diagram showing three views of a refrigerator interior with red arrows indicating directional changes, labeled with numbers ①, ②, and ③.

Reparação

Interior view of a refrigerator unit with labeled ports and internal components (no readable text or symbols)

1. Solte quatro clipes.

Interior view of a white appliance with red annotation boxes highlighting internal components (no text or symbols visible)

Close-up of hands installing or adjusting a white LED light fixture with a small component, no visible text or symbols

1. 1. Solte dois clips (1).

2. Retire a estrutura (2).

Interior view of a white plastic appliance housing with internal compartments and a labeled component (no text or symbols visible)

Reparação

Technical diagram of a mechanical assembly with labeled components and directional arrows

Interior view of a white appliance or enclosure with ventilation grilles and a central display unit (no visible text or symbols)

Interior view of a medical or laboratory equipment room with white plastic components and a circular annotation (no visible text or symbols)

Close-up of a white plastic mechanical component with a black circular component and red circular annotation (no readable text or symbols)

Interior view of a white appliance with a fan and internal components, no visible text or symbols

Interior view of a medical or laboratory equipment unit with a central display and two red circles highlighting features (no visible text or symbols)

Reparação

White plastic electronic device casing with red directional arrows indicating movement or flow (no text or symbols visible)

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable inside a rectangular frame with a curved arrow indicating rotation (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon, showing internal compartments and directional arrows (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Repararea

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with directional arrows (no text or symbols)

Technical diagram showing mechanical assembly steps with labeled components and directional arrows

Diagram illustrating a mechanical or electrical setup with labeled components and directional arrows, including a magnified view of the component.

Close-up of a mechanical component with a highlighted curved section and circular arrow indicating rotation (no text or symbols)

Close-up of a mechanical assembly with visible wiring and components (no text or symbols)

Repararea

Technical diagram showing a mechanical assembly with labeled parts and a magnified view of the switch mechanism.

Close-up of a mechanical component with three circular arrows indicating rotational motion (no text or symbols)

Close-up of a metallic mechanical component with a circular arrow indicating rotation (no text or symbols visible)

Close-up of an electrical connector with wires and components, no visible text or symbols

Repararea

Technical diagram showing electrical switch components with numbered annotations and a magnified view of the switch mechanism.

Close-up of a mechanical switch or lever mechanism with three circular arrows indicating rotational motion (no text or symbols visible)

Diagram of a blue container with black arrows indicating direction, no text or symbols present

Diagram showing two labeled components (① and ②) interacting with a blue rectangular object, likely illustrating a mechanical or structural assembly.

Pure technical diagram of a mechanical assembly with no visible text, numbers, or symbols

Isometric architectural diagram of a multi-level building facade with internal compartments and a directional arrow (no text or symbols)

Diagram showing a blue mechanical component with labeled parts and directional arrows indicating flow or movement.

Diagram showing a blue panel with two arrows labeled ① and ②, indicating direction of movement or flow within a container.

Diagram showing a mechanical or structural component with labeled parts and directional arrows indicating flow or movement.

Technical diagram showing a blue component with labeled parts ① and ②, likely illustrating a mechanical or structural assembly.

Diagram showing a mechanical or structural assembly with numbered components and directional arrows indicating flow or movement.

Technical diagram showing a structural component with labeled parts ① and ②, likely illustrating a mechanical or architectural design.

Technical diagram showing a mechanical or electrical component with labeled parts ① and ②, indicating directional flow or movement.

Close-up of a hand holding a small transparent plastic clip attached to a white wall (no text or symbols visible)

Close-up of hands holding a small white object with a red arrow pointing to it, next to a green and white connector (no visible text or symbols)

Repararea

1. Deconectați borna lämpii LED.

Close-up of a hand holding a small white electronic component with a red annotation highlighting a component (no readable text or symbols)

Scanned image of a device casing with visible internal components and a QR code on the lid.

Close-up of a white electronic component with a red arrow pointing to a small black tip, no visible text or symbols.

Two-panel image showing a white room interior with a metal rod and a red arrow pointing to a vertical line, no text or symbols present.

Repararea

Two-panel image showing a pipe joint before and after modification, with red arrows indicating direction of movement (no text or symbols)

Close-up of a mechanical component with a metallic bracket and internal structure (no visible text or symbols)

Close-up of a mechanical component with a red arrow pointing to a small illuminated component (no visible text or symbols)

Repararea

Diagram of a device component with labeled parts, showing a connector and cable connection

Interior view of a white appliance with visible door, outlets, and ceiling fixtures (no text or symbols)

Diagram showing three views of a refrigerator interior with red arrows indicating directional changes, labeled with numbers ①, ②, and ③.

Repararea

Interior view of a laboratory apparatus with labeled components and red arrows indicating features (no readable text or symbols)

Interior view of a white appliance with red annotation boxes highlighting internal components (no text or symbols visible)

Close-up of hands installing or adjusting a white LED strip device with a small cable and a red circle highlighting a component (no visible text or symbols)

Close-up of a white plastic enclosure with internal compartments and a small inset showing a mechanical component (no text or symbols visible)

Repararea

Technical diagram of a mechanical assembly with labeled parts and directional arrows

Interior view of a white appliance or enclosure with ventilation grilles and a central display unit (no visible text or symbols)

Interior view of a medical or laboratory equipment room with white plastic components and a red circle highlighting a feature (no visible text or symbols)

Interior view of a white plastic appliance with a black circular component and a red circular mark on the side (no visible text or symbols)

Interior view of a white electronic device with a fan and circuit board (no visible text or symbols)

Interior view of a medical or laboratory equipment unit with a central display and two red circles highlighting features (no visible text or symbols)

Repararea

White plastic enclosure with red arrows pointing to a vertical slot, no visible text or symbols

Illustration of hands connecting a cable to a rectangular panel with shelves, no text or symbols present

1. Vytiahnite tesnenie z drážky.

Illustration of hands holding a cable inside a rectangular frame with a curved arrow indicating rotation (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Oprava

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Tesnenie dvierok je namontované.

Oprava

Technical diagram showing mechanical assembly steps with numbered annotations (① and ②) indicating process flow.

Diagram illustrating a mechanical or electrical setup with labeled components and directional arrows, including a magnified inset showing rotational motion.

Close-up of a mechanical component with a highlighted curved section and circular arrow indicating rotation (no text or symbols)

Close-up of a mechanical assembly with visible wiring and components (no text or symbols)

Oprava

1. 1. Odskrutkujte skrutku uzemňovacieho pripojenia (1).

2. Odskrutkujte tri skrutky (2).

3. Odoberte horný záves.

Technical diagram showing a mechanical assembly with labeled parts and a numbered annotation indicating rotation direction.

Close-up of a mechanical component with three circular arrows indicating rotational or clockwise motion (no text or symbols visible)

Close-up of a metallic mechanical component with a circular arrow indicating rotation (no text or symbols visible)

Close-up of an electrical connector with wires and components, no visible text or symbols

Oprava

1. 1. Odskrutkujte skrutku uzemňovacieho pripojenia (1).

2. Odskrutkujte tri skrutky (2).

3. Odoberte horný záves.

Technical diagram showing electrical wiring connections with labeled parts and a magnified view of the switch mechanism.

Close-up of a mechanical switch or lever mechanism with three circular arrows indicating rotational direction (no text or symbols visible)

Diagram of a blue container with black arrows indicating direction, no text or symbols present

Polička v dvierkach je odobratá.

4.6.2 Montáž poličky do dvierok

Diagram showing two labeled components (① and ②) interacting with a blue rectangular object, likely illustrating a mechanical or structural assembly.

Pure technical diagram of a mechanical assembly with no visible text, numbers, or symbols

Isometric architectural diagram of a multi-level building facade with internal compartments and a directional arrow (no text or symbols)

Diagram showing a blue mechanical component with numbered arrows indicating flow or movement, labeled ① and ②.

Diagram showing a blue panel with two arrows labeled ① and ②, indicating direction of movement or force on a vertical structure.

Diagram showing a mechanical or structural component with labeled parts and directional arrows indicating flow or movement.

Nádoba cool-fresh je odobratá.

Technical diagram showing a blue component with labeled parts ① and ②, likely illustrating a mechanical or structural assembly.

(Malá) nádoba na zmrazené potraviny je odobratá.

Technical diagram showing a mechanical assembly with numbered components and directional arrows indicating flow or movement.

Technical diagram showing a structural component with labeled parts ① and ②, indicating directional flow or force vectors.

Technical diagram showing a mechanical or electrical component with labeled parts ① and ②, indicating directional flow or movement.

Hand holding a small rectangular object on a white ceiling panel (no visible text or symbols)

Close-up of hands holding a small white object with a red arrow pointing to it, next to a green and white connector (no visible text or symbols)

Oprava

Close-up of a hand holding a small electronic component with a red annotation highlighting a feature (no readable text or symbols)

Scanned image of an electronic device casing with visible internal components and a QR code on the cover.

Close-up of a white mechanical component with a red arrow pointing to a small feature (no text or symbols visible)

Two-panel image showing a white cabinet with a metal latch and a red arrow pointing to a corner detail (no text or symbols)

Oprava

Two-panel image showing a wall corner with red arrows pointing to a detail, before and after modification (no text or symbols)

1. Odoberte pás LED zo zásuvky.

301866441 218

Close-up of a mechanical component with a metallic bracket and internal structure (no visible text or symbols)

Close-up of a mechanical component with a red arrow pointing to a small illuminated component (no visible text or symbols)

Oprava

1. 1. Uvolnite háčik (1).

2. Odoberte žiarovku (2).

Diagram of a device component with labeled parts, showing a connector and cable connection

Žiarovka priestoru 0 °C je odobratá.

Interior view of a white appliance with visible door, outlets, and ceiling fixtures (no text or symbols)

Three-panel photo showing a hand holding a red tool inside a white appliance, with annotations indicating '①' and '②'.

Oprava

Interior view of a laboratory apparatus with labeled components and red arrows indicating features (no readable text or symbols)

Interior view of a white appliance with red annotation boxes highlighting internal components (no text or symbols visible)

Close-up of hands installing or adjusting a white LED panel with a small component, no visible text or symbols

1. 1. Uvol'nite dve úchytky (1).

2. Vyberte rám (2).

Close-up of a white plastic enclosure with internal compartments and a small inset showing a mechanical component (no text or symbols visible)

Oprava

1. 1. Odskrutkujte dve skrutky (1).
2. Vytiahnite strednú dosku (2)

Technical diagram of a mechanical assembly with labeled components and directional arrows

1. Vytiahnite kryt odparovača 0 °C priehradky smerom von.

Interior view of a microwave oven or refrigerator with ventilation grilles and a central display unit (no visible text or symbols)

Interior view of a medical or laboratory equipment room with white plastic components and a red circle highlighting a feature (no visible text or symbols)

Interior view of a white plastic appliance with a black circular component and a red circular mark labeled '###' (no readable text or symbols beyond the label)

Interior view of a white appliance with a fan and circuit board, no visible text or symbols

Interior view of a medical or laboratory device with a central mechanical component and two circled points of interest (no visible text or symbols)

Oprava

White plastic enclosure with red arrows pointing to a vertical structure, no visible text or symbols

Illustration of hands connecting a cable to a door frame with shelves (no text or symbols)

1. Tesnilo vrat izvlecite iz utora.

Illustration of hands holding a cable with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Popravilo

1. Celotno tesnilo korak po koraku potisnite v utor.

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols present)

Technical diagram showing mechanical assembly steps with numbered annotations (① and ②) indicating process flow.

Diagram illustrating a mechanical or electrical setup with labeled components and directional arrows, including a magnified view of the component.

Poškodbe hrbta in mišic

Close-up of a mechanical component with a circular arrow indicating rotational motion (no text or symbols)

1. Odklopite električno povezavo vrat.

Close-up of a mechanical assembly with visible wiring and components (no text or symbols)

Popravilo

Technical diagram showing a mechanical assembly with labeled parts and a numbered step indicator (①) for adjustment.

Close-up of a mechanical component with three circular arrows indicating rotational motion (no text or symbols)

Poškodbe hrbta in mišic

Close-up of a metallic mechanical component with a circular arrow indicating rotation (no text or symbols visible)

1. Odklopite električno povezavo vrat.

Close-up of an electrical connector with wires and components, no visible text or symbols

Popravilo

Technical diagram showing electrical switch connections with labeled parts and a magnified view of the switch mechanism.

Close-up of a mechanical switch with three rotary buttons and a metallic handle (no text or symbols visible)

Diagram of a blue container with black arrows indicating direction, no text or symbols present

Diagram showing a blue tray with arrows indicating direction and numbered components, likely illustrating a physics or engineering concept.

Technical diagram of a mechanical assembly with layered components (no text or symbols)

Polica je odstranjena.

4.7.2 Namestitev police

	Ne pokrivajte odprtin za prezračevanje.
	Previdno vstavite polico, da ne opraskate aparata.
	Prepričajte se, da so zatiči vsavljeni v celoti in da je polica v vodoravnem položaju.

- Namestite v obratnem vrstnem redu.

Popravilo

4.8 Zamenjava vrstice z opremo

Zahteva:

Vrata so odprta.

Isometric architectural diagram of a multi-level building facade with internal compartments and a directional arrow (no text or symbols)

Diagram showing a blue mechanical component with labeled parts and directional arrows indicating flow or movement.

Diagram showing a blue panel with two arrows labeled ① and ②, indicating direction of movement or force on a vertical structure.

Fiksna polica je odstranjena.

4.10.2 Namestitev fiksne police

- Namestite v obratnem vrstnem redu.

Popravilo

Diagram showing a mechanical or structural component with labeled parts and directional arrows indicating flow or movement.

Technical diagram showing a blue component with labeled parts ① and ②, likely illustrating a mechanical or structural assembly.

Technical diagram showing a mechanical assembly with numbered components and directional arrows indicating flow or movement.

Technical diagram showing a structural component with labeled parts ① and ②, indicating directional flow or force vectors.

Technical diagram showing a mechanical or structural assembly with labeled components ① and ②, indicating directional flow or movement.

Close-up of a hand holding a small rectangular object on a white shelf (no visible text or symbols)

Close-up of hands holding a small wire with a red mark, against a plain background (no text or symbols visible)

1. Odklopite terminal lučke LED.

Close-up of a hand holding a small electronic component with a red annotation highlighting a small component (no visible text or symbols)

Popravilo

Scanned image of a white plastic enclosure with visible QR code and printed labels, likely for product or packaging design.

4.16.2 Odstranjevanje stranske lučke hladilne komore

Close-up of a white plastic component with a red arrow pointing to a small black tip, no visible text or symbols.

Two-panel image showing a white cabinet with a metal rod and a hand holding a thin red object, both pointing right (no text or symbols visible)

Two-panel image showing a vertical pipe or tube with red arrows pointing to features, before and after modification (no text or symbols visible)

Popravilo

1. Odstranite trak LED iz vtičnice.

3010484941 P10

Close-up of a mechanical component with a tool inserted, no visible text or symbols

1. Odklopite terminal lučke.

Close-up of a white electrical connector with a red arrow pointing to a small terminal (no text or symbols visible)

Diagram of an electronic device showing a connector with labeled parts and directional arrows indicating connection points.

Lučka predala 0 °C je odstranjena.

Interior view of a white room with numbered fixtures and ceiling-mounted appliances (no visible text or symbols)

1. Drug pokrov sprostite na enak način.

2. 1. Sprostite zaponki (1).
3. Snemite zaponke (2).

Diagram showing three steps of a device interior with red arrows indicating directional changes, likely demonstrating a step-by-step assembly or inspection.

Popravilo

1. Snemite sredinski del.

Interior view of a laboratory apparatus with labeled components and red arrows indicating features (no readable text or symbols)

Interior view of a white appliance with red annotation boxes highlighting internal components (no text or symbols visible)

1. Odklopite električni priključek modula prikazovalnika.

Close-up of hands installing or adjusting a white electronic component with a small red circle highlighting a detail (no visible text or symbols)

1. 1. Sprostite zaponki (1).

2. Snemite okvir (2).

Interior view of a white plastic enclosure with internal compartments and a labeled component (no text or symbols visible)

Popravilo

1. 1. Odvijte vijaka (1).

2. Izvlecite sredinsko ploščo (2).

Technical diagram of a mechanical assembly with labeled parts and directional arrows

Interior view of a white appliance or enclosure with ventilation grilles and a central display unit (no visible text or symbols)

Ko se pokrov sprosti, zaslišite klik.

1. Odklopite senzor temperature komore 0 °C.

Interior view of a medical or laboratory equipment room with white plastic components and a red circle highlighting a small feature (no visible text or symbols)

Close-up of a white plastic mechanical component with a black circular component and a red circular mark labeled '###' (no readable text or symbols beyond the label)

Interior view of a white appliance with a fan and circuit board, no visible text or symbols

1. Izvlecite skupino zadnje stene (2).

Interior view of a medical or laboratory equipment unit with a central display and two red circles highlighting features (no visible text or symbols)

Popravilo

White plastic enclosure with red arrows pointing to a vertical structure, no visible text or symbols

Zadnja stena z integriranimi lučmi je odstranjena.

Illustration of hands connecting a cable to a rectangular panel with shelves, no text or symbols present

Illustration of hands holding a cable inside a rectangular frame, with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon (no text or symbols)

Line drawing of a door handle with hand gestures indicating left and right motion (no text or symbols)

Reparación

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Technical diagram showing mechanical assembly steps with numbered annotations (① and ②) indicating process flow.

Diagram illustrating a mechanical or electrical setup with labeled components and directional arrows, including a magnified inset showing rotational motion.

Close-up of a mechanical component with a highlighted curved section and circular arrow indicating rotation (no text or symbols)

Close-up of a mechanical assembly with visible wiring and components (no text or symbols)

Reparación

Technical diagram showing a mechanical assembly with labeled parts and an inset showing a rotating component with a knob.

Close-up of a mechanical component with three circular arrows indicating rotational motion (no text or symbols)

Close-up of a metallic mechanical component with a circular arrow indicating rotation (no text or symbols visible)

Close-up of an electrical connector with wires and connectors, no visible text or symbols

Reparación

Technical diagram showing electrical wiring connections with labeled parts and a magnified view of the switch mechanism.

Close-up of a mechanical switch with three rotary buttons and a metallic handle (no text or symbols visible)

Diagram of a blue container with black arrows indicating direction, no text or symbols present

Technical diagram showing a mechanical assembly with labeled components and warning symbol

Isometric architectural diagram of a multi-level building facade with internal compartments and a directional arrow (no text or symbols)

Diagram showing a blue mechanical component with labeled parts and directional arrows indicating flow or movement.

Diagram showing a blue panel with two arrows labeled ① and ②, indicating direction of movement or force on a vertical structure.

Diagram showing a mechanical or structural component with labeled parts and directional arrows indicating flow or movement.

Technical diagram showing a blue component with labeled parts ① and ②, likely illustrating a mechanical or structural assembly.

Diagram showing a mechanical or structural component with numbered parts and directional arrows indicating flow or movement.

Technical diagram showing a structural component with labeled parts ① and ②, likely illustrating a mechanical or architectural design.

Technical diagram showing a mechanical or structural assembly with labeled components ① and ②, indicating directional flow or movement.

Close-up of a hand holding a small transparent plastic clip attached to a white wall (no text or symbols visible)

Close-up of hands installing a cable or wire on a white shelf (no text or symbols visible)

Reparación

Close-up of a hand holding a small white electronic component with a red annotation highlighting a green square (no visible text or symbols)

Scanned image of a device casing with visible internal components and a QR code on the lid.

Close-up of a white electronic component with a red arrow pointing to a black cable (no visible text or symbols)

Two-panel image showing a white cabinet with a metal rod and a red arrow pointing to a vertical line, no text or symbols present.

Reparación

Two-panel image showing a pipe joint before and after modification, with red arrows indicating direction of movement (no text or symbols present)

Close-up of a mechanical component with a metallic tool inserted, no visible text or symbols

Close-up of a white electrical connector with a red arrow pointing to its bottom (no visible text or symbols)

Reparación

Diagram of a device component with labeled parts, showing a cable inserted into a terminal block and marked with arrows.

Interior view of a modern kitchen or bathroom with numbered fixtures and lighting fixtures (no visible text or symbols)

Diagram showing three steps of a refrigerator interior with labeled parts and red arrows indicating features

Reparación

Interior view of a refrigerator unit with labeled ports and internal components (no readable text or symbols)

Interior view of a white appliance with red annotation boxes highlighting internal components (no text or symbols visible)

Close-up of hands installing or adjusting a white LED strip device with a small component, no visible text or symbols

Interior view of a white plastic enclosure with internal compartments and a labeled component (no text or symbols visible)

Reparación

Technical diagram of a mechanical assembly with labeled components and directional arrows

Interior view of a white appliance or enclosure with ventilation grilles and a central display unit (no visible text or symbols)

Interior view of a medical or laboratory equipment room with white plastic components and a circular annotation (no visible text or symbols)

Interior view of a mechanical device with a central fan and plastic casing (no visible text or symbols)

Interior view of a white appliance with a fan and circuit board, no visible text or symbols

Interior view of a medical or laboratory device with a central vertical structure and two circled points of interest, no visible text or symbols.

Reparación

White plastic enclosure with red arrows pointing to a vertical structure, no visible text or symbols

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable inside a rectangular frame, with an arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Reparation

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols present)

Technical diagram showing mechanical assembly steps with numbered annotations (① and ②) indicating process flow.

Diagram illustrating a mechanical or electrical setup with labeled components and directional arrows, including a magnified inset showing rotational motion.

Close-up of a mechanical component with a circular arrow indicating rotational motion (no text or symbols)

1. Lossa dörrens elanslutning.

Close-up of a mechanical assembly with visible wiring and components (no text or symbols)

Reparation

Technical diagram showing a mechanical assembly with labeled parts and a numbered annotation indicating rotation direction.

Close-up of a mechanical component with three circular arrows indicating rotational motion (no text or symbols)

Close-up of a metallic mechanical component with a circular arrow indicating rotation (no text or symbols visible)

1. Lossa dörrens elanslutning.

Close-up of an electronic device interior showing wiring and components (no visible text or symbols)

Reparation

Technical diagram showing electrical wiring and a mechanical component with labeled parts and an inset illustrating the winding mechanism.

Close-up of a mechanical switch with three rotary buttons and a metallic handle (no text or symbols visible)

Diagram of a blue rectangular container with black arrows indicating direction, mounted on a vertical structure (no text or symbols)

Diagram showing a blue rectangular object with arrows indicating direction, labeled with numbers ① and ②, and an arrow symbol pointing upward.

Technical diagram of a mechanical assembly with layered components (no text or symbols)

Isometric architectural diagram of a multi-level building facade with internal compartments and a directional arrow (no text or symbols)

Diagram showing a blue mechanical component with labeled parts and directional arrows indicating flow or movement.

Diagram showing a blue panel with two arrows labeled ① and ②, indicating direction of movement or force on a surface.

Diagram showing a mechanical or structural component with labeled parts and directional arrows indicating flow or movement.

Technical diagram showing a blue component with labeled parts ① and ②, likely illustrating a mechanical or structural assembly.

Diagram of a mechanical or structural assembly with numbered components and directional arrows indicating flow or movement.

Technical diagram showing a structural component with labeled parts ① and ②, likely illustrating a mechanical or architectural assembly.

Technical diagram showing a mechanical or structural assembly with labeled components and directional arrows indicating flow or movement.

Close-up of a hand holding a small white plastic clip attached to a ceiling panel (no text or symbols visible)

Close-up of hands holding a small white object with a red arrow, next to a wall-mounted device (no visible text or symbols)

Reparation

1. Lossa LED-lampans kontaktdon.

Close-up of a hand holding a small electronic component with a red annotation highlighting a feature (no readable text or symbols)

Scanned image of a device casing with visible internal components and a QR code on the cover.

Close-up of a white mechanical component with a red arrow pointing to a small black tool tip (no text or symbols visible)

Two-panel image showing a white room interior with a metal rod and a red arrow pointing to a vertical line, no text or symbols present.

Reparation

Two-panel image showing a wall-mounted device before and after installation, with red arrows indicating direction of change (no text or symbols present)

Close-up of a mechanical component with a metallic bracket and internal structure (no visible text or symbols)

1. Lossa lampans kontaktdon.


Close-up of a mechanical component with a red arrow pointing to a small illuminated component (no visible text or symbols)

Reparation

1. 1. Lossa kroken (1).

2. Ta bort lampan (2).

Diagram of an electronic device showing a connector with labeled parts and directional arrows indicating connection points.

Interior view of a modern kitchen or bathroom with fixtures and numbered indicators (no readable text or symbols)

Diagram showing three steps of a device interior with red arrows indicating directional changes, likely demonstrating a process or state change.

Reparation

1. Dra ut skiljeplattan i mitten.

Interior view of a refrigerator unit with labeled ports and internal components (no readable text or symbols)

1. Lossa de fyra clipsen.

Interior view of a white appliance with red annotation boxes highlighting internal components (no text or symbols visible)

1. Lossa displaymodulens elanslutning.

Close-up of hands installing or adjusting a white LED light fixture with a small component, no visible text or symbols

Close-up of a white plastic enclosure with internal compartments and a small inset showing a mechanical component (no text or symbols visible)

Reparation

Technical diagram of a mechanical assembly with labeled components and directional arrows

Interior view of a white appliance or enclosure with ventilation grilles and a central display unit (no visible text or symbols)

Interior view of a medical imaging machine with white equipment and a red circle highlighting a specific area (no visible text or symbols)

Close-up of a white plastic mechanical component with a black circular annotation highlighting a red circle (no readable text or symbols)

Interior view of a white appliance with a fan and motor, showing internal components and a red circle highlighting a small feature (no text or symbols visible)

Interior view of a medical or laboratory equipment setup with a central vertical structure and a device with a fan (no visible text or symbols)

Reparation

White plastic enclosure with red arrows pointing to a vertical panel, no visible text or symbols

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable inside a rectangular frame with a curved arrow indicating rotation (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Onarim

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Technical diagram showing mechanical assembly steps with numbered annotations (① and ②) indicating process flow.

Diagram illustrating a mechanical or electrical setup with labeled components and directional arrows, including a magnified inset showing rotational motion.

Close-up of a mechanical component with a circular arrow indicating rotational motion (no text or symbols)

Close-up of a mechanical assembly with visible wiring and components, no text or symbols present

Onarim

Technical diagram showing a mechanical assembly with labeled parts and a numbered annotation indicating rotation direction.

Close-up of a mechanical component with three circular arrows indicating rotational motion (no text or symbols)

Close-up of a metallic mechanical component with a circular arrow indicating rotation (no text or symbols visible)

Close-up of an electrical connector with wires and components, no visible text or symbols

Onarim

Technical diagram showing electrical wiring and a mechanical component with labeled parts, including a magnified view of the switch mechanism.

Close-up of a mechanical switch or lever mechanism with three circular arrows indicating rotational motion (no text or symbols visible)

Diagram of a blue container with black arrows indicating direction, no text or symbols present

Diagram showing a blue rectangular object with arrows indicating direction, labeled with numbers ① and ②, and an arrow symbol pointing downward.

Technical diagram of a mechanical assembly with two parallel plates and a central shaft (no text or labels)

Raf çıkartılmıştır.

Isometric architectural diagram of a multi-level building structure with no visible text or symbols

Diagram showing a blue mechanical component with labeled parts and directional arrows indicating flow or movement.

Diagram showing a blue panel with two arrows labeled ① and ②, indicating direction of movement or force on a vertical structure.

Diagram showing a mechanical or structural component with labeled parts and directional arrows indicating flow or movement.

Technical diagram showing a blue component with labeled parts ① and ②, likely illustrating a mechanical or structural assembly.

Technical diagram showing a mechanical assembly with numbered components and directional arrows indicating flow or movement.

Technical diagram showing a structural component with labeled parts ① and ②, indicating directional flow or force vectors.

Technical diagram showing a mechanical or structural assembly with labeled components and directional arrows indicating flow or movement.

Hand holding a small plastic clip attached to a white ceiling panel (no text or symbols visible)

Close-up of hands holding a white cable with a red arrow pointing to it, next to a small electronic device (no visible text or symbols)

Onarim

Close-up of a hand holding a small electronic component with a red annotation highlighting a feature (no readable text or symbols)

Scanned image of a device casing with visible internal components and a QR code on the cover.

Close-up of a white mechanical component with a red arrow pointing to a small black tool or probe (no text or symbols visible)

Two-panel image showing a white cabinet with a metal rod and a red arrow pointing to a vertical line, no text or symbols present.

Onarim

Two-panel image showing a pipe joint before and after modification, with red arrows indicating direction of movement (no text or symbols)

Close-up of a mechanical component with a metallic bracket and internal structure (no visible text or symbols)

Close-up of a white electrical connector with a red arrow pointing to a small terminal (no text or symbols visible)

Onarim

Close-up of a black electronic device showing a white connector with red arrows indicating ports (no text or symbols visible)

Interior view of a modern kitchen or bathroom with fixtures and numbered indicators (no readable text or symbols)

Diagram showing three steps of a battery storage or cleaning procedure, with red arrows indicating directional changes.

Onarim

Interior view of a refrigerator unit with labeled ports and internal components (no readable text or symbols)

Interior view of a white appliance with red annotation boxes highlighting internal components (no text or symbols visible)

Close-up of hands installing or adjusting a white LED light fixture with a small component, no visible text or symbols

Close-up of a white plastic enclosure with internal compartments and a small inset showing a mechanical component (no text or symbols visible)

Onarim

Technical diagram of a mechanical assembly with labeled components and directional arrows

Interior view of a white appliance or enclosure with ventilation grilles and a central display unit (no visible text or symbols)

Interior view of a medical imaging machine with white equipment and a red circle highlighting a specific area (no visible text or symbols)

Close-up of a white plastic mechanical component with a black circular annotation highlighting a red circle (no readable text or symbols)

Interior view of a white appliance with a fan and internal components, no visible text or symbols

Interior view of a medical or laboratory equipment setup with a central vertical structure and a device with a fan (no visible text or symbols)

Onarim

White plastic enclosure with red directional arrows indicating movement or flow, no visible text or symbols
