Please read and comply with these original instructions prior

to the initial operation of your appliance and store them for later use or subsequent owners.

• Please read the safety instructions ID no. 59579220 before start-up!
• The non-compliance of the operating and safety instructions may lead to damages of the appliance and to dangers for the operator and other persons.
  – In case of transport damage inform vendor immediately.

Contents

Environmental protection .... EN 1

Danger or hazard levels .... EN 1

Proper use .... EN 1

Device elements .... EN 2

Symbols on the machine.... EN 2

Safety instructions.... EN 2

Start up.... EN 3

Operation .... EN 4

Transport.... EN 5

Storage.... EN 5

Care and maintenance.... EN 5

Troubleshooting.... EN 6

Warranty.... EN 7

Accessories and Spare Parts . EN 7

EU Declaration of Conformity . EN 7

Technical specifications .... EN 8

Environmental protection

	The packaging material can be recycled. Please do not throw the packaging material into household waste; please send it for recycling.
	Old appliances contain valuable materials that can be recycled; these should be sent for recycling. Batteries, oil, and similar substances must not enter the environment. Please dispose of your old appliances using appropriate collection systems.

Danger or hazard levels

⚠️DANGER

Pointer to immediate danger, which leads to severe injuries or death.

⚠ WARNING

Pointer to a possibly dangerous situation, which can lead to severe injuries or death.

△CAUTION

Pointer to a possibly dangerous situation, which can lead to minor injuries.

ATTENTION

Pointer to a possibly dangerous situation, which can lead to property damage.

Proper use

• The dust remover was developed specifically for the use with wall chasers, diamond-bit dry drills and other electric tools.
  – The machine is meant for dry and wet cleaning of floors and walls.
• The appliance is suited for the extraction of dry, non-combustible, harmful dusts on machines and appliances; dust class L according to EN 60 335–2–69. Restriction: No carcinogenic substances may be vacuumed up.
• This appliance is suited for the commercial use, e.g. in hotels, schools, hospitals, factories, shops, offices, and rental companies.

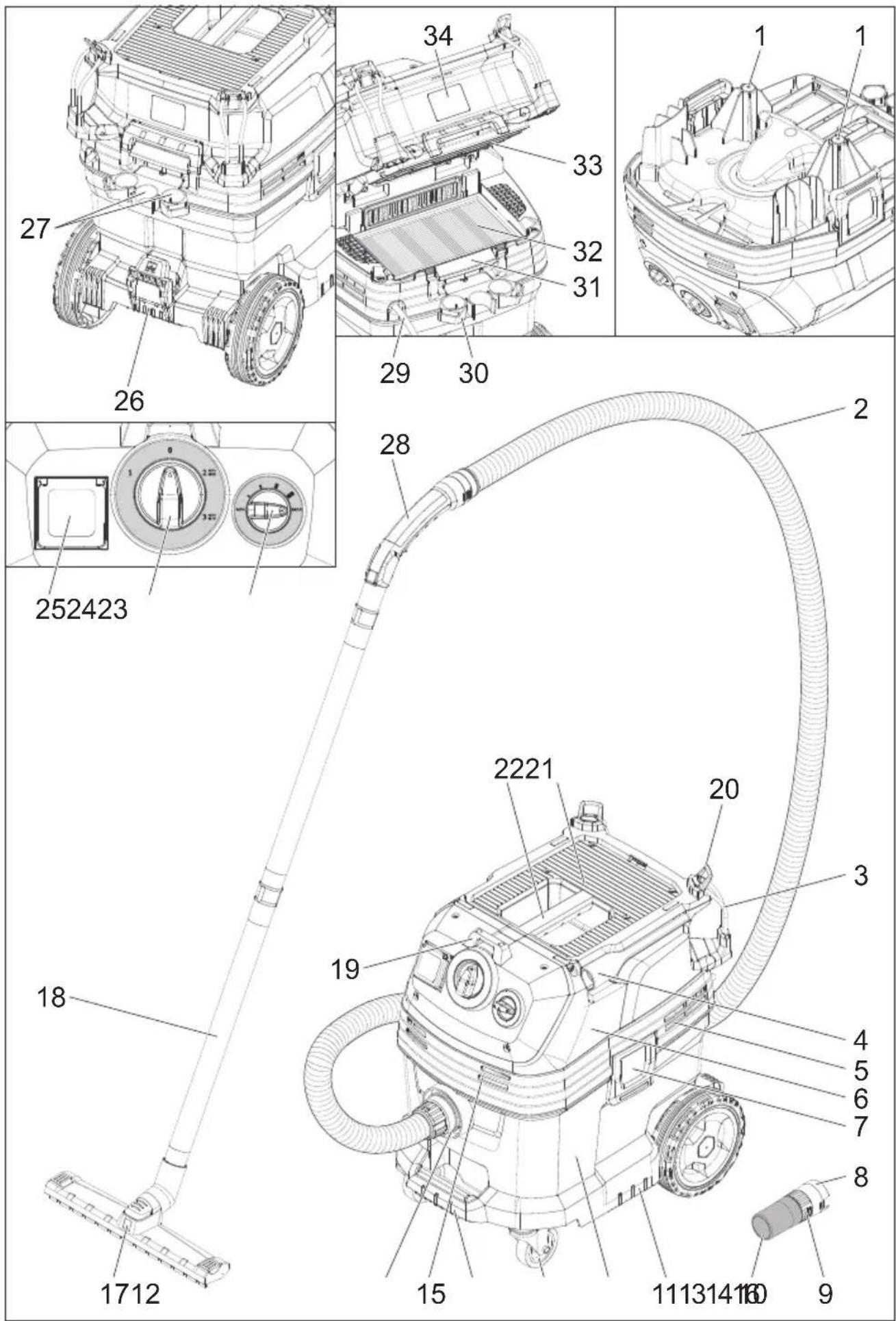

Device elements Symbol

1 Electrodes
2 Suction hose
3 Hose hook
4 Crevice nozzle
5 Air outlet, working air
6 Suction head
7 Suction head lock
8 Tool adapter
9 Suction force regulator (continuous)
10 Rubber sleeve, screwable
11 Recessed grip
12 Dirt receptacle
13 Steering roller
14 Handle
15 Air inlet, motor cooling air
16 Suction support
17 Floor nozzle
18 Suction tube
19 Stop for tool box
20 Fixing eyelet
21 Filter cover
22 Carrying handle
23 Rotary switch for suction output (min-max)
24 Rotating knob
25 Socket
26 Floor nozzle holder
27 Holder for suction pipe
28 Bender
29 Power cord
30 Holder for bender
31 Filter frame
32 Flat fold filter (PES)
33 Filter dedusting
34 Nameplate

on the machine

Warning sign with L, warning symbols, and an open book icon, likely from a safety or hazard management context.

WARNING: This appliance contains harmful dust. The emptying and maintenance, including the removal of the dust bag, may only be executed by trained personnel wearing suitable protection equipment. Do not switch on until the complete filter system has been installed.

	Flat fold filter (PES)
	Item no. 73684
	Flat fold filter (PTFE)
	Item no. 8462

Safety instructions

⚠️DANGER

- When the outgoing air is carried back into the room, a sufficient ventilation rate L in the room must be ensured. To comply with the required limit values the carried back volume flow must be 50% of the fresh air volume flow (room volume V_R × ventilation rate L_W ) at maximum. Without a specific ventilation system the following applies: L_W = 1h^-1 . - Only persons trained in the use of the machine and the handling of substances for which the machine is to be used including training in the safe disposal of the sucked-in material may use the machine.

- This appliance contains harmful dust. Evacuation and maintenance work, including the disposal of the dust collection containers, may only be performed by specialists who wear the appropriate protective equipment.

- Do not use the appliance without the complete filtering system.

- Please follow the safety regulations applicable to the materials that are to be treated.

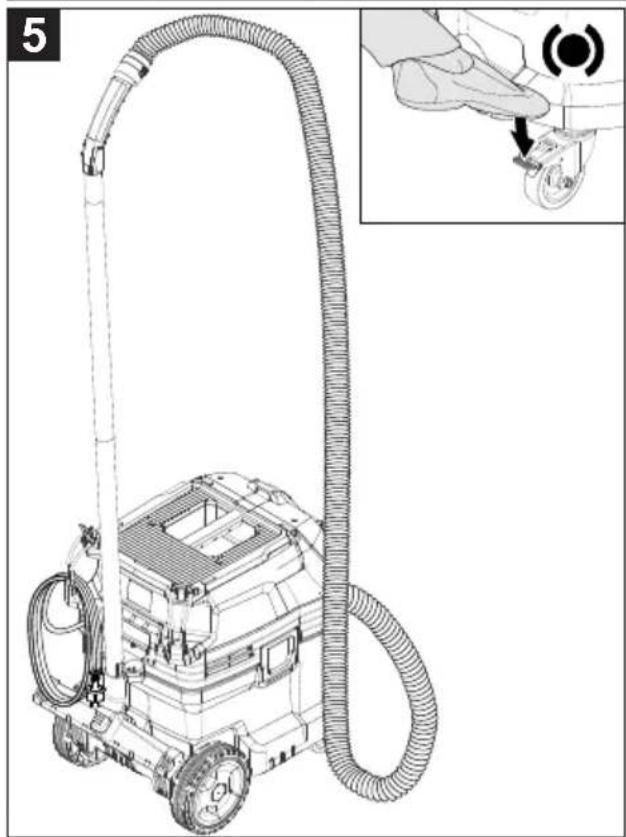

- Press the parking brake to the steering roller for a secure footing. The device may move uncontrollably if the parking brake is open.

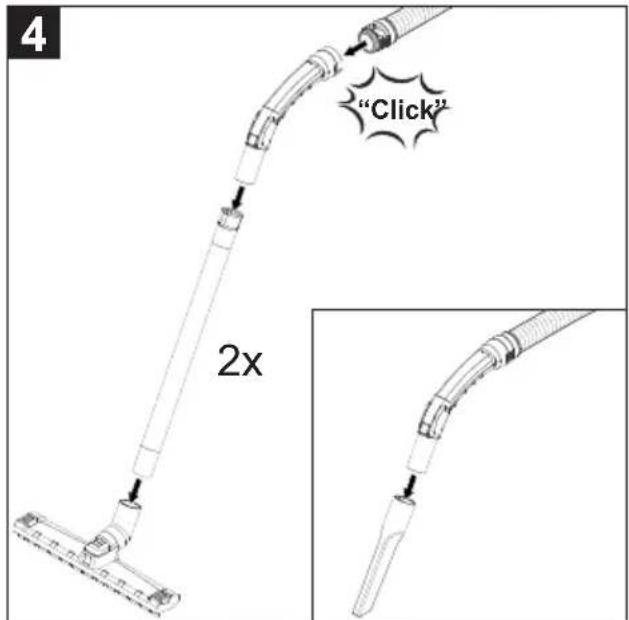

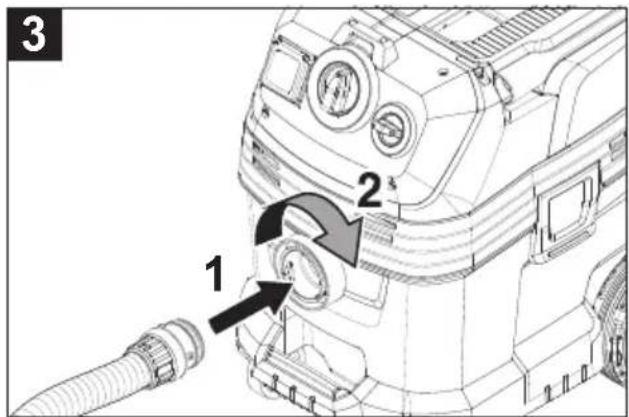

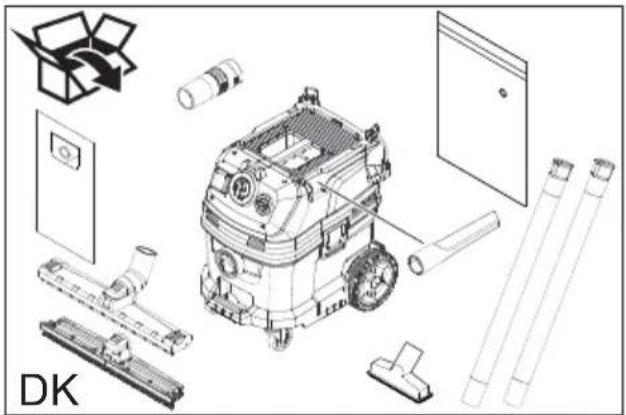

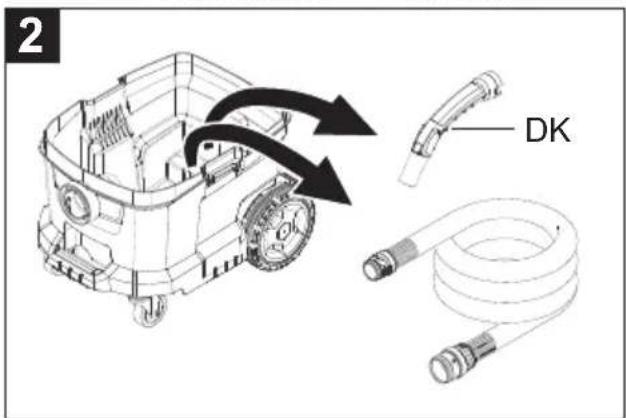

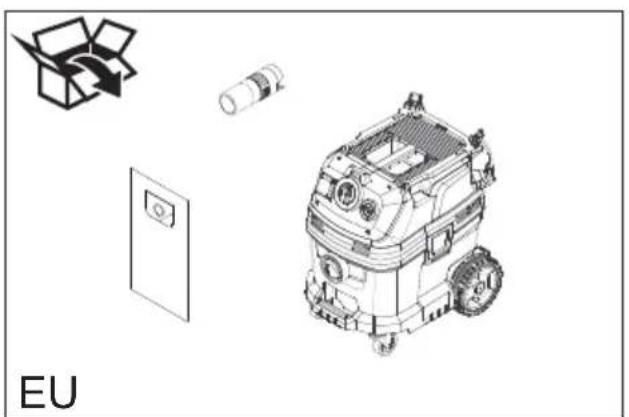

Start up

⚠ WARNING

The flat pleated filter must always be in place while vacuuming.

⚠ WARNING

Do not vacuum without the filter elements; otherwise, the suction motor can get damaged and this can be hazardous to health on account of increased release of fine dust particles.

Anti-static system

Static charge is deflected by providing earthing to the connection nozzles. This prevents the formation of sparks and current shocks due to attachments (option) with electrical conductivity.

Dry vacuum cleaning

• The appliance is fitted with a fleece filter bag with lock latch. One piece is included in the scope of delivery. Order number for replacement: 9341 (5 pieces)
• The appliance is fitted with a dust bag with cable ties. One piece is included in the scope of delivery. Order number for replacement: 9276 (5 pieces)

Note: You can use this appliance to vacuum all types of dust up to dust class L.

Note: The appliance is suited as industrial vacuum cleaner to take up dry, non-combustible dusts with AGW values greater than or equal to 1 mg/m ^3 .

- When vacuuming fine dust, a fleece filter or dust bag can also be used.

Install fleece filter bag

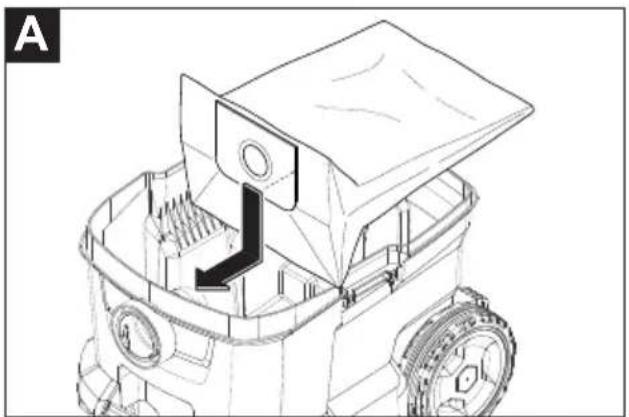

Illustration A

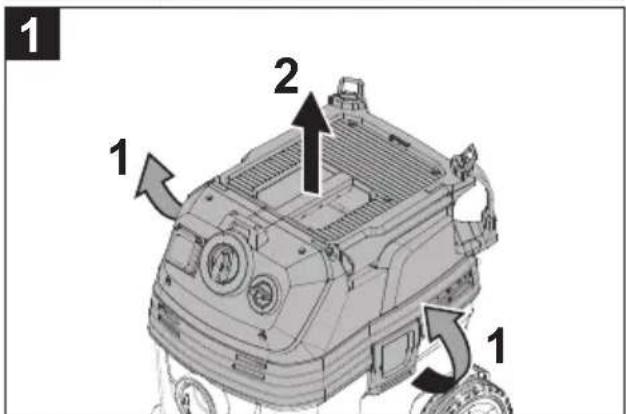

→ Release and remove the suction head.
→ Insert the fleece filter bag.
→ Insert and lock the suction head.

Installing the dust disposal bag

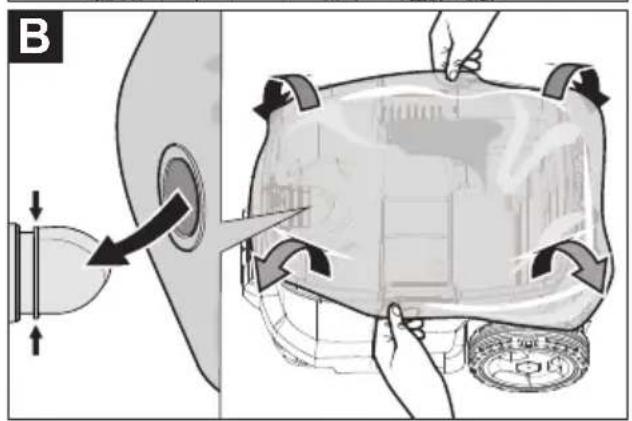

Illustration B

→ Release and remove the suction head.

→ Insert the disposal bag.
→ Pull disposal bag over the container. Make sure that the marking line is situated within the container and both ventilation holes are positioned at the back of the container.
→ Insert and lock the suction head.

Wet vacuum cleaning

⚠️DANGER

No dusts hazardous to health should be sucked in during wet vacuuming.

Inserting the rubber lips

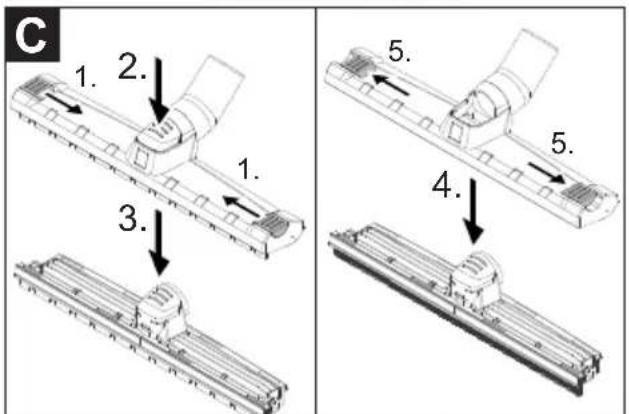

Illustration C

→ Remove the brush strips.
→ Install the rubber lips.

Remove the fleece filter bag

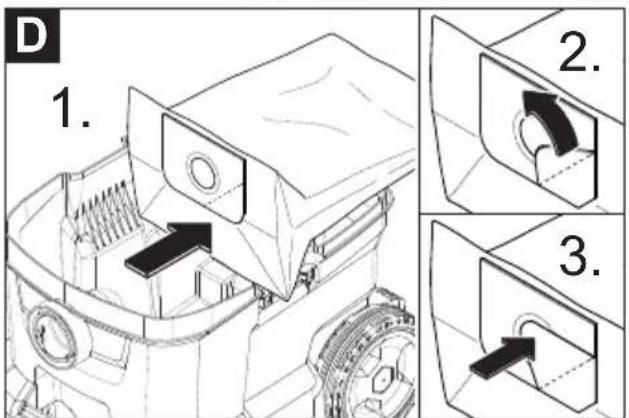

Illustration D

→ Release and remove the suction head.
→ Pull the fleece filter bag towards the rear.
→ Fold in the lock latch and tightly close the fleece filter bag.
→ Dispose of the fleece filter bag according to the local provisions.
→ Insert and lock the suction head.
- To suck wet dirt, first remove the fleece filter bag.

Removing the dust disposal bag

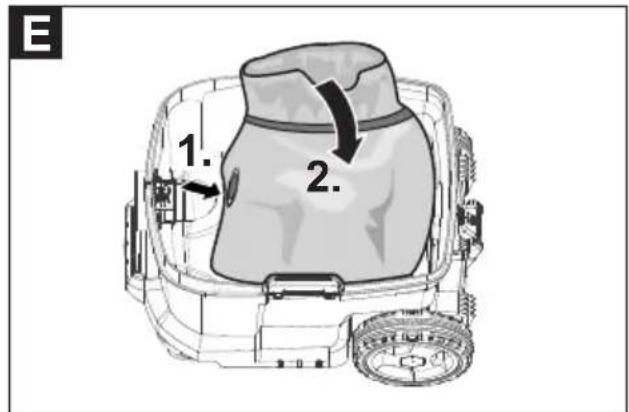

Illustration E

→ Release and remove the suction head.
→ Put the disposal bag over.
→ Tightly close the disposal bag with cable tie underneath the opening.
→ Remove disposal bag.
→ Dispose of the disposal bag according to the local provisions.
→ Insert and lock the suction head.
- To suck wet dirt, always remove the disposal bag.

General

- If wet dirt is vacuumed with the upholstery or crevice nozzle, or if water is sucked up from a container, it is recommended to deactivate the "automatic filter cleaning" function.

- If the maximum liquid level is reached the appliance will turn off automatically.

- In case of non-conductive liquids (such as emulsion drilling fluids, oils, and greases) the appliance is not turned off when the container is full. The filling level must be continuously monitored and the container must be emptied in time.

- After the wet vacuuming: Clean the flat folded filter with the filter cleaning. Clean the electrodes with a brush. Clean the container with a damp rag and dry it.

Clip connection

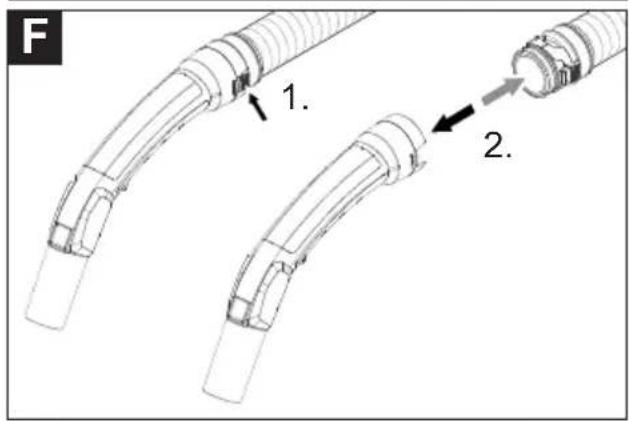

Illustration F

The suction hose is equipped with a clip system. All accessories with a nominal width of 35 mm can be connected.

Operation

Rotating knob

0	Appliance OFF
1	Appliance ONAutomatic filter cleaning: OFF
2 AUTO MAX	Appliance ONAutomatic filter cleaning: maximum interval
3 AUTO MIN	Appliance ONAutomatic filter cleaning: minimum interval

Turning on the Appliance

→ Plug in the mains plug.
→ Set the rotary switch to the desired program.

Adjust the suction output

→ Set the suction output (min - max) at the rotary switch.

Working with electrical power tools

⚠️DANGER

Risk of injury and damage! The socket outlet is only for the connection of power tools to the vacuum cleaner. Any other use of the socket outlet is not permitted.

→ Connect the mains plug of the electric power tool to the vacuum cleaner. The vacuum cleaner is in standby mode.
→ Switch on the appliance at the rotating knob.

Note: The vacuum cleaner is turned on and off automatically with the electric power tool.

Note: The vacuum cleaner starts automatically within 0.5 seconds and continues to run for 15 seconds after the power tool has being switched off.

Note: Please refer to "Technical specifications" for the power connection specifications of the power tools.

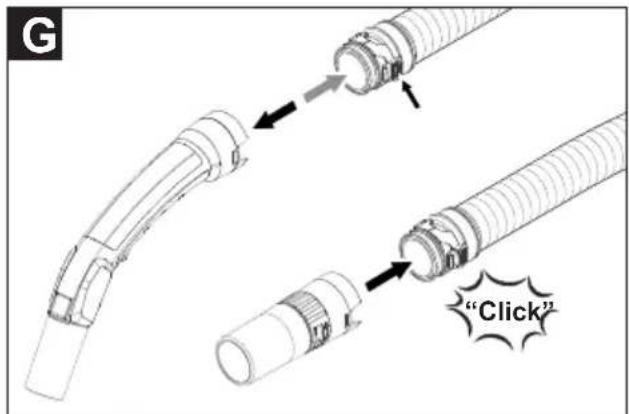

Illustration G

→ Remove the elbow from the suction hose.
→ Attach the tool adapter to the suction hose.

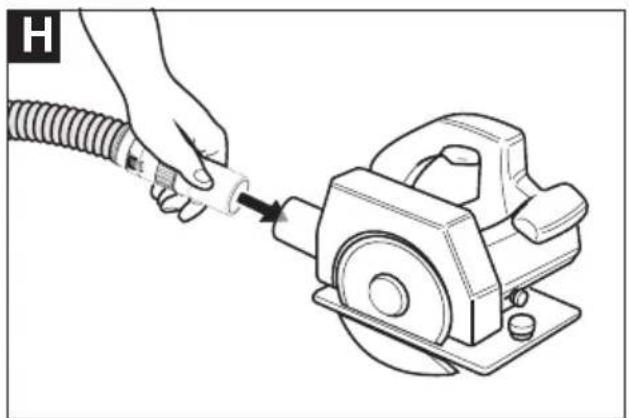

Illustration H

→ Connect the tool adapter to the electric power tool.

Automatic filter cleaning

The device is equipped with a special filter dedusting function, which is particularly effective against fine dust. The flat fold filter is automatically cleaned every 15 seconds (AUTO MAX) or every 60 seconds (AUTO MIN) by a blast of air (pulsing noise).

→ Set the turn switch to the desired program (AUTO MIN-AUTO MAX).

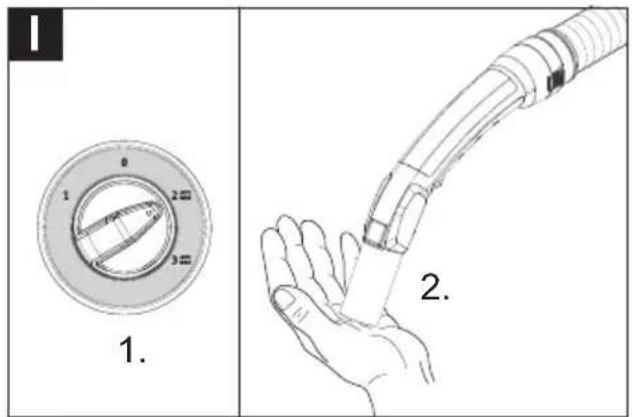

Illustration 1

→ Power dedusting (especially with severe soiling of the flat pleated filter): Set the rotary switch to program 2, cover the suction tube or the bender with your hand and wait for the automatic filter dedusting (every 15 seconds).

Turn off the appliance

→ Switch off the appliance at the rotating knob.
→ Pull out the mains plug.

After each operation

→ Empty the container.
→ Vacuum and wipe the appliance inside and outside with a damp cloth.

Storing the Appliance

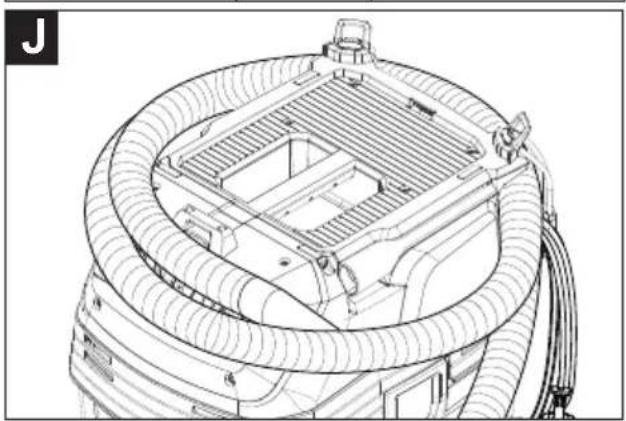

Illustration J

→ Store the suction hose and the mains cable as shown in the illustration.
→ Place the appliance in a dry room and secure it from unauthorized use.

Transport

△CAUTION

Risk of injury and damage! Observe the weight of the appliance when you transport it.

→ Remove the suction pipe with the floor nozzle from the holder. Hold the appliance at the handle and at the suction pipe to transport it.
→ When transporting in vehicles, secure the appliance according to the guidelines from slipping and tipping over.

Storage

△CAUTION

Risk of injury and damage! Note the weight of the appliance in case of storage. This appliance must only be stored in interior rooms.

Care and maintenance

⚠️DANGER

First pull out the plug from the mains before carrying out any tasks on the machine. Dust extracting machines are safeguards for the prevention or elimination of hazards defined in the regulations of BGV A1.

• In order to carry out maintenance work, the user must disassemble, clean and service the unit, in so far as this is possible without endangering maintenance personnel and other persons. Suitable precautions include decontamination before the unit is disassembled. Precautions must be taken for local filtered forced air ventilation at the place where the unit is disassembled, the cleaning of the maintenance surface and suitable protection of the personnel.
• The outside of the unit should be cleaned thoroughly and any harmful substances removed. Alternatively, a sealed coating may be applied before the unit is removed from the danger area. All unit parts are to be considered contaminated when they are removed from the danger area. To avoid distribution of the dust, you must take the appropriate measures.
• In the framework of maintenance and repair work all contaminated objects that cannot be cleaned satisfactorily must be disposed of. Such objects must be disposed of in impermeable bags in accordance with the valid provisions for the disposal of such waste.

⚠ WARNING

Safety equipment for preventing hazards must be serviced and maintained regularly. This means that the manufacturer's staff or persons trained by the manufacturer must check the equipment for proper functioning at least once a year, i.e. check for leaks, filter damage, etc.

ATTENTION

Risk of damage! Do not use detergents containing silicone to clean.

• No outside help is required for carrying out basic maintenance and cleaning.
• The appliance surface and the inside of the container should be cleaned regularly using a damp cloth.

⚠️DANGER

Risk due to dust hazardous to health. Always use disposal clothing and P2 or higher breath-safe masks while carrying out maintenance tasks (such as changing filters).

Exchanging the flat pleated filter

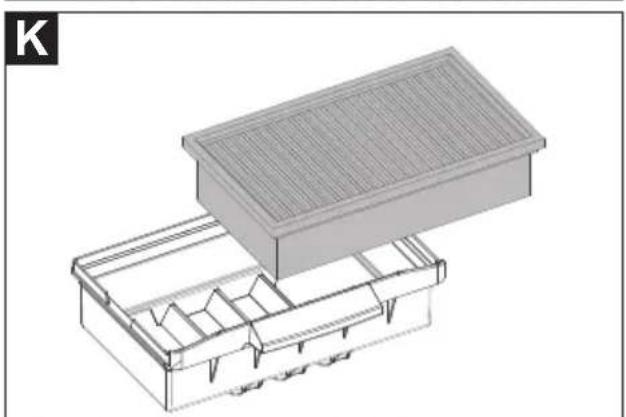

Illustration K

→ Open filter door.
→ Remove filter frame.
→ Replace the flat pleated filter. During placement, make sure that the flat fold filter rests against all sides.
→ Dispose of the used flat-folded filter according to the statutory provisions.
→ Insert filter frame.
→ Close the filter door, it must lock into place.

Exchange the fleece filter bag

Illustration D

→ Release and remove the suction head.
→ Pull the fleece filter bag towards the rear.
→ Fold in the lock latch and tightly close the fleece filter bag.
→ Dispose of the fleece filter bag according to the local provisions.
→ Insert the new fleece filter bag.
→ Insert and lock the suction head.

Replace the disposal bag

Illustration E

→ Release and remove the suction head.
→ Put the disposal bag over.
→ Tightly close the disposal bag with cable tie underneath the opening.
→ Remove disposal bag.
→ Dispose of the disposal bag according to the local provisions.
→ Insert the new disposal bag.
→ Pull disposal bag over the container. Make sure that the marking line is situated within the container and both ventilation holes are positioned at the back of the container.
→ Insert and lock the suction head.

Cleaning the electrodes

→ Release and remove the suction head.
→ Clean the electrodes with a brush.
→ Insert and lock the suction head.

Troubleshooting

⚠️DANGER

First pull out the plug from the mains before carrying out any tasks on the machine.

Note: In case of a failure (e.g. filter breakage) the appliance must be turned off immediately. The failure must be remedied before the appliance is put into operation again.

Suction turbine does not run

→ Check the receptacle and the fuse of the power supply.
→ Check the power cable, the power plug, the electrodes and the receptacle of the device.
→ Turn on the appliance.

Suction turbine turns off

→ Empty the container.

Suction turbine does not start again after the container has been emptied

→ Turn off the appliance and wait for 5 seconds, turn it on again after 5 seconds.
→ Clean the electrodes as well as the space between the electrodes with a brush.

Suction capacity decreases

→ Remove blockages in the suction nozzle, suction tube, suction hose, or flat pleated filter.
→ Replacing the full fleece filter bag.
→ Replace the filled disposal bag
→ Ensure the filter cover properly locks into place.
→ Replace the flat pleated filter.

Dust comes out while vacuuming

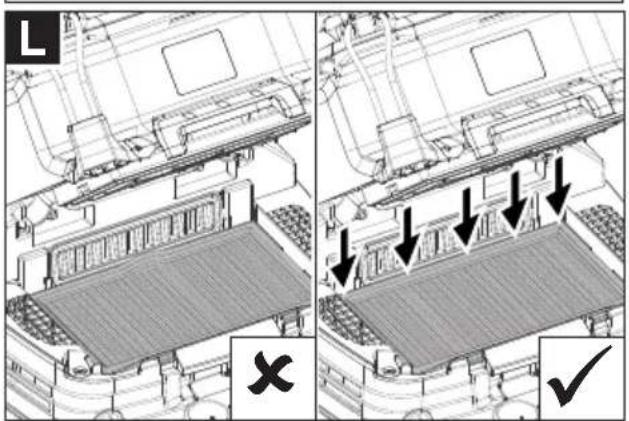

Illustration L

→ Check/correct the correct positioning of the flat pleated filter.
→ Replace the flat pleated filter.

Automatic shut-off (wet vacuum cleaning) does not react

→ Clean the electrodes as well as the space between the electrodes with a brush.
→ Continuously check the filling level in case of non-conductive liquid.

Automatic filter cleaning is not working

→ Suction hose is not connected.

Automatic filter cleaning cannot be switched off

→ Inform Customer Service.

Automatic filter cleaning cannot be switched on

→ Inform Customer Service.

Customer Service

If malfunction can not be fixed, the device must be checked by customer service.

Warranty

The warranty terms published by the relevant sales company are applicable in each country. We will repair potential failures of your appliance within the warranty period free of charge, provided that such failure is caused by faulty material or defects in manufacturing. In the event of a warranty claim please contact your dealer or the nearest authorized Customer Service centre. Please submit the proof of purchase.

Accessories and Spare Parts

Only use original accessories and spare parts, they ensure the safe and trouble-free operation of the device.

EU Declaration of Conformity

We hereby declare that the machine described below complies with the relevant basic safety and health requirements of the EU Directives, both in its basic design and construction as well as in the version put into circulation by us. This declaration shall cease to be valid if the machine is modified without our prior approval.

Product: Wet and dry vacuum cleaner

Type: BSS 606L

Relevant EU Directives

2006/42/EC (+2009/127/EC)

2014/30/EU

2011/65/EU

Applied harmonized standards

EN 55014-1: 2006+A1: 2009+A2: 2011

EN 55014-2: 2015

EN 60335-1

EN 60335-2-69

EN 61000-3-2: 2014

EN 61000-3-3: 2013

EN 62233: 2008

EN 50581

Applied national standards

The undersigned act on behalf and under the power of attorney of the company management.

Technical specifications

		BSS 606L
Mains voltage V 220-240
Frequency Hz 1~50-60
Max. performance W 1380
Rated power W 1200
Container capacity I 30
Filling quantity (liquid) I 17
Air volume (max.) m	^3/h 140
Negative pressure (max.) kPa (mbar) 23,0 (230)
Power connection data of the power tools W EU: 100-2200
		W DK: 100-1800
Surface of the flat fold filter	m^2	0,6
Type of protection	-- IPX4
Protective class	-- I
Diameter of the suction hose	mm	35
Length of the suction hose	m	4,0
Length x width x height	mm	560 x 370 x 580
Typical operating weight	kg	14,0
Values determined to EN 60335-2-69
Sound pressure level L_pA	dB(A)	68
Uncertainty K_pA	dB(A)	2
Hand-arm vibration value	m/s^2	<2,5
Uncertainty K	m/s^2	0,2

Power cord	H07RN-F 3x1,5 mm ^2
	Item no.	Cable length
EU	74864	7,5 m

Five black-and-white icons representing L, warning symbols, an exclamation mark, an open book with the letter 'i', and a left square symbol.

2006/42/CE (+2009/127/CE)

2014/30/UE

2011/65/UE

Warning symbols and icons including L, warning sign, exclamation mark, open book, and i

2006/42/CE (+2009/127/CE)

2014/30/UE

2011/65/UE

Image displaying six black-and-white icons: letter 'L', warning symbol, exclamation mark, open book with 'i', and letter 'L'.

Warning sign with L, warning symbols including a warning icon, a warning triangle, an open book, and an information icon, set against a striped background.

2006/42/CE (+2009/127/CE)

2014/30/UE

2011/65/UE

Warning sign with L, warning symbols, and an open book icon, likely from a safety or hazard context.

2006/42/CE (+2009/127/CE)

2014/30/UE

2011/65/UE

Warning sign with L, warning symbols, and an open book icon, likely from a safety or hazard management context.

2006/42/EF (+2009/127/EF)

2014/30/EU

2011/65/EU

Warning sign with L, warning symbols, and an open book icon, likely from a safety or hazard context.

Montere fleece-filterpose

Figur A

→ Avlås og ta av sugehodet.
→ Sett på fleece-filterposen.
→ Sett på sugehodet og lås det.

Montere avfallspose

Figur B

Stille inn sugeytelse

2006/42/EF (+2009/127/EF)

2014/30/EU

2011/65/EU

Warning sign with L, warning symbols, and an open book icon, likely from a safety or hazard warning system.

Ta loss fliesfilterpåse

Bild D

Warning sign with L, warning symbols, and an open book icon, likely from a safety or hazard context.

Five black-and-white icons representing L, warning symbols, an exclamation mark, an open book with the letter 'i', and a left square symbol.

Warning sign with L, warning symbols, and an open book icon, likely from a safety or hazard warning system.

Image displaying five black-and-white icons: letter 'L', warning symbol, warning triangle, open book with 'i', and letter 'L'.

Warning sign with L, warning symbols, and an open book icon, likely from a safety or hazard warning system.

Warning sign with L, warning symbols, and an open book icon, likely from a safety or hazard management context

2006/42/ES (+2009/127/ES)

2014/30/EU

2011/65/EU

Warning sign with L, warning symbols, and an open book icon, likely from a safety or hazard management context.

2006/42/ES (+2009/127/ES)

2014/30/EU

2011/65/EU

Five black-and-white icons representing L, warning symbols, an exclamation mark, an open book with the letter 'i', and a left square symbol.

2006/42/WE (+2009/127/WE)

2014/30/UE

2011/65/UE

Warning symbols and icons including L, warning sign, exclamation mark, open book, and i

Directive UE respectate:

2006/42/CE (+2009/127/CE)

2014/30/UE

2011/65/UE

Norme armonizate utilize:

EN 55014-1: 2006+A1: 2009+A2: 2011

EN 55014-2: 2015

EN 60335-1

EN 60335-2-69

EN 61000-3-2: 2014

EN 61000-3-3: 2013

EN 62233: 2008

EN 50581

Warning sign with L, warning symbols, and an open book icon, likely from a safety or hazard context.

2006/42/ES (+2009/127/ES)

2014/30/EÚ

2011/65/EÚ

Uplatňované harmonizované normy:

EN 55014-1: 2006+A1: 2009+A2: 2011

EN 55014-2: 2015

EN 60335-1

EN 60335-2-69

EN 61000-3-2: 2014

EN 61000-3-3: 2013

EN 62233: 2008

EN 50581

Warning symbols and icons including L, warning sign, exclamation mark, open book, and i

UPOZORENJE: Ovaj uređaj sadrži prašinu koja je štetna po zdravlje. Pražnjenje i održavanje uređaja, uključujući i uklanjanje vrećice s prašinom, smiju izvoditi samo stručne osobe s odgovarajućom osobnom zaštitnom opremom. Ne uključujte prije nego što se ugradi čitav sustav za filtriranje.

Plosnati naborani filtar (PES)

br. artikla 73684

Plosnati naborani filtar (PTFE)

br. artikla 8462

Sigurnosni napuci

⚠ OPASNOST

2006/42/EZ (+2009/127/EZ)

2014/30/EU

2011/65/EU

Warning sign with L, warning symbols, and an open book icon, likely from a safety or hazard context.

UPOZORENJE: Ovaj uređaj sadrži prašinu koja je štetna po zdravlje. Pražnjenje i održavanje uređaja, uključujući i uklanjanje vrećice s prašinom, smeju izvoditi samo stručnjaci koji nose odgovarajuću zaštitnu opremu. Ne uključujte pre nego što se ugradi kompletan filtracioni sistem.

	Pljosnati naborani filter (PES)
	br. artikla 73684
	Pljosnati naborani filter (PTFE)
	br. artikla 8462

Sigurnosne napomene

⚠ OPASNOST

2006/42/EZ (+2009/127/EZ)

2014/30/EU

2011/65/EU

Primenjene uskladene norme:

EN 55014-1: 2006+A1: 2009+A2: 2011

EN 55014-2: 2015

EN 60335-1

EN 60335-2-69

EN 61000-3-2: 2014

EN 61000-3-3: 2013

EN 62233: 2008

EN 50581

Warning sign with L, warning symbols, and an open book icon, likely from a safety or hazard management context.

Warning sign with L, warning symbols, and an open book icon, likely from a safety or hazard management context.

Warning sign with L, warning symbols, and an open book icon, likely from a safety or hazard context.
