Safety information 6	Care and cleaning 19
Safety instructions 8	Troubleshooting 20
Installation 10	Technical data 22
Electrical connection 11	Energy efficiency 22
Product description 13	Environmental concerns	23
Daily use 14	IKEA guarantee	23
Cooking table 17
Cookware guidance 18

Subject to change without notice.

Safety information

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible if an incorrect installation and use causes injuries and damage. Always keep the instructions with the appliance for future reference.

Children and vulnerable people safety

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children of less than 8 years of age and persons with very extensive and complex disabilities shall be kept away from the appliance unless continuously supervised.
• Children should be supervised to ensure that they do not play with the appliance.

• Keep all packaging away from children and dispose of it appropriately.

• WARNING: The appliance and its accessible parts become hot during use. Keep children and pets away from the appliance when in use and when cooling down.

• If the appliance has a child safety device, it should be activated.
• Children shall not carry out cleaning and user maintenance of the appliance without supervision.

General Safety

• This appliance is for cooking purposes only.
- This appliance is designed for single household domestic use in an indoor environment.
- This appliance may be used in offices, hotel guest rooms, bed & breakfast guest rooms, farm guest houses and other similar accommodation where such use does not exceed (average) domestic usage levels.
- WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements.
- Do not operate the appliance by means of an external timer or separate remote-control system.
- WARNING: Unattended cooking on a hob with fat or oil can be dangerous and may result in fire.
- Never use water to extinguish the cooking fire. Switch off the appliance and cover flames with e.g. a fire blanket or lid.
- CAUTION: The cooking process has to be supervised. A short term cooking process has to be supervised continuously.
- WARNING: Danger of fire: Do not store items on the cooking surfaces.
- Metallic objects such as knives, forks, spoons and lids should not be placed on the hob surface since they can get hot.
- Do not use the appliance before installing it in the built-in structure.

• Disconnect the appliance from the electrical supply before maintenance.
• Do not use a steam cleaner to clean the appliance.
• After use, switch off the hob element by its control and do not rely on the pan detector.
• WARNING: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock. In case the appliance is connected to the mains directly using junction box, remove the fuse to disconnect the appliance from power supply. In either case contact the Authorised Service Centre.
• If the supply cord is damaged, it must be replaced by the manufacturer, the Authorised Service Centre or similarly qualified persons in order to avoid a hazard.
• WARNING: Use only hob guards designed by the manufacturer of the cooking appliance or indicated by the manufacturer of the appliance in the instructions for use as suitable or hob guards incorporated in the appliance. The use of inappropriate guards can cause accidents.

Safety instructions

Installation

Warning! The appliance must be installed by the authorised installer.

Follow the Assembly instructions supplied with the appliance.

• Remove all the packaging.
• Do not install or use a damaged appliance.

• Keep the minimum distance from other appliances and units.
  • Always take care when moving the appliance as it is heavy. Always use safety gloves and enclosed footwear.

• Seal the cut surfaces with a sealant to prevent moisture from causing swelling.

• Protect the bottom of the appliance from steam and moisture.
• Do not install the appliance next to a door or under a window. This prevents hot cookware from falling from the appliance when the door or the window is opened.
• Make sure that the space underneath the hob is sufficient for air circulation.
• The bottom of the appliance can get hot. If the appliance is installed above the drawers, make sure to install a non-combustible separation panel under the appliances to prevent access to the bottom.

Electrical Connection

Warning! Risk of fire and electric shock.

- All electrical connections should be made by the authorised installer.

- The appliance must be earthed if the symbol (☐) is not printed on the rating plate.

- Before carrying out any operation make sure that the appliance is disconnected from the power supply.

- Make sure that the parameters on the rating plate are compatible with the electrical ratings of the mains power supply.

- Make sure the appliance is installed correctly. Loose and incorrect electricity mains cable or plug (if applicable) can make the terminal become too hot.

- Use the correct electricity mains cable.

- Do not let the electricity mains cable tangle.

- Make sure that a shock protection is installed.

- Use the strain relief clamp on the cable.

- Make sure the mains cable or plug (if applicable) does not touch the hot appliance or hot cookware, when you connect the appliance to the near sockets.

- Do not use multi-plug adapters and extension cables.

- Make sure not to cause damage to the mains plug (if applicable) or to the mains cable. Contact our Authorised Service Centre or an electrician to change a damaged mains cable.

- The shock protection of live and insulated parts must be fastened in such a way that it cannot be removed without tools.

- Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation.

- If the mains socket is loose, do not connect the mains plug.

- Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.

- Use only correct isolation devices: line protecting cut-outs, fuses (screw type fuses removed from the holder), earth leakage trips and contactors.

- The electrical installation must have an isolation device which lets you disconnect the appliance from the mains at all poles. The isolation device must have a contact opening width of minimum 3 mm.

Use

Warning! Risk of injury, burns and electric shock.

- Do not change the specification of this appliance.

- Remove all the packaging, labelling and protective film (if applicable) before first use.

- Make sure that the ventilation openings are not blocked.

- Do not let the appliance stay unattended during operation.

- Set the cooking zone to "off" after each use.

- Do not put cutlery or saucepan lids on the cooking zones. They can become hot.

- Do not operate the appliance with wet hands or when it has contact with water.

- Do not use the appliance as a work surface or as a storage surface.

- If the surface of the appliance is cracked, disconnect immediately the appliance from the power supply. This to prevent an electrical shock.

- Users with a pacemaker must keep a distance of minimum 30 cm from the induction cooking zones when the appliance is in operation.

- When you place food into hot oil, it may splash.

- Do not use aluminum foil or other materials between the cooking surface and the cookware, unless otherwise specified by the manufacturer of this appliance.

- Use only accessories recommended for this appliance by the manufacturer.

Warning! Risk of fire and explosion.

• Fats and oil when heated can release flammable vapours. Keep flames or heated objects away from fats and oils when you cook with them.
• The vapours that very hot oil releases can cause spontaneous combustion.
  • Used oil, that can contain food remnants, can cause fire at a lower temperature than oil used for the first time.
• Do not put flammable products or items that are wet with flammable products in, near or on the appliance.

Warning! Risk of damage to the appliance.

• Do not keep hot cookware on the control panel to avoid the risk of burns.
• Do not put a hot pan cover on the glass surface of the hob.
• Do not let cookware boil dry.
• Be careful not to let objects or cookware fall on the appliance. The surface can be damaged.
• Do not activate the cooking zones with empty cookware or without cookware.
• Cookware made of cast iron or with a damaged bottom can cause scratches on the glass / glass ceramic. Always lift these objects up when you have to move them on the cooking surface.

Care and cleaning

- Clean the appliance regularly to prevent the deterioration of the surface material.

• Switch off the appliance and let it cool down before cleaning.
• Clean the appliance with a moist soft cloth. Use only neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects, unless otherwise specified.

Service

• To repair the appliance contact the Authorised Service Centre. Use original spare parts only.
- Concerning the lamp(s) inside this product and spare part lamps sold separately: These lamps are intended to withstand extreme physical conditions in household appliances, such as temperature, vibration, humidity, or are intended to signal information about the operational status of the appliance. They are not intended to be used in other applications and are not suitable for household room illumination.

Disposal

Warning! Risk of injury or suffocation.

• Contact your local authority for information on how to dispose of the appliance.
• Disconnect the appliance from the mains supply.
• Cut off the mains electrical cable close to the appliance and dispose of it.

Installation

Warning! Refer to Safety chapters.

General information

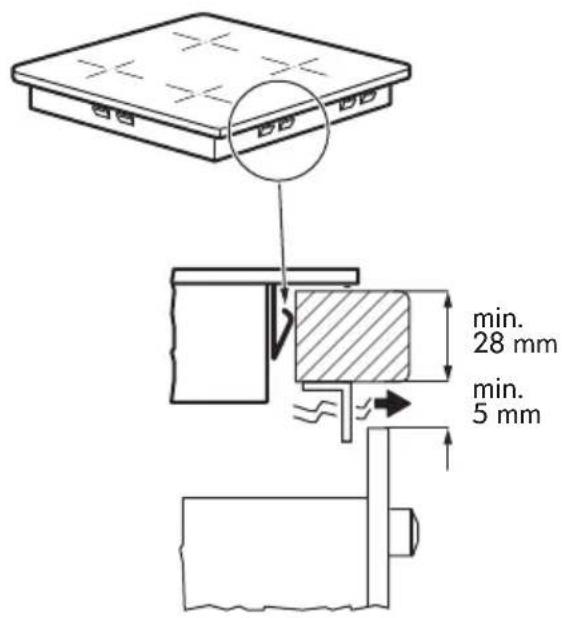

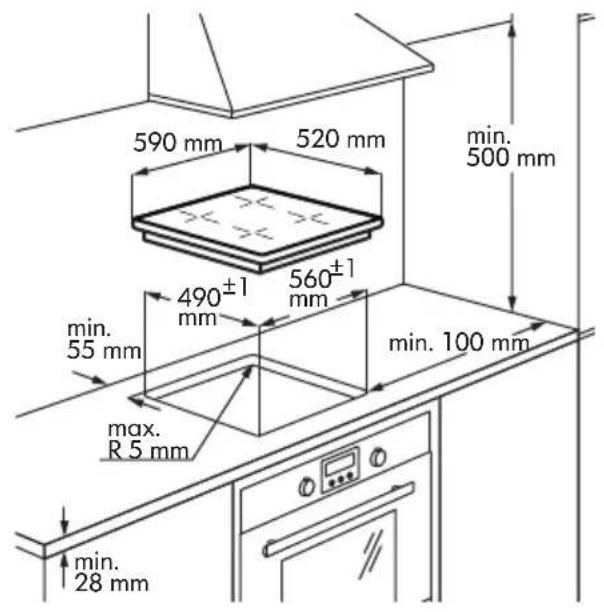

590 mm 520 mm min. 500 mm 490±1 mm 560±1 mm min. 55 mm max. R 5 mm min. 100 mm min. 28 mm

i Installation process must follow the laws, ordinances, directives and standards (electrical safety rules and regulations, proper recycling in accordance with the regulations, etc.) in force in the country of use!

- For further information on the installation refer to the Assembly Instruction.

• If there is no oven beneath the hob, install a separation panel under the appliance according to the Assembly Instruction.
• Do not use silicon sealant between the appliance and the worktop.

Electrical connection

Warning! Refer to Safety chapters.

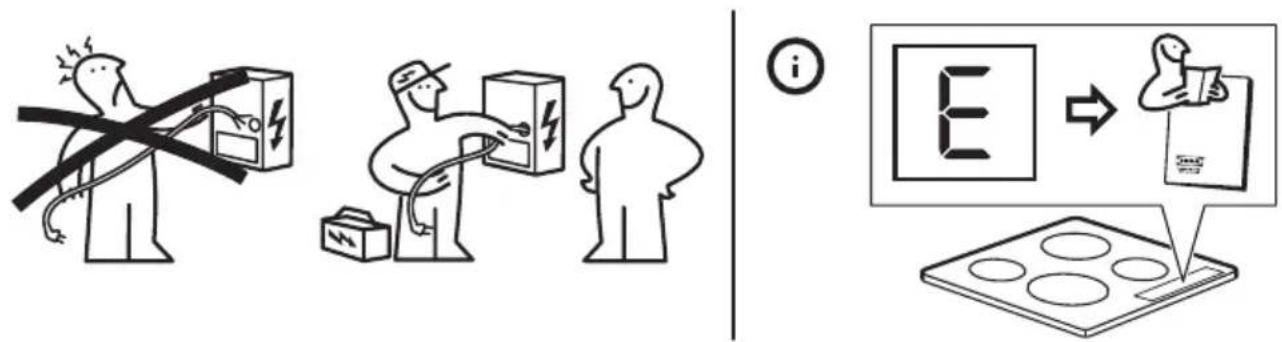

Warning! All electrical connections must be made by an authorised installer.

Electrical connection

- Before connecting, check if the nominal voltage of the appliance, provided on the rating plate, corresponds to the available supply voltage. The rating plate is located on the lower casing of the hob.

• Follow the connection diagram (it is located on the underneath surface of the casing of the hob).
• Use only original spare parts provided by spare parts service.
• The hob is supplied with a connection cable. To replace the damaged mains cable, use the cable type: H05V2V2-F or equivalent, which withstands a temperature of 70 °C or higher. The connection cable may only be replaced by a qualified electrician.
• You must have the means for disconnection incorporated in the fixed wiring.

ENGLISH 12

• You must have the connection and the connecting links carried out as shown in the connection diagram.
  • The appliance is double insulated and does not require an earth connection.
• Secure the connecting cable with cable clips or clamps.

• The appliance works either at 50 Hz or 60 Hz and does not require any additional action from a qualified electrician in order to switch between frequencies.

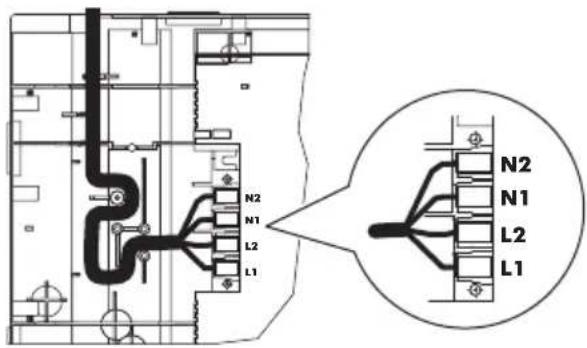

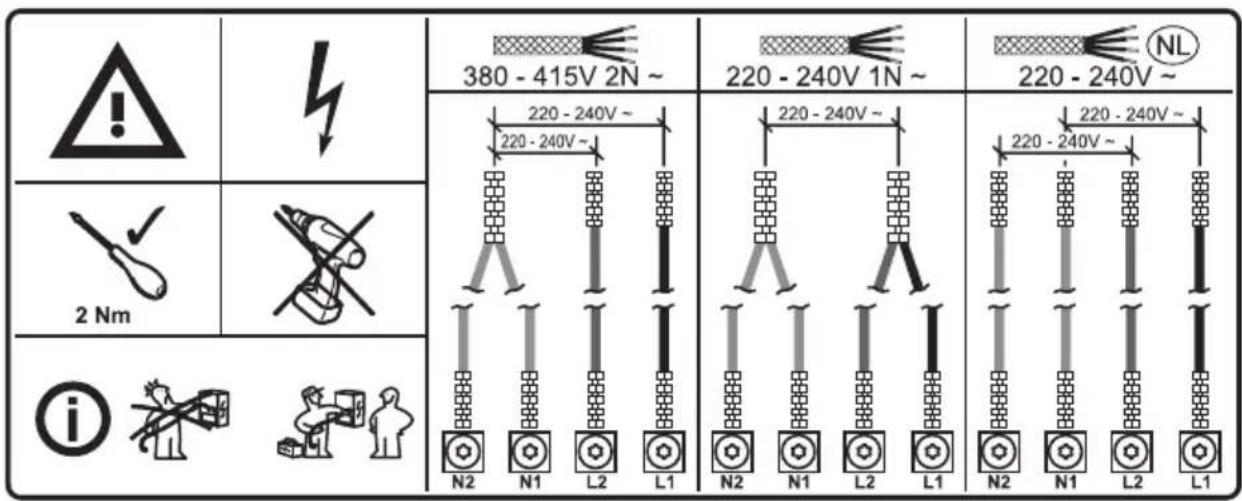

Connection diagram

380 - 415V 2N ~ 220 - 240V 1N ~ 220 - 240V ~ 220 - 240V ~ 220 - 240V ~ 220 - 240V ~ N2 N1 L2 L1 N2 N1 L2 L1 N2 N1 L2 L1

Wiring colours
N2 N1 L2 L1
Blue Blue - Gray Brown	Black

N2 N1 L2 L1 N2 N1 L2 L1

Tighten the terminal screws securely!

Once you connect the hob to the mains, check if all the cooking zones are ready to use. Place a pot with some water on a cooking zone and set the power setting for each zone to the maximum level for a short time.

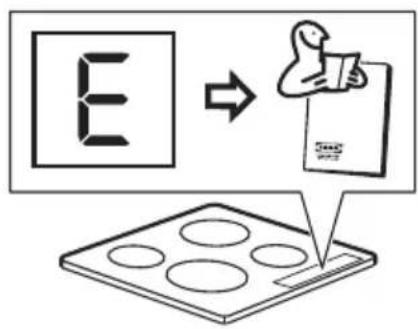

If for symbol comes on the display after you switch on the hob for the first time, refer to "Troubleshooting".

Diagram illustrating electrical circuit testing process with workers, battery pack, and digital display showing E conversion

Product description

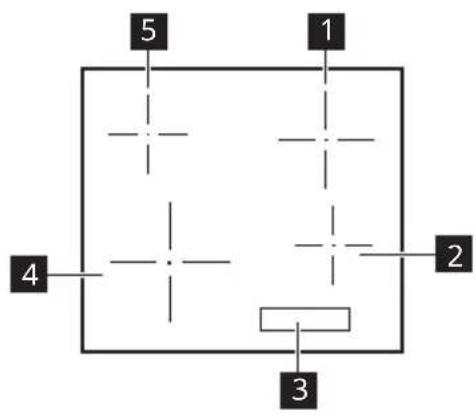

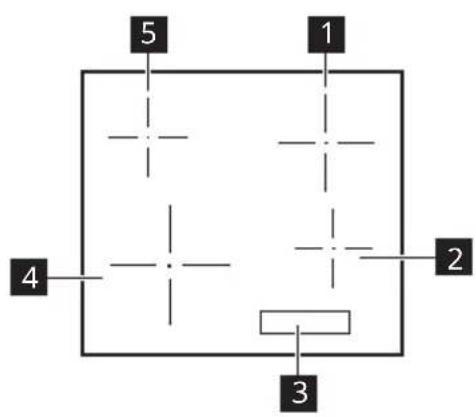

Cooking surface layout

5 1 4 2 3

1 Single cooking zone (180 mm) 1700 W, with Plus Power 1800 W
2 Single cooking zone (145 mm) 1400 W, with Plus Power 1500 W
3 Control panel
4 Single cooking zone (210 mm) 2200 W, with Plus Power 2400 W
5 Single cooking zone (145 mm) 1400 W, with Plus Power 1500 W

Control panel layout

1 2 5 9 - + 9

1 Ⓘ To switch the hob on or off.
2 To activate and deactivate Lock / Child Lock / Cleaning mode.
3 To select the cooking zone.

4 Power setting display: 0 - 1. 9 P
5 + / To increase or decrease the heat settings.

Power setting displays

Display Description
0	The cooking zone is deactivated.
1 - 9	The cooking zone operates.
P	Plus Power operates.
E + digit	There is a malfunction. Refer to "Troubleshooting".
H	A cooking zone is still hot (residual heat).
L	Lock / Child Lock / Cleaning mode operates.
F	Incorrect or too small cookware or no cookware on the cooking zone.
-	Automatic Switch Off operates.

Residual heat indicator

Warning! As long as the indicator is on, there is a risk of burns from residual heat.

The induction cooking zones produce the heat necessary for the cooking process directly in the bottom of the cookware. The glass ceramic is heated by the heat of the cookware.

The indicator H appears when a cooking zone is hot.

The indicator may also appear:

• for the neighbouring cooking zones even if you are not using them,
- when hot cookware is placed on cold cooking zone,
- when the hob is deactivated but the cooking zone is still hot.

The indicator disappears when the cooking zone has cooled down.

Daily use

① Switching on / off

Touch for 1 second to switch the appliance on / off.

Positioning cookware

Do not cover the control panel with cookware or any other objects. Do not place hot cookware on the control panel. There is a risk of burns and damage to the electronic parts.

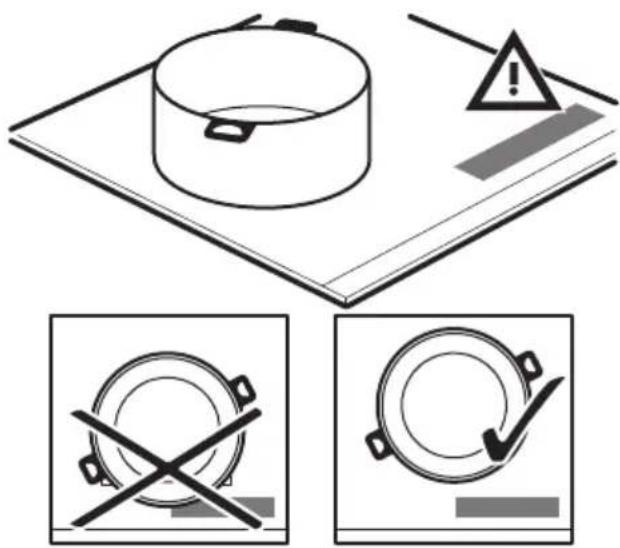

Place the cookware in the centre of the selected zone. Make sure the cookware does not go beyond the zone marking.

Safety warning illustration showing a cooking pot and warning symbols with crossed-out circular components

Automatic Switch Off

The function switches off the appliance automatically if:

• all cooking zones are deactivated.
• you do not set the power setting after switching on the appliance.
• you cover any symbol with an object (a pan, a cloth, etc.) for longer than approx. 10 seconds.
• you do not deactivate a cooking zone after a certain time, or you do not modify the power setting, or if overheating occurs (e.g. when a pan boils dry). The symbol lights up. Before using again, you must set the cooking zone to

Power setting	Automatic switch off after
1.2	6 hours
3.4	5 hours
5	4 hours
6.9	1.5 hours

If cookware that is not suitable is used, lights up on the display and after 2 minutes the indicator for the cooking zone deactivates.

Adjusting the power setting

To set the cooking zone touch the sensor field related to this zone. The display highlights the heat setting indication (9). Touch to increase the heat setting.

Touch to decrease the heat setting. Touch + and at the same time to deactivate the cooking zone.

Using the Plus Power function

The Plus Power function makes additional power available for the induction cooking zones.

To activate the function for a cooking zone: first set the cooking zone and then set the maximum heat setting. Touch until P comes on.

To deactivate the function: touch —

After a maximum of 10 minutes, the induction cooking zones automatically return to the ⑨ power setting.

Lock / Cleaning mode

You can lock the control panel and keep the cooking zones operating. It prevents an accidental change of the power setting.

Use the function to clean the surface of the hob during the cooking session, if needed.

First set the power setting.

To start the function touch ☐The symbol ☐ comes on for 4 seconds.

To stop the function touch ☐. The power setting that you set before comes on.

When you switch off the appliance, you also stop this function.

Child Lock

This function prevents an accidental operation of the appliance.

To activate the function:

• Switch on the appliance with . Do not set the power settings.
• Touch far 4 seconds. The symbol comes on.
• Switch off the appliance with . ①

To deactivate the function:

- Switch on the appliance with ①. Do not set the power settings. Touch for 4 seconds. The symbol ② comes on.

- Switch off the appliance with . ①

To override the function for only one cooking time:

- Switch on the appliance with . The symbol comes on.

- Touch 📋 for 4 seconds. Set the power setting in 10 seconds. You can operate the appliance.

- When you switch off the appliance with ①, the function operates again.

OffSound Control (Deactivation and activation of the sounds)

Originally the sounds of the appliance are activated.

Activating and deactivating the sounds:

1. Switch off the appliance.
2. Touch Ⓐ for 3 seconds. The display comes on and goes out.

3. Touch for 3 seconds. The display shows on the left front zone and or on the right front zone.

4. Touch the sensor field of the right rear zone to choose one of the following:

5. • the sounds are off,

- the sounds are on.

To confirm your selection wait for 10 seconds until the appliance switches off automatically.

When the function is set to you can hear the sounds only when:

• you touch .①
• you put something on the control panel.

If there is a problem with electrical supply and the appliance switches off it does not keep previous settings.

Power exchange function

If multiple zones are active and the consumed power exceeds the limitation of the power supply, this function divides the available power between all cooking zones. The hob controls heat settings to protect the fuses of the house installation.

- Cooking zones are grouped according to the location and number of the phases in the hob. Each phase has a maximum electricity loading. If the hob reaches the limit of maximum available power within one phase, the power of the cooking zones will be automatically reduced.

- If more than one cooking zone is activated at a time the power is reduced and distributed between all the activated zones. The power distribution is maintained as long as the zones remain activated. The zones will not return to the full power if one of them is deactivated. The power distribution ends only when all zones or the hob have been deactivated.

- The heat setting display of the reduced zones changes between the initially selected heat setting and the reduced heat setting.

- Wait until the display stops flashing or reduce the heat setting of the cooking zone selected last. The cooking zones will continue operating with the reduced heat setting. Change the heat settings of the cooking zones manually, if necessary.

Refer to the illustration for possible combinations in which power can be distributed among the cooking zones.

Pure diagram of four plus signs arranged in a cross pattern with bidirectional arrows, separated by a vertical dashed line (no text or symbols)

Cooking table

Heat setting Use to: Time		(min)	Hints
1 Keep cooked food warm. as necessary			Put a lid on the cookware.
1 - 2 Hollandaise	sauce, melt: butter, chocolate, gelatine.	5 - 25 Mix	from time to time.
1 - 2 Solidify: fluffy omelettes, baked eggs.		10 - 40 Cook with a lid on.
2 - 3 Simmer rice and milk-based dishes, heat up ready-cooked meals.		25 - 50 Aod at least twice as much liquid as rice, mix milk dishes halfway through the procedure.
3 - 4 Stew vegetables, fish, meat. 20 - 45 Add a few tablespoons of water. Check the water amount during the process.
4 - 5 Steam potatoes and other vegetables.		20 - 60 Cover the bottom of the pot with 1-2 cm of water. Check the water level during the process. Keep the lid on the pot.
4 - 5 Cook larger quantities of food, stews and soups.		60 - 150 Up to 3 l of liquid plus ingredients.
6 - 7 Gentle fry: escalope, veal cor-don bleu, cutlets, rissoles, sausages, liver, roux, eggs, pancakes, doughnuts.		as necessary	Turn over when needed.
Heat setting Use to: Time		(min)	Hints
7 - 8 Heavy fry, hash browns, loin steaks, steaks.	5 - 15 Turn over when needed.
9 Boil water, cook pasta, sear meat (goulash, pot roast), deep-fry chips.
P	Boil large quantities of water. Plus Power is activated.

The data in the table is for guidance only.

Cookware guidance

Warning! Refer to Safety chapters.

What pots to use

Only use cookware which is suitable for induction hobs. The cookware must be made of a ferromagnetic material, such as:

• cast iron;
• enamelled steel;
• carbon steel;
  • stainless steel (most types);
• aluminium with ferromagnetic coating or a ferromagnetic plate.

To determine if a pot or pan is suitable, check for the symbol 📄 (usually stamped on the bottom of the cookware). You can also hold a magnet to the bottom. If it clings to the underside, the cookware will work on the induction hob.

To ensure optimum efficiency, always use pots and pans with a flat bottom that distributes the heat evenly. If the bottom is uneven, this will affect power and heat conduction.

How to use

Minimum diameter of pot / pan base for the different cooking areas

To ensure that the hob operates properly, the cookware must have a suitable minimum

diameter as well as cover one or more of the reference points indicated on the surface of the hob.

Always use the cooking zone that best corresponds to the diameter of the bottom of the cookware.

Cooking zone Cookware diameter [mm]

Left rear 125 - 145

Left front 125 - 210

Right rear 150 - 180

Right front 125 - 145

Empty or thin-based pots / pans

Do not use empty pots / pans or cookware with thin bases on the hob as it will not be able to monitor the temperature, or will turn off automatically if the temperature is too high. This may result in the damage of the cookware or the hob surface. If such a situation occurs, do not touch anything and wait for all components to cool down.

If an error message appears, refer to "Troubleshooting".

Hints / tips

Noises during cooking

When a cooking zone is active it may hum briefly. This is characteristic of all induction cooking zones and does not impair either the function or the life of the appliance. The noise depends on the cookware used. If it causes considerable disturbance, it might help to change the cookware.

Normal operating noises of the induction hob

Induction technology is based on the creation of electromagnetic fields to generate heat directly on the bottom of cookware. Pots and pans may cause a variety of noises or vibrations depending on how they are manufactured. These noises are described as follows:

• Low humming (like a transformer): this noise is produced when cooking at a high heat level. It is based on the amount of energy transferred from the cooktop to the cookware. The noise ceases or quiets down when the heat level is reduced.
• Quiet whistling: this noise is produced when the cooking vessel is empty. It ceases once liquids or food are placed in the vessel.
• Crackling: this noise occurs with cookware comprised of various materials layered one upon the other. It is caused by the vibrations of the surfaces where different materials meet. The noise occurs

on the cookware and can vary depending on the amount of food or liquid and the cooking method (e.g., boiling, simmering, frying).

• Loud whistling: this noise occurs with cookware comprised of different materials layered one upon the other, and when they are additionally used at maximum output and also on two cooking zones. The noise ceases or quiets down when the heat level is reduced.
• Fan noises: for proper operation of the electronic system, it is necessary to regulate the temperature of the cooktop. For this purpose, the cooktop is equipped with a cooling fan, which is activated to reduce and regulate the temperature of the electronic system. The fan may also continue to run after the appliance is turned off if the detected temperature of the cooktop is still too hot after turning it off.
• Rhythmic sounds, similar to the ticking sound of a clock: this noise occurs only when at least three cooking zones are operating and disappears or weakens when some of them are switched off. The noises described are a normal element of the described induction technology and should not be regarded as defects.

Care and cleaning

General information

Warning! Switch off the appliance and let it cool down before you clean it.

Warning! For safety reasons, do not clean the appliance with steam blasters or high-pressure cleaners.

Warning! Sharp objects and abrasive cleaning agents will damage the appliance. Clean the appliance and remove the residues with water and dish soap after each use. Remove also the remnants of the cleaning agents.

Scratches or dark stains on the glass ceramic that cannot be removed do not affect the functioning of the appliance.

Removing the residues and stubborn residues

Food containing sugar, plastics, or tin foil residues should be removed at once. A scraper is the best tool for cleaning the glass surface. It is not supplied with the appliance. Place a scraper on the hob surface at an angle and remove residues by sliding the blade over the surface. Clean the appliance

using a damp cloth and some dish soap. Finally, wipe the glass surface dry with a clean cloth.

Limescale rings, water rings, fat splashes, or shiny metallic discolourations should be removed after the appliance has cooled down. Use only a specialised cleaner for glass ceramic or stainless steel.

Troubleshooting

Warning! Refer to Safety chapters.

What to do if...

Problem Possible cause Remedy
You cannot switch on the appliance or operate it.	The hob is not connected to an electrical supply or it is connected incorrectly.	Check if the hob is correctly connected to the electrical supply. Refer to the connection diagram.
The fuse is blown. Make sure that the fuse is		the cause of the malfunction. If the fuse is blown again and again, contact an authorised installer.
You did not set the power	setting in less than 10 seconds.	Switch on the hob again and set the power setting in less than 10 seconds.
You touched 2 or more symbols at the same time.		Touch only one symbol at a time.
There is water or fat stains	on the control panel.	Clean the control panel and wait for a few seconds before activating again.
An acoustic signal sounds and the hob switches off. An acoustic signal sounds when the hob is switched off.	You put something on one or more symbols on the control panel.	Remove the object from the symbols.
The appliance switches off. You put something on the symbol ⏻		Remove the object from the symbols.
Residual heat indicator does not come on.	The zone is not hot because it operated only for a short time.	If the zone operated sufficiently long to be hot, speak to the After Sales Service.
The power setting changes between two levels.	Power exchange function operates.	Refer to "Daily use".
The symbols become hot. The	cookware is too large or you put it too near to the controls.	Put large cookware on the rear zones, if possible.
There is no signal when you touch a symbol on the control panel.	The signals are deactivated.	Activate the signals.Refer to "Daily use" > "Off-Sound Control".
- comes on.	Automatic Switch Off operates.	Switch off the hob and switch it on again.
L comes on.	Child Lock or Lock operates.	Refer to "Daily use".
E and a number come on.	There is an error in the hob. D	sconnect the hob from the electrical supply for some time. Disconnect the fuse from the electrical system of the house. Connect it again.If E comes on again, speak to an authorised installer.
E4 comes on.	There is an error in the hob because a pot boiled dry. Automatic Switch Off and the overheating protection for the zones operate.	Switch off the hob. Remove the hot cookware. After approximately 30 seconds, activate the zone again. If the cookware was the problem, the error message goes out. Residual heat indicator can stay on. Let the cookware become sufficiently cool. Check if your cookware is compatible with the hob.Refer to "Cookware guidance".

If there is a fault, try to resolve it by following the troubleshooting guidelines. If the problem cannot be resolved, contact your IKEA store or the After Sales Service. You can find a full list of IKEA appointed contacts at the end of this user manual.

If you operated the appliance wrongly, or the installation was not carried out by an authorised installer, the visit from the After Sales Service technician or dealer may not take place free of charge, even during the warranty period.

Technical data

Rating Plate

MODEL

21552

Made in ...

PI-000000-0

© Inter IKEA Systems B.V. 2019

IKEA of Sweden AB

SE - 343 81 Älmhult

Design and Quality IKEA of Sweden

Model00000000

Typ 60 GAD DC AU 6.9kW

PNC 000 000 000 00 S No ....220V-240V AC 50-60 Hz

The graphic above serves to represent the rating plate of the appliance. The actual rating plate is located on the bottom of the casing. The serial number is specific to each product.

Dear Customer, keep the additional rating plate with the user manual. This will allow us

to assist you better by identifying precisely your hob, in case you need our assistance in the future. Thank you for your help!

Energy efficiency

Product Information according to EU and UK Ecodesign Regulations

Model identification VILSTA		905.577.25
Type of hob Built-In Hob
Number of cooking zones 4
Heating technology Induction
Diameter of circular cooking zones (∅) Left front	Left rearRight frontRight rear	21.0 cm14.5 cm14.5 cm18.0 cm
Energy consumption per cooking zone (EC electric cooking)	Left frontLeft rearRight frontRight rear	174.2 Wh/kg183.9 Wh/kg177.2 Wh/kg176.3 Wh/kg
Energy consumption of the hob (EC electric hob) 177.9 Wh/kg
IEC / EN 60350-2, BS EN 60350-2 - Household electric cooking appliances - Part 2: Hobs - Methods for measuring performance.

Energy saving

You can save energy during everyday cooking if you follow the hints below.

• When you heat up water, use only the amount you need.

• If it is possible, always put the lids on the cookware.

• Put the cookware directly in the centre of the cooking zone.

• Use the residual heat to keep the food warm or to melt it.

Product Information for power consumption and maximum time to reach applicable low power mode

Power consumption in off mode 0.3 W
Maximum time needed for the equipment to automatically reach the applicable low power mode	2 min

Environmental concerns

Recycle materials with the symbol Put the packaging in relevant containers to recycle it. Help protect the environment and human health by recycling waste of electrical and electronic appliances. Do not dispose of

appliances marked with the symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.

IKEA guarantee

How long is the IKEA guarantee valid?

This guarantee is valid for 5 years from the original date of purchase of your appliance at IKEA. The original sales receipt is required as proof of purchase. If service work is carried out under guarantee, this will not extend the guarantee period for the appliance.

Who will execute the service?

IKEA service provider will provide the service through its own service operations or authorized service partner network.

What does this guarantee cover?

The guarantee covers faults of the appliance, which have been caused by faulty construction or material faults from the date of purchase from IKEA. This guarantee

applies to domestic use only. The exceptions are specified under the headline “What is not covered under this guarantee?” Within the guarantee period, the costs to remedy the fault e.g. repairs, parts, labour and travel will be covered, provided that the appliance is accessible for repair without special expenditure. On these conditions the EU guidelines (Nr. 99/44/EG) and the respective local regulations are applicable. Replaced parts become the property of IKEA.

What will IKEA do to correct the problem?

IKEA appointed service provider will examine the product and decide, at its sole discretion, if it is covered under this guarantee. If considered covered, IKEA service provider or its authorized service partner through its own service operations, will then, at its sole discretion, either repair the defective

product or replace it with the same or a comparable product.

What is not covered under this guarantee?

• Normal wear and tear.
• Deliberate or negligent damage, damage caused by failure to observe operating instructions, incorrect installation or by connection to the wrong voltage, damage caused by chemical or electro-chemical reaction, rust, corrosion or water damage including but not limited to damage caused by excessive lime in the water supply, damage caused by abnormal environmental conditions.

- Consumable parts including batteries and lamps.

• Non-functional and decorative parts which do not affect normal use of the appliance, including any scratches and possible color differences.

- Accidental damage caused by foreign objects or substances and cleaning or unblocking of filters, drainage systems or soap drawers.

- Damage to the following parts: ceramic glass, accessories, crockery and cutlery baskets, feed and drainage pipes, seals, lamps and lamp covers, screens, knobs, casings and parts of casings. Unless such damages can be proved to have been caused by production faults.

- Cases where no fault could be found during a technician's visit.

- Repairs not carried out by our appointed service providers and/or an authorized service contractual partner or where non-original parts have been used.

- Repairs caused by installation which is faulty or not according to specification.

- The use of the appliance in a non-domestic environment i.e. professional use.

- Transportation damages. If a customer transports the product to their home or other address, IKEA is not liable for any damage that may occur during transport. However, if IKEA delivers the product to the customer's delivery address, then

damage to the product that occurs during this delivery will be covered by this guarantee.

- Cost for carrying out the initial installation of the IKEA appliance. However, if an IKEA service provider or its authorized service partner repairs or replaces the appliance under the terms of this guarantee, the service provider or its authorized service partner will re-install the repaired appliance or install the replacement, if necessary.

This restriction do not apply to fault-free work carried out by a qualified specialist using our original parts in order to adapt the appliance to the technical safety specifications of another EU country.

How country law applies

The IKEA guarantee gives you specific legal rights, which covers or exceed local demands. However these conditions do not limit in any way consumer rights described in the local legislation.

Area of validity

For appliances which are purchased in one EU country and taken to another EU country, the services will be provided in the framework of the guarantee conditions normal in the new country. An obligation to carry out services in the framework of the guarantee exists only if the appliance complies and is installed in accordance with:

• the technical specifications of the country in which the guarantee claim is made;
  • the Assembly Instructions and User Manual Safety Information;

The dedicated After Sales Service for IKEA appliances:

Please do not hesitate to contact IKEA After Sales Service to:

1. make a service request under this guarantee;
2. ask for clarification on installation of the IKEA appliance in the dedicated IKEA kitchen furniture. The service won't provide clarifications related to:
   • the overall IKEA kitchen installation;

ENGLISH 25

- connections to electricity (if machine comes without plug and cable), to water and to gas since they have to be executed by an authorized service engineer.

1. ask for clarification on user manual contents and specifications of the IKEA appliance.

To ensure that we provide you with the best assistance, please read carefully the Assembly Instructions and/or the User Manual section of this booklet before contacting us.

How to reach us if you need our service

Please refer to the last page of this manual for the full list of IKEA appointed contacts and relative national phone numbers.

In order to provide you with a quicker service, we recommend that you use the specific phone numbers listed at the end of this manual. Always refer to the numbers listed in the booklet of the specific appliance you need an assistance for. Before calling us, assure that you have to hand the IKEA article number (8 digit code) and the Serial Number (8 digit code that can be found on the rating plate) for the appliance of which you need our assistance.

i SAVE THE SALES RECEIPT! It is your proof of purchase and required for the guarantee to apply. Note that the receipt reports also the IKEA article name and number (8 digit code) for each of the appliances you have purchased.

Do you need extra help?

For any additional questions not related to After Sales of your appliances, please contact

our nearest IKEA store call centre. We recommend you read the appliance documentation carefully before contacting us.

Inhaltsverzeichnis

N2 N1 L2 L1 N2 N1 L2 L1

Ziehen Sie die

Diagram illustrating electrical circuit testing process with workers, battery pack, and digital display showing E conversion

Gerätebeschreibung

Safety warning illustration showing cooking process with a pot, warning symbol, and two crossed safety symbols below.

Pure diagram of four plus signs with bidirectional arrows inside a dashed vertical line (no text or symbols)

Gartabelle

© Inter IKEA Systems B.V. 2019

IKEA of Sweden AB

SE - 343 81 Älmhult

Design and Quality IKEA of Sweden

Model00000000

Typ 60 GAD DC AU 6.9kW

PNC 000 000 000 00 S No ....220V-240V AC 50-60 Hz

Symbol of a trash bin crossed with a diagonal line, representing no waste or discharge (no text or labels)

Recycling symbol with three arrows forming a triangle (no text or labels)

N2 N1 L2 L1 N2 N1 L2 L1

Simple line drawing of a person with a lightning bolt symbol crossed by two black lines, holding an electrical box (no text or labels)

Illustration of two figures, one holding a battery and the other standing beside it (no text or symbols present)

E → Document 100% 100%

Safety warning illustration showing cooking pot, warning sign, and two circular safety symbols with crossed and check indicators.

Arrêt automatique

Pure diagram of four plus signs arranged symmetrically around a vertical dashed line, with bidirectional arrows indicating bidirectional movement (no text or symbols)

Tableau de cuisson

GARANTIE IKEA - FRANCE

CONTRAT DE GARANTIE ET DE SERVICE APRES-VENTE IKEA

N2 N1 L2 L1 N2 N1 L2 L1

Draai de klemschroeven stevig vast!

Illustration showing two workers installing electrical boxes with a lightning bolt symbol, one holding a device and the other standing nearby (no text or symbols present)

i

E → DARANT

Safety warning illustration showing a cooking pot and warning symbols with crossed-out circular components

Pure diagram of two vertical lines with plus and double arrows, no text or symbols present

Bereidingstabel

© Inter IKEA Systems B.V. 2019

IKEA of Sweden AB

SE - 343 81 Älmhult

Design and Quality IKEA of Sweden

Model00000000

Typ 60 GAD DC AU 6.9kW

PNC 000 000 000 00 S No ....220V-240V AC 50-60 Hz

N2 N1 L2 L1 N2 N1 L2 L1

Diagram illustrating electrical circuit testing process with workers, battery pack, and digital display showing E conversion

Produktbeskrivelse

5 1 4 2 3

1 Enkelt kogezone (180 mm) 1700 W, med Plus Power 1800 W
2 Enkelt kogezone (145 mm) 1400 W, med Plus Power 1500 W
3 Betjeningspanel
4 Enkelt kogezone (210 mm) 2200 W, med Plus Power 2400 W
5 Enkelt kogezone (145 mm) 1400 W, med Plus Power 1500 W

Betjeningspanelets indretning

1 2 5 9 - + 9

Safety warning illustration showing a cooking pot and warning symbols with crossed-out circular components

Automatisk slukning

Pure diagram of four plus signs arranged symmetrically around a vertical dashed line (no text or symbols)

Kogetabel

© Inter IKEA Systems B.V. 2019

IKEA of Sweden AB

SE - 343 81 Älmhult

Design and Quality

IKEA of Sweden

Model00000000

Typ 60 GAD DC AU 6.9kW

PNC 000 000 000 00 S No ....220V-240V AC 50-60 Hz

N2 N1 L2 L1 N2 N1 L2 L1

Diagram illustrating electrical circuit testing process with workers, battery pack, and digital display showing E conversion

Vörulýsing

Hönnun eldunarhellna

5 1 4 2 3

1 Ein eldunarhella (180 mm) 1700 W með Plus Power 1800 W
2 Ein eldunarhella (145 mm) 1400 W með Plus Power 1500 W
3 Stjórnborð
4 Ein eldunarhella (210 mm) 2200 W með Plus Power 2400 W
5 Ein eldunarhella (145 mm) 1400 W með Plus Power 1500 W

Safety warning illustration showing a cooking pot and warning symbols with crossed-out circular components

Sjálfvirk slokknun

Pure diagram of four plus signs arranged symmetrically around a vertical dashed line (no text or symbols)

Eldunartafla

© Inter IKEA Systems B.V. 2019

IKEA of Sweden AB

SE - 343 81 Älmhult

Design and Quality

IKEA of Sweden

Model00000000

Typ 60 GAD DC AU 6.9kW

PNC 000 000 000 00 S No ....220V-240V AC 50-60 Hz

N2 N1 L2 L1 N2 N1 L2 L1

Diagram illustrating electrical circuit testing process with workers, battery pack, and digital display showing E conversion

Produktbeskrivelse

Safety warning illustration showing a cooking pot and warning symbols with crossed-out circular features

Pure diagram of four plus signs with bidirectional arrows inside a dashed vertical line (no text or symbols)

Steketabell

© Inter IKEA Systems B.V. 2019

IKEA of Sweden AB

SE - 343 81 Älmhult

Design and Quality IKEA of Sweden

Model00000000

Typ 60 GAD DC AU 6.9kW

PNC 000 000 000 00 S No ....220V-240V AC 50-60 Hz

N2 N1 L2 L1 N2 N1 L2 L1

Diagram illustrating electrical circuitry and process steps with labeled components and a simplified diagram showing 'E' transformation.

Tuotekuvaus

Keittotason painikkeet

5 1 4 2 3

Safety warning illustration showing cooking pot, warning sign, and two circular safety symbols with crossed and check indicators.

Pure diagram of four plus signs arranged symmetrically around a vertical dashed line, with bidirectional arrows indicating bidirectional movement (no text or symbols)

Kypsennystaulukko

© Inter IKEA Systems B.V. 2019

IKEA of Sweden AB

SE - 343 81 Älmhult

Design and Quality

[KEA of Sweden]

Model00000000

Typ 60 GAD DC AU 6.9kW

PNC 000 000 000 00 S No ....220V-240V AC 50-60 Hz

N2 N1 L2 L1 N2 N1 L2 L1

Diagram illustrating electrical circuit testing process with workers, battery pack, and digital display showing E conversion

Produktbeskrivning

Matlagningsytans layout

5 1 4 2 3

1 Enkel kokzon (180 mm) 1700 W, med Plus Power 1800 W
2 Enkel kokzon (145 mm) 1400 W, med Plus Power 1500 W
3 Kontrollpanel
4 Enkel kokzon (210 mm) 2200 W, med Plus Power 2400 W
5 Enkel kokzon (145 mm) 1400 W, med Plus Power 1500 W

Kontrollpanellayout

1 2 5 9 - + 9

Safety warning illustration showing a cooking pot and warning symbols with crossed-out circular components

Pure diagram of four plus signs arranged symmetrically around a vertical dashed line (no text or symbols)

Tillagningstabell

© Inter IKEA Systems B.V. 2019

IKEA of Sweden AB

SE - 343 81 Älmhult

Design and Quality IKEA of Sweden

Model00000000

Typ 60 GAD DC AU 6.9kW

PNC 000 000 000 00 S No ....220V-240V AC 50-60 Hz

N2 N1 L2 L1 N2 N1 L2 L1

Diagram illustrating electrical circuit testing process with workers, battery pack, and digital display showing E conversion

Popis spotřebiče

Safety warning illustration showing a cooking pot and warning symbols with crossed-out circular components

Automatické vypnutí

Pure diagram of four plus signs with bidirectional arrows inside a dashed vertical line (no text or symbols)

Tabulka pro vaření

© Inter IKEA Systems B.V. 2019

IKEA of Sweden AB SE - 343 81 Älmhult

Design and Quality IKEA of Sweden

Model 00000000

Typ 60 GAD DC AU 6.9kW

PNC 000 000 000 00 S No 220V-240V AC 50-60 Hz

N2 N1 L2 L1 N2 N1 L2 L1

Simple line drawing of a person with a lightning bolt symbol crossed by a conductor (no text or labels)

Illustration of two figures, one holding a battery and the other standing beside it (no text or symbols present)

i

E → DARANT

Safety warning illustration showing a cooking pot and warning symbols with crossed-out circular components

Pure diagram of four plus signs arranged in a cross pattern with bidirectional arrows, separated by a vertical dashed line (no text or symbols)

Tabla de cocción

© Inter IKEA Systems B.V. 2019

IKEA of Sweden AB

SE - 343 81 Älmhult

Design and Quality

IKEA of Sweden

Model00000000

Typ 60 GAD DC AU 6.9kW

PNC 000 000 000 00 S No ....220V-240V AC 50-60 Hz

N2 N1 L2 L1 N2 N1 L2 L1

Simple line drawing of a person with a light bulb and crossed lines, holding an electrical box (no text or symbols)

Illustration of a person charging an electrical box to another person, both with no visible text or symbols.

i

E → Document

Safety warning illustration showing a cooking pot and warning symbols with crossed-out circular components

Pure diagram of four plus signs arranged in a cross pattern with bidirectional arrows, separated by a vertical dashed line (no text or symbols)

Tabella di cottura

N2 N1 L2 L1 N2 N1 L2 L1

Diagram illustrating electrical circuitry and a process involving a lamp, battery pack, and paper tray with a magnified view of the lamp's internal components.

Termékleírás

Safety warning illustration showing cooking pot, warning sign, and two circular diagrams with crossed-out symbols.

Pure diagram of two vertical lines with plus and double-headed arrows, no text or symbols present

Főzési táblázat

N2 N1 L2 L1 N2 N1 L2 L1

Diagram illustrating electrical circuit testing process with workers, battery pack, and digital display showing E conversion

Opis urządzenia

Safety warning illustration showing a cooking pot and warning symbols with crossed-out circular components

Pure diagram of four plus signs arranged in a cross pattern with bidirectional arrows, separated by a vertical dashed line (no text or symbols)

Tabela gotowania
