USER MANUAL Alpatec Snowfield Babel TAURUS

Evaporative air cooler

Line drawing of a portable air conditioner unit with cooling fins and ventilation slots (no text or symbols)

A B C

J

I H G F E

Fig.1 Fig.1

Technical line drawing of a vertical cylindrical device with internal grid pattern and an inset showing a mechanical component (no text or symbols)

Diagram showing a device with internal components and a close-up of a component with directional arrows indicating rotation or movement.

Fig.3

Technical line drawing of a mechanical component with two circular insets showing internal components (no text or symbols)

Español

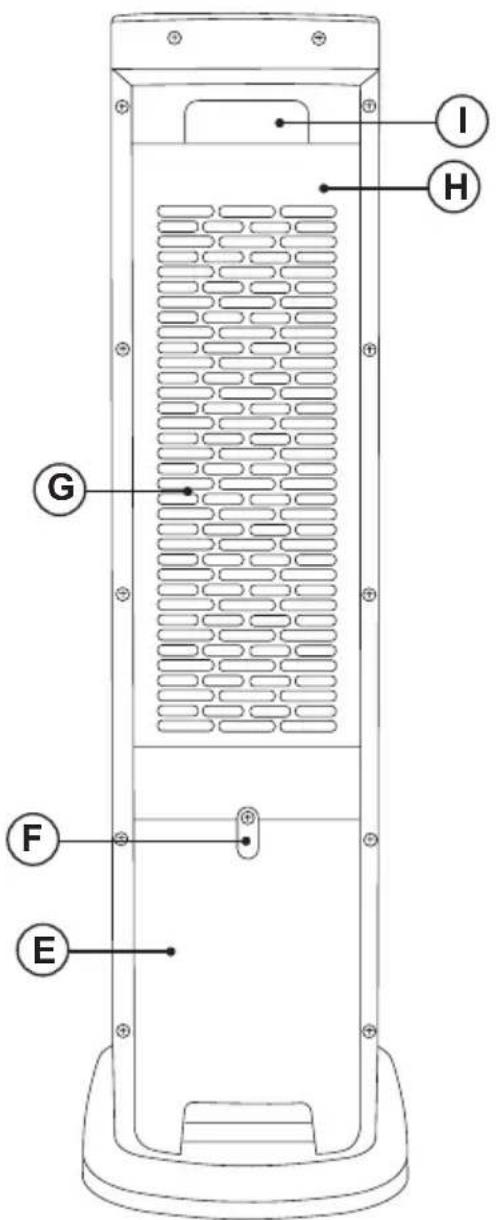

H Evaporation pad support

I Carry handle

J Ice Containers

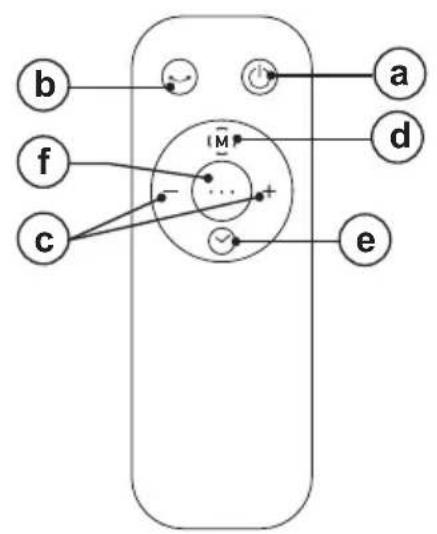

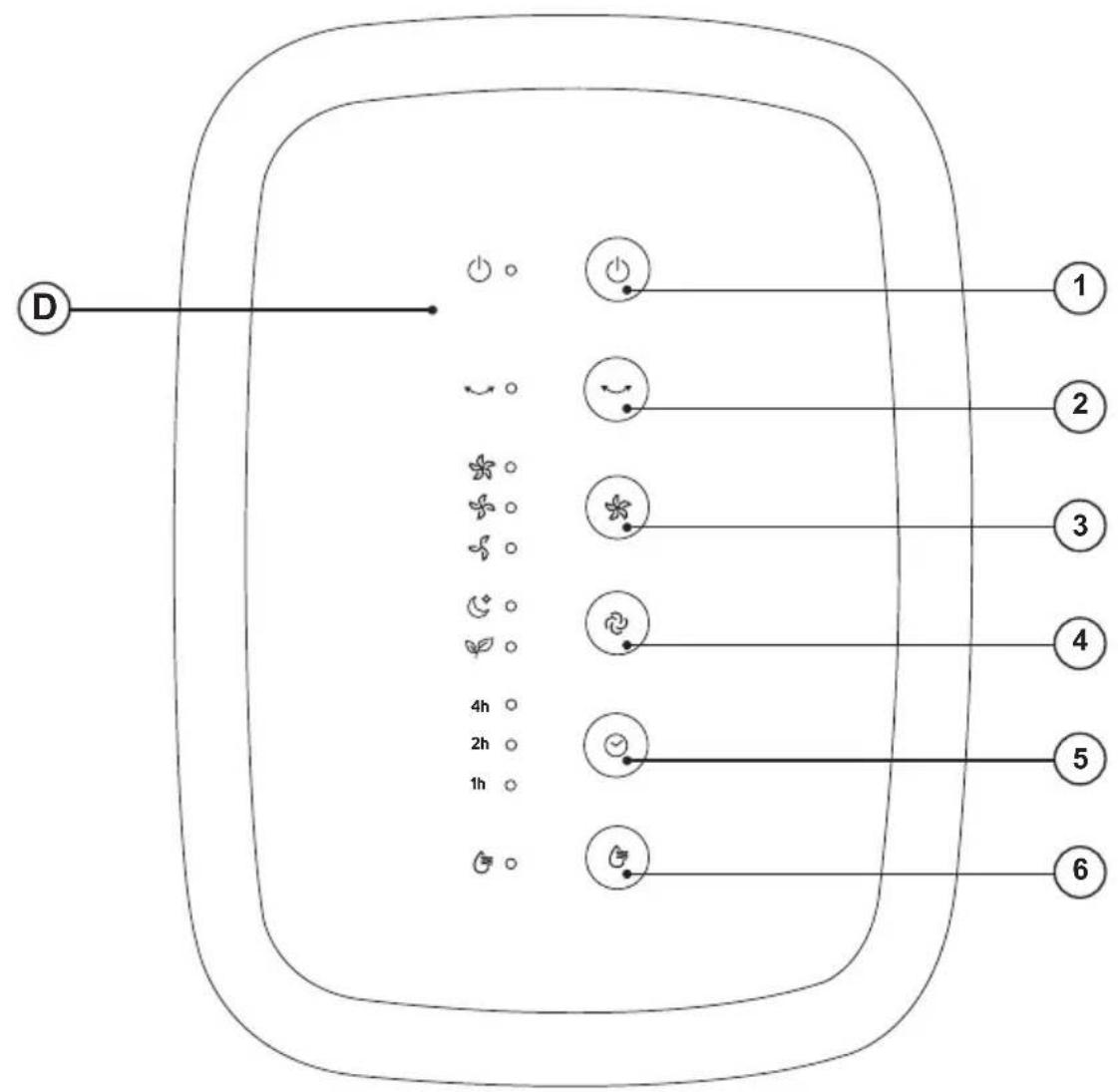

1/a On/off

2/b Oscillation

3/c Speed selector

4/d Wind modes

5/e Timer

6/f Cooling

If the model of your appliance does not have the accessories described above, they can also be bought separately from the Technical Assistance Service.

USE AND CARE:

- Fully extend the appliance's power cable before each use.

- Do not use the appliance if its accessories are not properly fitted.

- Do not use the appliance if the accessories attached to it are defective. Replace them immediately.

- Do not use the appliance if the on/off switch does not work.

- Do not move the appliance while in use.

- Use the appliance handle/s, to carry it or move it.

- Do not turn the appliance over while it is in use or connected to the mains.

- Disconnect the appliance from the mains when not in use and before undertaking any cleaning task.

- Store this appliance out of reach of children and/or persons with physical, sensory or

reduced mental or lack of experience and knowledge.

- Keep the appliance in a dry, dust-free place, out of direct sunlight.

- Make sure that dust, dirt or other foreign objects do not block the fan grill on the appliance.

- Keep the appliance in good condition. Check that the moving parts are not misaligned or jammed and make sure there are no broken parts or anomalies that may prevent the appliance from operating correctly.

- Never leave the appliance connected and unattended if is not in use. This saves energy and prolongs the life of the appliance.

- Do not use the appliance to dry pets or animals.

- Do not use the appliance to dry textiles of any kind.

- Ensure that the appliance is level with respect to the floor.

- Do not cover or obstruct any of the openings of the appliance.

- The plug must be easily accessible so it can be disconnected in an emergency.

- The appliance should be used with its base fitted.

INSTALLATION

- Be sure to remove all packaging material from inside the appliance.

- Ensure that the appliance is switched off from the supply mains before start any installation or assembly operation.

ASSEMBLING THE BATTERY/S

- Caution: During the handling of batteries, do not touch both poles at the same time, as this will provoke the partial discharge of the stocked energy therefore affecting longevity.

- Remove the cover of the battery compartment.

- Check that the plastic covering that protects the battery has been removed (some batteries are sold with a protective covering)

- Put the battery in its compartment, respecting the polarity.

- Replace the cover of the battery compartment.

- It is essential that the batteries should always be the same kind and the same charge. Never

mix alkaline batteries with normal one (Carbon-Zinc) and/or rechargeable ones.

INSTRUCTIONS FOR USE

BEFORE USE:

- Make sure that all products' packaging has been removed.

USE:

- Extend the cable completely before plugging it in.

- Connect the appliance to the mains.

- Turn the appliance on, by using the on/off button (1/a).

FAN FUNCTION:

- Select the desired ventilation speed by pressing the speed selector button (3/c).

COOLING / HUMIDIFIER FUNCTION:

- Use the cooling bottom (6/f), to activate this function.

- To deactivate this function, follow the procedure for switching it on in reverse.

- Do not activate this function if there is no water in the tank, or if the water level is below the minimum.

- When the water is low the pilot light will start flashing.

- NOTE: It is highly recommended to use the ice containers (J) (previously frozen) and cold water to maximize the cooling function of the appliance.

TIMER FUNCTION:

- The appliance's operating time can be controlled (1-7h).

- To program the operating time simply select it using the timer button (5/e).

- When the appliance is on stand-by mode, you can set a timer to start the appliance.

- When the appliance is on, you can set the timer to turn off the appliance.

- The time programmed will be indicated by the pilot lights.

- After the selected time the appliance will switch on or off automatically.

- NOTE: If the timer is not used, the appliance will always turn off after 12h.

OSCILLATION FUNCTION:

- The oscillation function makes it possible to direct the air flow from the apparatus, by turning the vertical fins.

- To activate this function, press the oscillation button (2/b).

- To deactivate this function, follow the procedure for switching it on in reverse.

- You can also adjust the horizontal fins manually.

WIND MODES:

- This model has three wind modes:

- Normal: The fan operates constantly at the selected speed.

- Breeze: The fan alternates periods of more and less power, simulating the feeling of a soft breeze.

- Night: The fan operates at speed 2 for 15 minutes, and then it switches to speed 1 and keeps running at that speed until it is turned off or the timer runs out.

- To activate this function, press the modes button (4/d).

- To deactivate this function, follow the procedure for switching it on in reverse.

FILL UP / EMPTY THE WATER TANK:

- The water tank (E) is in the back-bottom part of the appliance.

- Always turn-off and unplug the appliance from the mains before undertaking these tasks.

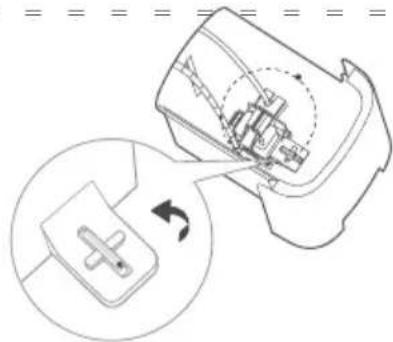

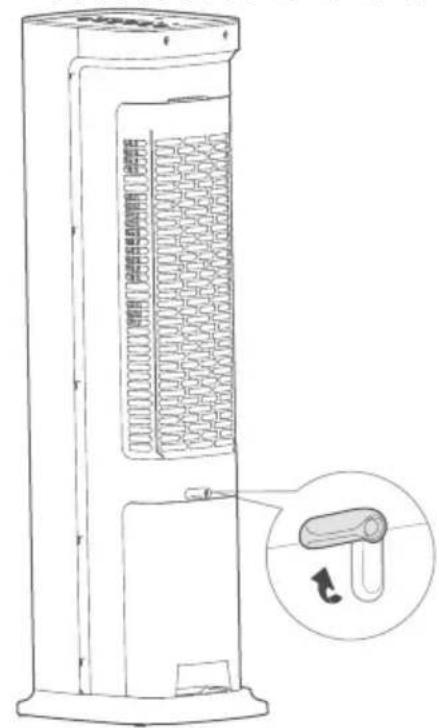

- Turn the water tank buckle (F) to the horizontal position (Fig 1).

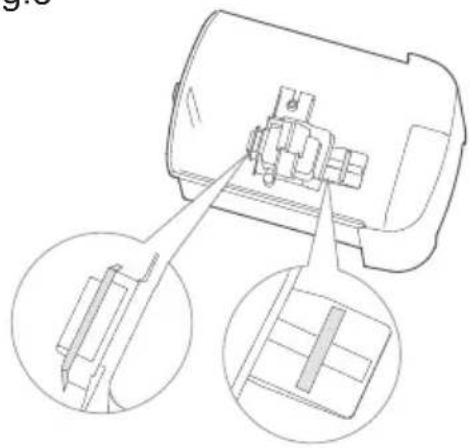

- Unscrew the rotatory knob to separate the water tank from the water pump and its pipe (Fig 2.)

- After filling up the tank, install the water pump in the tank. Insert the front hook into the slot in the water tank and turn the knob so the pump is fixed (Fig 3).

- Push the water tank in and lock it with the buckle (F).

- To empty the water tank, use the same procedure to remove the water tank. Wait at least two minutes after turning the appliance off, to let all the water in the pipe or the evaporative pad to come down to the tank.

ONCE YOU HAVE FINISHED USING THE APPLIANCE:

• Turn the appliance off, using the on/off button (1/a).
• Unplug the appliance from the mains.
• Clean the appliance.

CARRY HANDLE/S:

- This appliance has a handle on the back to make it easy and convenient to transport (I).

CLEANING

• Disconnect the appliance from the mains and allow it to cool before undertaking any cleaning task.
• Clean the equipment with a damp cloth with a few drops of washing-up liquid and then dry.
• Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, for cleaning the appliance.
• Do not let water or any other liquid get into the air vents to avoid damage to the inner parts of the appliance.
• Never submerge the appliance in water or any other liquid or place it under running water.
• If the appliance is not in good condition of cleanliness, its surface may degrade and inexorably affect the duration of the appliance's useful life and could become unsafe to use.

Français

RAFRAICHISEUR D'AIR

SNOWFIELD BABEL

DESCRIPTION

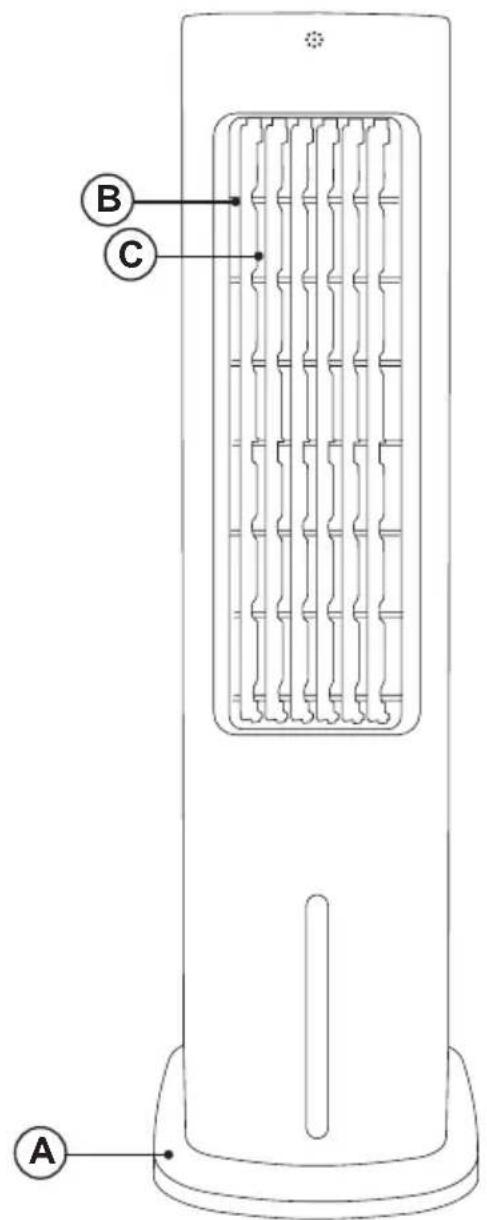

A Base
