USER MANUAL Aero Crisp 8L - Fp TAURUS

Line drawing of a mechanical device with a handle and side panel (no text or symbols)

ES. Instrucciones de uso
EN. Instructions for use
FR. Mode d'emploi
PT. Instruções de uso
IT. Istruzioni per l'uso
CA. Instruccions d'ús
DE. Gebrauchsanleitun

A B

Technical diagram of a microwave oven with labeled components including front, side, and internal views.

FREIDORA DE AIRE AERO CRISP 8L

DESCRIPCIÓN

A – Panel de control digital

B – Cuerpo

C - Cestillo

D - Asa

E – Rejilla antiadherente

PANEL DE CONTROL

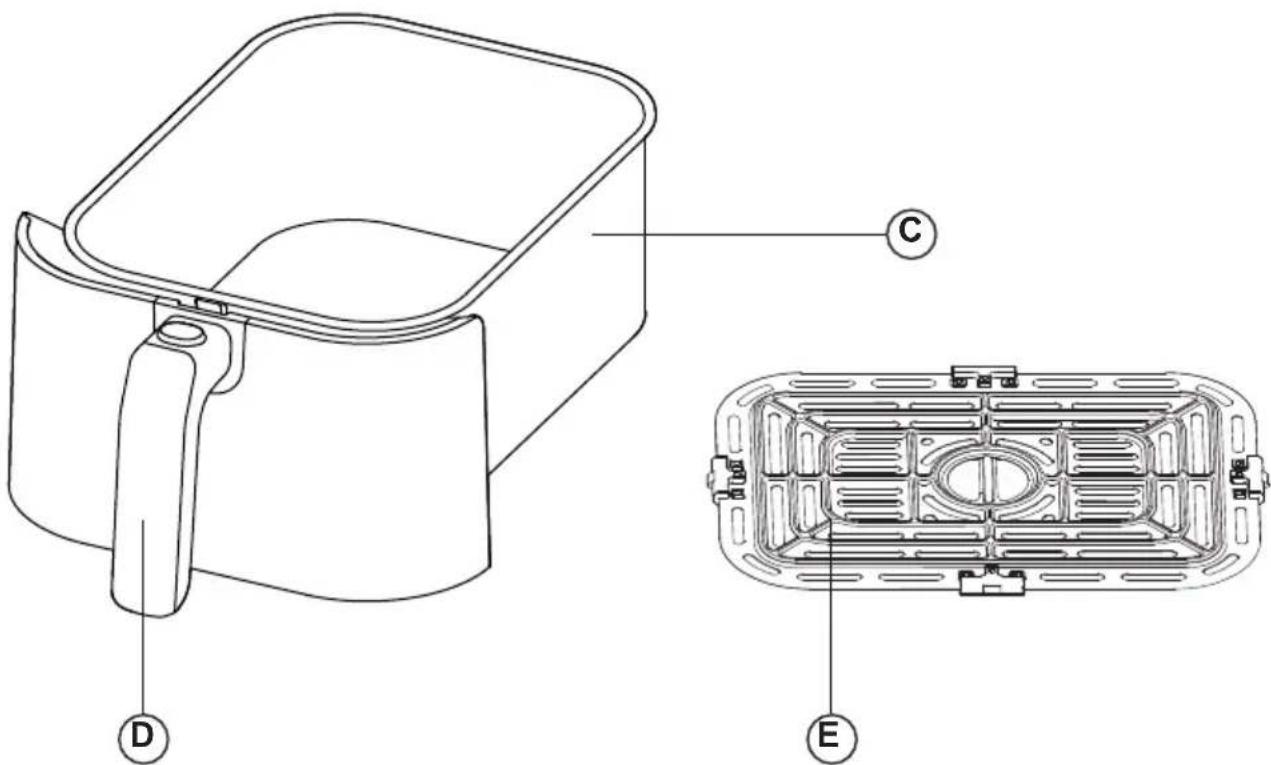

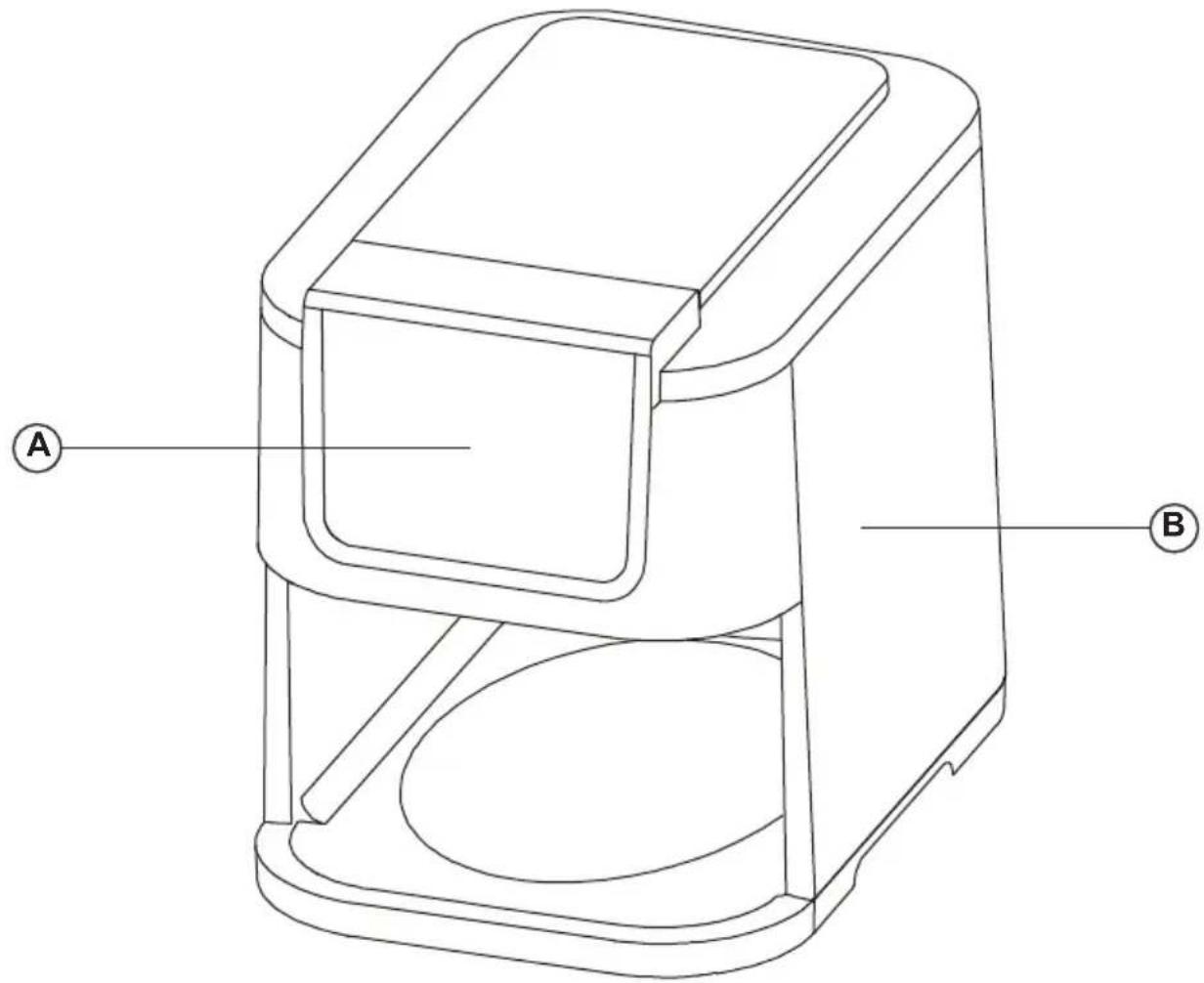

A - Digital control panel
B - Body
C - Basket
D - Handle
E - Non-stick grid

CONTROL PANEL

1 - Time indicator
2 - Temperature indicator
3 - Manual program
4 - On/off button
5 - Shrimp program
6 - Time selector (-)
7 - Meat program
8 - Temperature selector
9 - Chicken program
10 - Time selector (+)
11 - Menu selector
12 - French fries program

If your appliance model does not have the accessories described above, they can also be purchased separately from Technical Assistance Services.

USE AND CARE

• Before each use, fully extend the power cord of the appliance.
• Do not use the appliance if its accessories are not properly attached.
• Do not use the appliance if the attached accessories are defective. Replace them immediately.
• Do not use the appliance if it is empty and without the basket.
• The air fryer functions with hot air only. Never fill the basket with oil or any other type of grease.
• Do not add paper, cardboard, plastics, or similar materials inside the fryer. Aluminum foil or parchment paper can be used.
• Do not use the appliance if the timer is not functioning correctly.
• Do not move or displace the appliance while it is in operation.
• To maintain the non-stick coating in good condition, do not use metallic or sharp utensils on it.

- Unplug the appliance from the power source when not in use and before performing any cleaning operation.

- Keep this appliance out of the reach of children and/or individuals with reduced physical, sensory, or mental capabilities or lack of experience and knowledge.

• Do not store or transport the appliance if it is still hot.
• Never leave the appliance connected and unattended. Additionally, it will save energy and prolong the life of the appliance.

INSTRUCTIONS FOR USE

BEFORE USE

• Ensure that you have removed all packaging materials from the product.
• Before using the product for the first time, clean the parts that will come into contact with food as described in the "Cleaning" section.
• Leave a minimum of 13cm of space between the back and top of the wall.

USE

• Fully unwind the power cord before plugging it in.
• Plug the appliance into the electrical outlet.
• Remove the fryer basket by pressing the handle button.
• Place the ingredients you want to fry inside the basket.
• Reinsert the basket into the fryer. Once the basket is properly positioned, the on/off button (4) will illuminate.
• Press the on/off button (4) to turn on the appliance.

MANUAL MODE

• If you want to manually select the desired time and temperature, press the menu selector button (11) until you reach the manual program indicator (3).
• Adjust the temperature using the button (8).
• Adjust the time using the buttons (6) and (10).
• Press the on/off button (4) to start cooking.
• If you want to stop the cooking process, press the on/off button again.
• When cooking is finished, the appliance emits a beep three times.

English (Original instructions)

- You can adjust the time and temperature during cooking without the need to stop the appliance.

• Once cooking is finished, remove the fryer basket by pressing the handle button. Take out the food.
• CAUTION: The basket and the food will be very hot.
• Reinsert the basket into the fryer and hold down the on/off button (4) for 3 seconds to turn off the appliance. The display will show "OF."
• The fryer's fan will turn off a few seconds later.

PRESET MENUS

• This appliance has 4 preset menus.
• To select a menu, press the menu selector button (11) as many times as needed. The icon of the selected program will flash.
• Then, press the on/off button (4) to start cooking. The icon of the selected program will remain lit.
• If desired, the temperature and time settings of the preset menus can also be modified by pressing the corresponding buttons.

TIME AND TEMPERATURE

• The cooking time can be adjusted from 1 to 60 minutes.
• Hold down one of the two buttons (6 or 10) to quickly increase or decrease the time.
• The cooking temperature can be adjusted to 80^ C, 160^ C, 180^ C, or 200^ C.

STIRRING REMINDER

• In all programs lasting more than 6 minutes, the stirring reminder will sound at 2/3 of the cooking time.
• The appliance will emit 4 beeps as a reminder to stir the food.
• Remove the basket by pressing the handle button.
• Stir the food.
• Reinsert the basket.

ONCE USE OF THE APPLIANCE IS FINISHED

• Unplug the appliance from the power source.
• Allow it to cool down.
• Clean the appliance as explained in the "Cleaning" section.

CLEANING

• Unplug the appliance from the power source and allow it to cool before starting any cleaning operation.
• Clean the appliance and its accessories with a damp cloth dampened with a few drops of detergent and then dry it.
• Do not use solvents, acidic or alkaline pH products such as bleach, or abrasive products to clean the appliance.
• Never immerse the appliance in water or any other liquid, nor place it under the tap.
• It is recommended to clean the appliance regularly and remove all food residues.
• If the appliance is not kept in good cleaning condition, its surface may degrade and inexorably affect the lifespan of the appliance, leading to a dangerous situation.

• The following parts of this appliance are dishwasher safe:

• Basket

• Non-stick grid

Table of recommendations

	Menu	Time	Temperature
[OXZA]	French fries	20 min	200°C
[H7OA]	Chicken	25 min	200°C
	Meat	15 min	180°C
	Shrimps	10 min	180°C
	Manual mode	10 min	80°C

NOTE: It is advisable to preheat the appliance before cooking. Add 3 minutes to all menus if the appliance is cold when starting the cooking process.
NOTE: The recommendations in the table are intended as a guide only. Please adjust the time and temperature according to the amount of food, as well as the size, thickness, or personal cooking preferences.

Troubleshooting

Problem	Cause	Solution
The screen does not turn on.	Power failure	Check the condition and maintenance of the power supply equipment
	Power outlet without power or poor contact
	The supply voltage does not match the nominal voltage of the product
	Circuit board failure	Contact our Technical Support Service
The food is undercooked/overcooked.	Incorrect selected time or temperature.	Adjust the temperature and cooking time according to the amount of food and cooking preferences.
	Too much food in the basket.	If you have too much food, fry them in batches. Less food in the basket allows for more even heating.
Smoke is coming out of the appliance during the first use.	There are traces of antioxidant oil in the air fryer.	Preheat the fryer for 10 to 15 minutes at the maximum temperature.
The appliance emits a smell.	There are food residues inside the fryer.	Clean the fryer and its accessories as described in the "Cleaning" section.
The control panel is unresponsive.	There are oil or water residues on the control panel.	Clean and dry the control panel with a cloth.
	There are oil or water residues on your hands.	Wash and dry your hands.

NOTE: If after referring to this table you still cannot resolve the problem, please contact our Customer Support team.

FRITEUSE À AIR AERO CRISP 8L

DESCRIPTION
