USER MANUAL Babyline 3.2 Lionelo

Line drawing of a medical device with screen, buttons, and control panel (no text or symbols)

1

Line drawing of a mechanical device with a conical tip and base (no text or symbols)

2

3

4

5

Simple line drawing of a circular component with two side handles, no text or symbols present.

A

16 8 9 14 1 13 4 7 2 5 6 = 7.00 < 4

11 10 12 15 17

B

4 2 1 3 8

5 6 7

C

Line drawing of a cable being inserted into a device, showing plug, connector, and socket (no text or symbols)

1

Line drawing of a cable connection between a power outlet and a microphone device (no text or symbols present)

2

Diagram of a mechanical device with a suspended load and a base, showing no text or symbols.

Camera Settings Camera Pairing > Display Mode > Video Screen Setting > Record Mode > Time Stamp > Add Cancel

4

Diagram showing a blood glucose meter and a walk device with a red prohibition symbol crossed out.

5

Camera Settings Camera Settings Camera Pairing > Display Mode > Video Screen Setting > Record Mode > Time Stamp > Display Mode 15S

6

1 VOX 15:15

7

Dear Customer!

In case of any questions or comments on the purchased product, please contact us: [e-mail]

Producer:

BrandLine Group Sp. z o. o.

1. Before using the product, read the instruction manual and keep it for future reference.
2. This product is not a toy. Do not allow children to play with it.
3. The product is only suitable for use in dry places. Do not use it outside or on a wet surface.
4. Do not touch the product with wet hands.
5. If the product does not work as it should or has been dropped or flooded, contact the manufacturer's service department.
6. Do not disassemble the product yourself.
7. Use only the power adapter included in the set.
8. Do not place the product near a stove or other heat sources.

9. Installation must be conducted only by an adult. Keep smaller parts of the set away from the child.

10. The electronic nanny is not a substitute for proper parental care and attention.

11. Do not place the product and its cables in the playpen or within reach of the child. Place them at least 1m away.
12. Do not place the product near water or a source of fire.
13. Do not touch the plug contacts with sharp or metal objects.
14. Do not use the device if the cord or plug is damaged.
15. To unplug the device, grasp the plug, not the cord.
16. If the device will not be used for a long period of time, unplug it from the mains.
17. Stay at least 20 cm away from the device.

COMPONENTS OF THE SET (FIG. A)

1. Monitor
2. Camera
3. USB-C cable (monitor)
4. Micro USB cable (camera)
5. Camera wall installation set

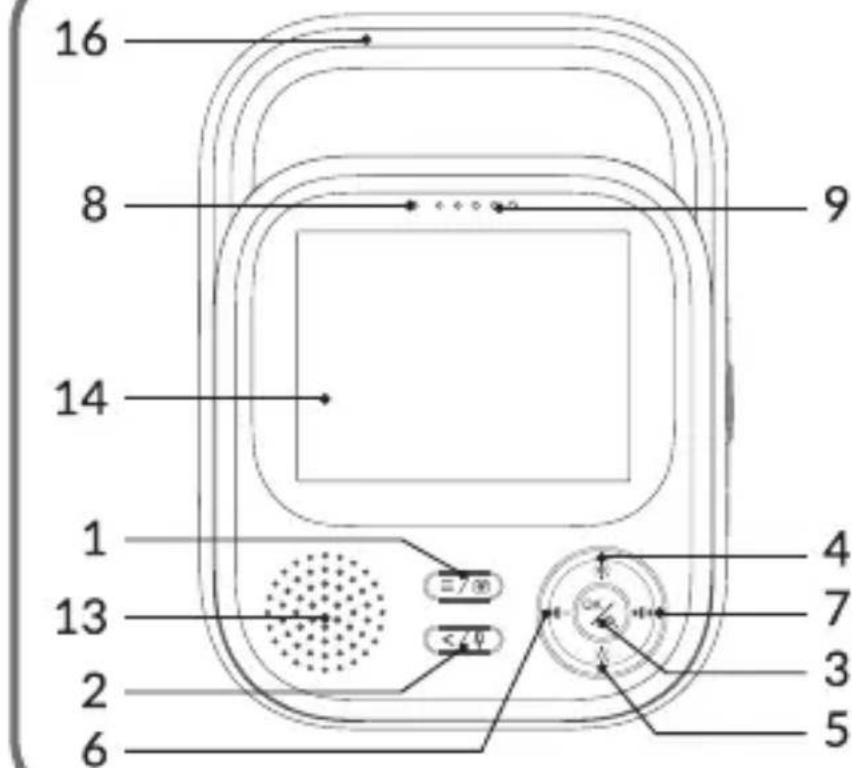

MONITOR DESCRIPTION (FIG. B)

1. Menu button

2. Press briefly to display the menu. Press again to return to the home screen.

3. Press and hold to take a photo (when using the device with an active microSD card).

4. Back button / Two-way audio communication

5. Press briefly to return to the previous screen.

6. Press and hold to start audio transmission. Release to abort.

7. OK / Zoom button

- Press briefly to turn off standby mode.

• In the main menu, press this button to confirm the selected option or action.
• In monitoring mode, press this button briefly to increase or decrease zoom.

• When using more than one camera, press this button and hold for about 2 seconds to switch the view between cameras.

• Moving up / Increasing brightness button

- In monitoring mode, use this button to increase the brightness of the screen.

1. Moving down / Decreasing brightness button

- In monitoring mode, use this button to decrease the brightness of the screen.

1. Moving left / Decreasing volume button

- In monitoring mode, use this button to turn down the sound volume.

1. Moving right / Increasing volume button

- In monitoring mode, use this button to increase the volume of the sound.

1. Monitor power indicator

2. Red color: low battery / device charging.

3. Green color: device charged.

4. Indicator of the volume detected by the camera

5. Green color: low noise level detected by the camera.

6. Yellow color: medium noise level detected by the camera.

7. Red color: high noise level detected by the camera.

8. On/Off Switch

9. Press and hold for about 3 seconds to turn the monitor on or off.

10. Press briefly to enable or disable standby mode.

11. Reset button

12. Microphone

13. Speaker

14. Display

15. Clip
16. Holder
17. USB-C port

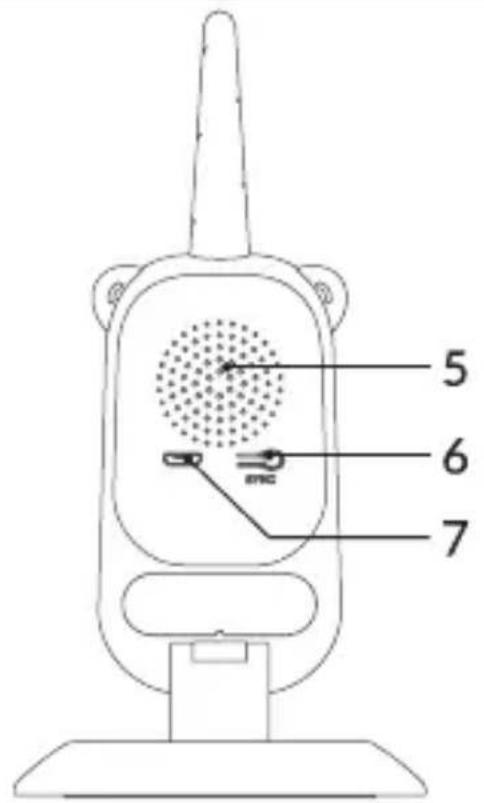

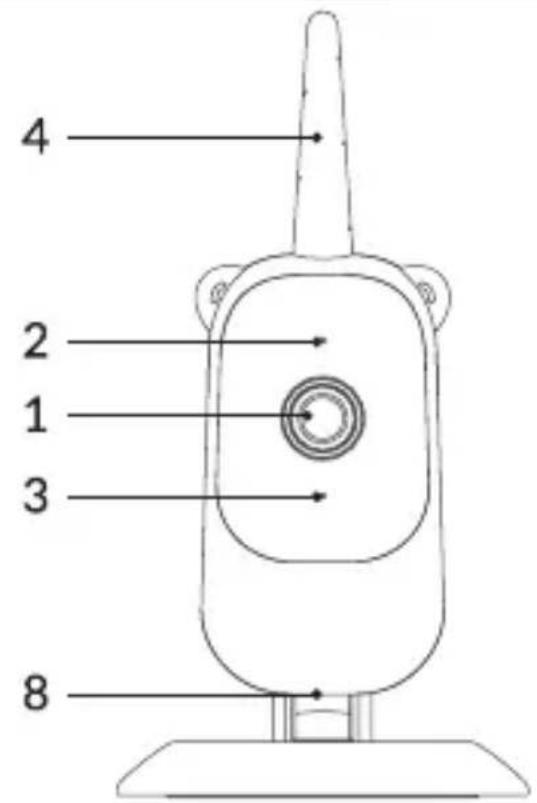

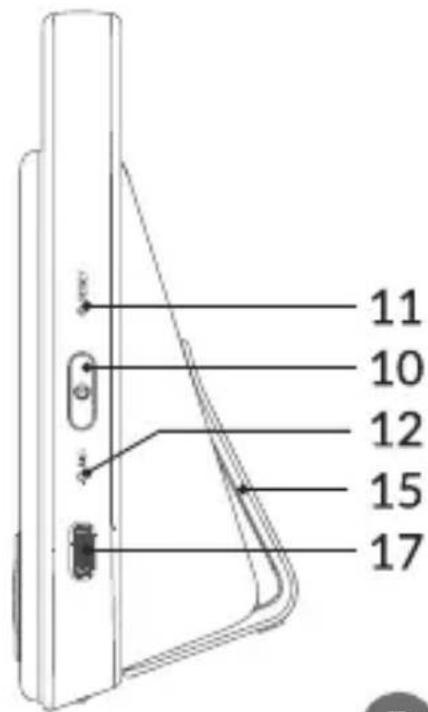

CAMERA DESCRIPTION (FIG. C)

1. Lens
2. Microphone
3. LED camera power indicator
4. Antenna
5. Speaker
6. Pairing button
7. Micro USB port
8. MicroSD card port (max. 128 GB)

INSTRUCTIONS FOR USE

Charging the monitor

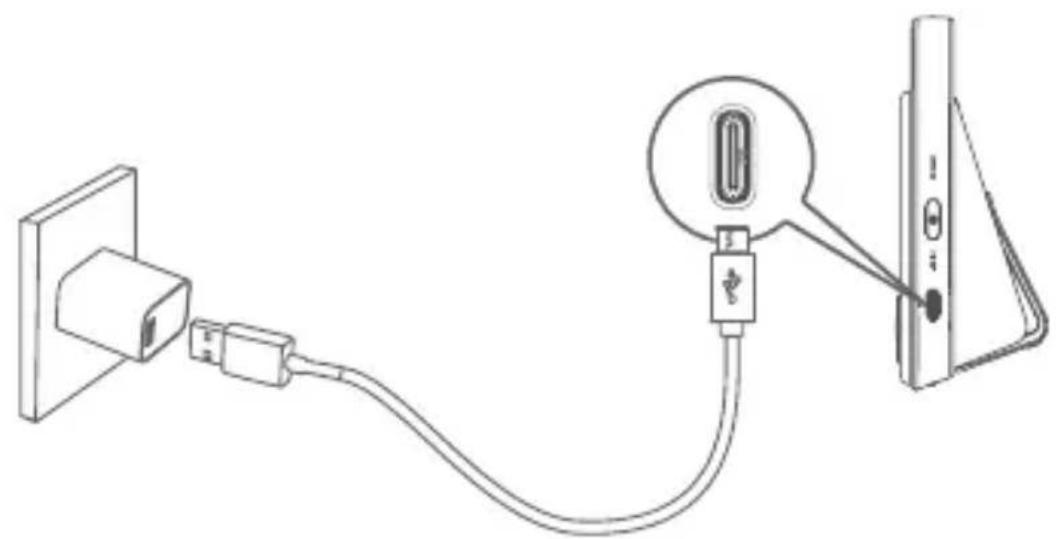

Connect the plug of the USB-C power cable to the monitor, and the other end to the power adapter. Plug the power adapter into the power outlet (fig. 1).

A charging icon will appear in the upper right corner:

Once the device has finished charging, the current charge level is indicated by the icon in the upper right corner:

NOTE: Use only a 5V 2A power supply. The product can be powered by a power bank device, for example. It is recommended to fully charge the monitor before first use.

Camera power supply

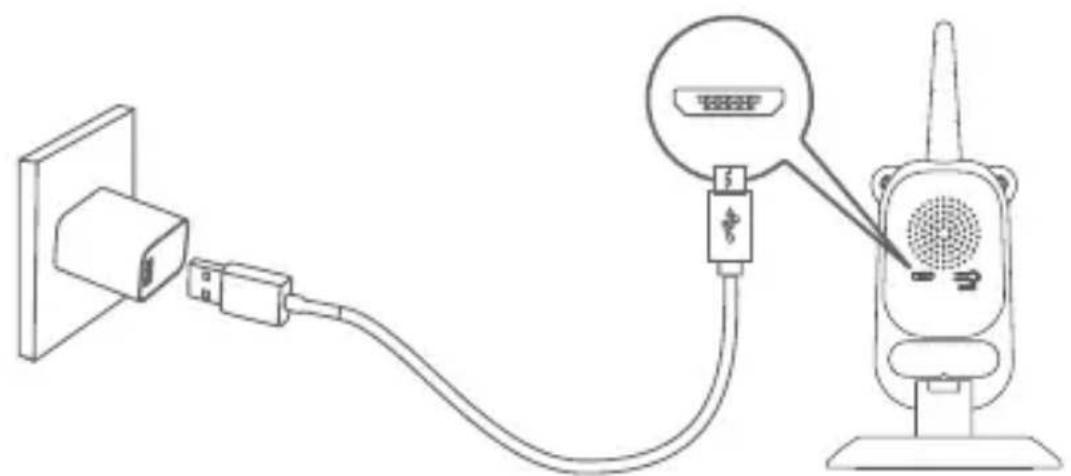

Connect the plug of the micro USB power cable to the camera and the other end to the power adapter. Plug the power adapter into the power outlet (fig. 2).

NOTE: Use only a 5V 1A power supply. The product can be powered by a power bank device, for example.

Installing the camera on the wall

Choose a place with the widest possible viewing angle.

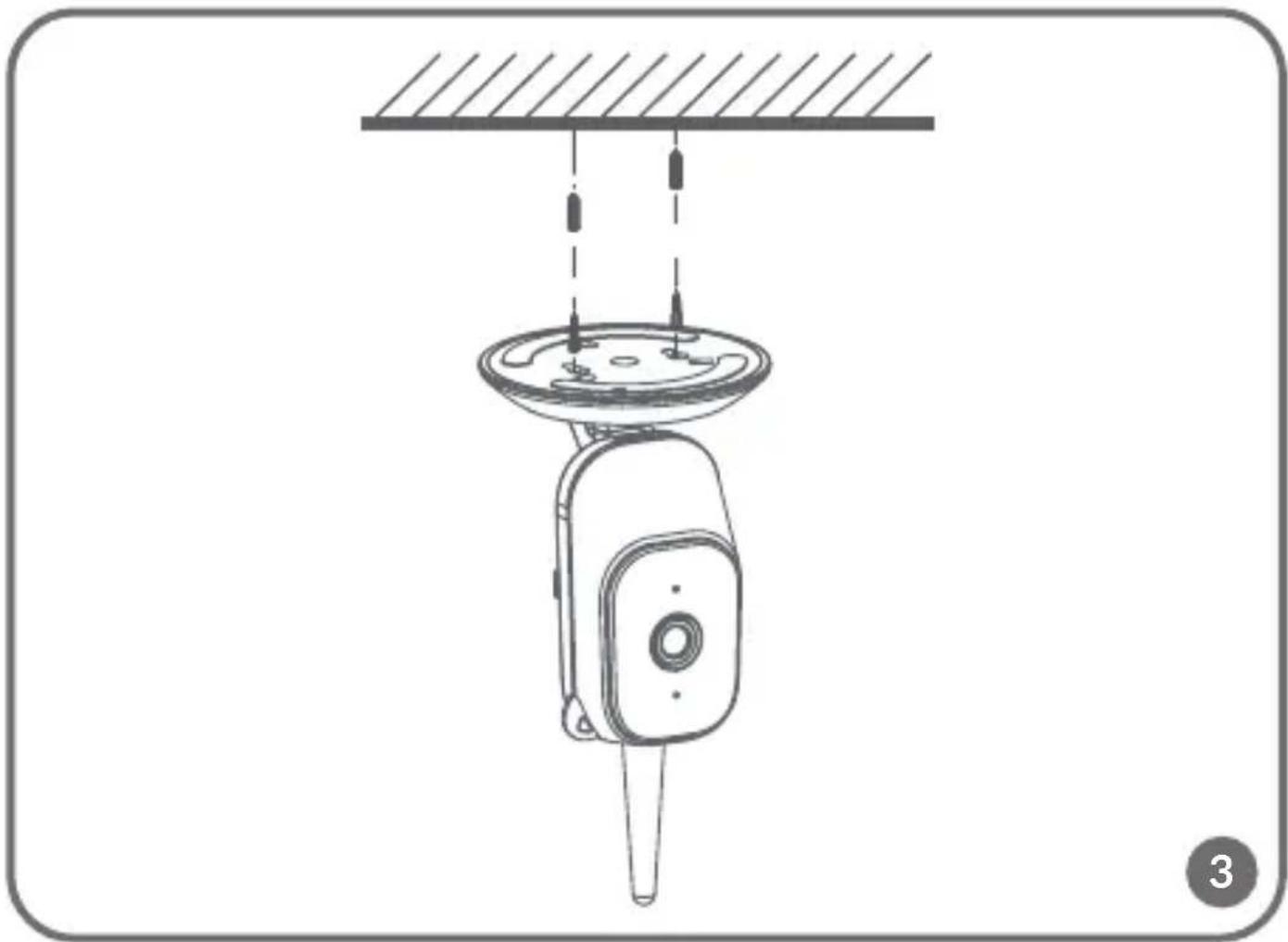

Drill two holes in the place where you want to install the device, and insert the wall plugs and screws into them (fig. 3). Attach the camera to the screws by sliding them into the guides located at the bottom of the camera.

Note! During installation, pay attention to the height and depth to which the screws are screwed in.

Device operation

NOTE! The monitor and camera are paired by default. There is no need to pair them again.

1. Connect the plug of the power cord to the camera and the other end to the power adapter. Plug the power adapter into a power outlet.

2. Press and hold the switch for about 3 seconds to turn on the monitor. After about 10 seconds, the camera image will be displayed on the monitor.

3. Place the camera in a convenient location and point it in the direction you want to monitor.

NOTE

Do not place the camera or wires in the baby's cot or within reach of the baby (minimum 1 meter distance) due to the risk of injury or suffocation.

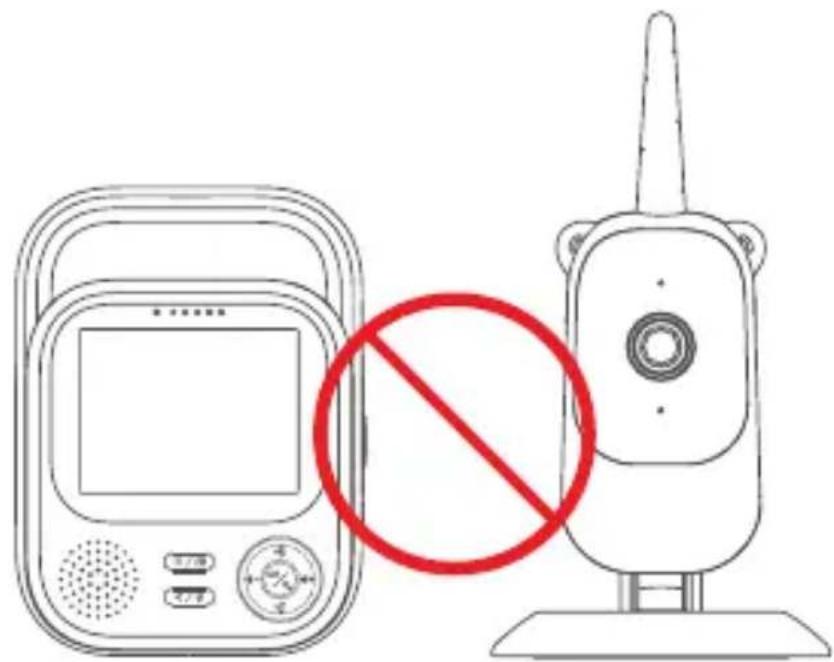

Placing the camera and monitor too close may cause sound interference. In the event of image or sound interference, place the devices elsewhere and make sure they are not near other electrical devices.

Adding and removing a camera

It is possible to pair a total of 4 cameras.

1. Press the menu button to enter the main menu.

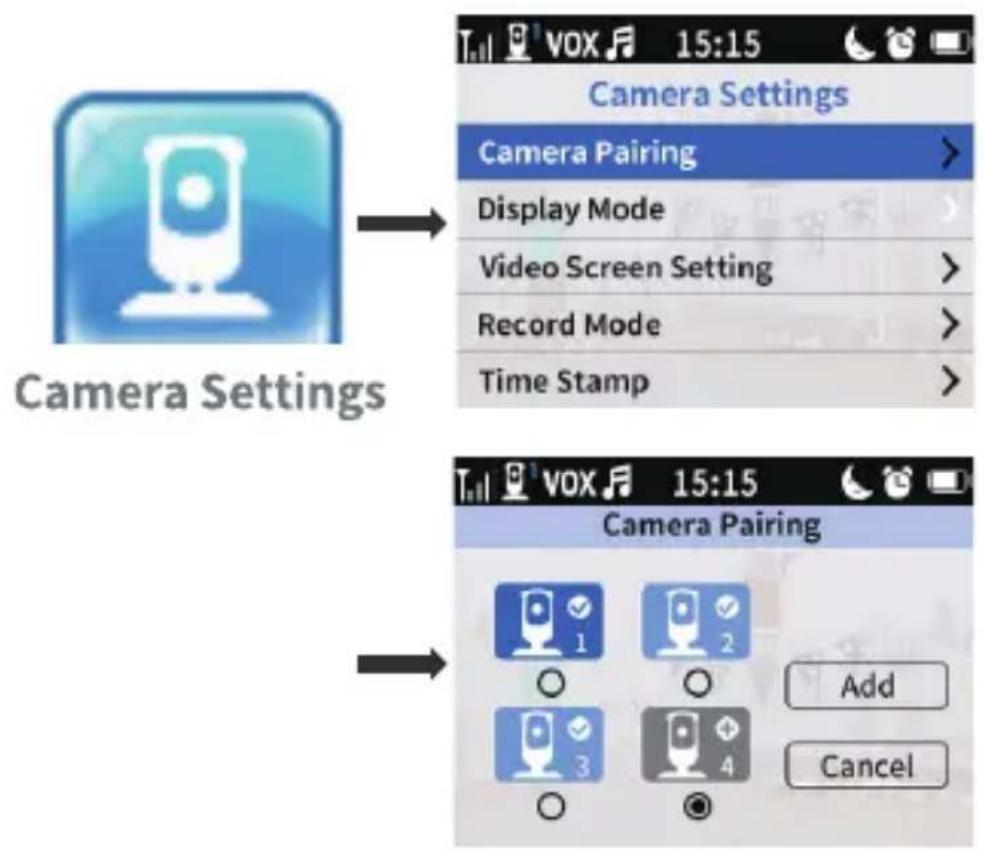

2. Select Camera Settings, and then Camera Pairing (fig. 4). Select the camera number and then select Add.
3. Press the pairing button on the back of the camera (6, fig. C). The camera has been paired with the monitor.
4. To remove the camera, select Camera Settings and then Camera Pairing (fig. 4). Select the camera number, then select Delete.

If you have problems adding a camera, make sure the camera is connected to a power source. Make sure the camera and monitor are no more than 2 meters apart (fig. 5). Placing the camera and monitor too close may cause sound interference.

Changing the camera

When using more than one camera, it is possible to manually or automatically change the image to that of another camera.

1. To change the camera manually, press and hold the OK button (3, fig. B).

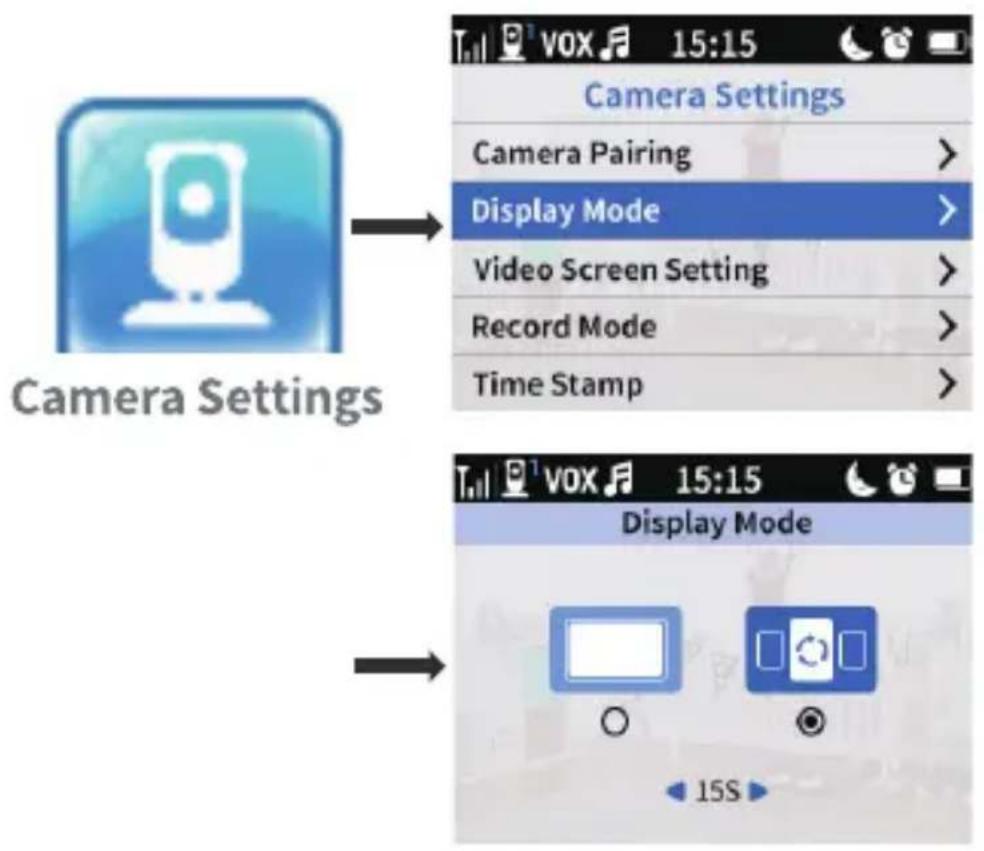

2. To change the camera automatically, select Camera Settings > Display Mode, then select the option marked with the icon and the time you want the displayed image to change every time (fig. 6).

3. To return to displaying the image from one selected camera, select the option marked with the icon ☐

4. The number of the selected camera will appear in the upper left corner of the display: 13

Two-way audio communication

Press and hold the two-way audio communication button (2, fig. B) to start audio transmission. Release to abort.

Menu

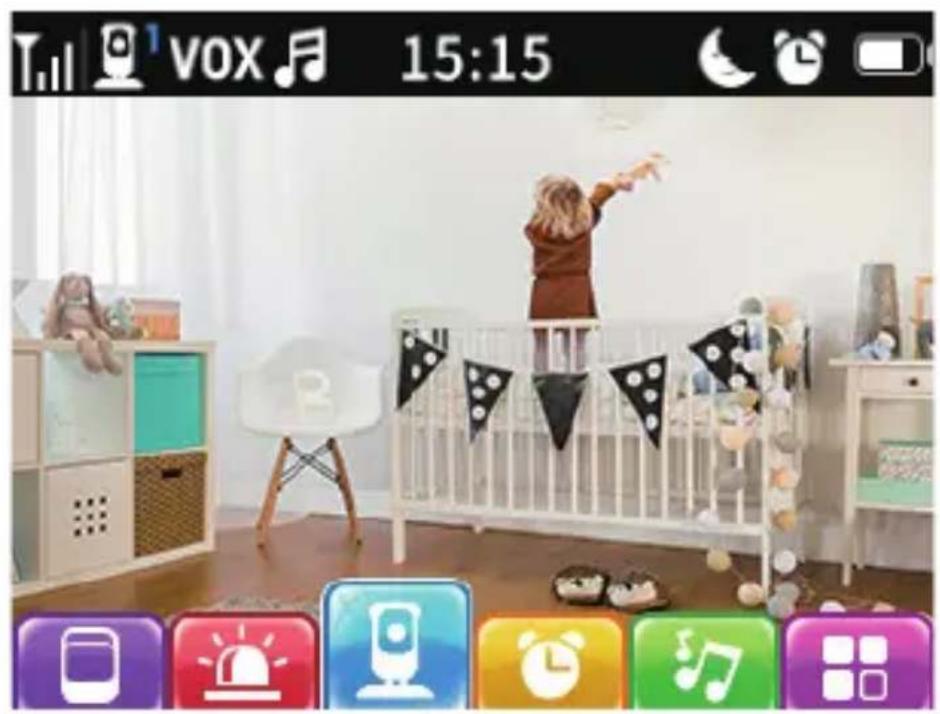

The following options are available in the main menu: Monitor Mode, Alarm, Camera Settings, Reminders, Lullabies and More Settings (fig 7).

Monitor mode

In the main menu, select Monitor Mode (☐), and then select:

• VOX mode – when VOX mode is enabled, the sleep screen will wake up automatically when a sound exceeding a pre-set level is detected.
• VOX threshold – select the sound level at which the alarm will be triggered. There are 5 volume thresholds available.
• Sound only – enable this function if you want the display to remain off and the device to emit only sounds detected by the camera.

Note! If more than one camera is connected, the selected sound threshold in VOX mode will be the same for each camera.

Alarm

Select Alarm ( ) in the main menu, and then select:

• Sound alarm – alarm sensitivity: volume threshold, when exceeded, the alarm will be triggered.
• Alarm duration (5, 10, 20 or 30 seconds). The default setting is the length of 10 seconds.
• Alarm volume. The default setting is the volume at "2".

Note! The noise level around the camera may affect the alarm activation.

Camera settings

In the main menu, select Camera Settings ( ), and then select:

• Pairing cameras (see: Adding and removing a camera).
• Display mode (see: Changing the camera).
• Video screen settings – select this option to rotate the image of the

selected camera by 180^ in case the camera is turned to install.

- Recording mode – select no recording, cyclic recording or cyclic recording when the camera detects motion.

Note! Recordings are stored on a microSD card. If the microSD card is full, the oldest recordings will be automatically deleted. Use a microSD card with a capacity of 16 to 128 GB and class 10 or higher.

• Time stamp – select this option to enable or disable the time stamp on video recordings.
• MicroSD card status – select this option to check the microSD card's full status or to format the microSD card.

Reminders

Select Reminders ( ) from the main menu, and then choose every how many hours or at what time the reminder will be triggered:

• Feeding time
• Diaper change
• Other

Press the OK button (3, fig. B) to turn off the reminder. Press any other button to turn the reminder on again after 10 minutes.

Lullabies

Select Lullabies ( ) in the main menu, and then select:

• Monitor – select one of the available sounds or play all in loop.
• Camera 1/2/3/4 – select one of the available sounds or play all in loop.

Note! Activating sounds will automatically disable alarms.

Note! Sounds can drown out your baby's cries.

More settings

In the main menu, select More settings ( ), and then select:

• Night mode – when turned on, the monitor will automatically change the color of the image received by the camera, depending on the ambient light level.
• Time settings – set the date and time.
• Sleep mode – select the time after which the display will go into sleep mode (1, 3 or 5 minutes). Select “OFF” to completely disable sleep mode.
• Language settings – select the language of the device.
• Screen flicker reduction – if the screen is flickering, select another available screen flicker reduction mode (50 or 60 Hz).
• Default settings – restore the default settings.
• Version information – information about the device.
• Contact us – contact information.

Photos are for reference only, the actual appearance of the products may differ from that shown in the photos.
