USER MANUAL Babyline 2.2 Lionelo

Line drawing of a lionelo remote control device with buttons and power switches (no text or symbols on the device body)

Line drawing of a lionelo mobile phone with buttons and power button (no text or symbols on device body)

8 9 7

10 1 2 3 4 + 11 5 6

Technical line drawing of a mechanical component or device (no text or symbols visible)

12 ...

Technical line drawing of a mechanical component with no visible text or symbols

1 2 3 4 5 6 8

Technical line drawing of a mechanical part or bracket (no text or symbols)

9

2

EN

Dear Customer!

If you have any comments or questions about the product you have purchased, contact us: [e-mail]

Manufacturer:

BrandLine Group Sp. z o.o.

Operating frequency range: 2402 MHz- 2480 MHz

RF output power: 0.58 dBm

Parent Unit:

Operating frequency range: 2402 MHz- 2480 MHz

RF output power: 5.34 dBm

IMPORTANT INFORMATION

NOTE

1. Before using the product, read the instruction manual and keep it for future reference.
2. This device is not a toy. Do not allow children to play with it.
3. The receiver and transmitter are suitable for use in dry places only. Do not use on a wet surface. The transmitter must not be used outdoors.
4. Do not touch the product with wet hands.
5. If the product does not work as it should or has been dropped or flooded, contact the manufacturer's service department.
6. Do not remove the product yourself.

7. We recommend using the batteries included in the set.

8. We recommend using a 5.0V DC 1.0A power supply unit.

9. Do not place the product near a cooker or other heat sources.
10. The product must be installed by an adult.
11. Keep smaller pieces of the set away from the child.
12. An electronic nanny is not a substitute for proper parental care and attention.
13. Do not place the product and its cords in the playpen or within reach of the child. Place them at least 1 m apart.
14. Do not place the product near water or a fire source.
15. Do not touch the plug contacts with sharp or metallic objects.
16. Do not use the device if the cable or plug is damaged.
17. To disconnect the appliance from the power supply grab the plug, not the cable.
18. If the appliance will not be used for an extended period of time, unplug it and remove the batteries.

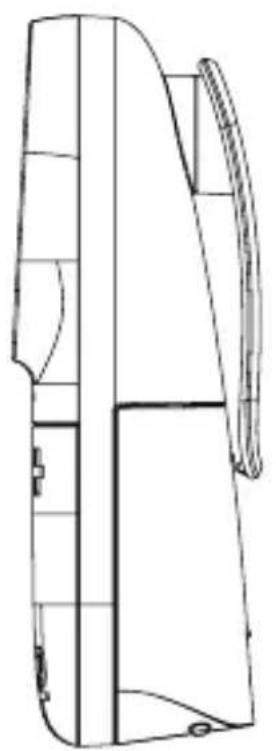

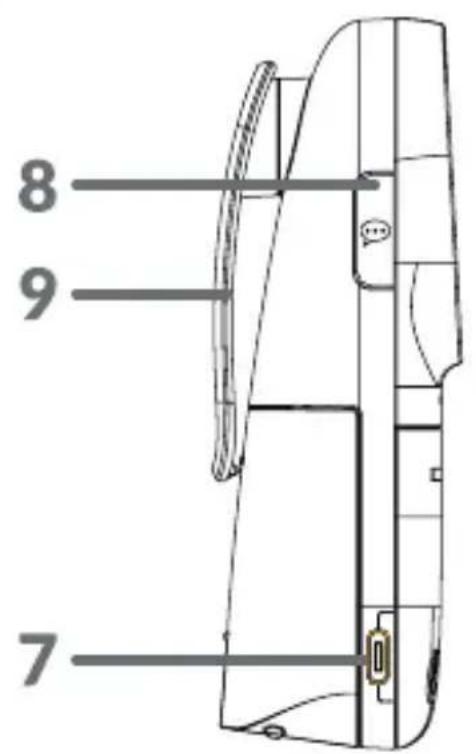

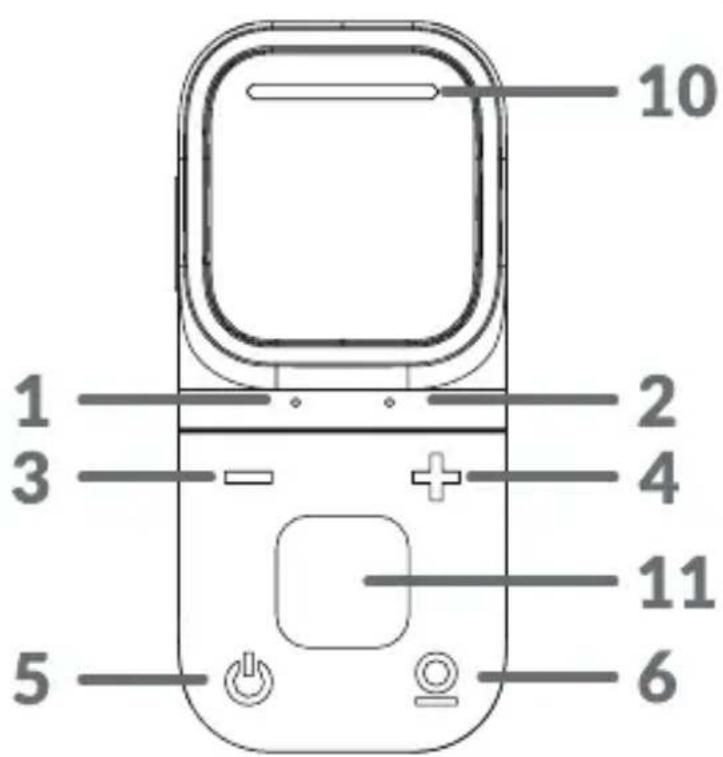

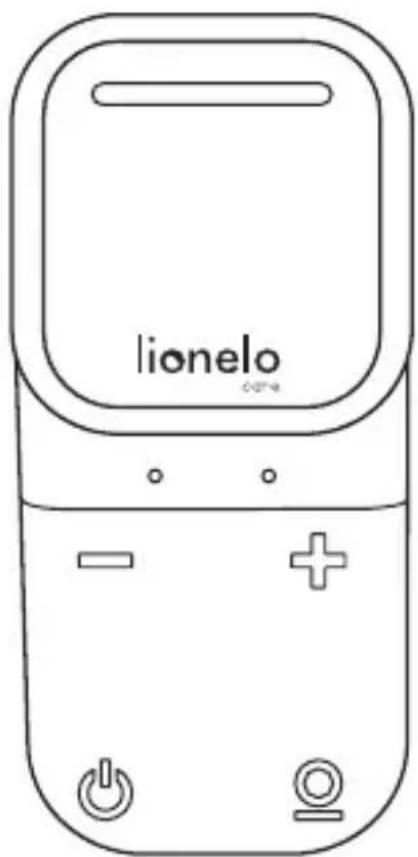

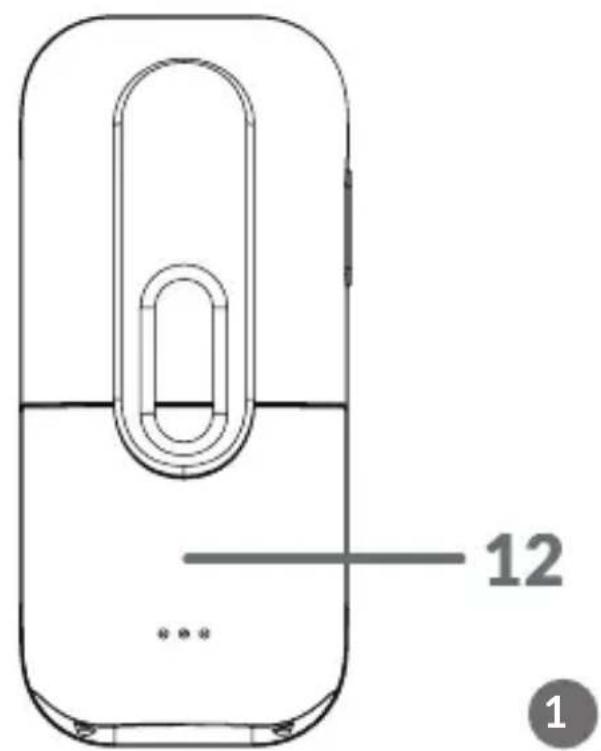

RECEIVER DESCRIPTION (to be placed next to the parent) fig. 1

1. Microphone
2. Indicator light
3. Volume button (lower)
4. Volume button (louder)
5. Power button ON / OFF

6. Bedside lamp button

7. USB-C port

8. Talk Back button
9. Rotating belt clip
10. Visual intensity indicator.
11. Speaker
12. Battery compartment

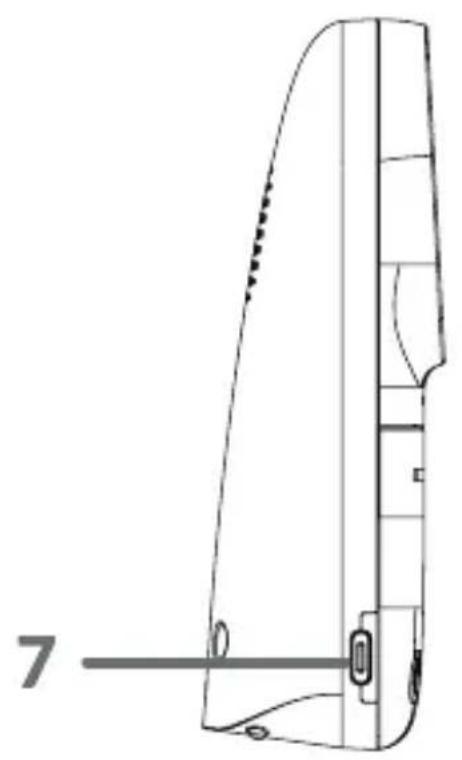

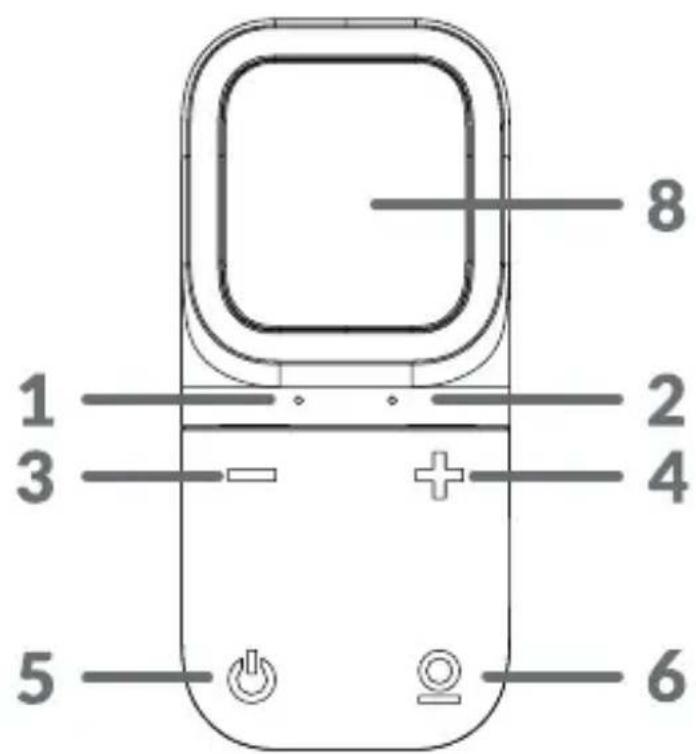

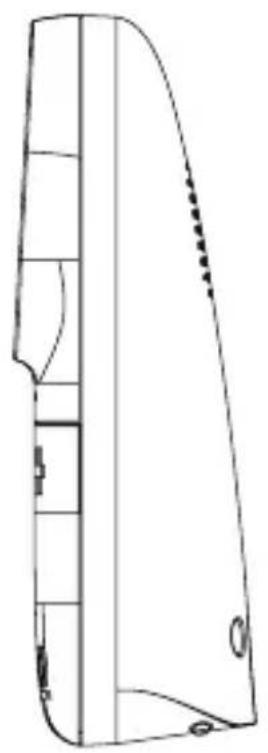

TRANSMITTER DESCRIPTION (to be placed with the child) fig. 2

1. Microphone
2. Indicator light
3. Volume button (lower)
4. Volume button (louder)

5. Power button ON / OFF

6. Bedside lamp button

7. USB-C port
8. Bedside lamp panel
9. Speaker

INSTRUCTIONS FOR USE:

Note

Make sure the devices are placed on a flat and stable surface.

Powering up and switching on the electronic nanny receiver (fig.1)

NOTE: It is recommended to fully charge the device before first use

1. Insert the enclosed batteries into the battery compartment of the receiver (12, fig.1) then connect the plug of the cable to the device and the other end to the power source. Remember the correct polarity when inserting the batteries.
2. Press and hold the power button (5, fig.1) to switch on the receiver. The device will beep and the indicator light will flash, indicating that the device has entered pairing mode.
3. To switch off the receiver, press and hold the power button.

The receiver operates on battery and mains power. To continuously monitor your child, use both the battery and mains power at the same time. With the battery alone, the receiver can only operate wirelessly for a limited time.

Powering up and switching on the electronic nanny transmitter (fig.2)

1. Connect the power cord to the receiver and the other end to the power source.
2. The indicator light will illuminate red.
3. Press and hold the power button to switch on the transmitter.
4. The device will beep and the indicator light will alternately flash red and green, indicating that the device has entered pairing mode.
5. To switch off the transmitter, press and hold the power button.

When the receiver and the electronic nanny transmitter are switched on, they will be

automatically paired and the device will notify this with an audible signal.

If the device is not paired for 10 minutes, it will automatically exit pairing mode and switch off.

Setting up

Place the transmitter anywhere (e.g. on a table) and point it in the direction you want to monitor.

NOTE

Do not place the transmitter or cords in or within reach of the baby's cot

(min. 1 metre distance), as there is a risk of injuring or strangling the child!

In case of sound interference, place the devices in a different location and make sure they are not near other electrical devices.

Range

The operating range of the electronic nanny is up to 400 metres outdoors or 70 metres indoors. Actual operating range may vary depending on ambient conditions and other interferences such as walls, doors and other obstacles.

Night light mode

To activate the night light on the transmitter, press the night light button (6, fig.1,2).

The light can be activated and deactivated from both the transmitter and the receiver.

Speaking function

If you want to start a conversation with your child, press and hold the Talk Back button on the receiver (8, fig.1).

Volume control

During playback, press the - volume button to decrease the volume or the + volume button to increase.

Note

The default volume of the receiver is level 3 and the maximum volume is level 5. If the nanny emits a high-pitched squeaking sound during positioning, make sure that the transmitter and receiver are more than 1 metre apart or turn down the volume of the parental unit.

When the volume reaches the minimum or maximum setting, the receiver emits two beeps with different tones.

RECEIVER ALARM SOUNDS

Low battery — Beeps twice every 10 minutes when the battery level is low.

Disconnection with transmitter — Double beep every 15 seconds when there is no connection between the transmitter and the receiver, or when the receiver is out of range of the transmitter.

TROUBLESHOOTING

Problem Possible solution
The indicator light is not illuminated.	Make sure the device is connected to the power supply, and has been started up. Remember the correct polarity when inserting the batteries.
Sound interference.	Unwanted sound may occur if the receiver is used at a distance of less than 1 metre from the transmitter. In this case:Turn down the receiver volume,Increase the distance between devices.
Problem with device pairing.	Ensure that the receiver and the transmitter are within range.Press and hold the on/off power button on both the receiver and the transmitter simultaneously for 8 seconds. Repeat the procedure two more times.If the problem persists, consult an authorised service centre.
The connection is broken.	Indoor use can be disrupted by factors such as thick walls or too many electronic devices.
The electronic nanny is not responding.	Reset the device by switching it off and on (during this time, the power cable should be disconnected and the batteries removed). If the problem persists, consult an authorised service centre.
No sound from the receiver.	Ensure that the devices are paired and that the volume level of the receiver is not too low.

Photos are for reference only, the actual appearance of the products may differ from that shown in the photos.

PL

Drogi Kliencie!

BrandLine Group Sp. z o.o.

SUNET ALARMĂ RECEPTOR

EN: The product complies with the requirements of European Union directives.

In accordance with Directive 2012/19/EU, this product is subject to separate collection. The product should not be disposed of with municipal waste as it may pose a risk to the environment and human health. Return the used product to the recycling centre for electrical and electronic equipment.

EN: Simplified EU declaration of conformity

BrandLine Group Sp. z o. o. hereby declares that the "BABYLINE 2.2" product complies with the directive: 2014/53/EU - RED Directive, 2011/65/EU - RoHS Directive. Full content of EU declaration of conformity is available on the following website:
