Dear Customer!

In case of any questions or comments on the purchased product, please contact us: [e-mail]

Producer:

BrandLine Group Sp. z o. o.

Please read this manual before you use the device for the first time to see all its functions and use it in accordance with intended use.

1. Only adults are allowed to install the device. Keep the device out of reach of children.
2. This device is not a toy. Do not let children play with it.
3. This product does not serve to replace adult supervision.
4. Do not place a baby unit or cables in the baby's cot or within its reach (at least 1 meter of distance must be kept) because the child may get injured or be strangled!
5. Do not use the product near water or sources of heat.
6. Use feeder cables supplied only.
7. Make sure plug contacts and cables do not contact sharp or metal items.
8. Attention! Plug on the power supply cord is used as the disconnect device for the camera- during installation, ensure that the socket-outlet is easily accessible.

Warning. High sound pressure. Hearing damage risk. Do not listen at high volume levels for long periods.

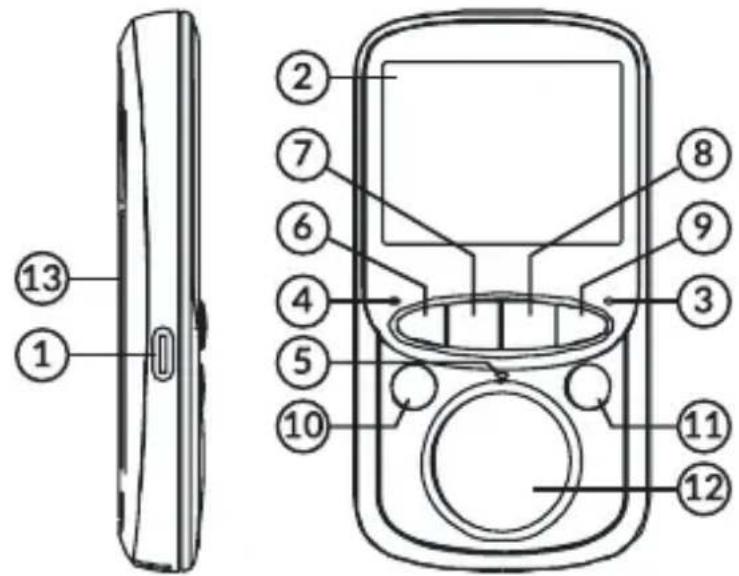

DESCRIPTION OF PARENT UNIT (located near parent) fig.1

1. Power connector

2. LCD display

3. Power LED

4. Signal LED
5. Microphone
6. Volume key - (volume down) / „left" button / automatic unit switch
7. Music ON/OFF
8. Talk key/MENU navigation key
9. Volume key + (volume up / „right" button / manual unit switch
10. OK / Menu key
11. Power/return key
12. Speaker
13. Battery

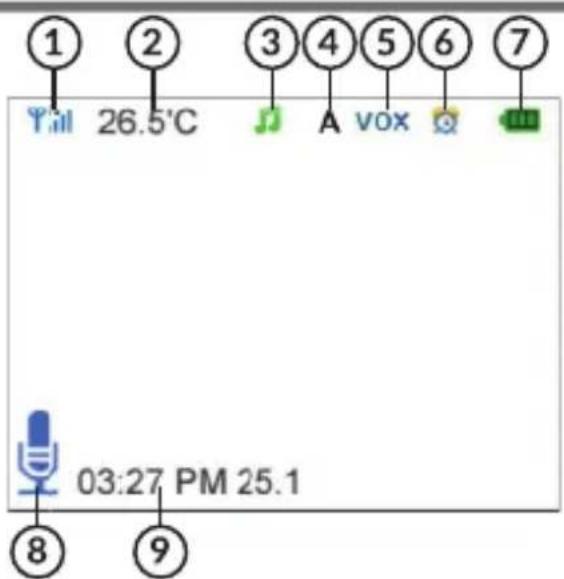

PARENT UNIT SCREEN ICONS fig .2

1. Signal strength indicator and unit number (1 or 2)
2. Unit temperature
3. Lullaby play

4. Automatic switch activated

5. VOX mode activated

6. Alarm activated
7. Battery charging indicator
8. Talk function activated
9. Date and time

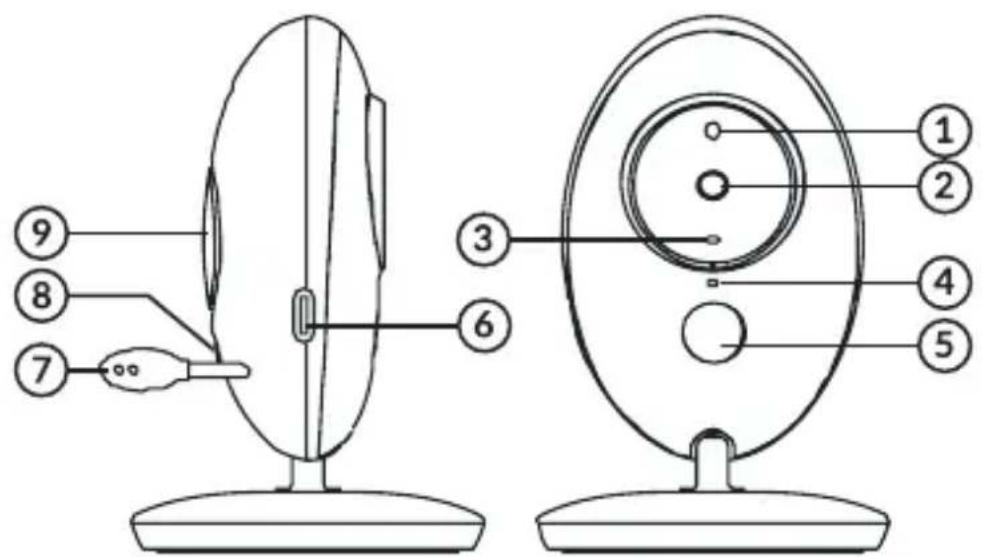

DESCRIPTION OF BABY UNITS (located near child) fig. 3

1. Light sensor
2. Camera
3. Power LED
4. Microphone

5. Infrared light

6. Feeder connector

7. Temperature sensor
8. Steam key
9. Speaker

USE

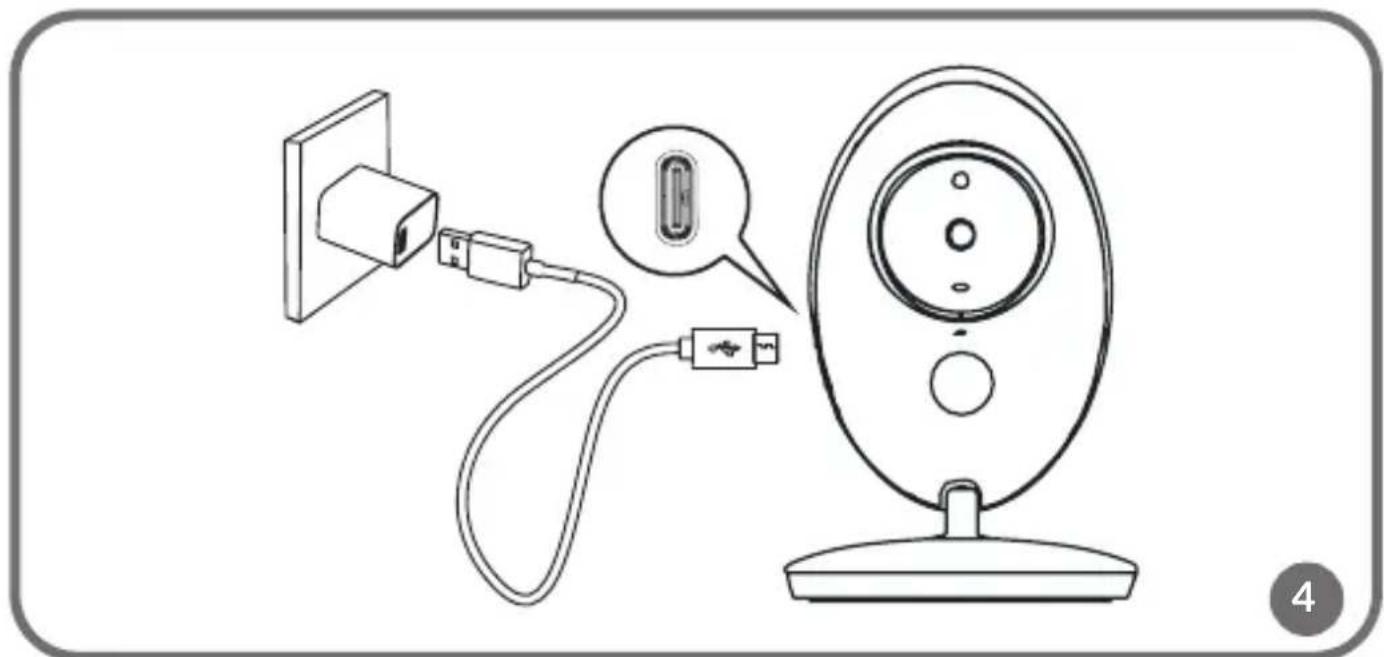

How to provide power supply and switch the unit on (fig. 4)

1. Connect a feeder plug to a baby unit and the other end to the socket.

NOTE: Use the feeder cable supplied only.

1. The baby unit will activate automatically after you have provided power supply.
2. Blue LED suggests that the baby unit is active.

How to provide power supply and switch the unit on (fig. 5)

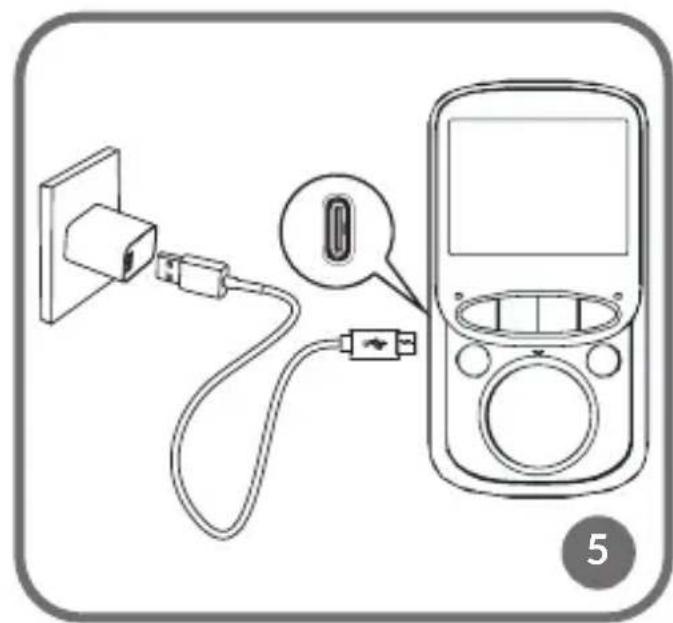

It is advisable to charge the parent unit fully before you use it. By doing so, the device can work on battery in case of a power failure.

1. Connect the feeder plug to the parent unit and the other end to the socket. NOTE: Use the feeder cable supplied only.
2. The display will illuminate after a few seconds and charging icon will be displayed. This means that battery is being charged.
3. Press and hold the power button to switch the parent unit on.
4. To switch the unit off, press and hold the power button.

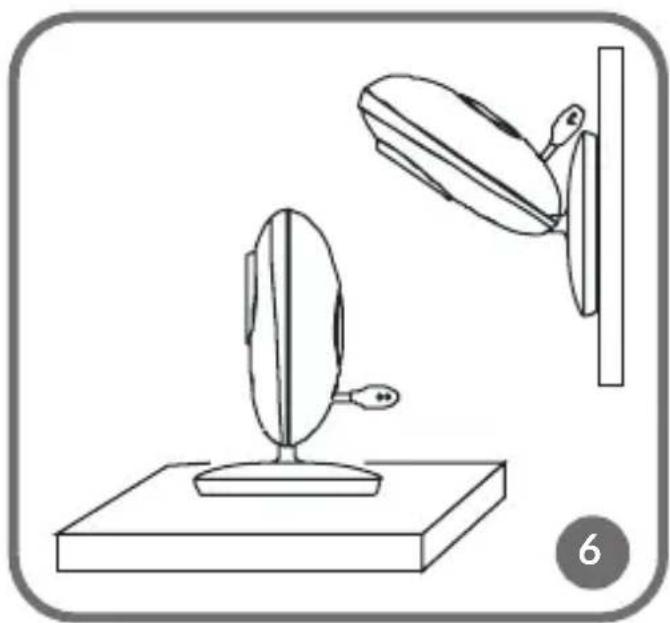

Place the baby unit in a convenient place (e.g. on the table) and point the camera towards the area you want to monitor (fig. 6).

NOTE

Do not place the baby unit or cables in the baby's cot or within its reach (at least 1 meter of distance must be kept) because the child may get injured or be strangled!

In the event of image or sound interference, change the location of the devices and make sure they are not close to other electric equipment.

Pairing units

The baby unit and parent unit are paired by default. It is not necessary to pair them again, unless the baby unit has lost connection with the parent unit. If necessary, see MENU – Camera registration.

VOX function

VOX mode can be activated in the device's menu.

VOX mode automatically puts the display in the sleep mode to save battery. When the baby unit detects any sound, the parent unit responds to this, activates the display and preview of a unit which detected the sound.

Music player

Press the music button to play the lullaby in baby units. Press the button again to turn it off.

Talk function

In the screen you can see icon 1 or 2 which tell you which baby unit is currently displayed in the screen. If you wish to start talking to your child, press and hold talk function button. The talk symbol will be displayed at the bottom of the screen.

Volume adjustment

When playing, press the volume – key to decrease volume or volume + to increase it. The display will show current volume.

Automatic/manual camera switch

Press and hold „left” key to activate/deactivate automatic baby unit switching. The active mode will be signaled by the icon “A” on the parent unit’s display. The image from baby units will switch every 5 seconds.

Press and hold „right“ key to switch image from one camera to the other manually.

MENU

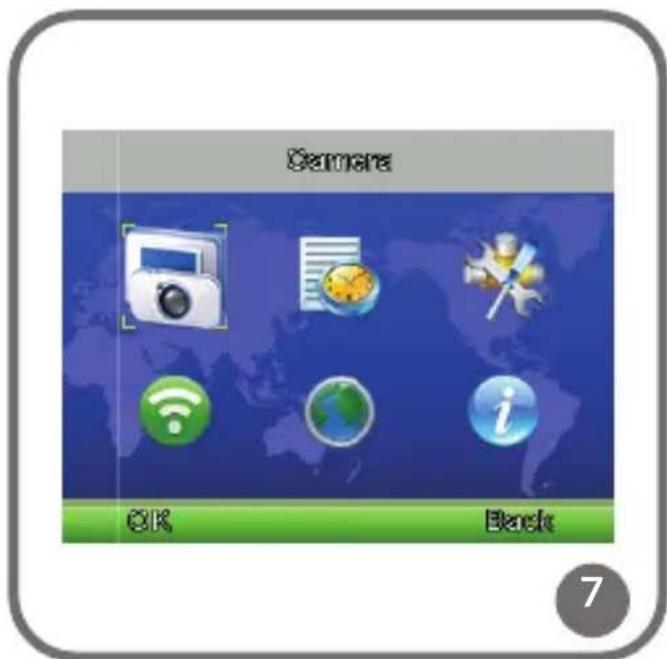

Main menu (fig. 7)

Press „OK./Menu” key on the screen to enter the main menu. You can find 6 items there:

1. Camera registration (pairing units)
2. VOX
3. Alarm
4. Languages
5. Settings
6. System info

To move a cursor and select an item, press “left” or “right” button. Next press “OK/Menu” button to enter the item you have selected.

Press power/return button to return to main screen.

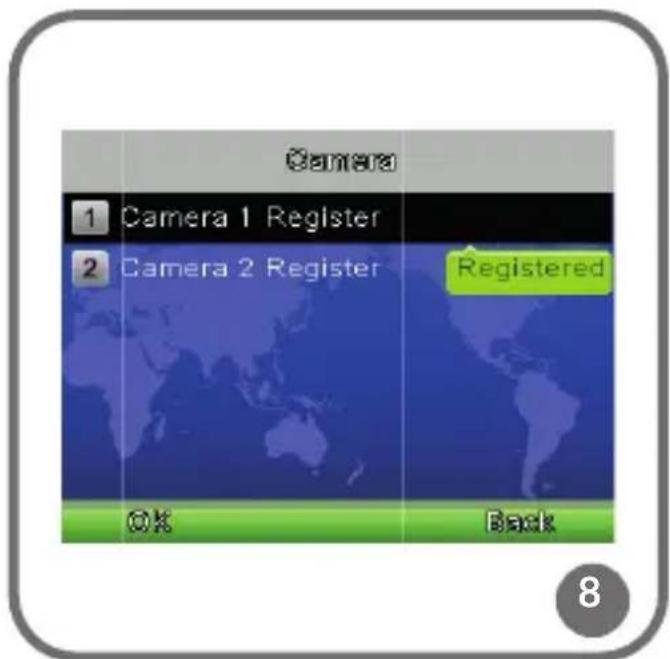

Camera registration (fig. 8)

Press „OK./Menu” button to enter registration window, select “camera 1 register”, next press pairing button on the baby unit.

Select "Camera 2 register", press pairing button on the other baby unit.

This way you can pair baby units with the parent unit.

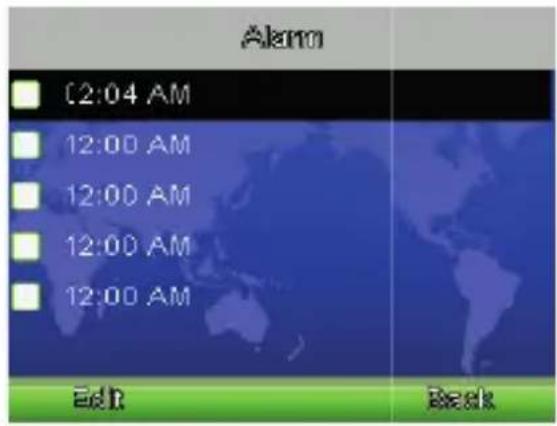

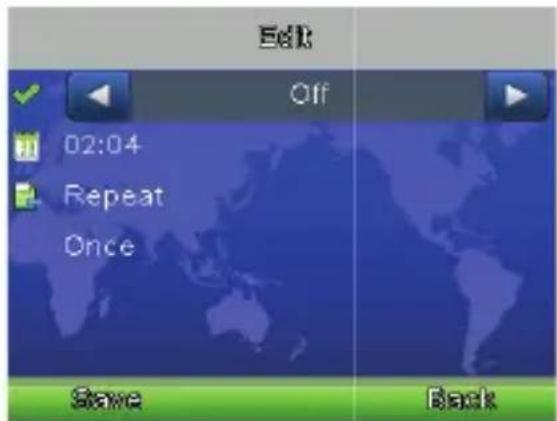

Alarm (fig. 9)

Enter alarm functions, press „right” button to activate, next press talk function button to move a cursor and “right/left” button to change value.

Settings

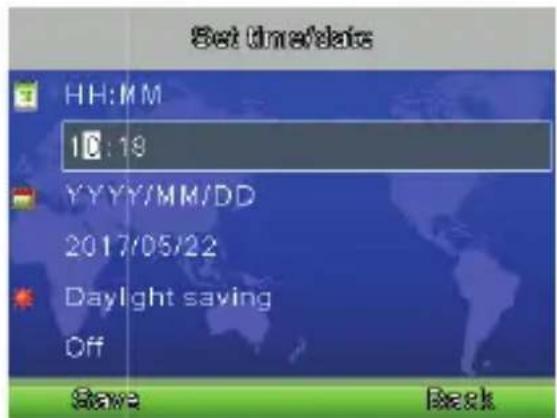

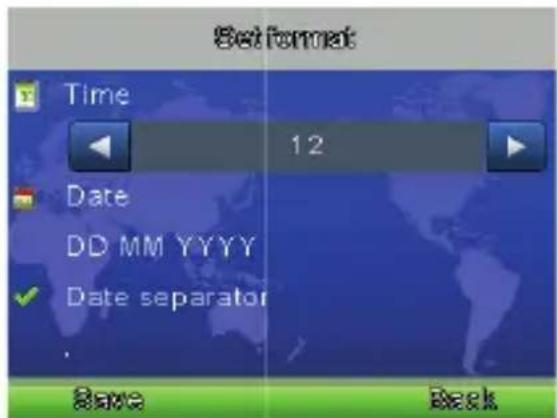

Date and time (fig. 10)

This menu contains 2 options:

Set time/date

Set format

Temperature unit

Set the temperature in Celsius or Fahrenheit.

Anti-flicker

In this option you can set a frequency - 50/60Hz - in order to reduce interference in the image.

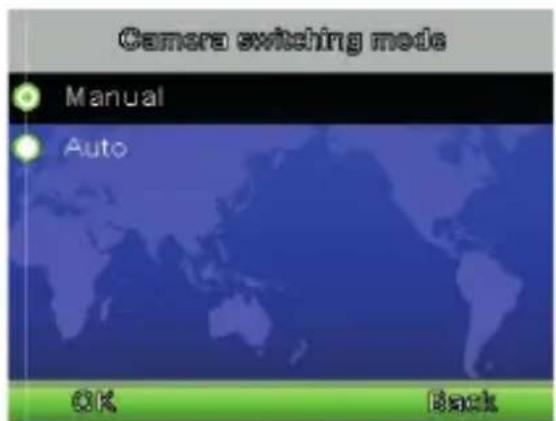

Camera switching mode (fig. 11)

There are two camera switching modes: automatic and manual, press “right” button to move a cursor and select either mode. You can also set modes with “left/right” buttons (see: Automatic/manual camera switching).

LCD backlight

It is possible to adjust the brightness of LCD and sleep mode time in menu.

VOX mode

This menu contains 2 items:

Set working mode of the device: normal or VOX.

Change VOX mode sensitivity.

Language

Here you can select language.

System information

It displays information on the system.

Pictures are for reference only. The real design of products may differ from pictures presented.

PL

Drogi Kliencie!

Monitor: RF output power: 16.42 dBm

EN: Simplified EU declaration of conformity

BrandLine Group Sp. z o. o. hereby declares that the “BABYLINE 5.1” product complies with the directive: 2014/53/EU - RED Directive, 2014/30/EU - EMC Directive, 2014/35/EU - LVD Directive, 2011/65/EU - RoHS Directive.

Full content of EU declaration of conformity is available on the following website:

Detailed warranty conditions are available on the website:

Thank you for purchasing our product
