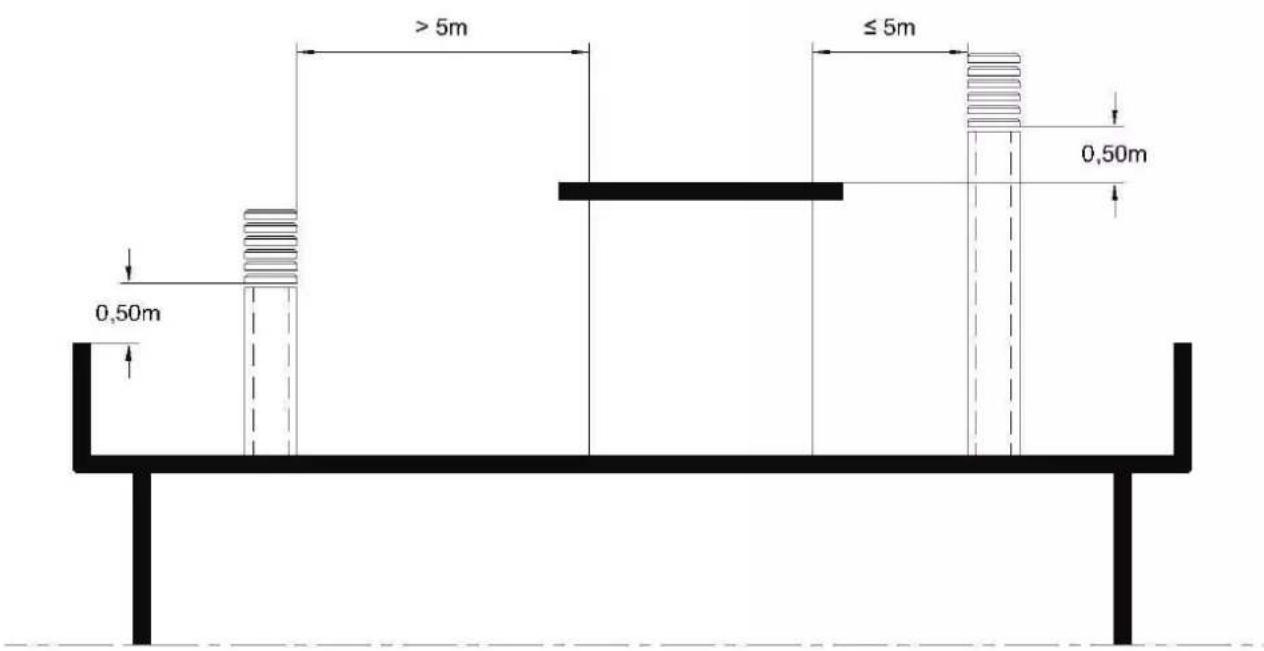

>5m ≤5m 0,50m 0,50m

INSTALLAZIONE

TETTO INCLINATO

Technical line drawing of a mechanical assembly with an inset close-up view (no text or symbols)

INSTALLAZIONE

COLLEGAMENTO ELETTRICO E CONNESSIONI ESTERNE (SOLO PER INSTALLATORE)

T.Puffer – Temperatura sonda puffer [°C]

• MANCATA ACCENSIONE

Illustration of a door with a blue door, hexagonal bolt, and circular features (no text or symbols)

ISTRUZIONI D'USO

Technical line drawing of a server rack with multiple slots and a central control panel (no text or symbols)

Technical line drawing of a mechanical device with open door and labeled component C (no text or symbols beyond label)

MANUTENZIONE

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical housing or enclosure with internal components and mounting holes (no text or symbols)

Technical line drawing of a mechanical device with an arrow indicating a downward component (no text or symbols present)

Thank you for choosing one of our products.

Before using it, we would ask you to carefully read this data sheet, to achieve the best performance and utmost safety when in use.

For further clarifications or requirements, contact the DEALER where you bought the product or visit our website www.edilkamin.com in the section TECHNICAL SUPPORT CENTRES.

The author EDILKAMIN S.p.A. with its registered office in Via Vincenzo Monti 47 - 20123 Milan - Tax Code/VAT No. 00192220192

Boiler, under the commercial brand EDILKAMIN, called LAGUNA M

SERIAL NO. Ref. data plate Declaration of Conformity

Declares that:

Boiler LAGUNA M complies with the requirements of the European Directives:

2014/35/EC- Low Voltage Directive

2014/80/EC- Electromagnetic Compatibility Directive

EDILKAMIN S.p.A. cannot be held in any way liable for the malfunctioning of the appliance in the event of replacement, assembly and/or changes made by staff who do not work for EDILKAMIN without the author's authorisation.

This documentation must be kept for identification together with the receipt whose data should be communicated if you request any information and made available in the event of maintenance intervention.

- the graphically and geometrically represented parts are approximate.

CONTENT

ENGLISH

SAFETY INFORMATION...... 49

GENERAL INFORMATION.... 50

INSTALLATION.... 54

INSTRUCTIONS FOR USE.... 66

MAINTENANCE....83

POSSIBLE TROUBLESHOOTING.... 87

DEMOLITION AND DISPOSAL.... 90

NOTES 91

SAFETY INFORMATION

GENERAL WARNINGS FOR THE USER

• The instructions manual is an integral part of the product: ensure it always accompanies the appliance so the user, installation technician or plant manager can consult it.
• Carefully read this manual before carrying out any operations on the product.
• Carefully keep this booklet for further consultation.
• Have the authorised EDILKAMIN Technical Support Centre (TSC) carry out a test according to the specifications in this manual and in compliance with all local regulations, including those referencing national and European standards.
• For installation, in Italy, you need to refer to the Declaration of Conformity in compliance with M.D. 37/2008 (previously L. 46/90) and according to the standards UNI 10683 and UNI 10412-2.
• The manufacturer cannot be held liable for damage to property, people or animals due to wrong installation or improper use of the product.
• Before carrying out any cleaning or maintenance operations on the product, disconnect the product from the power mains and/or using the shut-off units by-pass the product on the hydraulic system.
• In the event of a fault/poor functioning of the product, de-active it. Do not attempt any repair or intervention operations.
• Possible repair should only be carried out by the authorised EDILKAMIN Technical Support Centre (TSC), exclusively using original spare parts.
• Use is forbidden of the product by children or incapable people without supervision.
• Connect the product to an electrical socket with voltage 230V - 50Hz .
• Connect the product to the heating system. This cannot in any case be used without the plumbing connection and without the water load.

• Check the electrical system and the sockets have the capacity to support maximum absorption of the product outlined in the manual.

• Check the capacity of the attic based on the weight of the product, if necessary intervene using adequate methods (load distribution plate), if in doubt consult a specialist technician.

• Do not use the product with the door open.
  • After a long period of non-use, check the chimney and the chimney flue for any obstructions.
• Some parts of the product, in particular the door, discharge tube, during operation can reach very high temperatures. Avoid contact with such parts without suitable protection devices.
• Do not use flammable liquids or substances to switch on the product or re-ignite the flame.
• The product must only be powered with fuel with the characteristics described in the manual.
• Ensure the installation premises of the product is suitable and with minimum ventilation openings according to the specifications in the standards in force.
• Any tampering, replacement and/or changes which are unauthorised on parts of the product can cause danger for the user's safety and relieve the manufacturer of any liability.
• Any tampering, replacement or changes to the electronic part other than that outlined in the manual will cause the warranty to expire.
• Hot ash cannot be thrown in bins or left unguarded.
• It is forbidden to change the safety or regulation devices.
• Do not pull, twist or remove electrical cables.
• It is forbidden to handle easily inflammable or explosive substances near the boiler when on.
• Do not use the product differently from its intended use.

GENERAL INFORMATION

PACKAGING AND TRANSPORT

The boiler is delivered complete with all its electrical, mechanical and plumbing parts and tested in the factory.

NOTE

- After unpacking the product, ensure it is intact and has all its content (warranty booklet, technical data sheet).

- the serial number, necessary for boiler identification, is indicated: - in the packaging - on the warranty booklet - on the plate applied to the rear of the appliance;

Disposal and recycling of the packaging is the responsibility of the end user.

The boiler should always be moved in the vertical position using manual or mechanical lifts, which can lift the pallet on which the boiler is packaged or the boiler directly. The boiler is arranged with a hook to lift as shown in the figure.

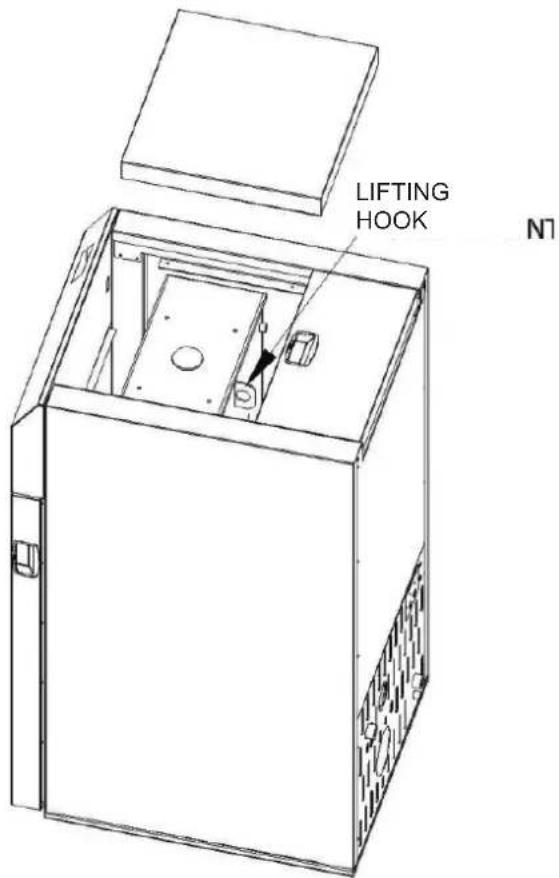

LIFTING HOOK N1

GENERAL INFORMATION

MACHINE DESCRIPTION

The boiler was designed to produce hot water using solid biomass as the fuel.

The boiler was designed and built according to standard EN 303-5.

The boiler was designed for connection to heating systems.

We will now give a short description of the boiler functioning principle.

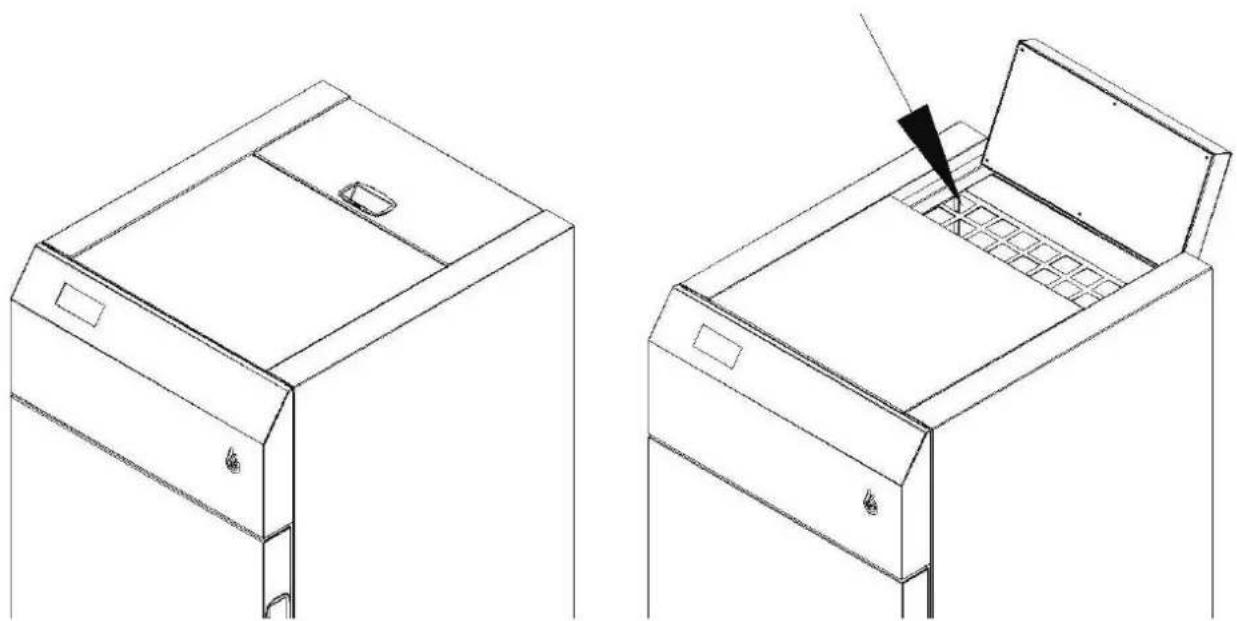

The combustible stored in the tank reaches the crucible via the auger.

Combustion starts here using a resistor and air brought inside by the fan on the smoke outlet.

The combustion chamber is immersed in water contained in the cavities.

The heat is exchanged by conduction and radiated from the flame and by convection through the path taken by the smoke towards the chimney flue.

The water, once heated, will flow in the system via the circulator.

The boiler is equipped with a:

• Circulator
• Expansion tank 10 l (include a possible expansion tank on the circuit)
• Safety valve 3 bar;
  • Gauge to check system pressure
  • Automatic cleaning system for crucible and smoke exchanger
• Ash collection drawer
  • Electronic control unit with electronic panel with buffer control

FUEL USED

The boiler can burn granular type fuel, such as pellets, olive waste and hazelnut shells (no corn).

The fuel used must be good quality with the following minimum requirements:

• Chips or granules without any chemical additives
• Dimensions Max. length 20 mm and diameter 4 mm < ∅ < 6 mm
• Heat power 21.60 MJ/kg = 5160 kcal/kg = 6,00kWh/kg
  at 16.74 MJ/kg = 3999 kcal/kg = 4.65kWh/kg
  • Density from 1.12 kg/dm ^3 to 1.4 kg/dm ^3
  • Humidity under 10%
• Ash from 0.19% to 4.0%

The use of poor quality fuel damages the boiler functions and can cause the warranty to expire and with that the manufacturer's liability.

Edilkamin designed, tested and programmed its products to guarantee the best performance using Cat. A1 pellets according to Standard EN 14961-2:

N.B.: To guarantee problem-free combustion, the fuel must be kept in a dry place with no damp and far from heat sources.

GENERAL INFORMATION

TECHNICAL DATA

THERMO-TECHNICAL CHARACTERISTICS pursuant to EN 303-5 with pellets A1 according to EN 14961-2 (1)
	LAGUNA M 25		LAGUNA M 33
	Nominal power	Reduced power	Nominal power	Reduced power
Power to firebox	24.2	7.1	32	9.5	kW
Power to water	21.9	6.4	29.1	8.7	kW
Yield	90	89.5	91	91.4	%
CO emission at 10% O_2	0,016	0,014	0,025	0,013	%
Smoke temperature	139	70	154	74	°C
Fuel consumption	5.1	1.5	6.7	2	kg/h
Tank capacity	70		70		kg
Draft	0.12 - 0.03		0.12 - 0.03		mbar
Water content	54		54		Litres
Max water operating pressure	2		2		bar
Max H_2O operating temperature	90		90		°C
Water side load loss	200 a ΔT = 20 K - 750 at ΔT = 10 K		200 a ΔT = 20 K - 750 at ΔT = 10 K		mbar
Autonomy	13	45	10	34	hours
Heatable volume *	570		760		m^3
∅ smoke pipe (male)	100		100		mm
∅ air intake pipe (male) 60	60		mm
Weight with packaging	260		270		kg

TECHNICAL DATA FOR CHIMNEY FLUE DIMENSIONING which must however comply with the instructions in the data sheet and the installation standards of each product

	LAGUNA M 25 LAGUNA M		33
	Nominal power R	Reduced power Nominal power Reduced power
Power to firebox 24.2 7.1 32 9.5 kW
Smoke outlet temperature on discharge	167 83 184	89 °C
Minimum draught 0 - 0.05 0 - 0.05 mbar
Smoke capacity 14.2 8.1 17.4	10	g/s

* The heatable volume is calculated considering home insulation pursuant to L 10/91 and subsequent amendments and a heating requirement of 33 Kcal/m ^3 per hour.
* It is important to also take into consideration the location of the boiler in the environment to heat.
(1) The technical data can vary due to use of fuel with different characteristics.

ELECTRICAL CHARACTERISTICS

Power supply	230Vac +/- 10% 50 Hz
Average absorbed power	115 W (Laguna M 25) -129 W (Laguna M 33)
Absorbed power when switching on	300 W
Protection on electronic board	Fuse T6,3A, 250 Vac 5x20

N.B.

1) take into consideration that external equipment can disturb functioning of the electronic board.
2) attention: intervention on powered parts, maintenance and/or checks must be carried out by qualified staff (Before carrying out any maintenance, disconnect the appliance from the electrical power mains).
3) In the event of electrical problems, consult the electrician to assess the installation of an uninterruptable power supply unit at least 800 VA with sine waves. Variation over 10% of power can cause problems with the product.

The data outlined above are approximate and relate to the certification phase carried out by the notified body. EDILKAMIN s.p.a. reserves the right to change the products without prior notification at its discretion.

GENERAL INFORMATION

DIMENSIONS

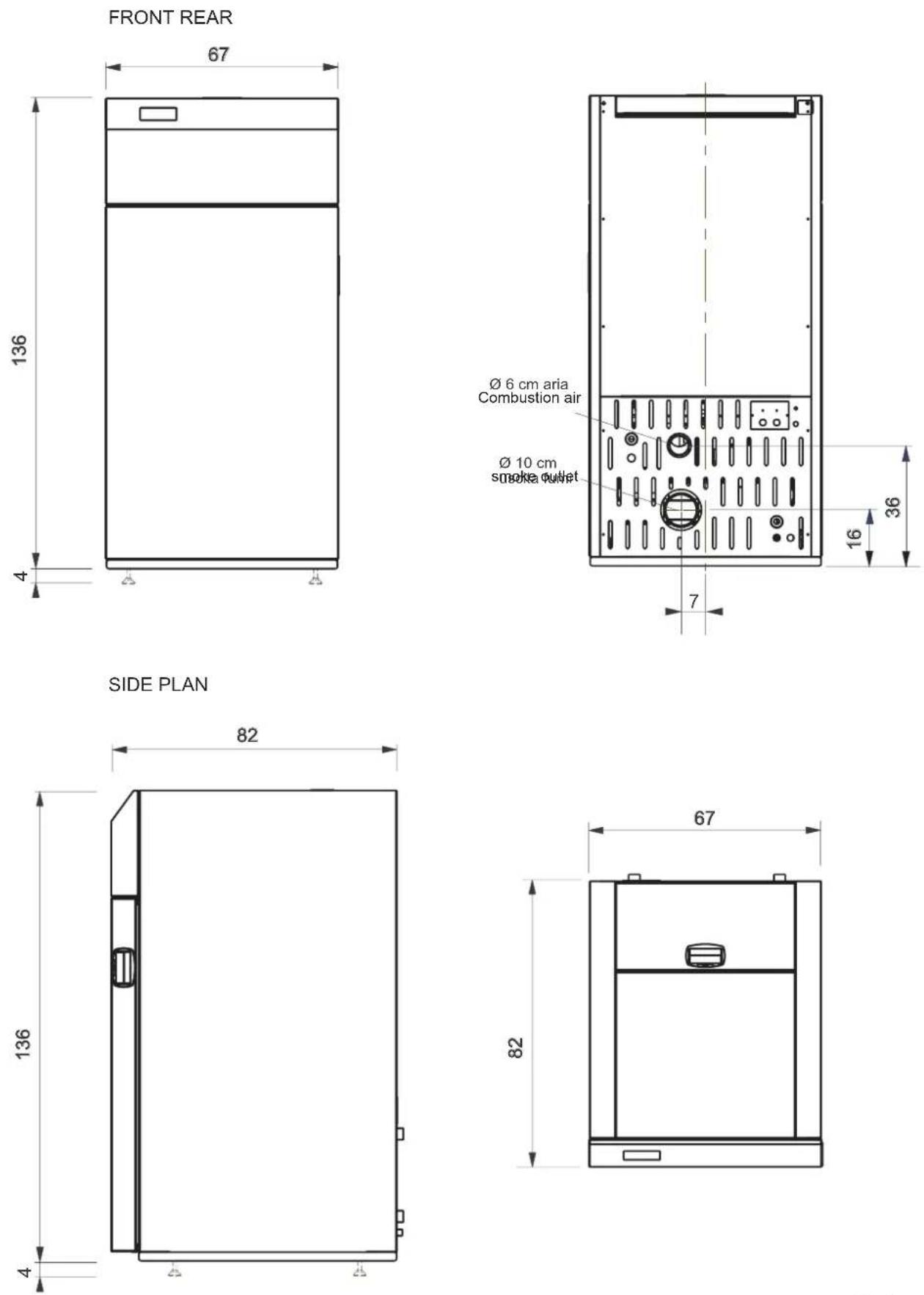

measurements in cm

INSTALLATION

WARNINGS

Boiler installation must take place in compliance with local regulations, including those with reference to national and European standards.

- The boiler must only be used for its intended use. Any other use is considered improper and dangerous.

- The boiler was designed to heat water. Any other use of liquids other than water is considered improper and dangerous.

- The boiler was designed exclusively for installation inside suitable technical premises. Therefore it cannot be installed and work outside. Installation outside can cause malfunctions and danger.

- IT IS FORBIDDEN for children or people incapable of looking after themselves to use the boiler.

- IT IS FORBIDDEN to change or alter the safety devices on the boiler.

- Do NOT leave packaging within reach of children or people incapable of looking after themselves.

- Do NOT touch the boiler if your feet are wet or damp.

- Do NOT plug or reduce the air vents in the boiler technical premises.

- Do NOT plug or reduce the air vents into the boiler.

- During operation, some elements of the boiler can reach high temperatures, therefore avoid coming in contact with them without having adequate protection.

- During operation, the door of the firebox MUST remain closed.

- The boiler was designed to work in any climatic condition, but in the event of adverse climatic conditions the safety systems may activate. Under no circumstances disable the safety devices.

- In the event of natural disasters, such as earthquakes, floods, etc. immediately switch off the boiler.

- In the event the boiler blocks, which was not caused by normal maintenance, call the support centre.

- The smoke vent and water drainage connections must be carried out by qualified people who can issue documentation in compliance with installation according to national standards.

- In Italy, you need to refer to the Declaration of Conformity in compliance with M.D. 37/2008 (previously L. 46/90) and according to the standards UNI 10683 and UNI 10412-2.

In the event of installation in apartment blocks, ask the administrator's opinion beforehand.

- The installation technician will illustrate functioning of the system.

First start-up (testing) must be carried out by the EDILKAMIN AUTHORISED TECHNICAL SUPPORT CENTRE (TSC) as stated in the standard UNI 10683.

This standard indicates the control operations to follow on site to ensure the system is working properly.

The Edilkamin Technical Support Centre (TSC) will also be responsible for calibrating the boiler, based on the type of pellet and the installation conditions.

Start-up by the TSC is indispensable for conventional warranty activation.

BOILER PREMISES

Before installing it, you can identify the point suitable for boiler positioning checking that:

- The boiler to install is suitable for the type of system to insert it on.

- The premises has the requirements and characteristics to meet standards in force.

- There is sufficient combustion air flowing in the premises for regular combustion.

• Passage of tubing is possible for the heating system.

- The support surface has a suitable capacity to support the weight of the appliance. Otherwise, the support surface should be adequately modified before installation.

- The rear and side walls and the support flooring of the boiler should be created using fireproof materials or covered in protective material.

- You can easily create or position the chimney flue and the external air intake.

INSTALLATION

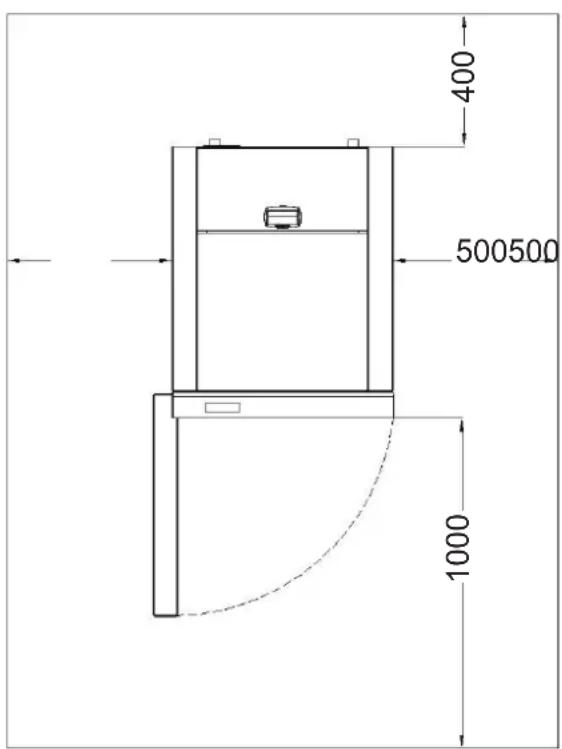

DISTANCES TO RESPECT IN PREMISES

The boiler was designed for installation at safe distances from objects and walls.

• Minimum distance in front of the boiler must be 1000 mm to guarantee correct opening of the door and normal maintenance operations.
• Minimum distance permitted between the rear and a wall must be 400 mm.
• Minimum distance between the boiler and the side walls must be 500 mm.
• Minimum distance between the boiler and the upper wall must be at least 1000 mm to guarantee fuel loading and normal maintenance.

400 500500 1000

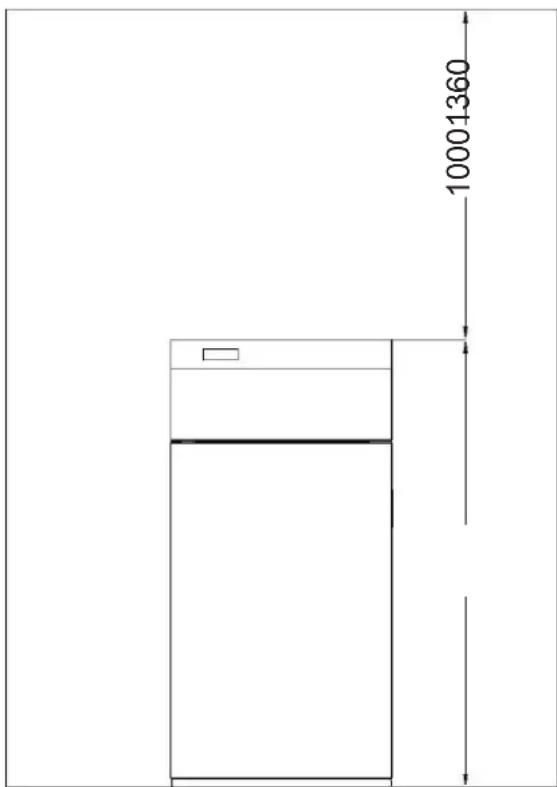

10001360

INSTALLATION

AIR INTAKE

It is indispensable for the premises where the boiler is located to have an air intake section of at least 80 cm ^2 to guarantee consumed air reset for combustion.

Alternatively, you can take air for the boiler directly from outside using a steel extension with a pipe with a 6 cm diameter or located on the back of the boiler itself.

The pipe must be less than 1 metre long and not have bends.

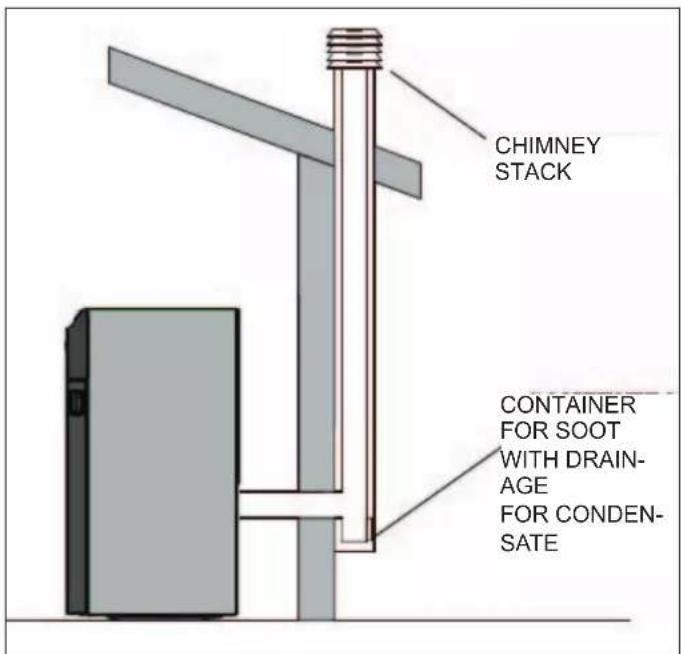

CONNECTION TO CHIMNEY FLUE

The boiler works with forced draft, therefore the smoke extractor emits combustion air inside the chamber to enable combustion. It is therefore necessary to guarantee correct evacuation of the smoke connecting the boiler to a smoke flue that guarantees natural draft.

For connection to a smoke flue, local and national standards must be complied with.

A smoke flue must meet the following requirements:

- It must be in waterproof material and resistant to the temperature of the smoke and relevant condensate.

- It must have sufficient mechanical strength and weak thermal conductivity.

- It must be perfectly sealed to avoid cooling of the flue.

- Its progression must be as vertical as possible.

- It must be adequately distanced from combustible or flammable materials using air cavities or appropriate insulation.

- New or old chimneys built without compliance with specifications should be recovered by piping the chimney. You should therefore introduce a metal flue inside the existing chimney and fill with adequate insulation.

- The chimney flue must have a piping diameter of no less than the boiler outlet joint.

- There must be a preferably circular internal section; the square or rectangular section must have rounded corners with a radius of no less than 20 mm.

- It must have a constant, free, independent, and no choking internal section.

- The smoke tubes must not cross premises in which installation of the combustion appliances is forbidden.

- Flexible tubing is not allowed.

- A "T" tube must be installed immediately after the boiler outlet to periodically clean residue.

- A collective smoke pipe cannot be used.

INSTALLATION

• Only outlet pipes must be used suitable for the fuel used.
• Correct installation of the chimney flue allows, in the event electrical energy is cut, normal smoke flow outwards.
• Avoid creating completely horizontal sections.
• An extractor hood must not be in the premises where the boiler is installed.
• Direct discharge on the wall is not permitted.
• Given the low temperatures of the smoke when the boiler is fully operational, the discharge channels must be created in suitable material to resist combustion products and their possible condensate.
  • Install an inspection valve to enable drainage of any condensate formed.
• Use a rain-proof and wind-proof terminal.
• You need to place one or more measurement points for sealed and/or auto-locking combustion analysis.
• You are advised to check emissions after installation.
• Draft must be guaranteed of 12 Pa.
• It must not be installed in the same premises as other heating appliances.

Terminal cone Non- combustible insulation Ventilation channel Outer wall Boiler joint Inspection door Ventilation grill outwards Condensate collector Condensate drain

INSTALLATION

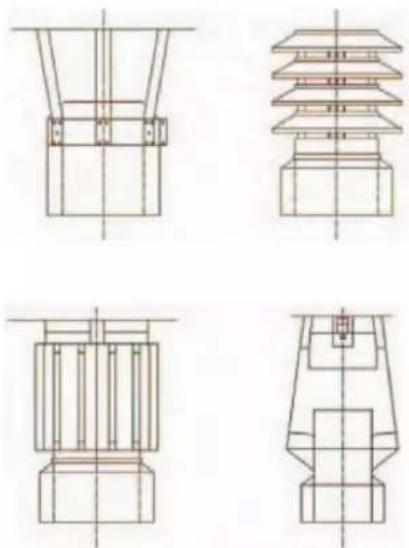

CHIMNEY STACK

The chimney stack must have the following requirements:

• have a section and shape equivalent to that of the chimney flue;
- have a useful outlet section no less than double that of the chimney flue;
- be built to prevent rain, snow or foreign body penetration and, for wind, guarantee normal smoke flow;
- it must be positioned to guarantee adequate dispersion and dilution of combustion products, outside the back flow zone.

CHIMNEY HEIGHT

The height of the part of the chimney protruding from the roof depends on the type of slope, its inclination and its position.

FLAT ROOF

>5m ≤5m 0,50m 0,50m

INSTALLATION

SLOPED ROOF

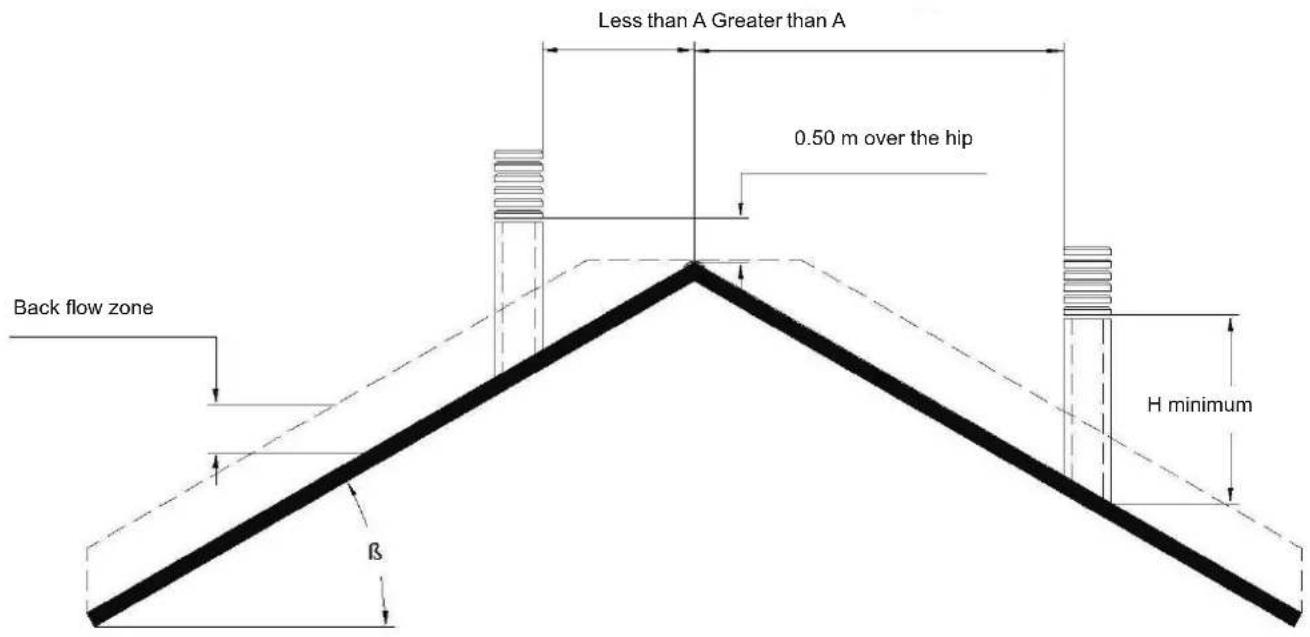

ROOF SLOPE BACKFLOWZONE	DISTANCE BETWEEN HIP AND CHIMNEY	MINIMUM CHIMNEY HEIGHT
m A H
15° 0.50 m	≤ 1.85 m 0.50 m over hip
	> 1.85 m 1.00 m from roof
30° 0.80 m	≤ 1.30 m 0.50 m over hip
	> 1.30 m 1.20 m from roof
45° 1.50 m	≤ 1.50 m 0.50 m over hip
	> 1.50 m 2.00 m from roof
60° 2.10 m	≤ 1.20 m 0.50 m over hip
	> 1.20 m 2.60 m from roof

Less than A Greater than A 0.50 m over the hip Back flow zone H minimum β

INSTALLATION

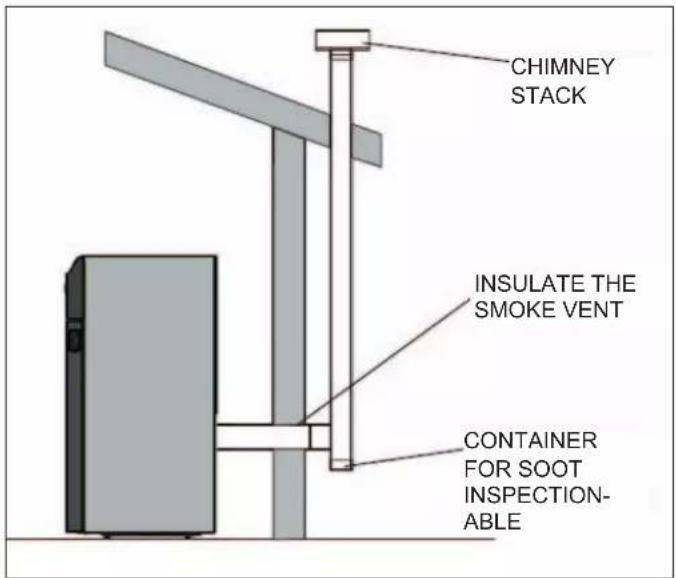

ROOF VENT WITH STEEL CHIMNEY FLUE

In installation of the chimney flue, always guarantee an inspection door to enable periodic cleaning of soot and a condensate collector with drainage to evacuate any condensate. If the smoke pipe is installed completely externally, you should make it fully in stainless steel with a double wall to guarantee better resistance to atmospheric agents and adequate temperature of the smoke vent.

CHIMNEY STACK INSULATE THE SMOKE VENT CONTAINER FOR SOOT INSPECTION- ABLE

ROOF VENT WITH TRADITIONAL CHIMNEY FLUE

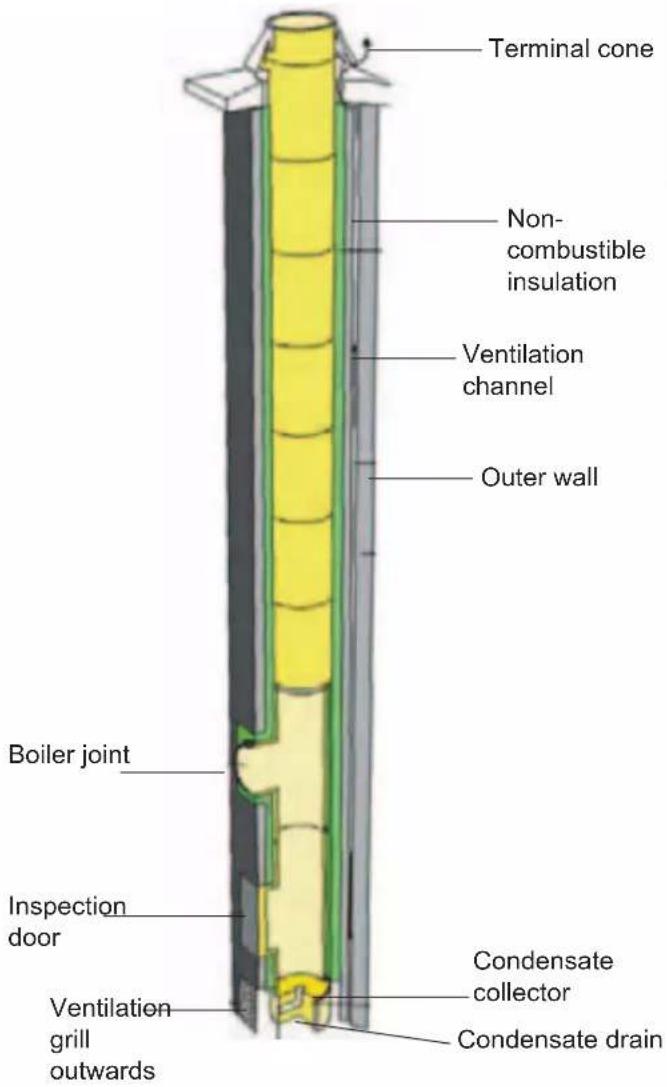

Combustion gas can also be evacuated using an existing, traditional chimney flue provided it is built to standard.

It must comply with the following regulations:

• it must be equipped with adequate insulation in the exposed external section;
• the internal section must be constant;
• it must be created using material resistant to high temperatures, the action of combustion products and any condensate that could form;
• it must have a soot and condensate collection chamber which can be inspected via a door.
  • the smoke channel (section of piping that connects the boiler to the chimney flue) can have:
• maximum 3 bends
• maximum 2 metres horizontally

CHIMNEY STACK CONTAINER FOR SOOT WITH DRAIN- AGE FOR CONDEN- SATE

INSTALLATION

HYDRAULIC CONNECTION

Correct dimensioning of the boiler and the heating system, as well as the choice of type of system to install are the tasks of the installation technician and/or planner.

If installation of the boiler includes integration with another pre-existing system using a gas, diesel, wood-burning boiler, it must be carried out by qualified staff who will issue documentation on correct installation according to the standards in force in each country (for example in Italy pursuant to M.D. 37/2008 and pursuant to the standard UNI 10412-2)

It is important to wash the entire system before connecting the boiler to eliminate deposits and residue in compliance with Standard UNI 8065 (water treatment in heating systems for residential use).

Install shut-off valves upstream of the boiler to insulate it from the rest of the system if any movement or maintenance operation is necessary.

The hydraulic system must work with pressure between 1 and 1.5-2 bar hot on a closed heating circuit.

N.B.: The boiler should NOT be installed to replace a heating stove installed with an open circuit without adapting the expansion system, making it a closed circuit.

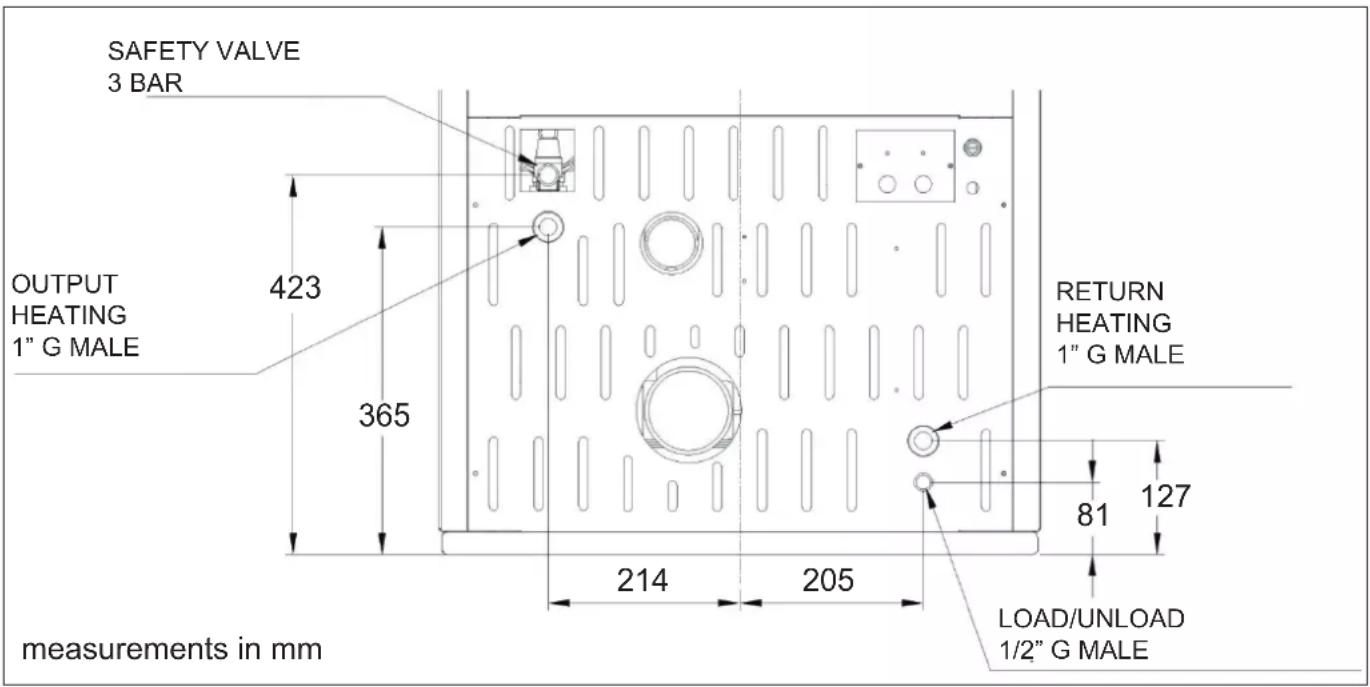

SAFETY VALVE 3 BAR OUTPUT HEATING 1" G MALE 423 365 214 205 81 127 RETURN HEATING 1" G MALE LOAD/UNLOAD 1/2" G MALE measurements in mm

The boiler is equipped with:

• circulator (Yonos-Para RS 15/6);
- expansion tank 10 l;
- safety valve 3 bar;
• automatic relief valve.

INSTALLATION

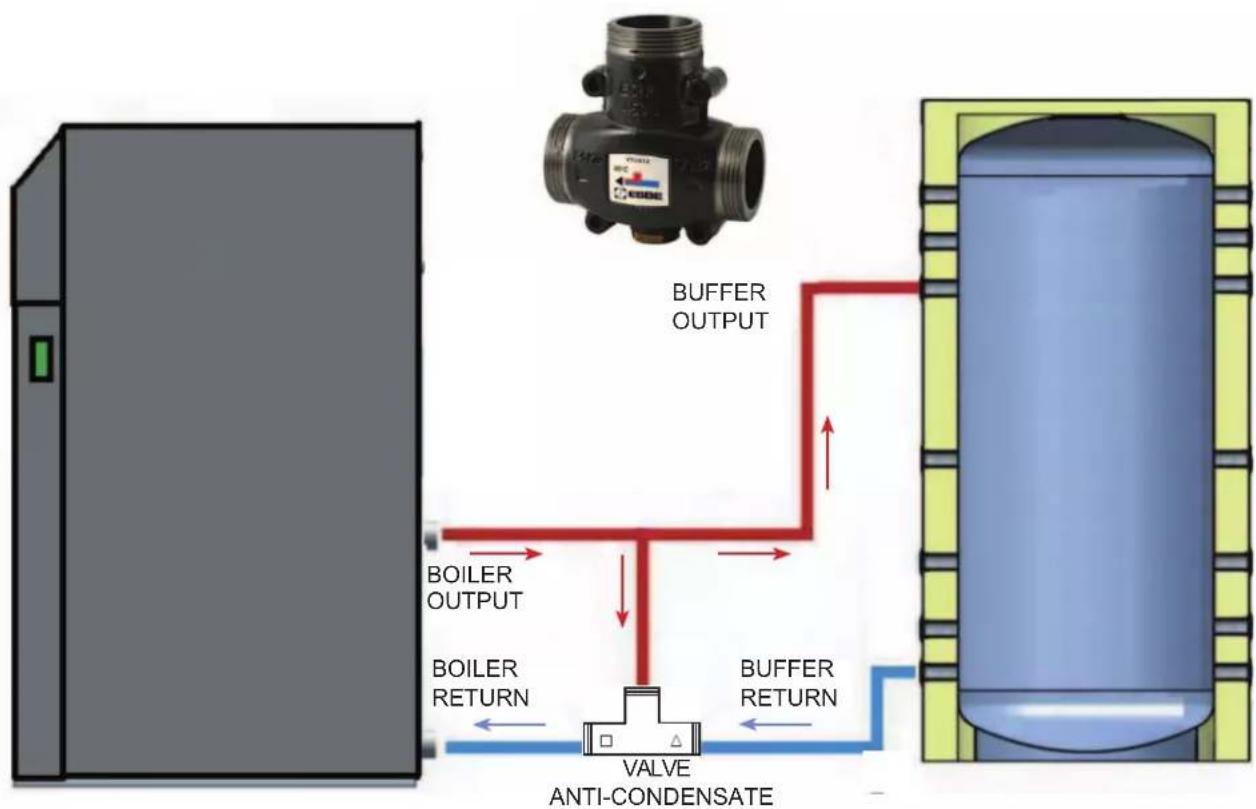

ANTI-CONDENSATE KIT OPTIONAL

For correct operation, you need to guarantee a return temperature of at least 55^ in the boiler, to avoid condensate formation in the smoke tubes. For example, you are advised to use an anti-condensate mixer.

A return temperature in the boiler under 55°C causes the structural warranty to EXPIRE.

Edilkamin cannot be held liable for any damages due to non-compliance with the minimum return temperature. The diagram includes use of accessories available on the EDILKAMIN pricelist.


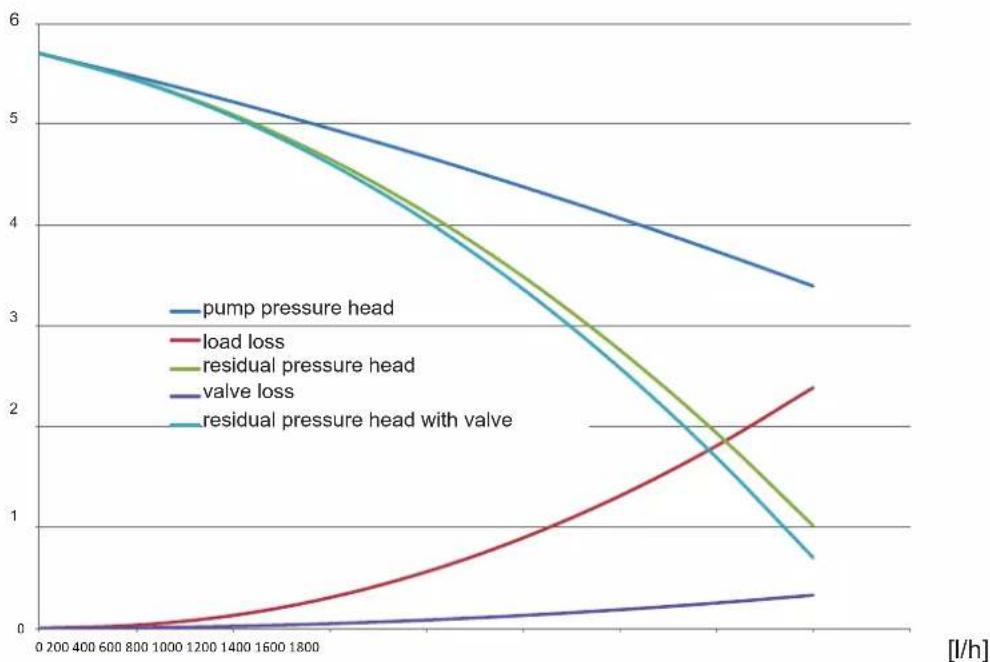

ANTI-CONDENSATE VALVE CHARACTERITIC BEND
[metres c.a.]

INSTALLATION

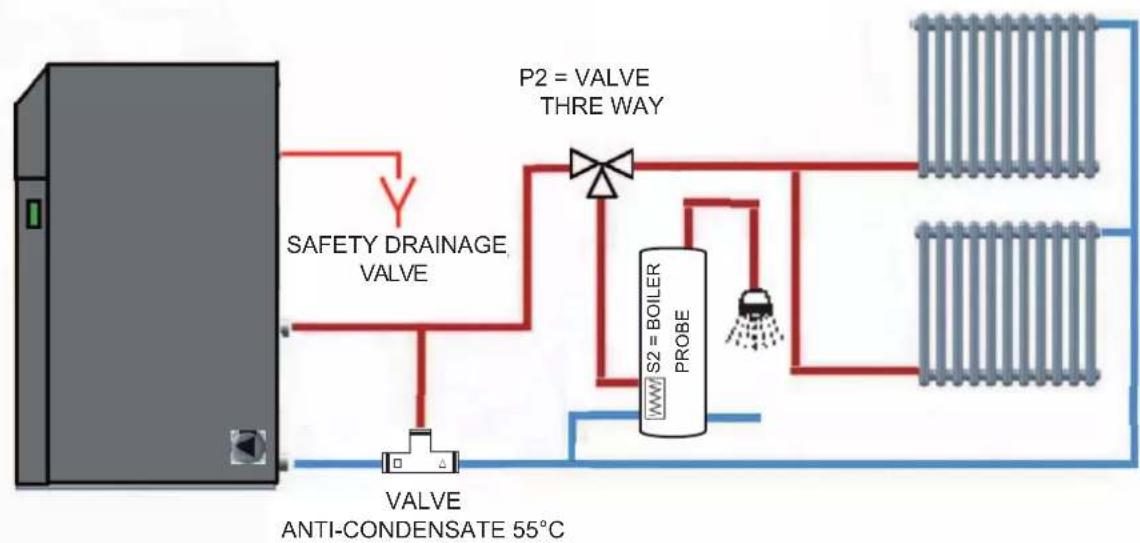

DIRECT CONNECTION + BOILER WITH 3 WAY VALVE

The circulation of the boiler activates if the temperature is over 50^ C and no sanitary circuit is required.

If the temperature of the sanitary boiler is lower than the sanitary SET temperature, the temperature of the boiler is greater than the sanitary SET, the 3 way valve switches to the boiler.


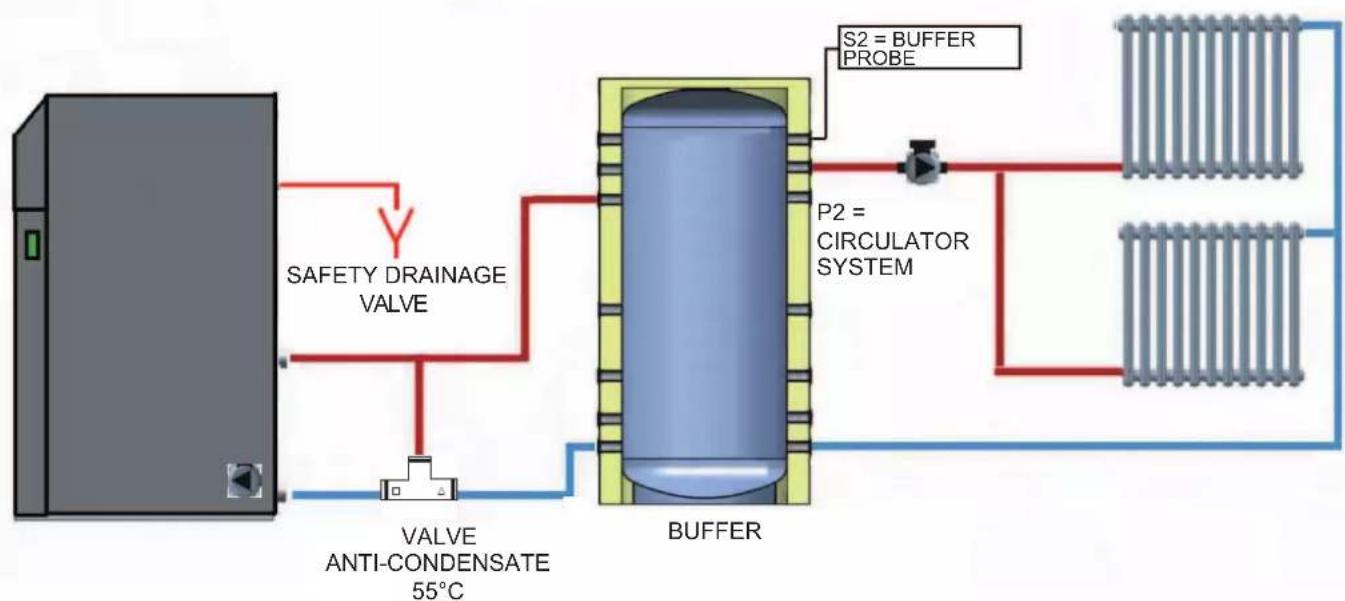

SYSTEM CONNECTION WITH BUFFER

The boiler can check loading of a buffer using a temperature probe positioned on the buffer. If the temperature of the water in the boiler is over 50^ C the cycle can start, The system heats the buffer water, if the temperature of the boiler is over 5^ C the temperature of the buffer, if lower the circulator stops. To guarantee safety if the temperature of the water in the boiler exceeds 75^ C the circulator stays on. The system circulator P2 activates if the buffer temperature is over 50^ C.

INSTALLATION

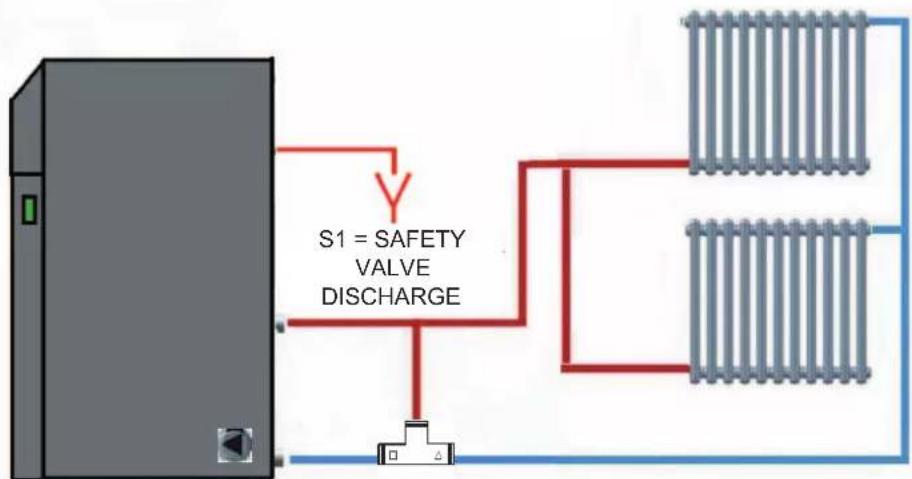

DIRECT CONNECTION

The circulator on the boiler activates if the temperature is over 50°C.

VALVE ANTI-CONDENSATE 55°C

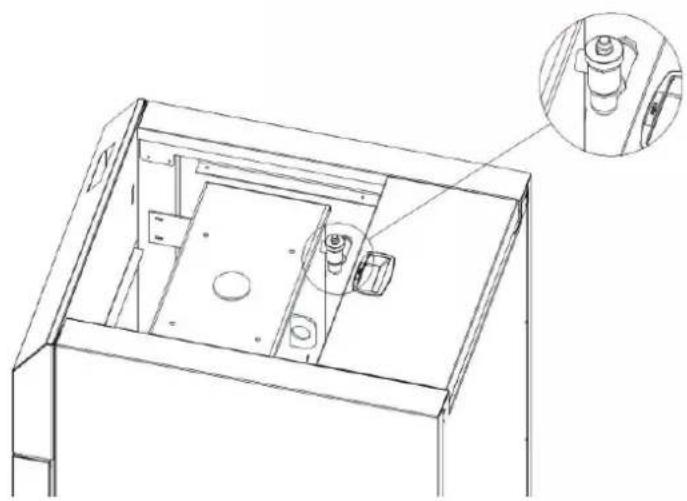

SYSTEM FILLING

Having carried out all the plumbing connections for the boiler, you need to proceed with system filling. To correctly fill the system, proceed as follows:

• open any shut-off valves;
• open the radiator vents so the air exits without forming bubbles;
• loosen the automatic vent valve plug under the front, upper surface; (jolly valve see figure below)

- open the loading valve and start the system very slowly;

- close the radiator vents as soon as the water exits;

- loading pressure must be over 1.5 bar;

- close the loading valve;

- release the air via the radiator vents;

- switch on the boiler for the first time bringing the system to temperature;

- stop the boiler and repeat the operations to bleed the air.

Technical line drawing of a mechanical assembly with an inset close-up view (no text or symbols)

INSTALLATION

ELECTRICAL AND EXTERNAL CONNECTIONS (ONLY FOR INSTALLATION TECHNICIAN)

Electrical safety of the system must be guaranteed by an efficient earthing connection and use of a circuit breaker-differential switch with a distance between contacts of at least 3 mm.

The electrical parts inside the boiler require an electrical connection of 230 V – 50 Hz. The connection must be carried out to standard as planned by the CEI standards only by qualified technical staff.

It is also possible to connect an ambient thermostat to control boiler switch on. The thermostat acts as a "physical" switch on the boiler, permitting switch on or switch off by bringing the boiler to stand-by.

It is also possible to connect a system circulator that picks water from the buffer and brings it to the heating system.

- For installation, in Italy, you need to refer to the Declaration of Conformity in compliance with M.D. 37/2008 (formerly L. 46/90).

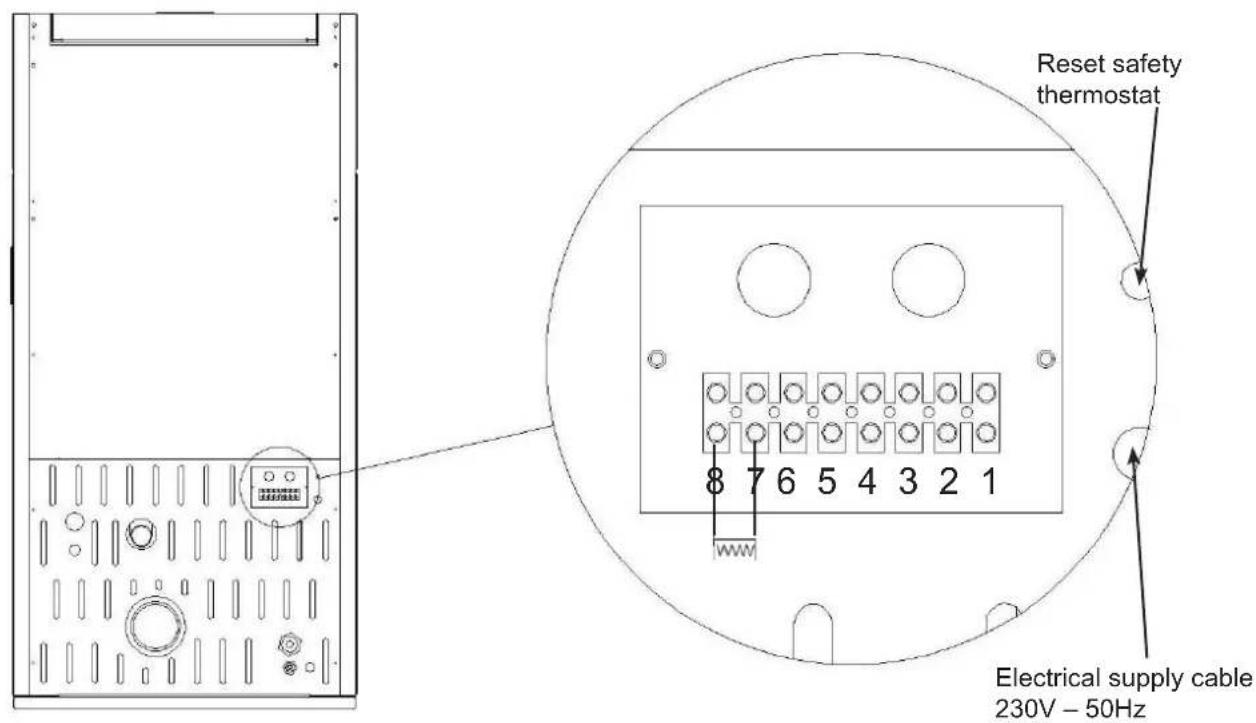

Reset safety thermostat Electrical supply cable 230V - 50Hz

CONNECTORS	DESCRIPTION
1-2 Ambient thermostat
3-4 Free
5-6 P2 System circulator / 3 way valve
7-8 S2 Buffer probe / Boiler probe

On terminals 7 and 8 a 10K resistor is installed that simulates a temperature around 20^ .

INSTRUCTIONS FOR USE

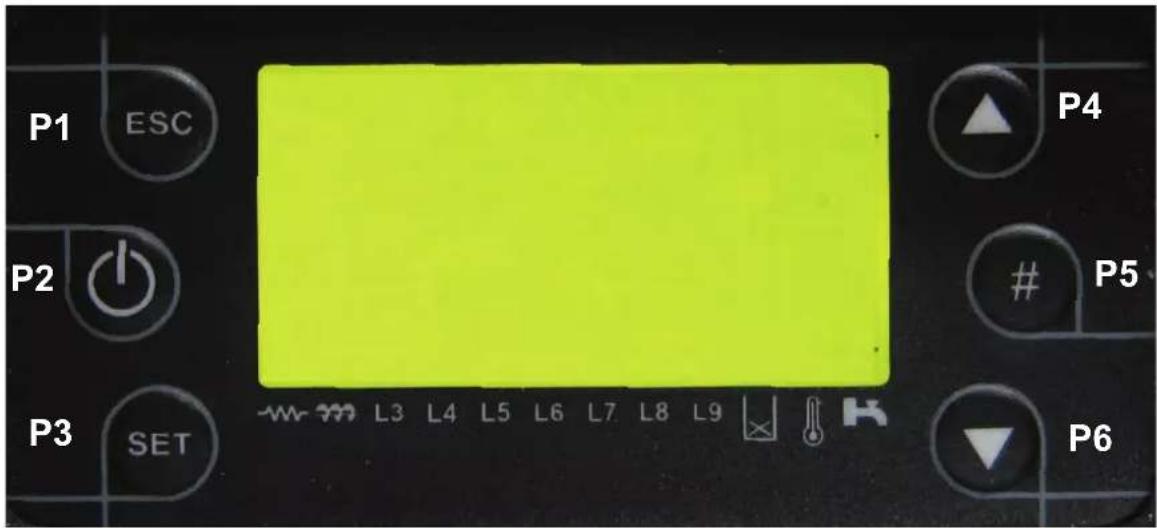

SYNOPTIC PANEL

P1 ESC P2 P3 SET L3 L4 L5 L6 L7 L8 L9 P4 # P5 P6

P1 Esc exit key Glow plug light
P2 ON/OFF or unlock key Auger feed light
P3 Menu key for adjustments L3 Boiler circulator
P4 Menu scrolling key L4 System circulator light
P5 Keypad lock key L5-L9 NOT USED
P6 Menu scrolling key Open thermostat contact

DISPLAY

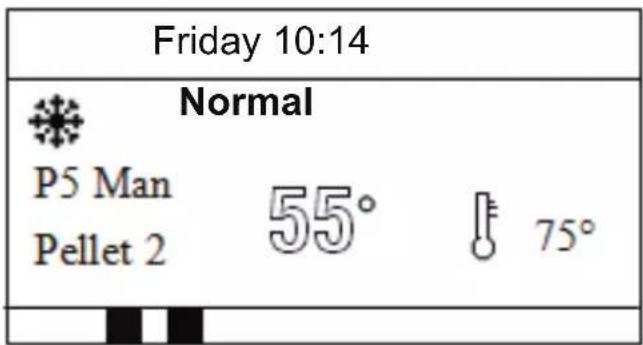

MAIN SCREEN

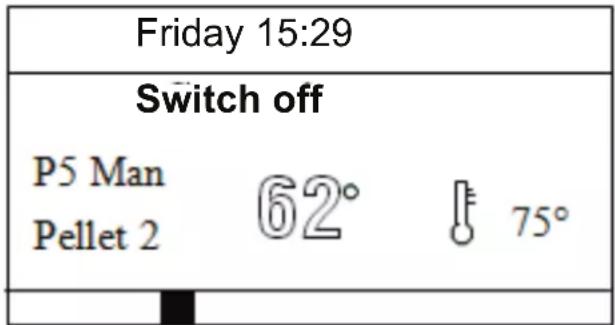

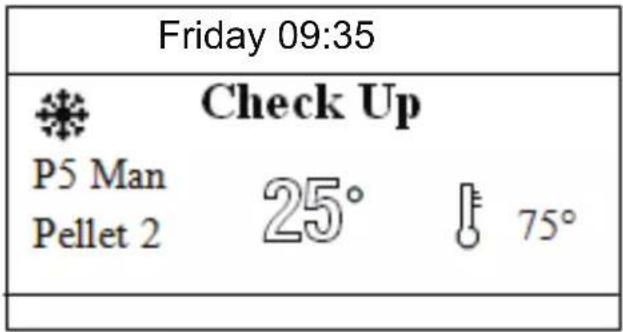

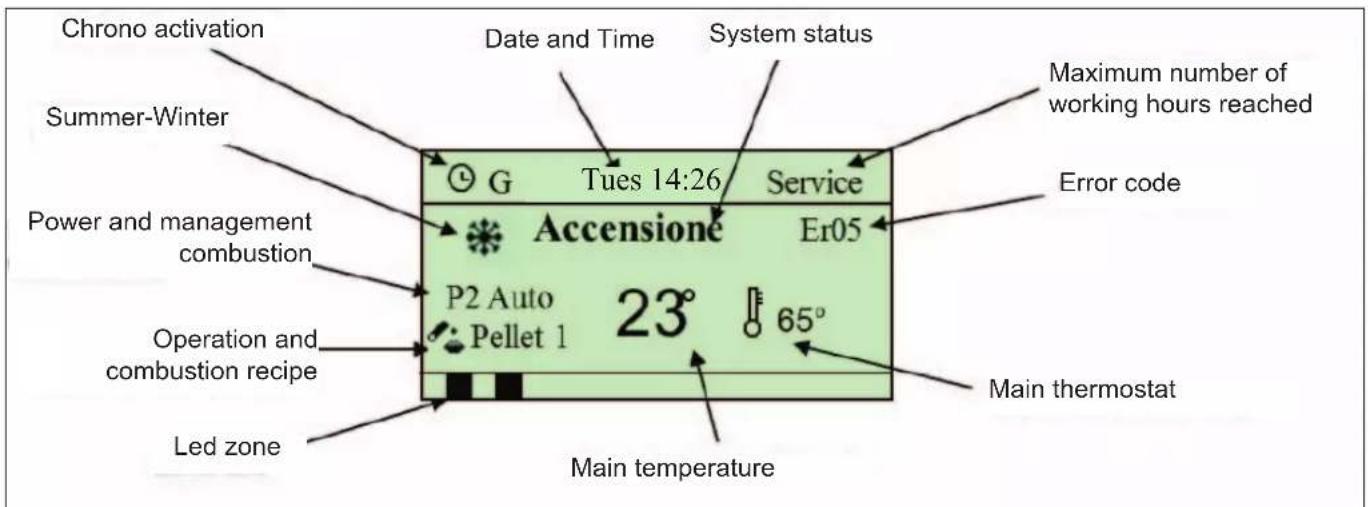

Chrono activation Summer-Winter Power and management combustion Operation and combustion recipe Led zone Date and Time System status Tues 14:26 Service Accensione Er05 P2 Auto 23° 65° Main thermostat Main temperature Maximum number of working hours reached Error code

SECONDARY SCREENS

On pressing keys P4/P6 you can display:

T. Smoke - Smoke temperature [°C]

T. Boiler – Boiler temperature [°C]

T.Buffer - Buffer probe temperature [°C]

Pressure – Value not detected

Fan speed – Smoke extractor speed [rpm]

Auger – Auger working time [s]

Recipe – Combustion recipe number [n]

INSTRUCTIONS FOR USE

KEYS USE

	P1Esc (exit) function from menu or sub-menu.
	P2ON/OFF Switch on/off function pressing the key for 3 seconds up to acoustic signalUNLOCK System unlocking function after an error by pressing the key for 3 seconds up to the acoustic signal
	P3MENU Menu and sub-menu access functionCHANGE Access menu changes
	P4MENU SCROLL Scrolls the main and secondary screens upwards. In the menu scroll through the various sub-menus upwards
	P5KEYS BLOCK Locks/unlocks the keys pressed for 3 seconds up to acoustic signalCHRONO PROGRAM ACTIVATION In Chrono-> Program menu the selected programming activates
	P6MENU SCROLL Scrolls the main and secondary screens downwards. In the menu scroll through the various sub-menus downwards

INSTRUCTIONS FOR USE

ERRORS AND DISPLAYS

DISPLAY DESCRIPTION

Er01 Safety thermostat activation error (ask TSC for help)

Er02 Air pressure switch activation error (ask TSC for help)

Er03 Switch off error due to FLAME STOP

Er04 Water excess temperature error

Er05 Smoke excess temperature error

Er07 No smoke encoder signal error (ask TSC for help)

Er08 Smoke motor rotation adjustment problem error (ask TSC for help)

Er11 Internal clock error (ask TSC for help)

Er12 Switch on failed error

Er15 Temporarily no power supply error

Er16 Communication error with synoptic panel (ask TSC for help)

Er23 Boiler or buffer temperature probes error (ask TSC for help)

DISPLAY DESCRIPTION
Probes Status	display of temperature probes. The message is displayed during the Check up phase and indicates the temperature read on one or more probes is equal to the maximum or minimum possible value.
Cleaning The m	message indicates 500 working hours has been reached for USER cleaning (see page 85).To reset the message, use the RESET SERVICE function.

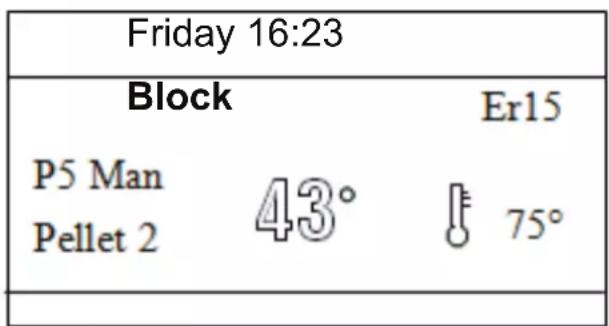

Switch on Block	The message appears if the system switched off non-manually during the Switch off phase, the system will only switch off when it has reached fully operational mode.
Link Error No	communication between the keypad and the control board

USER MENU

On pressing the SET key you enter the first screen on the menu

Combustion Management Heating Management Chrono Loading Service Reset

By pressing the Using the SET

key you scroll the menu highlighting the desired item. Enter the sub-menu by obtaining the list or the parameter to change.

INSTRUCTIONS FOR USE

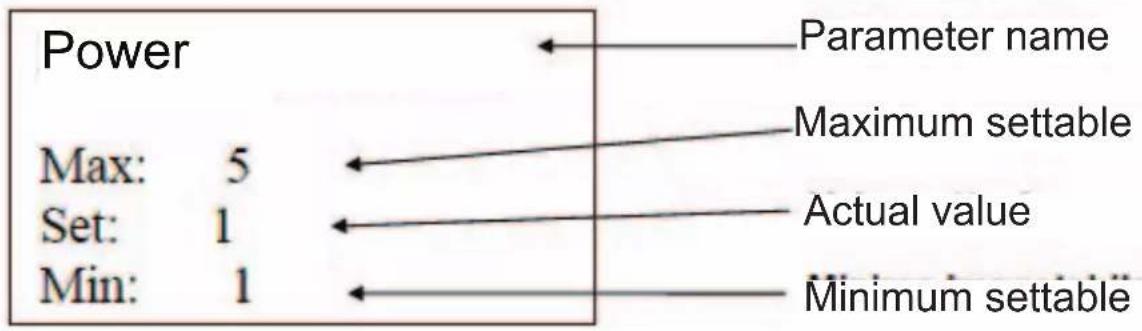

Power Max: 5 Set: 1 Min: 1 Parameter name Maximum settable Actual value Minimum settable

In the settings menu, there is the name of the parameter, the minimum, the maximum and the actual value (Set).

Pressing the SET key you change the parameter and the Set field flashes and with the keys

and

key you change the parameter and the Set field flashes and with the keys

Press the

you can increase or decrease the parameter.

the ESC key you cancel the operator and restore the previous data.

Pressing it again, you exit and return to the previous screen.

Note: after 60 seconds without pressing the keys, the system automatically exits the menu.

USER MENU DESCRIPTION
Combustion Management	Pellet power It changes the combustion power of the system
	Pellet recipe Menu to choose the fuel:1. Pellets2. Olive waste3. Hazelnut shells
	Auger calibration	It allows variation in the working time of the auger
	Fan calibration It allows you to change the speed of the smoke fans

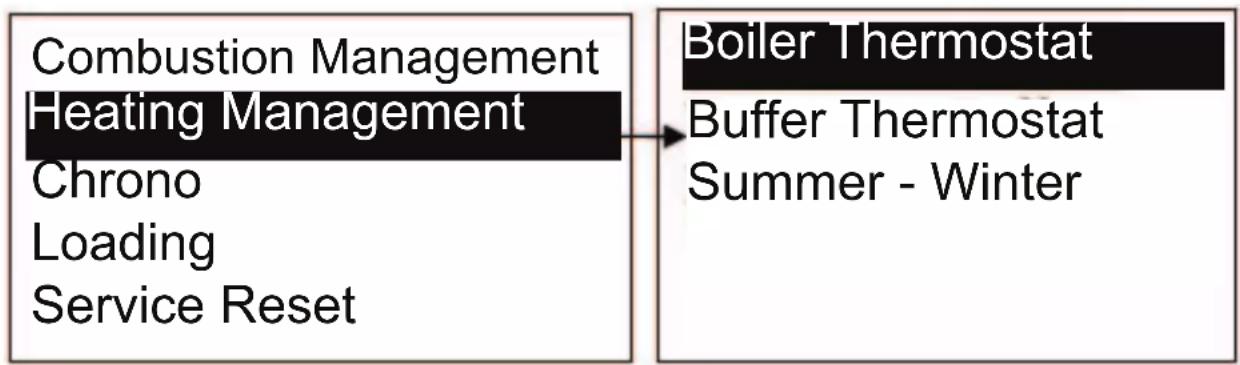

Heating Management	Boiler Thermostat Menu to change the boiler thermostat
	Buffer Thermostat Menu to change the buffer thermostat
	Summer-Winter Summer or Winter selection mode
Chrono Mode Select the chronothermostat programming mode.
	ProgramDailyWeeklyWeekend	Menu to program the times for programmed switch on/switch off of the boiler

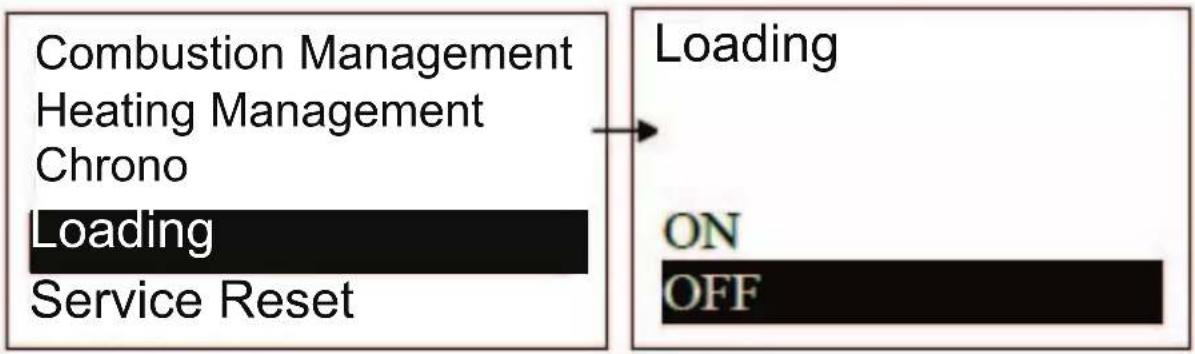

Loading Manual loading of the auger in OFF status
Reset Service Menu to reset the System Maintenance Function Message

INSTRUCTIONS FOR USE

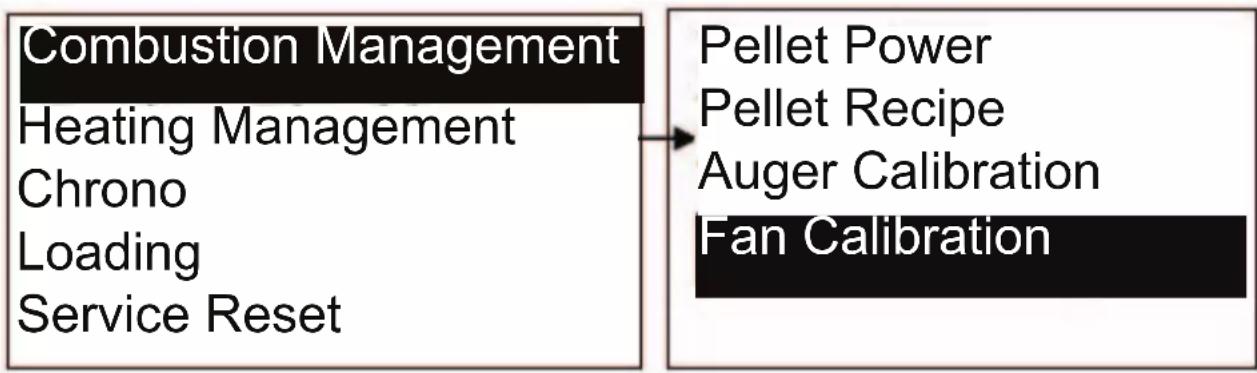

COMBUSTION MANAGEMENT MENU

Menu to change the system combustion parameters. It is composed of some sub-menus.

POWER

Menu consisting of setting the system combustion power. It is possible to choose between automatic and manual.

Combustion Description

1 – 5 Power Power adjusted in manual mode 1 to 5

Auto Power regulated in automatic mode by system

FUEL RECIPE

Menu that allows you to choose the type of fuel to use.

Recipe Fuel
Recipe no. 1 Pellets
Recipe no. 2 Olive waste
Recipe no. 3 Hazelnut shells

ATTENTION: DO NOT MIX FUELS WITH ONE ANOTHER

In the event of fuel change, you need to firstly completely empty the tank, change the recipe as per the table and then fill the tank with the new fuel.

N.B.: The recipes refer to standard fuel. Adapt the recipe to your fuel by calibrating the auger and the fan.

AUGER CALIBRATION

Menu that allows variation in the working time of the auger You have available 10 adjustment steps, 5 increase steps and 5 decrease steps, value 0 corresponds to the calibration value set in the factory.

An adjustment step corresponds to 5% of the value set in the factory. Calibration affects the recipe used and all the power values.

FAN CALIBRATION

Menu that allows you to change the speed of the smoke fans You have available 10 adjustment steps, 5 increase steps and 5 decrease steps, value 0 corresponds to the calibration value set in the factory.

An adjustment step corresponds to 5% of the value set in the factory. Calibration affects the recipe used and all the power values.

INSTRUCTIONS FOR USE

HEATING MANAGEMENT MENU

Menu to change the system heating parameters. It is composed of some sub-menus.

BOILER THERMOSTAT

Menu to change the value of the boiler thermostat settable from a minimum of 50^ C to a maximum of 80^ C.

BUFFER THERMOSTAT

Menu to change the buffer thermostat value for the heating function.

SUMMER - WINTER

Menu to change functioning of the system based on the season. The season symbol appears on the display.

CHRONO MENU

Enter the user menu and scroll to the Chrono item	Combustion Management Heating ManagementChronoLoadingService Reset
Choose the Mode sub-menu.Having entered the Mode sub-menu, you can see from the line highlighted what mode is currently in use.	DisabledDailyWeeklyWeekend
Press the SET key to enter the change and using the▲ and▼ keys select the desired modePress SET to save the setting.	DisabledDailyWeeklyWeekend

INSTRUCTIONS FOR USE

Press to exitNow choose the sub-menu from the Chrono menu.ProgramSelect the period type you want to set
If you select daily you can then select the day of the week you want to program (3 switch on switch off slots for each day of the week). Entering a day of the week, the memorandum of the 3 switch-ons for the day in question are outlined.
DailyWeeklyWeekend	Monday MondayTuesdayWednesdayThursdayFriday
	ON OFF10:30 18:30V00:00 00:0000:00 00:00
If you select weekly you go directly to changing the hours (3 time slots for the entire week)
DailyWeeklyWeekend	Mon-FriON OFF08:30 15:00V00:00 00:0000:00 00:00
If you select the weekend you can choose from the periods “Monday-Friday” and “Saturday-Sunday” (3 time slots for the period from Monday to Friday and 3 for Saturday and Sunday)
DailyWeeklyWeekend	Mon-FriSat-Sun
	Mon-FriON OFF10:00 12:15V00:00 00:0000:00 00:00

Programming of the time slots takes place according to the following modes:

• Move using the and keys on the time to program.
• Using the Set SET key, the time selected begins to flash.
• Change the times with the and keys.
• Save programming with the SET key.
• You can Enable/Disable the time slot by pressing the # key. A "V" appears on the right of the slot.

Having programmed one or more modes (Daily, Weekly, End of Week) to switch on the boiler from Chrono, you need to select one from the sub-menu MODE to enable it.

If the boiler is in OFF status switch it on pressing the ⏻ key to enable automatic switch on according to the chrono.

INSTRUCTIONS FOR USE

LOADING MENU

Menu to enable filling the auger during the first switch on phase or if empty as pellets are used up.

On pressing the SET key you enter the first screen on the menu.

Loading selection.

Press the SET key again to enter the sub-menu highlighted to select ON or OFF.

Confirm the selection set by pressing the SET key and then exit the SET key.

The system must be in Off status because the function can be enabled. When loading activates, the smoke fan is also activated to close air pressure switch contact and therefore power the auger.

MENU RESET SERVICE

Menu that enables resetting of the System Maintenance Function (see page 85).

PERSONALISATION MENU

To access the menu, for 3 seconds press the key

PERSONALISATION MENU DESCRIPTION
Keypad Settings	Date and Time Time, day, date setting menu
	Language Menu to choose the language
Keypad Menu Adjust contrast Menu to adjust display contrast
System Menu Menu to access the Technical Menu, password protected

INSTRUCTIONS FOR USE

KEYPAD SETTINGS

Menu to configure the date, time and language.

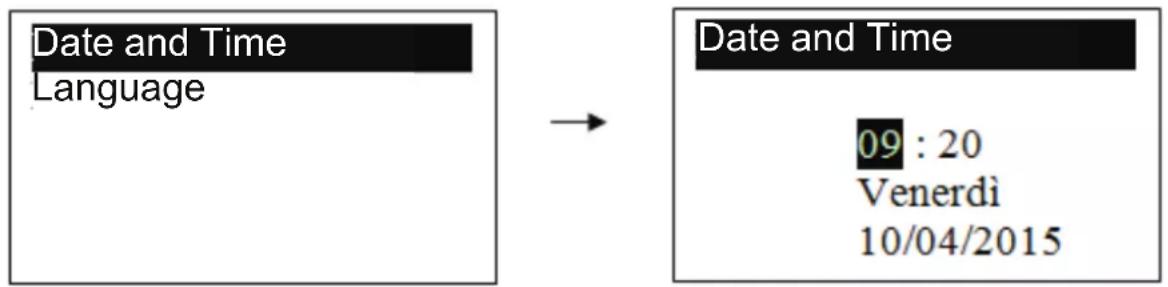

DATE AND TIME

Menu that allows setting of the date, time and day.

Press the ⚠ and ⚡ keys to select the hours, minutes or day of the week.

Press SET to enter the change, the cursor starts to flash.

Press and to change the value, then again SET to save the value,

lastly press ESC to return to the main menu.

LANGUAGE

Menu that changes the language on the synoptic panel. The language highlights the one currently set.

KEYPAD MENU

Menu that allows setting of contrast, minimum lighting of the display and the acoustic alarm.

ADJUST CONTRAST

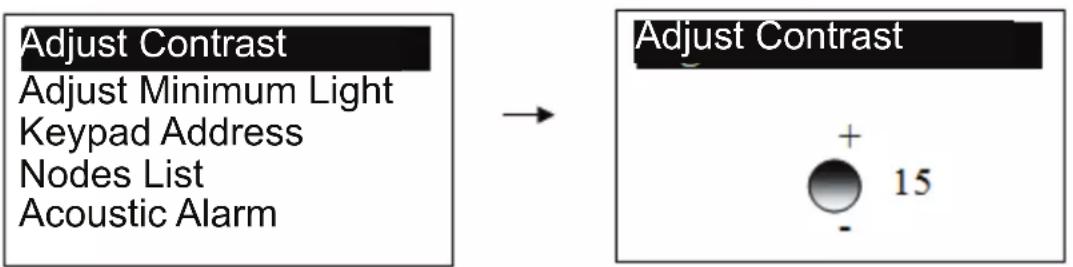

Adjusts display contrast


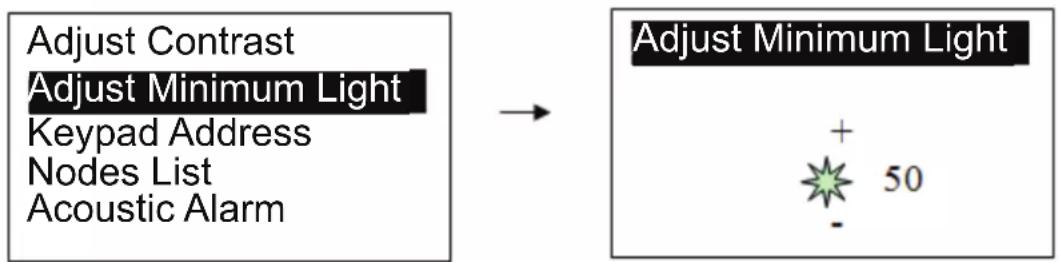

Adjusts lighting on the display when the commands are not used

INSTRUCTIONS FOR USE

NODES LIST

The window displays information on the board: firmware, type.

ACOUSTIC ALARM

Allows activation or deactivation of the acoustic alarm.

INSTRUCTIONS FOR USE

WARNINGS BEFORE START-UP

• Installation exclusively includes connection to a chimney flue. For any complex and articulated installation, contact the authorised EDILKAMIN Technical Support Centre (TSC).
- Other types of installations are not advised from those for which the boiler was intended.
- Ensure the hydraulic system is perfectly sealed and does not have any water leaks or pressure drops.
- Ensure the shut-off valves on the system are open.
- Ensure all the air inside the system is purged.
- Ensure there are no obstructions on the chimney flue and combustion air inlet.
- Ensure pressure in the circuit is at least 1.0 bar.
- Ensure the combustion chamber is free and clean.
- Ensure the crucible is positioned correctly.
- Check the electrical connection (230 V – 50 Hz) and power the boiler.
- Check the display is lighting on the command panel.

FUEL LOADING

Before proceeding to loading the fuel inside the tank, ensure that:

• the fuel is dry and not damp.
- the fuel is not stored near heat sources or damp places which are not ventilated;
- if the fuel is not compliant with requirements planned by the pellet standards:
1. Ö-Norm M 7135;
2. DIN plus 51731;
3. UNI CEN/TS 14961.

Adjust the recipe based on the characteristics of the fuel (see page 70).

Fuel loading must be manual. The tank can contain approximately 70 Kg of fuel.

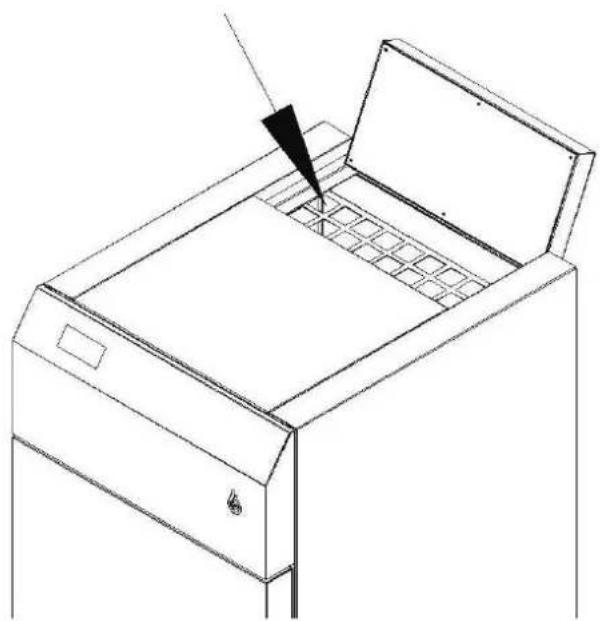

Open the upper door and load the fuel (see figure below).

INSTRUCTIONS FOR USE

FUNCTIONING CONCEPT

Below, the 11 stages of system functioning are listed.

1 OFF

2 CHECK UP

3 SWITCH ON

4 STABILISATION

5 SWITCH ON RECOVERY

6 NORMAL

7 MODULATION

8 STAND BY

9 SAFETY

10 SWITCH OFF

11 BLOCK

FIRST START-UP

ATTENTION: first start-up should be carried out by an authorised EDILKAMIN Technical Support Centre (TSC) which will check:

• all the standards already mentioned and the standards in force in the installation location were applied;
• correct installation of the boiler and the chimney flue;
• that there is no danger for the boiler and the installation environment.

IMPORTANT:

The manufacturer cannot be held liable for poor functioning of the boiler or any damage caused by it to people or property if:

• first start-up was not carried out in compliance with the above;
• boiler installation was not carried out perfectly in compliance with standards;
• installation of the system was carried out without complying with the standards in force.

The manufacturer declines any disputes or complaints if the standards for good functioning of the boiler are not complied with.

INSTRUCTIONS FOR USE

START-UP

Check inside the combustion chamber and the fuel tank that there are no objects or other material belonging to the boiler, then proceed as follows:

• Ensure the crucible is positioned correctly;
• Check the ash drawer is present;
• Open the upper lid and cover the tank;
  • Electrically power the boiler using the main switch;
• Check the door is fully sealed when closed.

Press the ⏻ key to start the boiler. From the OFF status, bring the boiler to CHECK UP.

Attention: switch on is not permitted in the presence of alarms, which should be firstly removed by pressing the ⏻ key.

Friday 09:35 Check Up P5 Man 25° 75° Pellet 2

During the CHECK UP the boiler checks the probes and cleans them with the fan at full speed. At the end of this phase, the boiler goes to SWITCH ONstatus during which pre-heating of the ignition glow plug, the initial loading of fuel and waiting for the flame to ignite occurs. Having reached the smoke temperature of 50°C, the glow plug switches off and partial loading of the fuel continues. At 60°C the flame is declared present, therefore the boiler goes to STABILISATION, a status during which the flame stabilises and combustion strengthens.

Having reached an adequate smoke temperature and 4 minutes have passed with a stable flame present, the system passes to NORMAL bringing the boiler to the desired power.

Friday 10:14 Normal P5 Man Pellet 2 55° 75°

INSTRUCTIONS FOR USE

COMBUSTION

During combustion in NORMAL status, the system can pass to MODULATION if:

• the smoke temperature exceeds the optimal value of the operating condition.
  • or the temperature of the water in the boiler exceeds the value of the thermostat set.

MODULATION has the purpose of reducing combustion to gradually reach the water thermostat value set or lower the smoke temperature. Modulation brings the system to power 1.

During combustion in NORMAL status, the system can pass to SWITCH OFF if:

• the smoke temperature goes below 50°C;
- the smoke temperature for each operating power goes below the minimum threshold.

During combustion, the system can go to SWITCH OFF and SAFE status if:

- the smoke temperature exceeds the factory threshold set.

• the boiler water temperature exceeds 85°C.

During combustion, the system can go to STAND-BY status if:

- the buffer temperature is over the SET temperature for 2 minutes.

On pressing the

key, the boiler in whatever status, goes to SWITCH OFF.

This phase has the purpose of bringing the smoke temperature under the value of the boiler off 50^ C, once complete the system cleans the crucible and the exchangers and then goes to OFF status.

Friday 15:29 Switch off P5 Man 62° 75° Pellet 2

LOCK STATUS

This status is present during boiler operation or also with the system off if one of the errors among those described on page 68 occurs.

To reset the system lock status, you need to:

- solve the error that occurred (e.g. safety thermostat activation on boiler temperature reset).

- if the alarms are no longer present, press the ⏻ key for 3 seconds and the system switches OFF.

Friday 16:23 Block Er15 P5 Man 43° 75° Pellet 2

INSTRUCTIONS FOR USE

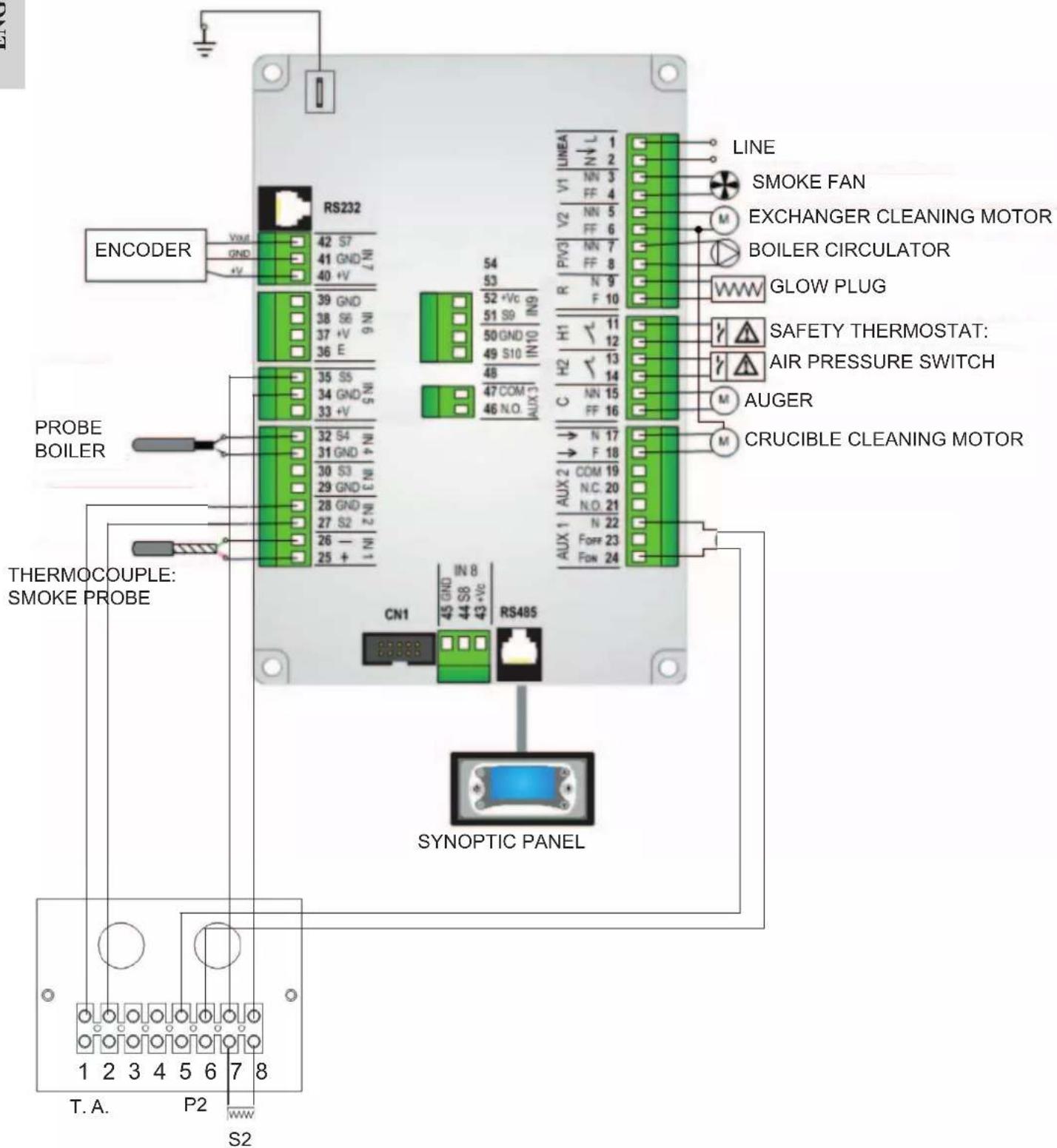

CONNSECTIONS DIAGRAM (TSC ONLY)

The electronic system includes the supply of probes and sensors:

ENCODER RS232 42 S7 41 GND 40 +V 39 GND 38 S8 37 +V 36 E 35 S5 34 GND 33 +V 32 S4 31 GND 30 S3 29 GND 28 GND 27 S2 26 S1 25 +V PROBE BOILER THERMOCOUPLE: SMOKE PROBE SYNOPTIC PANEL LINE SMOKE FAN EXCHANGER CLEANING MOTOR BOILER CIRCULATOR GLOW PLUG SAFETY THERMOSTAT: AIR PRESSURE SWITCH AUGER CRUCIBLE CLEANING MOTOR CN1 45 GND IN 8 44 S8 RS485 43 +Vc 46 N.O. AUX 3 54 53 52 +Vc IN9 51 S9 50 GND IN10 49 S10 IN11 48 47 COM AUX 3 LINEA 1 N L 2 V1 NN 3 FF 4 NN 5 FF 6 PV3 NN 7 FF 8 R N 9 F 10 H1 11 12 H2 13 14 C NN 15 FF 16 N 17 F 18 COM 19 N.C. 20 N.O. 21 N 22 Forr 23 Forn 24

INSTRUCTIONS FOR USE

The boiler is equipped with the following safety devices:

• AIR PRESSURE SWITCH

Controls negative pressure in the chamber. If the chimney is blocked or there is a fan fault, it shuts off auger loading and stops combustion.

• FAN ENCODER

Detects fan rotation and if there is a fault, it shuts off loading immediately, making the boiler switch off.

• WATER BULB THERMOSTAT

Checks the temperature of the water inside the boiler. If the temperature exceeds the limit of 90^ C it shuts off auger loading and stops combustion.

• WATER TEMPERATURE PROBE

If the temperature exceeds the thermostat value the boiler starts to modulate its power.

• SMOKE TEMPERATURE PROBE

It detects the smoke temperature giving consent to start or stop the boiler.

- NO SWITCH ON

If during the switch-on phase after 20 minutes the boiler does not reach the smoke temperature of at least 60^ the alarm switches on.

• ANTI-EXPLOSION VALVE

If during the switch on phase, due to excessive accumulation of fuel, the combustion chamber fills with gas, the anti-explosion valve will expel the gas in the event of detonation.

• ELECTRICAL SAFETY

The boiler is equipped with a fuse to protect the electronics.

RE-ACTIVATION OF THE RESET THERMOSTAT

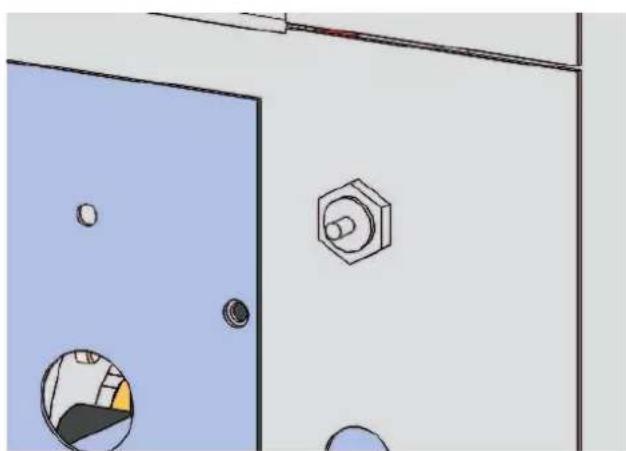

To re-activate the reset thermostat, unscrew the black hood and fully press the small cylinder until you hear a release click.

To intervene on the water bulb safety thermostat, contact the Technical Support Centre authorised by EDILKAMIN (TSC) to check the cause.

Illustration of a door with a blue interior and a hexagonal bolt, showing no text or symbols.

INSTRUCTIONS FOR USE

SAFETY DEVICES POSITIONING

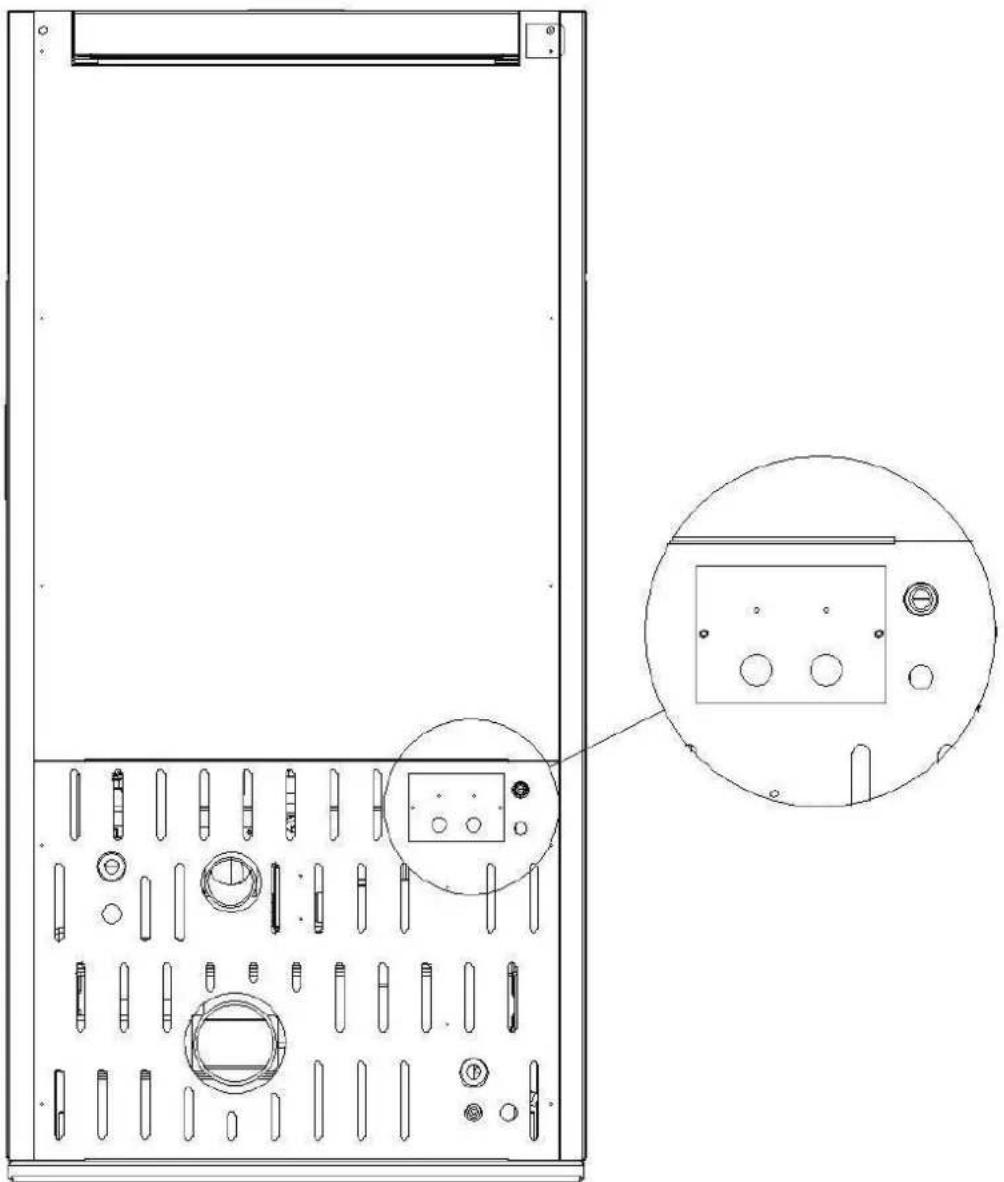

Technical line drawing of a server rack with multiple screw holes and a central control panel (no text or symbols)

Position of manual reset safety thermostat

• Maintenance and inspections carried out to standard and with regular intervals as well as only using original spare parts are fundamental for correct, problem and anomaly-free operation, guaranteeing a long boiler life.
• Maintenance is compulsory and must be regularly carried out periodically.
• Maintenance and inspections not carried out can cause damage to property and people.
• The inspection is necessary to determine the actual status of the boiler and compare it with the original status.
• Maintenance is necessary to bring the boiler to the original conditions status.
• As a result, maintenance should involve cleaning, setting or replacing worn parts.
• At the end of each heating season, you need to inspect the boiler to maintain the characteristics and efficiency of the entire system unchanged.
  • After each cleaning procedure, the boiler must be checked to ensure everything moved or removed during maintenance is correctly re-positioned.
• At the end of each season, you are advised to carry out in-depth cleaning of the boiler since the mineral ash can be a corrosive agent and reduce boiler reliability.
• You are advised to empty the pellets from the auger to avoid humidity absorption risking loading tube blockage.

AUTOMATIC CLEANING

The boiler is equipped with an automatic cleaning system for the crucible. Cleaning takes place on each switch-on or periodically after a certain number of hours during operation.

• When the system starts, a timer counts equal to 6 hours.
• When the time is up, if the system is NORMAL or in MODULATION, it passes to SWITCH OFF.
• On completion of cleaning, the system must re-start from the CHECK UP status.

It is also equipped with automatic cleaning of the smoke exchangers using special stainless steel tubes.

Crucible and exchanger cleaning takes place simultaneously.

MAINTENANCE

ASH REMOVAL

• Before carrying out any cleaning intervention on the boiler, ensure it is off and each component cold.
• Do not clean the boiler with easily flammable substances such as petrol, alcohol, etc.
• Do not clean the boiler when this is on.
• If fabric cloths are used, remember to remove them from the boiler.
• Use vacuum cleaners to clean.

Before proceeding with cleaning of the boiler, carry out these procedures:

• switch off the boiler;
• wait for the boiler to cool fully;
  Disconnect the appliance from the electrical power mains.

Then, to clean, proceed as follows:

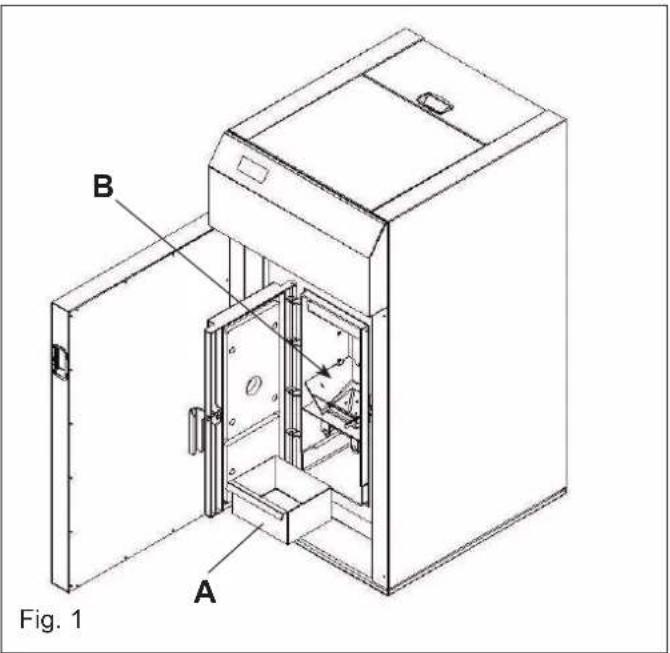

• open the front door and remove the ash drawer (A - Fig. 1);
• carefully give the combustion chamber an in-depth clean to remove all the deposits;
• if necessary, remove the slides on the crucible (B - Fig. 1);

ATTENTION:

ENSURE TEH SLIDES ARE POSITIONED CORRECTLY IN THEIR COMPARTMENT. DO NOT POSITION THEM UPSIDE DOWN BECAUSE THIS COULD STOP PELLETS FALLING INTO THE CRUCIBLE.

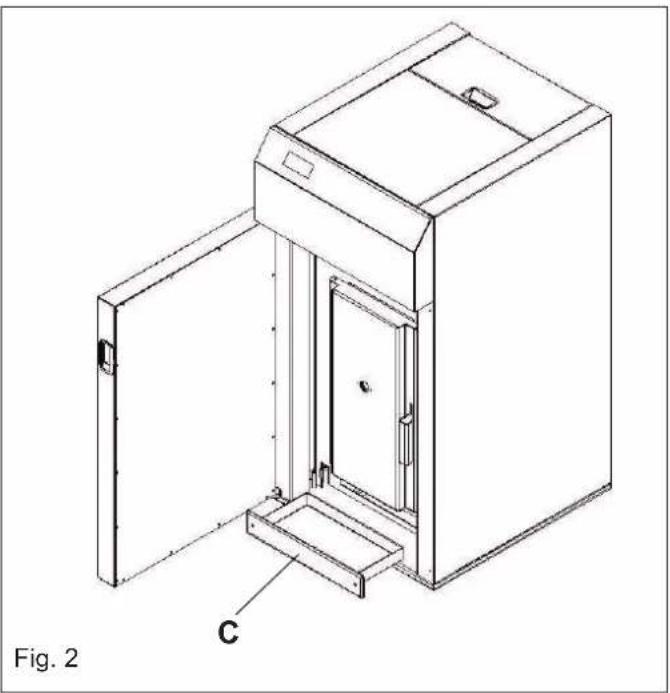

- open the small, front drawer (C - Fig. 2) and remove all the residue deposited.

B A Fig. 1

Technical line drawing of a mechanical device with open door and internal structure, labeled 'Fig. 2' (no text or symbols on the diagram itself)

MAINTENANCE

When 500 working hours has passed, the boiler needs to be cleaned.

The display shows "Clean" and a periodic acoustic signal is emitted.

Then carry out this procedure:

• disconnect the appliance from the electrical power mains.(Fig. 3).

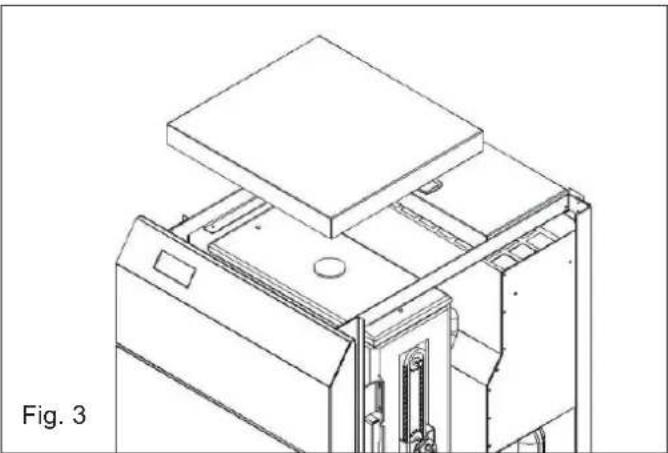

• remove the upper hood (Fig. 3);

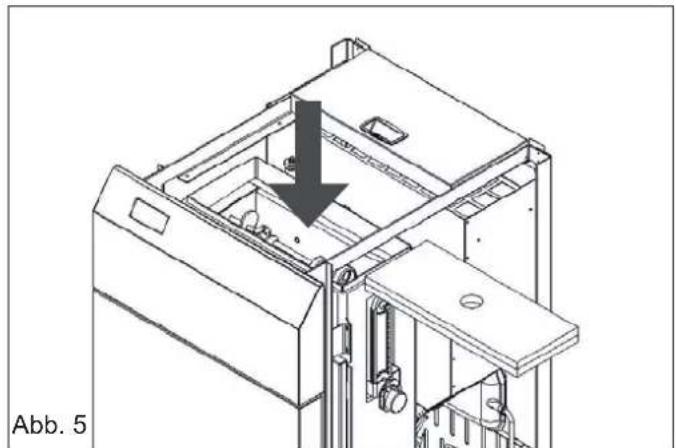

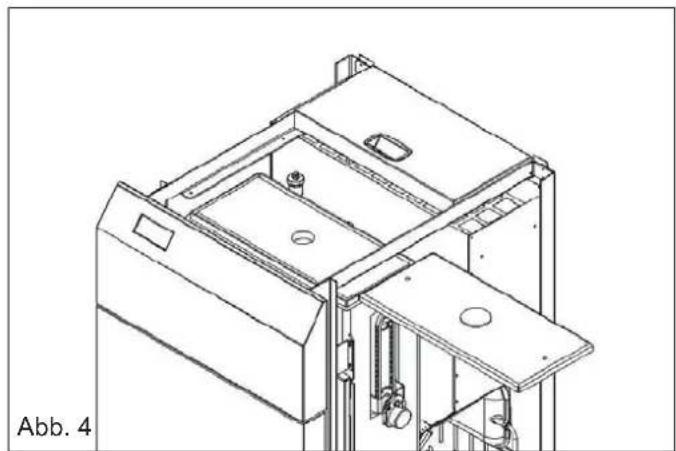

• unscrew the two screws holding the cover, remove the scamolex panel and vacuum and clean all the dirt deposited (Fig. 4-5).

Having carried out cleaning and maintenance, carry out this procedure:

• reposition or re-assemble everything you touched to clean the boiler;
  • re-connect the appliance to the electrical power mains
• end the "Clean" signal by pressing the # key.

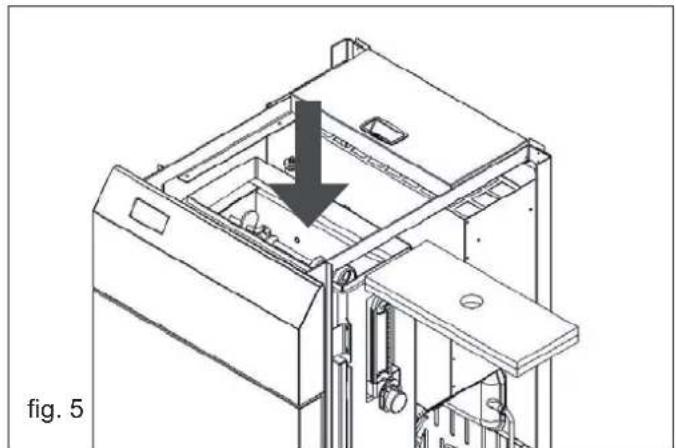

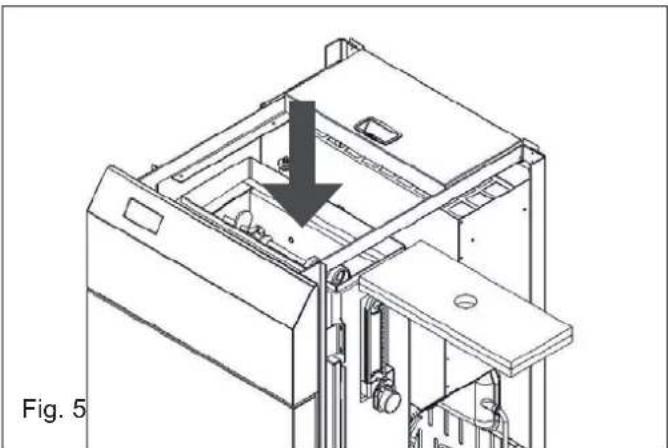

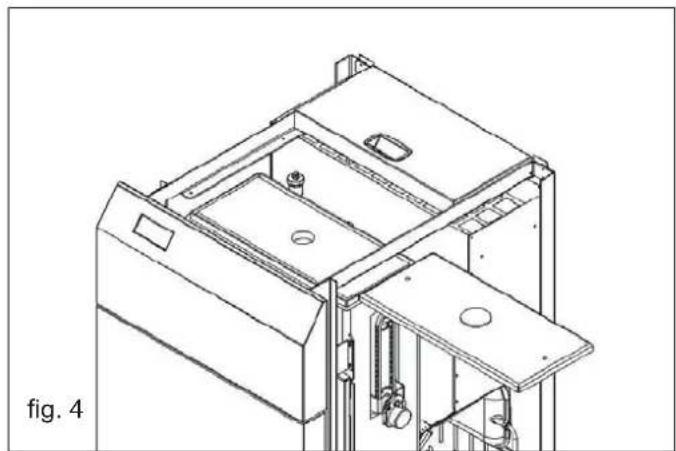

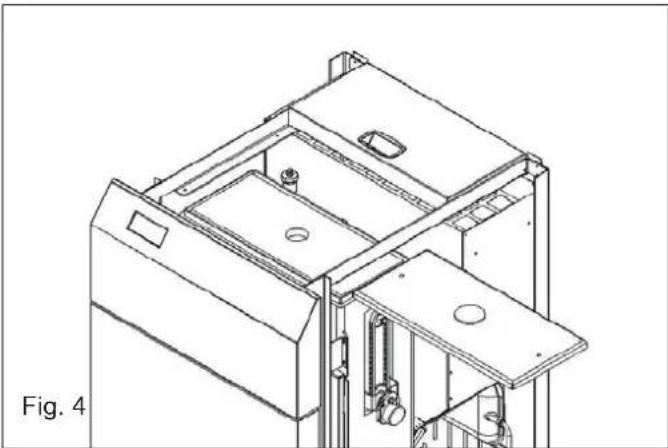

You are advised to clean the "T" tube on the smoke channel every month.

Technical line drawing of a mechanical device with internal components (no text or symbols)

Technical line drawing of a mechanical assembly with internal components and mounting holes (no text or symbols)

Technical line drawing of a mechanical device with an arrow indicating a downward component (no text or symbols present)

NOTE:

on reaching 500 working hours, the display will show the writing "CLEAN".

The boiler will continue to work, but the client is invited to carry out accurate maintenance within his/her capabilities.

To eliminate the writing on the display, having carried out maintenance, press the “#” key.

MAINTENANCE

COMPONENTS CHECK AND SCHEDULED MAINTENANCE

Each season you must call the Technical Support Centre authorised by EDILKAMIN (TSC) for the necessary seasonal maintenance.

It consists of:

• Cleaning the stove internally and externally
• Accurate cleaning of the exchange piping
• Carefully cleaning and removing dirt from the combustion chamber

and the relative compartment

• Cleaning the motors, mechanically checking the ranges and fastenings
• Smoke channel cleaning (gasket replacement on the piping) and the smoke extractor fan chamber
• Check expansion tank
• Check and clean circulator
• Check probes
• Clean, inspect and de-scale the ignition resistance chamber, replace if necessary
• Cleaning/checking the synoptic panel
• Visual inspection of the electrical cables, the connections and power supply cable
• Cleaning the pellet tank and checking the auger-gearmotor assembly ranges
• Check and replacement, if necessary, of the door seal
• Functional testing: auger loading, switch on, operation for 10 minutes and switch off

The cleaning, control and/or maintenance operations to carry out are summarised below:

	USER Technical Support				Centre authorised by EDILKAMIN (TSC)
	Every week	Every 15 days	Every month	Every 2 months	Every season
Ash drawer and crucible (Fig. 1) ●
Lower drawer chamber (Fig. 2)		●
“T” shaped tube cleaning			●
Upper chamber (Fig. 3-4-5) ●
Smoke pipe ●
Accurate cleaning of internal smoke circuit and smoke channel					●
Seal testing ●
Functional testing ●

Times can vary based on the fuel used

PLACING OUT OF SERVICE (END OF SEASON)

At the end of each season, you are advised to empty the fuel tank using the two windows remove the two side panels.

You are advised to disconnect the appliance from the electrical power mains.

POSSIBLE TROUBLESHOOTING

• Attention, all repairs must only be carried out by the Technical Support Centre authorised by EDILKAMIN (TSC)
• Only original spare parts must be used.
• The manufacturer cannot be held in any way liable and the warranty expires if all the operations described below are not complied with and carried out correctly.

POSSIBLE CAUSES OF MALFUCTIONS, INDICATIONS AND SOLUTIONS

MALFUNCTION PROBLEM ACTIONS
The display does not light up.	1. No electrical energy2. Fuse fault3. No fuel.	1. Check power socket (User).2. Replace the fuse on the electronic board (TSC).3. Load tank (User)
The fuel is not loaded in the combustion chamber.	1. The tank is empty.2. The auger is blocked.3. Gearmotor faulty.4. Faulty electronic board.5. Electric fan faulty.6. Chimney obstructed.7. Excess water temperature.	1. Load tank (User).2. Unblock the auger (TSC).3. Replace the gearmotor (TSC).4. Replace the electronic board (TSC).5. Replace the electric fan (TSC).6. Free the obstructed chimney (TSC).7. Re-activate the reset thermostat (User)
The fire is out or the boiler stops.	1. The auger is blocked.2. Gearmotor faulty.3. Faulty electronic board.4. Electric fan faulty.5. Chimney obstructed.6. Excess water temperature.7. Air intake tube blocked.	1. Unblock the auger (TSC).2. Replace the gearmotor (TSC).3. Replace the electronic board (TSC).4. Replace the electric fan (TSC).5. Free the obstructed chimney (TSC).6. Re-activate the reset thermostat (TSC)7. Free the obstructed tube (TSC).
The fuel accumulates in the crucible and the flame is weak.	1. Air intake tube blocked.2. Electric fan faulty.	1. Free the obstructed tube (TSC).2. Replace the electric fan (TSC).

POSSIBLE TROUBLESHOOTING

INDICATION OF POSSIBLE CAUSES OF MALFUNCTION

INSTRUCTIONS AND SOLUTIONS (TSC)

SIGNALLING PROBLEM ACTIONS
Er01 Water high temperature block. Activates if the water reading probe reads a temperature over 90°C		Check the circulator is working properly (TSC) Check the plumbing (TSC) Re-activate the reset thermostat (User)
Er02 Air pressure switch activation error. Negative pressure in combustion chamber inadequate.		Check the smoke fan (TSC). Check any chimney obstructions (TSC).
Er03 No flame block Activates if the thermocouple detects a smoke temperature lower than the value set interpreting this as a flame being absent.		The flame may not be on because: · Check if there are no pellets in the tank (User). · Check if too many pellets have suffocated the flame, check the quality of the pellets (TSC) · Check if the maximum thermostat has activated (rare because it would correspond to the excess smoke temperature) (TSC) · Check the pressure switch has cut the electrical power supply to the gearmotor due to the blocked chimney flue or other (TSC).
Er04 Water output sensor anomaly activates if the water temperature reading probe is faulty or disconnected		· Check the probe connection to the electronic board (TSC). · Check functionality with cold testing (TSC).
Er05 Smoke high temperature block switch off due to excessive smoke temperature		Excessive temperature of smoke can depend on: type of pellet, smoke extractor anomaly, blocked channel, improper installation, due to the gearmotor, no air intake in premises (TSC). · Check the smoke probe (TSC). · Clean the exchangers (TSC).
Er07 - Er08 Smoke motor fault block (activates if the smoke extractor rotation sensor detects an anomaly)		· Check the smoke extractor is working (rotation sensor connection) (TSC) · Check the smoke channel is clean (TSC) · Check the electrical system (earthing) (TSC) · Check the electronic board (TSC)
Er11 Internal clock error Replace the battery on		the electronic board (TSC) Remember it is a part subject to regular wear and therefore not covered by warranty.

POSSIBLE TROUBLESHOOTING

INDICATION OF POSSIBLE CAUSES OF MALFUNCTION

INSTRUCTIONS AND SOLUTIONS (TSC)

SIGNALLING PROBLEM ACTIONS
Er12 Failed	switch on block(activates if within a maximum time of 20 minutes the flame does not appear or the smoke temperature of 60^ C is not reached).	Distinguish between the following two cases:NO flame appearedCheck:positioning and cleaning of the crucible (User)switch on resistance functionality (TSC)Try to ignite with a firelighter. (User)The flame has appeared, but after switch on the writing Er03 appears.Check:thermocouple functioning (TSC).start-up temperature set in parameters (TSC)
Er15 No mains block(not a defect of the boiler).No electrical power for more than 50 minutes.		Check the electrical connection and drops in voltage (User)
Er23 Boiler	or buffer temperature probes errorIncorrect reading of the probes.	Check the probes and their connections (TSC).
Link Error Communication errorbetween the electronic board and the display		Cut power from the boiler, wait a few minutes and then power again (User)

DEMOLITION AND DISPOSAL

The owner is responsible for demolition and disposal.

You must work in compliance with the environment and the standards in force in the country.

Scrap the boiler by firstly separating the electrical parts, then the battery on the board and lastly recycling the materials via the authorised, professional companies.

NOTES

DATE AND STAMP OF INSTALLATION TECHNICIAN

DATE AND STAMP OF TSC 1 ^ST START-UP

DATE AND TIME OF ANY INTERVENTION

DATE AND STAMP OF SEASONAL MAINTENANCE

DATE AND STAMP OF DEALER

DATE AND STAMP OF TSC

For further clarification or needs, visit our website www.edilkamin.com

NOTES:

Madame/Monsieur,

>5m ≤5m 0,50m 0,50m

INSTALLATION

TOIT INCLINÉ

VANNE ANTI-CONDENSATION 55 °C

REMLISSAGE DE L'INSTALLATION

Technical line drawing of a mechanical assembly with an inset close-up showing a component detail (no text or symbols present)

INSTALLATION

RACCORDEMENT ÉLECTRIQUE ET CONNEXIONS EXTERNES (UNIQUEMENT POUR L'INSTALLATEUR)

Technical line drawings of a mechanical device with open lid and internal grid structure (no text or symbols)

MODE D'EMPLOI

PRINCIPE DE FONCTIONNEMENT

RÉACTIVATION THERMOSTAT AU RÉARMEMENT

Illustration of a door with a blue door, a hexagonal bolt, and a small inset showing a cartoon character (no text or symbols)

MODE D'EMPLOI

POSITIONNEMENT DES DISPOSITIFS DE SÉCURITÉ

Technical line drawing of a server rack with multiple slots and a central control panel (no text or symbols)

Technical line drawing of a mechanical device with labeled components (Image 2 and C), no readable text or symbols beyond labels.

ENTRETIEN

Technical line drawing of a mechanical device with no visible text or symbols

Isometric technical line drawing of a mechanical or electrical enclosure with internal components and mounting holes (no text or symbols)

Isometric technical diagram of a mechanical device with a downward arrow indicating a component (no text or symbols present)

REMARQUE :

>5m ≤5m 0,50m 0,50m

INSTALACIÓN

TECHO INCLINADO

Technical line drawing of a mechanical assembly with an inset close-up showing a component (no text or symbols present)

INSTALACIÓN

T.Puffer – Temperatura sonda puffer [°C]

Technical line drawings of a mechanical device with an open lid and internal grid structure (no text or symbols)

INSTRUCCIONES DE USO

Illustration of a door with a hexagonal bolt and circular features, no text or symbols present

INSTRUCCIONES DE USO

Technical line drawing of a server rack with multiple slots and a central control panel (no text or symbols)

Technical line drawing of a mechanical device with open door and internal structure, labeled 'C' (no text or symbols beyond label)

MANTENIMIENTO

>5m ≤5m 0,50m 0,50m

INSTALLATION

SCHRÄGDACH

VENTIL KONDENSATZSCHUTZ 55°C

FÜLLEN DER ANLAGE

Technical line drawing of a mechanical assembly with an inset close-up showing a component (no text or symbols present)

INSTALLATION

Technical line drawings of two views of a mechanical device with a handle and internal grid structure (no text or symbols)

BEDIENUNGSANLEITUNG

FUNKTIONSKONZEPT

Illustration of a door with a hexagonal bolt and circular features, no text or symbols present

BEDIENUNGSANLEITUNG

Technical line drawing of a server rack with multiple slots and control panel (no text or symbols)

Technical line drawing of a mechanical device with open door and labeled component C (no text or symbols beyond label)

WARTUNG

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical housing or enclosure with internal components and mounting holes (no text or symbols)

Technical line drawing of a mechanical device with an arrow indicating a downward component (no text or symbols present)

ANMERKUNG:

VERPAKKING EN TRANSPORT

>5m ≤5m 0,50m 0,50m

INSTALLATIE

SCHUIN DAK

OPTIONELE ANTICONDENS KIT

Technical line drawing of a mechanical assembly with an inset close-up showing a component (no text or symbols present)

INSTALLATIE

ELEKTRISCHE AANSLUITING EN EXTERNE VERBINDINGEN (ALLEEN VOOR INSTALLATEUR)

LIJST MET KNOOPPUNTEN

WAARSCHUWINGEN VOORAFGAAND AAN DE INSCHAKELING

Line drawing of a cabinet or enclosure with a lid and mounting bracket (no text or symbols)

Line drawing of a mechanical device with a handle and internal grid structure (no text or symbols)

CONCEPT VAN DE WERKING

• THERMOSTAAT MET WATERBOL

REACTIVERING THERMOSTAAT MET HERSPANNING

Illustration of a door with a hexagonal bolt and circular features, no text or symbols present

Technical line drawing of a server rack with multiple screw holes and a control panel, showing internal components and mounting features (no text or symbols)

Technical line drawing of a mechanical device with open door and labeled component 'C' (no text or symbols beyond labels)

ONDERHOUD

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical or electrical enclosure with internal components and mounting holes (no text or symbols)

Technical line drawing of an internal mechanical device with a downward arrow indicating a component (no text or symbols present)

LET OP:

>5m ≤5m 0,50m 0,50m

INSTALAÇÃO

TETO INCLINADO

Technical line drawing of a mechanical assembly with an inset close-up showing a component (no text or symbols present)

INSTALAÇÃO

Line drawing of a cabinet or enclosure with a lid and mounting bracket (no text or symbols)

Line drawing of a mechanical device with a handle and internal grid structure (no text or symbols)

Illustration of a door with a hexagonal bolt and circular cutouts, no text or symbols present

Technical line drawing of a server rack with multiple slots and a central control panel (no text or symbols)

Technical line drawing of a mechanical device with open door and internal structure, labeled 'C' (no text or symbols beyond label)

MANUTENÇÃO

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical or electrical enclosure with internal components and mounting holes (no text or symbols)

Technical line drawing of a mechanical device with an arrow indicating a downward force or component (no text or symbols present)
