USER MANUAL TANK 500 Kg EDILKAMIN

Exterior view of a modern concrete enclosure with black frame and angled cutouts (no text or symbols)

UK TANK 500 Kg, Installation, use and maintenance p. 12

F RÉSERVOIR 500 Kg, Installation, usage et maintenance p. 22

Q I N M O U S R a₁ b₁ X Z Y S B

Two simple L-shaped metal lines labeled 'A', no text or symbols present

FASE 1:

A C A C C C

FASE 2:

ASSEMBLAGGIO DEL TELAIO

E F D V1 V2

FASE 5:

3D diagram of a stepped metal profile with labeled points D and E (no text or symbols beyond labels)

FASE 3:

3D diagram of a mechanical part with labeled section 'G' (no other text or symbols)

FASE 6:

3D diagram of a mechanical part with labeled sections H and Ω (no text or symbols beyond labels)

3D diagram of a mechanical device with labeled components (T), showing internal structure and handle (no text or symbols beyond labels)

Diagram of a 3D box with labeled components including o, j, t, and ȯ symbols

3D diagram of a transparent industrial machine with labeled components (t, j, s) and internal structure (no text or symbols beyond labels)

3D diagram of a rectangular box with a cutout and labeled 'L' on its side (no text or symbols beyond the label)

Close-up of a pipe joint with a circular annotation labeled 'O' and 'Foto 1' (no other text or symbols visible)

Z Foto 2 Foto 3

Close-up of a black metal cabinet with a white letter 'Y' on its side, no visible text or symbols beyond the letter.

490 1380 W B Foto 4

B Foto 5

I Y Foto 6

N Y Foto 7

Simple hand-drawn oval shape on a textured background, labeled 'Foto 8' in the corner (no other text or symbols)

N M Foto 9

M N Foto 10

I N Foto 11

MONTAGGIO COMPONENTI

Close-up of a metallic panel with a small electronic component labeled 'R' and 'Foto 11' (no readable text or symbols beyond labels)

R P Foto 12

Close-up of a white cable with a small square clip attached, mounted on a wall (no text or symbols visible)

Y Foto 14

Close-up of a metallic mechanical component with threaded connectors and a circular base, labeled 'Foto 15' in the corner (no other text or symbols visible)

Exterior view of a metallic industrial device labeled 'Q' with ventilation slots, shown in black and white (no readable text or symbols beyond label)

COLLEGAMENTI ELETTRICI

Aux IN CN11 UTAG CN15 SERIALLE CN17 CN5 DISPLAY CN21 CN7 ENC-S-GNDBLU N PEL NH2O N-AMB TERM T01+ CN19 AUX2 AL3 CN6 V2/PO N AL1 AL2 ACC COC CN4 SCA FLMI N F CN8 FUSE 1 Terra CN2 AUX CN7 Coelca m Sensore serbatoio caldaia Sensore serbatoio silos Rete 230Vac Fig. A

Display Terra Sonda caldaia Sonda Serbatoio silos Cavo alimentazione Cavo caricatore pellet Fig. B N F

Interior layout diagram of a room with a circular object, patterned floor, and labeled components (no readable text or symbols)

Exterior view of a vehicle with two circular components mounted on a roof, no visible text or symbols

Close-up of a cable with a connector and labeled component '1', no text or symbols beyond the label

Technical diagram showing a mechanical assembly with labeled component '3' and 'Foto 18b' (no readable text or symbols beyond labels)

Electronic component with labeled part '4' and wiring, no readable text or symbols beyond labels

Foto 19c 5/10 mm esterno interno

Electronic component with labeled pins and wiring, no readable text or symbols beyond labels

Close-up of a plug inserted into a wall socket, labeled '4' and 'Foto 20' (no other text or symbols visible)

15:29 SPENTO

fig. 25

• 2006/42/EC
• 2006/95/EC
• 2004/108/EC

Congratulations and thank you for choosing our product.

Please read this document carefully before you use this product in order to obtain the best performance in complete safety.

For further details or assistance, please contact the DEALER where you purchased the product or visit our website www.edilkamin.com. and click on DEALERS.

Note: THE PRODUCT MUST BE INSTALLED IN A COVERED, HUMIDITY-FREE AREA IN ORDER TO PREVENT PROBLEMS WITH THE ELECTRICAL EQUIPMENT AND TO ENSURE THE INTEGRITY OF THE PELLETS

WE RECOMMEND USING ONLY CERTIFIED PELLETS WHICH GUARANTEE THE QUALITY OF THE PRODUCT. USE OF POOR QUALITY PELLETS CAN AFFECT OR DAMAGE THE NORMAL OPERATION OF THE EQUIPMENT.

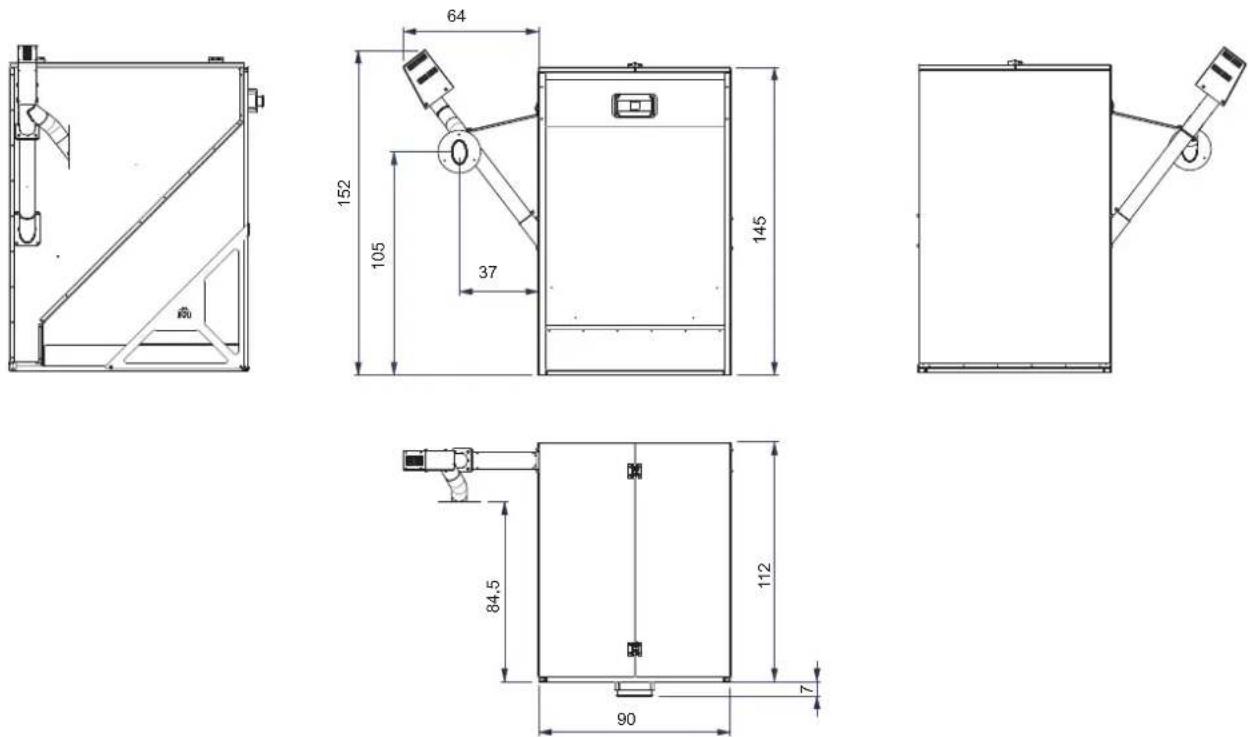

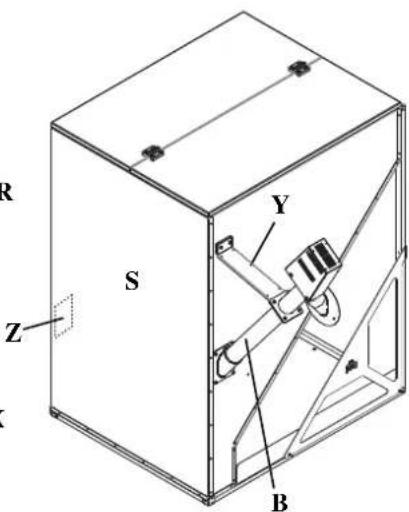

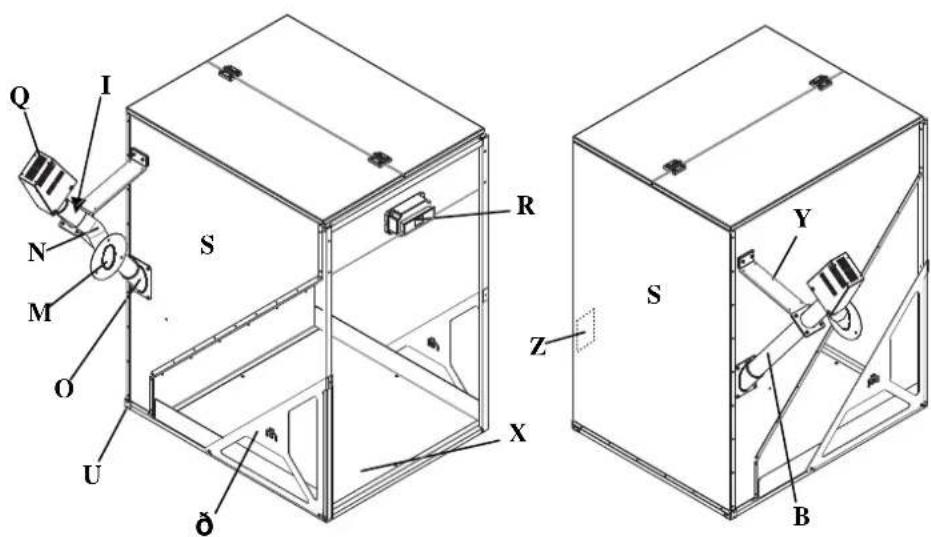

Q I N O M O U S R Z X Y S B

B = feeder tube (optional)

I = conveyor tube (optional)

M = flexible pipe connection flange (optional)

N = flexible pipe (optional)

O = feeder tube connection

Q = gear motor casing (optional)

R = electronic regulator

S = tank body

U = stop plate

Z = closing plate

X = pellet bags storage compartment

Y = feeder tube support

= side reinforcement

METALLIC BODY ASSEMBLY

LIST OF COMPONENTS:

• A angular shoulder elements in circular hollow section
• C cross girders
- D inclined wall
- E angular profile

• F right lateral walls
  • G left lateral walls
  • H slides
• K rear wall
  • L shelf

• = side reinforcement
- O feeder tube coupling
• T plastic caps
• U stop plates
• J-V-V1-V2 screws

Two simple L-shaped metal profiles labeled A, no text or symbols present

PHASE 1:

Position the angular shoulder elements in hollow section (A) parallel to one another

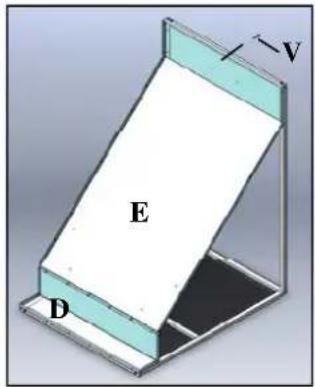

E D V

PHASE 4:

Rest the inclined wall (D-E) against the frame and use the supplied 6.3 x 45 (V) self-tapping screw to secure it to the centre of the upper cross girder.

A C A C C C

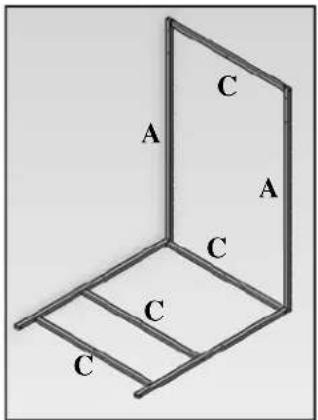

PHASE 2:

ASSEMBLING THE FRAME

Use the supplied 6.3 x 45 self-tapping screws to fasten the cross girders (C) to the two angular shoulder elements in hollow section (A).

V1 E F V2 D

PHASE 5:

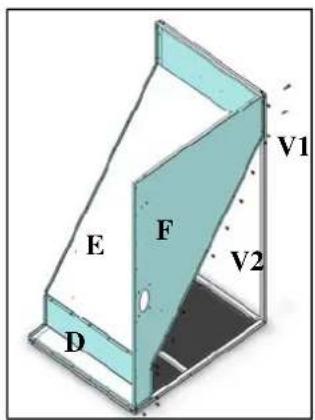

Couple the right lateral wall (F) to the inclined wall (D-E): fasten it to the shoulder element in hollow section using the two supplied 6.3 x 45 self-tapping screws (V1), and to the inclined wall using the 24 supplied 6.3 x 19 screws (V2).

3D diagram of a stepped metal profile with labeled points D and E (no text or symbols beyond labels)

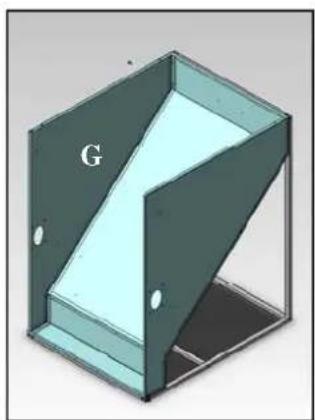

PHASE 3:

Use the supplied 6.3 x 45 self-tapping screws to fasten the inclined wall (E) to the angular profile (D).

3D diagram of a mechanical part with labeled section 'G' (no other text or symbols)

PHASE 6:

Couple the left lateral wall (G) using the same procedure employed for right wall.

METALLIC BODY ASSEMBLY

3D diagram of a mechanical part with labeled sections H, showing internal structure and mounting points (no text or symbols beyond labels)

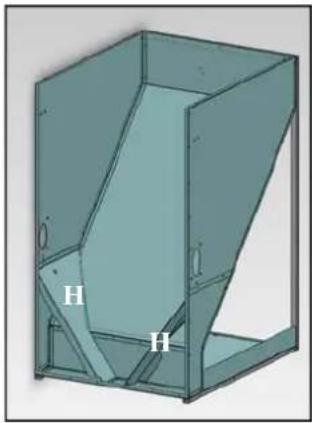

PHASE 7:

Insert the slides (H) and fasten them using the supplied 6.3 x 19 self-tapping screws

3D diagram of a mechanical device with labeled components (T), showing internal structure and handle mechanism (no text or symbols beyond labels)

PHASE 11:

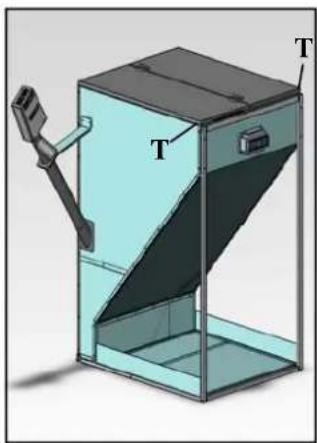

Insert the plastic caps (T) at the ends of the shoulder elements and press them all the way in (use a hammer is necessary, taking care to strike the caps squarely in the centre in order to avoid damaging them). Position the cover by coupling the centring pins with the holes on the folds of the walls.

F F K

PHASE 8:

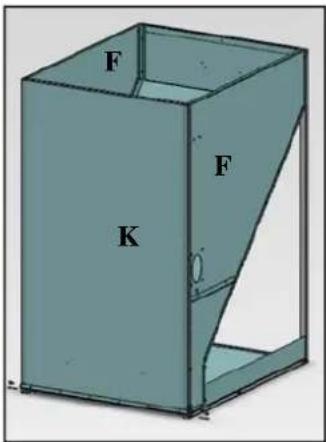

Position the rear wall (K) so that the vertical folds are on the outside of the side walls (F), and fasten them using the supplied 6.3 x 19 self-tapping screws.

Diagram of a 3D printer or enclosure with labeled components including o, j, t, and ȯ

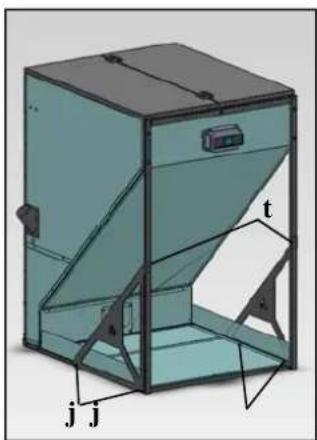

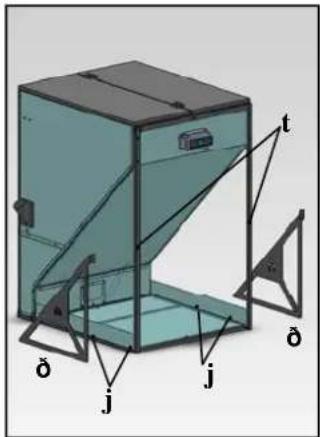

PHASE 12:

- Remove the screws on the tubular angle shoulders (t). - Fit the two side reinforcements ( ) to the tubular angle shoulders in line with the holes (t) using the screws removed previously (t) and the M 6x40 screws (j) provided.

F A

PHASE 9:

Secure the hollow sections (A) to the side walls (F) using the stop plates (U) and the supplied M6x50 screws and nuts.

3D diagram of a transparent industrial machine with labeled components (t, j, A) and internal structure (no text or symbols beyond labels)

PHASE 13:

- Fit the same side reinforcements (V) to the horizontal base cross pieces as well in line with the holes (J), using the M6x40 screws provided.

U

PHASE 10:

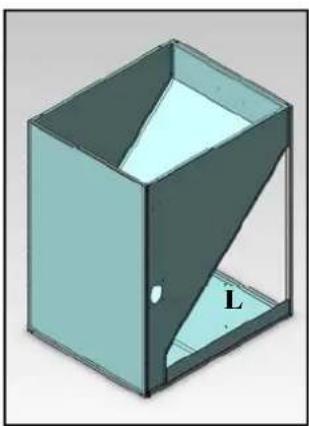

Position the shelf (L) in the space between the hollow sections, and fasten it using the two supplied 4.8 x 13 screws

3D diagram of a cube with an open lid and a labeled corner 'L' (no text or symbols beyond the label)

MOUNTING THE COMPONENTS OPTIONAL

LIST OF COMPONENTS:

B = feeder tube

I = conveyor tube

M = flexible pipe connection flange

N = flexible pipe

O = feeder tube connection (supplied)

P = grounding cable

R = electronic regulator

Z = closing plate

Y = feeder tube support (supplied)

W = ring

• Install the feeder tube connection (O - supplied) on the tank body (on the side where the boiler will be located); securing it with 4 M6 screws (Pic. 1).
• On the opposite side (in the symmetrical position) install the closing plate (Z supplied) securing it will 4 M6 screws (Pic. 2).
• Position the feeder tube support (Y - supplied) and fasten it to the tank body using 2 M6 screws (Pic. 3).
• Insert the ring (W) on the feeder tube (B) and fasten it at the distance indicated in fig. 4
• Insert the feeder tube (B) with the auger, making sure that the feed slot is facing upwards (photos 4 and 5).
• Install the conveyor (I) facing the rear side of the boiler (Pic. 6) and fasten it to the support (Y) using the screws provided (Pic. 7).
• Remove the pre-cut lidon the back of the boiler (Pic. 8), unscrew the fastening screws of the closing flange located under the pre-cut lid and replace it with a flexible pipe connection flange (M -Pic. 9).

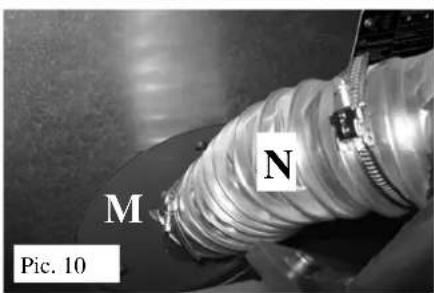

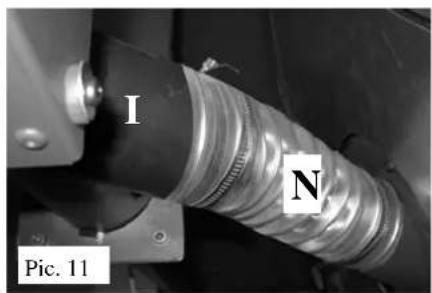

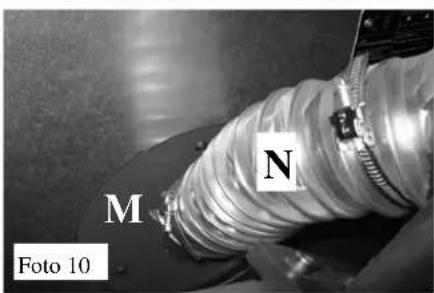

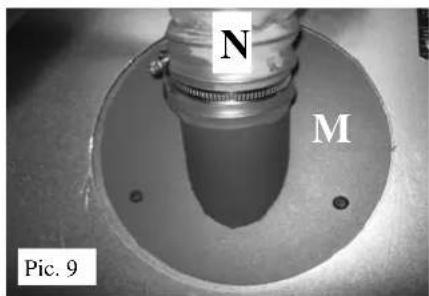

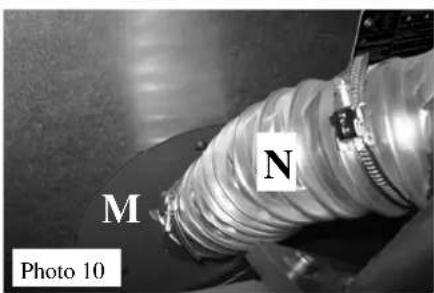

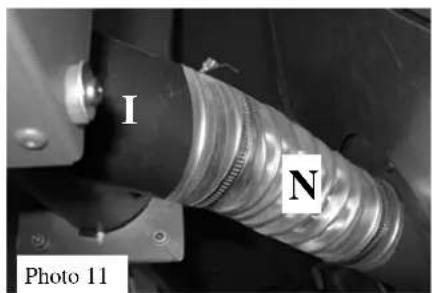

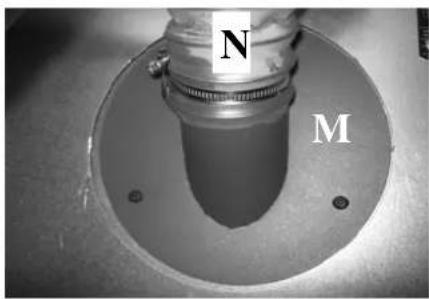

• Connect the flexible tube (N-photos 10 and 11) to the conveyor tube (I - photos 6-11) and to the flexible tube connection flange (M-photos 9 and 10), and secure it using the supplied cable ties.

Note: the flexible pipe (N) must be positioned so that it carries the pellets to the tank without causing bottlenecks (Pic. 11); verify the unit's proper functionality during the initial loading operations, and use silicone to seal any powder leaks that may be encountered.

Close-up of a pipe fitting with a rectangular component labeled 'O' and 'Pric. 1' (no other text or symbols visible)

Z Pic. 2

Close-up of a black metal cabinet with a white letter 'Y' on its side, labeled 'Pic. 3' (no other text or symbols visible)

490 1380 W B Pic. 4

B Pic. 5

I Y Pic. 6

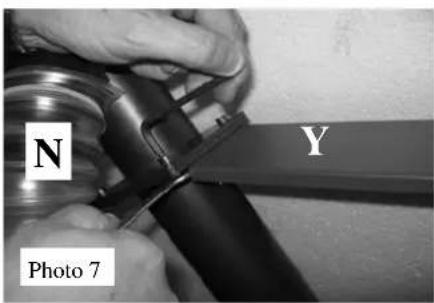

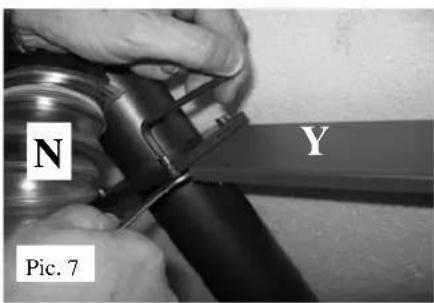

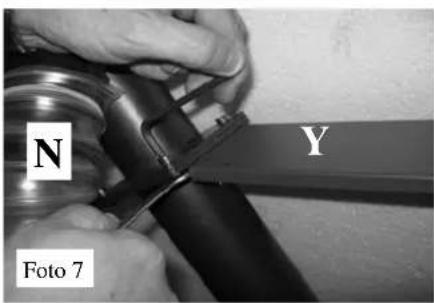

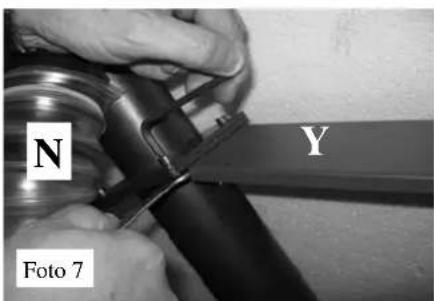

N Y Pic. 7

Simple hand-drawn oval shape on a plain background, no text or symbols present

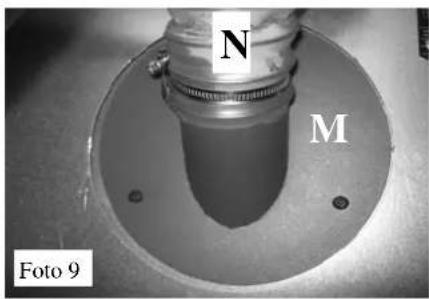

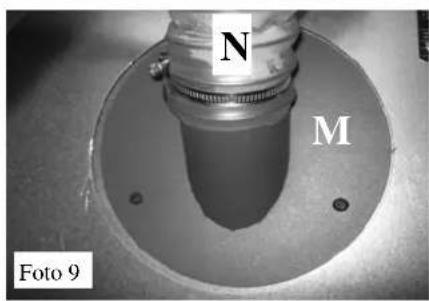

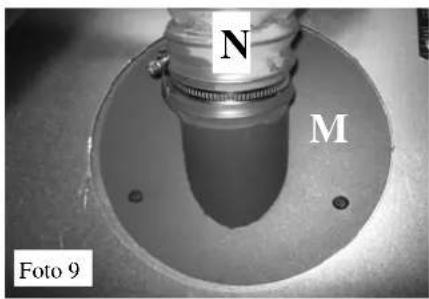

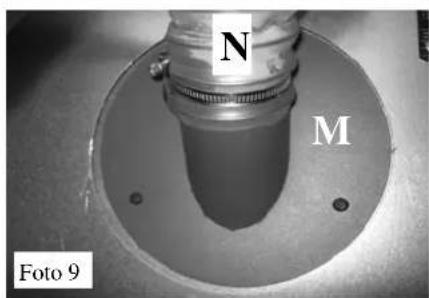

N M Pic. 9

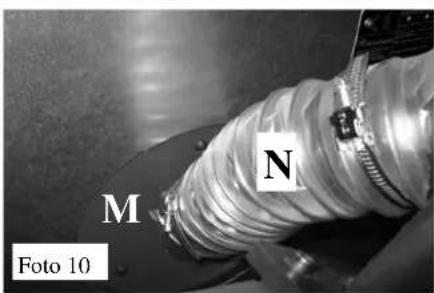

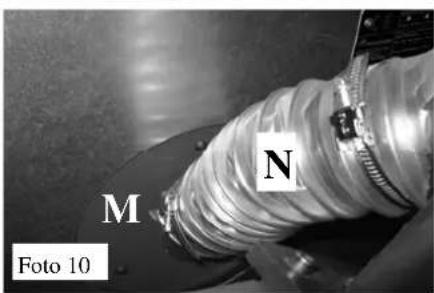

M N Pic. 10

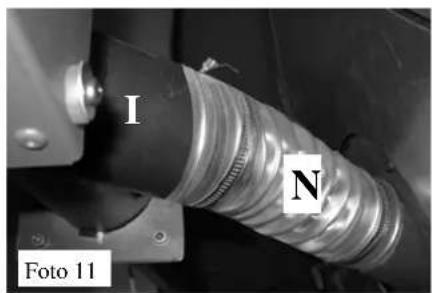

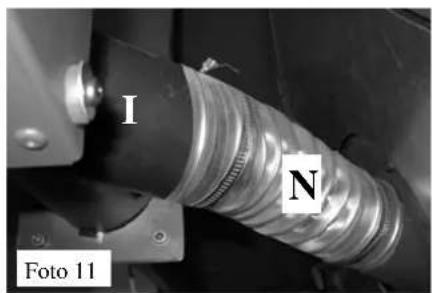

I N Pic. 11

MOUNTING THE COMPONENTS

Fastening the electronic regulator (R) to the tank

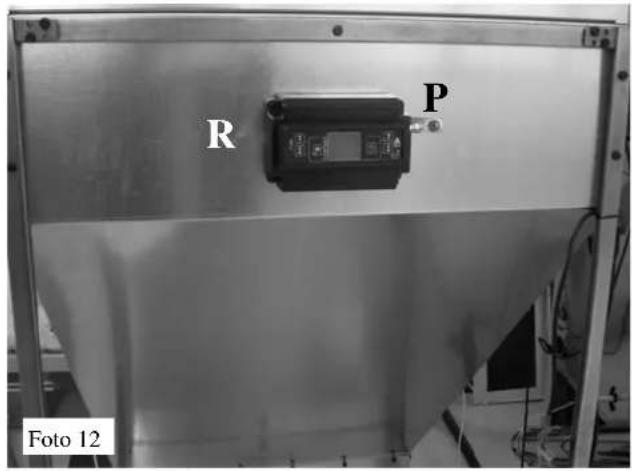

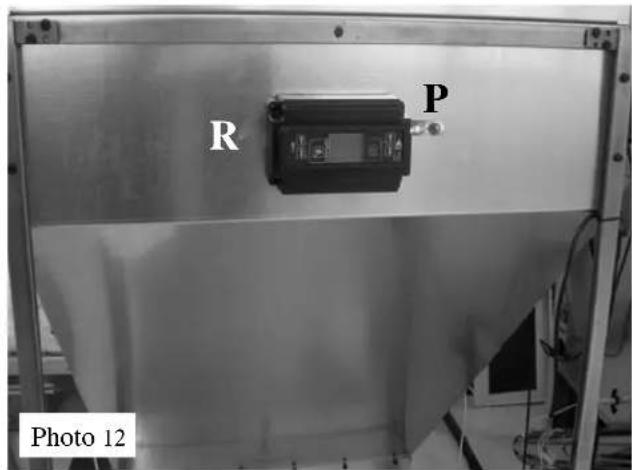

The electronic regulator (R) is delivered already wired in its box which then must be installed in the dedicated housing on the front of the tank and then fix the earthing cable(P) (Pics. 11-12).

If installation is difficult, you can remove the lid by loosening the 4 screws.

Bring the power cable to the motor and secure it:

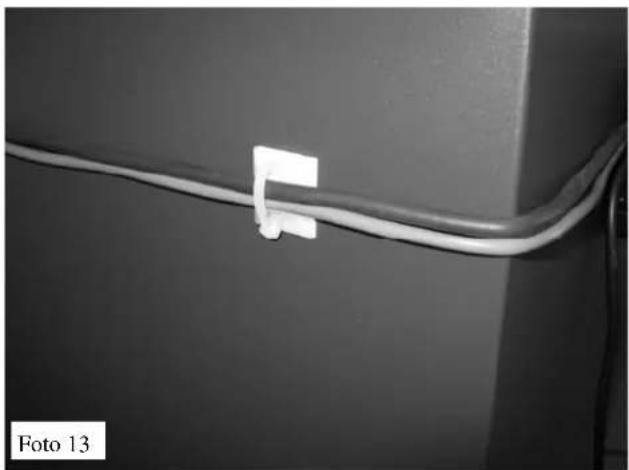

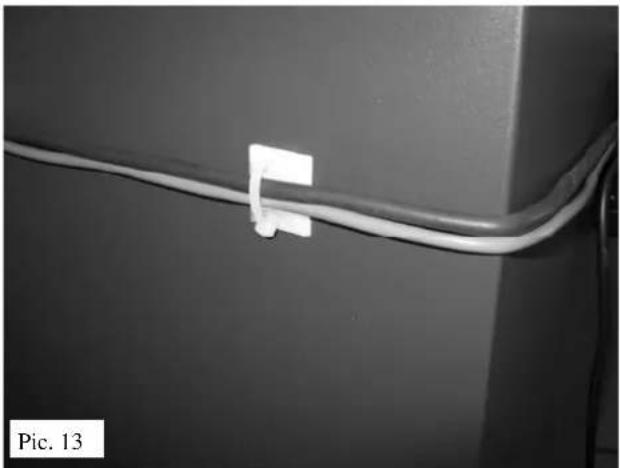

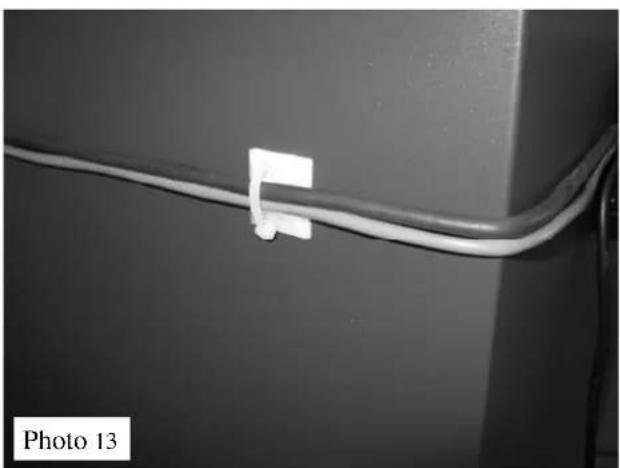

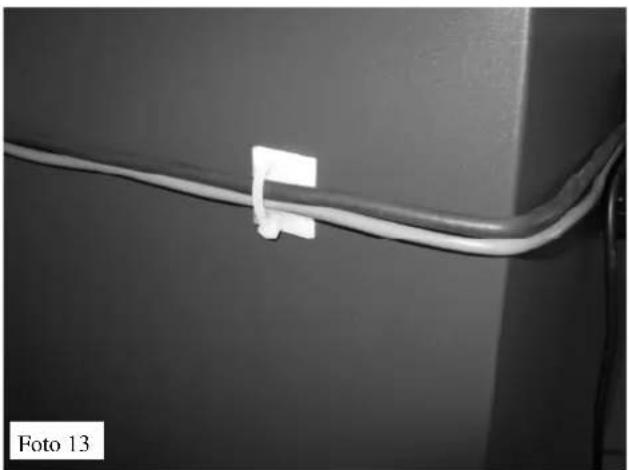

- to the side of the tank with the adhesive plate and clamp (Pic. 13)

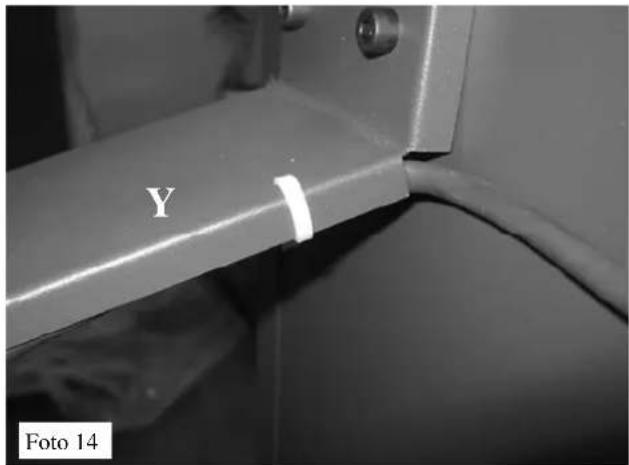

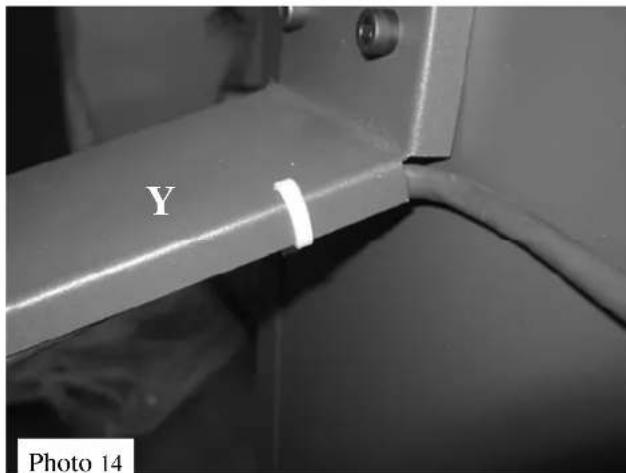

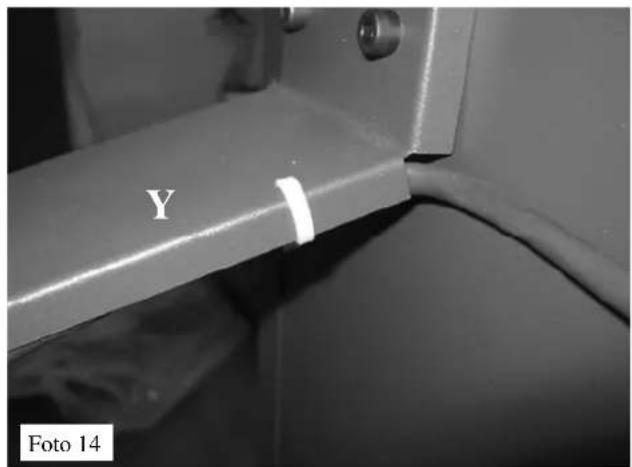

- to the feeder tube support (Y) using the cable ties (photo 14)

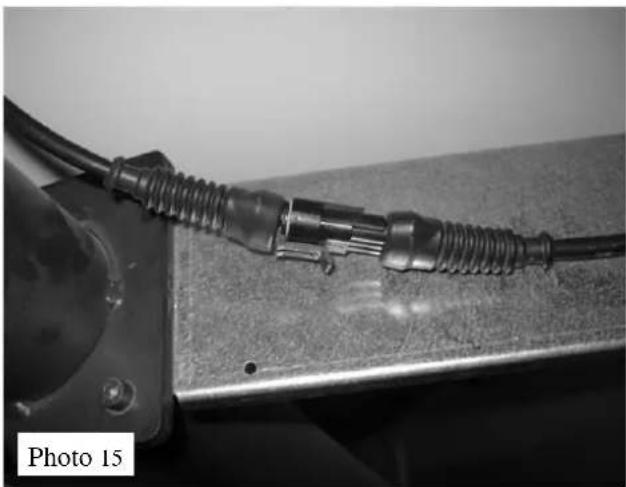

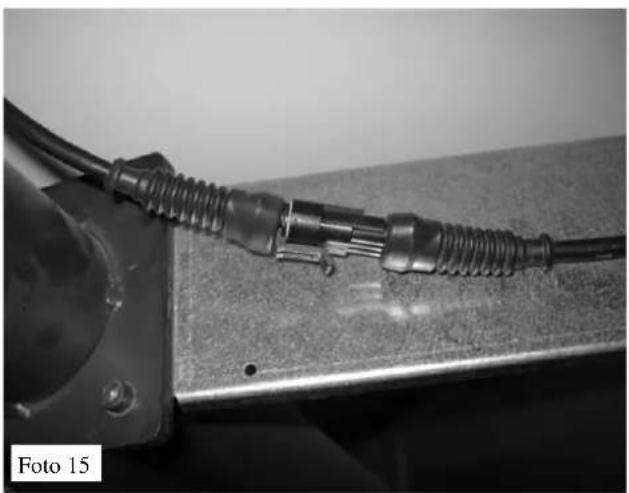

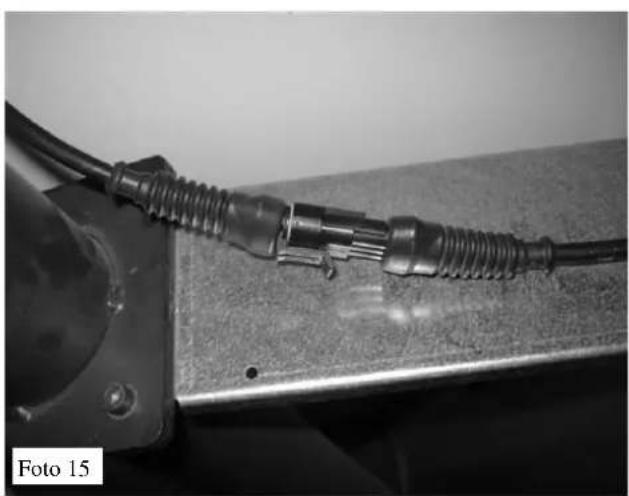

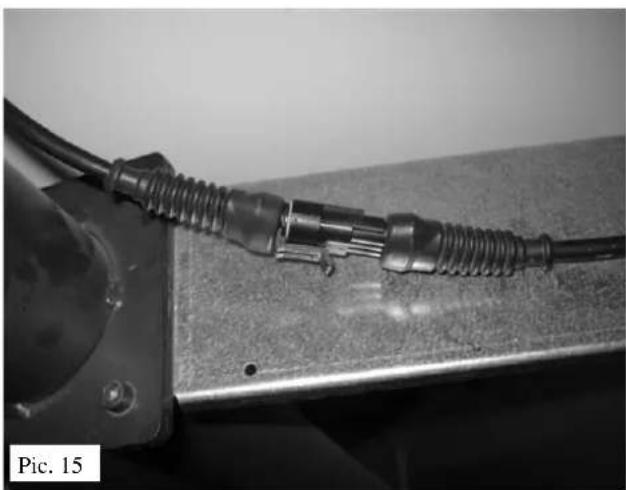

Insert the plug into the motor outlet (pic. 15)

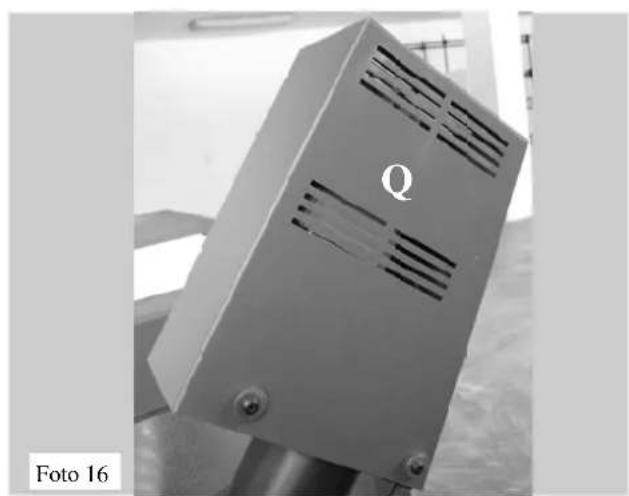

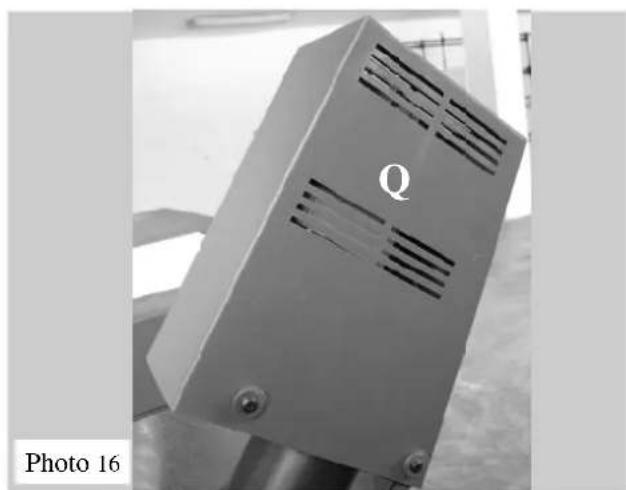

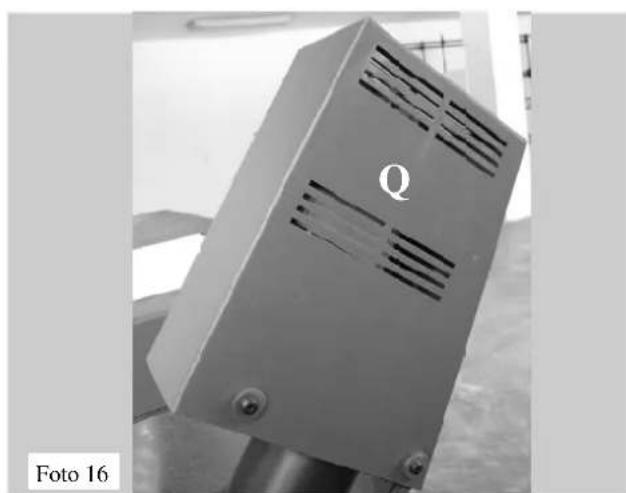

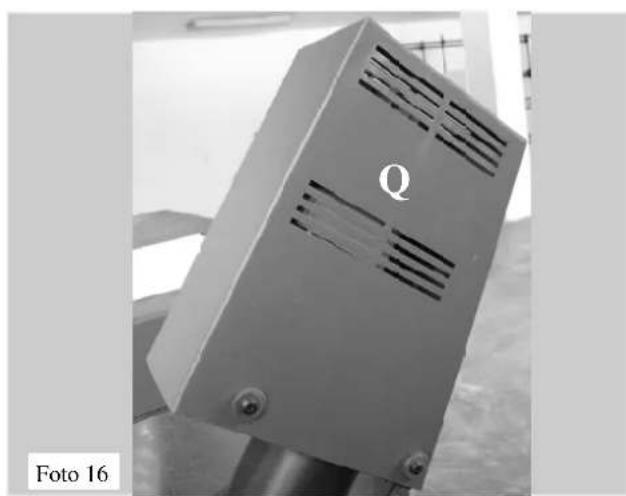

Attention: prevent the casing (Q) - (pic. 16) from coming into contact with the gear motor blades.

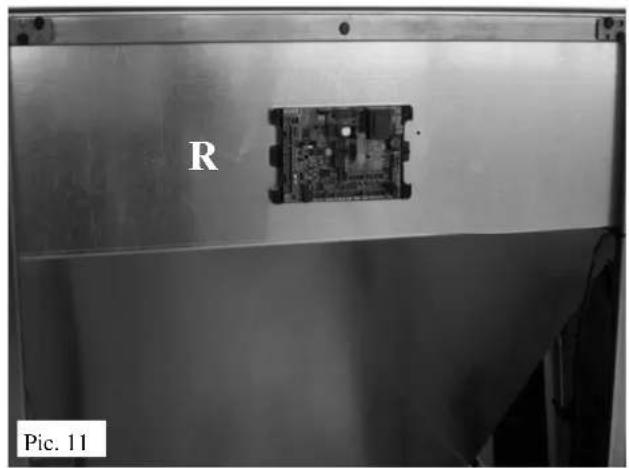

R Pic. 11

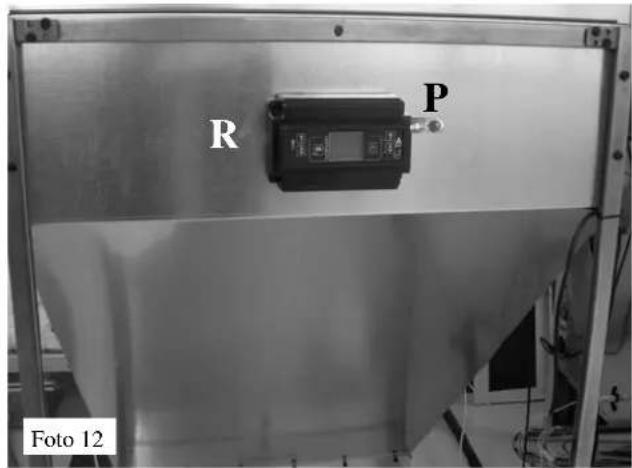

R P Pic. 12

Close-up of a white cable with a square clip attached, mounted on a dark surface (no text or symbols visible)

Y Pic. 14

Close-up of a metallic mechanical component with threaded connectors and a metal bracket (no visible text or symbols)

Metallic industrial device with ventilation slots and label 'Q', no readable text or symbols beyond labels

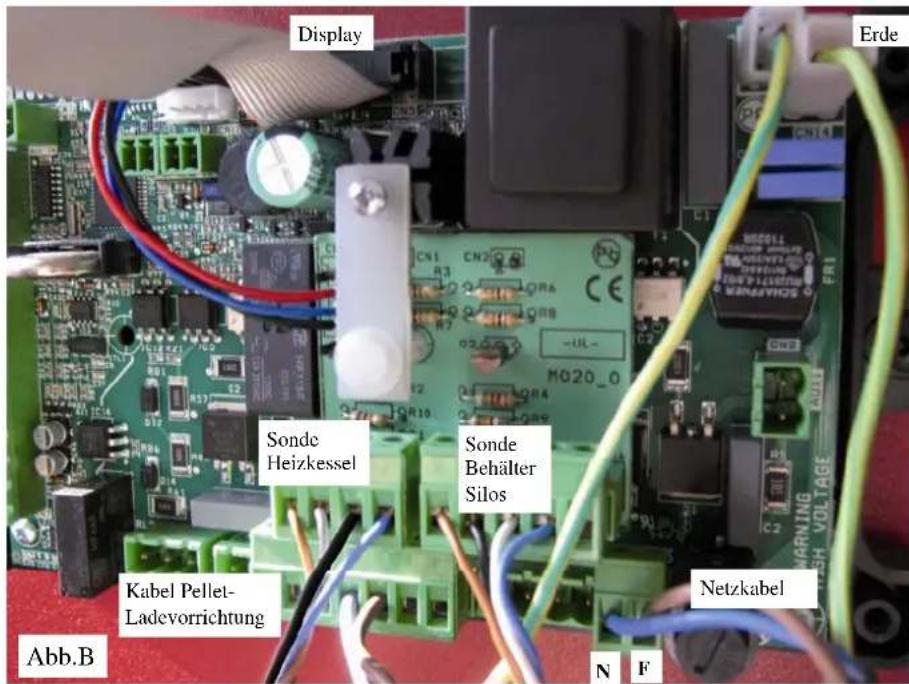

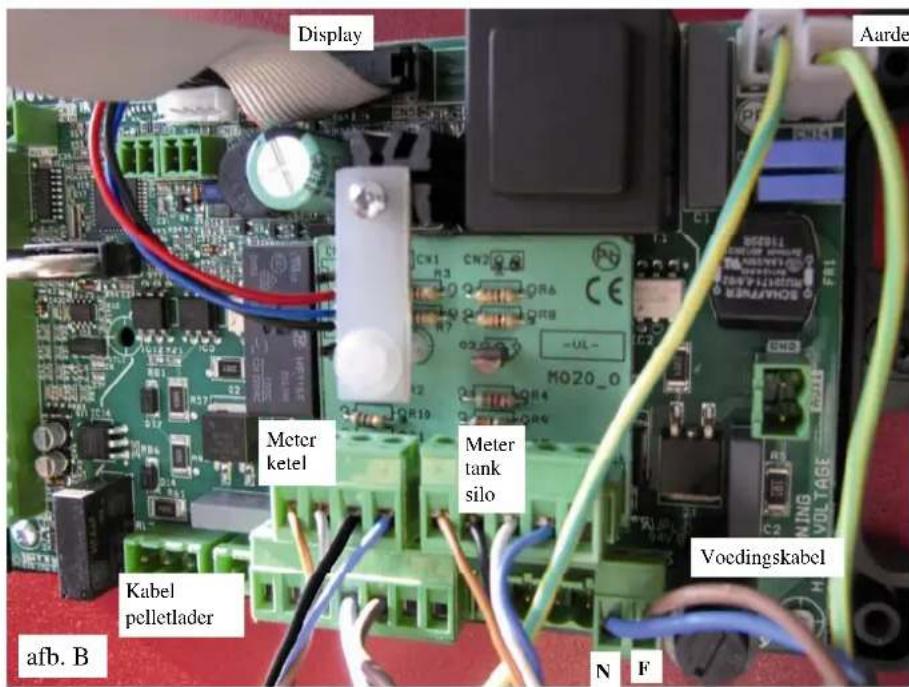

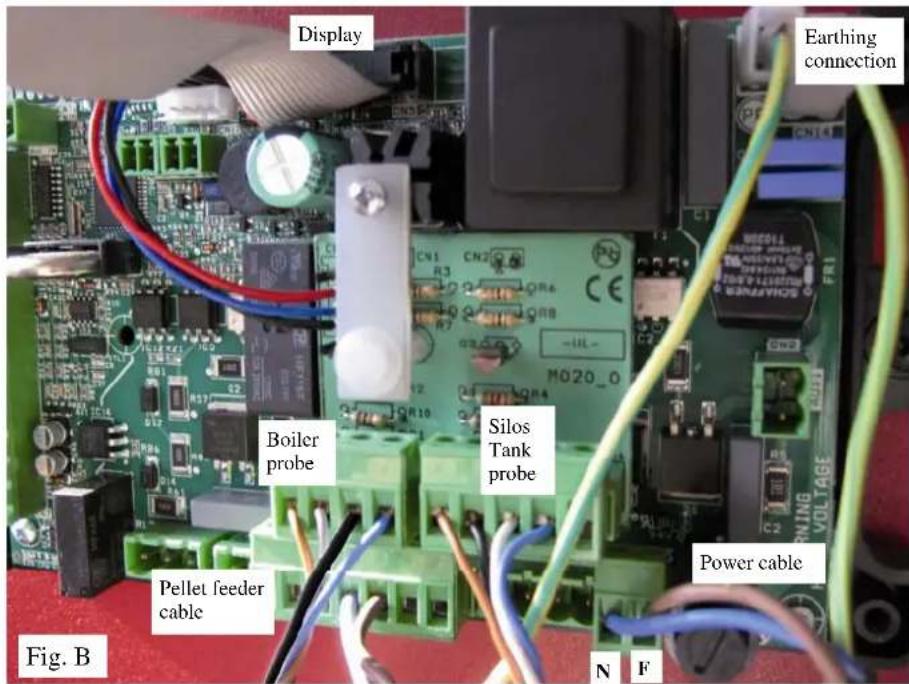

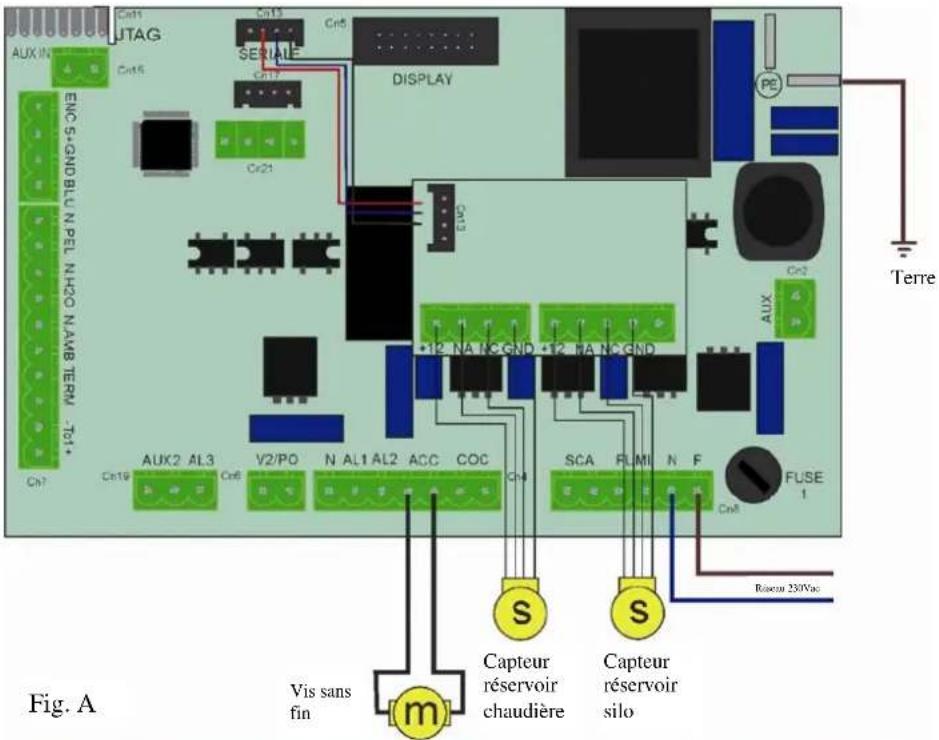

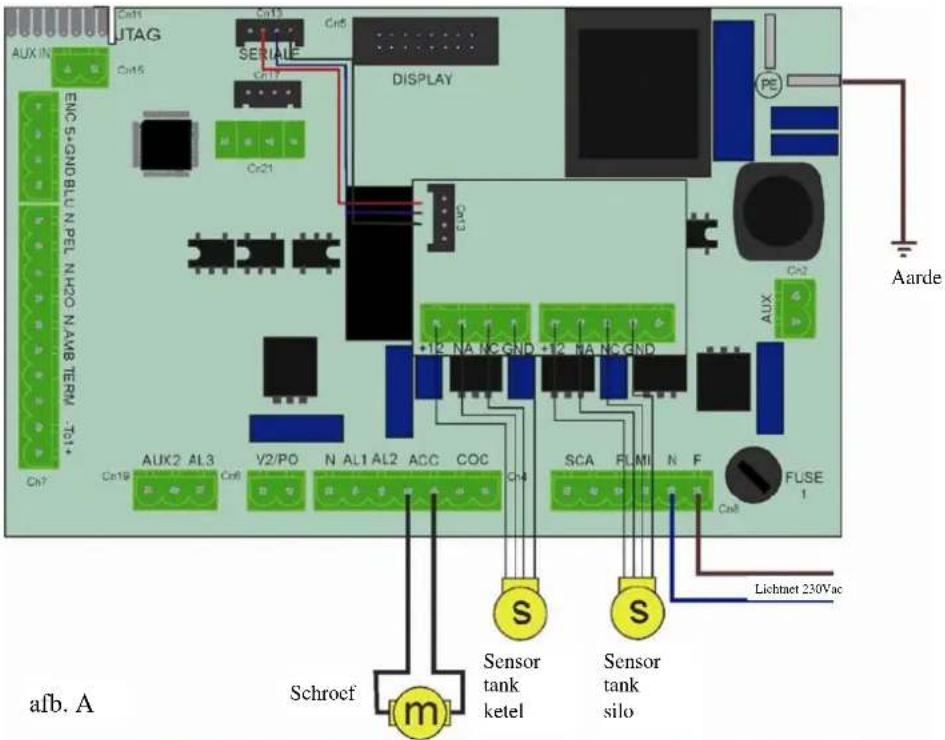

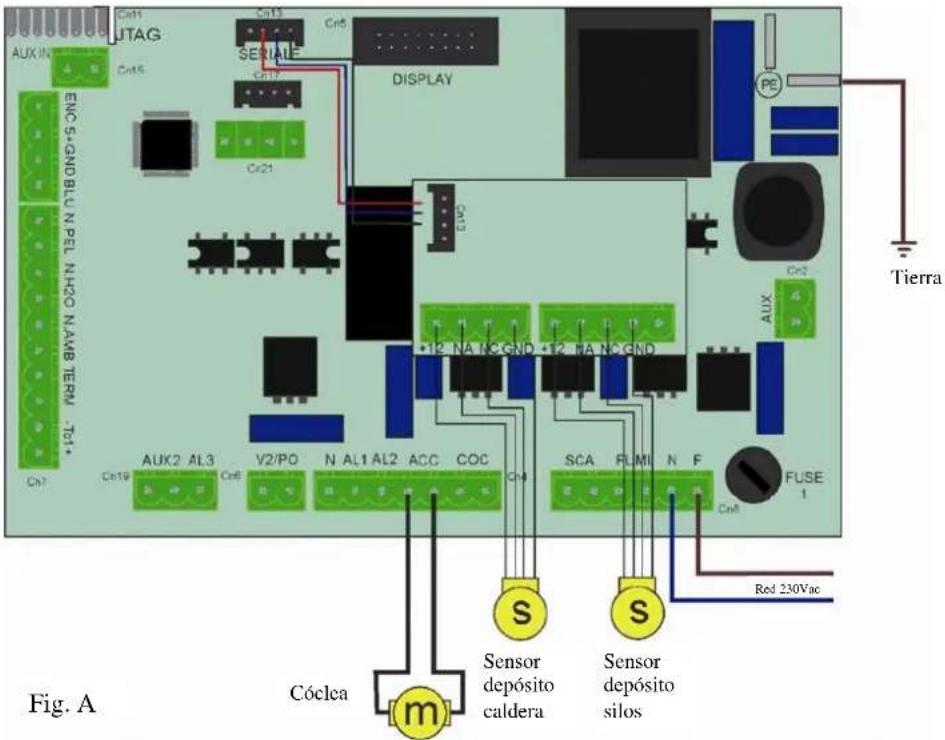

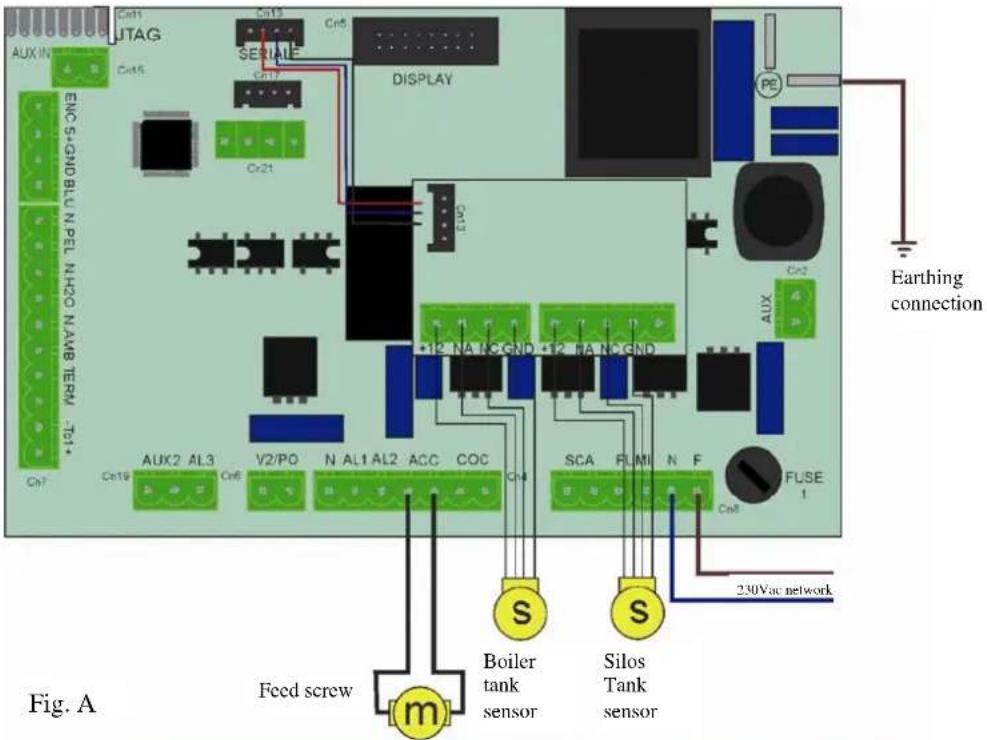

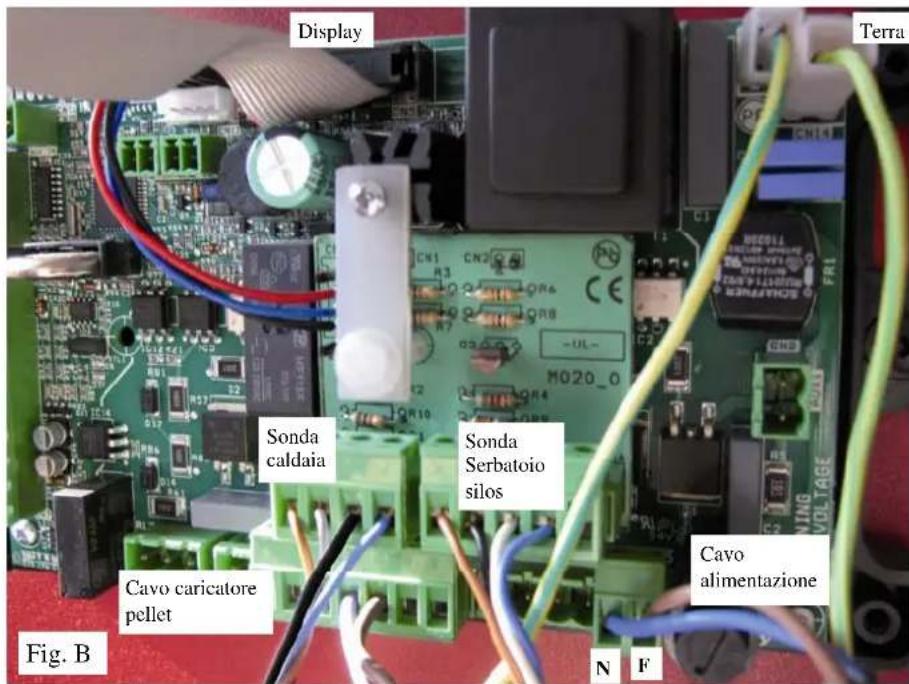

ELECTRICAL CONNECTIONS

AUX IN ENOC-5-GND-BLU N PEL NH2O N AMB TERM -Tb1+ CN7 CN11 UTAG CN16 CN13 SERIALF CN17 CN21 CN3 DISPLAY CN13 +12 NA NC-GND +12 NA NC-GND CN8 CN19 AUX2 AL3 V2/PO N AL1 AL2 ACC COC CN4 SCA FLMI N F CF8 FUSE 1 Earthing connection 230Vac network Feed screw m Boiler tank sensor Silos Tank sensor

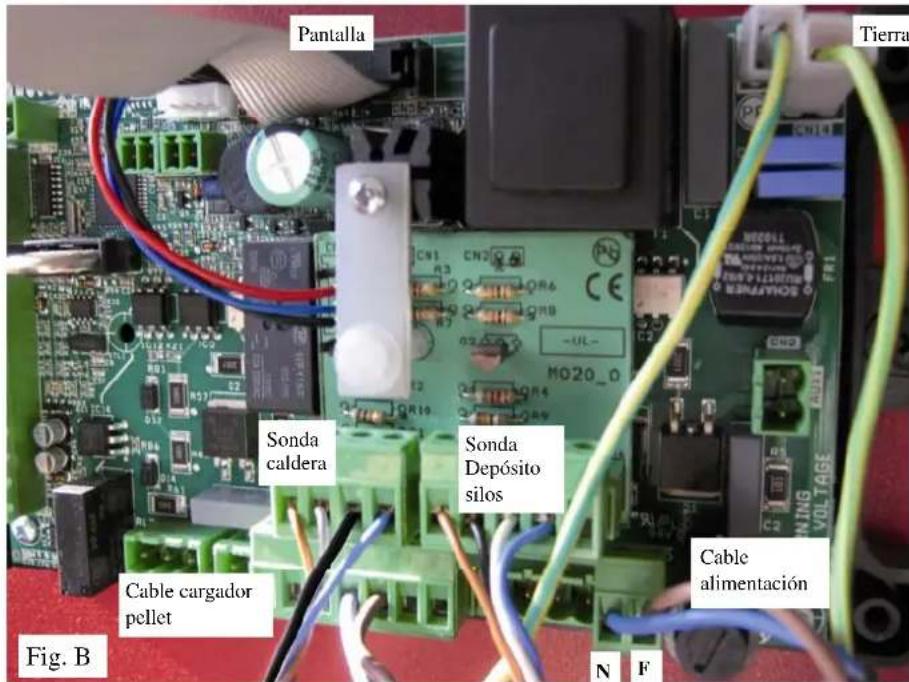

Display Earthing connection CN1 CN2 R3 QRe CE R7 QNB -IL- M020_0 CN2 Boiler probe Silos Tank probe Pelel feeder cable Power cable Fig. B N F

ELECTRICAL CHARACTERISTICS
Power Supply	230V +/- 10% 50Hz
Gear motor power when empty	70 W
Gear motor power when under load	120 W
Motor thermal protector	130 °C
Circuit board protection	4A 250 V Fuse

IMPORTANT:

During installation, the tank must be grounded. Connect an earthing cable to the appropriate slot on the side of the tank.

INSTALLATION

FASTENING THE PROBES

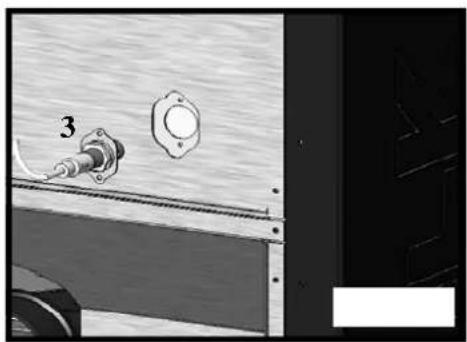

Probe for detecting the "Minimum pellet" level IN THE TANK ON THE BOILER.

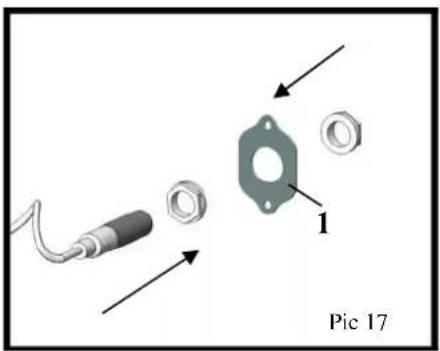

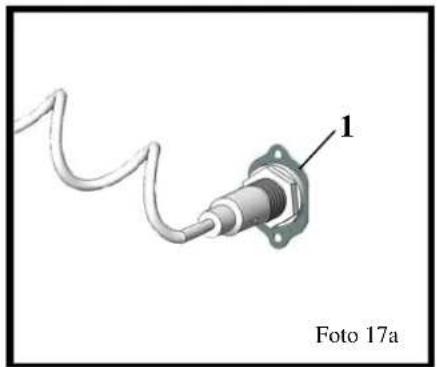

- Secure the probe to the perforated galvanized plate (1 - supplied) using the ferrules on the probe itself (photos 17-17a).

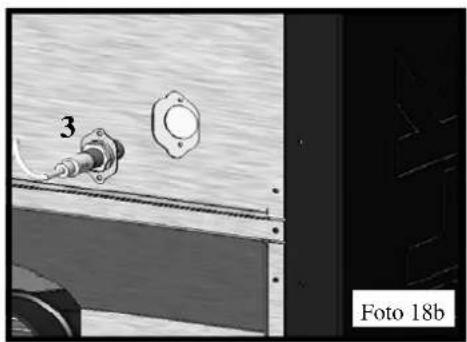

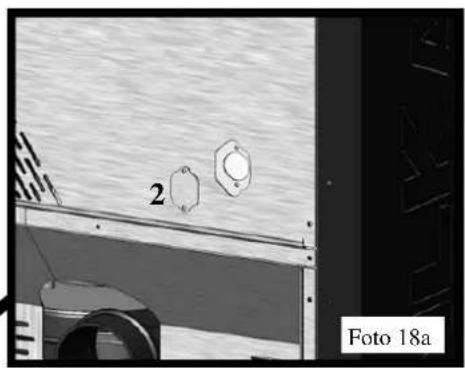

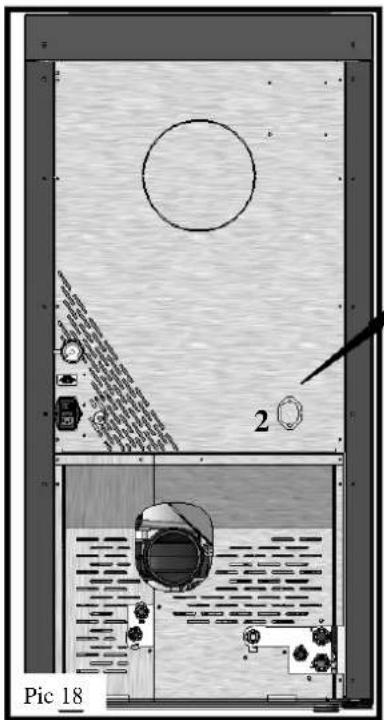

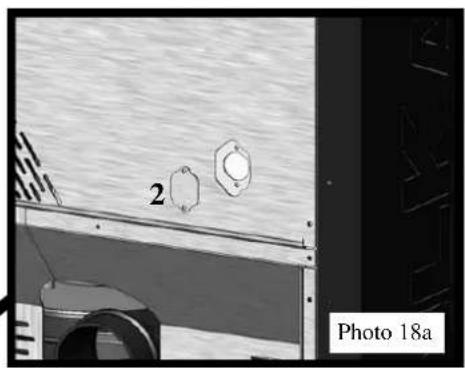

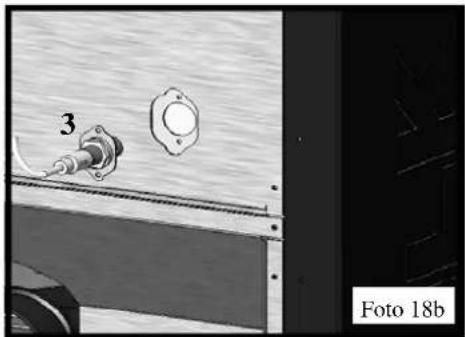

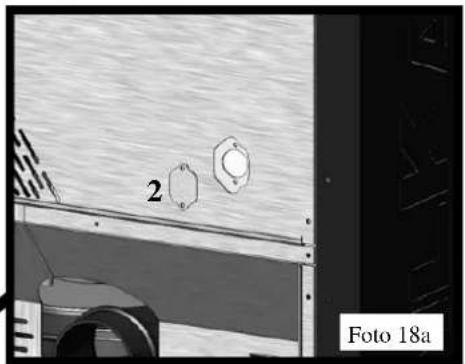

- Remove the blind plate (2 - photos 18-18a) on the rear of the boiler and replace it by screwing the plate (1), complete with the probe, into position 3 (photo 18b).

1 Pic 17

Top-down architectural or engineering diagram showing a circular structure with labeled components and a central circular feature, no readable text or symbols.

Illustration of a vehicle roof with two circular components labeled '2' and 'Pic 18a' (no readable text or symbols beyond labels)

Close-up of a mechanical component with a coiled cable and labeled part 1, no readable text or symbols beyond label

Technical diagram showing a mechanical assembly with labeled component '3' and reference to 'Pic 18b' (no readable text or symbols beyond labels)

Probe for detecting the "Minimum pellet" level IN THE EXTERNAL TANK.

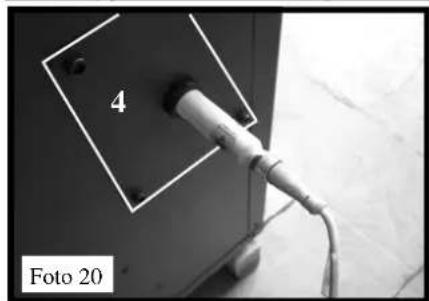

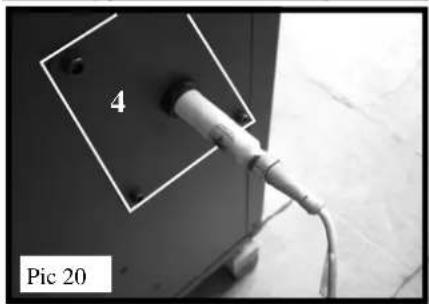

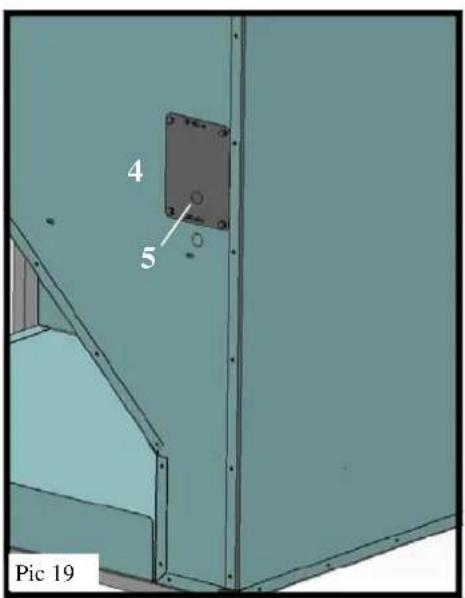

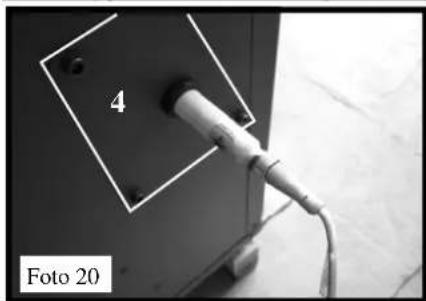

- Remove the closing plate (4 - photo 19) and open the pre-cut hole (5) on the plate itself. - Secure the probe to the plate (4) using the ferrules on the probe itself (photos 19a-19b). - The probe should protrude approximately 5/10 ~mm from the inner ferrule (photo 19c). - Reposition the plate (4 - photo 20) (with the inscription "UP 500" facing upwards), being careful not to damage the electrical cable.

Verify the probes' proper installation by checking that the led indicators corresponding to the appropriate icons light up on the electronic regulator's display (see fig. 22 on page 19).

MAKE SURE THAT THE PROBE DOES NOT COME INTO CONTACT WITH HEAT SOURCES (e.g. SMOKE OUTLET).

4 5 Pic 19

Pic 19a 4

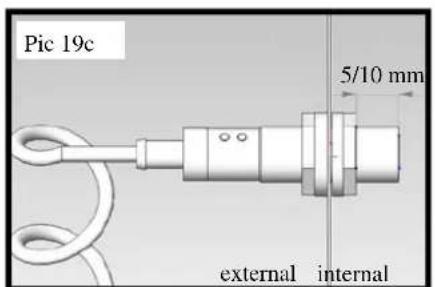

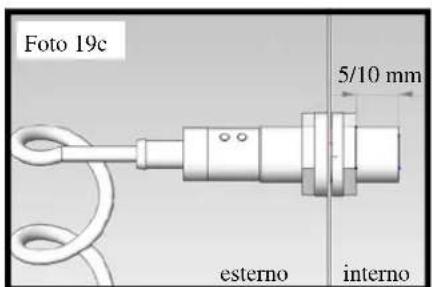

Pic 19c 5/10 mm external internal

Pic 19b 4

Close-up of a cable plugged into a wall socket with a numbered label (4) and 'Pic 20' annotation (no other text or symbols)

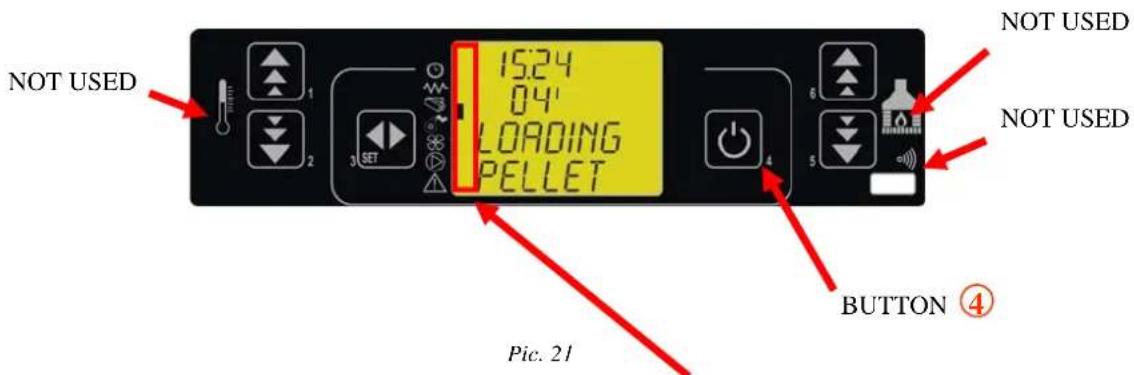

REGULATOR DESCRIPTION

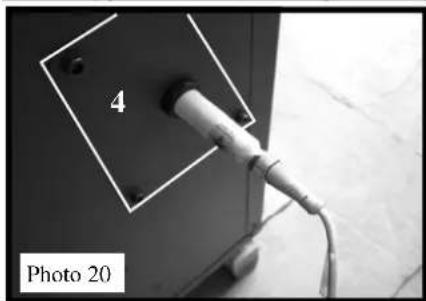

Connect the power cable's schuko plug, that comes out of the electronic regulator, to the network outlet (possibly equipped with a magneto-thermal circuit breaker).

The console unit allows for communication with the electronic regulator by simply pressing some keys.

A display informs the operator of the load system's operating status.

In the programming mode, the various parameters that can be modified using the keys are displayed.

NOT USED 15:24 04' LOADING PELLET 6 3 SET 5 NOT USED 6 5 BUTTON ④ Pic. 21

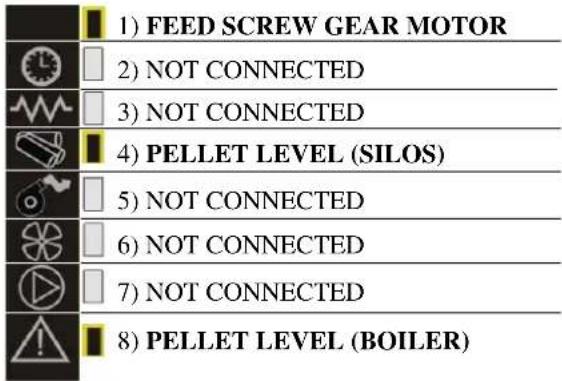

Pic. 22 describes the meaning of the symbols located on the left side of the display.

The activation on the display of one of the led segments, signals the activation of the corresponding device, according to the list at the side.

1) FEED SCREW GEAR MOTOR 2) NOT CONNECTED 3) NOT CONNECTED 4) PELLET LEVEL (SILOS) 5) NOT CONNECTED 6) NOT CONNECTED 7) NOT CONNECTED 8) PELLET LEVEL (BOILER)

Pic.22

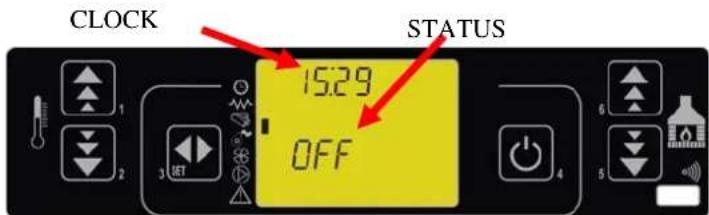

CLOCK 15:29 STATUS OFF

fig. 23

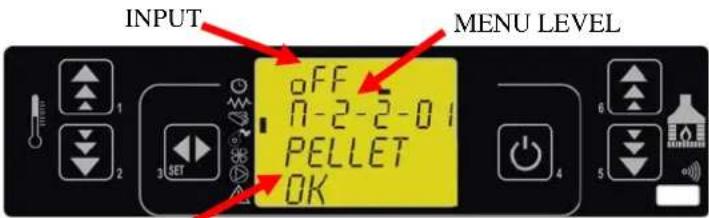

INPUT MENU LEVEL OFF N-2-2-0 PELLET OK

Pic. 24
Pic. 24 describes the arrangement of messages during the programming phase or when setting operating parameters. In particular:

1. The input area displays the programming values entered.
2. The "menu level" area, displays the current menu level. Refer to the Menu chapter.

Before the regulator is switched on the display appears as shown in pic 25.

15:29 SPC NTO

Pic. 25

Switching on the control

To switch on the control, press the P4 button for a few seconds. When the regulator is switched on the display appears as shown in figura 26.

Language selection

To select the language press the SET button (P3) and "CHOOSE LANGUAGE" will appear. Press the SET button (P3) again and "MENU 01 - ITA" will appear.

Using the P1 and P2 buttons select the desired language, confirm the selection by pressing P4 twice.

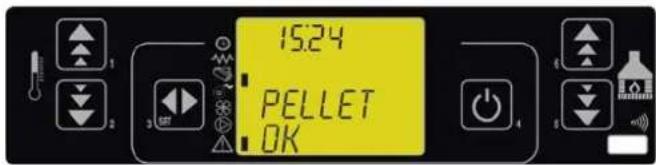

15:24 PELLET OK

Pic. 26

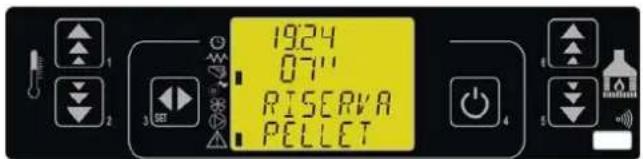

When the sensor detects an insufficient pellet level, the regulator checks the pellet reserve (pic 27) for 7 seconds; if the level is restored, the pellet present message comes back as in pic 26, otherwise after 7 seconds pellet loading will start. (see pic 28).

1924 07" RISERVA PELLET

Pic.. 27

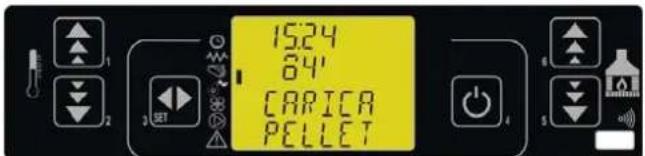

1524 84' CARICA PELLET

Pic.. 28

Immediately after this verification, the pellet load phase will be activated for the load time set.

If after the load time expires, the level is restored, the message "PELLETS PRESENT" will appear, disabling loading; otherwise, and alarm will be signalled and the feed screw motor will switch off.

Switch-off.

To switch off the feeder, simply press down the 4 button for approx. 2 seconds.

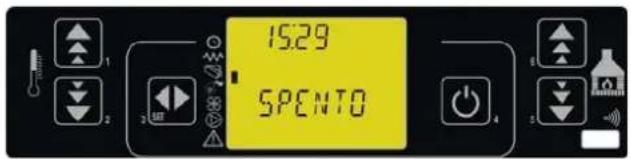

The feed screw will stop immediately and the display will appear as in pic 29.

15:29 SPENTO

Pic. 29

ALARMS

Additional tank empty alarm.

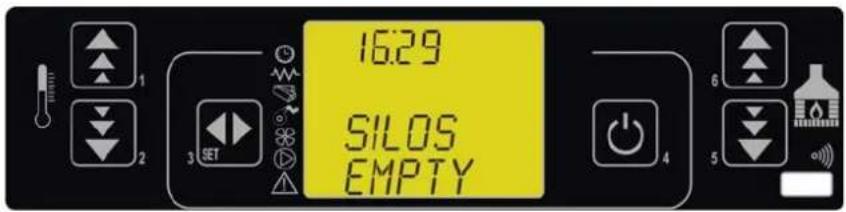

This alarm is displayed when the additional tank is empty (pic 30).

16:29 SILOS EMPTY

Pic. 30

To restore the tank to working order, load the pellets and press button 4.

Pellet supply exhausted alarm.

The alarm is displayed when the programmed pellet load time expires if the pellet level in the boiler's tank is still below the probe's min. level.

In this case the message "PELLETS EXHAUSTED" will appear on the display and then after 10 seconds the message "OFF" will appear.

15.24 PELLET EMPTY

Pic. 31

ContrCheck the cause of the pellet supply's exhaustion (motor block, motor failure, conveyor tube clog, insufficient load time).

To restore the tank to working order, restore the pellet level in the tank and press the 4 button.

DECLARATION OF CONFORMITY

The product conforms to the essential requirements of the following EEC Directives:

• 2006/42/EC
• 2006/95/EC
• 2004/108/EC

Therefore, it is has the CE marking

EDILKAMIN S.p.a.

registered office in Via Vincenzo Monti 47

20123 Milan

Madame, Monsieur,

Q I N O M U S R Z X Y S B

B = tuyau chargeur (options)

I = tuyau convoyeur (options)

M = bride prise de tuyau flexible (options)

N = tuyau flexible (options)

Two simple L-shaped metal lines labeled A, no text or symbols present

PHASE 1 :

A C A C C C

PHASE 2 :

ASSEMBLAGE DU CHASSIS

E F D V1 V2

PHASE 5 :

3D diagram of a stepped metal profile with labeled points D and E (no text or symbols beyond labels)

PHASE 3 :

3D diagram of a mechanical part with labeled section 'G' (no other text or symbols)

PHASE 6 :

3D diagram of a mechanical housing or enclosure with labeled components H, showing internal structure and mounting points (no text or symbols beyond labels)

PHASE 7 :

3D diagram of a mechanical device with labeled components (T), showing internal structure and handle mechanism (no text or symbols beyond labels)

PHASE 11 :

Diagram of a 3D printer or enclosure with labeled parts including o, j, t, and ȯ

PHASE 12:

3D diagram of a transparent industrial machine with labeled components (t, j, A) and internal structure (no text or symbols beyond labels)

PHASE 13:

3D diagram of a rectangular box with a cutout showing internal structure and label 'L' (no text or symbols beyond the label)

MONTAGES DES COMPOSANTS OPTIONS

LISTE DES COMPOSANTS :

N = tuyau flexible

Z = plaque de fermeture

B = tuyau chargeur

Close-up of a pipe fitting with a labeled component 'O' and 'Photo 1' label (no other text or symbols)

Z Photo 2 Photo 3

Close-up of a black metal cabinet with a white letter 'Y' on its side, against a wall and concrete background (no readable text or symbols beyond the letter)

490 1350 W B Photo 4

B Photo 5

I Y Photo 6

N Y Photo 7

Simple hand-drawn oval shape on a textured gray background, labeled 'Photo 8' in the corner (no other text or symbols)

Close-up of a mechanical component with labeled parts N and M, showing a cylindrical shaft and flange (no text beyond labels)

M N Photo 10

I N Photo 11

Photo 9

MONTAGES DES COMPOSANTS

Close-up of a metallic panel with a small electronic component labeled 'R' and 'Photo 11' (no readable text beyond labels)

R P Photo 12

Close-up of a white cable with a small square clip attached, mounted on a dark surface (no text or symbols visible)

Y Photo 14

Close-up of a metallic mechanical component with threaded connectors and a cable, labeled 'Photo 15' in the corner (no other text or symbols visible)

Metallic industrial component with ventilation slots and labeled 'Q', shown in a photo frame (no readable text or symbols beyond label)

BRANCHEMENTS ÉLECTRIQUES

1 Photo 17

Interior view of a room with a circular object, floor plan, and equipment (no visible text or symbols)

Exterior view of a vehicle with two circular components and a numbered label '2' (no readable text or symbols beyond labels)

Close-up of a cable with a connector and mounting base, labeled '1' (no text or symbols on the diagram itself)

Close-up of a mechanical component with a numbered part (3) and mounting flange, no visible text or symbols

Close-up of a gray electronic device panel with a central connector and wiring, labeled 'Photo 19b' (no readable text beyond labels)

Close-up of a plug inserted into a wall socket, labeled '4' and 'Photo 20' (no other text or symbols visible)

DESCRIPTION RÉGULATEUR

15:29 SPENTO

Fig. 25

15:29 SPENTO

Pic. 29

ALARMES

DÉCLARATION DE CONFORMITÉ

• 2006/42/EC
• 2006/95/EC
• 2004/108/EC

Q I N O M U S R Z X Y S B

Two simple L-shaped metal profiles labeled A, no text or symbols present

FASE 1:

A C A C C C

FASE 2: EMSAMBLAJE DEL BASTIDOR

E F D V1 V2

FASE 5:

3D diagram of a stepped metal profile with labeled points D and E (no text or symbols beyond labels)

FASE 3:

3D diagram of a mechanical part with labeled section 'G' (no other text or symbols)

FASE 6:

3D diagram of a mechanical housing or enclosure with labeled components H (no text or symbols beyond labels)

FASE 7:

3D diagram of a mechanical device with labeled components (T), showing internal structure and handle mechanism (no text or symbols beyond labels)

FASE 11:

Diagram of a 3D printer or enclosure with labeled components including o, j, t, and ȯ

FASE 12:

3D diagram of a transparent industrial machine with labeled components (t, h, j, j) and internal structure (no text or symbols beyond labels)

FASE 13:

3D diagram of a geometric container with a labeled side 'L' (no text or symbols beyond the label)

MONTAJE DE LOS COMPONENTES OPCIONAL

Close-up of a pipe joint with a rectangular component labeled 'O' and 'Foto 1' (no other text or symbols visible)

Z Foto 2 Foto 3

Y

490 1380 W B Foto 4

B Foto 5

I Y Foto 6

N Y Foto 7

Simple hand-drawn oval shape on a textured background, labeled 'Foto 8' in bottom-left corner (no other text or symbols)

N M Foto 9

Close-up of a mechanical component with labeled parts M and N, no readable text or symbols beyond labels

I N Foto 11

Close-up of a white cable with a small square clip attached, mounted on a dark surface (no text or symbols visible)

Close-up of a metallic mechanical component with threaded connectors and a metal frame, labeled 'Foto 15' in the corner (no other text or symbols visible)

R P Foto 12

Y Foto 14

Exterior view of a metallic industrial device labeled 'Q' with ventilation slots, shown in black and white (no readable text or symbols beyond label)

CONEXIONES ELÉCTRICAS

Aux IN CN11 JTAG CN15 CN17 CN5 CN21 CN13 DISPLAY CN14 CN2 CN3 CN4 CN5 CN6 CN7 CN8 CN9 CN10 CN11 CN12 CN13 CN14 CN15 CN16 CN17 CN18 CN19 CN20 CN21 CN22 CN23 CN24 CN25 CN26 CN27 CN28 CN29 CN30 CN31 CN32 CN33 CN34 CN35 CN36 CN37 CN38 CN39 CN40 CN41 CN42 CN43 CN44 CN45 CN46 CN47 CN48 CN49 CN50 CN51 CN52 CN53 CN54 CN55 CN56 CN57 CN58 CN59 CN60 CN61 CN62 CN63 CN64 CN65 CN66 CN67 CN68 CN69 CN70 CN71 CN72 CN73 CN74 CN75 CN76 CN77 CN78 CN79 CN80 CN81 CN82 CN83 CN84 CN85 CN86 CN87 CN88 CN89 CN90 CN91 CN92 CN93 CN94 CN95 CN96 CN97 CN98 CN99 CUoTCA m Sensor depósito caldera Sensor depósito silos Red 230Vac

Exploded view diagram of a mechanical component with labeled parts (no text or symbols beyond labels)

Interior layout diagram of a room with circular elements and labeled components, no readable text or symbols

Exterior view of a vehicle chassis with two circular components labeled '2' and 'Foto 18a' (no other text or symbols)

Close-up of a cable with a connector and labeled part '1', no text or symbols on the diagram itself

Close-up of a mechanical component with a numbered part (3) and a flange, shown in a technical view (no readable text or symbols)

Electronic component with labeled pins and wiring, no readable text or symbols beyond labels

Close-up of a cable plugged into a wall socket, labeled '4' and 'Foto 20' (no other text or symbols visible)

15:29 SPENTO

Fig. 25

15:29 SPENTO

Pic. 29

ALARMAS

• 2006/42/EC
• 2006/95/EC
• 2004/108/EC

Q I N O M O U S R Z X δ₁ δ₂

R S Y Z B

Two simple L-shaped metal lines labeled A, no text or symbols present

SCHRITT 1:

A C A C C C

SCHRITT 2:

MONTAGE DES RAH- MENS

E F D V1 V2

SCHRITT 5:

3D diagram of a stepped mechanical part with labeled points D and E (no text or symbols beyond labels)

SCHRITT 3:

3D diagram of a mechanical part with labeled section 'G' (no other text or symbols)

SCHRITT 6:

3D mechanical part diagram with labeled H components (no text or symbols beyond labels)

SCHRITT 7:

3D diagram of a mechanical device with labeled components (T), showing internal structure and handle mechanism (no text or symbols beyond labels)

SCHRITT 11:

Diagram of a 3D printer or enclosure with labeled components including o, j, t, and ȯ

SCHRITT 12:

3D diagram of a mechanical device with labeled components (t, j, A) and internal structure (no text or symbols beyond labels)

SCHRITT 13:

3D diagram of a cube with an open lid and a labeled corner 'L' (no text or symbols beyond the label)

SCHRITT 10:

Close-up of a pipe fitting with a small square component labeled 'O' and 'Foto 1' (no other text or symbols visible)

Z Foto 2 Foto 3

Close-up of a black metal cabinet with a white letter 'Y' on its side, no visible text or symbols beyond the letter.

490 1380 W B Foto 4

B Foto 5

I Y Foto 6

N Y Foto 7

Simple hand-drawn oval shape on a textured gray background, labeled 'Foto 8' in bottom-left corner (no other text or symbols)

N M Foto 9

M N Foto 10

I N Foto 11

MONTAGE DER KOMPONENTEN

Close-up of a metallic electronic device with a circuit board and labeled component 'R', no readable text or symbols beyond the label.

R P Foto 12

Close-up of a white cable with a small square clip attached, mounted on a dark surface (no text or symbols visible)

Y Foto 14

Close-up of a metallic mechanical component with threaded connectors and a circular base, labeled 'Foto 15' in the corner (no other text or symbols visible)

Close-up of a metallic industrial component with ventilation slots and a labeled part 'Q', no readable text or symbols beyond the label.

ELEKTROANSCHLÜSSE

Aux IN CN11 UTAG CN5 CN13 CN6 SERIALS CN17 CN21 DISPLAY CN19 CN6 CN12 CN1 AUX2 AL3 V2/PO N AL1 AL2 ACC COC CN4 SCA FLMI N F FUSE CN8 Exde CN2 AUX CN1 Schnecke m Sensor Behälter Heizkessel Sensor Behälter Silos 230Vac Netz Fig. A

Exploded view diagram of a mechanical component with labeled parts (no text or symbols beyond labels)

Architectural floor plan showing room layout with furniture and a circular feature, no readable text or symbols

Exterior view of a vehicle chassis with two circular components and a numbered label '2' (no readable text or symbols beyond labels)

Close-up of a mechanical component with a coiled cable and labeled part 1, no readable text or symbols beyond label

Technical illustration of a mechanical assembly with labeled component '3' and 'Foto 18b' (no readable text or symbols beyond labels)

Close-up of a black electrical outlet with a white plug inserted into a wall, labeled '4' and 'Foto 20' (no other text or symbols visible)

15:29 SPENTO

Abb. 25

15:29 SPENTO

Abb. 29

ALARM

• 2006/42/EC
• 2006/95/EC
• 2004/108/EC

Q I N M O U S R Z X Y S B

Two simple L-shaped metal lines labeled 'A' (no additional text or symbols)

FASE 1:

A C A C C C

FASE 2: HET FRAME MONTEREN

E F D V1 V2

FASE 5:

3D diagram of a stepped mechanical part with labeled points D and E (no text or symbols beyond labels)

FASE 3:

3D diagram of a mechanical part with labeled section 'G' (no other text or symbols)

FASE 6:

3D diagram of a mechanical housing or enclosure with labeled components H (no text or symbols beyond labels)

FASE 7:

3D diagram of a mechanical device with labeled components (T), showing internal structure and handle mechanism (no text or symbols beyond labels)

FASE 11:

Diagram of a 3D printer or enclosure with labeled components including o, j, t, and ȯ

FASE 12:

3D diagram of a transparent rectangular device with internal components and labeled axes (t, A, j, J), no readable text or symbols beyond labels.

FASE 13:

3D diagram of a geometric box with a cutout and labeled corner 'L' (no text or symbols beyond the label)

COMPONENTEN MONTEREN OPTIES

LIJST MET ONDERDELEN:

N = flexible leiding

Z = sluitplaat

B = toevoerleiding

Close-up of a pipe fitting with a rectangular component labeled 'O' and 'Foto 1' (no other text or symbols visible)

Z Foto 2 Foto 3

Close-up of a black metal cabinet with a large letter 'Y' on its side, against a wall and corner (no readable text or symbols beyond the letter)

490 1380 W B Foto 4

B Foto 5

I Y Foto 6

N Y Foto 7

Simple hand-drawn oval shape on a textured surface, labeled 'Foto 8' in the corner (no other text or symbols)

N M Foto 9

M N Foto 10

I N Foto 11

COMPONENTEN MONTEREN

Bevestig de elektronische regelaar (R) op de tank

Close-up of a metallic electronic device with a circuit board and labeled 'R' (no readable text or symbols beyond label)

R P Foto 12

Close-up of a white cable with a small square clip attached, mounted on a dark surface (no text or symbols visible)

Y Foto 14

Close-up of a metallic mechanical component with threaded connectors and a circular base, labeled 'Foto 15' in the corner (no other text or symbols visible)

Close-up of a metallic industrial component with ventilation grilles and mounting feet, labeled 'Q' (no readable text or symbols beyond label)

AUX IN CN11 UTAG CN15 CN13 SERIALLE CN17 CN5 DISPLAY CN21 CN13 CN19 AUX2 AL3 CN8 V2/PO N AL1 AL2 ACC COC CN4 SCA FLMI N F CN8 AUX CN2 CU CN1 S Sensor tank ketel Sensor tank silo Lichtnet 230Vac CFUSE afb. A Schroef m

Display Aarde CN1 CN2 R3 R4 R7 R8 -UL- M020_0 Meter ketel Meter tank silo Kabel pelletlader Vooringskabel afb. B N F

Exploded view diagram of a mechanical component with labeled parts (no text or symbols beyond labels)

Interior layout diagram of a water tank with labeled components and a circular feature (no readable text or symbols)

Exterior view of a vehicle or industrial facility with two circular components labeled '2' and 'Foto 18a' (no readable text beyond labels)

Close-up of a mechanical component with a coiled cable and labeled part 1, no readable text or symbols beyond label

Close-up of a mechanical component with labeled parts, no readable text or symbols present

Electronic component with labeled pins and wiring, no readable text or symbols beyond labels

Close-up of a cable plugged into a wall socket, labeled '4' and 'Foto 20' (no other text or symbols visible)

15:29 SPC NTO

Afb. 25

De controle inschakelen

15:29 SPENTO

Afb. 29

ALLARMEN

Alarm extra tank leeg.

• 2006/42/EC
• 2006/95/EC
• 2004/108/EC
