Congratulations and thank you for choosing our product.

Please read this document carefully before you use this product in order to obtain the best performance in complete safety.

For further details or assistance, please contact the DEALER where you purchased the product or visit our website www.edilkamin.com. and click on DEALERS.

Note: THE PRODUCT MUST BE INSTALLED IN A COVERED, HUMIDITY-FREE AREA IN ORDER TO PREVENT PROBLEMS WITH THE ELECTRICAL EQUIPMENT AND TO ENSURE THE INTEGRITY OF THE PELLETS

WE RECOMMEND USING ONLY CERTIFIED PELLETS WHICH GUARANTEE THE QUALITY OF THE PRODUCT. USE OF POOR QUALITY PELLETS CAN AFFECT OR DAMAGE THE NORMAL OPERATION OF THE EQUIPMENT.

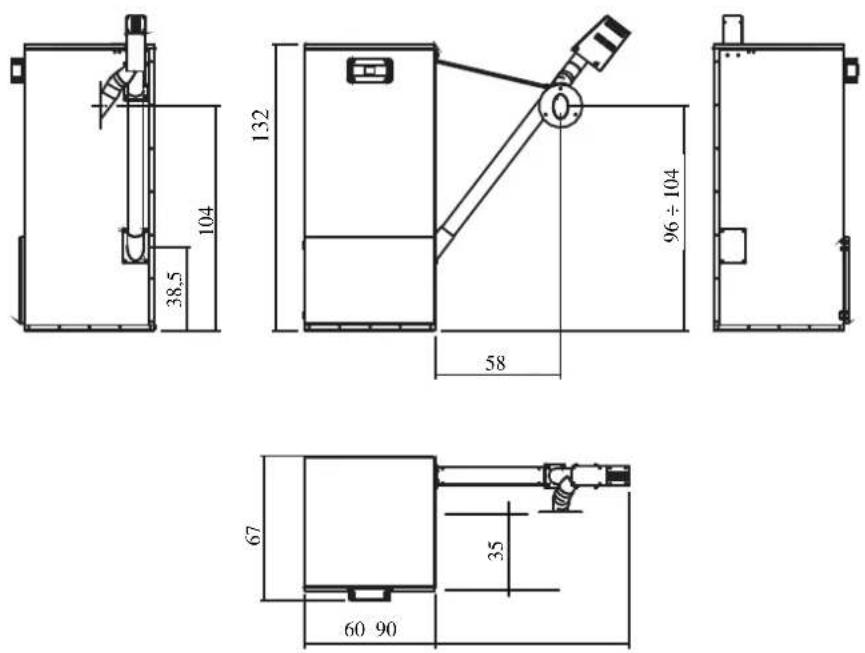

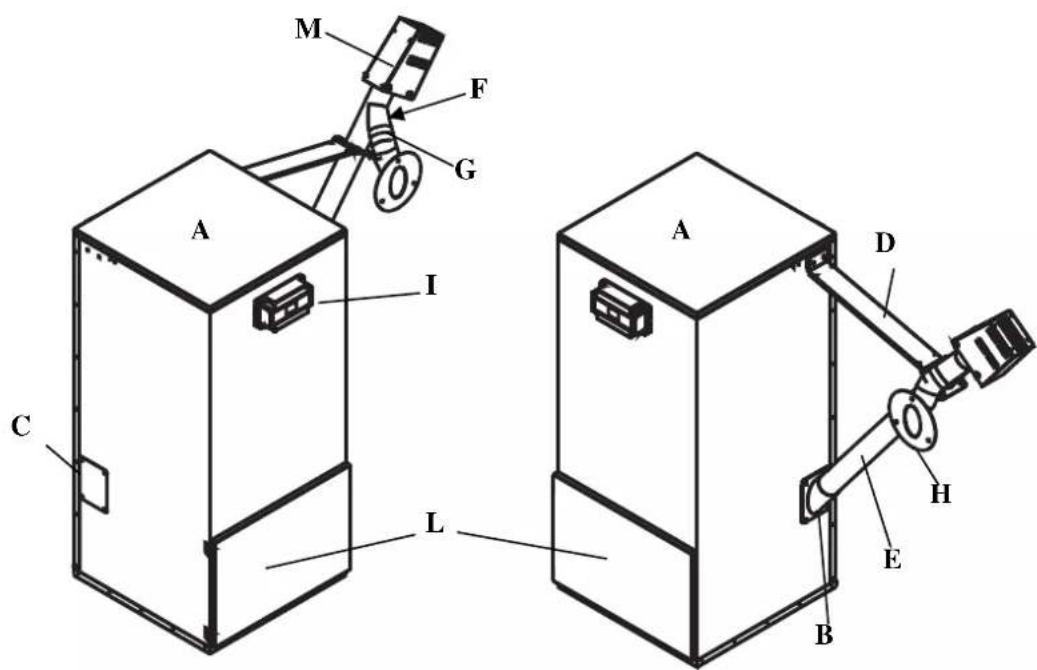

M F G A I C L A D H E B

A = tank body

B = feeder tube connection

C = closing plate

D = feeder tube support

E = feeder tube (optional)

F = conveyor tube (optional)

G = flexible pipe (optional)

H = flexible pipe connection flange (optional)

I = electronic regulator

L = pellet bags storage compartment

M= gear motor casing (optional)

MOUNTING THE COMPONENTS OPTIONAL

• Install the feeder tube connection (B supplied) on the tank body (on the side where the boiler will be located); securing it with 4 M6 screws (Pic. 1).
• On the opposite side (in the symmetrical position) install the closing plate (C supplied) securing it will 4 M6 screws (Pic. 2).

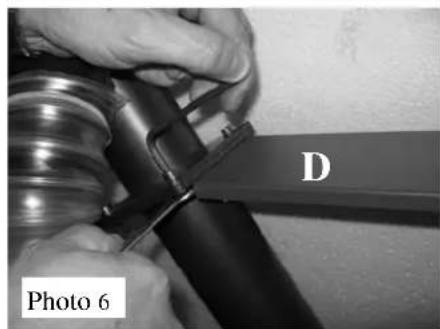

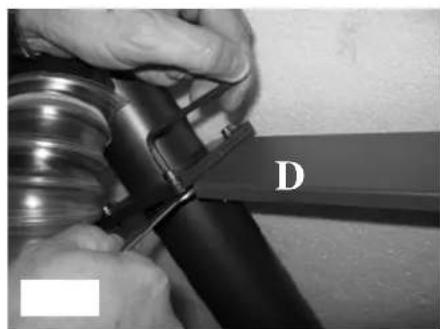

• Position the feeder tube support (D supplied) and fasten it to the tank body using 2 M6 screws and nuts (Pic. 3).
• Insert the feeder tube (E) with the feed screw making sure the feed slot is positioned facing upwards (Pic. 4).

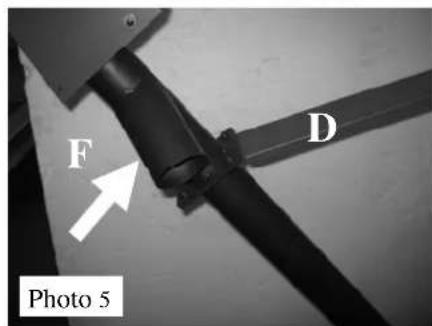

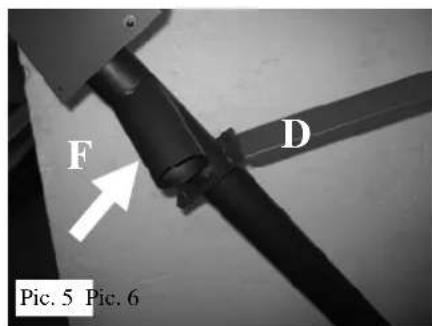

• Insert the feeder tube (F) facing the rear side of the boiler (Pic. 5) and fasten it to the support (D) using the screws provided (Pic. 6).

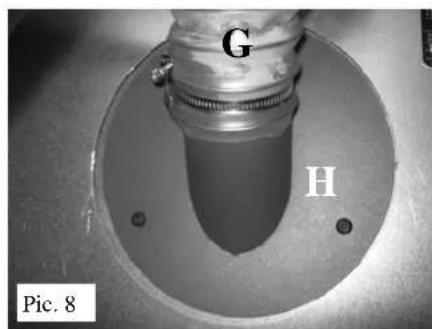

• Remove the pre-cut lidon the back of the boiler (Pic. 7), unscrew the fastening screws of the closing flange located under the pre-cut lid and replace it with a flexible pipe connection flange (H -Pic. 8).

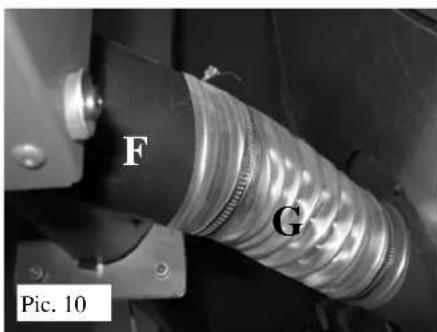

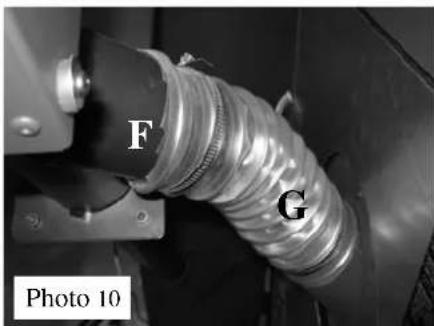

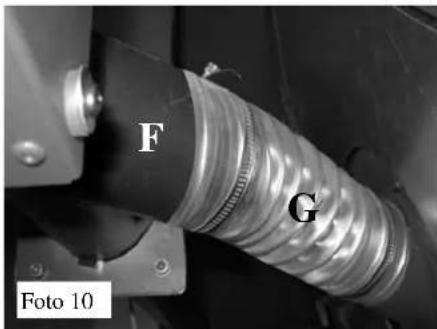

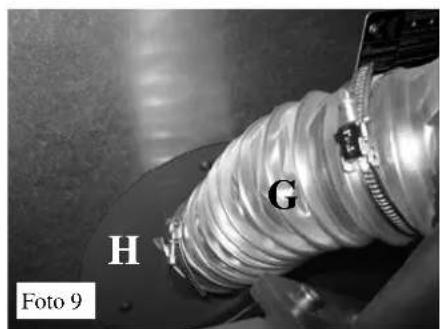

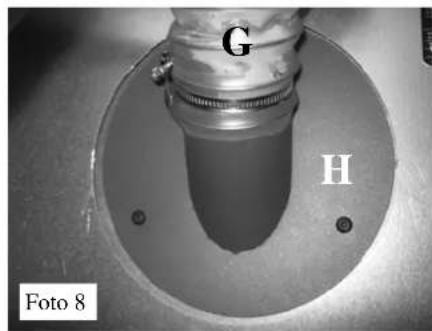

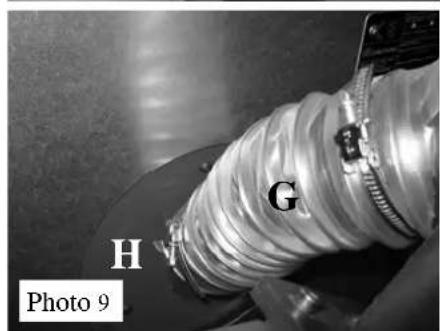

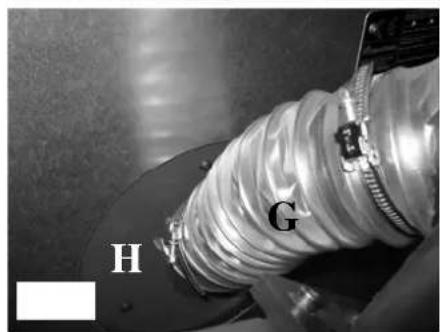

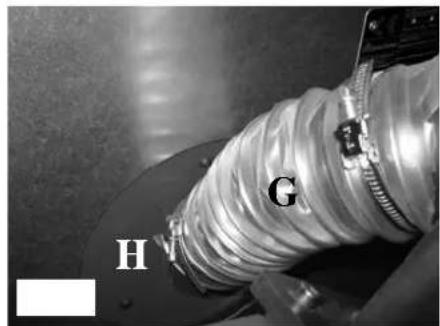

• Connect the flexible tube (N-photos 10 and 11) to the conveyor tube (F - photos 5-10) and to the flexible tube connection flange (H - photos 8 and 9), and secure it using the supplied cable ties.

Note: the flexible pipe (G) must be positioned so that it carries the pellets to the tank without causing bottlenecks (Pic. 10); verify the unit's proper functionality during the initial loading operations, and use silicone to seal any powder leaks that may be encountered.

B Pic. 1

Close-up of a square metal plate with a central circular mark labeled 'C', mounted on a dark panel (no other text or symbols visible)

Close-up of a mechanical component with labeled part D, no readable text or symbols beyond label

E Pic. 4

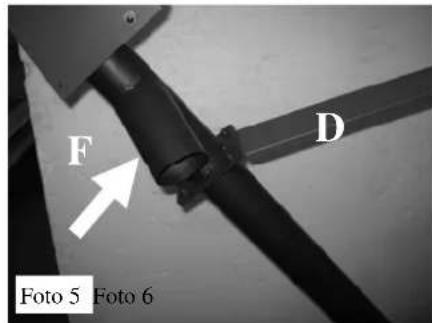

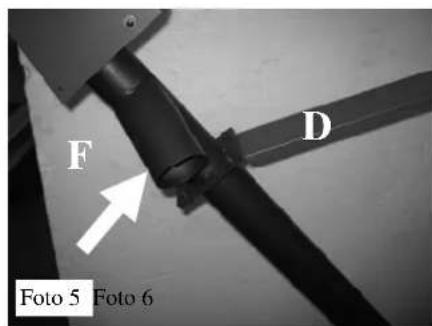

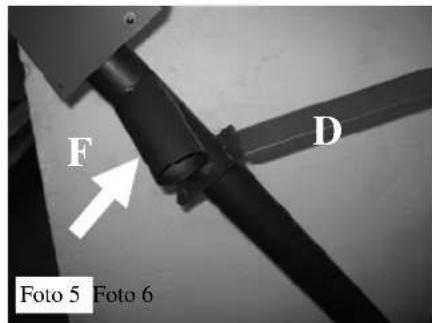

F D Pic. 5 Pic. 6

Close-up of hands using a tool to cut or trim a black metal component, labeled 'D' (no other text or symbols visible)

Simple hand-drawn oval shape on a textured background, labeled 'Pic. 7' in bottom-left corner (no other text or symbols)

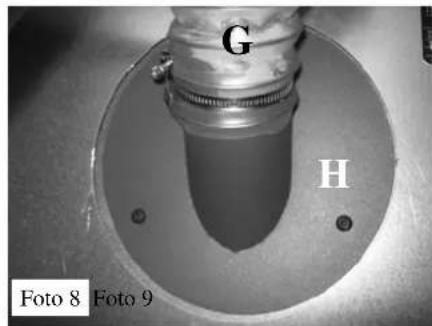

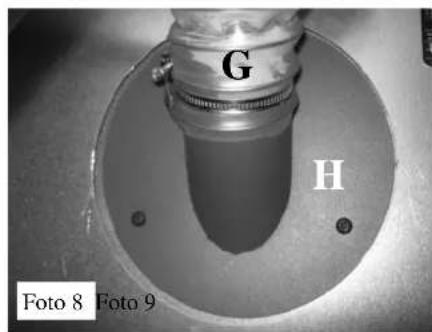

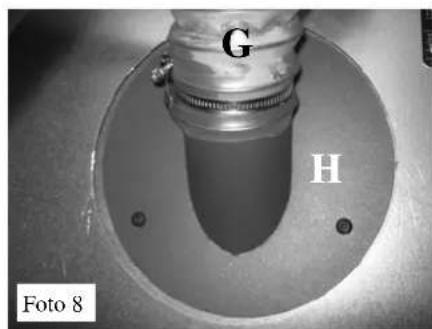

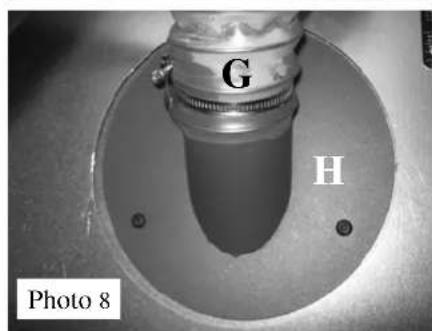

G H Pic. 8

G H Pic. 9

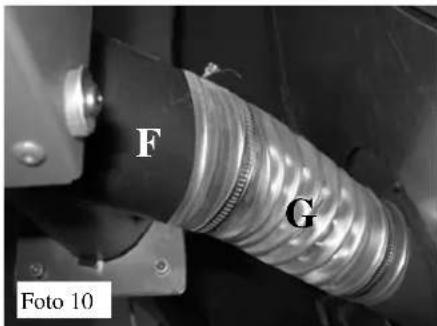

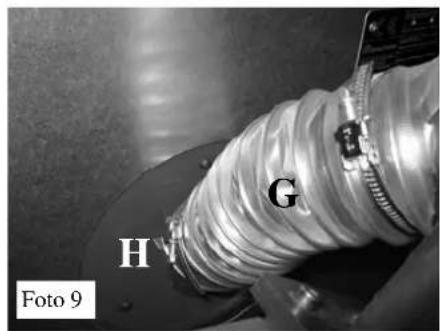

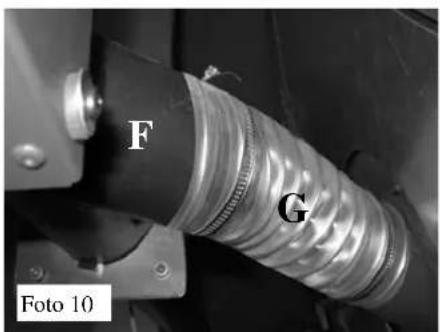

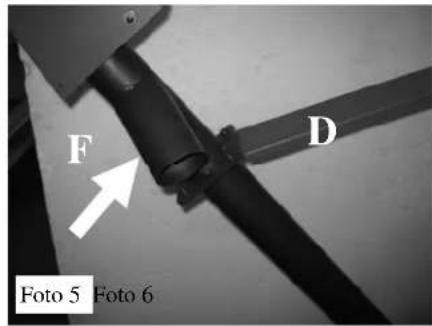

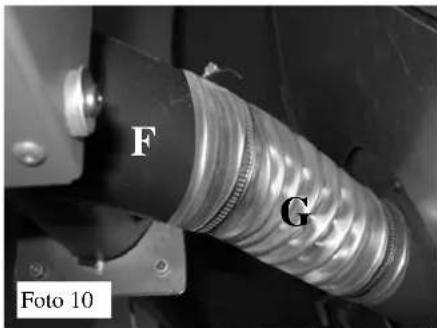

F G Pic. 10

MOUNTING THE COMPONENTS

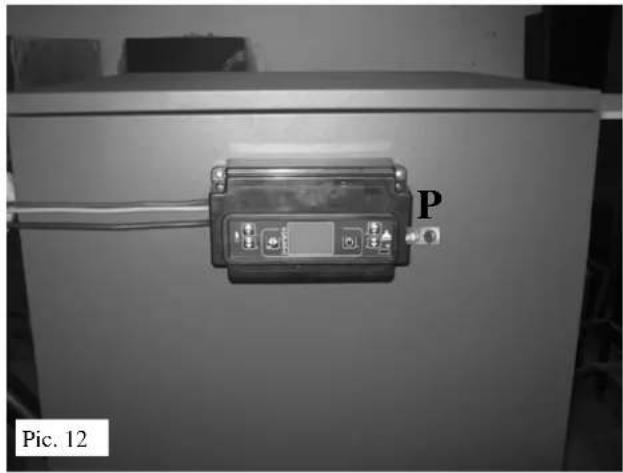

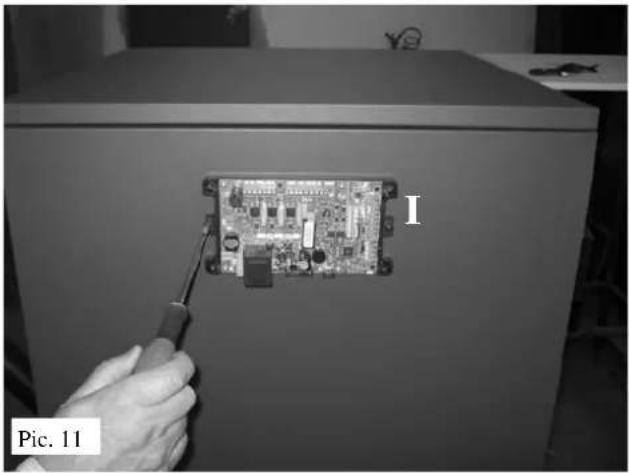

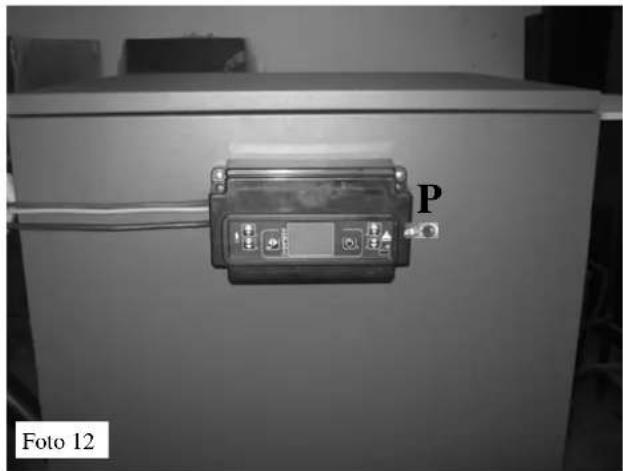

Fastening the electronic regulator (I) to the tank

The electronic regulator (I) is delivered already wired in its box which then must be installed in the special housing on the front of the tank and then fix the earthing cable (P) (Pics. 11-12).

If installation is difficult, you can remove the lid by loosening the 4 screws.

Bring the power cable to the motor and secure it:

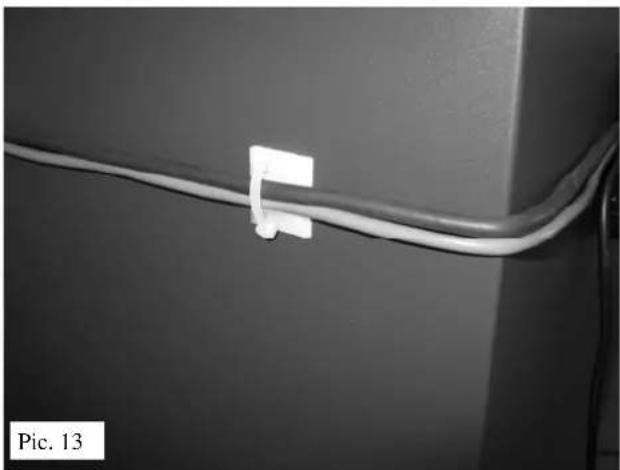

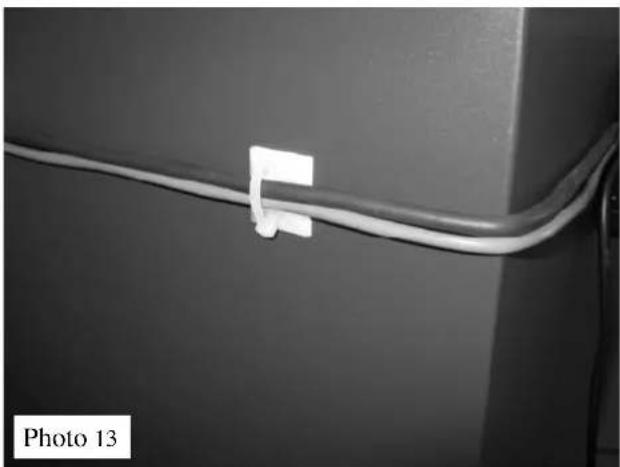

- to the side of the tank with the adhesive plate and clamp (Pic. 13)

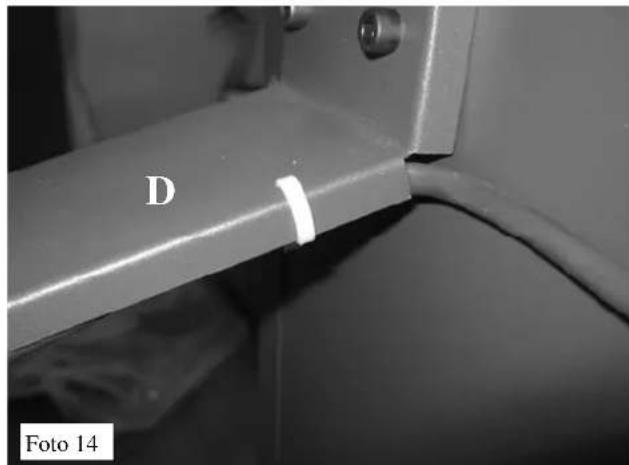

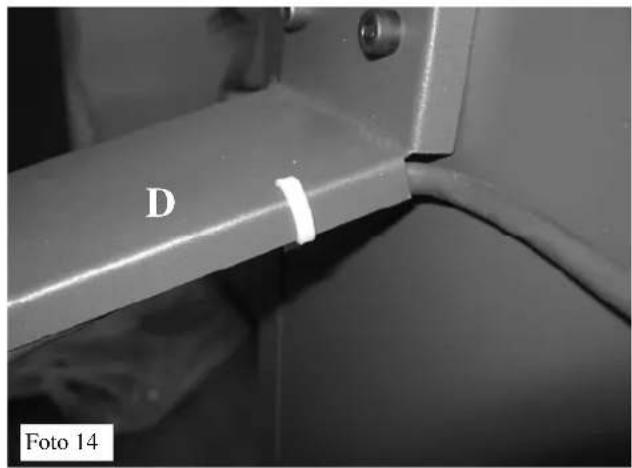

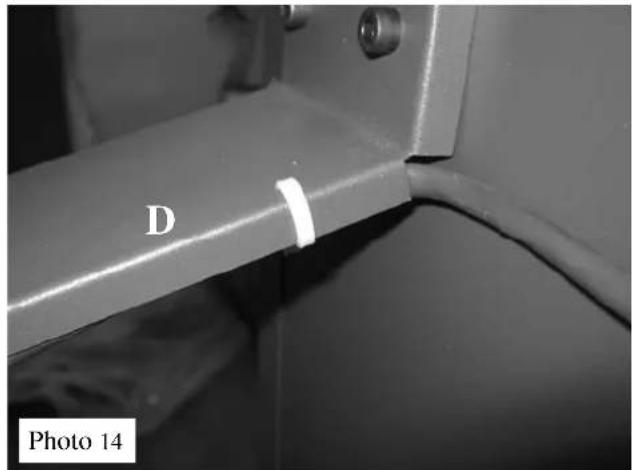

- to the feeder tube support (D) using the cable ties (photo 14)

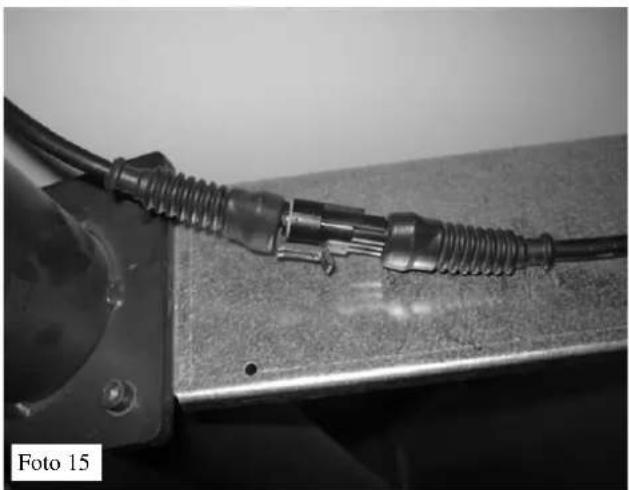

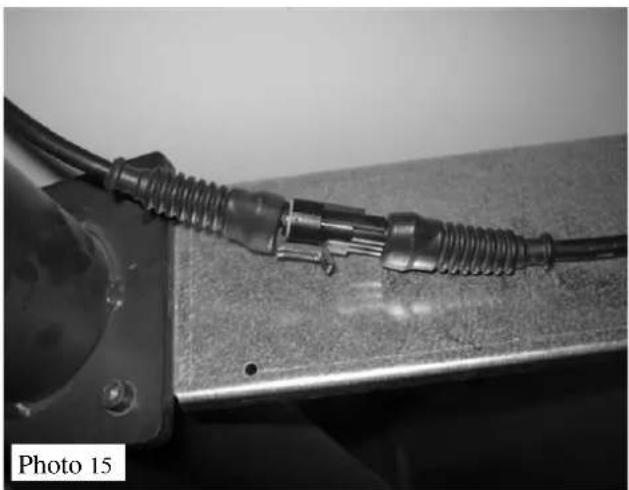

Insert the plug into the motor outlet (pic. 15)

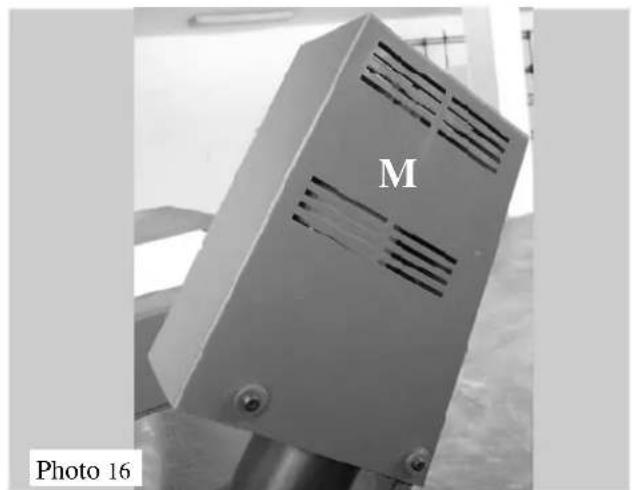

Attention: prevent the casing (M) - (pic. 16) from coming into contact with the gear motor blades

Hand using a screwdriver to switch an electronic circuit board into a box labeled 'I', with no visible text or symbols on the board itself.

Close-up of a white cable with a small square clip attached, mounted on a dark surface (no text or symbols visible)

Close-up of a metallic mechanical component with threaded connectors and a metal frame (no visible text or symbols)

Close-up of a laboratory apparatus with a labeled component 'P' and a label 'Pic. 12' (no readable text or symbols beyond labels)

D Pic. 14

Metallic industrial component with ventilation slots and label 'M', no readable text or symbols beyond the label

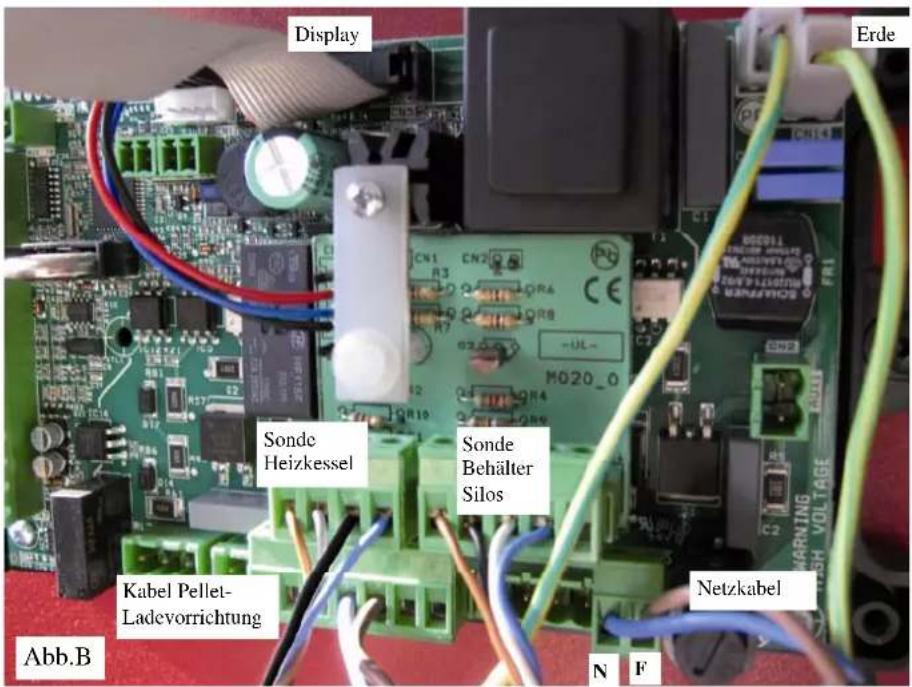

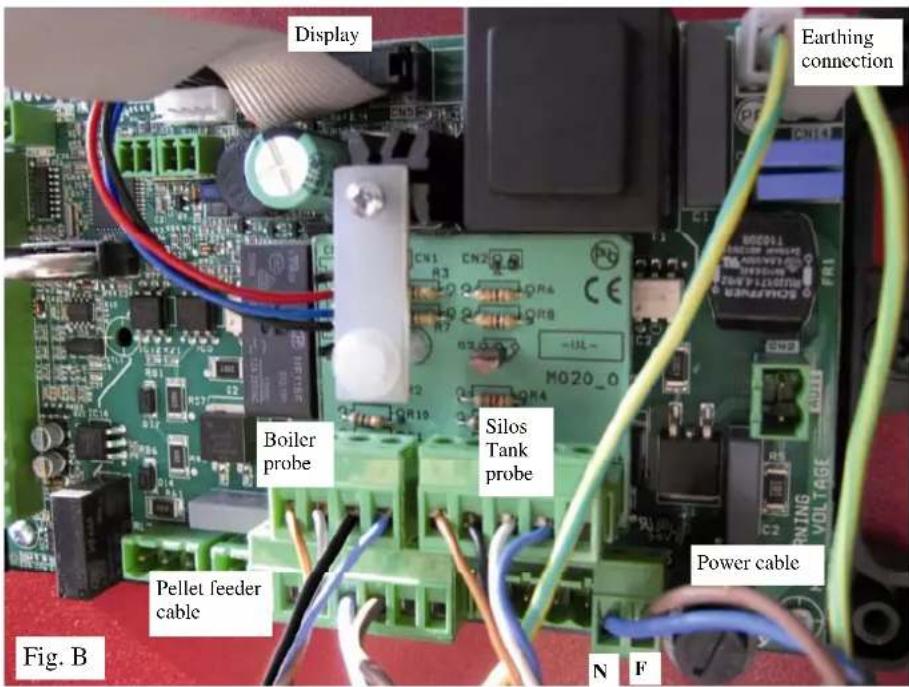

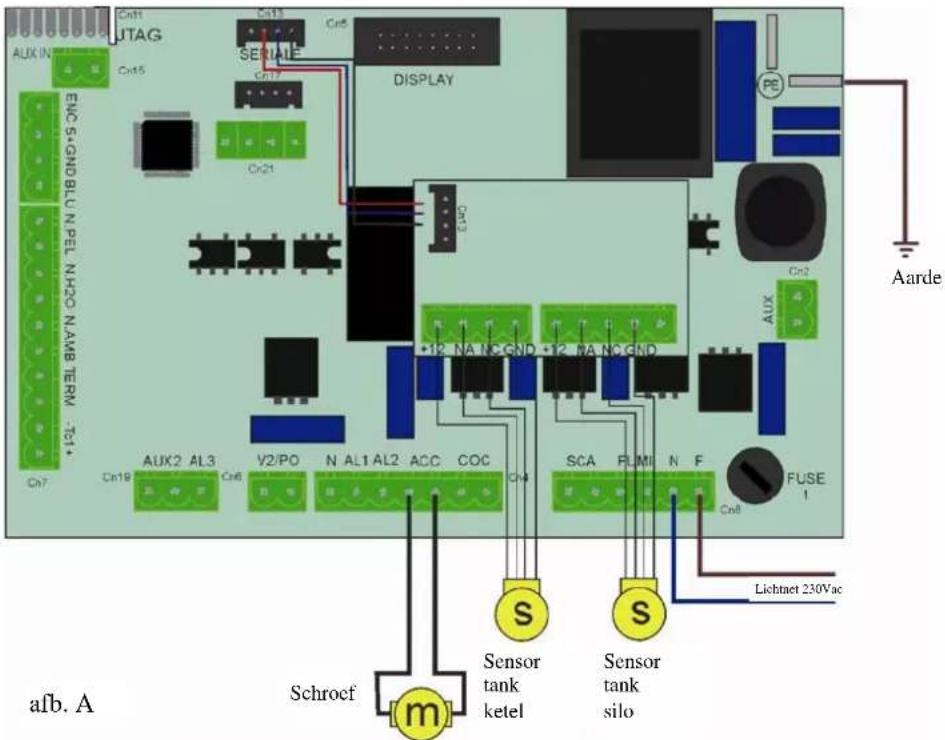

ELECTRICAL CONNECTIONS

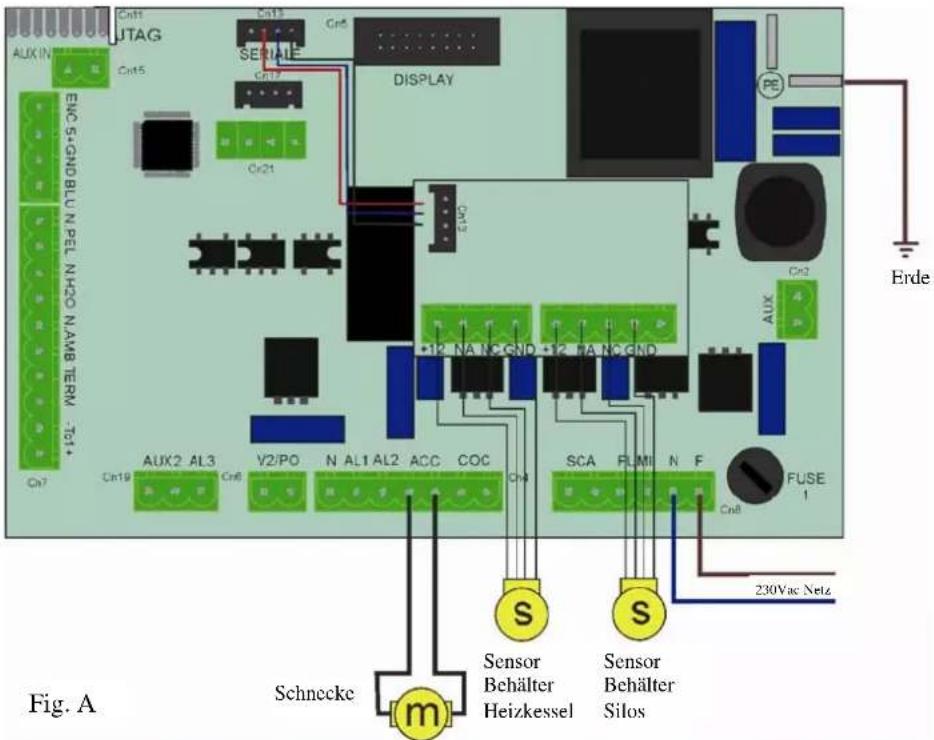

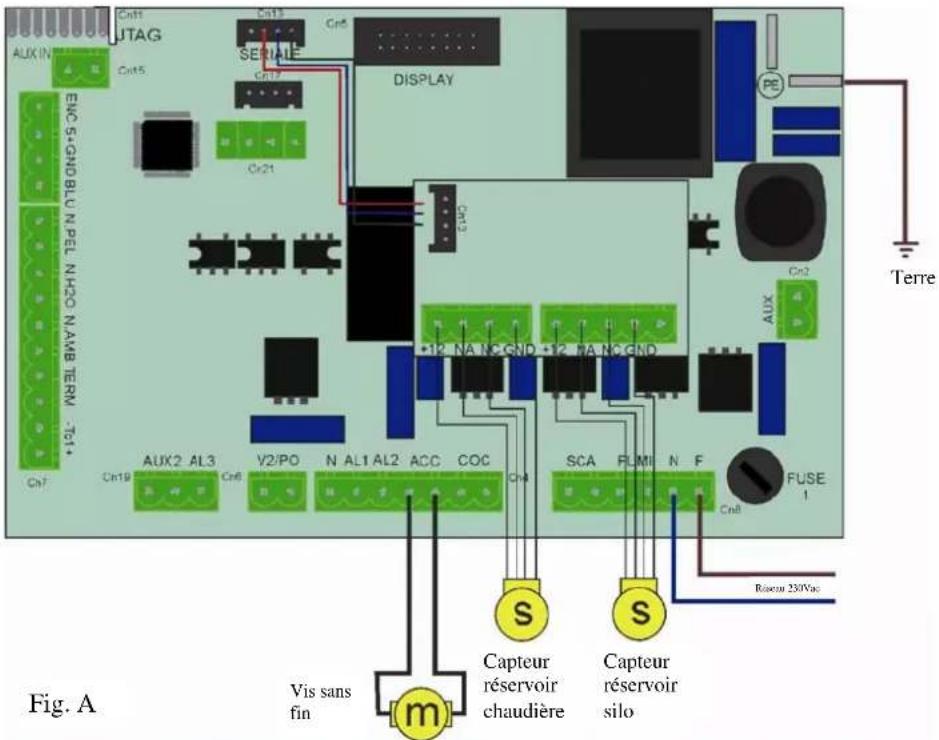

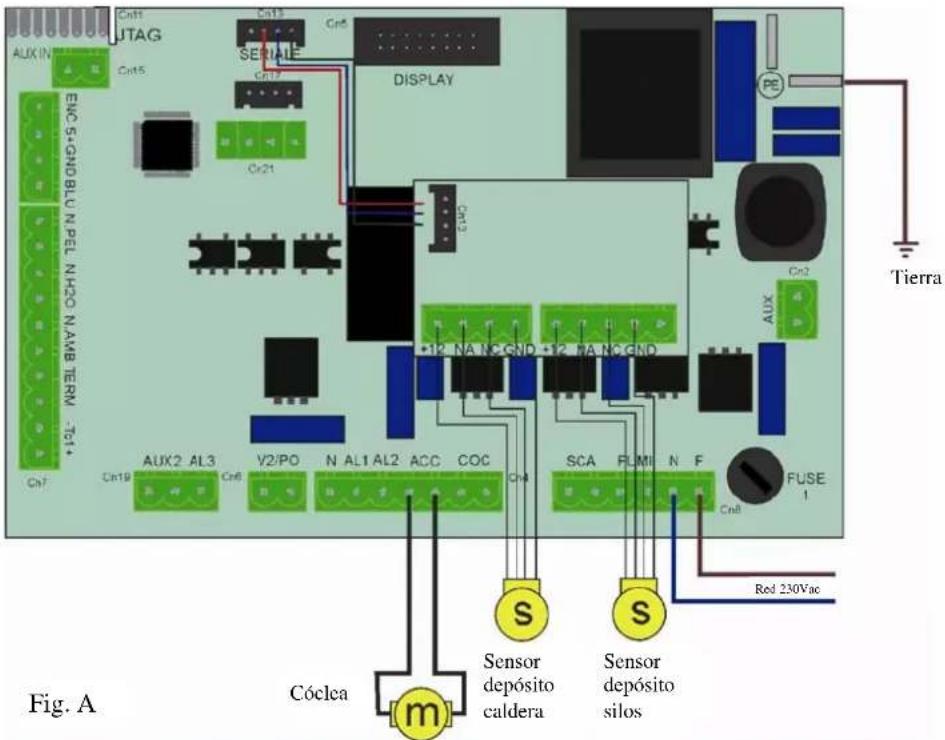

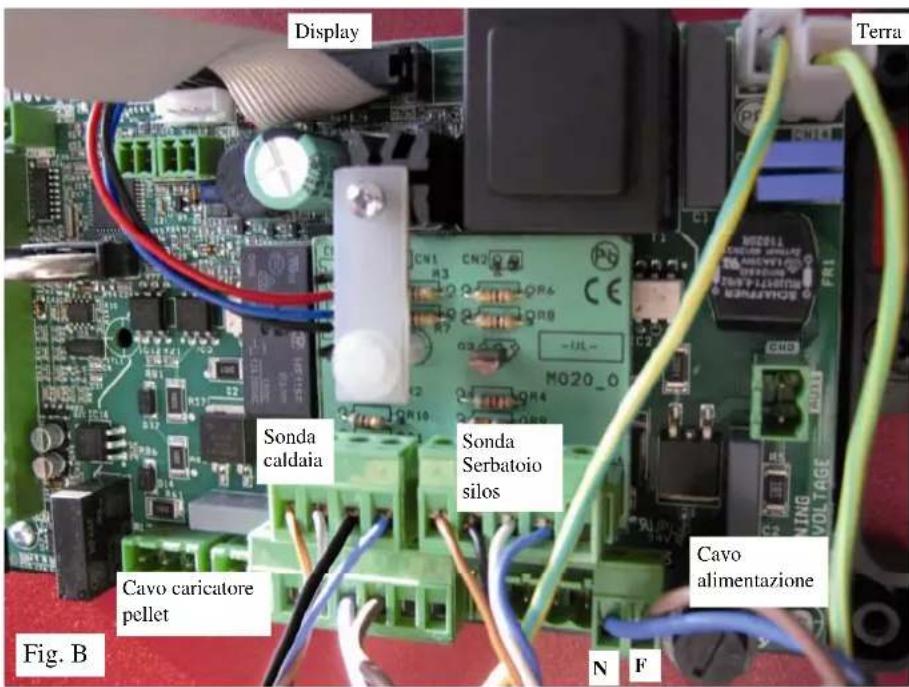

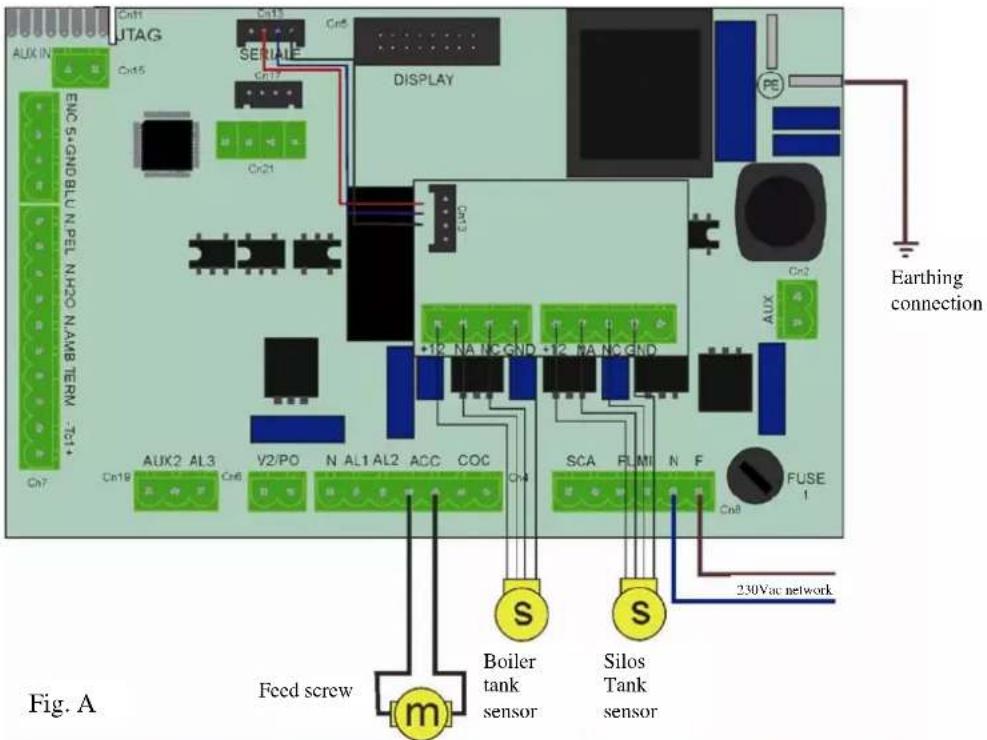

AUX IN CN1 JTAG CN15 CN6 SEMIAE CN17 CN21 DISPLAY CN18 CN19 CN20 CN21 CN22 CN23 CN24 CN25 CN26 CN27 CN28 CN29 CN30 CN31 CN32 CN33 CN34 CN35 CN36 CN37 CN38 CN39 CN40 CN41 CN42 CN43 CN44 CN45 CN46 CN47 CN48 CN49 CN50 CN51 CN52 CN53 CN54 CN55 CN56 CN57 CN58 CN59 CN60 CN61 CN62 CN63 CN64 CN65 CN66 CN67 CN68 CN69 CN70 CN71 CN72 CN73 CN74 CN75 CN76 CN77 CN78 CN79 CN80 CFUSE FUSE 1 Feed screw m1 Boiler tank sensor S Silos Tank sensor 230Vac network

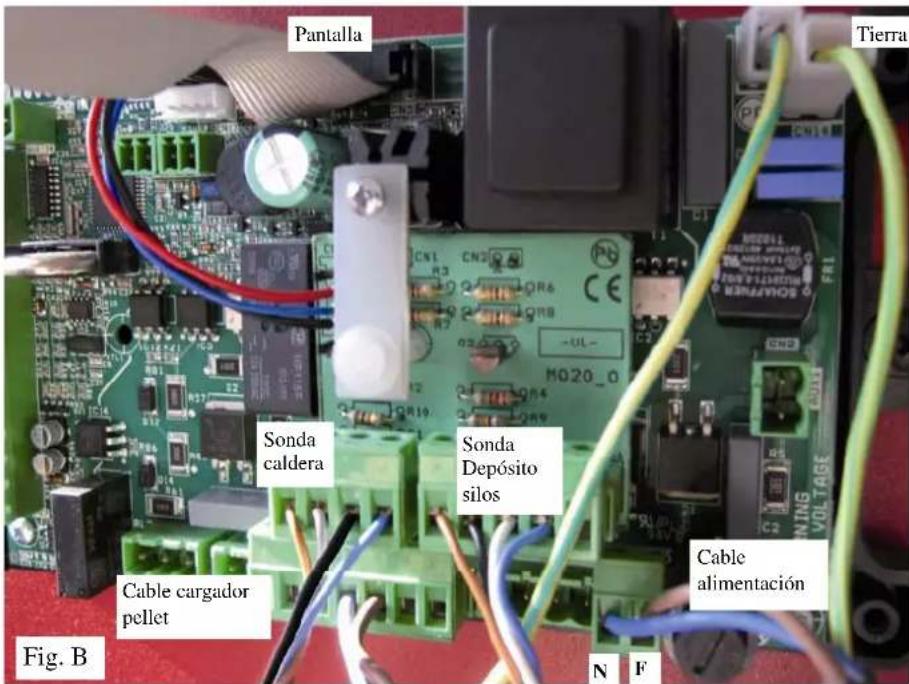

Display Earthing connection CN1 CN2 R3 CN14 R7 M020_0 Boiler probe Silos Tank probe Pellet feeder cable Power cable Fig. B N F

ELECTRICAL CHARACTERISTICS
Power Supply	230V +/- 10% 50Hz
Gear motor power when empty	70 W
Gear motor power when under load	120 W
Motor thermal protector	130 °C
Circuit board protection	4A 250 V Fuse

IMPORTANT:

During installation, the tank must be grounded. Connect an earthing cable to the appropriate slot on the side of the tank.

INSTALLATION

FASTENING THE PROBES

Probe for detecting the "Minimum pellet" level IN THE TANK ON THE BOILER.

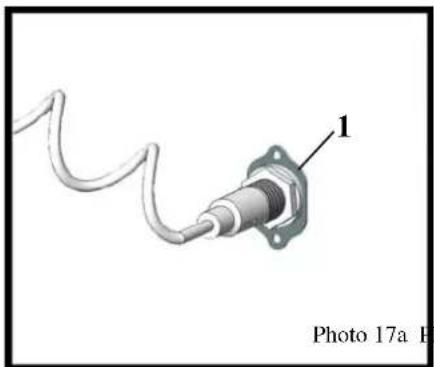

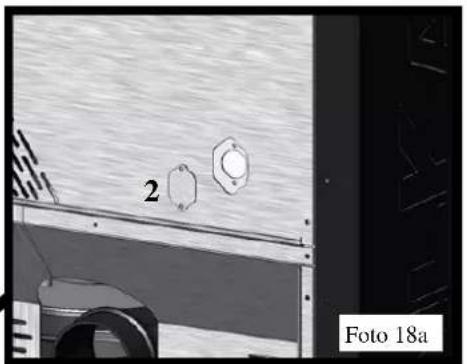

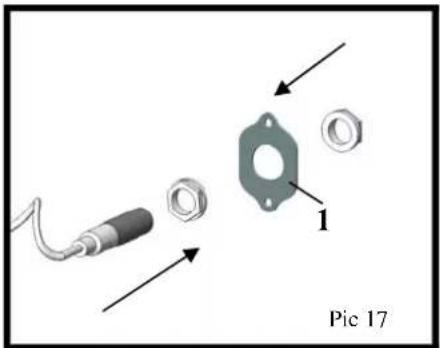

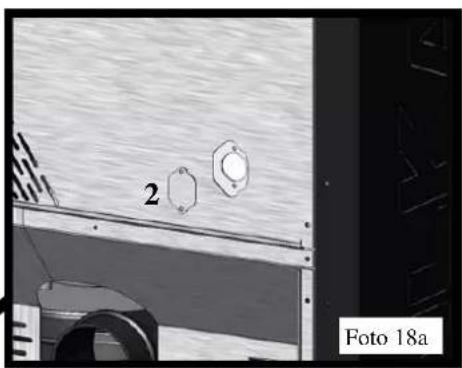

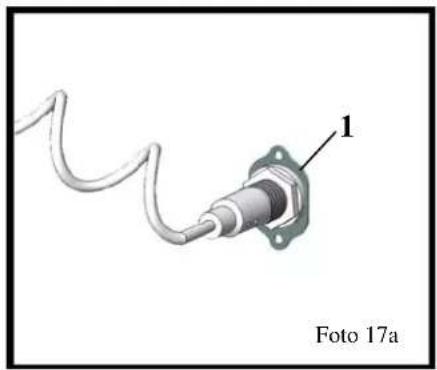

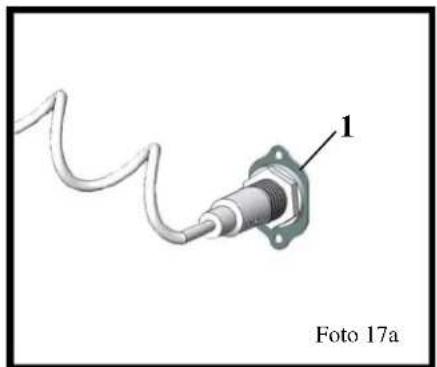

- Secure the probe to the perforated galvanized plate (1 - supplied) using the ferrules on the probe itself (photos 17-17a). - Remove the blind plate (2 - photos 18-18a) on the rear of the boiler and replace it by screwing the plate (1), complete with the probe, into position 3 (photo 18b).

1 Pic 17

Technical diagram of a mechanical or fluidic component with labeled parts and no readable text or symbols

Exterior view of a vehicle or industrial facility with two circular components labeled '2' and 'Pic 18a' (no readable text beyond labels)

Close-up of a mechanical component with a coiled cable and labeled part 1, no readable text or symbols beyond label

Close-up of a mechanical component with a numbered part (3) and a flanged housing, no visible text or symbols.

Probe for detecting the "Minimum pellet" level IN THE EXTERNAL TANK.

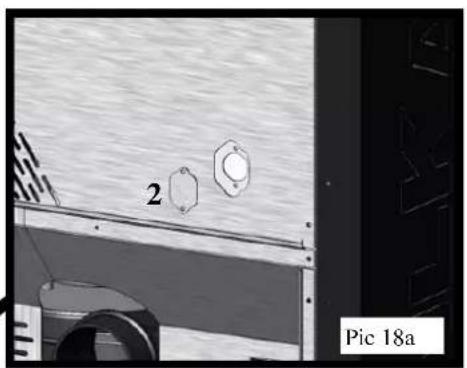

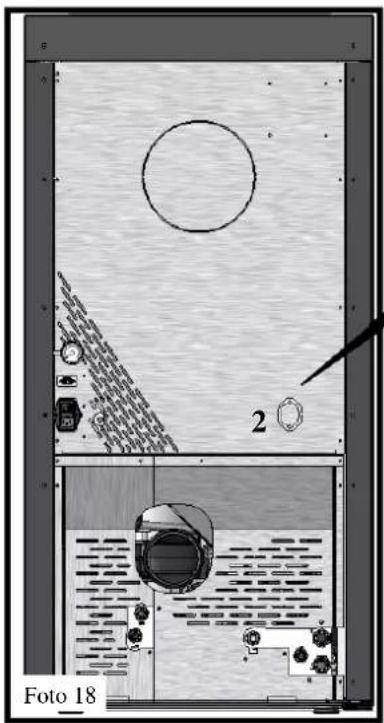

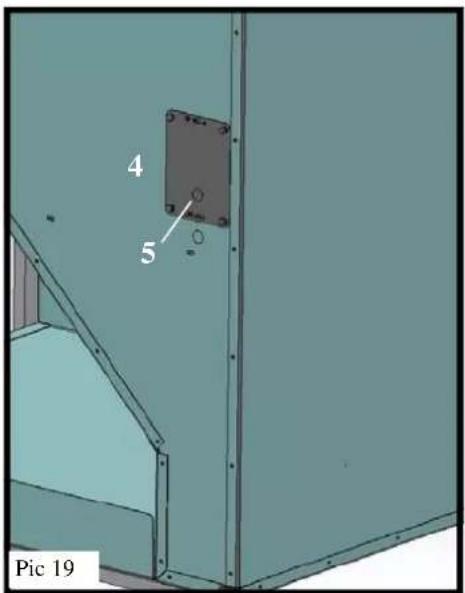

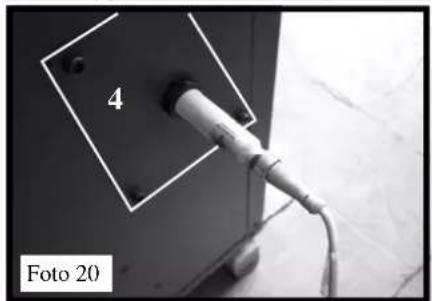

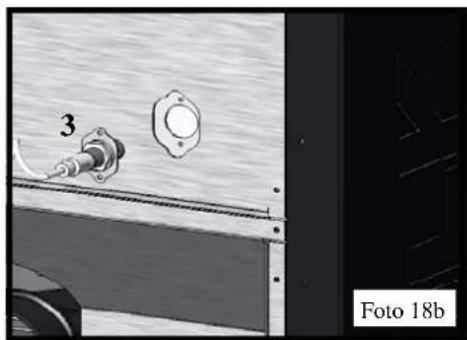

- Remove the closing plate (4 - photo 19) and open the pre-cut hole (5) on the plate itself. - Secure the probe to the plate (4) using the ferrules on the probe itself (photos 19a-19b). - The probe should protrude approximately 5/10 ~mm from the inner ferrule (photo 19c). - Reposition the plate (4 - photo 20) (with the inscription "UP 250" facing upwards), being careful not to damage the electrical cable.

Verify the probes' proper installation by checking that the led indicators corresponding to the appropriate icons light up on the electronic regulator's display (see fig. 22 on page 15).

MAKE SURE THAT THE PROBE DOES NOT COME INTO CONTACT WITH HEAT SOURCES (e.g. SMOKE OUTLET).

4 5 Pic 19

Pic 19a 4

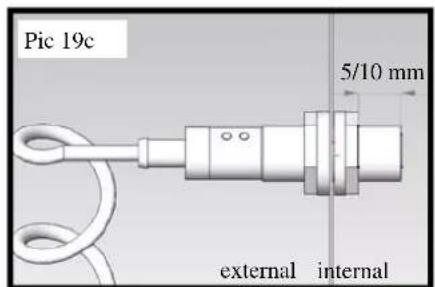

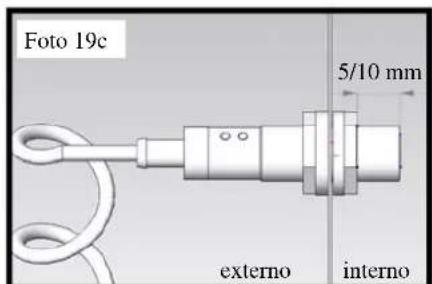

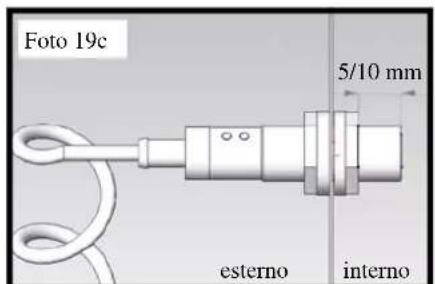

Pic 19c 5/10 mm external internal

Pic 19b 4 UC-800

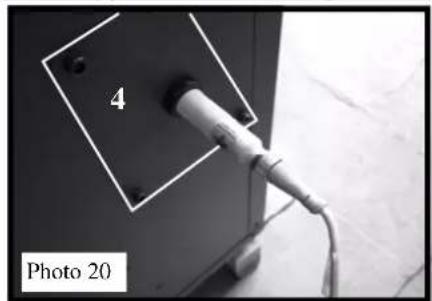

Close-up of a plug inserted into a wall socket, labeled '4' and 'Pic 20' (no other text or symbols visible)

REGULATOR DESCRIPTION

Connect the power cable's schuko plug, that comes out of the electronic regulator, to the network outlet (possibly equipped with a magneto-thermal circuit breaker).

The console unit allows for communication with the electronic regulator by simply pressing some keys.

A display informs the operator of the load system's operating status.

In the programming mode, the various parameters that can be modified using the keys are displayed.

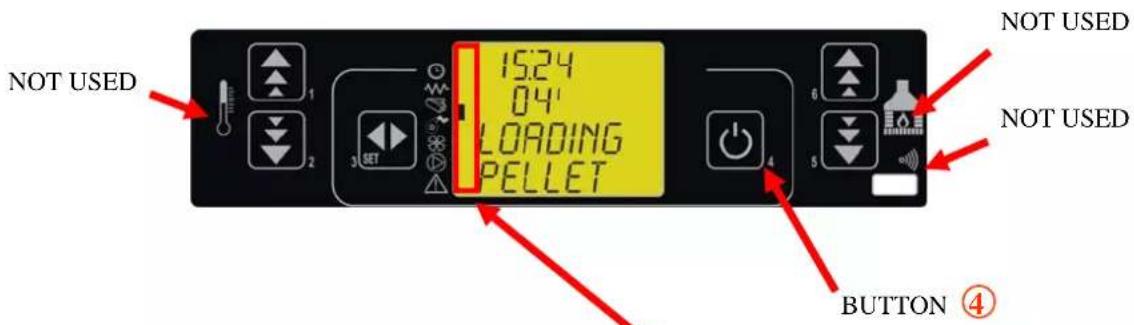

NOT USED 15:24 04' LOADING PELLET 6 5 NOT USED NOT USED BUTTON ④

Pic. 21
Pic. 22 describes the meaning of the symbols located on the left side of the display.

The activation on the display of one of the led segments, signals the activation of the corresponding device, according to the list at the side.

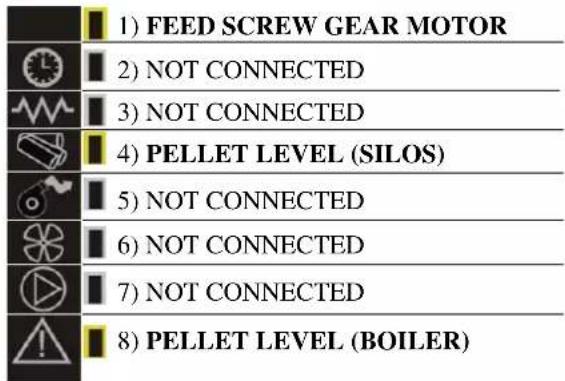

1) FEED SCREW GEAR MOTOR 2) NOT CONNECTED 3) NOT CONNECTED 4) PELLET LEVEL (SILOS) 5) NOT CONNECTED 6) NOT CONNECTED 7) NOT CONNECTED 8) PELLET LEVEL (BOILER)

Pic.22

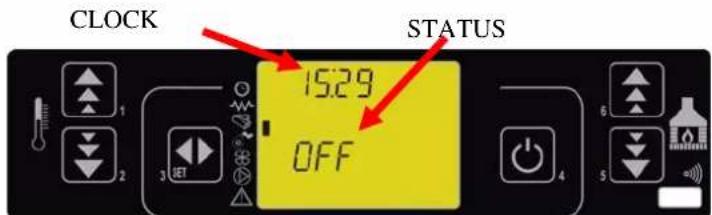

CLOCK 1 2 3 15:29 OFF STATUS 6 5

fig. 23

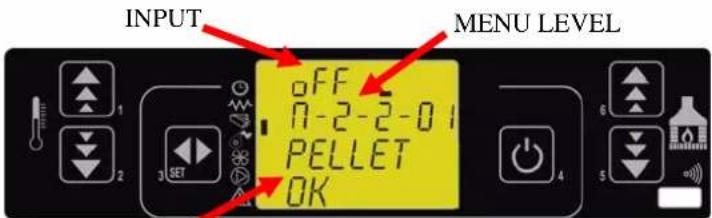

INPUT MENU LEVEL OFF N-2-2-0 1 PELLET OK

FUNCTION
Pic. 24
Pic. 24 describes the arrangement of messages during the programming phase or when setting operating parameters. In particular:

1. The input area displays the programming values entered.
2. The "menu level" area, displays the current menu level. Refer to the Menu chapter.

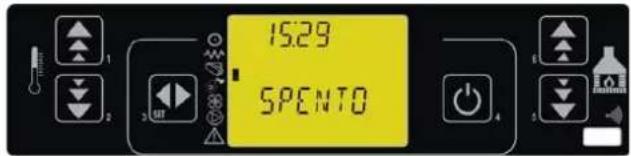

Before the regulator is switched on the display appears as shown in pic 25.

15:29 SPCNT0

Pic. 25

Switching on the control

To switch on the control, press the P4 button for a few seconds. When the regulator is switched on the display appears as shown in figura 26.

Language selection

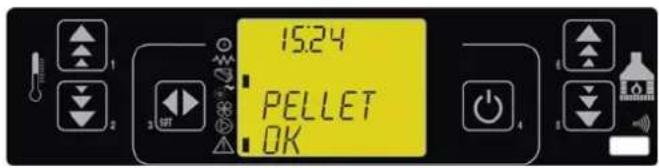

To select the language press the SET button (P3) and "CHOOSE LANGUAGE" will appear. Press the SET button (P3) again and "MENU 01 - ITA" will appear.

Using the P1 and P2 buttons select the desired language, confirm the selection by pressing P4 twice.

15:24 PELLET OK

Pic. 26

When the sensor detects an insufficient pellet level, the regulator checks the pellet reserve (pic 27) for 7 seconds; if the level is restored, the pellet present message comes back as in pic 26, otherwise after 7 seconds pellet loading will start. (see pic 28).

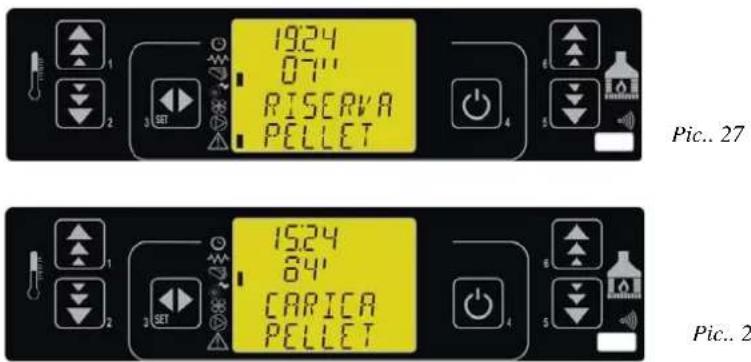

1924 07' RISERV A PELLET 1524 84' CARICA PELLET Pic.. 27 Pic.. 2

Immediately after this verification, the pellet load phase will be activated for the load time set.

If after the load time expires, the level is restored, the message "PELLETS PRESENT" will appear, disabling loading; otherwise, and alarm will be signalled and the feed screw motor will switch off.

Switch-off.

To switch off the feeder, simply press down the 4 button for approx. 2 seconds.

The feed screw will stop immediately and the display will appear as in pic 29.

1529 SPENTO

Pic. 29

ALARMS

Additional tank empty alarm.

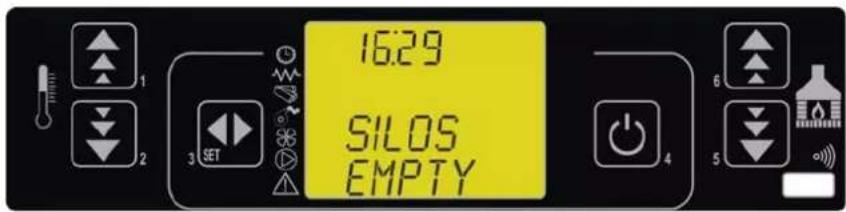

This alarm is displayed when the additional tank is empty (pic 30).

16:29 SILOS EMPTY

Pic. 30

To restore the tank to working order, load the pellets and press button 4.

Pellet supply exhausted alarm.

The alarm is displayed when the programmed pellet load time expires if the pellet level in the boiler's tank is still below the probe's min. level.

In this case the message "PELLETS EXHAUSTED" will appear on the display and then after 10 seconds the message "OFF" will appear.

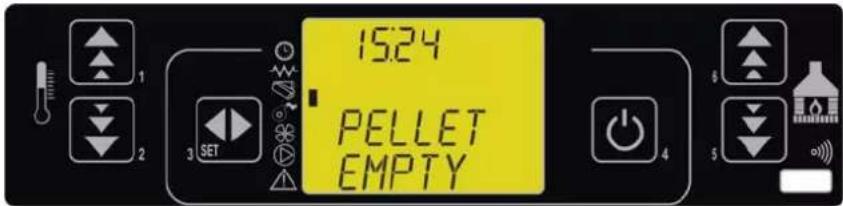

15.24 PELLET EMPTY

Pic. 31

ContrCheck the cause of the pellet supply's exhaustion (motor block, motor failure, conveyor tube clog, insufficient load time).

To restore the tank to working order, restore the pellet level in the tank and press the 4 button.

DECLARATION OF CONFORMITY

The product conforms to the essential requirements of the following EEC Directives:

• 2006/42/EC
• 2006/95/EC
• 2004/108/EC

Therefore, it is has the CE marking

EDILKAMIN S.p.a.

registered office in Via Vincenzo Monti 47

20123 Milan

Madame, Monsieur,

M F G A I C L A D H E B

A = corps réservoir

F = tuyau convoyeur (options)

G = tuyau flexible (options)

H = bride prise de tuyau flexible (options)

Close-up of a pipe joint with labeled component B, no readable text or symbols beyond label

C Photo 2

Close-up of a metallic mechanical component with a labeled section 'D' and 'Photo 3' (no other text or symbols visible)

E Photo 4

F D Photo 5

D Photo 6

Simple black oval shape on a light background, labeled 'Photo 7' in bottom-left corner (no other text or symbols)

G H Photo 8

G H Photo 9

F G Photo 10

MONTAGES DES COMPOSANTS

Hand inserting a screwdriver into a circuit board labeled 'I' on a device (no text or symbols on the board itself)

Close-up of a white cable with a small clip attached, mounted on a dark surface (no text or symbols visible)

Close-up of a metallic mechanical component with coiled wires and a labeled photo (no text or symbols on the main subject)

Close-up of a device labeled 'P' mounted on a cabinet, with no visible text or symbols beyond the label.

D Photo 14

Metal mechanical component with ventilation slots and label 'M', no readable text or symbols beyond the label

BRANCHEMENTS ÉLECTRIQUES

Interior view of a room with a circular object on the wall and a window with a camera lens, showing no visible text or symbols.

Exterior view of a vehicle or industrial facility with two circular components labeled '2' and 'Photo 18a' (no readable text beyond labels)

Close-up of a metallic connector with coiled cable and mounting base, labeled '1' (no text or symbols on the component itself)

Close-up of a mechanical component with a numbered part (3) and a flanged housing, no visible text or symbols.

Close-up of a gray electronic device with a labeled component (4) and wiring, no readable text or symbols beyond labels

Close-up of a white cable plugged into a black panel with a numbered label '4' and 'Photo 20' (no other text or symbols visible)

DESCRIPTION RÉGULATEUR

15:29 SPENTO

Fig. 25

15:29 SPENTO

Pic. 29

ALARMES

DÉCLARATION DE CONFORMITÉ

• 2006/42/EC
• 2006/95/EC
• 2004/108/EC

M F G A I C L A D H E B

A = cuerpo depósito

Close-up of a pipe fitting with a labeled component 'B' and 'Foto 1' (no other text or symbols visible)

C Foto 2 Foto 3

Close-up of a black metal cabinet with a labeled panel (D) and two circular buttons, no visible text or symbols beyond the label.

E Foto 4

F D Foto 5 Foto 6

Close-up of hands using a tool to cut or repair a black mechanical component labeled 'D' (no other text or symbols visible)

Simple hand-drawn oval shape on a textured gray background, labeled 'Foto 7' in bottom-left corner (no other text or symbols)

G H Foto 8

G H Foto 9

F G Foto 10

Hand using a screwdriver to insert a circuit board labeled 'I' on a cabinet (no text or symbols on the board itself)

Close-up of a white cable with a small square clip attached, mounted on a dark surface (no text or symbols visible)

Close-up of a metallic mechanical component with threaded connectors and a circular base, labeled 'Foto 15' in the corner (no other text or symbols visible)

Close-up of a mechanical device labeled 'P' mounted on a cabinet, with cable and control buttons visible (no readable text or symbols beyond label)

D Foto 14

Metal mechanical component with ventilation slots, labeled 'M', shown in black and white (no other text or symbols)

CONEXIONES ELÉCTRICAS

Cn11 UTAG Cn15 Cn13 SERIALLE Cn17 Cn5 DISPLAY Tierra Cn21 Cn7 ENC-5-GND-BLU N-PEL NH2O N-AMB TERM -T04+ Cn19 AUX2 AL3 Cn6 V2/PO N AL1 AL2 ACC COC SCA FLUMI N F Cn8 FUSE 1 Cn8 Sensor depósito caldera Sensor depósito silos Red 230Vac Cóclea m Fig. A

Exploded view diagram of a mechanical component with labeled parts (no text or symbols beyond labels)

Interior layout diagram of a ship's deck with numbered components and a circular feature, no readable text or symbols.

Exterior view of a vehicle with two circular components and a numbered label '2' (no readable text or symbols beyond labels)

Close-up of a mechanical component with a coiled cable and labeled part 1, no readable text or symbols beyond label

Technical diagram showing a mechanical assembly with a numbered component and a labeled section (no readable text or symbols)

Electronic component with labeled part '4' and wiring, no readable text or symbols beyond labels

Foto 19c 5/10 mm externo interno

Foto 19b 4 SC-50

Close-up of a cable plugged into a wall socket, labeled '4' and 'Foto 20' (no other text or symbols visible)

15:29 SPENTO

Pic. 29

ALARMAS

• 2006/42/EC
• 2006/95/EC
• 2004/108/EC

M F G A I C L A D H E B

A = Behälterkörper

Close-up of a pipe fitting with a square bolt and label B, no readable text or symbols beyond the label

C Foto 2 Foto 3

Close-up of a black metal cabinet with a labeled panel (D) and two screws, against a wall and corner (no text or symbols beyond the label)

E Foto 4

F D Foto 5 Foto 6

Close-up of hands using a tool to cut a black mechanical component labeled 'D' (no other text or symbols visible)

Simple black oval shape on a light background, labeled 'Foto 7' in bottom-left corner (no other text or symbols)

G H Foto 8 Foto 9

Close-up of a metallic industrial pipe assembly with labeled components H and G (no text or symbols beyond labels)

F G Foto 10

MONTAGE DER KOMPONENTEN

Hand holding a screwdriver inserted into an electronic circuit board labeled 'I', with 'Foto 11' visible at bottom left (no other text or symbols)

Close-up of a white cable with a small square clip attached, mounted on a dark surface (no text or symbols visible)

Close-up of a metallic mechanical component with threaded connectors and a circular base, labeled 'Foto 15' in the corner (no other text or symbols visible)

Close-up of a laboratory equipment cabinet with a labeled component 'P' and cable, no readable text or symbols beyond the label.

D Foto 14

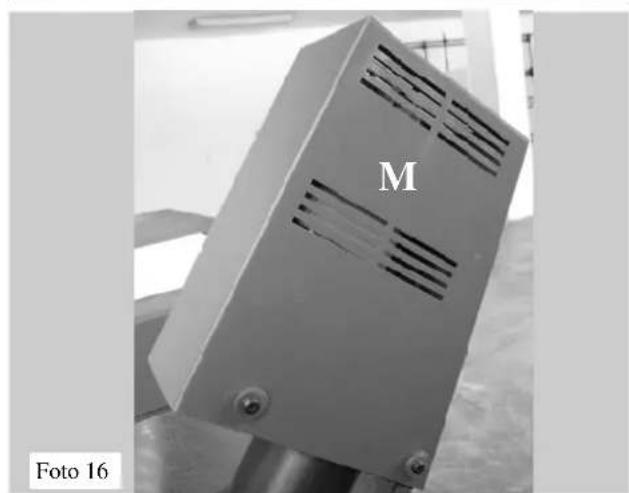

Metallic device with ventilation slots and label 'M', no readable text or symbols beyond the label

ELEKTROANSCHLÜSSE

Aux IN CN11 UTAG CN15 CN17 CN18 CN21 CN22 CN23 CN24 CN25 CN26 CN27 CN28 CN29 CN30 CN31 CN32 CN33 CN34 CN35 CN36 CN37 CN38 CN39 CN40 CN41 CN42 CN43 CN44 CN45 CN46 CN47 CN48 CN49 CN50 CN51 CN52 CN53 CN54 CN55 CN56 CN57 CN58 CN59 CN60 CN61 CN62 CN63 CN64 CN65 CN66 CN67 CN68 CN69 CN70 CN71 CN72 CN73 CN74 CN75 CN76 CN77 CN78 CN79 CN80 CN81 CN82 CN83 CN84 CN85 CN86 CN87 CN88 CN89 CN90 CN91 CN92 CN93 CN94 CN95 CN96 CN97 CN98 CN99 CU101A1A1A1A1A1A1A1A1A1A1A1A1A1A1A1A1A1A1A1A1A1A1A1A1A1A1A1A1A1A1A1A1A1A1A1A1A1A1A1A1A1A1A1A1A1A1A1A1A1A1Cn10000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000Cn19Bn2Bn2Bn2Bn2Bn2Bn2Bn2Bn2Bn2Bn2Bn2Bn2Bn2Bn2Bn2Bn2Bn2Bn2Bn2Bn2Bn2Bn2Bn2Bn2Bn2Bn2Bn2Bn2Bn2Bn2Bn2Bn2Bn2Bn2Cn7Cn8Cn9Cn10Cn11Cn12Cn13Cn14Cn15Cn16Cn17Cn18Cn19Cn20Cn21Cn22Cn23Cn24Cn25Cn26Cn27Cn28Cn29Cn30Cn31Cn32Cn33Cn34Cn35Cn36Cn37Cn38Cn39Cn40Cn41Cn42Cn43Cn44Cn45Cn46Cn47Cn48Cn49Cn50Cn51Cn52Cn53Cn54Cn55Cn56Cn57Cn58Cn59Cn60Cn61Cn62Cn63Cn64Cn65Cn66Cn67Cn68Cn69Cn70Cn71Cn72Cn73Cn74Cn75Cn76Cn77Cn78Cn79Cn80Cn81Cn82Cn83Cn84Cn85Cn86Cn87Cn88Cn89Cn90Cn91Cn92Cn93Cn94Cn95Cn96Cn97Cn98Cn99Cn100DcNcNcNcNcNcNcNcNcNcNcNcNcNcNcNcNcNcNcNcNcNcNcNcNcNcNcNcNcNcNcNcNcNcNcNcNcNcNcNcNcNcNcNcNcNcNcNcNcNcNcMmSchneckeSnsor Behälter HeizkesselSnsor Behälter SilosSensor Behälter HeizkesselSensor Behälter SilosSensor Behälter HeizkesselSensor Behälter HeizkesselSensor Behälter HeizkesselSensor Behälter HeizkesselSensor Behälter HeizkesselSensor Behälter HeizkesselSensor Behälter HeizkesselSensor Behälter HeizkesselSensor Behälter HeizkesselSensor Behälter HeizkesselSensor Behälter HeizkesselSensor Behälter HeizkesselSensor Behälter HeizkesselSensor BehälsterHeizkesselSensor BehälsterHeizkesselSensor BehälsterHeizkesselSensor BehälsterHeizkesselSensor BehälsterHeizkesselSensor BehälsterHeizkesselSensor BehälsterHeizkesselSensor BehälsterHeizkesselSensor BehälsterHeizkesselSensor BehälsterHeizkesselSensor BehälsterHeizkesselSensor BehälsterHeizkesselSensor BehälsterHeizkessel sensor behavior in the circuit of the circuit of the circuit of the circuit of the circuit of the circuit of the circuit of the circuit of the circuit of the circuit of the circuit of the circuit of the circuit of the circuit of the circuit of the circuit of the circuit of the circuit of the circuit of the circuit of the circuit of the circuit of the circuit of the circuit of the circuit of the circuit of the circuit of the circuit of the circuit of the circuit of the circuit of the circuit of the circuit of the circuit of 230Vac Netz

Exploded view diagram of a mechanical component with labeled parts (no text or symbols beyond labels)

Interior layout diagram of a room with circular elements and labeled components, no readable text or symbols

Exterior view of a vehicle or industrial facility with two circular components and a numbered label '2' (no readable text or symbols beyond labels)

Close-up of a mechanical component with a coiled cable and labeled part 1, no readable text or symbols beyond label

Close-up of a mechanical component with a numbered part (3) and a circular housing, no visible text or symbols.

Electronic component with labeled pins and wiring, no readable text or symbols beyond labels

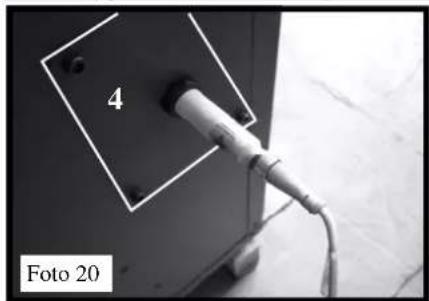

Close-up of a cable plugged into a wall socket, labeled '4' and 'Foto 20' (no other text or symbols visible)

15:29 SPENTO

Abb. 25

15:29 SPENTO

Abb. 29

ALARM

• 2006/42/EC
• 2006/95/EC
• 2004/108/EC

NEDERLANDS A M F G I C L A D H E B

A = tank

Close-up of a mechanical component with a labeled part 'D' (no other text or symbols visible)

E Foto 4

F D Foto 5 Foto 6

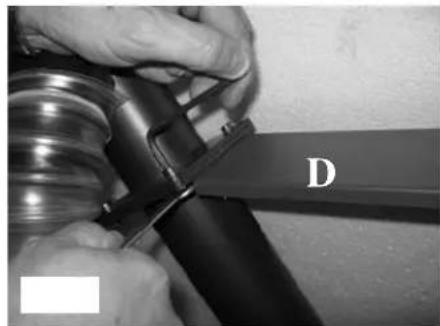

Close-up of hands cutting a black mechanical component with a knife labeled 'D' (no text or symbols on the object itself)

Simple hand-drawn oval shape on a textured gray background, labeled 'Foto 7' in bottom-left corner (no other text or symbols)

G H Foto 8 Foto 9

G H

F G Foto 10

COMPONENTEN MONTEREN

Bevestig de elektronische regelaar (I) op de tank

Hand inserting a screwdriver into an electronic circuit board labeled 'I', with 'Foto 11' visible at bottom left (no other text or symbols)

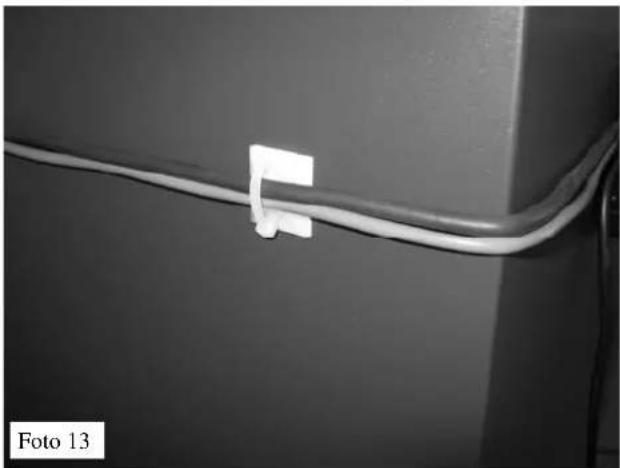

Close-up of a white cable with a small square clip attached, mounted on a wall (no text or symbols visible)

Close-up of a metallic mechanical component with threaded connectors and wiring, labeled 'Foto 15' in the corner (no other text or symbols visible)

Close-up of a mechanical device labeled 'P' mounted on a cabinet, with no visible text or symbols beyond the label.

D Foto 14

Metallic industrial component with ventilation slots and label 'M', no readable text or symbols beyond the label

AUX IN CN11 UTAG CN15 CN17 CN5 CN21 CN7 ENQ 5-GNDBLU N PEL NH2O N AMB TERM CN7 CN19 AUX2 AL3 CN6 V2/PO N AL1 AL2 ACC COC CN4 SCA FLUMI N F CN8 Aarde CN2 AUX CN7 CN5 S Sensor tank ketel Sensor tank silo Schroef m Lichtnet 230Vac afb. A

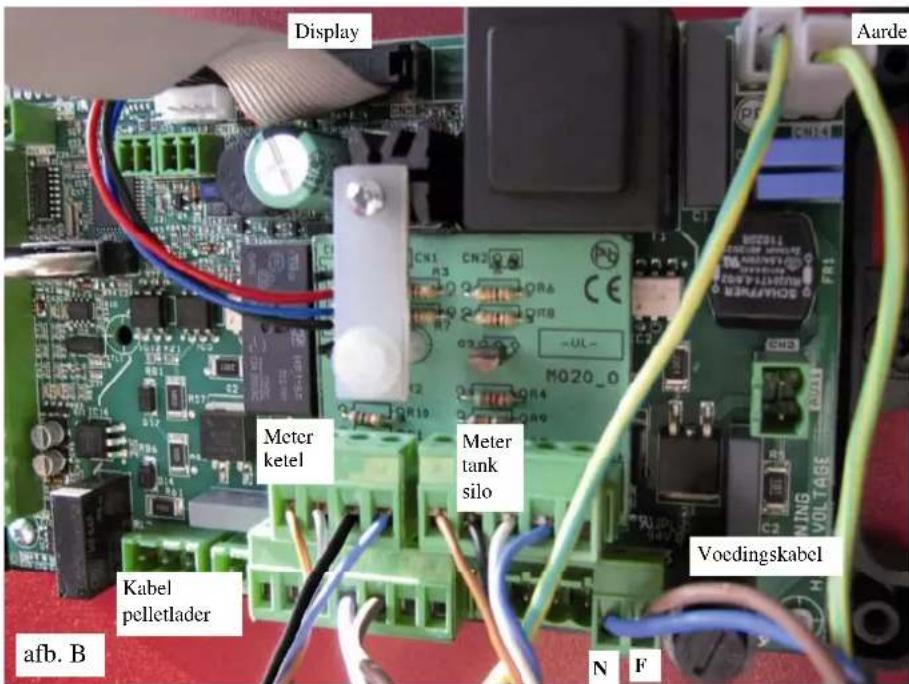

Display Aarde M020_0 Meter ketel Meter tank silo Kabel pelletlader afb. B Voedingskabel N F

Interior view of a room with a circular object, floor plan, and equipment (no readable text or symbols)

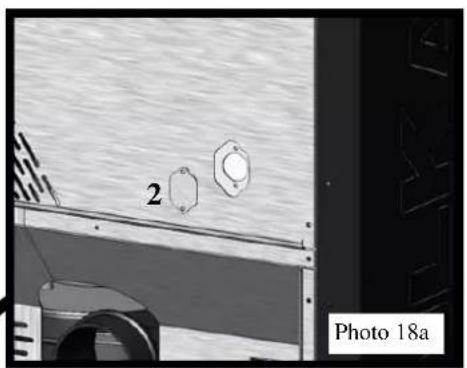

Exterior view of a vehicle or industrial facility with two circular components labeled '2' and 'Foto 18a' (no readable text beyond labels)

Close-up of a mechanical component with a coiled cable and labeled part 1, no readable text or symbols beyond label

Technical diagram showing a mechanical assembly with a numbered component and a circular housing (no text or symbols)

Close-up of a plug inserted into a wall socket, labeled '4' and 'Foto 20' (no other text or symbols visible)

15:29 SPENTO

Afb. 25

De controle inschakelen

15:29 SPENTO

Afb. 29

ALLARMEN

Alarm extra tank leeg.

• 2006/42/EC
• 2006/95/EC
• 2004/108/EC
