WS400DUO - Bluetooth speaker THOMSON - Free user manual and instructions

Product type	Bluetooth bookshelf speaker
Brand	Thomson
Model	WS400DUO
Bluetooth version	5.0
RMS power	2 x 7.5 W
Peak power	45 W
Impedance	4 Ω
Frequency response	50 Hz – 20 kHz
Signal-to-noise ratio	≥ 55 dB
Dimensions (W x H x D)	300 x 170 x 220 mm
Weight	3.2 kg
Power supply	DC 9 V / 2 A via included power adapter
Power adapter	Model THX-090200KDV, input 100-240 V 50/60 Hz, output 9 V 2 A
Standby power consumption	0.4 W
Bluetooth transmission distance	10 m (max)
Main functions	Bluetooth playback, AUX input (RCA), remote control, auto standby
Box contents	Speaker set, speaker cable, power adapter, remote control, manual
Cleaning	Soft dry cloth, no abrasive products
Recommended use	Indoors only, at least 20 cm from the body
Warranty	2 years
Manufacturer	Bigben Interactive

Frequently Asked Questions - WS400DUO THOMSON

How to connect my phone via Bluetooth?

Turn on the speaker with the remote control, press the BT button to switch to Bluetooth mode. Enable Bluetooth on your phone and search for devices. Select WS400DUO from the list. If prompted, enter the PIN code 0000.

What to do if the sound is distorted?

Check that the volume is not at maximum. Reduce the volume on the speaker or the audio source. Make sure the distance between the speaker and the Bluetooth source does not exceed 10 meters and that no obstacles interfere.

How to use the AUX input?

Connect an RCA audio cable (not included) from your audio source to the AUX input of the speaker. Turn on the speaker and press the AUX button on the remote control. Control playback from your device.

How to clean the speaker?

Unplug the speaker before cleaning. Use a soft dry cloth. Do not use abrasive products, solvents, or harsh cleaners.

The remote control does not work, what to do?

Check the remote control batteries: use AA Ni-MH, alkaline, or lithium batteries. Ensure correct polarity. Point the remote at the speaker and move closer.

Can I use the speaker outdoors?

No, the speaker is designed for indoor use only. Do not expose it to rain, moisture, or heat sources.

How to reset the device?

In case of electrostatic discharge, the speaker may turn off. Unplug the adapter and plug it back in after a few seconds. If the problem persists, contact technical support.

What is the battery life?

The speaker does not have a built-in battery; it must always be plugged into the power adapter. The remote control uses replaceable batteries.

What to do in case of Bluetooth pairing problem?

Make sure the speaker is in BT mode and your phone is within 1 meter. Remove the device 'WS400DUO' from your phone's Bluetooth list and restart the search. Restart the speaker if necessary.

How to recycle the speaker at end of life?

Do not discard the speaker with household waste. In accordance with the European directive, take it to a separate collection point for waste electrical and electronic equipment. Batteries must be removed and recycled separately.

USER MANUAL WS400DUO THOMSON

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPANA, [e-mail]

Tel.: [phone]

ITALIA,[e-mail]

Tel.:[phone]

www/bigben.eu

WS400DUO

Bookshelf speakers

USERINSTRUCTIONS

PLEASE READ THIS USER MANUAL CAREFULLY BEFORE OPERATING THE UNIT AND RETAIN FOR FUTURE REFERENCE.

Getting started 11

Safety warning and notice 11

Contents of the box 13

Description of parts 13

Features and connections 14

Warning about batteries 15

Technical specifications 15

Technical specifications of the adapter 16

Environmental protection 17

Additional information 17

Declaration of conformity 17

Warranty 18

Getting started

Take the device out of the box.
- Remove all the packaging from the product.
- Place the packaging inside the box or dispose of it safely in compliance with the waste sorting instructions shown on the outside.

Safety warning and notice

You must read and understand all the instructions before using this device. The warranty will not apply if damage is caused by failure to follow the instructions.

1. Never remove the device casing.
2. Never place this device on top of other electrical equipment.
3. Protect the power cable from being stepped on or pinched, particularly at the plugs, sockets, and the point where it exits the device. Make sure that the power rating corresponds to the voltage shown on the rating plate at the rear of the device. Always pull the plug from the socket when disconnecting from the mains. Never pull on the cable. Ensure you have completed all the other connections before connecting the mains plug.
4. Only use attachments/accessories that are recommended by the manufacturer.

5. Entrust all device repairs to qualified repairers. Repair is needed when there has been damaged in any fashion, and in particular:

6. if the power cable is damaged;

7. in the event of a liquid spill or objects being inserted into the device;
8. if the device is exposed to rain or dampness;
9. if the device does not operate normally;

10. or if the device has been dropped or impacted.

11. The series panel is located on the bottom of the device.

12. Never block the air vents.
13. Make sure you have enough space for ventilation. Place the product on a stable surface.
14. This device must be used in a moderate climate, away from direct sunlight, naked flames or sources of heat, heaters, cookers or any other devices (including amplifiers) that generate heat. Do not install near a heat source.
15. The batteries (battery pack or inserted batteries) must not be exposed to excessive heat, such as sunshine, fire, etc.

1. Always unplug the device before cleaning it. Never lubricate any part of this device. Clean it with a soft cloth. Do not use abrasive products or harsh cleaners.
2. Ensure that you always have easy access to the power cable, plug or adapter to disconnect this device from the mains if necessary.
3. Do not use this device near water. It must not be dripped on or splashed. Do not use this device in a damp or wet environment.
4. Disconnect this device in the event of a storm, or if you intend not to use it for a long period of time.
5. This device can be used by children aged 8 and over, and by persons with a physical or sensory disability, learning difficulties or a lack of experience and knowledge, provided they are supervised or have received instructions on the safe use of the device, and they understand the risks involved. Children must not play with the device or the power cable (risk of strangulation). Children must not clean or maintain the device without supervision.
6. This device must only be supplied with very low safety voltage as indicated on the device.
7. The battery should be removed from the device before disposal. The device must be disconnected from the power supply when removing the battery.
8. When in operation, the device must be at a minimum distance of 20cm from the human body.
9. This device is for household use only; do not use outdoors.

The lightning bolt symbol within an equilateral triangle alerts users to the presence of dangerous uninsulated voltages, inside the device, that may present a risk of electric shock.

The exclamation mark inside a triangle indicates the presence of important operating and maintenance (repair) instructions in the literature accompanying the device.

Class II material

Direct current

Alternating current

For indoor use only

Contents of the box

Check and identify the contents of your box:

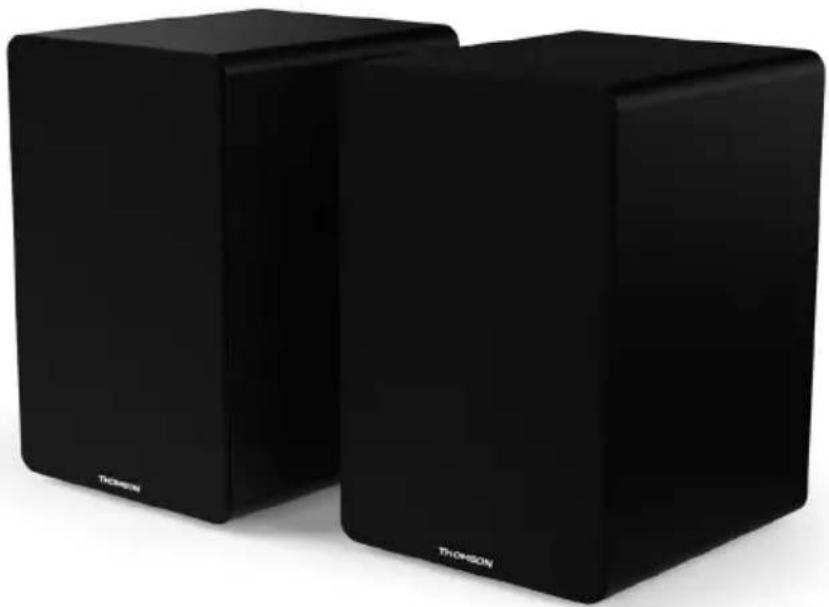

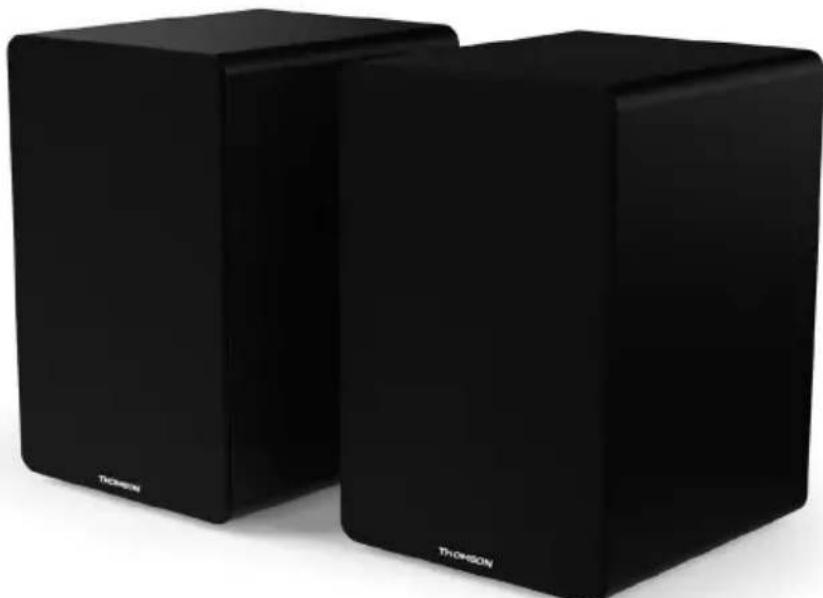

Bookshelf speaker set
- Speaker cable
- Mains adapter
Remote control
- User manual

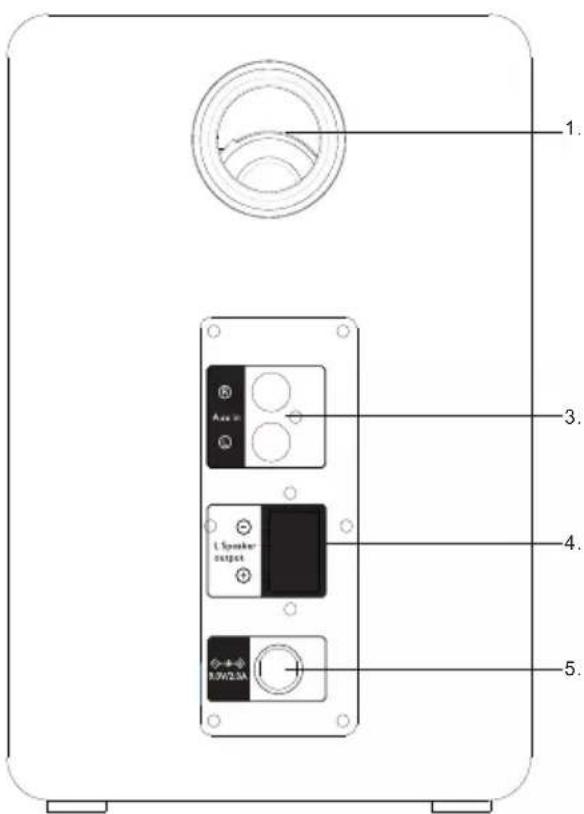

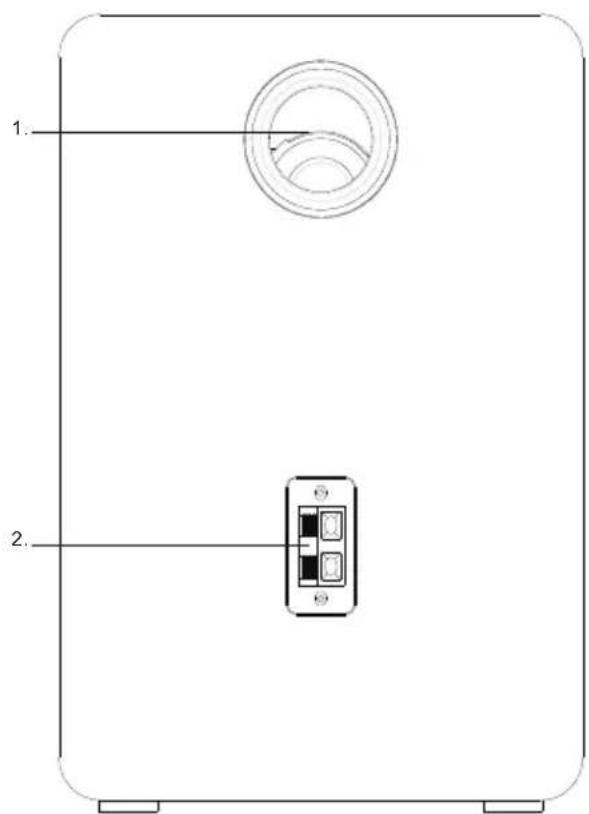

Description of parts

1. Bass reflex
2. Speaker input terminal
3. AUX input
4. Speaker output terminal
5. Power input

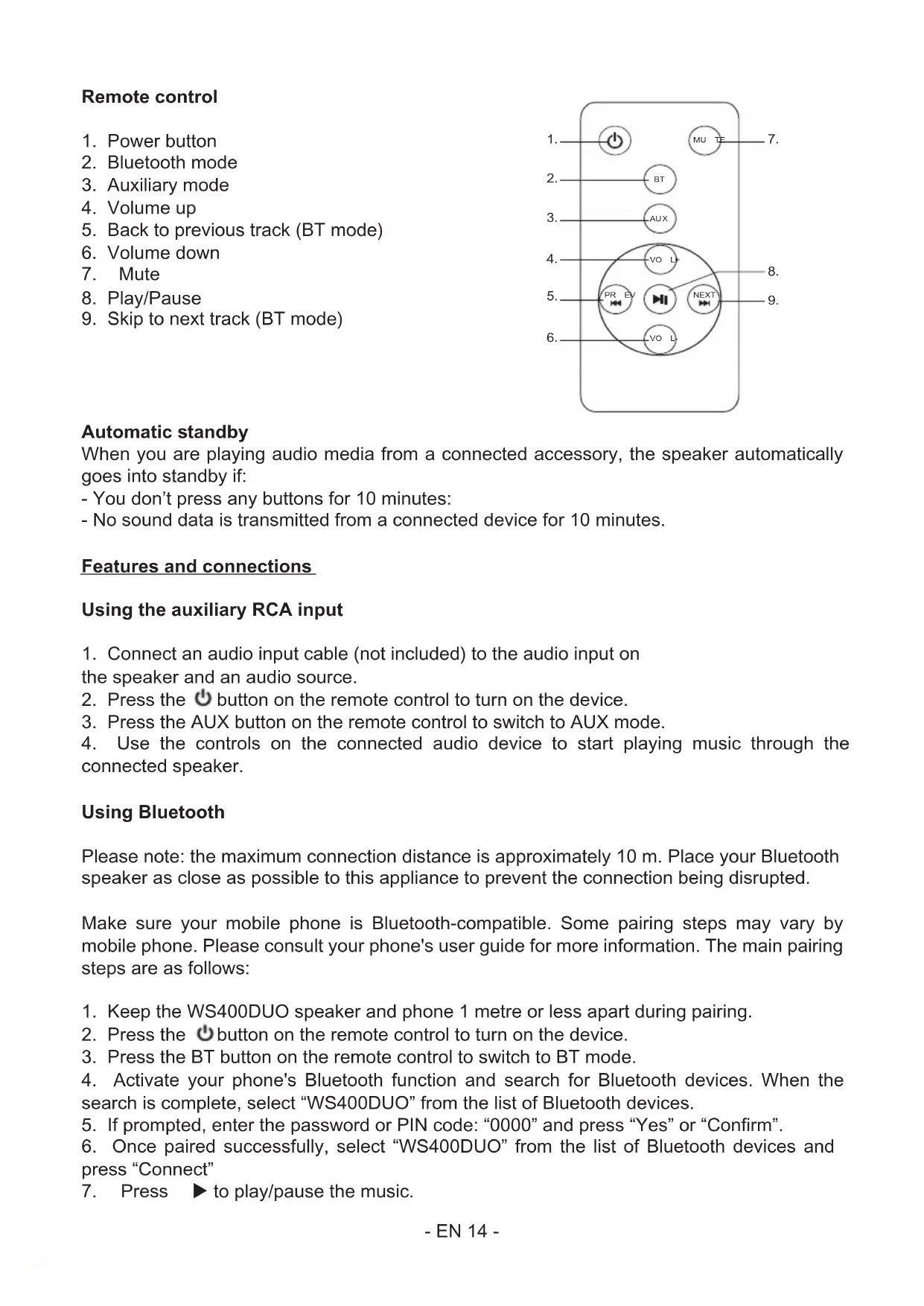

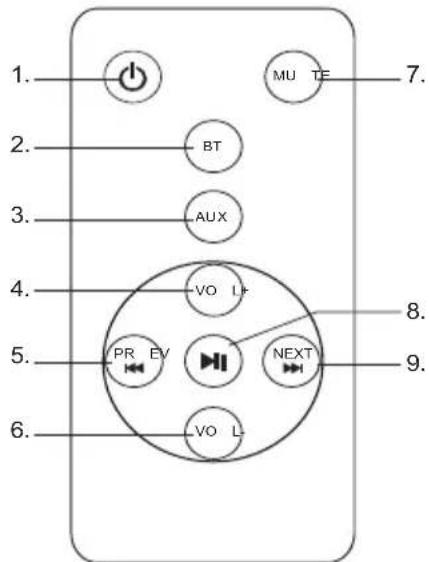

Remote control

1. Power button
2. Bluetooth mode
3. Auxiliary mode
4. Volume up
5. Back to previous track (BT mode)
6. Volume down
7. Mute
8. Play/Pause
9. Skip to next track (BT mode)

Automatic standby

When you are playing audio media from a connected accessory, the speaker automatically goes into standby if:

• You don't press any buttons for 10 minutes:
• No sound data is transmitted from a connected device for 10 minutes.

Features and connections

Using the auxiliary RCA input

1. Connect an audio input cable (not included) to the audio input on the speaker and an audio source.
2. Press the button on the remote control to turn on the device.
3. Press the AUX button on the remote control to switch to AUX mode.
4. Use the controls on the connected audio device to start playing music through the connected speaker.

Using Bluetooth

Please note: the maximum connection distance is approximately 10 m. Place your Bluetooth speaker as close as possible to this appliance to prevent the connection being disrupted.

Make sure your mobile phone is Bluetooth-compatible. Some pairing steps may vary by mobile phone. Please consult your phone's user guide for more information. The main pairing steps are as follows:

1. Keep the WS400DUO speaker and phone 1 metre or less apart during pairing.
2. Press the button on the remote control to turn on the device.
3. Press the BT button on the remote control to switch to BT mode.
4. Activate your phone's Bluetooth function and search for Bluetooth devices. When the search is complete, select "WS400DUO" from the list of Bluetooth devices.
5. If prompted, enter the password or PIN code: "0000" and press "Yes" or "Confirm".
6. Once paired successfully, select "WS400DUO" from the list of Bluetooth devices and press "Connect"

7. Press to play/pause the music.

8. Press "VOL+" to increase the volume.

9. Press "VOL-" to reduce the volume.
10. Press " " to return to the previous song.
11. Press " " to skip to the next song.

Warning about batteries

This product contains one or more batteries.

• Use batteries correctly to prevent any injury or re caused by a leak, overheating, explosion, erosion or other damage.
• Keep new and used batteries out of the reach of children or any vulnerable person. Stop using the device if the battery compartment does not close properly.
  If the liquid from an alkaline battery comes into contact with skin or eyes, rinse immediately with fresh water and consult a physician.
• If an alkaline battery leaks, clean the liquid with a cloth and replace the battery with a new one.
• Do not swallow batteries. If swallowed, a battery can cause severe internal burns in 2 hours and can cause death. If batteries are swallowed, contact a poison centre immediately and consult a physician.
• Use AA Ni-MH, alkaline or lithium batteries.
• Do not charge these batteries. Charging non-rechargeable batteries generates gas or heat emissions that can cause explosions or res.
• Do not use different types of batteries or a mixture of new and old batteries.
• Insert the batteries according to the correct polarity (+ and -).
• Do not allow the same battery poles to be in contact.
• Remove spent batteries quickly. There is a risk of the battery exploding if it is not replaced or if the device is unused for a long period of time.
• Replace the battery with an identical or equivalent model.
• The batteries (or battery pack) mu not be exposed to excessive heat, such as sunlight, re, etc.
• Do not heat batteries or dispose of them in a re or in water.
• Do not use metal pliers or metal objects such as the point of a pen or tweezers to remove batteries. Avoid deforming, crushing or piercing batteries.
• Do not disassemble the batteries.
• Cover the ends of the batteries with tape to prevent explosions and combustion when these are scrapped.
• Scrap batteries in an environmentally friendly way.
• Do not dispose of batteries in ordinary household waste.
• When disposing of batteries, be sure to follow local disposal regulations.

BATTERY WARNING

KEEP OUT OF REACH OF CHILDREN

Swallowing can lead to chemical burns, perforation of soft tissue, and death. Severe burns can occur within 2 hours of ingestion. Seek medical attention immediately.

Technical specifications

Type Specifications	Type Specifications
Speaker 101.6 MM, 8 W, 2 PCS		Impedance of the speaker	Soundbar: 4 Ω
Peak power 45 W		Bluetooth version	5.0
RMS power 2 x 7.5 W		Bluetooth frequency	2.402 - 2.480 GHz
Power consumption	0.4 W	Transmission range	10 m
Power input DC 9.0V /2.0A EIRP <6 dBm
S/B ratio ≥ 55dB		Bluetooth pairing name	WS400DUO
Speaker frequency	50 Hz - 20 kHz Weight 3.2	kg
Dimensions 300 x	170 x 220 mm

Technical specifications of the adapter

Manufacturer name or adapter brand: THX
- Adapter model number: THX-090200KDV
- Input voltage and frequency: mains power 100-240 V 50/60 Hz 0.65 A max
Output voltage, current, supply: 9.0 V, 2.0 A, 18.0 W
Average efficiency in active mode: 86.95%
- Low-load efficiency (10%): 93.6%
- No-load power consumption: ≤ 0.2W

N.B.: the maximum connection distance is approximately 10 metres. Place your Bluetooth speaker as close as possible to the device to avoid any interference with the connection.

The device may turn off in an environment with electrostatic discharge. The user must then recharge the battery and reset the device.

Your product has been designed and manufactured using high-quality materials and components that can be recycled and reused.

Attention should be drawn to the environmental aspects of battery disposal.

When the crossed-out wheelie bin symbol appears on a product, it means that the product is covered by European Directive 2002/96/EC. Please find out about the local sorting and collection system for electrical and electronic products. Please act according to local rules and do not dispose of your old products in your household waste. By ensuring this product is disposed of correctly, you are helping to prevent potentially negative consequences for the environment and human health.

Additional information

• When the device does not transmit audio output for a certain amount of time, it will automatically go into standby mode to save energy. It can then be switched back on using the power button
• If an incoming call is received while the WS400DUO system is connected to your mobile phone during music playback, the music will immediately pause when you answer the call, and start again once the call is finished (depending on the mobile phone, playback may sometimes stay paused after the end of the call).
• The word Bluetooth ®, the brand and logo are registered trademarks owned by Bluetooth SIG, Inc., and any use of such marks by Bigben Interactive is under licence. All other brands and trade names are the property of their respective owners.
• THOMSON is a trademark of Talisman Brands, Inc. used under licence by Bigben Interactive.
• This product is manufactured and sold under the responsibility of Bigben Interactive.
• THOMSON and the THOMSON logo are trademarks operated under licence by Bigben Interactive – for more information: www.thomson-brand.com.
• All other products, services, corporate names, trademarks, trade names, and logos referenced herein are the property of their respective owners.

Declaration of conformity

• Bigben Interactive hereby declares that the WS400DUO-type radio equipment is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://www/bigben-interactive.co.uk/support/

Warranty

This product is guaranteed by Bigben for a period of 2 years from the date of purchase, except in countries of the European Economic Area, which offer a longer warranty period. We recommend that you keep your receipt for any claims. The warranty covers breakdowns due to defective material, a missing element or manufacturing defect. In this case, contact our technical support. For any problem with a defective product, contact your point of purchase with your receipt. The warranty does not cover problems of improper use.

Support

www/bigben-interactive.co.uk/support

[e-mail]

Made in China
