USER MANUAL WS602DUO THOMSON

• Take the appliance out of the box.

• Remove all the packaging from the product.

• Place the packaging inside the box or dispose of it safely in compliance with the wa󰘵e sorting in󰘵ructions shown on the product packaging. Safety warning and notice You mu󰘵 read and under󰘵and all the in󰘵ructions before using this appliance. The warranty will not apply if damage is caused by failure to follow the in󰘵ructions.

1. Never remove the appliance casing.

2. Never place this appliance on top of other electrical equipment.

3. Protect the power cord from being 󰘵epped on or pinched, particularly at

the plugs, sockets, and the point where it exits the appliance. Make sure that the power voltage corresponds to the voltage shown on the rating plate at the rear of the appliance. Always pull the plug from the socket when disconnecting from the mains. Never pull on the cord. Ensure you have completed all the other connections before connecting the plug.

4. Only use attachments/accessories that are recommended by the

5. Entru󰘵 all appliance repairs to quali󰘰ed repairers. Repair is needed when the appliance

has been damaged in any fashion, and in particular: - if the power cord is damaged; - in the event of a liquid spill or objects being inserted into the appliance; - if the appliance is exposed to rain or dampness; - if the appliance does not operate normally; - or if the appliance has been dropped or impacted.

6. The series panel is located on the bottom of the appliance.

7. Never block the air vents.

8. Make sure you have enough space for ventilation. Place the product on a 󰘵able surface.

9. This device mu󰘵 be used in a moderate climate, away from direct sunlight, naked 󰘱ames

or heat, heating devices, cookers or any other devices (including ampli󰘰ers) that generate heat. Do not in󰘵all near a heat source.

10. The batteries (battery pack or inserted batteries) mu󰘵 not be exposed to excessive heat,

such as sunshine, 󰘰re, etc. Getting 󰀬arted 11 Safety warning and notice 11 Contents of the box 13 Description of parts 13 Remote control 14 Description of the unit’s functions 14 Technical specications 16 Protection of the environment 17 Additional information 17 Declaration of conformity 17- EN 12 -

11. Always unplug the device before cleaning it. Never lubricate any part of this appliance.

Clean it with a soft cloth. Do not use abrasive products or harsh cleaners.

12. Ensure that you always have easy access to the power cord, plug or adaptor to disconnect

this appliance from the mains if necessary.

13. Do not use this appliance near water. It mu󰘵 not be dripped on or splashed. Do not use

this appliance in a damp or wet environment.

14. Disconnect this appliance in the event of a 󰘵orm or if you are not going to use it for a long

15. This appliance can be used by children aged 8 and over, and by persons with a physical

or sensory disability, learning di󰘲culties or a lack of experience and knowledge, provided they are supervised or have received in󰘵ructions on the safe use of the appliance, and they under󰘵and the risks involved. Children mu󰘵 not play with the appliance or power cord (risk of 󰘵rangulation). Children mu󰘵 not clean or maintain the appliance without supervision.

16. This device mu󰘵 only be supplied with very low safety voltage corresponding to the

marking on the device.

17. The battery should be removed from the device before disposal. The device mu󰘵 be

disconnected from the power supply when removing the battery.

18. The product mu󰘵 be at a minimal di󰘵ance of 20 cm from the human body when working.

19. This appliance is for household use only; do not use outdoors.

The lightning bolt symbol within an equilateral triangle alerts users to the presence of dangerous uninsulated electrical voltages inside the device that are 󰘵rong enough to present a risk of electric shock. The exclamation mark inside a triangle indicates the presence of important operating and maintenance (repair) in󰘵ructions in the literature accompanying the appliance.- EN 13 - Direct current Class II material Alternating current For indoor use only Contents of the box

• 3.5mm to 2 x RCA cable

• Speaker connection cable Description of parts

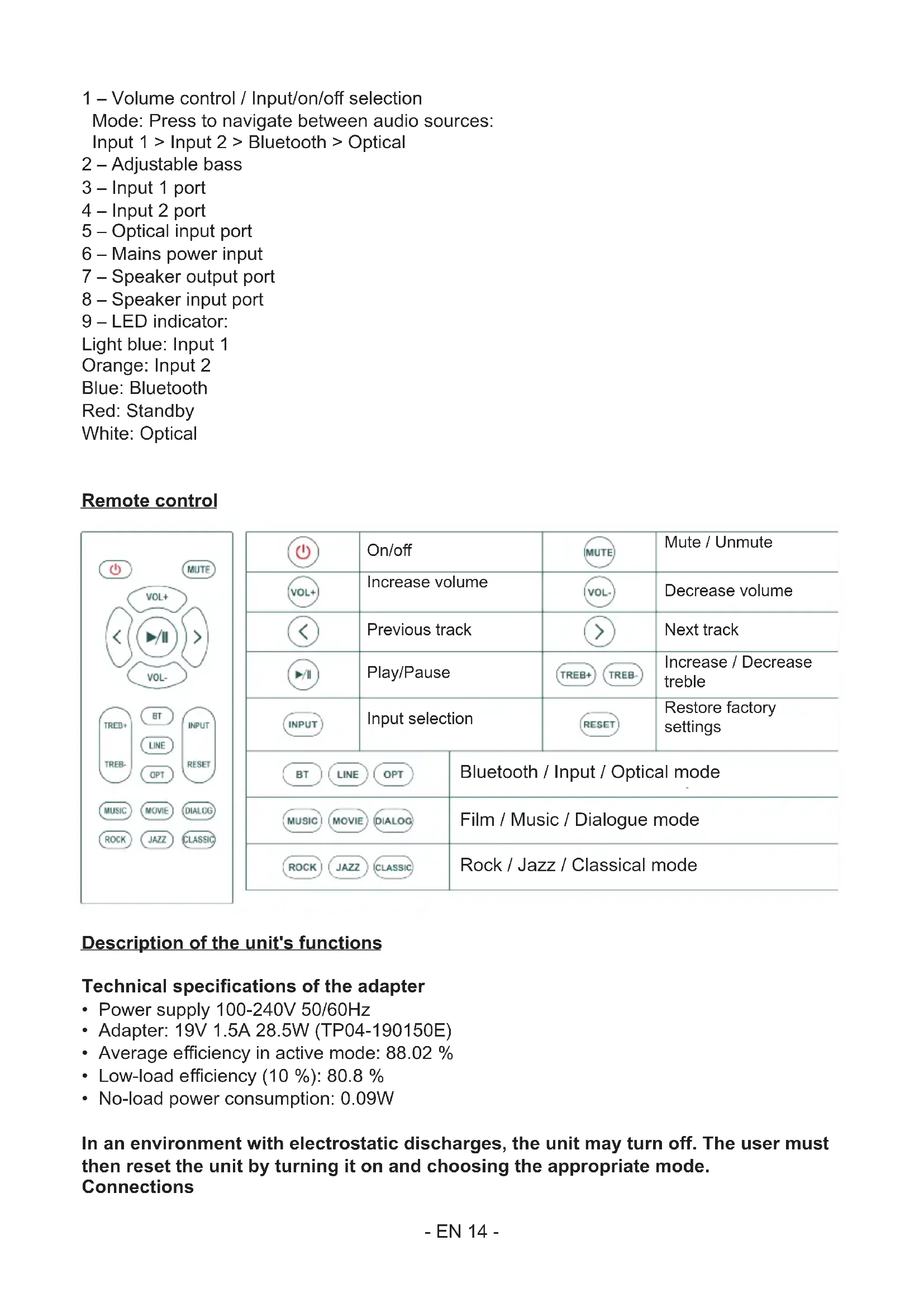

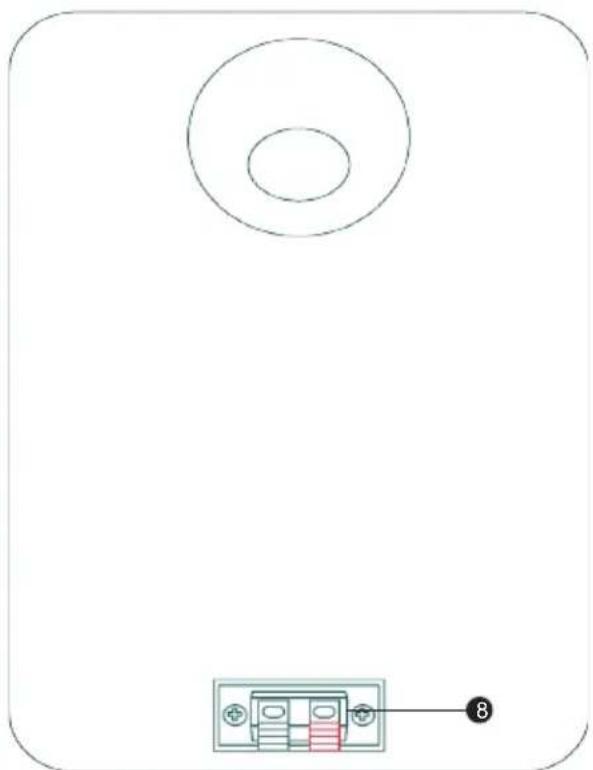

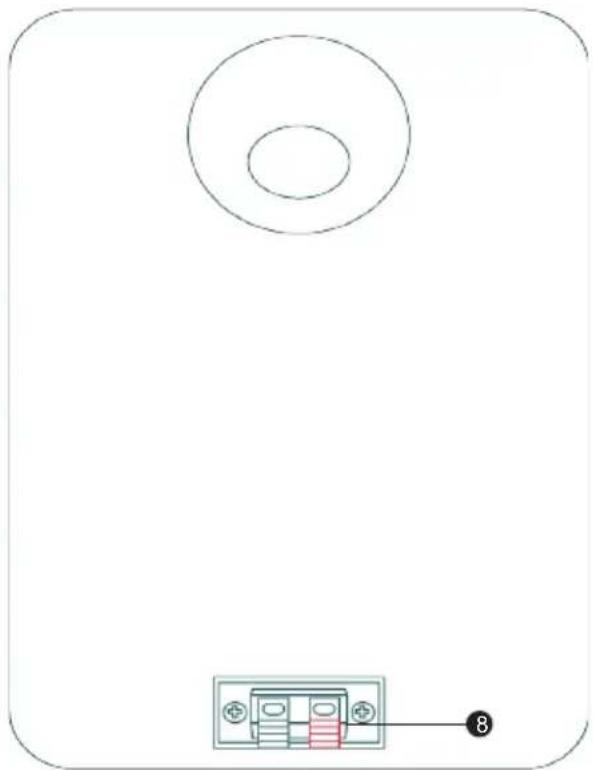

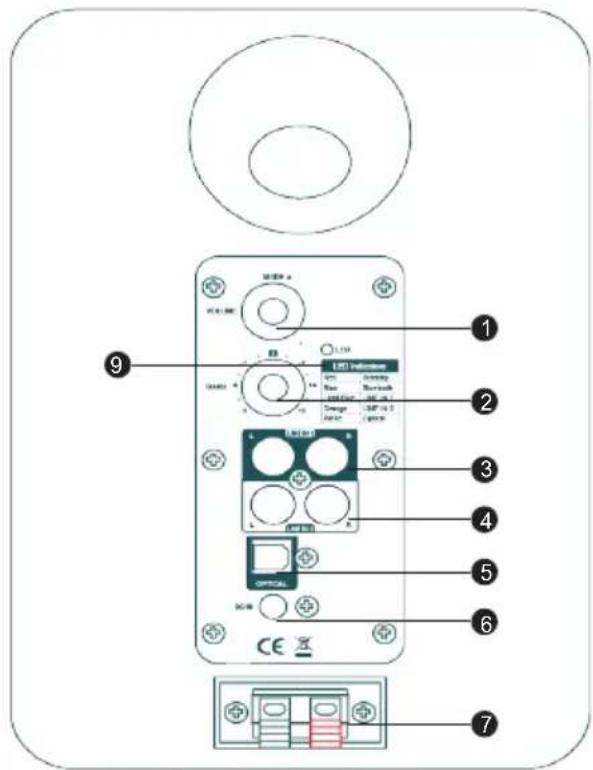

7 8- EN 14 - 1 – Volume control / Input/on/o󰘯 selection Mode: Press to navigate between audio sources: Input 1 > Input 2 > Bluetooth > Optical 2 – Adju󰘵able bass 3 – Input 1 port 4 – Input 2 port 5 – Optical input port 6 – Mains power input 7 – Speaker output port 8 – Speaker input port 9 – LED indicator: Light blue: Input 1 Orange: Input 2 Blue: Bluetooth Red: Standby White: Optical Remote control Description of the unit's functions Technical speci󰄈cations of the adapter

• Average e󰘲ciency in active mode: 88.02 %

• Low-load e󰘲ciency (10 %): 80.8 %

• No-load power consumption: 0.09W In an environment with electro󰄋atic discharges, the unit may turn o󰓐. The user mu󰄋 then reset the unit by turning it on and choosing the appropriate mode. Connections On/o󰘯 Previous track Bluetooth / Input / Optical mode Film / Music / Dialogue mode Rock / Jazz / Classical mode Play/Pause Input selection Next track Increase volume Decrease volume Mute / Unmute Increase / Decrease treble Re󰘵ore factory settings- EN 15 -

1. Connect the speakers using the connecting cable provided.

2. Connect to power source: the 󰘵andby indicator lights up.

When you connect the audio cable, remember to connect the terminals according to the correct polarity as indicated. *Make sure the black cable is plugged into the same colour on each speaker (e.g. black power supply to black power supply) and that the black and white cable is connected to the same colour on each speaker (e.g. red power supply to red power supply). If the connection is reversed, the sound quality will be lower. Audio input

1. Press the "Mode" button to select the audio input.

The indicator turns blue for Input 1 and orange for Input 2.

2. Use the appropriate RCA cable to connect an audio source to the speakers.

3. Play music from your connected device and adju󰘵 the volume on your device or by

turning the "Mode" button. Bluetooth operation

1. Turn on the speakers and switch to Bluetooth mode by pressing the main volume button

on the back of the active speaker. The indicator turns blue.

2. Use the "Settings" function of your source device (mobile phone, tablet, etc.) and search

for nearby Bluetooth devices: you will 󰘰nd "WS600DUO" in the li󰘵.

3. Pair your device with "WS600DUO".

4. Play the audio tracks on your connected device and adju󰘵 the volume according to your

5. return to the "Settings" of your connected device to disconnect Bluetooth.

Comment: The maximum range is approximately 10 metres. Place your Bluetooth speaker as close as possible to the connected device to avoid interference with the connection. Troubleshooting Problem Solution No sound Check that the power indicator is ON. Try increasing the volume with the central control knob or the remote control Make sure the audio cables are securely connected and the input is properly set to the speakers. Check if there is an output signal from the audio source.- EN 16 - Unable to connect via Bluetooth Make sure that the speaker is set to the Bluetooth input; in another audio input mode, Bluetooth cannot be paired or connected. Disconnect any Bluetooth device by pressing and holding the volume button in Bluetooth mode, then try again. The WS600DUO bookshelf speaker does not turn on Given the e󰘯ective Bluetooth transmission range of 10 metres, remember to make good use of it without exceeding this range. Try another Bluetooth device to be connected. Check that the unit is properly connected to the mains and that the switch of the mains socket is in the on position. Technical specifications Type Specications Type Specications Complete speaker sy󰘵em 4" (10W)*2 Tweeter 1.25" (5W)*2 Peak power 30 W Wireless frequency 2,402 - 2,480 MHz RMS power 30 W Bluetooth version 5.0 Power consumption 0.09 W EIRP -2.9 dBm Power supply DC 19V, 1.5A Di󰘵ortion ＜1 % Impedance of the speaker 6Ω/woofer, 8Ω/ tweeter Speaker frequency 60 Hz - 20 kHz S/B ratio ≥80dB Input Bluetooth, INPUT1 (RCA), INPUT2 (RCA), Optical Bluetooth pairing name WS600DUO Loud-speaker 4 cm, 2.25 ohm speaker Size 150 x 170 x 235mm Transmission range 10 m- EN 17 - Protection of the environment Your product has been designed and manufactured using high-quality materials and components that can be recycled and reused. Attention should be drawn to the environmental aspects of battery disposal. When this crossed-out wheelie bin symbol is applied to a product, it means that the product is covered by European Directive 2002/96/EC. Please 󰘰nd out about the local separate collection sy󰘵em for electrical and electronic products. Please act according to your local rules and do not dispose of your old products in your household wa󰘵e. By ensuring this product is disposed of correctly, you are also helping to prevent potentially negative consequences for the environment and human health. Additional information

• If there is an incoming call while the WS600DUO unit is connected to your mobile phone during music playback, the music will immediately pause when you answer the call and resume after the call ends (depending on the mobile phone, playback may sometimes 󰘵ay paused after the end of the call).

, the mark and logo are regi󰘵ered trademarks owned by Bluetooth SIG, Inc., and any use of such marks by Bigben Interactive is under licence. All other brands and trade names are the property of their respective owners.

• THOMSON is a trademark of Talisman Brands, Inc. used under licence by Bigben Interactive.

• This product is manufactured and sold under the responsibility of Bigben Interactive.

• THOMSON and the THOMSON logo are trademarks operated under licence by Bigben Interactive – for more information: www.thomson-brand.com.

• All other products, services, corporate names, trademarks, trade names, product names and logos referenced herein are the property of their respective owners. Declaration of conformity
