WSLMC - Bluetooth speaker THOMSON - Free user manual and instructions

Product type	Portable Bluetooth speaker with RGB LED lighting
Brand	Thomson
Model	WSLMC
Power supply	Rechargeable via USB (5 V, 1 A)
Charging time	2 to 3 hours
Battery life	6 to 8 hours (with LED lighting)
Bluetooth	Yes, pairing name: WSLMC
Audio inputs	USB, AUX 3.5 mm, Bluetooth
Source priority	USB > AUX > Bluetooth
Lighting	RGB LED with multiple modes (fixed color, scrolling, beat flashing, white)
Remote control	Yes, included (button cell)
Hands-free function	Yes (built-in microphone, automatic pause during a call)
Box contents	Speaker, micro USB cable, AUX cable, remote control, user manual
Maintenance and cleaning	Wipe with a soft dry cloth. Do not use harsh liquids.
Safety	Do not expose to water or heat sources. Keep batteries out of reach of children.
Repairability	Entrust any repairs to a qualified professional. Remote control battery replaceable.
Customer service	Toll-free call: 09 69 32 59 62 (France) or [e-mail]

Frequently Asked Questions - WSLMC THOMSON

How do I turn on the speaker?

Press and hold the power button (located at the bottom of the speaker) for 2-3 seconds. The light and Bluetooth turn on automatically.

How do I pair the speaker via Bluetooth?

Turn on the speaker, then enable Bluetooth on your device. Select "WSLMC" from the list of available devices. Keep the devices within 1 meter during pairing.

How do I charge the speaker?

Connect the provided micro USB cable to the DC IN 5V port of the speaker. During charging, the red indicator lights up; it turns off when charging is complete. Charging time is 2 to 3 hours.

What is the battery life of the speaker?

The battery life is 6 to 8 hours of music with LED lighting on.

Can I use the speaker while charging?

Yes, you can listen to music while the speaker is charging. Ensure the cable is properly connected.

How do I use the remote control?

The remote control allows you to control power, lighting (color, intensity, modes), playback (previous, next, pause/play), and volume. Make sure the button cell battery is correctly inserted.

What should I do if the speaker does not turn on?

Check that the speaker is charged. Plug it into a power source. If it still does not turn on, contact technical support.

How do I switch between audio sources?

The source priority is: USB > AUX > Bluetooth. Connecting a USB or AUX device automatically switches to that source. You can also use the remote control to manually select the source (Bluetooth, AUX, USB buttons).

Does the speaker have a microphone for calls?

Yes, it has a built-in microphone. During an incoming call, the music pauses. At the end of the call, playback resumes automatically (depending on the phone).

How do I clean the speaker?

Use a soft dry cloth to wipe the speaker. Do not use chemical or abrasive products. Avoid letting liquids enter the openings.

USER MANUAL WSLMC THOMSON

White plastic basket with green handle and white ribbed interior (no text or symbols)

MODE D'EMPLOI

LISEZ COMPLÈTEMENT CE MANUEL D'UTILISATION AVANT D'UTILISER CET APPAREIL ET CONSERVEZ CE LIVRET POUR VOUS Y RÉFÉRER ULTÉRIEUREMENT.

Table des matières

FLASH SOFT AUX USB THOMSON

Utilisation

ALLUMER/ÉTEINDRE L'ENCEINTE LUMINEUSE

OTHER LANGUAGES : https://www.bigbeninteractive.com/support/

RoHS CE REACH

Fabricant : Bigben Interactive FRANCE

396, Rue de la Voyette, C.R.T. 2 Fretin,

CS 90414 - 59814 LESQUIN Cedex, France

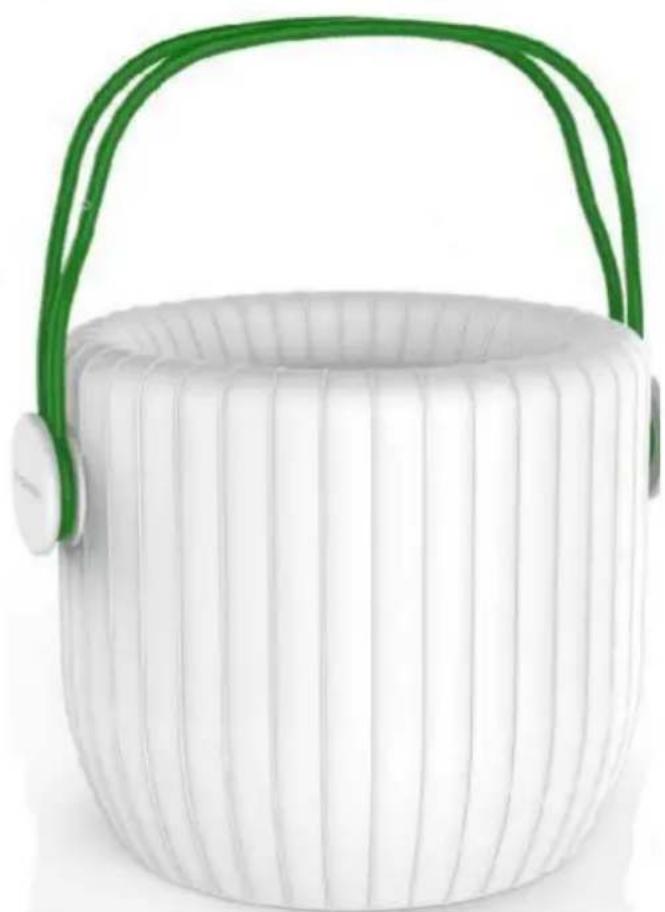

BLUETOOTH LUMINOUS SPEAKER WSLMC

White plastic basket with green handle and white ribbed interior (no text or symbols)

OPERATING INSTRUCTIONS

PLEASE READ OPERATING INSTRUCTIONS CAREFULLY BEFORE USE AND KEEP FOR FUTURE REFERENCE.

Contents

Warnings and precautions 1

Important safety instructions

Information about batteries

Contents

Product operation panel

Specifications

Operation

Charging

2

3

Playing music via Bluetooth

Playing music via USB player

Playing music via AUX in cable

Priority of audio source: Bluetooth /USB/AUX

Operation by remote control 4

Battery replacement

Warning

Remarks

5

Warnings and precautions

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN ATTENTION RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR

Important safety instructions

• Read these instructions.
• Keep these instructions.
• Heed all warnings.
• Follow all instructions.
  • Refer all servicing to qualified service personnel.
• Do not expose the unit to dripping or splashing and make sure that no objects filled with liquids, such as vases, are placed on it.
  • Class I appliances must be connected to the mains socket outlet with a protective-earth connection.
• The mains plug connects the device and should remain operable during use.
• To disconnect the unit from the mains, the plug should be fully disconnected from the mains socket outlet. The mains plug should not be obstructed and should be easily accessible during use.
• When a power indicator light is on, it indicates the unit is connected to the mains supply. When the light is off, it indicates the unit is fully disconnected from the mains supply.
• Minimum distances 10 cm around the apparatus for sufficient ventilations.
• The ventilation should not be impeded by covering the ventilation openings with items such as newspaper, table-cloths, curtains etc. Make sure there is enough free space around the product for ventilation.
• No naked flame sources such as lighted candles should be placed on the apparatus.
• Attention should be drawn to the environmental aspects of battery disposal.
• The apparatus should only be used in moderate climates.

Information about batteries (applicable only if batteries included)

• Polarity must be respected when inserting batteries.
• The batteries should be inserted in such a way as to avoid any short circuit.
• Do not mix used and new batteries.
• Do not mix alkaline, standard (carbon-zinc) and rechargeable (nickel-cadmium) batteries.
• Do not expose the battery to excessive heat such as sunshine or fire.

• Remove the batteries when they have not been used for a long time.

• If the liquid contained in the batteries comes in contact with eyes or skin, immediately and carefully wash the affected area with clear water and consult a doctor.

• The product/remote control may contain a coin/button type battery.

WARNING

Do not ingest the battery. Chemical burn hazard. This product contains a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death. Keep new and used batteries away from children. If the battery compartment does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.

CAUTION

Danger of explosion if battery is incorrectly replaced.

Replace battery only with the same or equivalent type.

Contents

1 x Luminous speaker
1 x Micro USB charging cable
1 x User manual
1 x Aux in 3.5mm cable
1 x Remote control

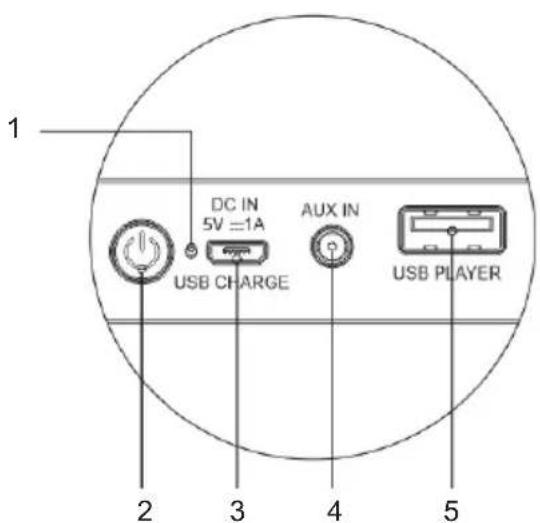

Product operation panel

1 DC IN 5V =1A USB CHARGE AUX IN USB PLAYER 2 3 4 5

1. Charging Indicator
2. Power Button
3. USB Charge
4. Aux In
5. USB Player

Remote Control FLASH SOFT AUX USB THOMSON

Specifications

Charging: 5V

Charging time: 2-3 hours

RGB LEDS

Working time: 6-8 hours for playing music and lighting

Bluetooth pairing name: WSLMC

Operation

1. Press and hold the power button on the speaker bottom for 2-3 seconds. The light and BT will turn on automatically.
2. Press and hold the power button on the speaker bottom for 2-3 seconds again. The light and BT will turn off automatically. Only after you press the button on the speaker is the speaker truly turned off.

Charging

1. Connect speaker with the Micro USB charging cable.
2. The RED LED indicator beside the power button will turn ON when charging and turn OFF when fully charged.
3. Unplug the USB charging cable when fully charged.

Playing music via Bluetooth

1. Turn on the speaker; keep the speaker and device within 1 meter of each other.
2. Start the Bluetooth function on your mobile and select "WSLMC" in the Bluetooth device list.

Playing music via USB player

- Turn on the speaker and insert the USB player into USB port. You can then listen to music from the USB player.

Playing music via AUX in cable

- Turn on the speaker. You can connect the music device to the luminous speaker via the AUX port using the cable included.

Priority of audio source: Bluetooth /USB/AUX

• Bluetooth is set as default. The speaker will play music via Bluetooth after being switched on.
• As soon as you plug in the USB the speaker will play music via USB. It will also play music via USB the next time you switch on the appliance if the USB is plugged in.
• As soon as you plug in AUX, the speaker will play music via AUX. It will also play music via AUX the next time you switch on the appliance if AUX is plugged in.
• If both USB and AUX are plugged in, the speaker will play via USB.

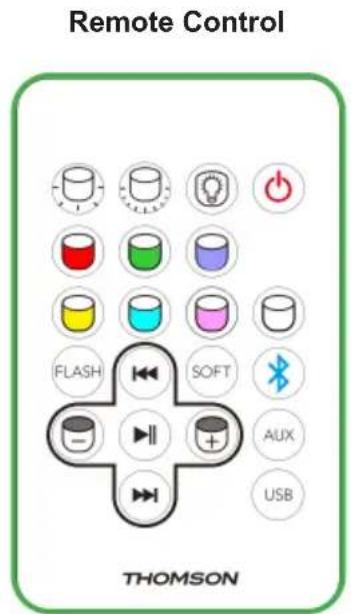

Operation by remote control

1		Stand by button: After turning on the speaker (by pressing the power button, which is located on the back of the speaker), press this button to turn off the light and Bluetooth, press again to turn on the light and Bluetooth.Press and hold this button to switch off the speaker. You will have to press the power button on the back of the speaker to turn on it again.
2		Brightness intensity button: Change the brightness intensity when the light is fixed on one single area.
3		Light ON/OFF button: Press this button to power the light on and off. Power on is the first step for all functions on the remote control. Once the color light is on, press the ON/OFF button again only to turn the lighting on or off. This color light has a memory storage function when the power is not exhausted. The light will stay in the same working mode or color it was last set to.
4	[+e+e]	Bluetooth function button: press this button to switch to Bluetooth function.
5	AUXUN function button: press this button to switch to AUX IN function.
6	USB player function button: press this button to switch to USB player function.
7		Color selection button: When the light is on, press this button to choose your favorite color as shown on the remote control (six colors).
8	FLASH	Music flash button: the light will flash when music is playing.
9	SOFT	Smooth button: 7 colors scrolling automatically.
10	[&=H]	White color button: press this button and the speaker will display a white color.
11		Previous button: when the Bluetooth or USB key is connected and the music is on, press this button to select the previous track.
12	[36X0]	Next button: when the Bluetooth or USB key is connected and the music is on, press this button to select the next track.
13		Pause and play: when the Bluetooth or USB key is connected and the music press this button to play or pause the music.
14	[###]	Voice - and + : when the Bluetooth or USB key is connected and the music is on, press the “-” to reduce the volume and press “+” to increase the volume.

Battery replacement (for remote control)

• If the remote control fails to activate the light, replace the battery.
• Move the slot beside the battery cover to the right side and the battery cover will pop out. Then take the battery out and replace it with a new one.
• Pay attention to the polarity of the battery on the cover and the cover direction when installing them back in the remote control.

Warning!

• Make sure that battery is inserted the right way and with the right polarity.
• Remove exhausted battery from the product.
• The supply terminals should not be short-circuited.
• Dispose of battery safely.

Remarks:

Don't discard the electrical and electronic appliances in the regular waste disposal.

a) Take them to a collection point.
b) Some components in these appliances may be hazardous to health and the environment.

- If there is an incoming call while “WSLMC” is connected to your cell phone for music playback, it will pause at once when you answer the call and resume after the call ended. (Sometimes it will pause after end the call, it depends on your cell phone.)

- The Bluetooth® word, mark and logo are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Bigben Interactive is under license. Other trademarks and trade names are those of their respective owners.

• THOMSON is a trademark of TECHNICOLOR SA or its affiliates used under license to Bigben Interactive.

The undersigned, Bigben Interactive declares that the radio equipment of the “WSLMC range” type complies with the 2014/53/EU directive. The complete text is available at https://www.bigben-interactive.co.uk/support/

EN : https://www.bigben-interactive.co.uk/support/

OTHER LANGUAGES : https://www.bigbeninteractive.com/support/

Manufactured by BIGBEN INTERACTIVE SA

396, Rue de la Voyette - CRT2 - FRETIN

CS 90414

59814 LESQUIN Cedex - France

www.bigben.eu

Made in China

RoHS CE REACH

Fabricant : Bigben Interactive FRANCE

396, Rue de la Voyette, C.R.T. 2 Fretin,

CS 90414 - 59814 LESQUIN Cedex, France

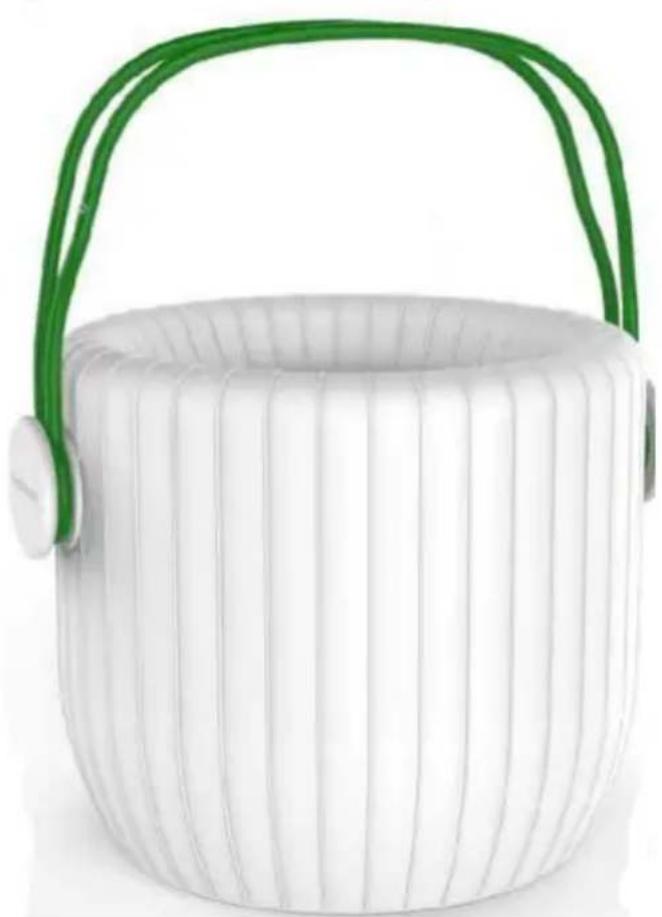

ALTAVOZ BLUETOOTH LUMINOSO WSLMC

White plastic basket with green handle and white ribbed interior (no text or symbols)

EN : https://www.bigben-interactive.co.uk/support/

OTHER LANGUAGES : https://www.bigbeninteractive.com/support/

RoHS CE REACH VIRI TECHNOLOGY

Fabricant : Bigben Interactive FRANCE

396, Rue de la Voyette, C.R.T. 2 Fretin,

CS 90414 - 59814 LESQUIN Cedex, France

White plastic basket with green handle and white ribbed interior (no text or symbols)

ISTRUZIONI D'USO

LEGGERE ATTENTAMENTE LE ISTRUZIONI SUL FUNZIONAMENTO PRIMA DI UTILIZZARE L'UNITÀ E CONSERVARLE PER CONSULTAZIONI FUTURE.

Indice

EN : https://www.bigben-interactive.co.uk/support/

OTHER LANGUAGES : https://www.bigbeninteractive.com/support/

Fabbricato da BIGBEN INTERACTIVE SA

396, Rue de la Voyette - CRT2 - FRETIN

CS 90414

59814 LESQUIN Cedex - Francia

www.bigben.eu

Prodotto in Cina

REACH

(1) 2017年1月1日

Fabricant : Bigben Interactive FRANCE

396, Rue de la Voyette, C.R.T. 2 Fretin,

CS 90414 - 59814 LESQUIN Cedex, France

White and green striped basket with a handle, no visible text or symbols

EN : https://www.bigben-interactive.co.uk/support/

OTHER LANGUAGES : https://www.bigbeninteractive.com/support/

White plastic basket with green handle and white ribbed interior (no text or symbols)

BEDIENUNGSANLEITUNG

FLASH SOFT AUX USB THOMSON

Betrieb

EN : https://www.bigben-interactive.co.uk/support/

OTHER LANGUAGES : https://www.bigbeninteractive.com/support/

RoHS CE REACH

Fabricant : Bigben Interactive FRANCE

396, Rue de la Voyette, C.R.T. 2 Fretin,

CS 90414 - 59814 LESQUIN Cedex, France

White plastic basket with green handle, no visible text or symbols

HANDLEIDING

LEES DEZE GEBRUIKSAANWIJZING ZORGVULDIG DOOR VOOR GEBRUIK EN BEWAAR VOOR LATERE RAADPLEGING.

Inhoud

EN : https://www.bigben-interactive.co.uk/support/

OTHER LANGUAGES : https://www.bigbeninteractive.com/support/

RoHS CE REACH REACH

Fabricant : Bigben Interactive FRANCE

396, Rue de la Voyette, C.R.T. 2 Fretin, CS 90414 - 59814 LESQUIN Cedex, France
