WS702 - Bluetooth speaker THOMSON - Free user manual and instructions

Brand	Thomson
Model	WS702
Product Type	Bluetooth Speaker
Dimensions (W x H x D)	430 x 170 x 150 mm
Weight	Not specified (estimated ~4 kg)
Power Supply	AC adapter: input AC 100-240V 50/60Hz, output DC 19V, 1.8A
Peak Power	50 W
RMS Power	50 W
Bluetooth Version	5.0
Bluetooth Transmission Distance	10 m
Speakers	2 x 4" woofer (20W) + 2 x 1.25" tweeter (5W)
Frequency Response	45 Hz - 20 kHz
Impedance	Woofer 4 Ω, tweeter 8 Ω
Inputs	Bluetooth, LINE (RCA), TV Audio, Optical, USB (MP3 playback up to 32 GB)
Outputs	AUX out (3.5 mm jack), Sub out
Standby Power Consumption	0.09 W
Box Contents	Main unit, remote control, AC adapter, 3.5 mm to 2 x RCA cable, optical cable, RCA to RCA cable, user manual
Maintenance and Cleaning	Unplug before cleaning; use a soft cloth; do not use abrasive products
Safety	Do not open the device; use in a temperate environment; keep away from water and heat; do not expose batteries to heat
Warranty	2 years (unless longer legal provisions in some countries)
General Information	Made in China; distributed by Bigben Interactive France; support contact: 09 69 39 79 59

Frequently Asked Questions - WS702 THOMSON

How to connect my phone via Bluetooth?

Ensure the speaker is in Bluetooth mode (blue LED indicator). On your phone, enable Bluetooth and search for devices. Select 'WS702' from the list. If pairing fails, disconnect all Bluetooth devices by holding down the volume button in Bluetooth mode, then try again.

What to do if the speaker produces no sound?

Check that the speaker is powered on (LED indicator on). Make sure the audio cables are properly connected and that the audio source is outputting a signal. Also check that the volume is not at minimum.

How to connect the speaker to my TV?

Use the TV Audio port on the back of the speaker with a high-speed TV cable (not included). Select TV mode (green LED indicator) by pressing the 'TV' button on the remote control or by turning the mode/volume knob. Set the TV audio output to 'PCM' in the audio settings.

Can I play music via a USB flash drive?

Yes, insert a USB flash drive (up to 32 GB, MP3 format) into the USB port on the back. Press the 'USB' button on the remote control or turn the mode/volume knob until the LED indicator turns pink. Playback starts automatically.

How to use the optical input?

Connect an optical cable (included) between the audio source (e.g., a TV) and the OPT port on the speaker. Select optical mode (white LED indicator) by pressing the 'OPT' button on the remote control or by turning the mode/volume knob.

I have no sound after an optical connection, what should I do?

Check that the optical cable is fully inserted. In your TV's audio settings, set the 'Audio output mode' to 'PCM'. Consult your TV manual if necessary, as menu names may vary.

How to use the remote control?

The remote control allows you to change source (BT, OPT, TV, USB, LINE), adjust volume, pause/play, skip to next/previous track, mute (MUTE), and select sound modes (MOVIE, MUSIC, VOICE).
Note: the remote control requires batteries (not included, AA type).

What to do if the speaker does not turn on?

Check that the AC adapter is properly connected to the speaker and to a working power outlet. Ensure that the power outlet switch (if any) is in the on position. If the problem persists, contact support.

What are the safety precautions for batteries?

Use AA Ni-MH, alkaline, or lithium batteries. Do not attempt to recharge non-rechargeable batteries. Insert batteries respecting polarity. Do not mix different types of batteries or new and used batteries. Keep batteries out of reach of children. If swallowed, consult a doctor immediately.

How to clean the speaker?

Always unplug the speaker before cleaning. Use a soft, dry cloth. Do not use abrasive products, solvents, or harsh cleaners. Do not lubricate any part of the device.

USER MANUAL WS702 THOMSON

Wooden portable electronic device with black front panel and 'THOMSON' logo on front (no visible text beyond branding)

MODE D'EMPLOI

AVANT D'UTILISER CET APPAREIL, VEUILLEZ LIRE ATTENTIVEMENT CE MODE D'EMPLOI ET LE CONSERVER AFIN DE POUVOIR LE CONSULTER ULTÉRIEUREMENT.

Two triangular warning symbols: a lightning bolt symbol and an exclamation mark

Blue circular icon with white pictogram of a person handing a box to a child (no text or symbols)

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPAÑA, [e-mail]

Tel.: [phone]

Wooden box with black front panel and 'THOMSON' logo on front (no visible text or symbols on body)

USER INSTRUCTIONS

PLEASE READ THIS USER MANUAL CAREFULLY BEFORE OPERATING THIS UNIT AND RETAIN FOR FUTURE REFERENCE.

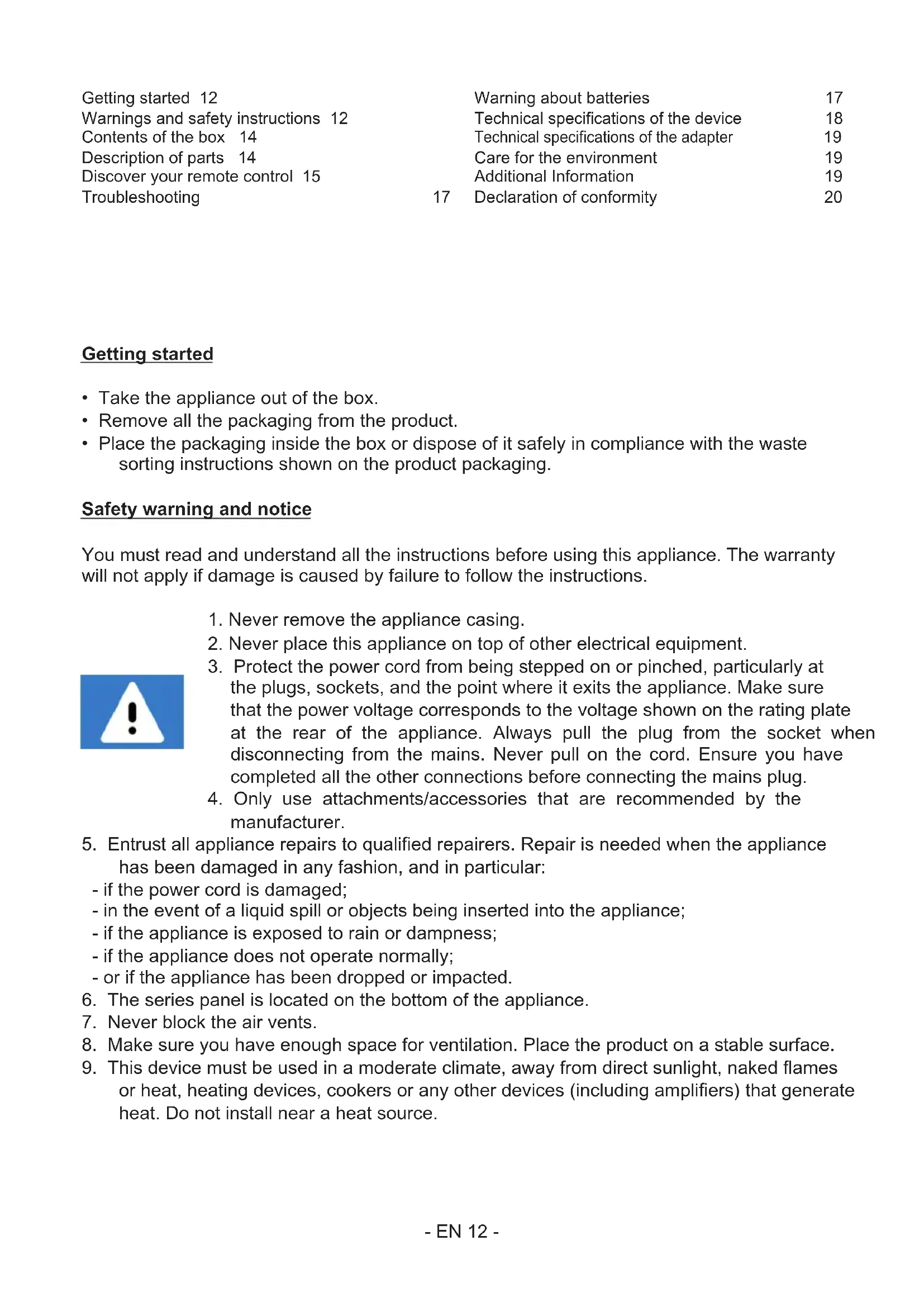

Getting started 12	Warning about batteries	17
Warnings and safety instructions 12	Technical specifications of the device	18
Contents of the box 14	Technical specifications of the adapter	19
Description of parts 14	Care for the environment	19
Discover your remote control 15	Additional Information	19
Troubleshooting 17	Declaration of conformity	20

Getting started

• Take the appliance out of the box.
- Remove all the packaging from the product.
- Place the packaging inside the box or dispose of it safely in compliance with the waste sorting instructions shown on the product packaging.

Safety warning and notice

You must read and understand all the instructions before using this appliance. The warranty will not apply if damage is caused by failure to follow the instructions.

1. Never remove the appliance casing.
2. Never place this appliance on top of other electrical equipment.
3. Protect the power cord from being stepped on or pinched, particularly at the plugs, sockets, and the point where it exits the appliance. Make sure that the power voltage corresponds to the voltage shown on the rating plate at the rear of the appliance. Always pull the plug from the socket when disconnecting from the mains. Never pull on the cord. Ensure you have completed all the other connections before connecting the mains plug.

4. Only use attachments/accessories that are recommended by the manufacturer.

5. Entrust all appliance repairs to qualified repairers. Repair is needed when the appliance has been damaged in any fashion, and in particular:

6. if the power cord is damaged;

7. in the event of a liquid spill or objects being inserted into the appliance;
8. if the appliance is exposed to rain or dampness;
9. if the appliance does not operate normally;

10. or if the appliance has been dropped or impacted.

11. The series panel is located on the bottom of the appliance.

12. Never block the air vents.

13. Make sure you have enough space for ventilation. Place the product on a stable surface.

14. This device must be used in a moderate climate, away from direct sunlight, naked flames or heat, heating devices, cookers or any other devices (including amplifiers) that generate heat. Do not install near a heat source.

15. The batteries (battery pack or inserted batteries) must not be exposed to excessive heat, such as sunshine, fire, etc.

16. Always unplug the device before cleaning it. Never lubricate any part of this appliance. Clean it with a soft cloth. Do not use abrasive products or harsh cleaners.
17. Ensure that you always have easy access to the power cord, plug or adapter to disconnect this appliance from the mains if necessary.
18. Do not use this appliance near water. It must not be dripped on or splashed. Do not use this appliance in a damp or wet environment.
19. Disconnect this appliance in the event of a storm or if you are not going to use it for a long period of time.
20. This appliance can be used by children aged 8 and over, and by persons with a physical or sensory disability, learning difficulties or a lack of experience and knowledge, provided they are supervised or have received instructions on the safe use of the appliance, and they understand the risks involved. Children must not play with the appliance or power cord (risk of strangulation). Children must not clean or maintain the appliance without supervision.
21. This device must only be supplied with very low safety voltage corresponding to the marking on the device.
22. The battery should be removed from the device before disposal. The device must be disconnected from the power supply when removing the battery.
23. The product must be at a minimum distance of 20 cm from the human body in operation.
24. This device is for household use only; do not use outdoors.

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN ATTENTION RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR

The lightning bolt symbol within an equilateral triangle alerts users to the presence of dangerous uninsulated voltages inside the device, that may present a risk of electric shock.

The exclamation mark inside a triangle indicates the presence of important operating and maintenance (repair) instructions in the literature accompanying the appliance.

Class II material
Direct current
Alternating current
For indoor use only

Contents of the box

• Main appliance
• Remote control
• User manual
  • 3.5mm to 2 x RCA cable
• Optical cable
• Mains adapter
• RCA to RCA cable

Description of parts

Treble control LED indicator

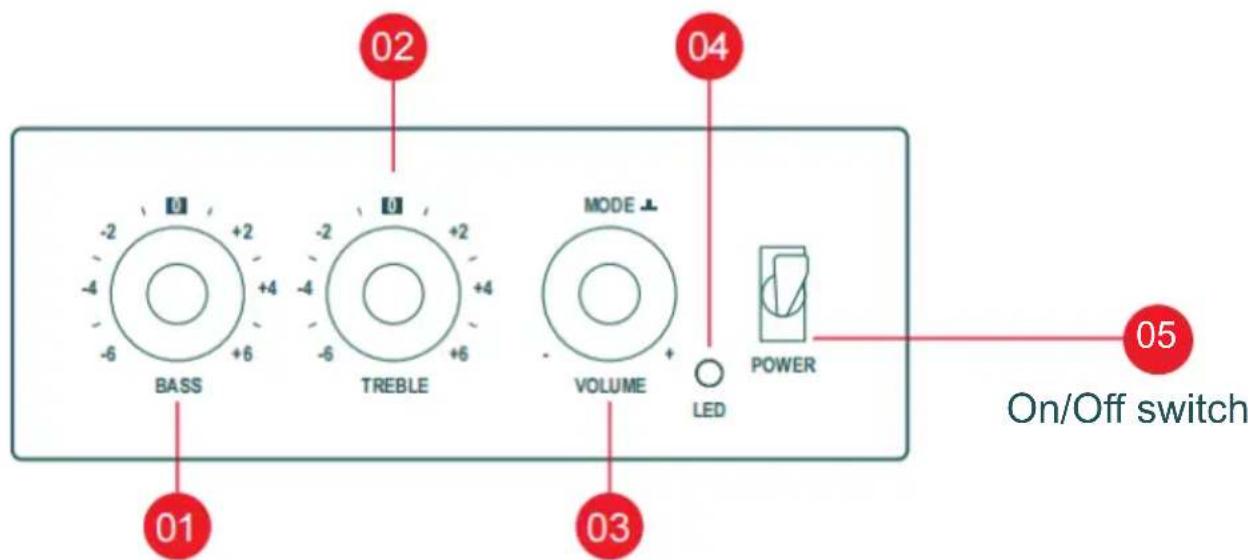

01 BASS -2 +2 -4 +4 -6 +6 02 TREBLE -2 +2 -4 +4 -6 +6 MODE + VOLUME 03 LED POWER 04 05 On/Off switch

Master volume control / Source (mode)Bass control

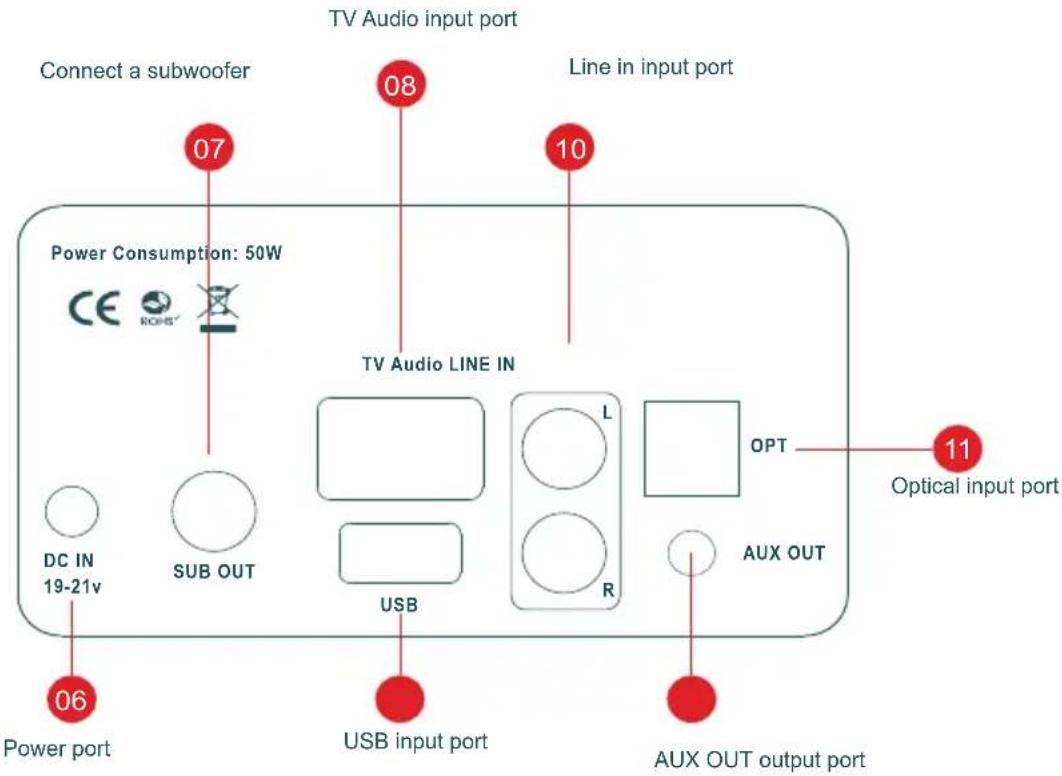

TV Audio input port Connect a subwoofer 07 08 Line in input port Power Consumption: 50W DC IN 19-21v SUB OUT TV Audio LINE IN USB L OPT 10 11 Optical input port AUX OUT Power port USB input port AUX OUT output port

Discover your remote control

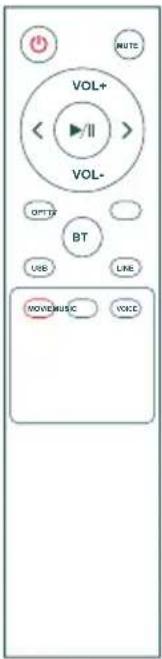

VOL+ VOL- OPT/TF BT USB LINE MOVE/MUSIC VOICE

	Power button	MUTE	Enable/Disable/set and Mute/Unmute
	Increase volume		Reduce the volume
	Previous track		Next track
	Play/Pause	OPT	Optical mode
	Play/pause		Optical mode
	TV mode USB mode		USB mode
	Bluetooth Mode
	Line in mode	MOVIE	Movie mode
	Music mode	VOICE	Voice mode

Line in input

1. Press the mode/volume button to select a Line in input. The indicator light turns blue.
2. Use the appropriate RCA cable to connect an audio source to the speakers.
3. Play music from your connected device and adjust the volume on your device or by turning the "Mode" button.

TV Audio input

1. Connect the TV AUDIO on the speaker to the TV out port of the TV with a High speed cable.
2. Select the "GREEN" LED indicator by pressing the "TV" button on the remote or press the mode/volume button.
3. Set the TVs audio output to "PCM". (More information on PCM page).

USB input

1. Insert a USB drive into the USB A port on the rear.
2. Select the "PINK" LED indicator by pressing the "TV" button on the remote. Or press the mode /volume button.
3. The maximum size of USB media for MP3 playback should not exceed 32GB.

Optical input

1. Press the mode/volume button to select the optical input. The indicator turns light white.
2. Use the appropriate optical cable to connect an audio source to the speakers.
3. Play music from your connected device and adjust the volume on your device or by turning the "Mode" button.

Bluetooth operation

1. Select the "BLUE" LED indicator by pressing the "BT" button on the remote, or press the mode/volume button.
2. Go to setup section on your source device (mobile phones, tablets, etc) and search for nearby Bluetooth device to find "WS702" in the list.
3. Pair your device with "WS702".
4. Play the audio tracks on your device and adjust the volume according to preference.
5. Double-tap quickly to disconnect Bluetooth.

Setting the electronic control module (PCM) on your TV

If there is no sound from TV or Speaker when all cables are connected properly and the LED indicator light is correct (Optical or digital connection), adjust your TV settings as below:

1. Press the "Menu" button on the TV remote control.
2. Select "Audio Settings".
3. Select "Audio Output Mode" or "Digital Audio Output Mode".
4. Select "PCM" as the audio output mode.

5. Press "OK" to save the settings

6. Select "Advanced Audio" - some TVs may not have an "Advanced Audio" menu and instead display a list of audio settings.

Digital audio output settings may differ by brand, so please check your TV's instruction manual.

Auxiliary output

You can add external speaker to WS702 by plugging in a 3.5mm jack cable to the auxiliary output on back panel. This will output the sound to another speaker.

Subwoofer output

You can add external subwoofer to WS702 by using the subwoofer output. It will reinforce low frequency.

WARNING: risk of hearing impairment

Set a low volume on the playback device before connecting the headphones to the sound source.

To prevent hearing damage, avoid excessive volume, particularly over extended periods. Excessive volume can result in permanent hearing impairment.

Troubleshooting

Problem Solution
No sound Check that the	power indicator is ON.
	Try increasing the volume with the central control knob or the remote control.
	Make sure the audio cables are securely connected and the input is properly set to the speakers.
	Check if there is an output signal from the audio source.
Unable to connect via Bluetooth	Make sure the speaker is set to Bluetooth mode. Bluetooth may not be paired correctly, so repeat the procedure.
	Disconnect any Bluetooth device by pressing and holding the volume button in Bluetooth mode, then try again.
The WS702 bookshelf speaker does not turn on.	The effective Bluetooth transmission range is 10 metres; remember not to exceed this range.
	Try connecting another Bluetooth device.
	Check that the unit is properly connected to the mains and the mains socket is switched on.

Warning about batteries

This product contains one or more batteries.

• Use batteries correctly to prevent any injury or fire caused by a leak, overheating, explosion, erosion or other damage.
• Keep new and used batteries out of the reach of children or any vulnerable person. Stop using the device if the battery compartment does not close properly.
• If the liquid from an alkaline battery comes into contact with the skin and/or eyes, rinse immediately with fresh water and consult a physician.
• If an alkaline battery leaks, wipe up the liquid with a cloth and replace the battery with a new one.
• Do not swallow batteries. If swallowed, a battery can cause severe internal burns in 2 hours and can cause death. If batteries are swallowed, contact a poison centre immediately and consult a physician.
• Use AA Ni-MH, alkaline or lithium batteries.
• Do not charge these batteries. Charging non-rechargeable batteries causes gas and/or heat emissions that can cause explosions and/or fires.
• Do not use different types of batteries or a mixture of new and old batteries.
• Insert the batteries according to the correct polarity (+ and -).

• Do not put the same battery poles in contact with each other.

• Remove dead batteries quickly. There is a risk of the battery exploding if it is not replaced correctly or if the appliance is unused for a period of time.

• Replace the battery with an identical or equivalent model.
• The batteries (or battery pack) must not be exposed to excessive heat, such as sunlight, fire, etc.
• Do not heat batteries or dispose of them in fire or water.
• Do not use metal pliers or metal objects such as the point of a pen or tweezers to remove batteries. Avoid deforming, crushing or piercing batteries.
• Do not disassemble the batteries.
• Cover the ends of the batteries with tape to prevent explosions and combustion when these are scrapped.
• Scrap batteries in an environmentally friendly way
• Do not dispose of batteries in ordinary household waste.
• Be sure to comply with the local regulations in force when scrapping batteries.

BATTERY WARNING

KEEP OUT OF REACH OF CHILDREN Swallowing can lead to chemical burns, perforation of soft tissue, and death. Severe burns can occur within 2 hours of ingestion. Seek medical attention immediately.

Blue circular icon with white human and child silhouettes, no text or symbols present

Technical specifications of the device

Type Specifications	Type Specifications
Broadband loudspeaker	4" (20 W) x 2 Tweeter	1.25" (5 W) x 2
Peak power 50 W Wireless frequency 2,402 - RMS power 50 W Bluetooth version 5.0		2,480 MHz
S/B ratio ≥80 dB ERIP	-2.6dBm
Power consumption 0	09W Distortion < 1%
Power supply	CC 19V, 1.8A	Speaker frequency	45 Hz - 20K Hz
Speaker impedance	4Ω/woofer, 8Ω/tweeter	Input	Bluetooth, LINE(RCA), TV Audio, Optic, USB
Output	AUX out, Sub out Transmission range 10 m
Bluetooth pairing name	WS702	Dimensions 430 x 150	x 170 mm

• FIT-POWER
• Adapter: TP04-190180E;
  • AC 100-240V 50/60Hz
  • 19 V, 1.8 A, 34.2 W
• Average e ciency in active mode: _88.06_%
• Low-load e ciency (10%): _82.62_%
• No-load power consumption: _0.09____W

Care for the environment

Your product has been designed and manufactured using high-quality materials and components that can be recycled and reused.

Attention should be drawn to the environmental aspects of battery disposal.

When the crossed-out wheelie bin symbol appears on a product, it means that the product is covered by European Directive 2002/96/EC. Please find out about the local sorted collection system for electrical and electronic products. Please act according to local rules and do not dispose of your old products in your household waste. By ensuring this product is disposed of correctly, you are also helping to prevent potentially negative consequences for the environment and human health.

Additional information

• When the appliance does not transmit audio output for a certain amount of time, it will automatically go into and by mode to save energy. It can be switched back ON by using the POWER selector
• If an incoming call is received while the WS702 sy em is connected to your mobile phone during music playback, the music will immediately pause when you answer the call and resume after the call ends. Depending on the mobile phone, playback may sometimes ay paused after the end of the call.
• The word Bluetooth ^® , the brand and logo are registered trademarks owned by Bluetooth SIG, Inc., and any use of such marks by Bigben Interactive is under licence. All other brands and trade names are the property of their respective owners.
• THOMSON is a trademark of Talisman Brands, Inc. used under licence by Bigben Interactive.
• This product is manufactured and sold under the responsibility of Bigben Interactive.
• THOMSON and the THOMSON logo are trademarks operated under licence by Bigben Interactive – for more information: www.thomson-brand.com.
• All other products, services, corporate names, trademarks, trade names, product names and logos referenced herein are the property of their respective owners.

Declaration of conformity

- Bigben Interactive hereby declares that the WS702 type radio equipment complies with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://www.bigben-interactive.co.uk/support/

Warranty

This product is guaranteed by Bigben for a period of 2 years from the date of purchase, except in countries of the European Economic Area, which offer a longer warranty period. We recommend that you keep your receipt for any claims. The warranty covers breakdowns due to defective material, a missing element or manufacturing defect. In this case, contact our technical support. For any problem with a defective product, contact your point of purchase with your receipt. The warranty does not cover problems of improper use.

Support

www.bigben-interactive.co.uk/support

[e-mail]

Made in China

Manufactured by BIGBEN INTERACTIVE SA

396, Rue de la Voyette

CRT2 - FRETIN

CS 90414

59814 LESQUIN Cedex - France

www.bigben.eu

Fabricant : Bigben Interactive FRANCE

396, Rue de la Voyette, C.R.T. 2, Fretin,

CS90414 - 59814 Lesquin Cedex, France

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPAÑA, [e-mail]

Tel.: [phone]

Wooden portable electronic device with black front panel and 'THOMSON' logo on front (no visible text beyond branding)
