INSTRUCTIONS

PLEASE READ THIS USER MANUAL CAREFULLY BEFORE OPERATING THIS UNIT AND RETAIN FOR FUTURE REFERENCE.

Getting started 11

Safety warning and notice 11

Contents of the box 13

Description of parts 13

Remote control 14

Description of the unit's functions 14

Technical specifications 16

Protection of the environment 17

Additional information 17

Declaration of conformity 17

Getting started

• Take the appliance out of the box.
- Remove all the packaging from the product.
- Place the packaging inside the box or dispose of it safely in compliance with the waste sorting instructions shown on the product packaging.

Safety warning and notice

You must read and understand all the instructions before using this appliance. The warranty will not apply if damage is caused by failure to follow the instructions.

1. Never remove the appliance casing.
2. Never place this appliance on top of other electrical equipment.
3. Protect the power cord from being stepped on or pinched, particularly at the plugs, sockets, and the point where it exits the appliance. Make sure that the power voltage corresponds to the voltage shown on the rating plate at the rear of the appliance. Always pull the plug from the socket when disconnecting from the mains. Never pull on the cord. Ensure you have completed all the other connections before connecting the plug.

4. Only use attachments/accessories that are recommended by the manufacturer.

5. Entrust all appliance repairs to qualified repairers. Repair is needed when the appliance has been damaged in any fashion, and in particular:

6. if the power cord is damaged;

7. in the event of a liquid spill or objects being inserted into the appliance;
8. if the appliance is exposed to rain or dampness;
9. if the appliance does not operate normally;

10. or if the appliance has been dropped or impacted.

11. The series panel is located on the bottom of the appliance.

12. Never block the air vents.
13. Make sure you have enough space for ventilation. Place the product on a stable surface.
14. This device must be used in a moderate climate, away from direct sunlight, naked flames or heat, heating devices, cookers or any other devices (including amplifiers) that generate heat. Do not install near a heat source.

15. The batteries (battery pack or inserted batteries) must not be exposed to excessive heat, such as sunshine, fire, etc.

16. Always unplug the device before cleaning it. Never lubricate any part of this appliance. Clean it with a soft cloth. Do not use abrasive products or harsh cleaners.

17. Ensure that you always have easy access to the power cord, plug or adaptor to disconnect this appliance from the mains if necessary.
18. Do not use this appliance near water. It must not be dripped on or splashed. Do not use this appliance in a damp or wet environment.
19. Disconnect this appliance in the event of a storm or if you are not going to use it for a long period of time.
20. This appliance can be used by children aged 8 and over, and by persons with a physical or sensory disability, learning difficulties or a lack of experience and knowledge, provided they are supervised or have received instructions on the safe use of the appliance, and they understand the risks involved. Children must not play with the appliance or power cord (risk of strangulation). Children must not clean or maintain the appliance without supervision.
21. This device must only be supplied with very low safety voltage corresponding to the marking on the device.
22. The battery should be removed from the device before disposal. The device must be disconnected from the power supply when removing the battery.
23. The product must be at a minimal distance of 20 cm from the human body when working.
24. This appliance is for household use only; do not use outdoors.

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN ATTENTION RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR

The lightning bolt symbol within an equilateral triangle alerts users to the presence of dangerous uninsulated electrical voltages inside the device that are strong enough to present a risk of electric shock.

The exclamation mark inside a triangle indicates the presence of important operating and maintenance (repair) instructions in the literature accompanying the appliance.

Class II material
Direct current
Alternating current
For indoor use only

Contents of the box

• Main unit
• Remote control
• User manual
  • 3.5mm to 2 x RCA cable
• Optical cable
• Mains adapter
• Speaker connection cable

Description of parts

1 2 3 4 5 6 7 8 9 LSTM Induction DCI Control Signal Bluetooth LED Control DCI Control DCI Control DCI Control DCI Control DCI Control DCI Control DCI Control DCI Control DCI Control DCI Control DCI Control DCI Control DCI Control DCI Control DCI Control DCI Control DCI Control DCI Control DCI Control DCI Control DCI Control DCI Control DCI Control DCI Control DCI Control DCi Control DCi Control DCi Control DCi Control DCi Control DCi Control DCi Control DCi Control DCi Control DCi Control DCi Control DCi Control DCi Control DCi Control DCi Control DCi Control DCi Control DCi Control DCi Control DCi Control DCi Control DCi Control DCi Control DCi Control DCi Control DC i Control DC i Control DC i Control DC i Control DC i Control DC i Control DC i Control DC i Control DC i Control DC i Control DC i Control DC i Control DC i Control DC i Control DC i Control DC i Control DC i Control DC i Control DC i Control DC i Control DC i Control DC i Control DC i Control DC i Control DC i Control DCi Control DCi Control

Pure electrical circuit lines without any symbols

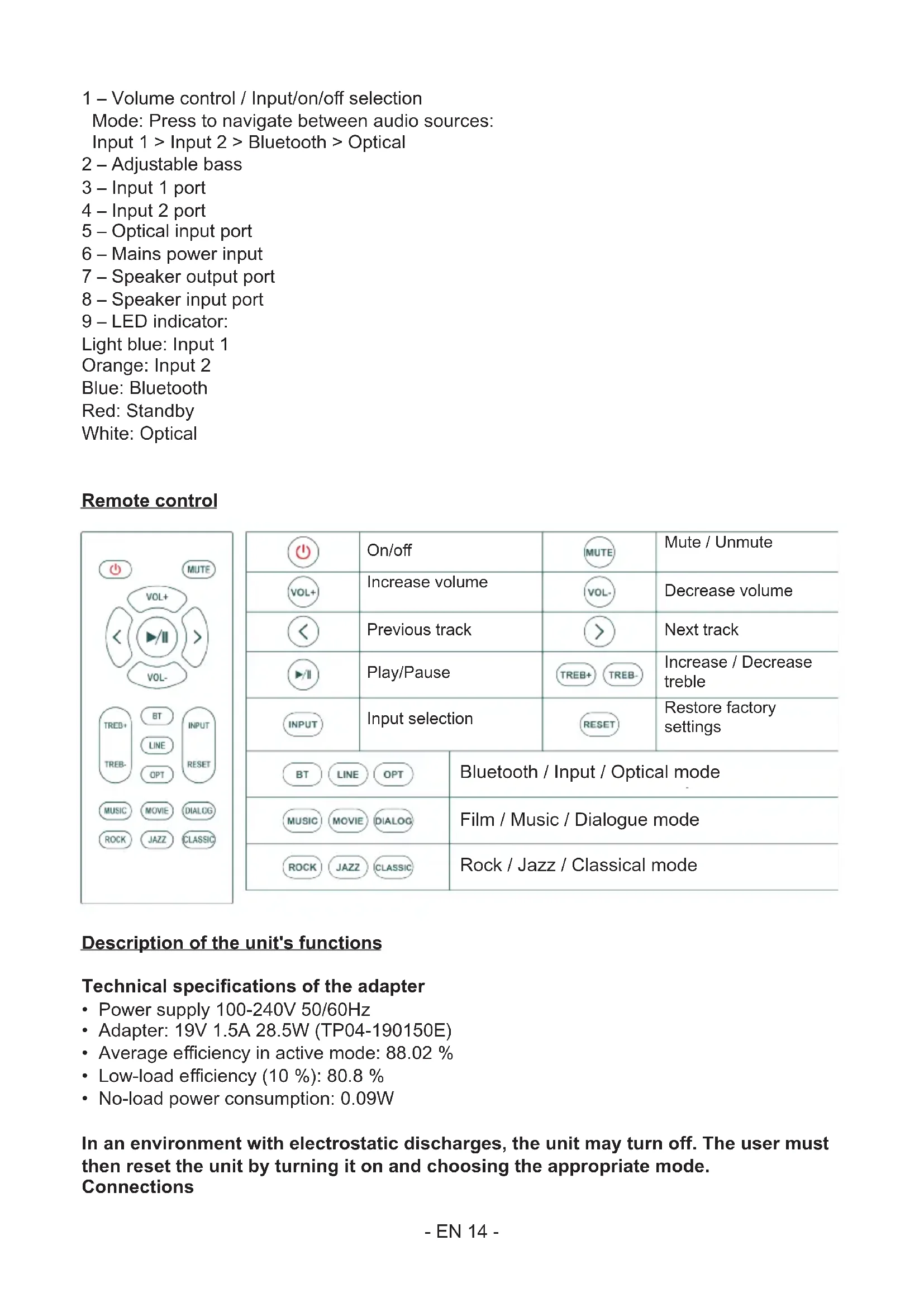

1 – Volume control / Input/on/off selection

Mode: Press to navigate between audio sources: Input 1 > Input 2 > Bluetooth > Optical

2 - Adjustable bass

3 – Input 1 port

4 – Input 2 port

5 – Optical input port

6 - Mains power input

7 – Speaker output port

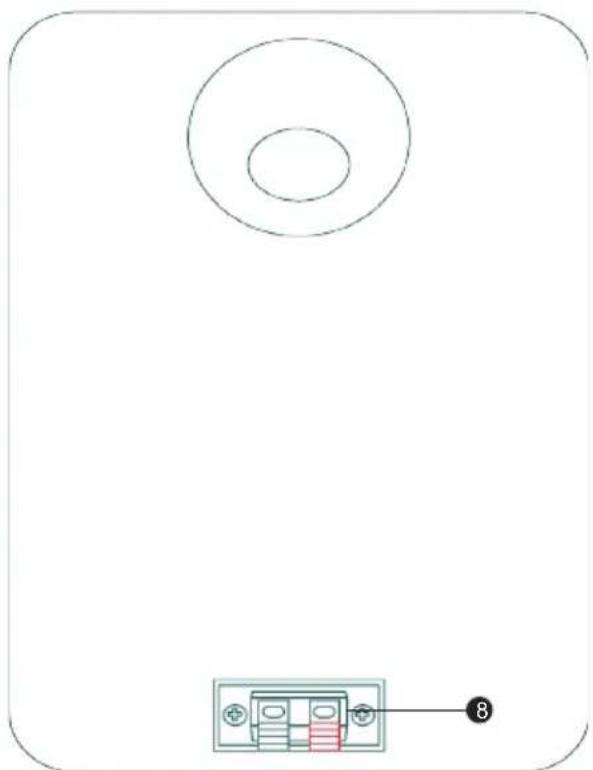

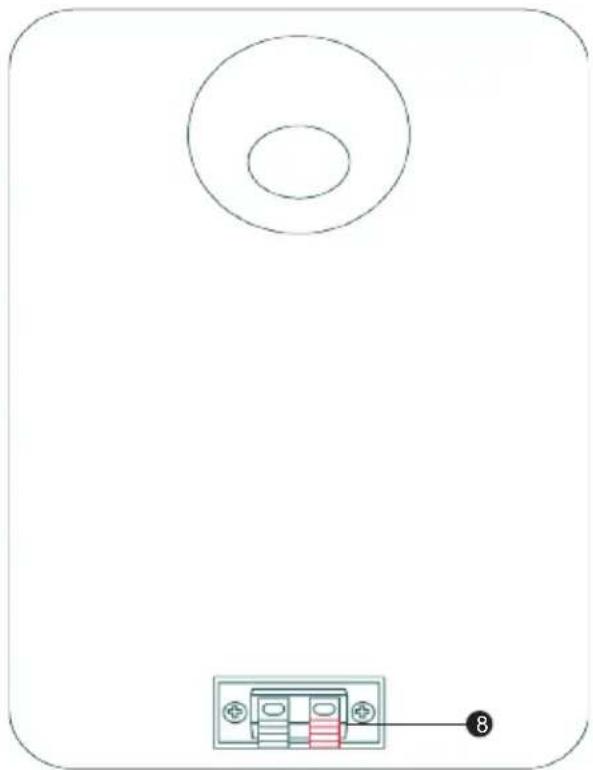

8 – Speaker input port

9 - LED indicator:

Light blue: Input 1

Orange: Input 2

Blue: Bluetooth

Red: Standby

White: Optical

Remote control

	On/off		MUTE	Mute / Unmute
	Increase volume		VOL-	Decrease volume
	Previous track		>	Next track
	Play/Pause		TREB+ TREB-	Increase / Decreasetreble
	Input selection		RESET	Restore factorysettings
	Bluetooth / Input / Optical mode
	Film / Music / Dialogue mode
	Rock / Jazz / Classical mode

Description of the unit's functions

Technical specifications of the adapter

• Power supply 100-240V 50/60Hz
- Adapter: 19V 1.5A 28.5W (TP04-190150E)
• Average efficiency in active mode: 88.02 %
- Low-load efficiency (10 %): 80.8 %
• No-load power consumption: 0.09W

In an environment with electrostatic discharges, the unit may turn off. The user must then reset the unit by turning it on and choosing the appropriate mode. Connections

1. Connect the speakers using the connecting cable provided.
2. Connect to power source: the standby indicator lights up.

When you connect the audio cable, remember to connect the terminals according to the correct polarity as indicated. *Make sure the black cable is plugged into the same colour on each speaker (e.g. black power supply to black power supply) and that the black and white cable is connected to the same colour on each speaker (e.g. red power supply to red power supply). If the connection is reversed, the sound quality will be lower.

Audio input

1. Press the "Mode" button to select the audio input.
   The indicator turns blue for Input 1 and orange for Input 2.
2. Use the appropriate RCA cable to connect an audio source to the speakers.
3. Play music from your connected device and adjust the volume on your device or by turning the "Mode" button.

Bluetooth operation

1. Turn on the speakers and switch to Bluetooth mode by pressing the main volume button on the back of the active speaker. The indicator turns blue.
2. Use the "Settings" function of your source device (mobile phone, tablet, etc.) and search for nearby Bluetooth devices: you will find "WS600DUO" in the list.
3. Pair your device with "WS600DUO".
4. Play the audio tracks on your connected device and adjust the volume according to your preference.
5. return to the "Settings" of your connected device to disconnect Bluetooth.

Comment: The maximum range is approximately 10 metres. Place your Bluetooth speaker as close as possible to the connected device to avoid interference with the connection.

Troubleshooting

ProblemSolution
No sound	Check that the power indicator is ON.
	Try increasing the volume with the central control knob or the remote control
	Make sure the audio cables are securely connected and the input is properly set to the speakers.
	Check if there is an output signal from the audio source.
Unable to connect via Bluetooth	Make sure that the speaker is set to the Bluetooth input; in another audio input mode, Bluetooth cannot be paired or connected.
	Disconnect any Bluetooth device by pressing and holding the volume button in Bluetooth mode, then try again.
The WS600DUO bookshelf speaker does not turn on	Given the effective Bluetooth transmission range of 10 metres, remember to make good use of it without exceeding this range.
	Try another Bluetooth device to be connected.
	Check that the unit is properly connected to the mains and that the switch of the mains socket is in the on position.

Technical specifications

TypeSpecifications	TypeSpecifications
Complete speaker system	4" (10W)*2 Tweeter 1.	25" (5W)*2
Peak power 30 W Wireless frequency 2,402 - RMS power 30 W Bluetooth version 5.0		2,480 MHz
Power consumption 0	09 W EIRP -2.9 dBm
Power supply DC 19V, 1.5A Distortion < 1 %
Impedance of the speaker	6Ω/woofer, 8Ω/tweeter	Speaker frequency	60 Hz - 20 kHz
S/B ratio	≥80dB	Input	Bluetooth, INPUT1 (RCA), INPUT2 (RCA), Optical
Bluetooth pairing name	WS600DUO	Loud-speaker 4 cm, 2	25 ohm speaker
Size	150 x 170 x 235mm T	Transmission range 10 m

Your product has been designed and manufactured using high-quality materials and components that can be recycled and reused.

Attention should be drawn to the environmental aspects of battery disposal.

When this crossed-out wheelie bin symbol is applied to a product, it means that the product is covered by European Directive 2002/96/EC. Please find out about the local separate collection system for electrical and electronic products. Please act according to your local rules and do not dispose of your old products in your household waste. By ensuring this product is disposed of correctly, you are also helping to prevent potentially negative consequences for the environment and human health.

Additional information

• If there is an incoming call while the WS600DUO unit is connected to your mobile phone during music playback, the music will immediately pause when you answer the call and resume after the call ends (depending on the mobile phone, playback may sometimes stay paused after the end of the call).
• The word Bluetooth ^® , the mark and logo are registered trademarks owned by Bluetooth SIG, Inc., and any use of such marks by Bigben Interactive is under licence. All other brands and trade names are the property of their respective owners.
• THOMSON is a trademark of Talisman Brands, Inc. used under licence by Bigben Interactive.
• This product is manufactured and sold under the responsibility of Bigben Interactive.
• THOMSON and the THOMSON logo are trademarks operated under licence by Bigben Interactive – for more information: www.thomson-brand.com.
• All other products, services, corporate names, trademarks, trade names, product names and logos referenced herein are the property of their respective owners.

Declaration of conformity

- Bigben Interactive hereby declares that the WS600DUO-type radio equipment is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://www.bigben-interactive.co.uk/support/

Warranty

This product is guaranteed by Bigben for a period of 2 years from the date of purchase, except in countries of the European Economic Area, which offer a longer warranty period.

We recommend that you keep your receipt for any claims. The warranty covers breakdowns due to defective material, a missing element or manufacturing defect. In this case, contact our technical support. For any problem with a defective product, contact your point of purchase with your receipt. The warranty does not cover problems of improper use.

Support

www.bigben-interactive.co.uk/support

Made in China

Manufactured by BIGBEN INTERACTIVE SA

396, Rue de la Voyette

CRT2 - FRETIN

CS 90414

59814 LESQUIN Cedex - France

www.bigben.eu

E-mail: [e-mail]
