CLOUD HU3-35W - Humidifier WILFA - Free user manual and instructions

Product type	Humidifier
Brand	Wilfa
Model	CLOUD HU3-35W
Power supply	Mains 220-240 V ~ 50 Hz
Steam output	Adjustable from min to max (rotary knob)
Aromatherapy function	Yes, with integrated fragrance pad
Auto shut-off	When water is empty and when tank is removed
Noise level	Very quiet (noise-reducing design)
Atomizer material	Glass-ceramic, resistant to limescale
Demineralization cartridge	Optional (extends lifespan)
Water tank	Large, removable, easy hand cleaning
Recommended cleaning	Tank and basin 2 times per week if used daily
Descaling	Use a mild detergent on the atomizer, rinse thoroughly
Warranty	5 years (domestic use)
Recycling	Compliant with WEEE, do not dispose with household waste
Operating temperature	5 °C to 45 °C
Operating relative humidity	Below 80%
Recommended water type	Soft water, temperature not exceeding 40 °C
Indicator light	Red light when water level is too low
Placement	Flat and stable surface, at least 70 cm from the floor, away from heat sources and furniture

Frequently Asked Questions - CLOUD HU3-35W WILFA

How do I fill the water tank of the Wilfa CLOUD HU3-35W humidifier?

Remove the tank from the base, unscrew the tank cap, fill with soft water (max 40 °C), screw the cap back on, and place the tank back on the base.

What should I do if the device does not produce steam?

Check that the device is plugged in and the switch is in the On position. Make sure the tank has enough water. If the light is red, add water.

How do I clean the inside of the water tank?

Clean the inside of the tank and the basin twice a week with a soft dish brush or a soft cloth. Do not use acidic, alkaline, or bleaching detergent.

How do I descale the glass-ceramic atomizer?

Apply a mild detergent to the atomizer, fill the basin with water, let it sit for 10-15 min, then brush gently to remove calcium deposits. Rinse thoroughly with clean water at least twice.

The device is making noise, what should I check?

Ensure the tank is correctly positioned on the base, there is enough water, and the device is on a flat and level surface.

What is the warranty for the Wilfa CLOUD HU3-35W humidifier?

Wilfa offers a 5-year warranty from the date of purchase for domestic use. Keep the purchase receipt. The warranty does not cover misuse, neglect, or normal wear and tear.

Can I use essential oils with this humidifier?

Yes, the device has a fragrance pad for diffusing scents. Add a few drops of essential oil to the pad, do not pour directly into the water.

How do I adjust the steam output?

Turn the operation knob clockwise to increase the output, and counterclockwise to reduce it or turn off the device.

What does the red indicator light mean?

The red light indicates that the water level is too low. The device stops automatically. Fill the tank and turn the device back on.

How should I store the humidifier when not in use?

Drain all water from the tank and basin. Clean and dry the device completely. Store it in a dry place away from direct sunlight.

USER MANUAL CLOUD HU3-35W WILFA

White water purifier with a white label and control knob (no visible text or symbols on body)

Wilfa CLOUD

HUMIDIFIER HU-35W

EN · Instruction manual

NO · Bruksanvisning

SE · Bruksanvisning

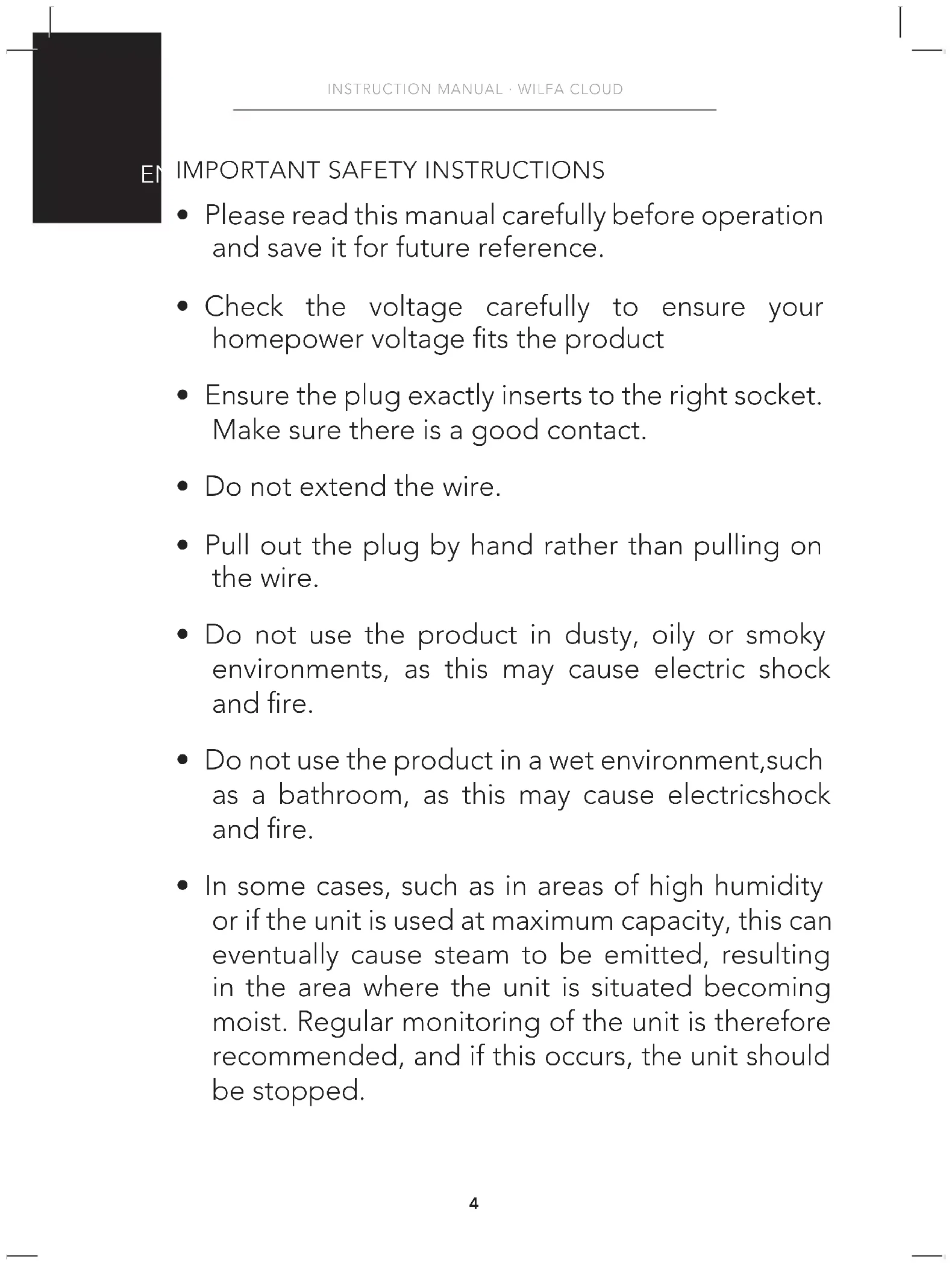

• Please read this manual carefully before operation and save it for future reference.
• Check the voltage carefully to ensure your homepower voltage fits the product
• Ensure the plug exactly inserts to the right socket. Make sure there is a good contact.
• Do not extend the wire.
• Pull out the plug by hand rather than pulling on the wire.
• Do not use the product in dusty, oily or smoky environments, as this may cause electric shock and fire.
• Do not use the product in a wet environment, such as a bathroom, as this may cause electricshock and fire.

• In some cases, such as in areas of high humidity or if the unit is used at maximum capacity, this can eventually cause steam to be emitted, resulting in the area where the unit is situated becoming moist. Regular monitoring of the unit is therefore recommended, and if this occurs, the unit should be stopped.

• Do not use the product near a window, to avoid rain or curtains covering the air inlet or mist outlet. This will cause the temperature to rise and may cause fire.

• Do not place your hands or appliances on top of the product as this may damage the device or result in the device not functioning properly.
• Remove the water tank before moving the device.
• Do not touch the plug or wire with wet hands as this may cause electric shock.
• Do not clean the water sink while the water is still hot.
• Please place the device on an even surface. If the surface is uneven, this may cause the water to flood out.
• Do not clean your machine while it is operating.
• Wait 60 minutes after you turn it off before cleaning the machine.
• Do not expose the machine to sunshine or place it to close to a heater.
• Please disconnect the unit from the electrical socket while you fill it with water, clean the unit, or if the unit is left unused for a long time.

EN

• Do not place metal or easily combustible material close to the air intake or mist outlet areas.
• If the unit is damaged or does not work, please take to a certified repair shop or back to the shop from which you bought the unit. Do not perform disassembly or assembly by yourself.
• Care should be taken when using the appliance due to the emission of hot water vapor.
• If the supply cord is damaged, it must be replaced by the manufacturer, the manufacturer's service agent or similarly qualified persons in order to avoid a hazard.
• This appliance may be used by children aged 8 years and above and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Children must not play with the appliance.
• Children must not perform cleaning or user maintenance without supervision.

PRODUCT OVERVIEW

Labeled diagram of a portable air fryer with numbered parts for identification

1. Nozzle
2. Water tank
3. Aroma pad

4. Knob

5. Water tank cover

6. Indicating light
7. Power cord

EN

PLACEMENT

• Place the product on firm, flat surface. The humidifier should be placed on flat horizontal surface and keep it steady.
• Do not place the product near or close to any heat sources. The humidifier should be far away from any heat sources, such as stoves or fire places. Do not expose the product to direct sunlight.
• Do not place the product near or close to furniture or electric appliances. The mist outlet from the humidifier should not be directed towards furniture and the electronic appliances, to avoid damage. Particles in water, such as calcium, can be part of the vapour and be deposited on objects in the vicinity.
• It is recommended that the unit be placed on a table or other surface at least 70 cm above the floor level, to ensure that the vapour will be optimally distributed throughout the room.
• Air draft and temperature changes can impact the distribution of the vapor. To avoid water damage it's recommended to always check for moist accumulations on the floor or other nearby surfaces

FUNCTION AND FEATURES

• Adjustable mist output by knob, easy operation
• With aroma diffuser function
• Big tank cover design for easy cleaning by hand
  • Automatic shut-off protection with warning when waterless
  • Automatic shut-off protection when take off the water tank
• Optional demineralization cartridge to prolong useful life.
• Integrated body design for noise suppression, super quiet when operating
• Ceramic glass glaze transducer can resist water scale effectively to prolong useful life.

• The working environment for humidifier is in temperatures between 5°C to 45°C, with a relative humidity level below than 80% RH.
• Set the machine to operate on low mist level when room relative humidity is higher than 70% or in an enclosed room space.
• Use fresh water with a temperature that not exceed 40^ .
• Clean water tank and water flume when taking the product into use after a long time.

OPERATION STEPS

1. Unmount the tank from the base, unscrew the water tank cover and fill the tank with water, screw the water tank cover back, make sure it sits tightly. Replace the water tank on the base.
2. Check that the mist outlet nozzle is correctly mounted on the water tank.
3. Plug in the power; turn the knob clock wise to start the machine. Adjust preferred mist output from minimum to maximum by turning the knob clockwise. To decrease the output or turn off the machine please turn the knob counter clockwise.
4. When the water level is too low the indicating light turns red and the machine will stop work. Refill the tank and turn on the machine to continue operate.
5. The machine will stop work if the water tank is removed during operation.
6. The machine will resume operation when the water tank is replaced correctly.

CLEANING & MAINTENANCE

Before cleaning, turn the functional knob anti clockwise until it points to "OFF" and disconnect the plug from the outlet.

WATER TANK INSIDE

Clean water tank inside and water sink twice per week at least when using the on a daily basis. Water residuals may form along the tank's inside and can be removed with soft dish brush. A soft cloth can also be used to wipe the insides of the water tank. Don't put acid, alkalescence, bleacher detergent into water tank to avoid damage.

WATER SINK INSIDE

The water quality in some regions can be rich of calcium (hard water). This can result in increased calcium deposits inside water tank or transducer. Users in areas with high content a minerals should perform maintenance as often as needed.

• Add cleaning agent on the transducer surface (The amount of detergent is directly dependent on the amount of calcium deposits).
• Fill water into the space that is located under the water tank placement (water sink). Let the machine rest for 10-15 min.
• Then gently brush the transducer area free of calcium deposits. Clean the entire sink area free of detergent and mineral deposits by using a dish brush.
• Rinse with fresh water and repeat at least two times. Don't use acid detergents to wash the water sink inside to avoid damage on the transducer.

EN

BODY AND WATER TANK OUTSIDE

Wipe it gently with a soft cloth mixed with a small amount of detergent.

STORAGE

Drain the water in tank and body, remove any stains or dirt. Make sure that the product has dried completely before it is put into storage. Store the product in a dry environment.

TROUBLESHOOTING

Problem Possible reasons Solutions
No steam Check plug Plug into socket
	Check power switch Turn on power switch
	No water in tank Add water
	Not enough water in the tank	Add water
Peculiar smelling steam	New machine Take off tank cover, place the water tank in cool and dry place for 12 hours
	Too dirty water, or water in tank too long time	Clean water tank, replace with clean water
Noise Tank in incorrect position Put the tank in correct position
Uneven level for machine Place it on even flat or ground
Steam out from outlet surroundings	Clearance between steam outlet and water tank	Sink the steam outlet cap in water and use it again

If the machine is still not working after checking the possible reasons above, contact the store where the product was purchased from.

EN

BEYOND EXPECTATIONS 5 SINCE 1948 YEAR GUARANTEE

GUARANTEE

Wilfa issues a 5 year guarantee on this product from the day of purchase is done. The guarantee covers production failure or defects that arise during the guarantee period. Your purchase receipt works as proof towards retailer if claiming your guarantee.

The guarantee is valid only for products that are bought and used in private households. The guarantee is not valid if the product is used commercially. The guarantee is not valid if the product is misused, used by negligence, if not following instructions given by Wilfa, if modified or if unauthorized reparation is done. The guarantee is also not valid for normal wear of the product, misuse, lack of maintenance, use of wrong electrical voltage or:

• Not descaled according to instruction manual
  • Overloading of product
• Damage on glass
• Parts which are normally worn down

PRODUCT SPECIFICATIONS

220V\~240V\~50Hz

SUPPORT AND SPARE PARTS

For support please visit us at wilfa.com, and see our customer service/support page. Here you will find frequently asked questions, spare parts, tips and tricks and all our contact information.

RECYCLABILITY

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmentally safe recycling free of charge.

NO

NO

INNHOLD

16 VIKTIGE SIKKERHETSANVISNINGER
19 PRODUKTOVERSIKT
20 PLASSERING
20 FUNKSJONER
20 BRUK
21 RENGJ∅RING OG VEDLIKEHOLD
23 FEILS∅KING
24 GARANTI
25 PRODUKTSPESIFIKASJONER
25 SUPPORT OG RESERVEDELER
25 GJENVINNING

NO

VIKTIGE SIKKERHETSANVISNINGER

Labeled diagram of a portable air fryer with numbered parts for identification

NO

1. Dyse

2. Vannbeholder

3. Aromapute

4. Bryter

5. Vannbeholderdeksel

6. Indikatorlys

7. Strømledning

NO

PLASSERING

Labeled diagram of a portable air fryer with numbered parts for identification

SE

Labeled diagram of a portable air fryer with numbered parts for identification

DK

1. Dyse

2. Vandbeholder

3. Aromapude

4. Knap

5. Vandbeholderdæksel

6. Indikatorlys

7. Elledning

PLACERING

56 TOIMINNOT JA OMINAISUUDET

56 KÄYTTÖOHJE

57 PUHDISTAMINEN JA KUNNOSSAPITO

58 VIANMÄÄRITYS

60 TAKUU

61 TUOTETIEDOT

61 TUKI JA VARAOSAT

61 KIERRÄTYS

TURVALLISUUSOHJEET

Labeled diagram of a portable air fryer with numbered parts for identification

FI

TOIMINNOT JA OMINAISUUDET

VESIALTAAN SISÄPUOLI

Labeled diagram of a portable air fryer with numbered parts for identification

DE

Labeled diagram of a portable air fryer with numbered parts for identification

NL

1. Mondstuk

2. Watertank

3. Aromablok

4. Knop

5. Afdekking watertank

6. Indicatielampje

7. Netsnoer

PLAATSING

BINNENKANT WATERTANK

HET APPARAAT OPBERGEN

Labeled diagram of a portable air fryer with numbered parts for identification

PL

Labeled diagram of a portable air fryer with numbered parts for identification

FR

CARACTÉRISTIQUES DU PRODUIT

220 V\~ 240 V\~50 Hz

ASSISTANCE ET PIÈCES DÉTACHÉES

Labeled diagram of a portable air fryer with numbered parts for identification

IT

Labeled diagram of a portable air fryer with numbered parts for identification

Labeled diagram of a portable air fryer with numbered parts for identification
