HU1W-300 - Humidifier WILFA - Free user manual and instructions

Product Type	Humidifier
Brand	Wilfa
Model	HU1W-300
Power Supply	120V ~ 60Hz (US) / 220-240V ~ 50Hz (EU)
Power Consumption	30 W
Dimensions (H x W x D)	12.2 x 8.7 x 6.3 in (31 x 22 x 16 cm)
Weight	3.5 lb (1.6 kg)
Water Tank Capacity	0.8 gal (3 L)
Humidification Type	Ultrasonic
Mist Output	Up to 300 ml/h
Coverage Area	Up to 300 sq ft (28 m²)
Noise Level	< 28 dB
Controls	Rotary knob with LED indicator
Auto Shut-off	Yes, when water tank is empty
Night Light	LED light with on/off option
Filter Type	Demineralization cartridge (included)
Mist Temperature	Cool mist
Airflow Direction	Adjustable nozzle
Energy Efficiency	Low power consumption, energy-saving design
Safety Certifications	ETL, CE, RoHS
Included Accessories	User manual, demineralization cartridge, cleaning brush
Replacement Parts	Filter cartridge (model HU1W-300-F), wick
Maintenance	Clean tank weekly; replace cartridge every 1-2 months

Frequently Asked Questions - HU1W-300 WILFA

How do I clean the Wilfa HU1W-300 humidifier?

Unplug the humidifier and empty the water tank. Use a soft cloth dampened with mild soap to wipe the interior and exterior. Rinse thoroughly with clean water and let air dry. For stubborn mineral deposits, use a vinegar solution (1 part white vinegar to 3 parts water) and soak for 20 minutes. Replace the demineralization cartridge if needed.

What type of water should I use in the humidifier?

For best results, use distilled or demineralized water. This reduces mineral buildup and prevents white dust. If using tap water, the included demineralization cartridge will help, but it will need more frequent replacement.

How often should I replace the cartridge?

The demineralization cartridge should be replaced every 1 to 2 months, depending on water hardness and usage. Signs it needs replacement include reduced mist output or white dust accumulation.

Why is my humidifier not producing mist?

First check that the water tank is full and properly seated. Ensure the mist nozzle is not blocked. If the unit has an auto shut-off, it may have turned off because the tank was empty. Clean the ultrasonic disc with the cleaning brush. If still not working, check the power connection.

Can I add essential oils to the humidifier?

No, the Wilfa HU1W-300 is not designed for essential oils. Adding oils can damage the ultrasonic transducer and void the warranty. If you want aromatherapy, use a separate essential oil diffuser.

How do I adjust the mist output?

The mist output is controlled by a rotary knob on the front. Turn clockwise to increase mist and counterclockwise to decrease. The LED indicator will change brightness to show the level.

What is the noise level of this humidifier?

The HU1W-300 operates very quietly, at less than 28 dB. This is comparable to a whisper, making it suitable for bedrooms and offices.

How do I replace the demineralization cartridge?

Turn off and unplug the humidifier. Remove the water tank. Locate the cartridge compartment (usually inside the tank or base). Remove the old cartridge and insert a new one. Ensure it is properly sealed. Wash hands after handling.

What is the maximum runtime on a full tank?

On the highest mist setting, the 3-liter tank provides approximately 10 hours of continuous operation. On the lowest setting, it can last up to 20 hours.

Does the humidifier have an automatic shut-off feature?

Yes, the HU1W-300 is equipped with an automatic shut-off that activates when the water tank is empty. This prevents the unit from overheating and ensures safety.

USER MANUAL HU1W-300 WILFA

White portable water heater with steam rising from top, no visible text or symbols on the device body

Wilfa MIST

ULTRASONIC HUMIDIFIER

Bruksanvisning

Bruksanvisning

Operating Instructions

LES ALLE ANVISNINGER F∅R BRUK

LÄS IGENOM ALLA INSTRUKTIONER INNAN PRODUKTEN ANVÄNDS

LÆS ALLE VEJLEDNINGER INDEN BRUG

LUE OHJEET HUOLELLISESTI ENNEN KÄYTTÖÄ

READ ALL INSTRUCTIONS BEFORE USING

Maks. dampmengde: 300 ml/t

Frekvens: 50/60Hz

Spenning: 220-240V AC

Effekt: 25W

TOIMINNOT JA OMINAISUUDET

Please read this manual carefully before operation and save it for future reference.

IMPORTANT SAFEGUARDS ....5

Schematic Drawing of Structure 8

Placement....9

Function and features....9

Operation instruction......9

Cleaning & Maintenance....10

Troubleshooting....11

IMPORTANT SAFEGUARDS

• Check the voltage carefully to ensure your home power voltage fits the product
• Ensure the plug exactly inserts to the right socket. Make sure there is good contact.
• Do not extend the wire.
• Use the plug when pulling the plug, not the cord!
• Do not use the product in dusty, oily or smoky environments, as this may cause electric shock or fire.
• Do not use the product in a wet environment, such as bathroom, as this may cause electric shock or fire.
• In some cases, such as in areas of high humidity or if the units is used at maximum capacity, this can eventually cause steam to be emitted, resulting in the area where the units is situated becoming moist. Regular monitoring of the unit is therefore recommended and if this occurs the units should be stopped.
• Do not use the product near a window, to avoid ran or curtains covering the air inlet or mist outlet. This will cause the temperature to rise and may cause a fire.
• Do not place your hands or appliances on top of the product as this may damage the device or result in the device not functioning properly.

• Remove the water tank before moving the device.

• Do not touch the plug or cord with wet hands as this may cause electric shock.

• Please place the device on an even surface. If the surface is uneven, this may cause water to flood out.
• Do not clean the machine while it is operating.
• Do not expose the machine to direct sunlight or place it close to a heater.
• Please disconnect the unit from the electrical socket while you fill it with water, clean the unit, or if the unit is left unused for a long time.
• Do not place metal or easily combustible materials close to the air inlet or mist outlet areas.
• If the unit is damaged or does not work, please take the product to a certified shop or back to the store from which you bought the unit. Do not perform any disassemble or assembly of the unit yourself.
• If the supply cord is damaged, it must be replaced by the manufacturer, the manufacturer's service agent or similarly qualified persons in order to avoid a hazard.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made

by children without supervision.

- This product is intended for indoor, nonindustrial, non-commercial, household use only.

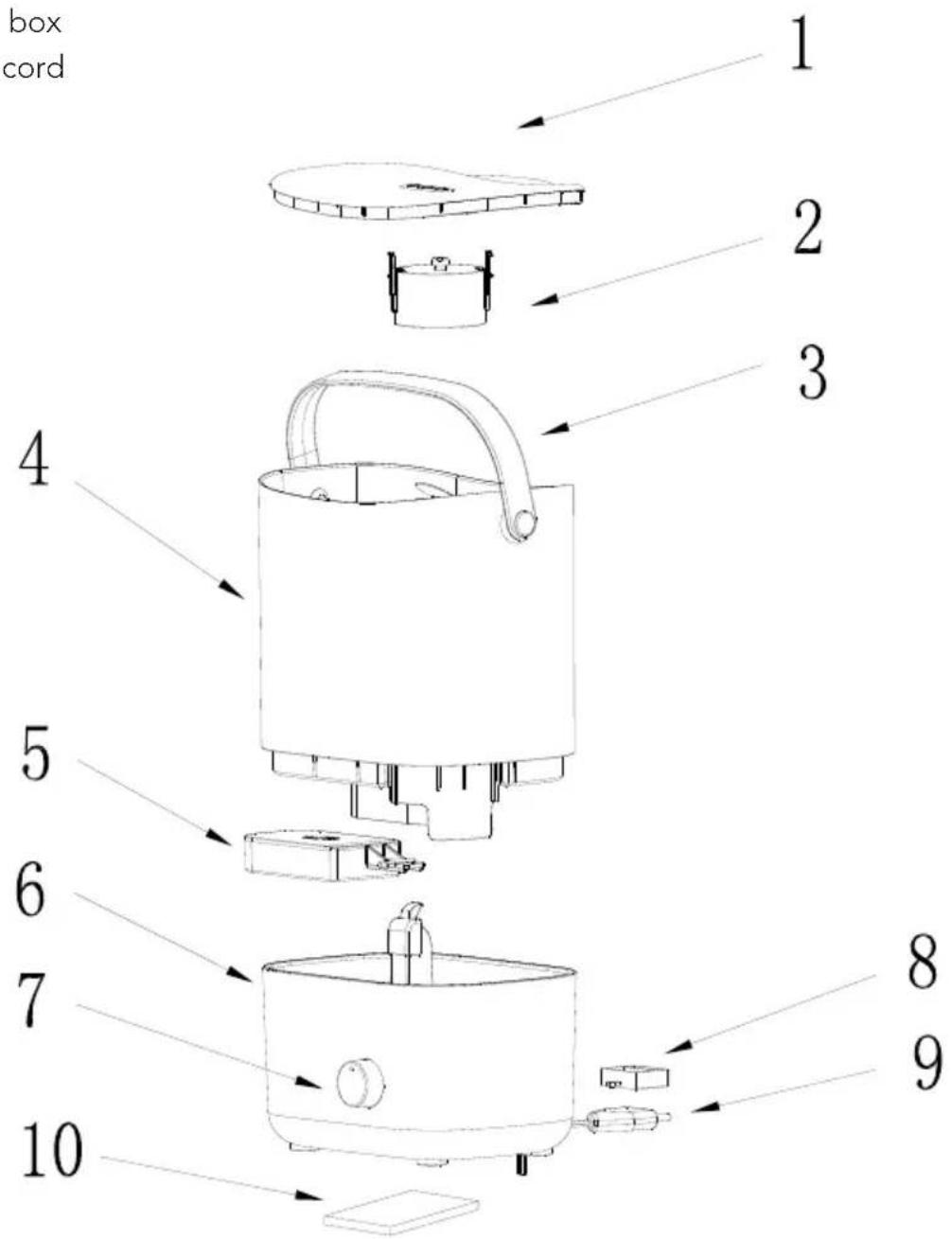

SCHEMATIC DRAWING OF STRUCTURE

1. Valve protection filter
2. Handle
3. Water tank
4. Float
5. Machine housing
6. Knob
7. Aroma box
8. Power cord

9. Filter

10. Top cover with mist nozzle

PLACEMENT

• Place the product on firm, flat surface. The humidifier should be placed on flat horizontal surface and keep it steady.
• Do not place the product on or close to any heat sources. The humidifier should be far away from any heat sources, such as stoves or fire places. Do not expose the product to direct sunlight.
• Do not place the product on or close to furniture or electric appliances. The mist outlet from the humidifier should not be directed towards furniture and the electronic appliances, to avoid damage. Particles in water, such as calcium, can be part of the vapour and be deposited on objects in the vicinity.
• It is recommended that the unit be placed on a table or other surface at least 70 cm above the floor level, to ensure that the vapour will be optimally distributed throughout the room.

FUNCTION AND FEATURES

• Top filling design for easy refilling water and cleaning.
• With aroma diffuser function
  • Automatic shut-off protection with warning when waterless
  • Automatic shut-off protection when take off the water tank
• Integrated body design for noise suppression, super quiet when operating
• Ceramic glass glaze transducer can resist water scale effectively to prolong useful life.

• The working environment for humidifier is in temperatures between 1°C to 45°C, with a relative humidity level below than 80% RH.
• Set the machine to operate on low mist level when room relative humidity is higher than 70% or in an enclosed room space.
• Use fresh water with a temperature that not exceed 40^ .
• Clean water tank and water flume when taking the product into use after a long time.

Operation steps

1. Take off the top cover, lift up the water tank with the handle, fill it with water and then replace the water tank on the machine carefully and replace the top cover.

2. Check that the top cover with mist nozzle is correctly mounted on the water tank.

3. Plug in the power; turn the knob clockwise to start the machine. Adjust preferred mist output from minimum to maximum by turning the knob clockwise. To decrease the output or turn off the machine please turn the knob counter clockwise.

4. When the water level is too low the indicating light turns red and the machine will stop working. Refill the tank and turn on the machine to continue to operate.
5. The machine will stop working if the water tank is removed during operation. The machine will resume operation when the water tank is replaced correctly.

CLEANING & MAINTENANCE

Before cleaning, turn the functional knob counter clockwise until it makes a clicking sound and disconnect the plug from the outlet.

Water tank inside

Clean water tank inside and water sink twice per week at least when using the humidifier on a daily basis. Water residue may form along the tank's inside and can be removed with soft dish brush. A soft cloth can also be used to wipe the insides of the water tank. Don't put acid, or bleacher detergent into water tank to avoid damage.

Water sink inside

The water quality in some regions can be rich of calcium (hard water). This can result in increased calcium deposits inside water tank or transducer. Users in areas with high content a minerals should perform maintenance as often as needed.

• Add cleaning agent on the transducer surface (The amount of detergent is directly dependent on the amount of calcium deposits).
• Fill water into the space that is located under the water tank placement (water sink). Let the machine rest for 10-15 min.
• Then gently brush the transducer area free of calcium deposits. Clean the entire sink area free of detergent and mineral deposits by using a dish brush.
• Rinse with fresh water and repeat at least two times. Don't use acid detergents to wash the water sink inside to avoid damage on the transducer.

Body and water tank outside

Wipe it gently with a soft cloth mixed with a small amount of detergent.

Storage

Drain the water in tank and body, remove any stains or dirt. Make sure that the product has dried completely before it is put into storage. Store the product in a dry environment.

TROUBLESHOOTING

If the machine doses not work appropriately, please check the troubleshooting table before returning product for maintenance service.

Problem Possible reasons Solutions
No steam	Check plug Plug into socket
	Check power switch Turn on power switch
	No water in tank Add water
	Not enough water in the tank. Add water
Peculiar smell steam	New machine Take off tank cover, place the water tank in cool and dry place for 12 hours
	Too dirty water, Or water in tank too long time	Clean water tank and refill with clean water
Noise	Tank in incorrect position Put the tank in correct position
	Not enough water in the tank Add water
	Uneven level for machine Place it on even surface or ground
Steam out from outlet surrounding	Clearance between steam outlet and water tank	Sink the steam outlet cap in water and use it again
Leakage Float is not correctly installed		Install the float correctly
		The band on the float is not removed	Remove the water tank, remove the ban on the float an try again

If the machine is still not working after checking the possible reasons above, the machine may have other problems, please contact the local store for further assistance with the product.

GUARANTEE

Wilfa issues a 5 years guarantee on this product from the day purchase is done. Guarantee covers production failure or defects that arise during guarantee period. Buying receipt of the product is proof of guarantee. When claiming guarantee, the shop where the product is bought is to be contacted.

Guarantee is valid only for products that is bought and used in private household. Guarantee is not valid if the product is used commercially. Guarantee is not valid if the product is misused, used by negligence, if not following instructions given by Wilfa, if modified or if unauthorized reparation is done. Guarantee is also not valid for normal wear of the product, misuse, lack of maintenance, use of wrong electrical voltage or:

• Overloading of product
• Parts which is normally worn
• Filter, battery or other parts you can expect being replaced regularly

These instructions are also available at our website www.wilfa.com

Technical Parameter

Model: HU1W-300

Water tank capacity: 3L

Rated max moisture capacity: 300ml/h

Rated Frequency: 50/60Hz

Rated Voltage: 220-240V

Rated Power: 25W

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased.

They can take this product for environmental safe recycling.

AS WILFA

Industriveien 25

1481 Hagan

Norway
