Product Type	Gaming Laptop
Brand	Gigabyte
Model	AORUS 17X
Power Supply	330W AC Adapter (Input 100-240V~, 50-60Hz, Output 19.5V, 16.92A)
Connectivity	2x USB 3.2 Type-A, 1x Thunderbolt 4 (USB-C), 1x HDMI 2.1, 1x Mini DisplayPort 1.4, 1x Ethernet RJ45, 1x Audio Combo Jack, 1x DC Input
Keyboard	Backlit with Function (Fn) Keys for Quick Controls
Touchpad	Yes, Enable/Disable via Fn+F10
Webcam	Yes, with Built-in Microphone
Speakers	Built-in Stereo
Battery	Lithium-ion, Non-user-removable
Operating System	Windows Preinstalled
Special Features	AI Mode (Fn+F12), Fan Optimization (Fn+ESC), Keyboard Backlight (Fn+Space), Airplane Mode (Fn+F11)
Safety	Battery Reset Orifice, Do Not Expose to Temperature Above 45°C
Maintenance	Do Not Block Ventilation Vents, Avoid Soft Surfaces (Bed, Cushion)
Repairability	Factory Reset via Hidden Partition (F9 at Startup), Contact GIGABYTE Service Center for Battery

Frequently Asked Questions - AORUS 17X GIGABYTE

How to turn on the computer for the first time?

First plug the AC adapter into a power outlet, then connect it to the computer. Press the power button. Do not turn it off before the initial Windows setup is complete.

What are the available function keys?

The Fn keys combined with F1 to F12 provide access to various functions: Fn+F1 Sleep, Fn+F2 WiFi, Fn+F3/F4 Brightness, Fn+F5 Display Mode, Fn+F7 Audio, Fn+F8/F9 Volume, Fn+F10 Touchpad, Fn+F11 Airplane Mode, Fn+F12 AI Mode, Fn+Space Keyboard Backlight, Fn+ESC Fan Optimization.

How to restore the operating system?

Restart the computer and press F9 at startup. Choose 'Troubleshoot' then 'Smart Recovery' to restore factory settings, or 'Reset this PC' to keep or remove your files. Ensure the computer is plugged into a power outlet during restoration.

Can I remove the battery myself?

No, the Lithium-ion battery is not user-removable. For any battery issues, contact the nearest GIGABYTE Service Center.

How to enable keyboard backlight?

Press the Fn+Space combination to enable or disable the keyboard backlight.

What to do if the computer overheats?

Check that the ventilation vents are not blocked. Use the computer on a hard, flat surface. Activate fan optimization with Fn+ESC to run fans at 100%. Avoid soft surfaces like a bed or cushion.

How to connect an external monitor?

Use the HDMI 2.1 port or the Mini DisplayPort 1.4 to connect an external monitor. Press Fn+F5 to switch between display modes (laptop screen, external monitor, or both).

What is the purpose of AI mode?

The AI mode (activated by Fn+F12) automatically adjusts performance and cooling based on usage, optimizing the balance between performance and cooling.

How to disable the touchpad?

Press Fn+F10 to enable or disable the touchpad. An indicator light may show the status.

How to access the BIOS?

To access the UEFI BIOS, restart the computer and press F2 (or the indicated key) at startup. You can also go through advanced recovery options: 'UEFI Firmware Settings' in the Troubleshoot menu (accessible via F9).

USER MANUAL AORUS 17X GIGABYTE

Diagram of a laptop with a bird silhouette above its screen, showing front and side views (no text or symbols)

ENEnglish003

AR العربية 009

ВСБългарски 015

CSČeština 021

DE Deutsch 027

EL Ελληνικά 033

ES Español 039

ETEesti Keel 045

FR Français 051

HE 057

HU Magyar 063

JA 日本語 069

KO 한국어 076

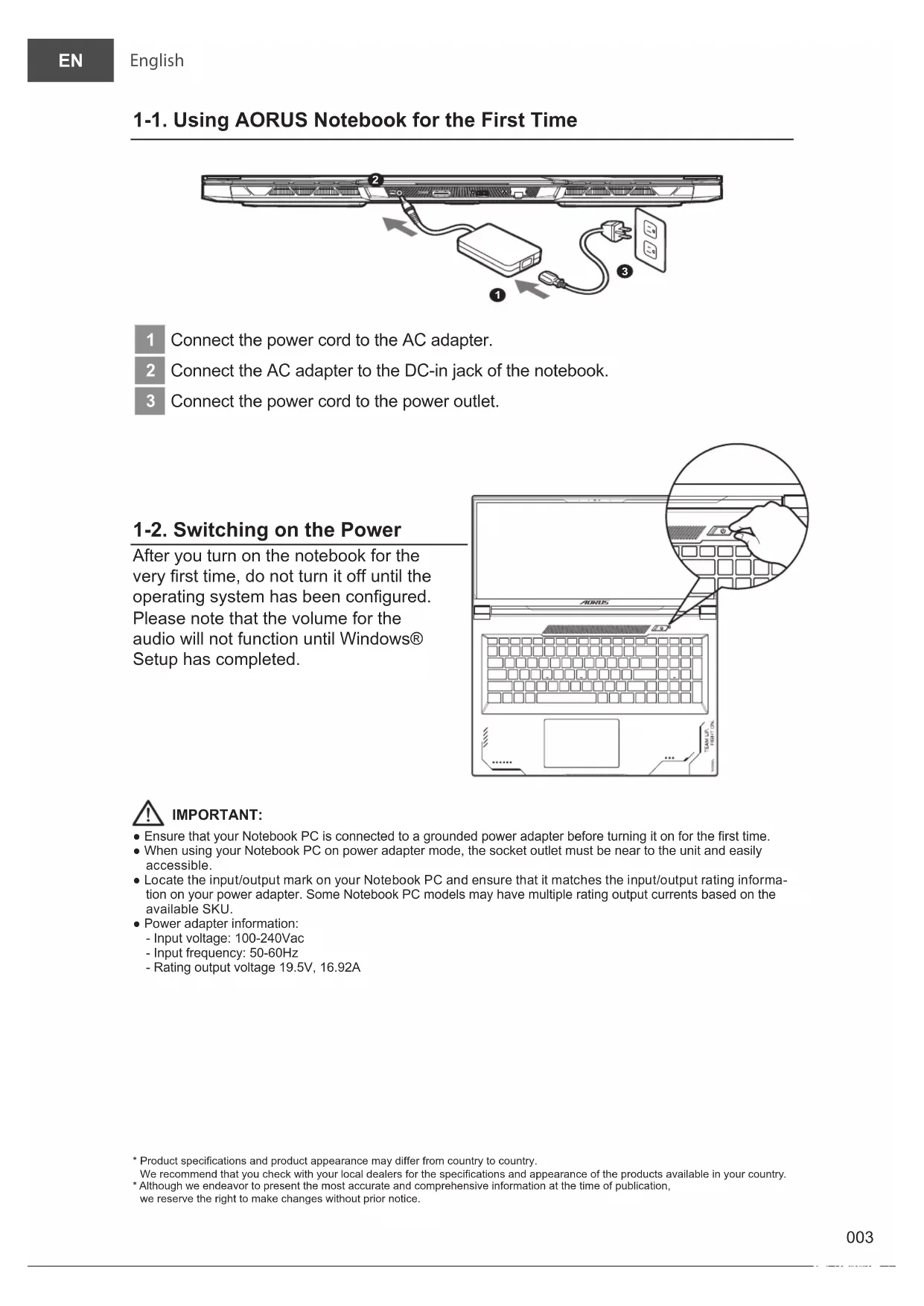

Diagram showing cable connection to a device with labeled components and directional arrows indicating cable routing.

1 Connect the power cord to the AC adapter.
2 Connect the AC adapter to the DC-in jack of the notebook.
3 Connect the power cord to the power outlet.

1-2. Switching on the Power

After you turn on the notebook for the very first time, do not turn it off until the operating system has been configured. Please note that the volume for the audio will not function until Windows® Setup has completed.

AORDS TEAM UP. FRIP ON.

IMPORTANT:

• Ensure that your Notebook PC is connected to a grounded power adapter before turning it on for the first time.
• When using your Notebook PC on power adapter mode, the socket outlet must be near to the unit and easily accessible.

• Locate the input/output mark on your Notebook PC and ensure that it matches the input/output rating information on your power adapter. Some Notebook PC models may have multiple rating output currents based on the available SKU.
  • Power adapter information:

• Input voltage: 100-240Vac

• Input frequency: 50-60Hz
• Rating output voltage 19.5V, 16.92A

* Product specifications and product appearance may differ from country to country. We recommend that you check with your local dealers for the specifications and appearance of the products available in your country. * Although we endeavor to present the most accurate and comprehensive information at the time of publication, we reserve the right to make changes without prior notice.

2. AORUS Notebook Tour

AORUS 1 2 3 4 5 6 7 LED UP LIGHT DN.

10 11 8 9 12 3 14 5 16 17

1 Microphone
2 Webcam
3 Display Panel
4 Light Sensor Area*
5 Power Button
6 Keyboard
7 Touchpad
8 USB 3.2 Port (USB type-A)
9 Audio Combo Jack

10 Thunderbolt 4 Port (USB type-C)
11 USB 3.2 Port (USB type-A)
12 Power Input Port (DC)
13 HDMI 2.1 Port
14 Mini DisplayPort 1.4
15 Ethernet Port (LAN)
16 Battery Reset Hole**
17 Speaker

* The system will adjust the brightness of the screen automatically according to the ambient light, beware not to cover this area.

** Whenever the system hangs, please: (1) Power off the notebook; (2) Remove the AC power; (3) Use a straightened paperclip and insert it to this hole for 4 secs; (4) Waiting for 15 secs then connect the AC power; (5) Power on the notebook.

HDMI

The Adopted Trademarks HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

IMPORTANT:

• Do not remove the built-in lithium battery.
  For any service needs, please contact your local GIGABYTE Authorized Service Center.
• Do not install the Notebook PC on a slant or a place prone to vibrations, or avoid using the Notebook PC in that location for a long time. This increases the risk that a malfunction or damage to the product will occur.
• Do not store and use Notebook PC in direct sunlight or the location where temperatures exceed 112°F (45°C) such as inside a vehicle. There is a danger of Lithium-ion battery expansion and aging.
• Do not use the Notebook PC in a badly ventilated location such as on bedding, on a pillow or cushion, etc, and do not use it in a location such as room with floor heating as it may cause the computer to overheat. Take care that the Notebook PC vents (on the side or the bottom) are not blocked especially in these environments. If the vents are blocked, it may be dangerous and cause the Notebook PC to overheat.

Hotkeys

The computer employs hotkeys or key combinations to access most of the computer's controls like screen brightness and volume output. To activate hotkeys, press and hold the key before pressing the other key in the hotkey combination.

Hotkey		Function Description
Fn+ESC		Maximize Fan Speed To increase the fan speed to 100%.
Fn+F1		Sleep Put the computer in Sleep mode.
Fn+F2		Wireless LAN	Enables / disable the Wireless LAN function.
Fn+F3		Brightness Down Decrease the screen brightness.
Fn+F4		Brightness Up Increase the screen brightness.
Fn+F5		Display Toggle	Switch display output between the display screen, external monitor (if connected) and both.
Fn+F6		Screen Display Lock Lock your PC or switch accounts.
Fn+F7		Speaker Toggle Turn the speaker on and off.
Fn+F8		Volume Down Decrease the sound volume.
Fn+F9		Volume Up Increase the sound volume.
Fn+F10		Touchpad Toggle Turn the internal touchpad on and off.
Fn+F11		Airplane Mode	Enable/disable the Airplane Mode function.
Fn+F12		AI Mode AI Mode Switch.
Fn+Space		Keyboard Backlight Toggle	Turn the keyboard backlight on and off.

Recovery Guide

System recovery (Restore your laptop operating system)

When something is going wrong with the laptop operating system, the storage of the laptop has a hidden partition containing a full back up image of the operating system that can be used to restore the system to factory default settings.

Note

• If the storage has been switched or the partition deleted, the recovery option will no longer be available and a recovery service will be needed.
• The recovery function is only available on devices with O/S preinstalled. Devices with EFI SHELL do not have the recovery function.

Launch system recovery

The system recovery feature is preinstalled before the laptop is shipped from the factory. The option menu allows you to launch the Windows recovery tool to reinstall the operating system to factory default.

The brief introduction below will show you how to start the recovery tool and restore your system.

All ready to go

Make sure your PC is plugged in. This will take a few minutes.

Recovery Guide

1

Turn off and restart the laptop.

2

AORUS Press for System Recovery.

During the laptop turn on process, press and hold F9 key to launch the tool.

3

Choose "Troubleshoot" to enter the recovery settings.

( Also you can choose "Continue" to exit recovery system and continue to System for files or data backup. )

There are two options for system recovery

• Reset this PC -
  You can choose to keep or remove your files and then reinstalls Windows without losing your files.
• Smart Recovery -
  Your PC settings will be restored to factory default settings.
  Caution: All personal data and files will be lost.

4

Smart Recovery

The recovery will be activated and you will see the option buttons on the window. Click on "Yes" to start it.

Caution

• Once the "Recovery" is selected, your personal data and files will be deleted after the laptop starts restoring, and the operating system will be reset to factory default settings
• A progress indicator bar will show on the window when the recovery process is running. Please make sure the AC-adapter is plugged in and do not turn off the laptop.

After the system recovery is completed, you will see the option button on the window, please click on "Shutdown".

5

Advanced options

System Restore

Use a restore point recorded on your PC to restore Windows.

System Image Recovery

Recover Windows using a specific system image file.

Startup Repair

Fix problems that keep Windows from loading.

Command Prompt

Use the Command Prompt for advanced trobleshooting.

UEFI Firmware Settings

Change settings in your PC's UEFI firmware.

Startup Settings

Change Windows Startup behavior.

Appendix

■ Warranty & Service:

Warranty and service and related information please refer to the warranty card or GIGABYTE service website as the below link:

https://www.gigabyte.com/Support/Laptop

■ FAQ:

FAQ (Frequent Asked Questions) please refer to the below link:

https://www.gigabyte.com/Support/Faq
