USER MANUAL FFPS Duronic

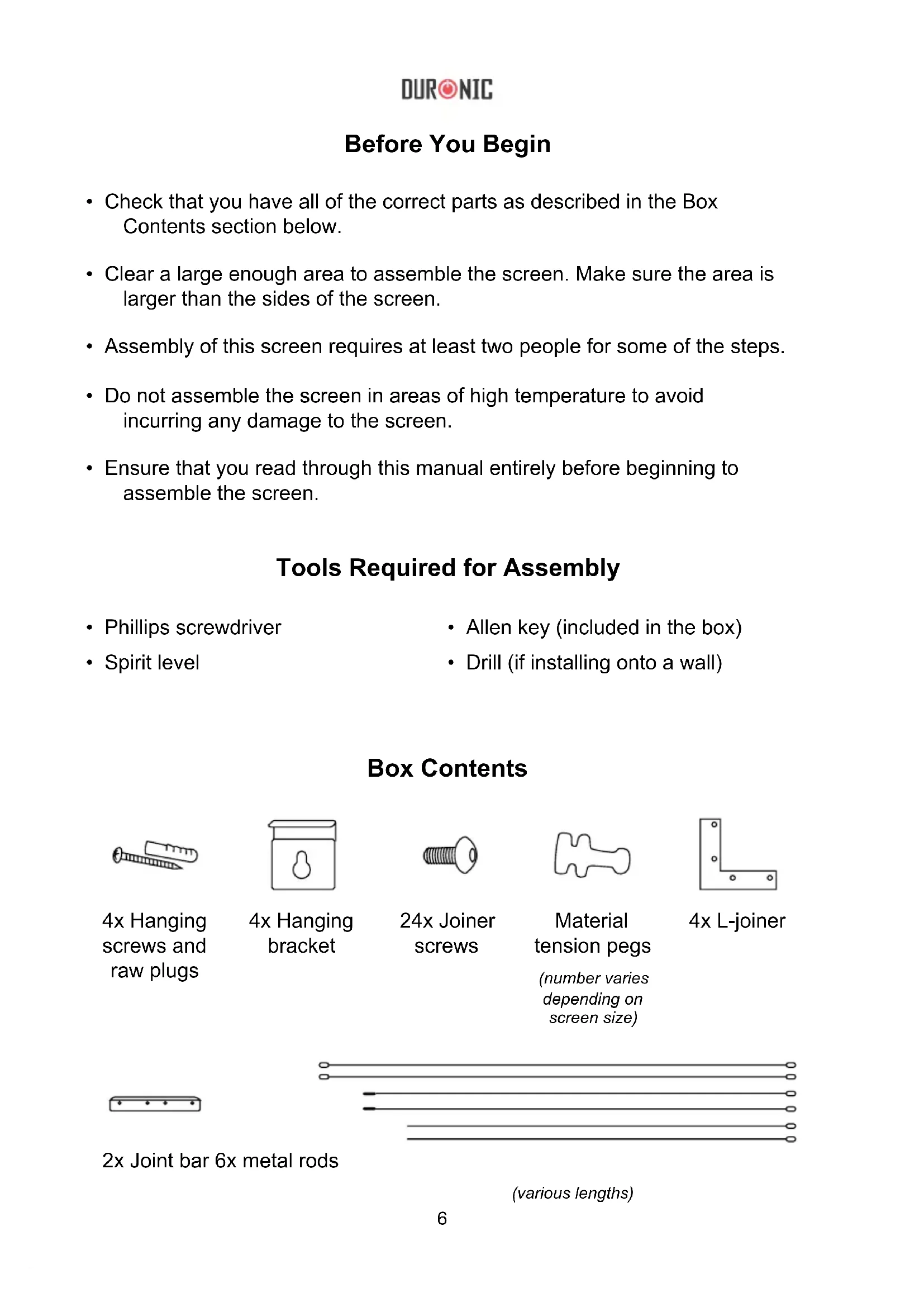

• Check that you have all of the correct parts as described in the Box Contents section below.
• Clear a large enough area to assemble the screen. Make sure the area is larger than the sides of the screen.
• Assembly of this screen requires at least two people for some of the steps.
• Do not assemble the screen in areas of high temperature to avoid incurring any damage to the screen.
• Ensure that you read through this manual entirely before beginning to assemble the screen.

Tools Required for Assembly

• Phillips screwdriver
- Spirit level

• Allen key (included in the box)
• Drill (if installing onto a wall)

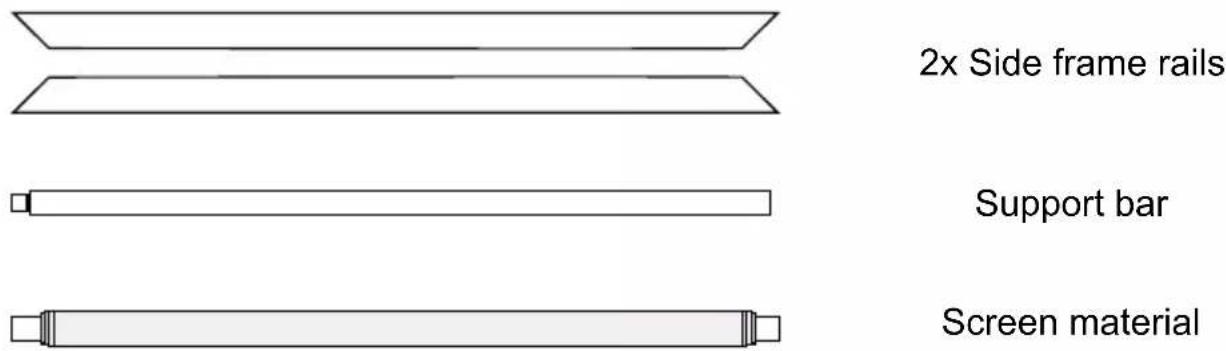

Box Contents

4x Hanging screws and raw plugs

4x Hanging bracket

24x Joiner screws

Material tension pegs

4x L-joiner

(number varies depending on screen size)

2x Joint bar 6x metal rods

(various lengths)

DURONIC

Two parallel rectangular shapes with rounded corners, no text or symbols present

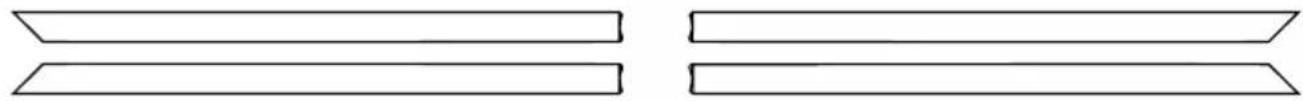

2x Top frame rails 2x Bottom frame rails

Assembly Instructions

1) Ensure your assembly area is clean and completely clear. You will need at least 2ft of space around all four sides of the screen when it is spread out.
2) Unpack all of the parts from the box and lay them out in an orderly way. Do not unroll the screen yet.

Assemble the Frame

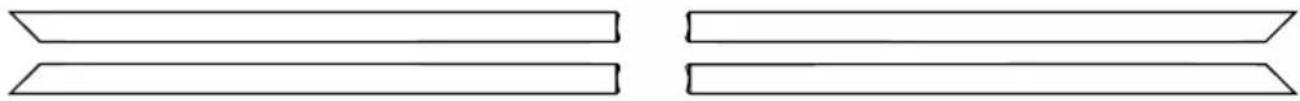

3) Take the two top frame rails and attach them together sliding a joint bar into the flat ends of both rails and pushing them together. Secure them with 4 joiner screws and tighten in place using the Allen key provided.

Repeat the same for the bottom frame rails.

Pure mechanical component diagram without any text, numbers, or symbols

4) Slide the tension pegs into the designated areas of all pieces of the top frame rail where it is indicated with red arrow stickers.

Slide tension pegs onto the bottom frame rail, then also do the same on both of the side frame rails.

Diagram showing a directional arrow and a circular symbol on a vertical line, with no readable text or labels.

DURONIC

5) Next, slide the hanging brackets into place.

There are either 4 of them included, 2 for the top frame and 2 for the bottom.

These brackets will be used later to hang the screen on to the wall.


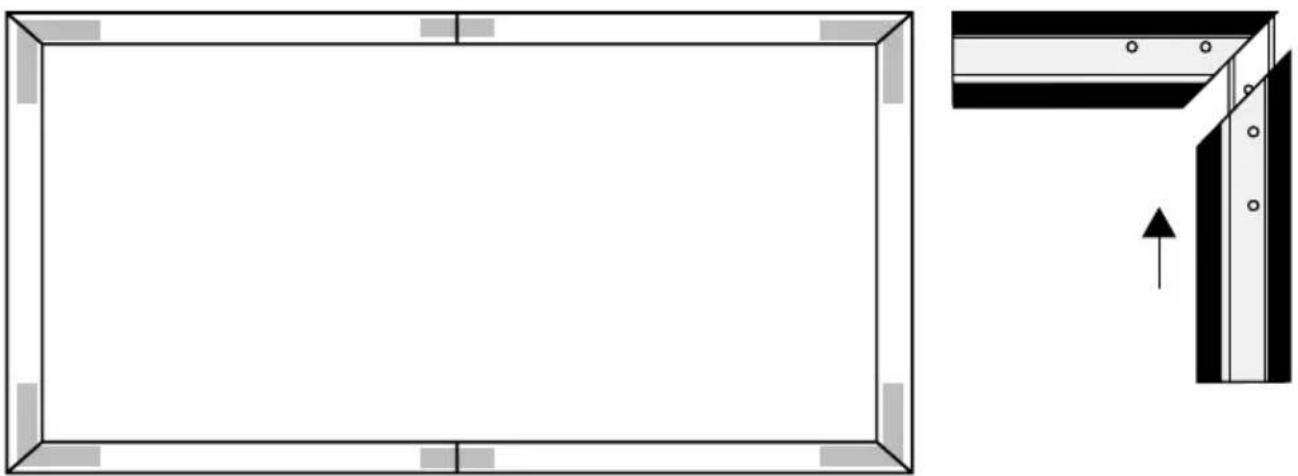

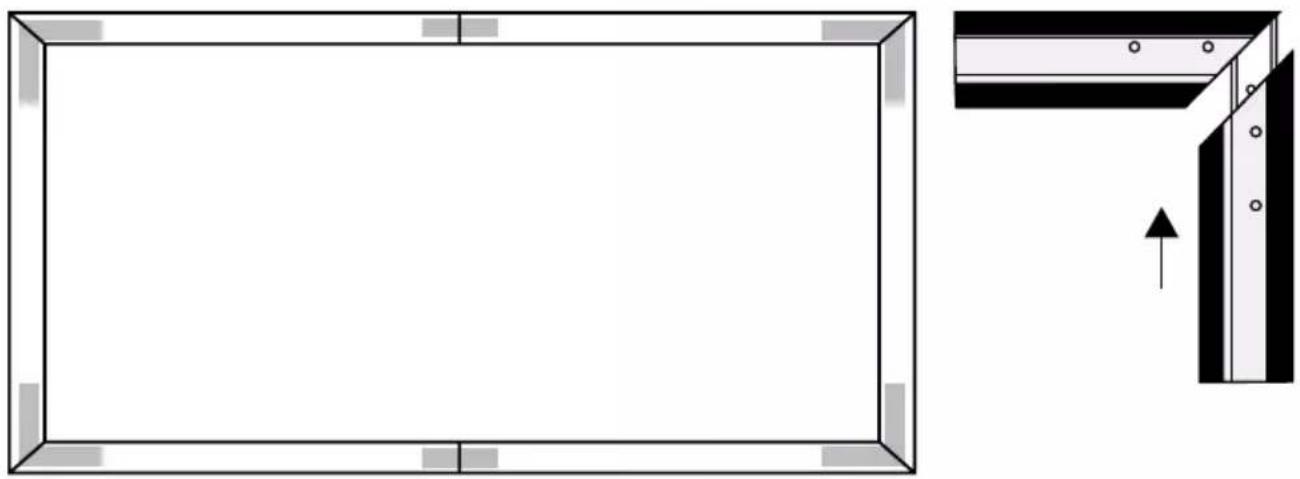

6) Next, join all of the sides together. Using the L-joiners, slide one part into the top frame rail and the other part into one of the side frame rails. Secure in place using 4 joiner screws and tighten them into place using the Allen key.

Repeat the same for every corner of the frame, so that all pieces of the frame rails are joined together.

Pure mechanical diagram showing a bracket with mounting holes and an arrow indicating direction (no text or symbols)

Pure architectural or mechanical diagram showing a rectangular frame with corner brackets and a corner detail with an arrow indicating direction (no text or symbols)

Prepare the Screen

7) Check first that the floor is clean and dry. Gently unroll the screen and lay it down on the floor with the viewing side face-down.

8) Starting with the single-ended rods, attach two together as shown to create a long rod:

Two black horizontal bars with arrows pointing left and right, no text or symbols present

DURONIC

9) Insert this into the top of the screen and push all the way through so that the rod appears at the other end. Repeat this for the bottom part of the screen, joining the remaining two single-ended rods together and pushing it through the bottom part of the screen.

Then insert the two shorter double-ended rods into the sides of the screen.

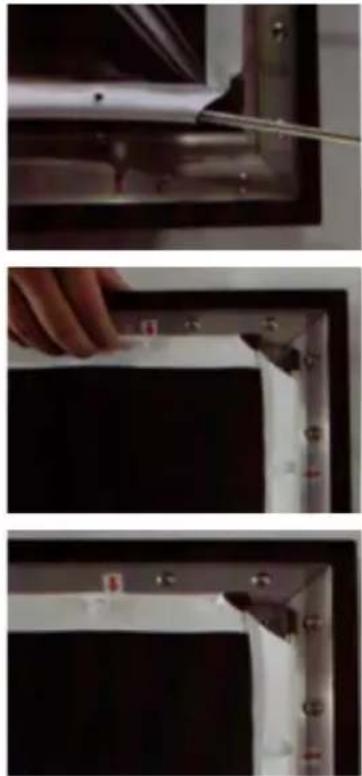

11) Place the screen material onto the frame. Starting from one end of the screen, start to push the tension pegs through the pre-made holes along the edge of the screen fabric. Work your way along the screen until all of the tension pegs are in their corresponding holes.

Note:

- The last few tension pegs may require firm pulling in order to keep the screen perfectly flat.

- The red arrows are for a guide only, the tension pegs do not need to align perfectly with these when the screen is fitted.

Three-panel photo showing a hand using a tool to cut or mark a dark object, with no visible text or symbols.

Check that everything looks correct before continuing.

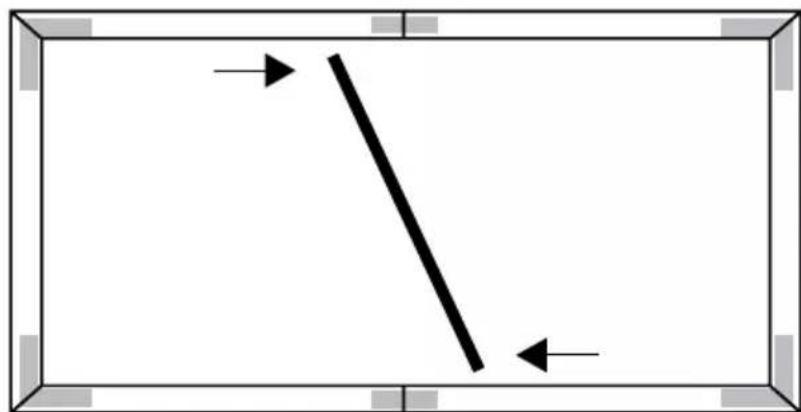

12) Place the support bar in the middle of the screen diagonally.

Ensuring the ends of the support bar tuck underneath the back of the frame, slowly push the bar until it is vertical in the centre of the screen where the frame pieces join.

Simple diagram with a diagonal line and two arrows inside a rectangular frame (no text or symbols)

DURONIC

Installing the Screen onto the Wall

13) Decide on a location that you would like to install you screen. Using a pencil and spirit level, mark your chosen location for the hanging screws.

Pure technical line drawing of a mechanical component with a pencil, no text or symbols present

14) Use the raw plugs provided, or find some suitable for your type of wall (i.e. brick, plasterboard etc..) and install the screws using a Phillips screwdriver to tighten them into place.

Please note: we have only included one type of raw plug with this kit. If your wall requires something different ensure you get the appropriate fixings to ensure that the installation will be safe and secure.

15) Use two people to hang the screen. Stand at opposite ends of the screen to each other and lift it gently into place onto the wall.

Ensure it is sitting properly on all four of the screws.

Two stylized human figures holding a blank rectangular frame (no text or symbols)

Cleaning

If the screen gathers dust, simply clean with a dry cloth or duster.

If the screen has a mark or stain that needs to be removed, use a wet cloth with a mild soap to gently clean the screen. Use minimal pressure to prevent damaging the fabric.

Do not use any abrasive chemicals or cleaning agents on any part of the screen or casing.

DURONIC

Warranty

1 Year Guarantee from Shine-Mart Ltd, Trademark owners of Duronic Products. NOTE: THESE STATEMENTS DO NOT AFFECT YOUR STATUTORY RIGHTS AS A CONSUMER

This product has been manufactured under the strictest or quality control procedures, and using the highest quality of materials, to ensure excellent performance and reliability. It will give very good and long lasting service, provided it is properly used and maintained. The product is guaranteed for 1 years from the date of original purchase. If any defect arises due to a faulty materials or poor workmanship, the faulty product must be returned to the original place of purchase. Refund or replacement is at the discretion of that company.

Duronic Products are offered with a 1 year guarantee under the following conditions:

1. The product must be returned to the retailer with original proof of purchase.
2. The product must be installed and used in accordance with the instructions contained in this operating manual.
3. It must be used only for domestic purposes.
4. It does not cover wear and tear, malicious damage, misuse, neglect, inexpert repairs or consumable parts.
5. Shine-Mart Ltd has no responsibilities for accidental or consequential loss or damage.
6. Shine-Mart Ltd are not liable to carry out any type of servicing work, under the guarantee
7. Valid in the UK only

This product is fitted with CE:1363 plug and fuse Imported by Shine-Mart Ltd, RM3 8SB

Information on waste Disposal for Consumers of

Electrical & Electronic Equipment.

This mark on a product and/or accompanying documents indicates that when it is to be disposed of, it must be treated as Waste Electrical & Electronic Equipment, (WEEE).

Any WEEE marked products must not be mixed with general household waste, but kept separate for the treatment, recovery and recycling of the materials used.

For proper treatment, recovery and recycling; please take all WEEE marked waste to your Local Authority Civic waste site, where it will be accepted free of charge.

If customers dispose of Waste Electrical & Electronic Equipment correctly, they will be helping to save valuable resources and preventing any potential negative effects upon human health and the environment, of any hazardous materials that the waste may contain.

Follow Us

4x Supports 24x de suspension

Vis de menuisier

Pure electrical circuit lines without any symbols

Two parallel horizontal lines with rounded ends, no text or symbols present

Two parallel horizontal lines with rounded ends, no text or symbols present

Three horizontal rectangular shapes with no text or symbols

Pure mechanical component diagram without any text, numbers, or symbols

Diagram showing a directional arrow and a square with a circle, next to vertical lines (no text or symbols)

DURONIC

Simple line drawing of a container with a lid and arrow pointing to a cross-sectional view (no text or symbols)

Pure diagram of a mechanical or structural component with no text, numbers, or symbols

Pure technical diagram showing a rectangular frame with corner markers and an angled view of a structural joint (no text or symbols)

Pure diagram of two black horizontal bars with arrows indicating direction, no text or symbols present

DURONIC

Three-panel photo showing a hand using a tool to cut or mark a black object, with no visible text or symbols.

Notez :

Simple diagram with a diagonal line and two arrows inside a rectangular frame (no text or symbols)

DURONIC

Simple line drawing of a pencil striking a cylindrical object with two circular holes (no text or symbols)

Two stylized human figures holding a blank rectangular frame (no text or symbols)

Nettoyage

Pure electrical circuit lines without any symbols

6x Metallstange

Two parallel rectangular shapes with rounded corners, no text or symbols present

Pure mechanical component diagram without any text, numbers, or symbols

Diagram showing a directional arrow and a circular symbol on a vertical line, with no readable text or labels.

Simple line drawing of a container with a lid and an arrow pointing to a cross-sectional view (no text or symbols)

Pure mechanical diagram showing a bracket with mounting holes and an arrow indicating direction (no text or symbols)

Pure architectural or mechanical diagram showing a rectangular frame with corner brackets and a corner detail with an arrow indicating direction (no text or symbols)

Two black horizontal bars with arrows pointing left and right, no text or symbols present

Simple diagram with a diagonal line and two arrows inside a rectangular frame (no text or symbols)

Three-panel photo showing a hand using a tool to cut or mark a black object on a dark surface, with no visible text or symbols.

Simple line drawing of a pencil striking through a cylindrical object on a horizontal surface (no text or symbols)

Two stick figures holding a blank rectangular frame (no text or symbols)

Reinigung

Pure electrical circuit lines without any symbols

6x barras metálicas

Two parallel horizontal lines with rounded ends, no text or symbols present

Two horizontal rectangular shapes with diagonal lines, no text or symbols present

2x barras marco superior 2x barras marco inferior

Pure technical line drawing of four rectangular components without any text, numbers, or symbols

2x barras marco lateral

Barra de apoyo

Tela pantalla

Pure mechanical component diagram without any text, numbers, or symbols

Diagram showing a directional arrow and a square button on a vertical line, with no readable text or symbols.

DURONIC

Simple line drawing of a container with a lid and arrow pointing to a cross-sectional view (no text or symbols)

Pure diagram of a mechanical or structural component with no text, numbers, or symbols

Pure technical diagram showing a rectangular frame with corner markers and an angled view of a structural joint (no text or symbols)

Pure diagram of two black horizontal bars with arrows indicating direction, no text or symbols present

DURONIC

Three-panel photo showing a hand using a tool to cut or mark a black object, with no visible text or symbols.

Simple diagram with a diagonal line and two arrows inside a rectangular frame (no text or symbols)

DURONIC

Simple line drawing of a pencil striking a cylindrical object with two circular holes (no text or symbols)

Two stylized human figures holding a blank rectangular frame (no text or symbols)

Limpieza

Pure electrical circuit lines without any symbols

6x Aste di metallo

(carie misure)

DURONIC

Two parallel rectangular shapes with rounded corners, no text or symbols present

Pure mechanical component diagram without any text, numbers, or symbols

Diagram showing a directional arrow and a circular symbol on a vertical line, with no readable text or labels.

Diagram showing a container with a teardrop-shaped opening and a side view of a curved structure (no text or symbols)

Pure mechanical diagram showing a bracket with mounting holes and an arrow indicating direction (no text or symbols)

Pure architectural or mechanical diagram showing a rectangular frame with corner brackets and a corner detail with an arrow indicating direction (no text or symbols)

Preparare la tela

Two black horizontal bars with arrows pointing left and right, no text or symbols present

DURONIC

Close-up of a mechanical component with a metal rod inserted, no visible text or symbols

Close-up of a hand pressing down on a black surface with a pen and ruler (no visible text or symbols)

Close-up of a white panel with black interior and red markings, no visible text or symbols

Nota:

Simple diagram with a diagonal line and two arrows inside a rectangular frame (no text or symbols)

Montare lo schermo al muro

Simple line drawing of a pencil striking a cylindrical object on a rectangular base (no text or symbols)

Two stick figures holding a blank rectangular frame (no text or symbols)

Pulizia

Two parallel horizontal lines with rounded ends, no text or symbols present

Two parallel horizontal lines with rounded ends, no text or symbols present

Pure technical line drawing of four rectangular components without any text, numbers, or symbols

2x Szyna boczna

Listwa wspierająca

Mata ekranu

Assembly Instructions

Pure mechanical component diagram without any text, numbers, or symbols

Simple diagram with two rectangles and two arrows pointing to each other (no text or symbols)

Diagram showing a directional arrow and a square with a circle, next to vertical lines (no text or symbols)

DURONIC

Simple line drawing of a container with a teardrop-shaped opening and an arrow pointing to a side view (no text or symbols)

Pure mechanical diagram showing a bracket with mounting holes and an arrow indicating direction (no text or symbols)

Pure architectural or structural diagram showing a rectangular frame with corner brackets and a vertical panel with a directional arrow (no text or symbols)

Pure diagram of two black horizontal bars with arrows indicating direction, no text or symbols present

Close-up of a metallic tool interacting with a cylindrical mechanical component (no visible text or symbols)

Close-up of a hand holding a small object with a ruler, next to a dark rectangular object (no visible text or symbols)

Close-up of a dark rectangular object with a small black object on top, possibly a device or panel (no visible text or symbols)

Simple diagram with a diagonal line and two arrows inside a rectangular frame (no text or symbols)

Simple line drawing of a pencil striking a cylindrical object on a rectangular base (no text or symbols)

Two stick figures holding a blank rectangular frame (no text or symbols)

Czyszczenie

Tools Required for Assembly

Pure horizontal lines with circular endpoints, no text or symbols present

6x Metalen staaf

(verschillende lengtes)

DURONIC

Two parallel horizontal lines with rounded ends, no text or symbols present

Two horizontal rectangular shapes with rounded corners, no text or symbols present

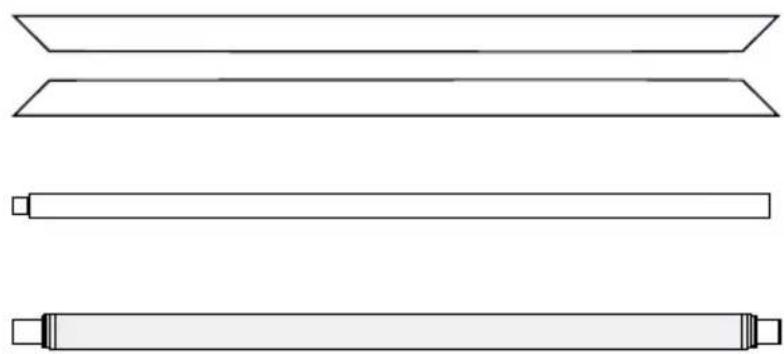

Two parallel horizontal parallelograms with no text or symbols

Pure mechanical component diagram without any text, numbers, or symbols

Diagram showing a directional arrow and a square button on a vertical surface (no text or symbols)

DURONIC

Simple line drawing of a container with a lid and an arrow pointing to a cross-sectional view (no text or symbols)

Pure mechanical diagram showing a bracket with mounting holes and an arrow indicating direction (no text or symbols)

Pure architectural or mechanical diagram showing a rectangular frame with corner brackets and a corner detail with an arrow indicating direction (no text or symbols)

Two black horizontal bars with arrows pointing left and right, no text or symbols present

Three-panel photo showing a hand using a tool to cut or mark a black object on a dark surface, with no visible text or symbols.

Simple diagram with a diagonal line and two arrows inside a rectangular frame (no text or symbols)

Simple line drawing of a pencil striking a cylindrical object on a horizontal surface (no text or symbols)

Two stick figures holding a blank rectangular frame (no text or symbols)

Reiniging
