Product Type	Rechargeable LED lantern with mosquito killer function
Brand	Duronic
Model	FKUSB
Dimensions	88 x 129 mm
Weight	204 g
Power supply	Li-Polymer battery 3.7 V / 2000 mAh; charging via USB 5 V / 1 A
Charging time	Approximately 3 hours
Lantern runtime (100%)	> 4 hours
Lantern runtime (50%)	> 8 hours
Lantern runtime (20%)	> 20 hours
Mosquito killer runtime	> 30 hours
LED lantern	1 W, 2835 SMD, 6000-6500 K
Mosquito killer	UV LED (4 x 0.06 W), wavelength 360-400 nm, high voltage grid >500 V
Waterproof rating	Waterproof (can be cleaned under water)
Material	Not specified (robust construction)
Functions	Lantern 3 levels (20% / 50% / 100%) + off; UV mosquito killer with electrified grid
Maintenance and cleaning	Disconnect the cable, turn off, seal the USB port, then clean under water or immerse
Safety	Do not look directly at the LED; keep out of reach of children under 5 years; do not use as a toy
Warranty	1 year (Shine-Mart Ltd)
Included accessories	Micro-USB cable, hanging hook
Spare parts and repairability	Built-in battery; no spare parts supplied; professional repair recommended
General information	Domestic use, CE compliant, WEEE recycling, European plug

Frequently Asked Questions - FKUSB Duronic

How to turn on the lantern?

Press the lantern switch to turn on. The first press gives 20% brightness. Press again to 50%, then 100%, and finally off.

How to activate the mosquito killer function?

Press the dedicated 'mosquito killer' switch. The UV LED and high voltage grid activate. Press again to turn off.

How to recharge the battery?

Plug the supplied USB cable into a USB port (5V/1A) or a computer. The charging indicator changes from red to green when the battery is full. Charging time is about 3 hours.

What is the battery life of the lantern?

The runtime depends on the brightness level: >20 hours at 20%, >8 hours at 50%, >4 hours at 100%.

Can I use the device in the rain?

Yes, the lantern is waterproof. You can immerse it after sealing the USB port, but it is advised not to deliberately submerge it.

How to clean the device?

Disconnect the cable, turn off the device, make sure the USB port cap is inserted properly, then rinse under water or immerse in a basin. Dry before reuse.

Is the UV LED dangerous for eyes?

Do not look directly at the LED light, whether white or UV. This may cause eye damage. Keep the device out of reach of children.

What to do if the battery does not recharge?

Check the USB cable and power source. If the problem persists, contact after-sales service during the warranty period.

Can the device be left on while charging?

It is recommended to turn off the device during charging to avoid overheating or malfunction.

Where to find spare parts?

No spare parts are supplied. In case of failure, contact Duronic customer service for repair or replacement under warranty.

USER MANUAL FKUSB Duronic

Creative Consumer Products

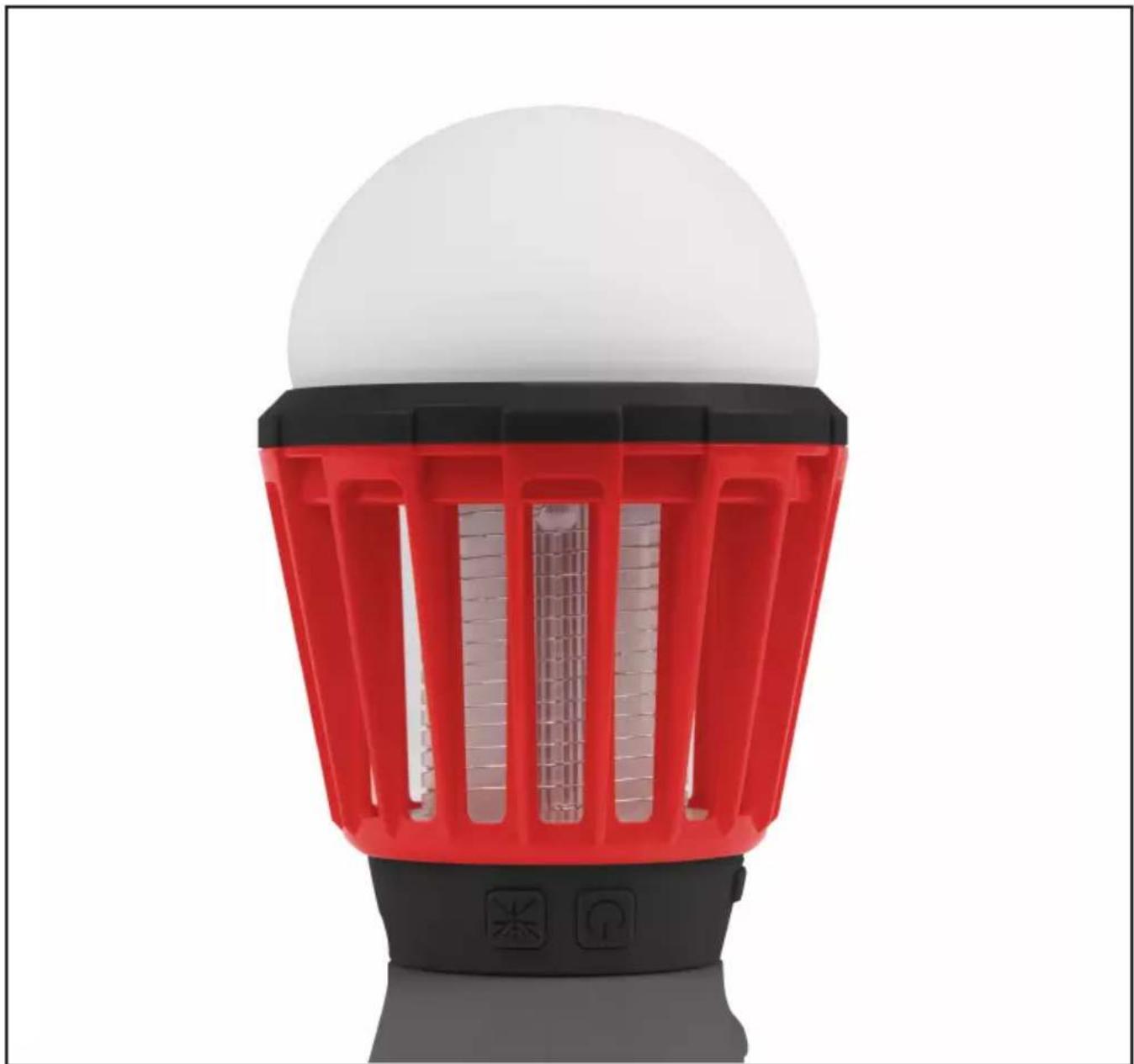

Red and white nightlight bulb device with a transparent dome and black base (no text or symbols visible)

FKUSB - Mosquito Killer Lantern

Contents

English Manual 3

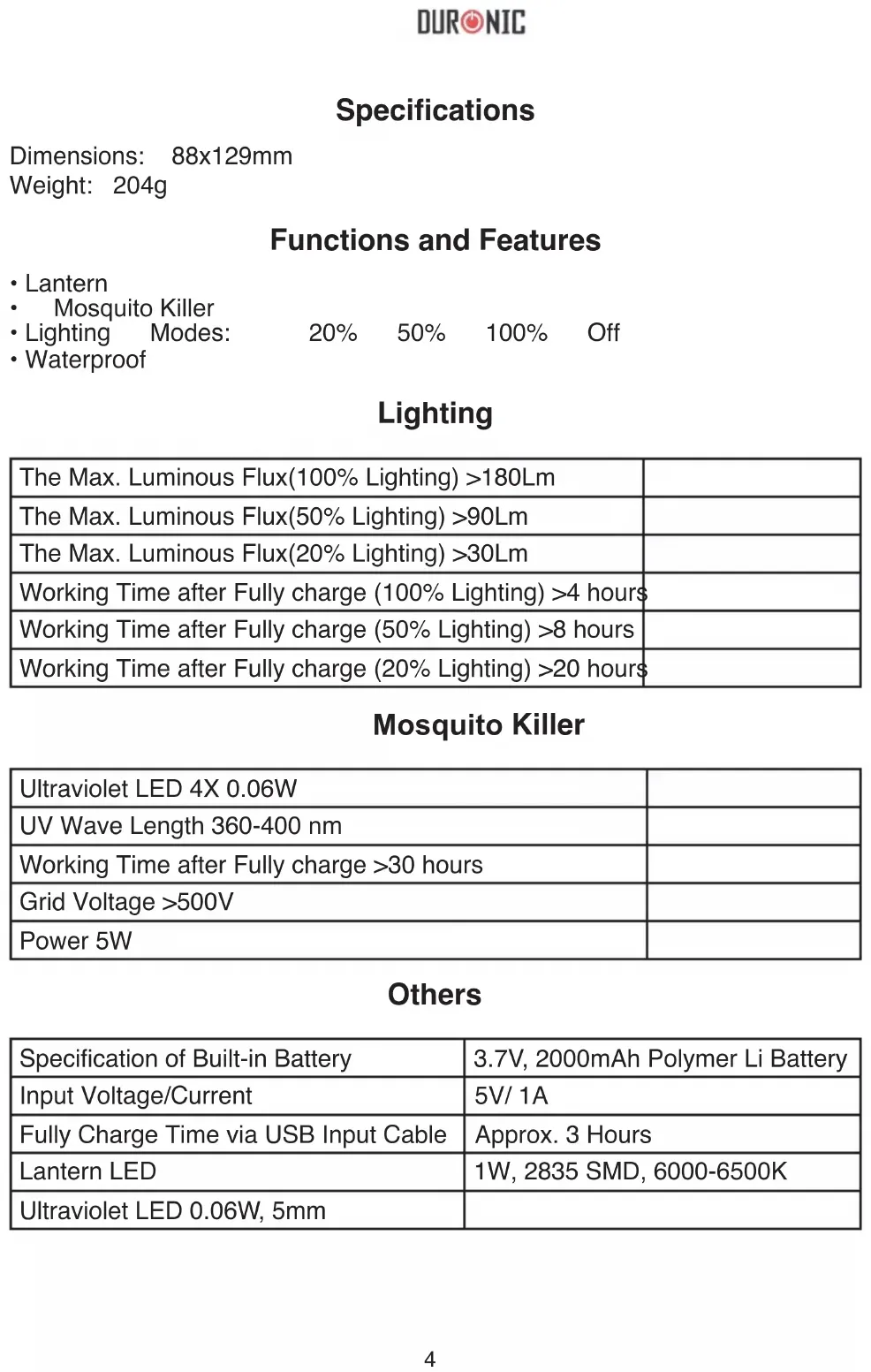

Dimensions: 88x129mm

Weight: 204g

Functions and Features

• Lantern
• Mosquito Killer
  • Lighting Modes: 20% 50% 100% Off
• Waterproof

Lighting

The Max. Luminous Flux(100% Lighting) >180Lm
The Max. Luminous Flux(50% Lighting) >90Lm
The Max. Luminous Flux(20% Lighting) >30Lm
Working Time after Fully charge (100% Lighting) >4 hours
Working Time after Fully charge (50% Lighting) >8 hours
Working Time after Fully charge (20% Lighting) >20 hours

Mosquito Killer

Ultraviolet LED 4X 0.06W
UV Wave Length 360-400 nm
Working Time after Fully charge >30 hours
Grid Voltage >500V
Power 5W

Others

Specification of Built-in Battery	3.7V, 2000mAh Polymer Li Battery
Input Voltage/Current	5V/ 1A
Fully Charge Time via USB Input Cable	Approx. 3 Hours
Lantern LED	1W, 2835 SMD, 6000-6500K
Ultraviolet LED 0.06W, 5mm

Operation Method

Lantern:

Press the “Lantern” Switch to shift lighting mode, from 20% lighting, 50% lighting, 100% lighting and Off.

Mosquitto Killer:

Press the "Mosquito Killer" Switch to turn on or turn off.

Input Charge:

Use Micro USB cable to connect with AC Adaptor, PC, etc.

The charging indicator will be red when charging, and green when fully charged.

Caution

• Do not look directly into the LED light.
  • This product is not a toy.
• Contains small parts not suitable for children under 5 years of age.
• Turn off the light when charging.

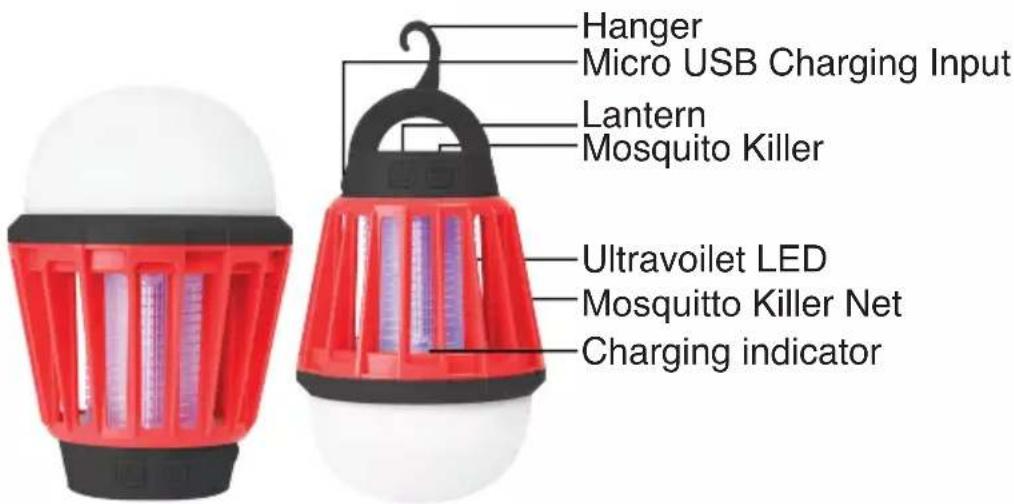

Structural Diagram

Cleaning

• Detach all cables from the Lantern.
• Place "Lantern" into the off position.
  • Ensure Mosquito Killer is switched off.
• Place the lantern underneath a tap, or
• Fill up a sink with water, placing the item in the water.

DURONIC

Warranty

1 Year Guarantee from Shine-Mart Ltd, Trademark owners of Duronic Products. NOTE: THESE STATEMENTS DO NOT AFFECT YOUR STATUTORY RIGHTS AS A CONSUMER

This product has been manufactured under the strictest or quality control procedures, and using the highest quality of materials, to ensure excellent performance and reliability. It will give very good and long lasting service, provided it is properly used and maintained. The product is guaranteed for 1 years from the date of original purchase. If any defect arises due to a faulty materials or poor workmanship, the faulty product must be returned to the original place of purchase. Refund or replacement is at the discretion of that company.

Duronic Products are offered with a 1 year guarantee under the following conditions:

1. The product must be returned to the retailer with original proof of purchase.
2. The product must be installed and used in accordance with the instructions contained in this operating manual.
3. It must be used only for domestic purposes.
4. It does not cover wear and tear, malicious damage, misuse, neglect, inexpert repairs or consumable parts.
5. Shine-Mart Ltd has no responsibilities for accidental or consequential loss or damage.
6. Shine-Mart Ltd are not liable to carry out any type of servicing work, under the guarantee
7. Valid in the UK only

This product is fitted with CE:1363 plug and fuse Imported by Shine-Mart Ltd, RM3 8SB

Information on waste Disposal for Consumers of

Electrical & Electronic Equipment.

This mark on a product and/or accompanying documents indicates that when it is to be disposed of, it must be treated as Waste Electrical & Electronic Equipment, (WEEE).

Any WEEE marked products must not be mixed with general household waste, but kept separate for the treatment, recovery and recycling of the materials used.

For proper treatment, recovery and recycling; please take all WEEE marked waste to your Local Authority Civic waste site, where it will be accepted free of charge.

If customers dispose of Waste Electrical & Electronic Equipment correctly, they will be helping to save valuable resources and preventing any potential negative effects upon human health and the environment, of any hazardous materials that the waste may contain.
