Product type	Ceiling fan
Brand	CasaFan
Model	Eco Concept
Dimensions (diameter × height)	∅ 1320/1520 mm × 360/270 mm (depending on version)
Weight	6.3 to 6.6 kg depending on version
Power supply	100-240 V ~, 50/60 Hz
Maximum motor power	29/30 W depending on version
Protection class	I / IP20
Number of speeds	6 (with remote control)
Remote control included	Yes
Reversible rotation direction	Yes (summer/winter)
Timer function	Yes
Optional lighting	Available as accessory (not included)
Number of blades	4
Blade material	Wood
Minimum distance from floor	2.3 m
Maintenance cycle	Annual
Motor protection	Locking and overload
Use	Indoor only
Supplied with balancing kit	Yes (2 weights and 1 clip)

Frequently Asked Questions - Eco Concept CasaFan

How to install the ceiling fan?

Installation must be carried out by a qualified electrician. Cut off the power at the fuse. Fix the mounting bracket to the ceiling with suitable screws and plugs (load capacity ≥ 28 kg). Assemble the ceiling rod, cover, and motor unit, then hang the assembly. Connect the electrical wires (phase, neutral, earth) to the terminal block. Attach the blades with the provided screws. Refer to the assembly diagram in the manual.

How to program the remote control?

Insert a 9V battery (type 6F22) into the transmitter without pressing any button. Turn on the fan power. Within the first 60 seconds, press the OFF button until you hear two beeps. Then, within 120 seconds, press FAN until three beeps to learn the size and number of blades. The fan is then ready.

What to do if the fan does not start?

Check the fuses and electrical connections. Make sure the main motor switch is on. Repeat the remote control coding. If necessary, replace the transmitter battery. If it persists, contact a specialist.

How to reduce fan vibrations?

Check that all screws are properly tightened, especially those of the rod and blades. Use the supplied balancing kit: place the clip on the edge of the advancing blade, test each blade, then stick the adhesive weights at the optimal point. Slight imbalances (< 10 mm) are normal for wooden blades.

The fan is noisy, what to do?

Make sure all screws are tight. Allow a 24-hour break-in period: running noises often disappear. If the noise persists, check the blade balance. If the problem is from the motor, call a professional.

How to clean the fan?

Cut off the power at the fuse before any cleaning. Never use water or alkaline products or gasoline. Wipe the blades and motor with a dry cloth. Perform this cleaning regularly.

What is the minimum ceiling height required?

The distance between the floor and the blades must be at least 2.3 meters to ensure safety. Measure before installation.

Can I use the fan outdoors?

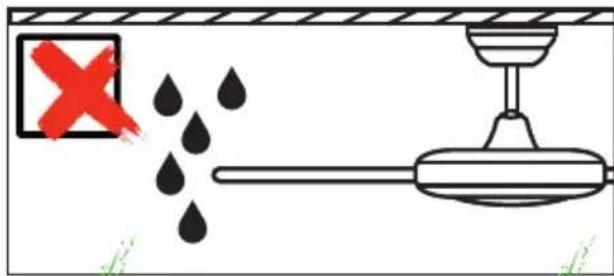

No, this fan is designed only for indoor use in a dry room. Do not install it in a bathroom, garage, or damp or explosive area.

How to reverse the rotation direction?

Press the F/R button on the remote control to change the rotation direction. In summer, the blades rotate counterclockwise to create a cooling air flow; in winter, clockwise to redistribute heat.

What to do in case of optional lighting malfunction?

Check that the bulb is properly installed and not defective. If the fan does not respond, turn off the power for at least 5 seconds and turn it back on. If the problem persists, repeat the remote control coding. The lighting is optional and not included.

USER MANUAL Eco Concept CasaFan

Radio frequency: 433,92 MHz

Maximum transmitting power:<10dBm

Simple line drawing of a person sitting on a bench using a box (no text or symbols)

Diagram of a ceiling fan with a handle and wooden panel, showing a red X mark and a blue square (no text or symbols)

Safety instructions.... 7–9

Parts.... 22–23

Installation ceiling bracket...... 26–29

Electrical connections.... 30

Assembling.... 29-38

Initial operation 39

Coding remote control.... 41

Operation 42-44

Troubleshooting 46

Cleaning/Maintenance 46

Hints and Tips.... 51

Disposal 57

INDICE

About this operating manual

Before using the CasaFan fan, read the mounting and operating manual carefully. For the safety of persons it is important to follow these instructions!

Explanation of symbols:
WARNING: Electric voltage!	ATTENTION:
Warns you of immediate danger to life. Indicates risks to health and possible damage to property.
With electrical devices, there is a danger to life from electric shock if used improperly, installed incorrectly or if the safety instructions are not observed!

SAFETY ADVICES

- Keep the operating manual within reach. Never pass the fan onto another person without the operating manual.

- This ceiling fan is for circulating dry room air. Their use in machines, outside, in garages, in moist or wet rooms or rooms in danger of fire or explosion, is not permitted.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understands the hazards involved.

- Cleaning and user maintenance shall not be made by children without supervision.

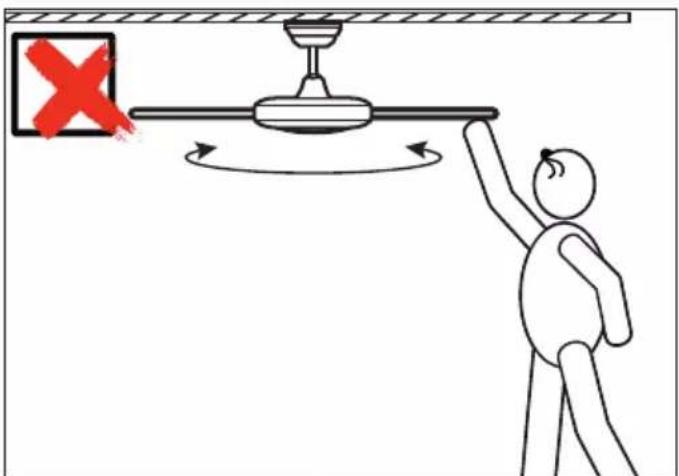

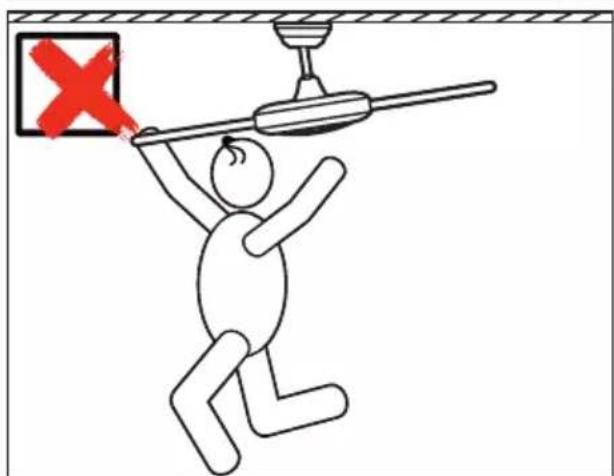

- If unusual oscillating movement is observed, immediately stop using the ceiling fan and contact the manufacturer, its service agent or suitably qualified persons.

- Replacement of parts of the safety suspension system device shall be performed by the manufacturer, its service agent or suitably qualified persons.

- Mounting of the suspension system shall be performed by the manufacturer, its service agent or suitably qualified persons.

GB

- Before accessing the connection and installation, the current must be disconnected on all poles (fuse in fuse box).

- Children shall not play with the appliance.

- Ensure that the fan is switched off from the supply mains before service and maintenance.

- The electrical connection and electrical maintenance of this fan may only be carried out by a trained electrician, a skilled electrician or an appropriately qualified person.

- The voltage details on the rating label are to conform with the available mains voltage.

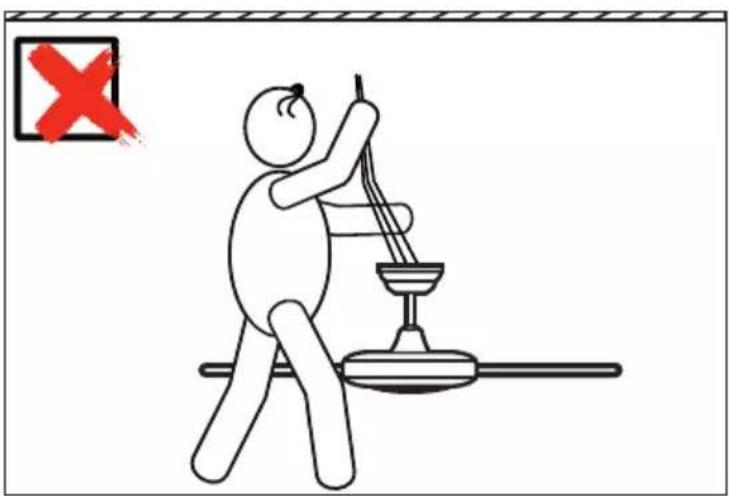

- Do not run the cables over sharp edges and under no circumstances squeeze the cables during installation.

- Only operate the ceiling fan when completely assembled!

- WARNING! The mains connection requires a two-pole isolating switch with a contact opening width of at least 3 mm. The disconnecting device must be integrated into the fixed wiring according to the valid technical regulations.

- The electrical safety of the fan is only guaranteed if the earthing system of the building installation is installed in accordance with the regulations and the fan is connected to it.

- The mains connection to which the fan is connected must comply with the applicable local standards.

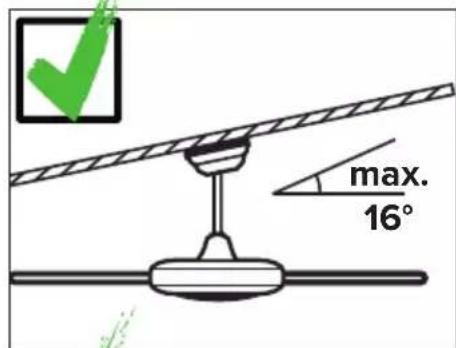

- Choose a safe place for installation and make sure that there are no objects within the area of rotation.

- The construction and fixture of the holder and ceiling is to be able to bear 4 times the weight of the fan when being moved.

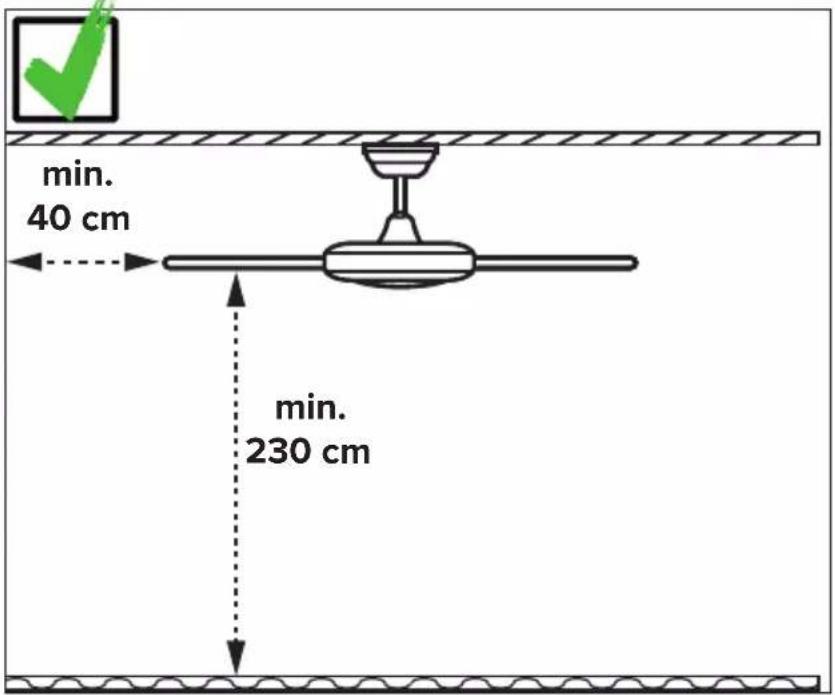

- None of the fan blades are to be less than 2.3 m from the ground.

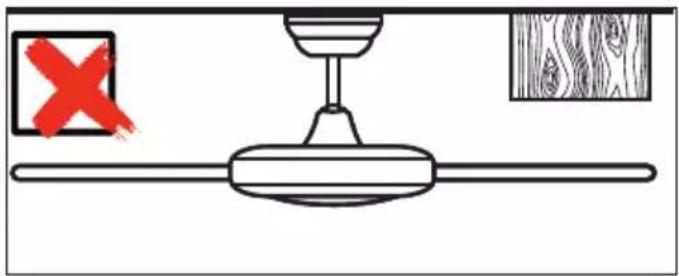

- Keep the fan away from heat sources. The minimum distance to radiant heaters and stoves is 1.5 m.

- Before first using after the setup, all electrical and mechanical connections are to be checked in order to prevent any fall, fire or electric shock.

Observe notes on disposal!

Our ceiling fans are quality products and designed for a long service life.

• Do not dispose of a appliance at the end of its service life and any batteries required to operate the appliance in household waste!
• Find out about local return and recycling possibilities and use the existing collection points in your area for disposal.
• Dispose of packaging material that is no longer required in an environmentally friendly manner and inaccessible to children.
• There is a risk of suffocation for children by inhaling or swallowing parts of the packaging.

PARTS (Figure A, page 22)

Unpack the fan and compare the package contents for completeness. All the parts shown in the figure are to be present and undamaged.

Technical data:

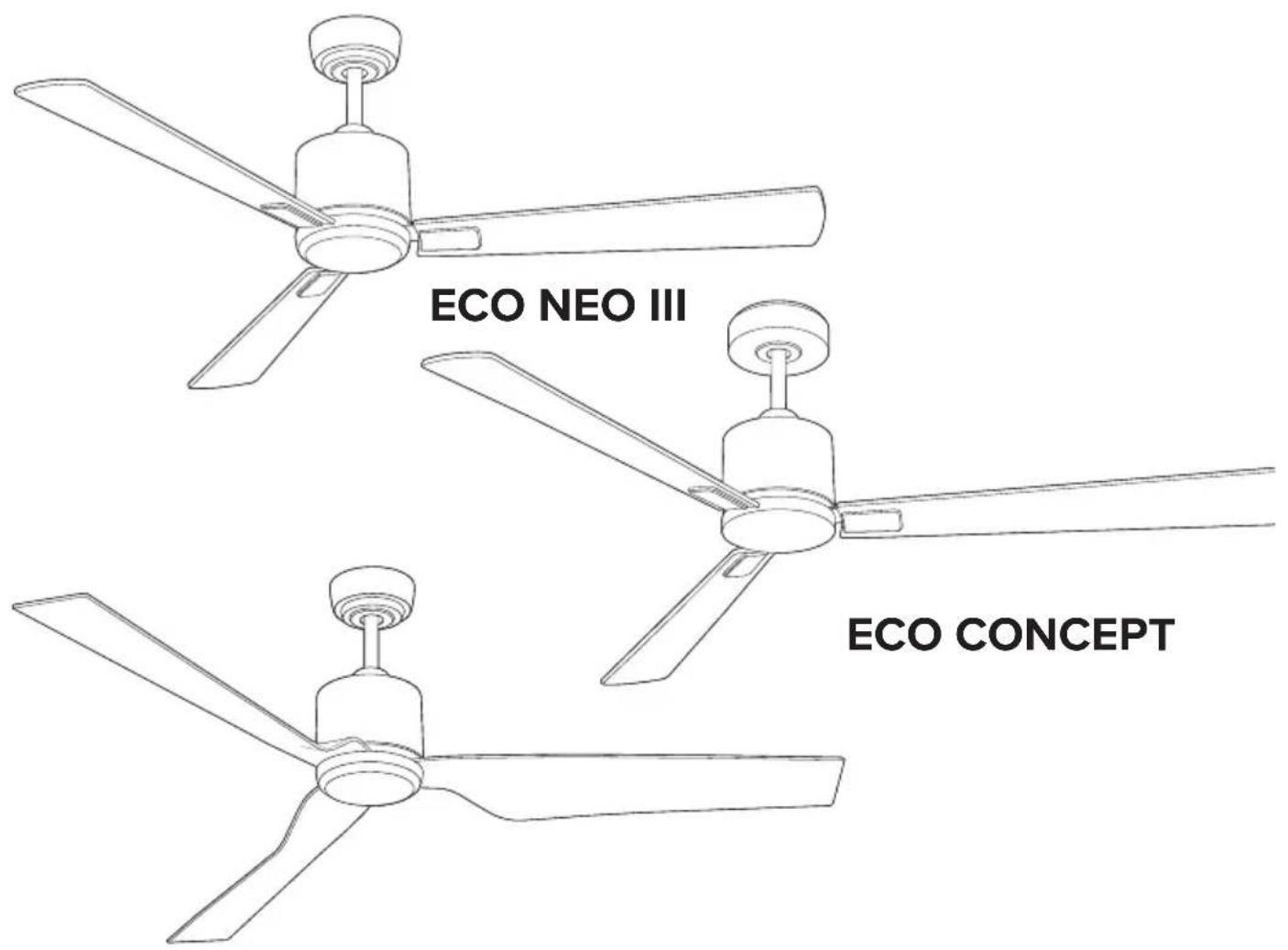

Type Eco NEO III	103 / 132 / 152 / 180	Eco Concept132 / 152	Eco Dynamix II132
Mains voltage 100 - 240 V	~
Frequency 50/60 Hz
Power motor 18/26/29/30	W (max.) 29/30 W (max.)	30 W (max.)
Protection class I/IP20
No. of speeds 6 (with remote control)
Dimensions ∅ × H (mm)approx.	1030/1320/1520/1800× 380/290	1320/1520 x360/270	1320 ×390/200
Distance ceiling – blades	approx. 360/270 mm	approx. 345/255 approx.	345/255
Weight approx. 5.8/6.1/6.3	6.6 kg	6.3/6.6	6.8 kg
Optional light kit	available as accessory
Service interval	once a year
Subject to technical modifications.

13 Motor Assembly
14 Upper Cover
15 Blade (4x)
16 a. Blade Support (4x)
16 b. Screws for blade (12x) (just Eco Neo III and Concept only)
17 Bottom Decoration Plate
18 Remote Control
19 Blade support screw (8x)
20 Bracket Screw for wood (2x)
21 Flat Washer (2x)
22 Support safety rope with screw

FR PIÈCE DÉTACHÉE

WARNING: Danger of electric shock! Before commencing installation, turn off electricity supply at the main power box or disconnect power by removing fuse.

ATTENTION: Follow all installation directions. Improper installation can lead to injuries and material damage.

• The place of installation (ceiling) must have a load capacity of at least 28 kg.
• Use only for your type of ceiling suitable screws and plugs (not supplied).

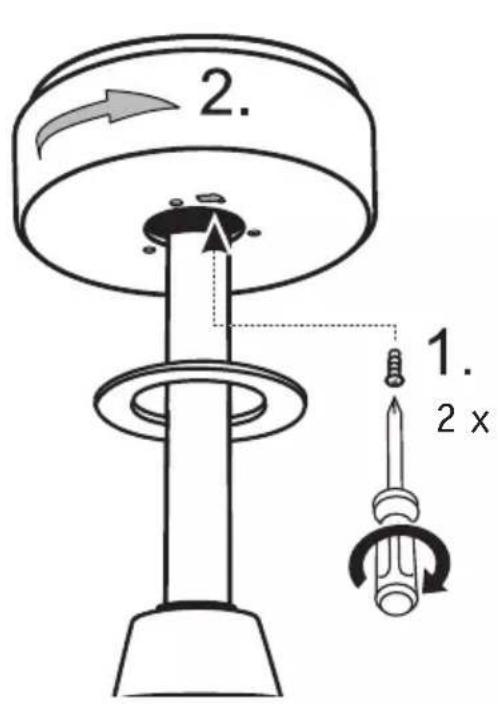

• Unscrew the two canopy screws ② about halfway.

FR

GB Uninstall the clevis pin from the downrod, retain the clevis pin and hairpin clip for later. Install the canopy, canopy ring and motor coupling cover through downrod.

GB Hang the pre-mounted ceiling fan into the ceiling bracket. Hang the safety cable in the hook provided for this purpose and pull it tightly downwards to secure it against leaking.

GB Screw 2, 3 or 4 blades with 2 screws each to the holes with the markings 3/4, according to your wishes.

DE Drehen Sie die untere Abdeckung auf die Motorachse. ACHTUNG: nicht zu fest drehen, da sonst die Abdeckung beschädigt wird!
GB Turn the lower cover onto the motor shaft. CAUTION: Do not tighten, otherwise the cover will be damaged!
FR Visser délicatement le cache inférieur sur l'arbre moteur. Attention à ne pas serrer fort sous peine d'endommager le cache.
IT Ruotare il coperchio inferiore sull'albero motore. ATTENZIONE: non stringere, altrimenti la copertura sarà danneggiato!
ES Gire la cubierta inferior sobre el eje motor. PRECAUCIÓN: no gire demasiado fuerte, de lo contrario la cubierta se dañará!
Otočte spodní kryt na osu motoru. POZOR: neotáčejte príliš pevně, jinak by došlo k poškození krytu!

Diagram showing two types of cable connectors with arrows indicating direction (no text or symbols)

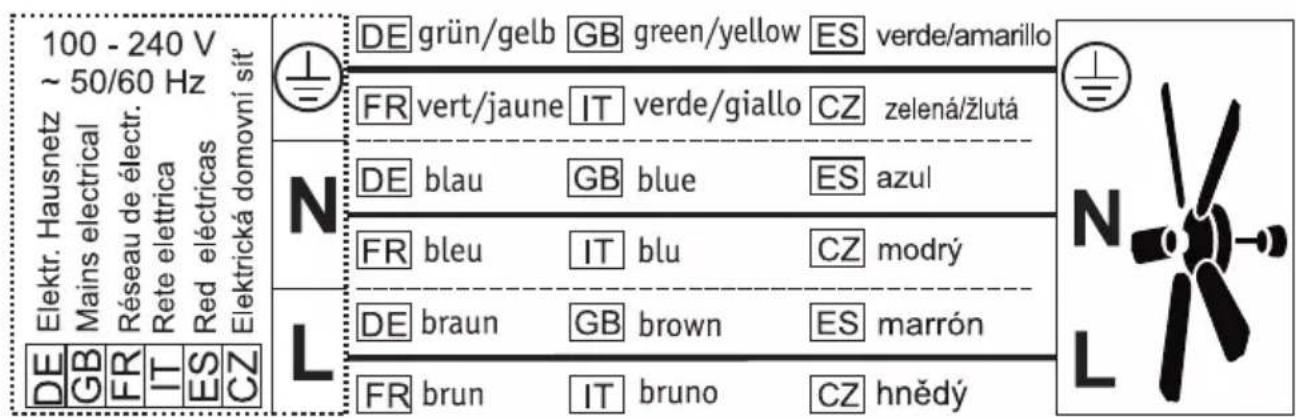

DE Schließen Sie die Kabel mit der Netzspannung an die Lüsterklemme an.
GB Connect the cables with the mains voltage to the terminal block.
FR Connectez les câbles avec la tension du secteur à la bornier de raccordement.
IT Collegare i cavi con la tensione di rete alla blocchetto terminali.
ES Conecte los cables con tensión de red al bloque de terminales.
CZ Připojte kabely se síťovým napětím ke svorkovnici.

DE Schieben Sie den Baldachin nach oben und verdrehen Sie ihn in den Bajonettverschluss mit den beiden Flachkopf-Baldachinschrauben. Ziehen Sie die Baldachin-Schrauben fest. Drücken Sie die untere Abdeckung des Baldachins nach oben, bis sie einrastet.

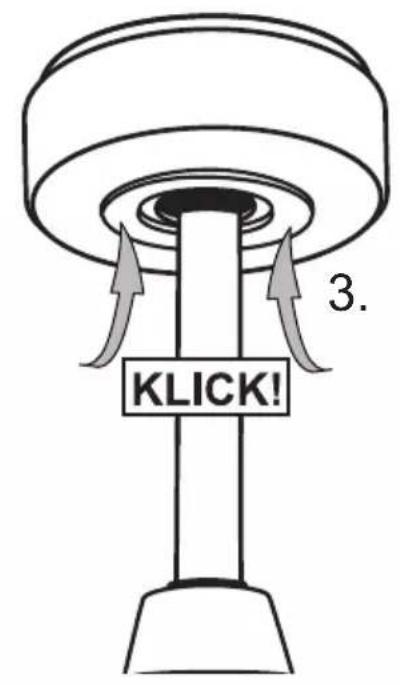

GB Slide the canopy up and twist it into the bayonet lock with the two fl at head canopy screws. Fasten the canopy screws. Press the lower cover ring of the canopy upwards until it clicks into place.
FR Pousser le cache supérieur vers le haut et le tourner dans la fi xation à baïonnette formée par les deux vis à tête plate. Serrer les vis et mettre en place le cache des vis par clipage.
IT Far scorrere il baldacchino e trasformarlo in baionetta raccordo con le due viti a testa piatta baldacchino. Serrare le viti a baldacchino. Press servire sotto la copertura della chioma verso l'alto fi no allo scatto.
ES Deslice la capota hacia arriba y gírela en el cierre de bayoneta con los dos tornillos de cabeza plana de la capota. Apriete los tornillos de la capota. Empuje la cubierta inferior del toldo hacia arriba hasta que encaje en su sitio.
CZ Posuňte vrchlík nahoru a pomocí dvou šroubů vrchlíku ho otočte do bajonetového kování. Utáhněte šrouby vrchlíku. Zatlačte na spodní kryt vrchlíku, dokud nezapadne na místo.

ECO DYNAMIX II

DE Ihr Ventilator ist jetzt bereit zum erstmaligen Betrieb.
GB Your fan is now ready to run for the first time.
FR Votre ventilateur est maintenant prêt pour la mise en service.
IT Il tuo ventilatore è ora pronto per il funzionamento iniziale.
ES Su ventilador está listo para la operación inicial.
CZ Váš ventilátor je nyní připraven k provozu poprvé

• Several ceiling fans can be connected to a single hand-held transmitter.
• If several fans within radio range are to be programmed on their own hand-held transmitters, only the fan currently to be programmed must be switched on. The same applies to reprogramming and teaching new blade sizes and numbers.

FR REMARQUE IMPORTANTE!

GB Insert 1 battery type 6F22 (9V) into the transmitter of the remote control. Do not press any button yet!

GB Switch on the electricity supply for the ceiling fan (fuse + main switch on top of the motor).

GB Within first 60 seconds after power on: Press the "OFF" button until you hear two BEEP tones until confirmed.

Hand turning a cylindrical mechanical component with a base (no text or symbols visible)

GB Teach-in size and number of blades

GB Within the first 120 seconds after switching on the power and inserting the battery: Press the „FAN“ button until you hear 3 BEEP tones.

• The motor will now run from maximum speed to standstill. The highest level is indicated in the display of the remote control.
• At the end of the teach-in procedure, another 3 BEEP tones will sound for confirmation. Your ceiling fan is now ready for operation.

Pure diagram of a cross-shaped object with an arrow pointing downward, next to a curved arc and a vertical bar (no text or symbols)

Simple diagram showing a cross-shaped object with an arrow pointing downward, and a curved line with a small dot at the base (no text or symbols)

Simple diagram showing a windmill symbol above an arc with a vertical bar on the right (no text or labels)

GB Press the „F/R“ button to change the direction of rotation.

Simple diagram showing a windmill symbol above an arch and a vertical line, with no text or labels.

GB While the motor is running, press the button to set the shutdown timer. When the set time has elapsed, the fan switches off.

Hand holding a circular object with a small circle, no text or symbols visible

GB Each press on this button increases the time of the shutdown timer by one hour.

Line drawing of a hand holding a circular object (no text or symbols)

NOTE: The luminaire is optional and is not supplied with your ceiling fan.

Simple diagram showing a cross-shaped object above a curved arc with a vertical scale bar (no text or symbols)

Simple diagram showing a windmill symbol above an arc and a vertical line with a lightning bolt, enclosed in a rounded rectangle (no text or labels)

GB NOTES FOR REMOVING FAULTS
Fault Remedy
The fan does not start	- Check the fuses/trips at the main box and other connections.- Check the fan connection to the mains.- Repeat coding of the fan with the handheld transmitter.- Replace the battery in the handheld transmitter if necessary.- Switch on the main switch on the motor (page 33).
The fan is noisy	- Check that all bolts and screws have been tightened.- Run in the fan and the bearings for 24 hours. Most noises disappear after this time.
The fan vibrates too much	- All screws during assembly of the ventilator, especially those relating to the downrod, have an important function. Not tightened screws are the main cause of imbalances.- Please make sure that all screws are tightened.- All blades have been weighed and grouped according to weight. Wood is a natural material. Their density can vary and therefore cause vibration even when all blades are of the same weight. If the blade screws of one of the blades are not tightened properly, this could cause massive wobbling.NOTE: Movement of up to 10 mm is quite acceptable and does not mean a faulty ceiling fan.- Check that the hanger bracket is firmly anchored to the ceiling.
Important:Opening up and repairing the unit may only be carried out by a specialist!

CLEANING/MAINTENANCE

WARNING: Danger of electric shock! Turn off the electricity at the fuse

box or circuit breaker before cleaning or servicing your fan.

• Never use water for cleaning your ceiling fan. The appliance must not get wet.
• Do not use petrol or any similar light flammable detergents!
• Clean the surface of the housing and the blades with a dry cleaning cloth.

Regular check

• Check once a year all the screws, especially those of the ceiling suspension, for tightness, retighten if necessary.
• Check electrical connections for proper connection.

Protective functions of your motor electronic

Lock protection: The EC/DC motor has a built-in safety feature against blade or motor obstruction during operation. If something obstructs the fan blades or motor, the motor will keep trying to run and then stop operation after about 30 seconds of interruption. Please remove obstacles and reset.

To reset: Turn the fan off by remote transmitter and then turn the fan on.

Over load protection (current limit): The device will limit the maximum current output from the receiver/drive if the fan load has increased abnormally.

Tips

1. If your fan is operates automatically after installation and power on, it is because your fan has memorized the previous factory setting. Use the Universal Mode or the learning function and your fan will be ready for use.
2. If the fan or light isn't working, reset power (turn the power off for at least 5 seconds and then turn the power back on) and redo the learn function setting.
3. It is not possible to remotely operate more than one fan in the same room (in the area where the remote signal can reach to) if they share the same power supply. Separate power supplies (such as using individual wall switches for each fan) is required if you want to separately control more than one fan in same room.
4. When the fan is turned on or operated using forward/reverse function, it shutters & goes back & forth until it turns.
   This is normal and it will take a few seconds to run this operation.

FR

The balancing kit contains 2 weights at 5 grams each as well as a blade clip with 5 grams weight. If your ceiling fan is running after accurate and complete installation unbalanced ("wobbling"), please follow step 1 to 6:

1. Switch your ceiling fan on and find out the speed setting at which the wobble is the greatest.
2. Turn off your ceiling fan and allow it to come to a complete stop. Select one blade and place the balance clip on it, halfway between the bladeholder and the blade tip on the trailing edge of the blade.
3. Turn the fan on and select the speed setting at which the wobble was greatest. Note whether the wobble has increased or decreased. Turn the fan off, move the clip to the next blade and retest. Repeat this procedure on all blades noting the blades on which the greatest improvement is achieved.
4. Move the clip back to the blade that showed the greatest improvement. Move the clip inward and outward on this blade and operate the fan to find the position where the clip gives the greatest improvement.
5. Remove the clip and glue the balancing weight on top of the blade along the centerline at the point where the clip was positioned.
6. If the fan wobble problem has not been corrected finally you can improve the balancing further by repeat the procedure with additional weights. The weight can be easily devided in two parts with a cutter.

Where does "wobbling" come from?

The blade of a ceiling fan could run at the blade tip with a speed of up to 10m / sec . If the density or the compound varies, an imbalance towards the weightly blade occurs. Especially wooden blades which are made from a natural material often have different densities, resulting in an imbalance.

All blades of CasaFan ceiling fans are weighted by a accurate scale and ordered by weight. A set of blades contents always 5 blades of the same weight. The atmospheric humidity changes the density of the wood. By this reason the edge and the surface of CasaFan blades are sealed against normal atmospheric humidity. For damp or wet locations we recommend acrylic blades which are non-sensitive against humidity and water.

Please consider that a fall of the packing from a low height could cause a transformation of the compound. Hence a small imbalance up to 5 mm (measured at the switch cup of the ceiling fan) is no quality defect. It can be eliminated as aforementioned with the balancing kit.

FR

Lot d'équilibrage

Line drawing of a hand holding a pen and a ruler, both without any text or symbols

Illustration of a hand using a saw to cut a piece of wood (no text or symbols present)

Illustration of a hand using a drill pen to apply a tool, with close-up insets showing the same process (no text or symbols present)

DE

1. Mark length.

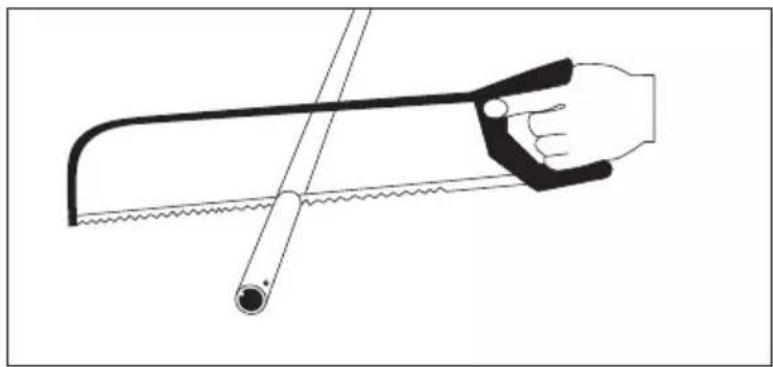

2. Saw off the rod.

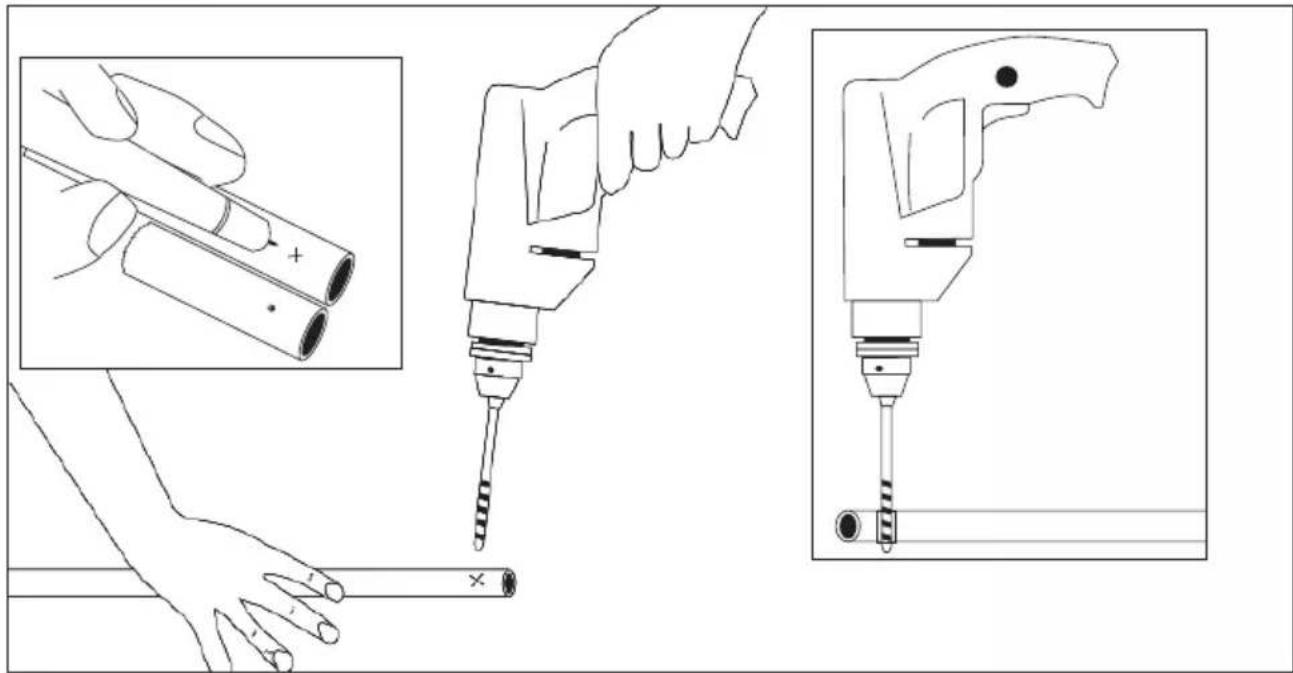

3. Drill a hole.
4. Deburr the cut edge and the hole.

IT

This product conforms to EU Directive 2012/19/EU. This appliance bears the symbol of the barred waste bin. This indicates that, at the end of its useful life, it must not be disposed of as domestic waste, but must be taken to a collection centre for waste electrical and electronic equipment, or returned to a retailer on purchase of a replacement. It is the user's responsibility to dispose of this appliance trough the appropriate channels at the end of its useful life. Failure to do so may incur the penalties established by laws governing waste disposal. Proper differential collection, and the subsequent recycling, processing and environmentally compatible disposal of waste equipment avoids unnecessary damage to the environment and possible related health risks, and also promotes recycling of the materials used in the appliance. For further information on waste collection and disposal, contact your local waste disposal service, or the shop from which you purchased the appliance. Manufacturers and importers fulfil their responsibilities for recycling, processing and environmentally compatible disposal either directly or by participating in collective systems.

FR ATTENTION

Two crossed-out trash bins, one with diagonal lines and the other with a black X (no text or symbols)

EU Declaration of Conformity

Wir, die Firma

We, the company

CasaFan GmbH

Senefelderstr. 8

Hasselroth, 63594, Germany

declare under our sole responsibility that the following product

Geräteart/ type of product:

Deckenventilator / ceiling fan

Handelsmarke/ trademark:

CasaFan

Modell

model

Artikelnummer

article-no

weitere Angaben

further details

Eco Neo III 92

952001, 952011, 952041, 942021, 942011, 942031, 942041, 949011, 949001, 949041, 948001, 948031, 948041, 944021, 944011, 943021, 943011, 943031, 943041

Eco Neo III 103

942111, 942121, 942131, 942141, 943111, 943121, 943131, 943141, 944111, 944121, 948101, 948131, 948141, 949101, 949111, 949141, 952101, 952111, 952141, 413252, 413242, 413249, 413248, 413244, 413243

Eco Neo III 132

942202, 942212, 942222, 942232, 942242, 943212, 943222, 943232, 943242, 944212, 944222, 948202, 948232, 948242, 949202, 949212, 949242, 952202, 952212, 952232, 952242

Eco Neo III 152

942313, 942323, 942333, 942337, 943313, 943323, 943333, 943337, 944313, 944323, 948303, 948333, 948337, 949303, 949313, 949337, 952303, 952313, 952337

Eco Neo III 180

942414, 942424, 942425, 942484, 943414, 943424, 943425, 943484, 944414, 944424, 948404, 948425, 948484, 949404, 949414, 949425, 952404, 952414, 952425

Eco Dynamix II

313275, 313273, 313274

Eco Concept 132 + 152

921361, 921360, 921362, 921561, 921560, 921562

meets the essential requirements of the following EU-Directives:

2014/35/EC Low Voltage Directive

2014/30/EC Directive on Electromagnetic Compatibility

2014/53/EC Radio Equipment Directive (RED)

2011/65/EC Directive on the restriction of the use of certain hazardous substances in electrical and

electronic equipment

2009/125/EC Ecodesign directive

Authorized person for technical documentation:

Name/ name, Position:

Hasselroth, 12.11.2020

Datum/ Date

DE Passende Anbauleuchten
FR Lumières assorties
ES Luces a juego

Matching luminaires

IT Luci abbinate

Simple line drawing of a cylindrical object with no text or symbols

EN5r-LED xx

BN = #2685

BG = #2688

BZ = #2689

CH = #2690

LG = #2687

MA = #2691

WE = #2686

Simple line drawing of a cylindrical object with two horizontal bands (no text or symbols)

EN5z-LED xx

BN = #2785

BG = #2788

BZ = #2789

CH = #2790

LG = #2787

MA = #2791

WE = #2786

CasaFan reserves the right to make any changes to the product without prior notice.
