Brand	Elica
Model	Elite 35 PRF0166641
Product type	Built-in kitchen hood
Usage version	Extractor (external evacuation) or recirculating (internal recycling)
Number of speeds	4 (including an intensive speed)
Control	Electronic buttons with LED display
Lighting	LED
Timer	Yes, programmable delayed shutdown (20/15/10/5 min depending on speed)
Grease filter	Metallic, dishwasher-safe (clean at least once a month)
Active charcoal filter	Optional (for recirculation version), replace every 4 months maximum
Minimum distance (electric cooking)	43 cm
Minimum distance (gas or mixed cooking)	65 cm
Installation type	Built into a cabinet or other support
Grease filter maintenance	Monthly cleaning with neutral detergent, by hand or in dishwasher
Charcoal filter replacement	Every 4 months maximum (not cleanable, not regenerable)
Filter saturation indicator	Yes, reset by button (for charcoal filter, manual activation)
Safety standards	EN/IEC 60335-1; EN/IEC 60335-2-31, EN/IEC 62233
Recycling	Compliant with WEEE directive 2012/19/EC

Frequently Asked Questions - Elite 35 PRF0166641 ELICA

How to clean the grease filter?

The metallic grease filter must be cleaned at least once a month. Use a neutral detergent and wash it by hand or in a dishwasher at low temperature (quick cycle). Dishwashing may cause discoloration, but filtering performance remains unchanged.

How to replace the charcoal filter?

The active charcoal filter is used only in recirculation mode. It cannot be cleaned or regenerated and must be replaced every 4 months maximum. To remove it, pull the spring release handle (see figure 12 of the manual).

How to reset the filter saturation indicator?

After cleaning or replacing the filter, press button 2 (OFF/speed decrease) until the LEDs turn off. For the charcoal filter, the indicator is disabled by default; activate it by holding buttons 3 and 4 until LEDs L1 and L2 flash.

How to use the timer?

The timer allows delayed shutdown of the suction speed. Press the ON/OFF Timer button (button 2). Depending on the selected speed, shutdown occurs after: 20 min (speed 1), 15 min (speed 2), 10 min (speed 3), 5 min (intensive speed). The speed LED flashes to indicate the timer is active.

What is the minimum distance between the hood and the cooking surface?

The minimum distance between the cooktop support and the lowest part of the hood is 43 cm for electric cooktops and 65 cm for gas or mixed cooktops. Always follow the cooktop manufacturer's instructions if a greater distance is specified.

Can I use the hood without the charcoal filter?

Yes, if you use the hood in extractor mode (external evacuation). The charcoal filter is only needed in recirculating mode (internal recycling). Make sure to remove the charcoal filter if it is present in extractor mode.

How to switch from extractor to recirculating mode?

To use the hood in recirculating mode, you must install an active charcoal filter (not supplied). If the hood is delivered without one, order it and mount it before commissioning. In extractor mode, remove the charcoal filter and connect an exhaust duct to the connection flange.

How to replace the LED bulbs?

The LED bulbs cannot be replaced by the user. In case of failure, contact authorized technical support service. The hood is equipped with LEDs that provide optimal lighting and a lifespan up to 10 times longer than traditional bulbs.

What to do if the hood does not work?

First check that the power plug is properly connected and the main switch is not off. Ensure that the supply voltage matches that on the rating plate. If the problem persists, contact a qualified professional or after-sales service.

How to clean the exterior of the hood?

Use exclusively a damp cloth with neutral liquid detergents. Never use abrasive tools, alcohol, or aggressive products. Always unplug the appliance before cleaning. Wear work gloves for any maintenance operations.

USER MANUAL Elite 35 PRF0166641 ELICA

EN Instruction on mounting and use

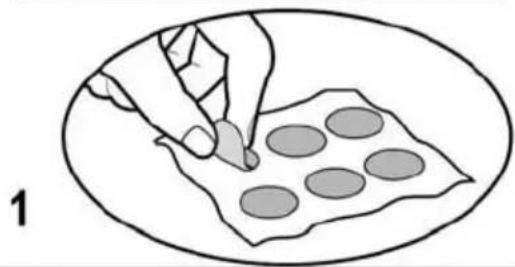

Illustration of a hand pressing down on a patterned surface with six circular objects (no text or symbols)

5.1

*

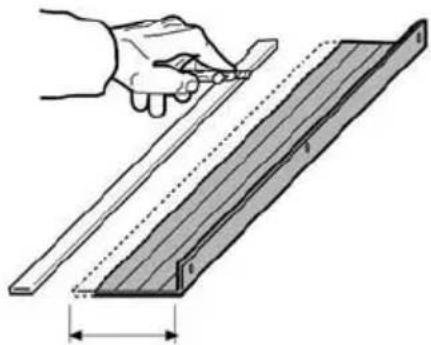

Illustration of a hand using a tool to cut or mark a wooden plank with a ruler, showing measurement alignment (no text or symbols)

Xmm

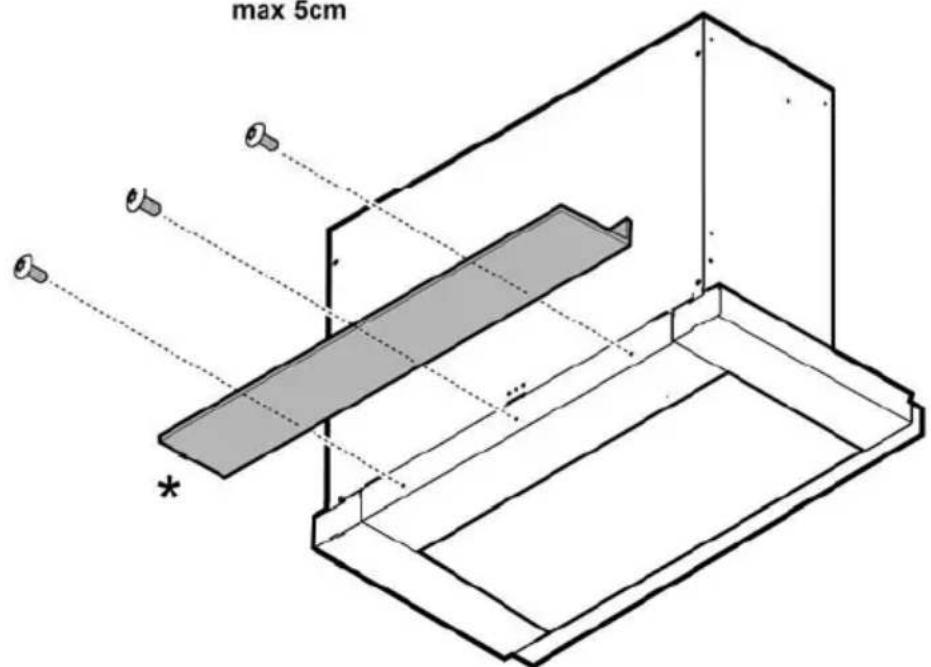

max 5cm

5.2

7a

7b

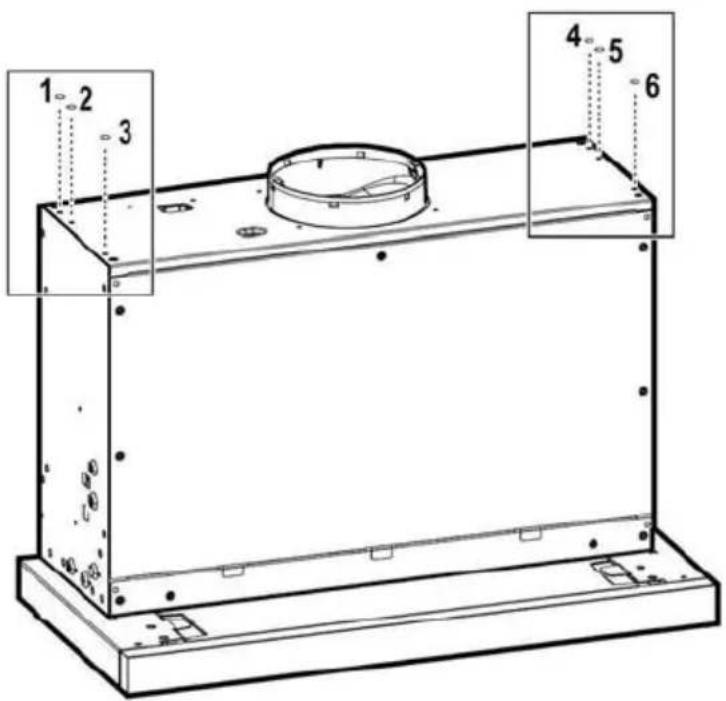

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram of a mechanical component with two parts and a label '2' (no readable text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

3D mechanical part diagram with no visible text or symbols

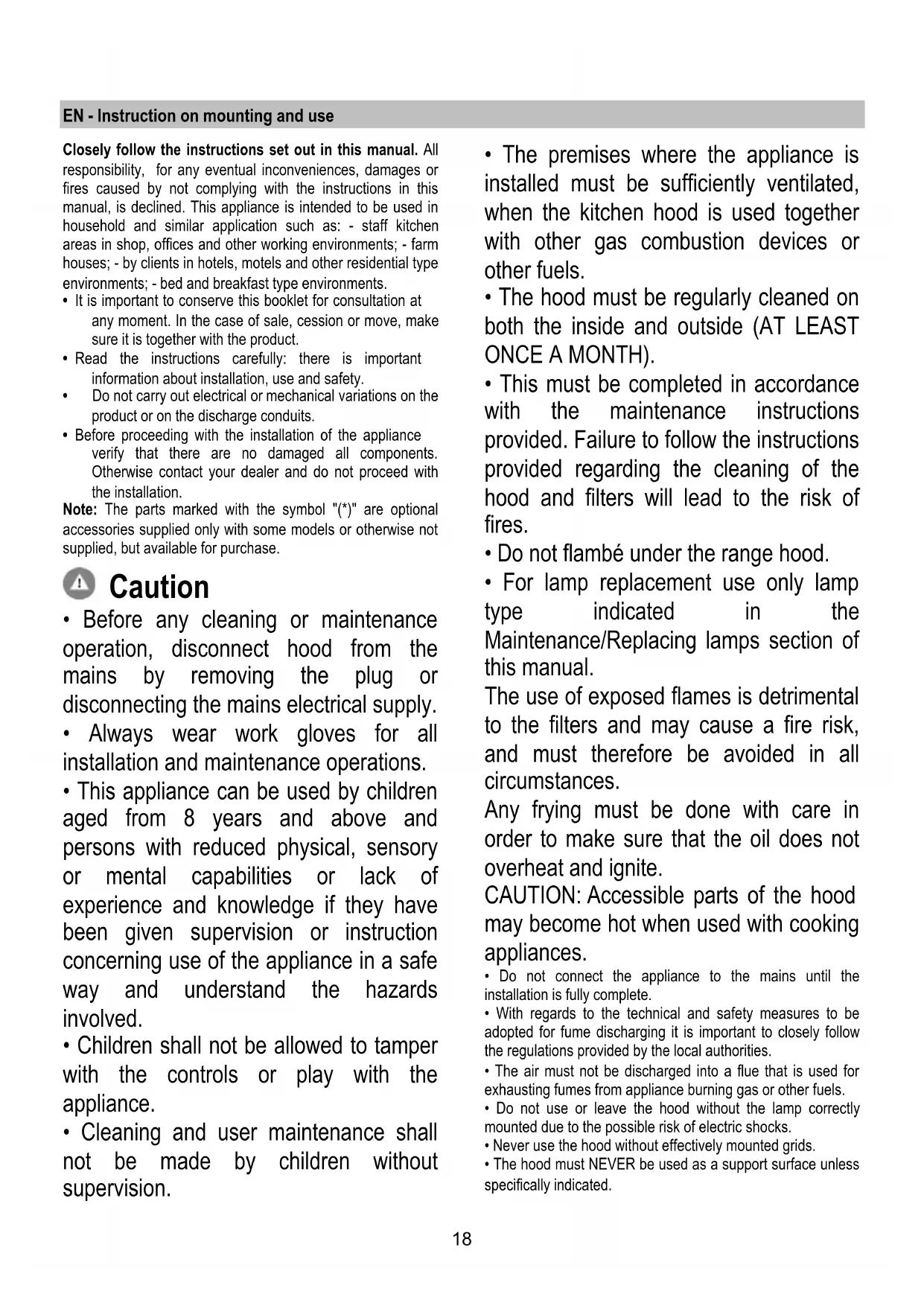

EN - Instruction on mounting and use

Closely follow the instructions set out in this manual. All responsibility, for any eventual inconveniences, damages or fires caused by not complying with the instructions in this manual, is declined. This appliance is intended to be used in household and similar application such as: - staff kitchen areas in shop, offices and other working environments; - farm houses; - by clients in hotels, motels and other residential type environments; - bed and breakfast type environments.

• It is important to conserve this booklet for consultation at any moment. In the case of sale, cession or move, make sure it is together with the product.
• Read the instructions carefully: there is important information about installation, use and safety.
• Do not carry out electrical or mechanical variations on the product or on the discharge conduits.
• Before proceeding with the installation of the appliance verify that there are no damaged all components. Otherwise contact your dealer and do not proceed with the installation.

Note: The parts marked with the symbol "(*)" are optional accessories supplied only with some models or otherwise not supplied, but available for purchase.

Caution

• Before any cleaning or maintenance operation, disconnect hood from the mains by removing the plug or disconnecting the mains electrical supply.
  • Always wear work gloves for all installation and maintenance operations.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

- Children shall not be allowed to tamper with the controls or play with the appliance.

- Cleaning and user maintenance shall not be made by children without supervision.

• The premises where the appliance is installed must be sufficiently ventilated, when the kitchen hood is used together with other gas combustion devices or other fuels.
• The hood must be regularly cleaned on both the inside and outside (AT LEAST ONCE A MONTH).
• This must be completed in accordance with the maintenance instructions provided. Failure to follow the instructions provided regarding the cleaning of the hood and filters will lead to the risk of fires.

- Do not flambé under the range hood.

- For lamp replacement use only lamp type indicated in the Maintenance/Replacing lamps section of this manual.

The use of exposed flames is detrimental to the filters and may cause a fire risk, and must therefore be avoided in all circumstances.

Any frying must be done with care in order to make sure that the oil does not overheat and ignite.

CAUTION: Accessible parts of the hood may become hot when used with cooking appliances.

• Do not connect the appliance to the mains until the installation is fully complete.
• With regards to the technical and safety measures to be adopted for fume discharging it is important to closely follow the regulations provided by the local authorities.
• The air must not be discharged into a flue that is used for exhausting fumes from appliance burning gas or other fuels.
• Do not use or leave the hood without the lamp correctly mounted due to the possible risk of electric shocks.
• Never use the hood without effectively mounted grids.

• The hood must NEVER be used as a support surface unless specifically indicated.

• Use only the fixing screws supplied with the product for installation or, if not supplied, purchase the correct screws type.

• Use the correct length for the screws which are identified in the Installation Guide.
• In case of doubt, consult an authorized service assistance center or similar qualified person.

WARNING!

• Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

• Do not use with a programmer, timer, separate remote control system or any other device that switches on automatically.

• This appliance is marked according to the European directive 2012/19/EC on Waste Electrical and Electronic Equipment (WEEE).

• By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

• The symbol ■ on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal.
• For further detailed information regarding the process, collection and recycling of this product, please contact the appropriate department of your local authorities or the local department for household waste or the shop where you purchased this product.

Appliance designed, tested and manufactured according to:

• Safety: EN/IEC 60335-1; EN/IEC 60335-2-31, EN/IEC 62233.
  • Performance: EN/IEC 61591; ISO 5167-1; ISO 5167-3; ISO 5168; EN/IEC 60704-1; EN/IEC 60704-2-13; EN/IEC 60704-3; ISO 3741; EN 50564; IEC 62301.
• EMC: EN 55014-1; CISPR 14-1; EN 55014-2; CISPR 14-2; EN/IEC 61000-3-2; EN/IEC 61000-3-3. Suggestions for a correct use in order to reduce the environmental impact: Switch ON the hood at minimum speed when you start cooking and kept it running for few minutes after cooking is finished. Increase the speed only in case of large amount of smoke and vapor and use boost speed(s) only in extreme situations. Replace the charcoal filter(s) when necessary to maintain a good odor reduction efficiency. Clean the grease filter(s) when necessary to maintain a good grease filter efficiency. Use the maximum diameter of the ducting system indicated in this manual to optimize efficiency and minimize noise.

Use

The hood is designed to be used either for exhausting or filter version.

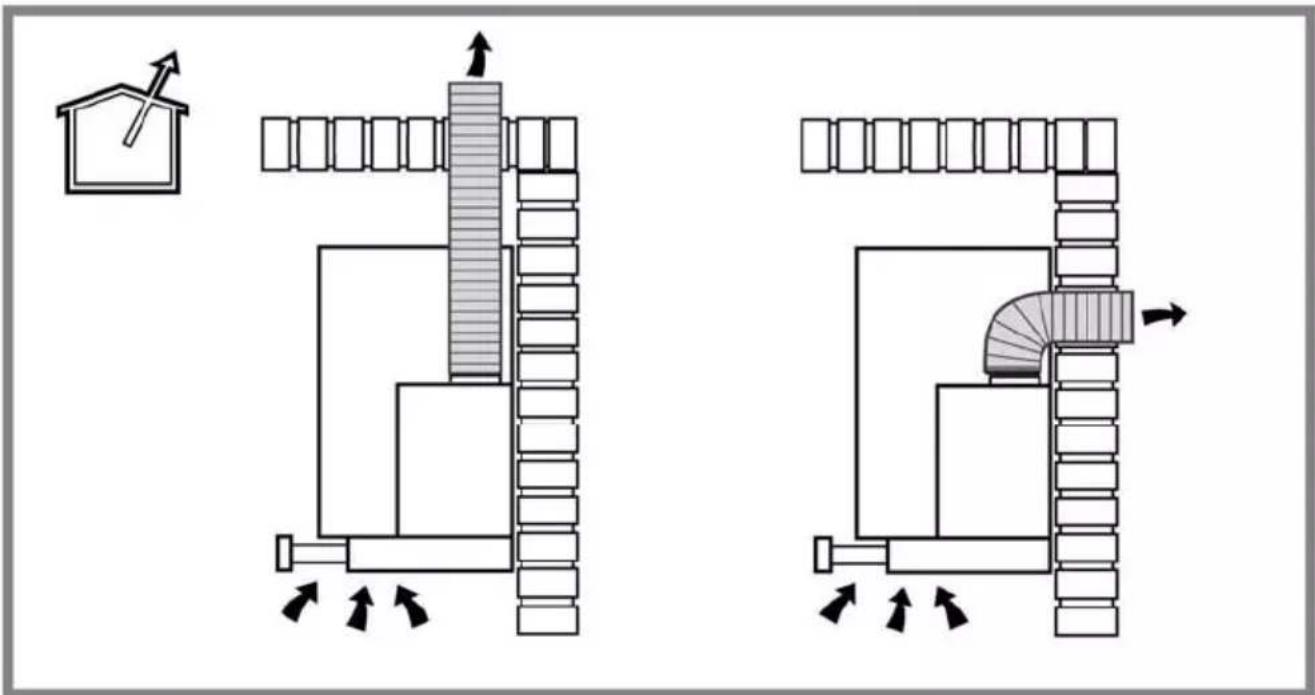

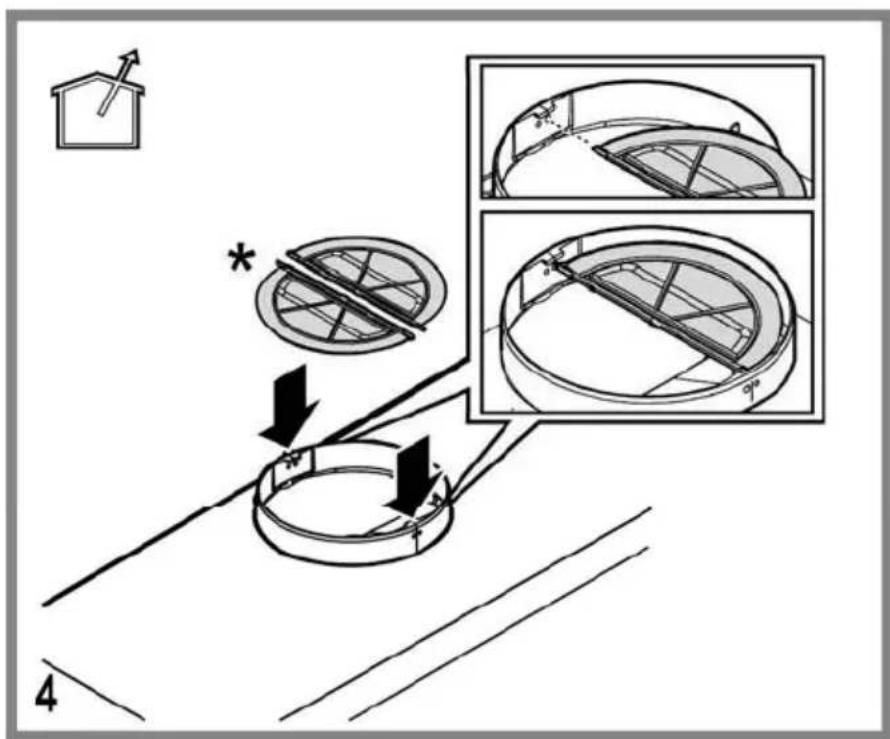

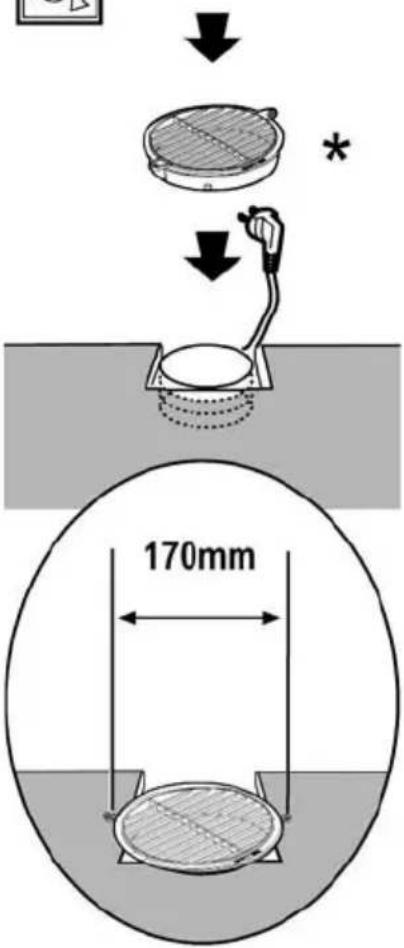

Extraction version

In this case the fumes are conveyed outside of the building by means of a special pipe connected with the connection ring located on top of the hood.

CAUTION!

The exhausting pipe is not supplied and must be purchased apart.

Diameter of the exhausting pipe must be equal to that of the connection ring.

CAUTION!

If the hood is supplied with active charcoal filter, then it must be removed.

Connect the hood and discharge holes on the walls with a diameter equivalent to the air outlet (connection flange).

! Use a duct of the minimum indispensable length.

! Use a duct with as few elbows as possible (maximum elbow angle: 90°).

! Avoid drastic changes in the duct cross-section.

Attention! If the hood is supplied with carbon filter, then it must be removed.

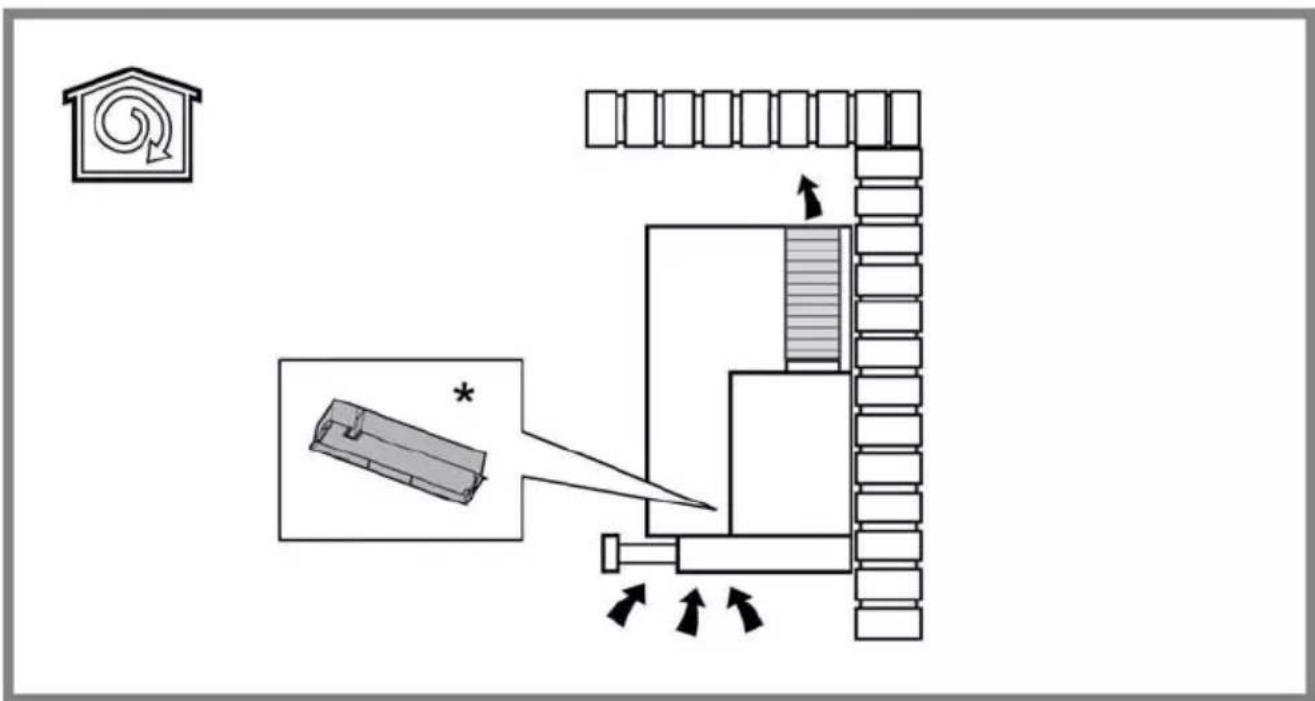

Filtration version

The aspirated air will be degreased and deodorised before being fed back into the room.

In order to use the hood in this version, you have to install a system of additional filtering based on activated charcoal.

Attention! If the hood is not supplied with carbon filter, then it must be ordered and mounted.

Installation

The minimum distance between the supporting surface for the cooking equipment on the hob and the lowest part of the range hood must be not less than 43cm from electric cookers and 65cm from gas or mixed cookers.

If the instructions for installation for the gas hob specify a greater distance, this must be adhered to.

Electrical connection

The mains power supply must correspond to the rating indicated on the plate situated inside the hood. If provided with a plug connect the hood to a socket in compliance with current regulations and positioned in an accessible area, after installation. If it not fitted with a plug (direct mains connection) or if the plug is not located in an accessible area, after installation, apply a double pole switch in accordance with standards which assures the complete disconnection of the mains under conditions relating to over-current category III, in accordance with installation instructions.

WARNING!

Before re-connecting the hood circuit to the mains supply and checking the efficient function, always check that the mains cable is correctly assembled.

The hood is provided with a special power cable; if the cable is damaged, request a new one from Technical Service.

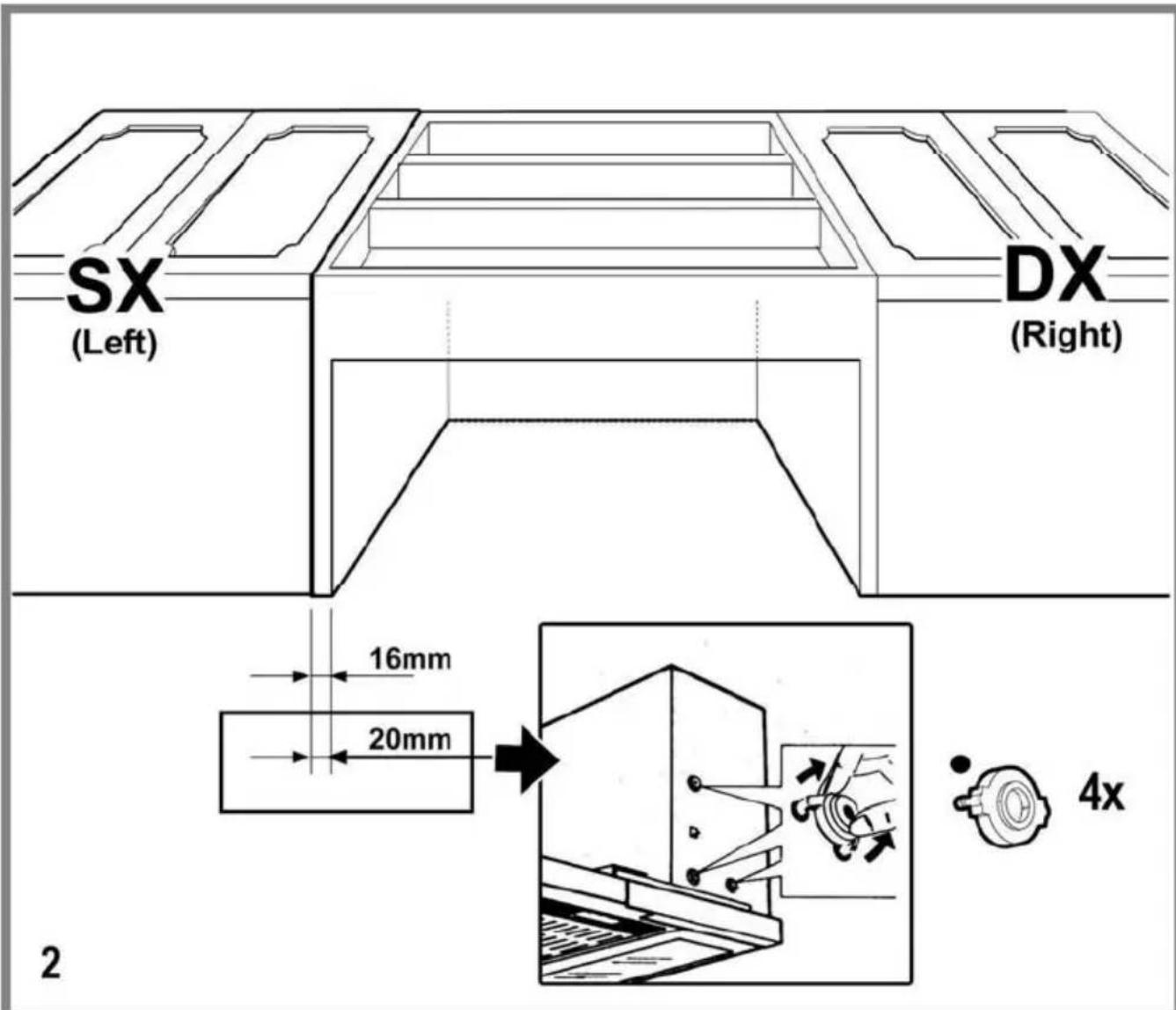

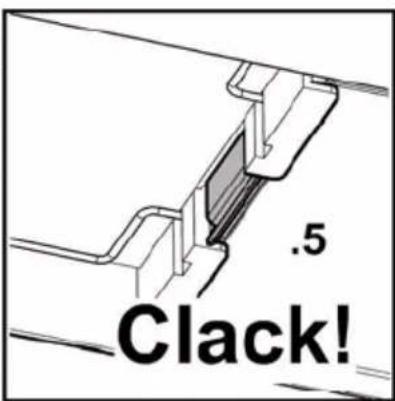

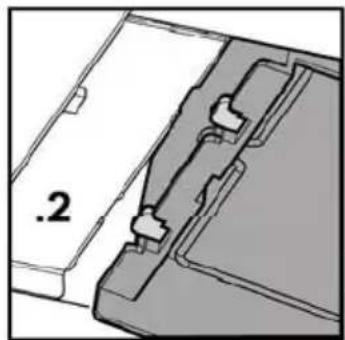

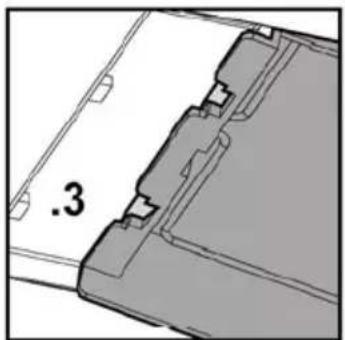

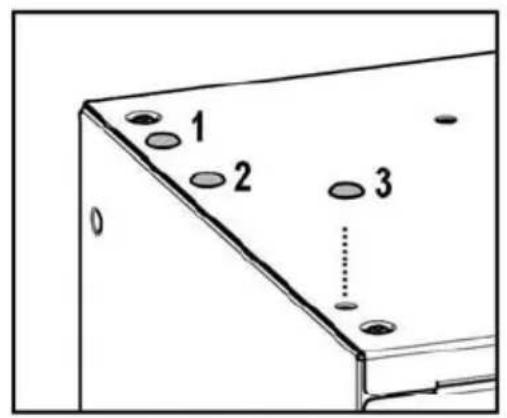

Mounting

Before beginning installation:

• Check that the product purchased is of a suitable size for the chosen installation area.
• Remove the charcoal (*) filter/s if supplied (see also relative paragraph). This/these is/are to be mounted only if you want to use the hood in the filtering version.
• Check (for transport reasons) that there is no other supplied material inside the hood (e.g. packets with screws (*), guarantees (*), etc.), eventually removing them and keeping them.

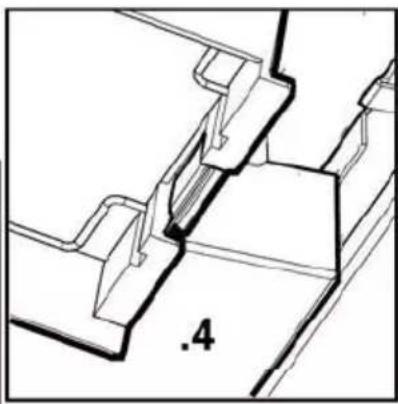

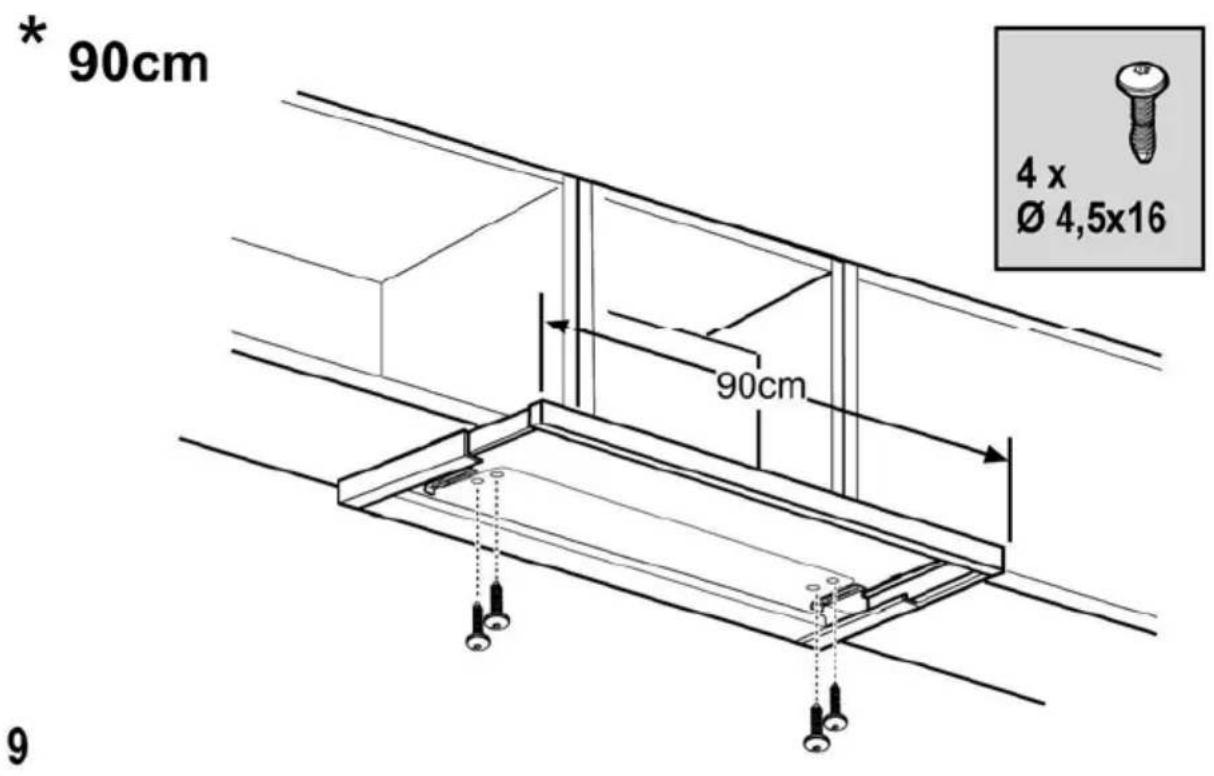

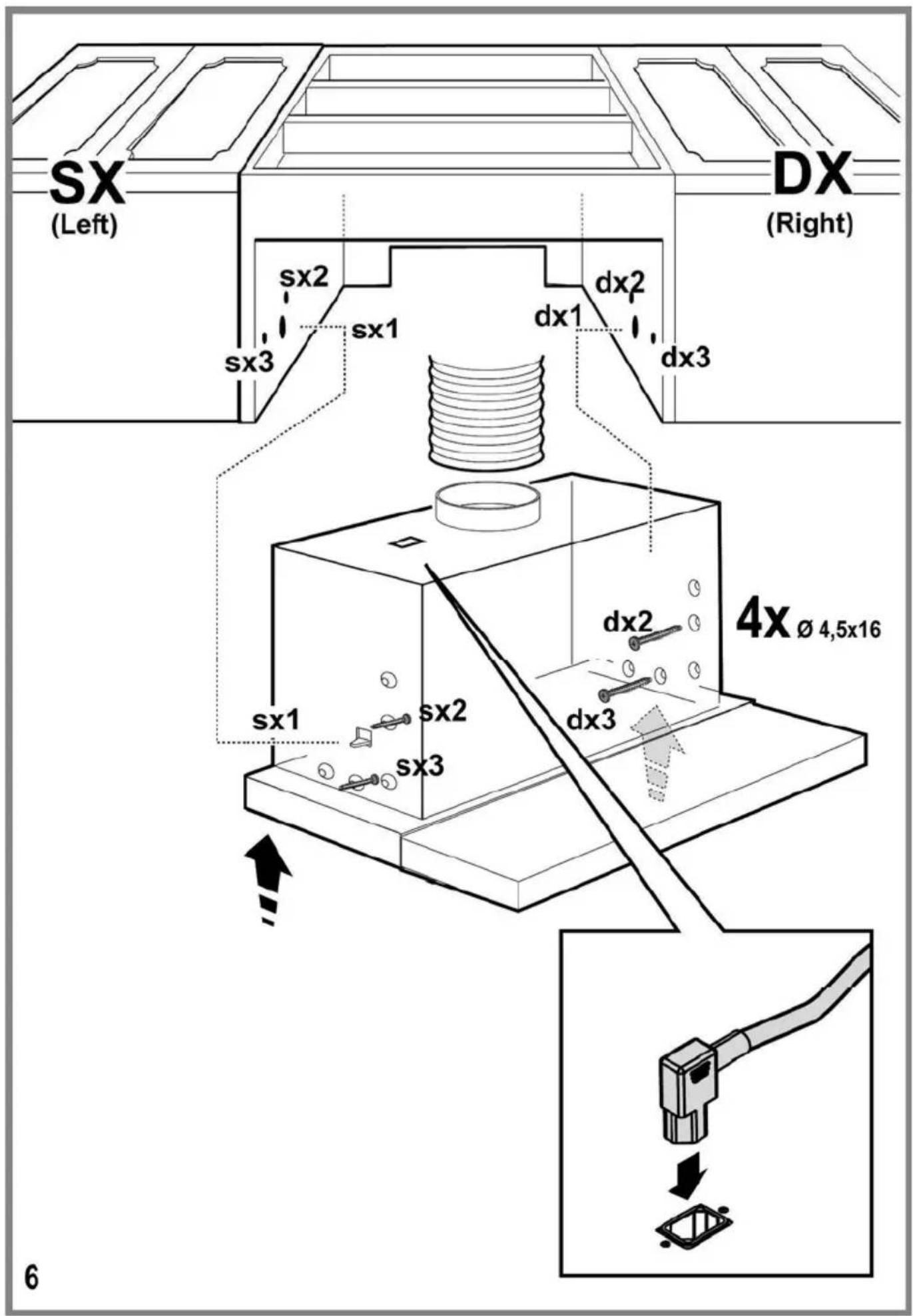

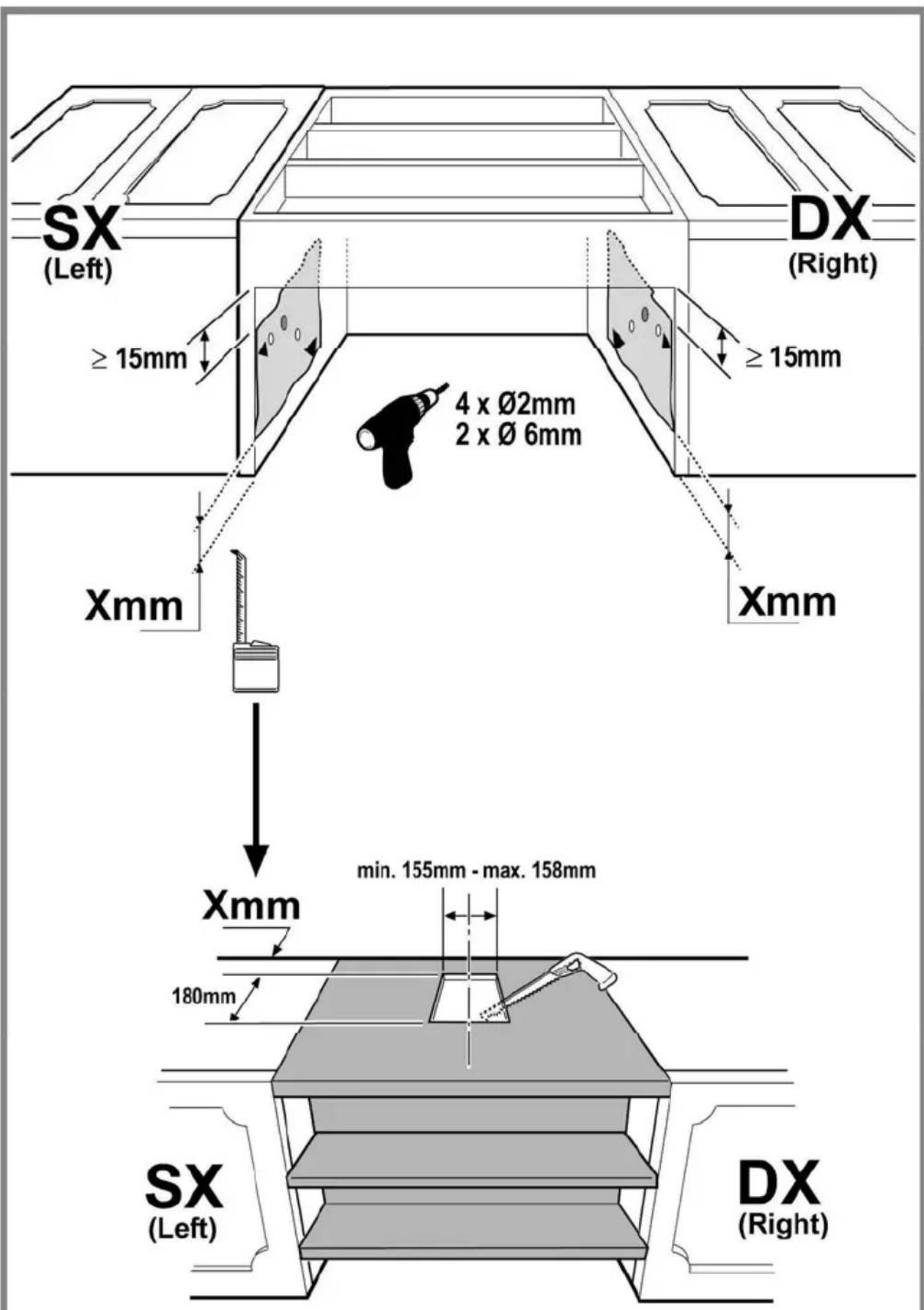

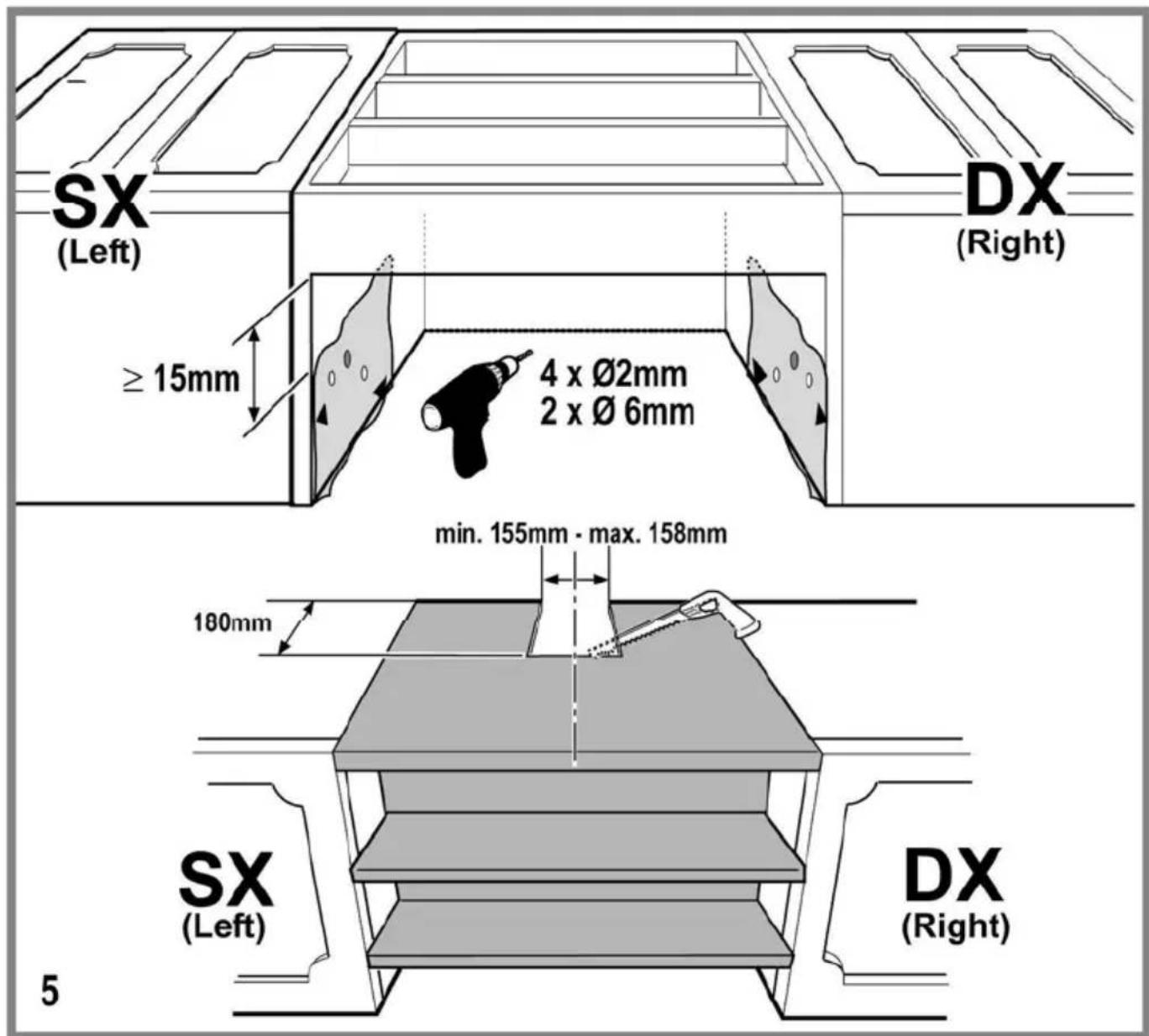

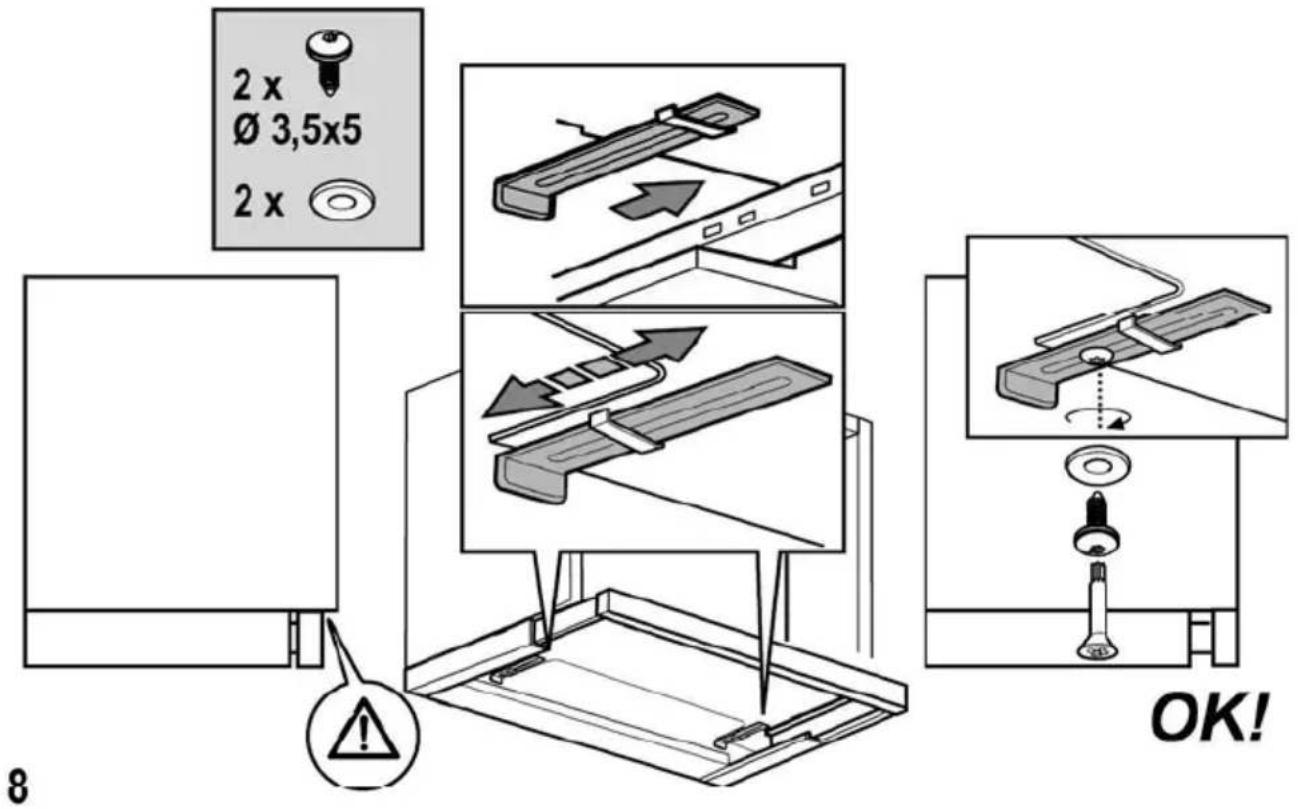

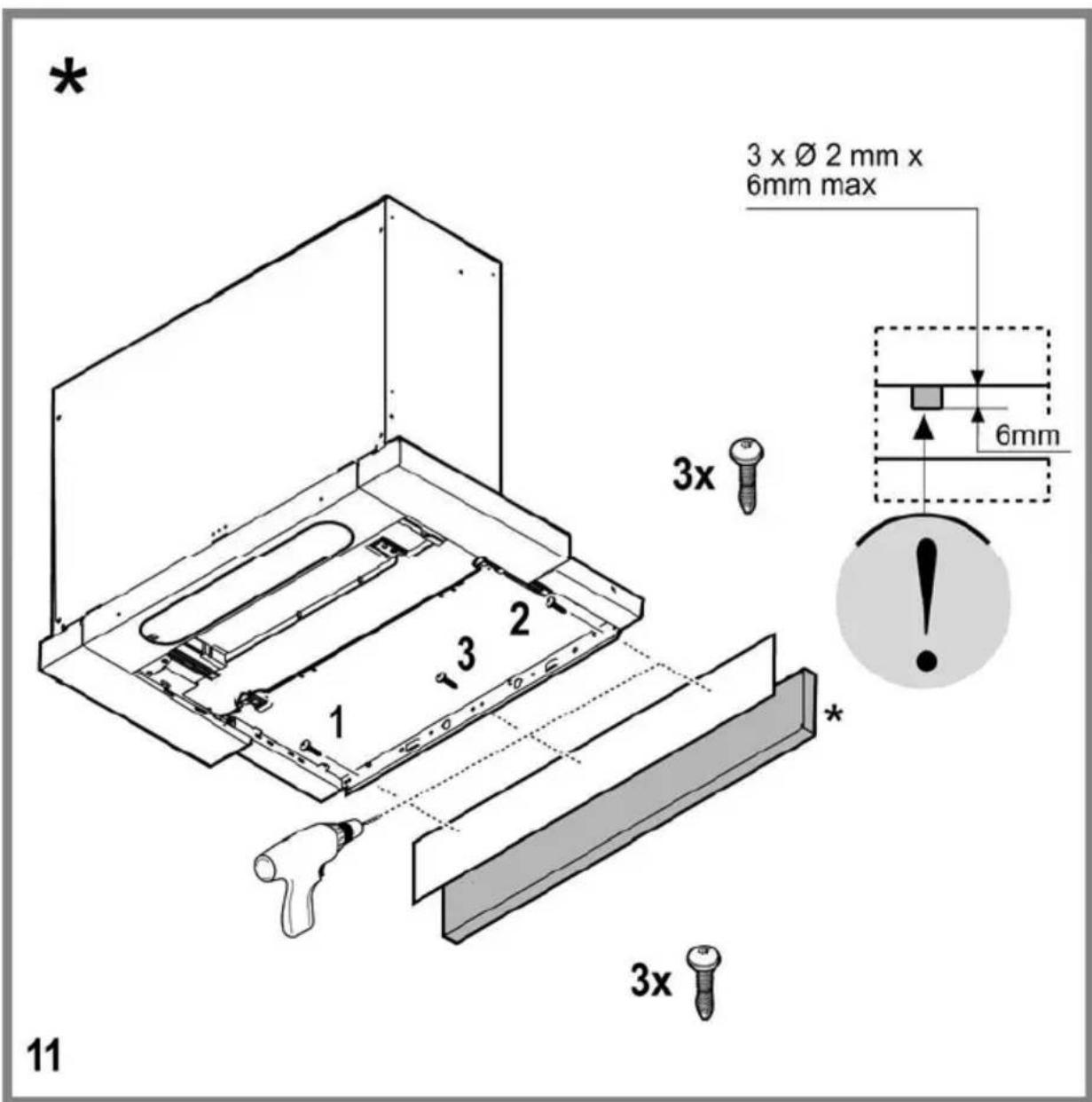

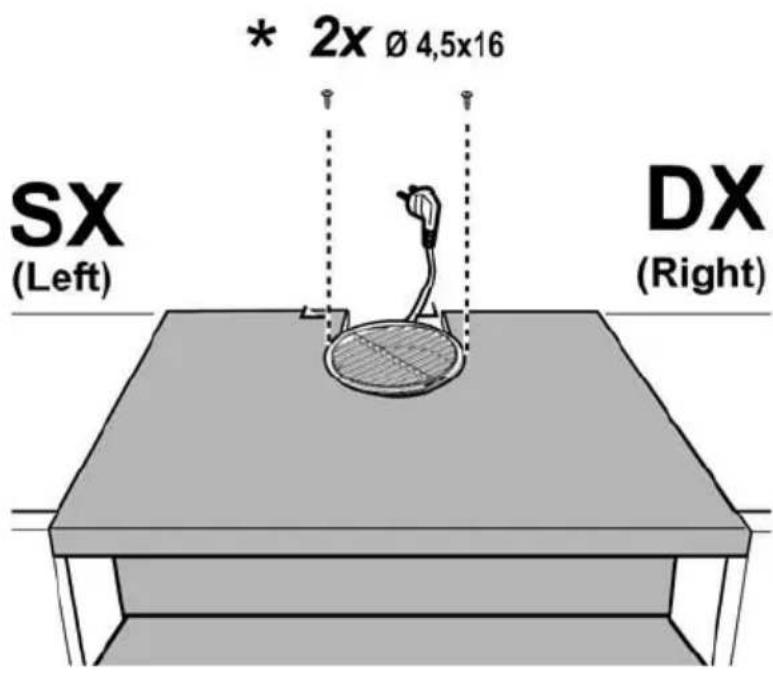

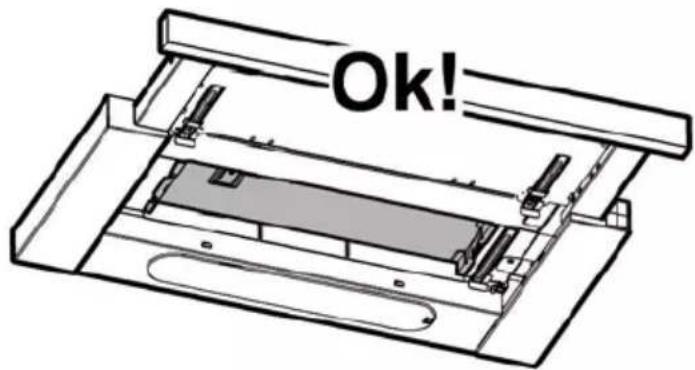

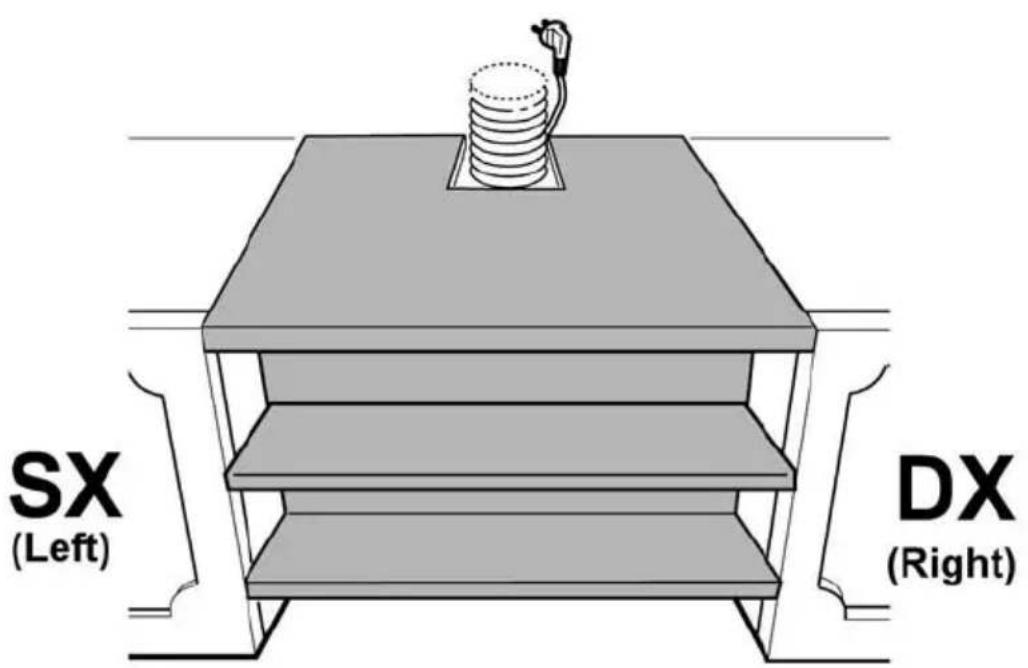

This hood is designed for fitting in a cabinet or on some other support.

Operation

The hood is fitted with a control panel with aspiration speed selection control and a light switch to control cooking area lights.

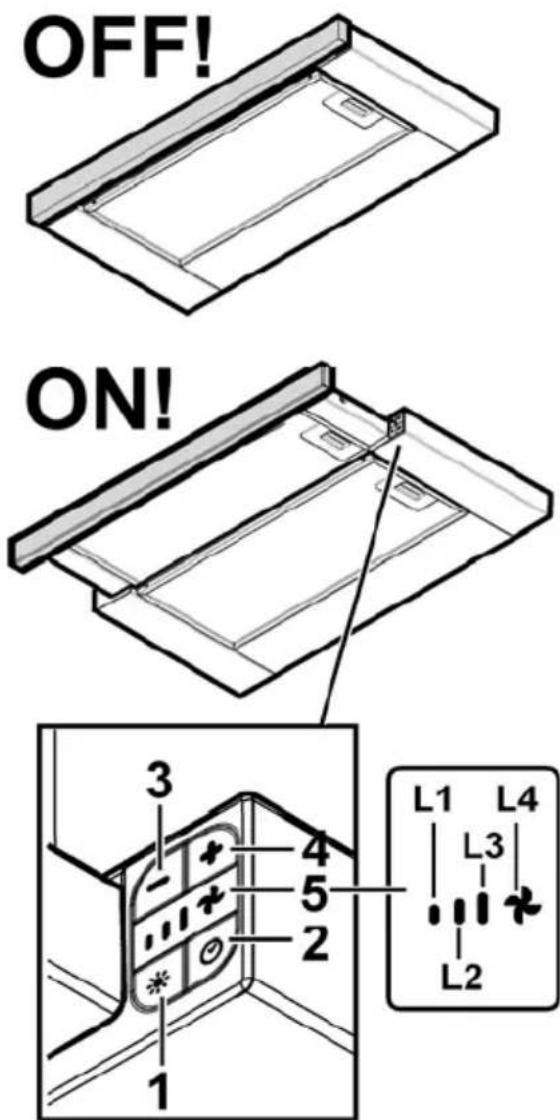

Control Panel

1. Button ON/OFF light
2. Button ON/OFF Timer: delayed switch-off of the selected suction speed (power):

Suction speed (power) 1: 20 minutes

Suction speed (power) 2: 15 minutes

Suction speed (power) 3: 10 minutes

Intensive suction speed (power): 5 minutes

1. Button OFF / Decrease of suction speed (power)
2. Button ON / Increase of suction speed (power)
3. Display, showing:

a. Suction speed (power): LEDs L1 - L2 - L3 - L4 (flashing) light up according to the selected suction speed (power).

Note: the L4 LED – intensive suction speed (power) works for about 5 minutes, then the hood sets the intermediate speed.

b. Timer: the LED of the selected speed flashes to indicate that the timer is active.
c. Grease filter saturation: the L3 and L4 LEDs flash alternately at short intervals of time.
d. Activated charcoal filter saturation: the L3 and L4 LEDs flash simultaneously at short intervals of time.

Reset of the filter saturation indicator: perform filter maintenance, then press button 2 until the LEDs turn off.

Note: The activated charcoal filter saturation is normally disabled and is enabled only if the hood is used in the filtering version (with charcoal filter installed).

In order to activate it, proceed as follows:

- Switch off the hood

- Keep pressed simultaneously buttons 3 and 4, until the LEDs L1 and L2 flash briefly.

Repeat the operation to disable; only LED L1 flashes briefly.

Maintenance

Cleaning

Clean using ONLY the cloth dampened with neutral liquid detergent. DO NOT CLEAN WITH TOOLS OR

INSTRUMENTS. Do not use abrasive products. DO NOT USE ALCOHOL!

Grease filter

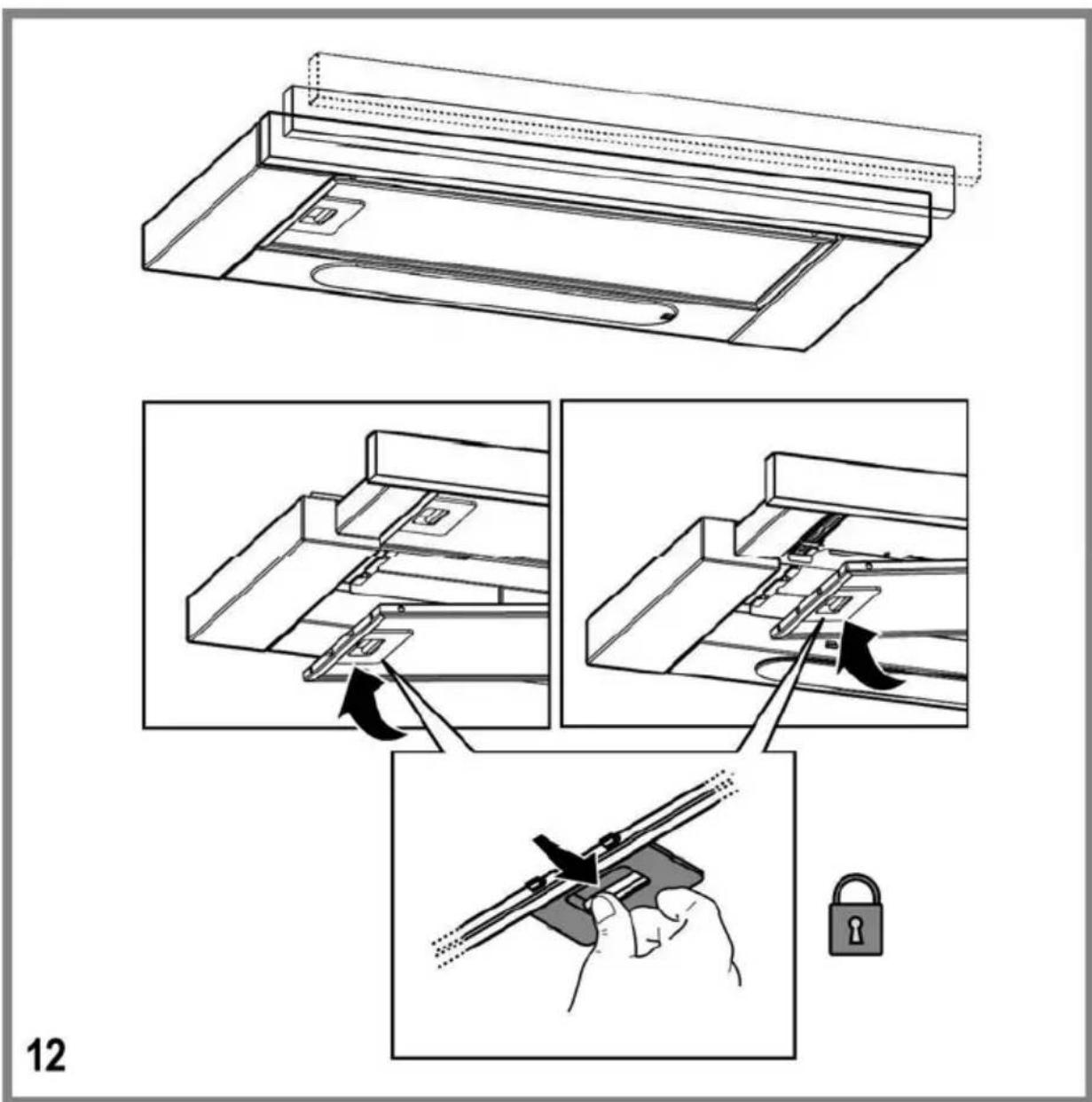

Fig. 3-12

Traps cooking grease particles.

The grease filter must be cleaned once a month using non aggressive detergents, either by hand or in the dishwasher, which must be set to a low temperature and a short cycle. When washed in a dishwasher, the grease filter may discolor slightly, but this does not affect its filtering capacity.

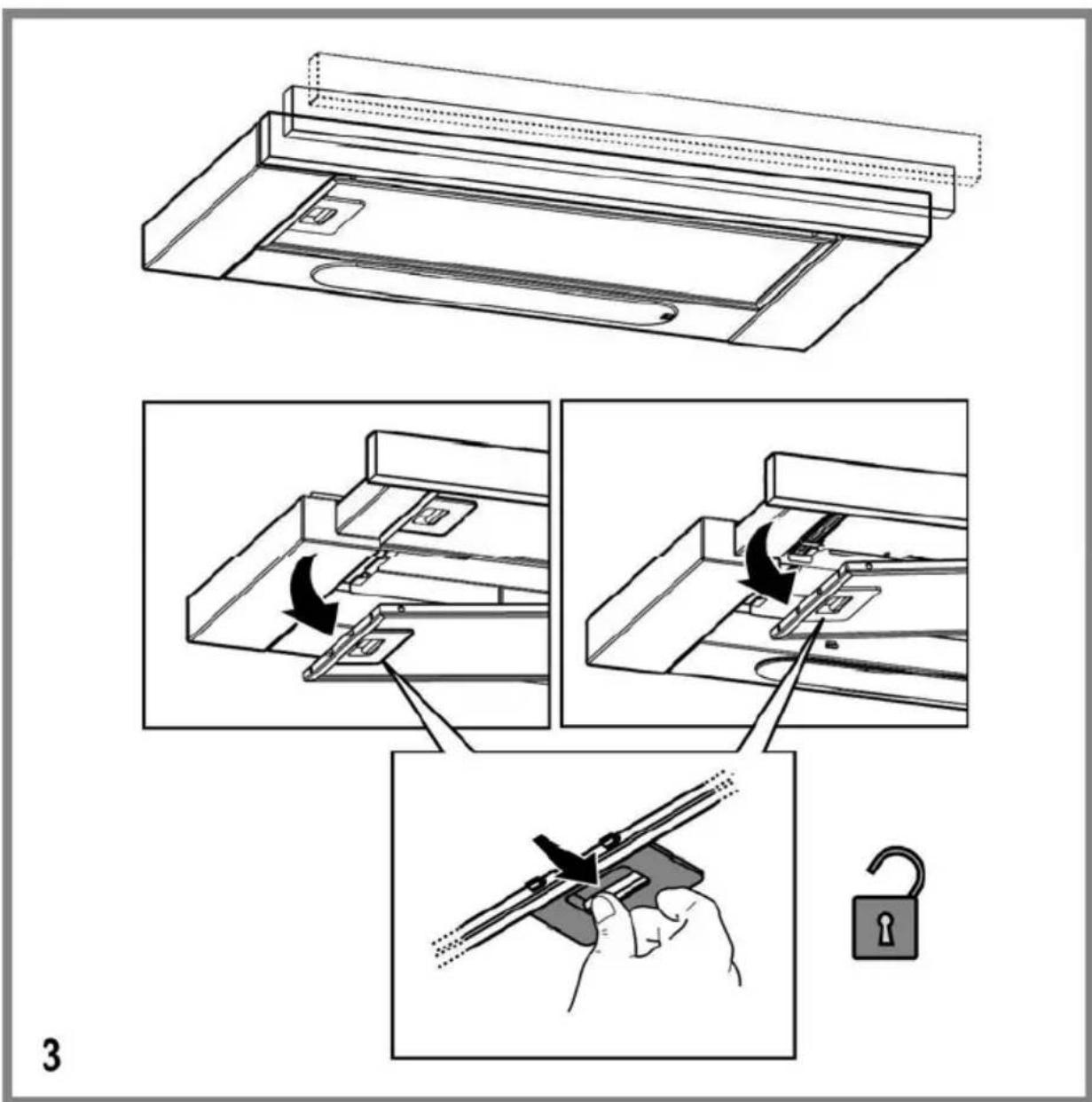

To remove the grease filter, pull the spring release handle.

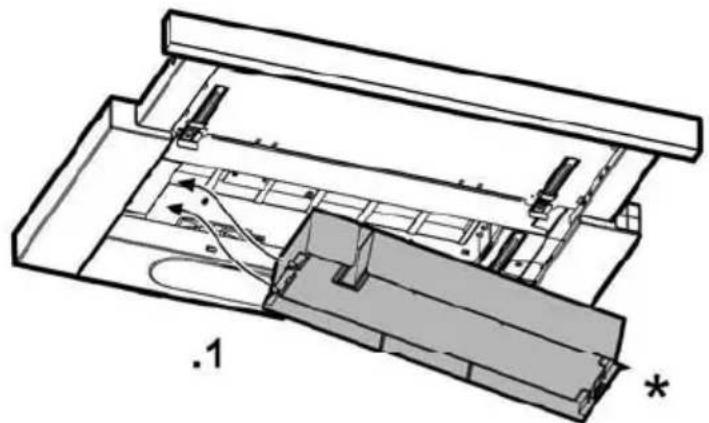

Charcoal filter (filter version only)

It absorbs unpleasant odors caused by cooking.

The saturation of the charcoal filter occurs after more or less prolonged use, depending on the type of cooking and the regularity of cleaning of the grease filter.

In any case it is necessary to replace the cartridge at least every four months.

The charcoal filter may NOT be washed or regenerated.

Fig. 12

Replacing lamps

The hood is equipped with a lighting system based on LED technology.

The LEDs guarantee an optimum lighting, a duration up to 10 times as long as the traditional lamps and allow to save 90% electrical energy.

For replacement, contact the technical service.
