Brand	Elica
Model	Rubino Corner
Product Type	Corner Range Hood
Installation Type	Wall-mounted (corner)
Width	60 cm
Depth	50 cm
Height (overall)	30 cm (approx.)
Net Weight	12 kg
Power Supply	220-240 V ~ 50 Hz
Max Power Consumption	200 W
Motor Power	150 W
Number of Motors	1
Extraction Rate (max)	400 m³/h
Noise Level (max)	65 dB(A)
Lighting	2 x 20 W halogen or LED
Control Type	Push buttons
Number of Speeds	3
Filter Type	Aluminum grease filter + charcoal filter (optional)
Duct Diameter	150 mm
Energy Class	B (typical)
Grease Filter Cleaning	Monthly in dishwasher or by hand
Charcoal Filter Replacement	Every 3-6 months
Safety Certifications	CE, RoHS
Spare Parts Available	Filters, bulbs, motor

Frequently Asked Questions - Rubino Corner ELICA

How do I install the Rubino Corner hood?

The hood should be mounted on a sturdy wall at the corner. Ensure the distance from the hob is at least 65 cm for electric hobs and 75 cm for gas hobs. Follow the drilling template and secure with provided screws. Connect to a 220-240 V outlet.

How often should I clean the grease filter?

Clean the aluminum grease filter every month either by hand with mild detergent or in the dishwasher at low temperature. A clogged filter reduces efficiency.

When should I replace the charcoal filter?

If using recirculation mode, replace the charcoal filter every 3 to 6 months depending on cooking frequency. It cannot be washed.

Why is the hood not extracting properly?

Check if the grease filter is dirty, the charcoal filter needs replacement, or the duct is blocked. Also ensure speed setting is adequate. Clean or replace filters as needed.

How do I change the light bulbs?

Disconnect power. Remove the bulb cover (if any) and unscrew the old bulb. Replace with a new bulb of the same type (e.g., 20W halogen or LED). Reconnect power.

Can I use the hood without ducting?

Yes, the Rubino Corner can operate in recirculation mode with a charcoal filter. Air is filtered and returned to the kitchen. Ensure you install the charcoal filter.

What is the noise level of this hood?

The maximum noise level is approximately 65 dB(A), which is typical for this type of hood. Lower speeds are quieter.

How do I clean the exterior surfaces?

Use a soft damp cloth with mild detergent. Avoid abrasive cleaners or scrubbing pads that can scratch the finish. Dry with a soft cloth.

Is a remote control included?

No, the Rubino Corner is controlled via push buttons on the front panel. No remote control is included.

Where can I find spare parts?

Spare parts such as filters, bulbs, and motors can be ordered from Elica authorized service centers or online retailers. Refer to the manual for part numbers.

USER MANUAL Rubino Corner ELICA

EN Instruction on mounting and use

Cooker hood with lateral clasp + 4 screws

Cooker hood with 8 fixing screws

Suction grill release

Anti-grease filter release

Carbon filter release

EN - Instruction on mounting and use

Consult the designs in the front pages referenced in the text by alphabet letters.

Closely follow the instructions set out in this manual. All responsibility, for any eventual inconveniences, damages or fires caused by not complying with the instructions in this manual, is declined.

Caution

WARNING! Do not connect the appliance to the mains until the installation is fully complete.

Before any cleaning or maintenance operation, disconnect the hood from the mains by removing the plug or disconnecting the home mains switch.

Always wear work gloves for all installation and maintenance operations.

The appliance is not intended for use by children or persons with impaired physical, sensorial or mental faculties, or if lacking in experience or know-how, unless they are under supervision or have been trained in the use of the appliance by a person responsible for their safety.

Children should be monitored to ensure that they do not play with the appliance.

Never use the hood without effectively mounted grating!

The hood must NEVER be used as a support surface unless specifically indicated.

The premises must be sufficiently ventilated, when the kitchen hood is used together with other gas combustion devices or other fuels.

The suctioned air must not be conveyed into a conduit used for the disposal of the fumes generated by appliances that combust gases or other fuels.

The flaming of foods beneath the hood itself is severely prohibited.

The use of exposed flames is detrimental to the filters and may cause a fire risk, and must therefore be avoided in all circumstances.

Any frying must be done with care in order to make sure that the oil does not overheat and burst into flames.

As regards the technical and safety measures to be adopted for fume discharging it is important to closely follow the relations provided by the competent authorities.

The hood must be regularly cleaned on both the inside and outside (AT LEAST ONCE A MONTH, it is in any event necessary to proceed in accordance with the maintenance instructions provided in this manual).

Failure to follow the instructions as concerns hood and filter cleaning will lead to the risk of fires.

Do not use or leave the hood without the lamp correctly mounted because of the possible risk of electric shocks.

We decline any responsibility for any problems, damage or fires caused to the appliance as the result of the non-observance of the instructions included in this manual.

This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the

environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The symbol ■ on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal.

For more detailed information about treatment, recovery and recycling of this product, please contact your local authority.

Use

The hood is designed to be used either for exhausting or filter version.

Ducting version

The cooker hood is provided with an upper air exit A with connection ring B, a discharge tube (not provided) should be mounted on the ring for discharging fumes and vapours externally.

Attention! If the hood is supplied with carbon filter, then it must be removed.

Filter version

When there is no exhaust duct for venting outdoors, you can use a carbon filter.

The air is depurated by the filter and put again in the surrounding. To use the appliance in this version, proceeded as follows:

The air is vented outdoors by a duct, passing through the wall units and connected to the connecting ring.

Attention! If the hood is not supplied with carbon filter, then it must be ordered and mounted.

The models with no suction motor only operate in ducting mode, and must be connected to an external suction device (not supplied).

The connecting instructions are supplied with the peripheral suction unit.

Installation

The minimum distance between the supporting surface for the cooking vessels on the hob and the lowest part of the range hood must be not less than 65cm from electric cookers and 65cm from gas or mixed cookers.

If the instructions for installation for the gas hob specify a greater distance, this must be adhered to.

Electrical connection

The mains power supply must correspond to the rating indicated on the plate situated inside the hood. If provided with a plug, connect the hood to a socket in compliance with current regulations and positioned in an accessible area. If it is not fitted with a plug (direct mains connection) or if the plug is not located in an accessible area, apply a double pole switch in accordance with standards which assures the complete disconnection of the mains under conditions relating to over-current category III, in accordance with installation instructions.

Warning! Before re-connecting the hood circuit to the mains supply and checking the efficient function, always check that the mains cable is correctly assembled.

Mounting

Expansion wall plugs are provided to secure the hood to most types of walls/ceilings. However, a qualified technician must verify suitability of the materials in accordance with the type of wall/ceiling. The wall/ceiling must be strong enough to take the weight of the hood. Do not tile, grout or silicone this appliance to the wall. Surface mounting only.

This hood is designed for fitting in a cabinet or on some other support.

Carry out the following instructions for affixing the cooker hood: Create an opening in the bottom of the cabinet to insert the cooker hood, and drill a hole on the top of the cabinet to fit the discharge tube, connect the cooker hood to an external pipe, predispose the electrical connection, remove the grill or the anti-grease filter, remove the frame C (if provided) by pressing on the two release hooks D (according to the model in possession, the release hook button D may be located externally or inside the cooker hood below the grease filter / grill), insert the cooker hood in the opening (lock in the lateral clasps E if provided by tightening the locking screws F), finally fix the cooker hood to the cabinet with wood screws G supplied. Remount the frame C (if provided), and suction grill H.

Operation

The hood is fitted with a control panel with aspiration speed selection control and a light switch to control cooking area lights.

The switch is located on the side of the suction grill H.

Use the high suction speed in cases of concentrated kitchen vapours. It is recommended that the cooker hood suction is switched on for 5 minutes prior to cooking and to leave in operation during cooking and for another 15 minutes approximately after terminating cooking.

Maintenance

ATTENTION! Before performing any maintenance operation, isolate the hood from the electrical supply by switching off at the connector and removing the connector fuse.

Or if the appliance has been connected through a plug and socket, then the plug must be removed from the socket.

Cleaning

The cooker hood should be cleaned regularly (at least with the same frequency with which you carry out maintenance of the fat filters) internally and externally. Clean using the cloth dampened with neutral liquid detergent. Do not use abrasive products. DO NOT USE ALCOHOL!

WARNING: Failure to carry out the basic cleaning recommendations of the cooker hood and replacement of the filters may cause fire risks.

Therefore, we recommend observing these instructions.

The manufacturer declines all responsibility for any damage to the motor or any fire damage linked to inappropriate maintenance or failure to observe the above safety recommendations.

Grease filter

Traps cooking grease particles.

If situated inside the support grill, it may be one of the following types:

Paper filter must be replaced once a month or if colouring appears on upper side, in such cases the colouring is evident through the grill openings.

Sponge filter should be washed with hot soapy water once a month and replaced every 5 to 6 washes.

Metallic filter must be cleaned once a month, with non abrasive detergents, by hand or in dishwasher on low temperature and short cycle.

When washed in a dishwasher, the grease filter may discolour slightly, but this does not affect its filtering capacity.

To access the grease filter J open the suction grill H via the release hooks L and free from the supports K.

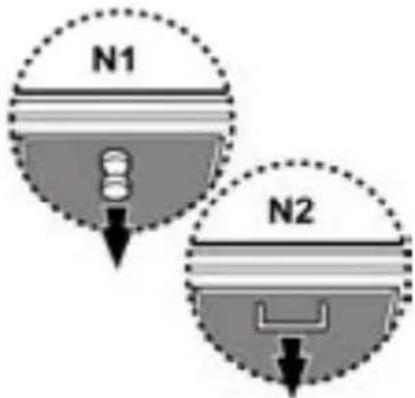

Some models are provided with a metallic filter M without support grill, these should be washed as described above and removed from their housing by pressing the N handles towards the bottom.

Charcoal filter (filter version only)

It absorbs unpleasant odours caused by cooking.

The saturation of the activated charcoal occurs after more or less prolonged use, depending on the type of cooking and the regularity of cleaning of the grease filter.

In any case it is necessary to replace the cartridge at least every four months.

The carbon filter may NOT be washed or regenerated.

May be one of the following:

Rectangular: position the filter P in order to cover the motor protection grill and turn the handle clockwise until locked-in, for dismounting follow instructions in reverse.

Bayonet Circular-Insert position the filter in the centre (in certain cases use the Z hooks for centring the filter) in order to cover the motor protection grill ensuring that the X reference

on the carbon filter corresponds to the Y reference on the conveyor, then turn clockwise; for dismounting follow instructions in reverse.

Replacing lamps

Disconnect the hood from the electricity.

Warning! Prior to touching the light bulbs ensure they are cooled down.

Remove the anti-grease filter support grill or the anti-grease filter to access the lamp area. Remove the damaged lightbulb and replace with an incandescent oval bulb maximum 40W E14.

In the case where model is provided with a halogen lightbulb, replace with halogen bulb of 20W (GU5.3 - ∅50mm).

If the lights do not work, make sure that the lamps are fitted properly into their housings before you call for technical assistance.
