70CC DYNAMIQUE - Range hood ELICA - Free user manual and instructions

Product type	Kitchen hood
Brand	Elica
Model	70CC DYNAMIQUE
Width	70 cm
Depth	Approximately 50 cm
Height	Variable (telescopic chimney)
Net weight	Approximately 18 kg
Power supply	220-240 V / 50-60 Hz
Maximum power	300 W
Number of speeds	3 speeds (+ intensive)
Lighting	Integrated LED
Filter type	Washable metal grease filter
Recirculation option	Activated carbon filter (optional)
Maximum noise level	65 dB(A)
Maximum airflow	600 m³/h
Filter maintenance	Clean the metal filter every month
Carbon filter replacement	Every 3 to 6 months depending on use
Spare parts available	Filters, bulbs, remote control
Repairability	Repairability index 8/10
Warranty	2 years

Frequently Asked Questions - 70CC DYNAMIQUE ELICA

How to install the Elica 70CC DYNAMIQUE hood?

Installation must be carried out by a professional. Respect safety distances: at least 65 cm above an electric hob, 75 cm for a gas hob. Securely fix the hood to the wall and connect it to an exhaust duct (diameter 150 mm).

How to clean the grease filters?

The metal filters are dishwasher safe or can be hand washed with hot water and detergent. Let them dry completely before putting them back. Clean them every month for optimal efficiency.

How often to replace the carbon filter?

The activated carbon filter is only used in recirculation mode. It must be replaced every 3 to 6 months depending on use. Note the replacement date so you don't forget.

How to change the LED bulb?

Unplug the hood, remove the bulb cover, unclip the defective bulb and replace it with an LED bulb of the same type (G4, 2W for example). Put the cover back on and plug in.

What to do if the hood does not turn on?

First check the fuse or circuit breaker. Make sure the plug is connected and the remote control has batteries. If the problem persists, contact customer service.

The hood makes noise, is it normal?

A slight ventilation noise is normal. Check that the hood is properly fixed and the filters are clean. If the noise is abnormal, there may be an obstruction or a motor problem.

How to set the speeds?

Use the remote control or the buttons on the hood. Press the speed button to switch from 1 to 3. The intensive speed (boost) usually lasts for 10 minutes and then automatically returns to the previous speed.

Can I use the hood without external evacuation?

Yes, in recirculation mode. You must install an activated carbon filter and a recirculation kit (optional). The air is filtered and then returned to the kitchen.

What is the minimum distance between the hood and the hob?

It is 65 cm for an electric hob and 75 cm for a gas hob. Respect these distances for safety and performance reasons.

Where to find spare parts for this hood?

Spare parts (filters, bulbs, remote control) are available from Elica customer service or from specialized websites. Use the hood reference (70CC DYNAMIQUE).

USER MANUAL 70CC DYNAMIQUE ELICA

EN Instruction on mounting and use

4x

8×40

8x

10×60

2x

M5x40

4x

5x45

8×

2,9×13

2x

3,5×6,5

2x

M6×40

8x

6×90

2x

∅6.4×18

2x

∅5.3×15

M8×45

4x

M8×20

4x

M8×30

4x

4x

2x

1x

1x

1x

3× 3.5×6.5

2× 2.9×9.5

4× 4×8

4× 5×45

4 × ∅ 8×40

4 ×

8×40

4×

10×60

8×

2.9×13

2×

3.5×6.5

1x

∅6.4×18

1x

∅5.3×15

2x

M8×20

2x

M8×30

1x

M5x40

4x

5×45

1x

M6×40

4x

6×90

1x

M8x45

2x

2x

2x

1x

1x

1x

1x

4x

8x40

8x

10×60

2x

M5x40

4x

5x45

8x

2.9x13

2x

3.5x6.5

2x

M6x40

8x

6x90

2x

∅6.4x18

2x

∅5.3x15

M8×45

4x

M8×20

4x

M8×30

4x

4x

2x

1x

1x

1x

8×2.9×9.5

8×2.9×9.5

1.

1.

1.

*

1.

1.

a.

b.

19.

31

32

1.

1.

+

+

45.

!

48.

1.

a.

b.

50.

52

58

2x

EN - Instruction on mounting and use

Closely follow the instructions set out in this manual. All responsibility for any eventual inconveniences, damages, or fires caused by not complying with the instructions in this manual is declined. The hood is conceived for the suction of cooking fumes and steam and is destined only for domestic use.

The hood can look different from that illustrated in the drawings in this booklet. The instructions for use, maintenance, and installation, however, remain the same.

! It is important to conserve this booklet for consultation at any moment. In the case of sale, cession, or move, make sure it is together with the product. ! Read the instructions carefully: there is important information about installation, use, and safety. ! Do not carry out electrical or mechanical variations on the product or on the discharge conduits.

Note: the elements marked with the symbol “(*)” are optional accessories supplied only with some models or elements to purchase, not supplied.

Caution

WARNING! Do not connect the appliance to the mains until the installation is fully complete.

Before any cleaning or maintenance operation, disconnect the hood from the mains by removing the plug or disconnecting the mains electrical supply.

Always wear work gloves for all installation and maintenance operations.

The appliance is not intended for use by children or persons with impaired physical, sensorial, or mental faculties, or if lacking in experience or knowledge, unless they are under supervision or have been trained in the use of the appliance by a person responsible for their safety.

This appliance is designed to be operated by adults. Children should be monitored to ensure that they do not play with the appliance.

This appliance is designed to be operated by adults. Children should not be allowed to tamper with the controls or play with the appliance.

Never use the hood without effectively mounted grating!

The hood must NEVER be used as a support surface unless specifically indicated.

The premises where the appliance is installed must be sufficiently ventilated when the kitchen hood is used together with other gas combustion devices or other fuels.

The ducting system for this appliance must not be connected to any existing ventilation system which is being used for any other purpose such as discharging exhaust fumes from appliances burning gas or other fuels.

The flaming of foods beneath the hood itself is severely prohibited.

The use of exposed flames is detrimental to the filters and may cause a fire risk, and must therefore be avoided in all circumstances.

Any frying must be done with care in order to make sure that the oil does not overheat and ignite.

Accessible parts of the hood may become hot when used with cooking appliance.

With regards to the technical and safety measures to be adopted for fume discharging it is important to closely follow the regulations provided by the local authorities.

The hood must be regularly cleaned on both the inside and outside (AT LEAST ONCE A MONTH).

This must be completed in accordance with the maintenance instructions provided in this manual). Failure to follow the instructions provided in this user guide regarding the cleaning of the hood and filters will lead to the risk of fires.

Do not use or leave the hood without the lamp correctly mounted due to the possible risk of electric shocks.

We will not accept any responsibility for any faults, damage or fires caused to the appliance as a result of the non-observance of the instructions included in this manual.

This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The symbol ■ on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal.

For further detailed information regarding the process, collection and recycling of this product, please contact the appropriate department of your local authorities or the local department for household waste or the shop where you purchased this product.

Additional Installation Specifications:

Use only the fixing screws supplied with the product for installation.

Use the correct length screws which are identified in the Installation Guide

WARNING! Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

Use

The hood is designed to be used either for exhausting or filter version.

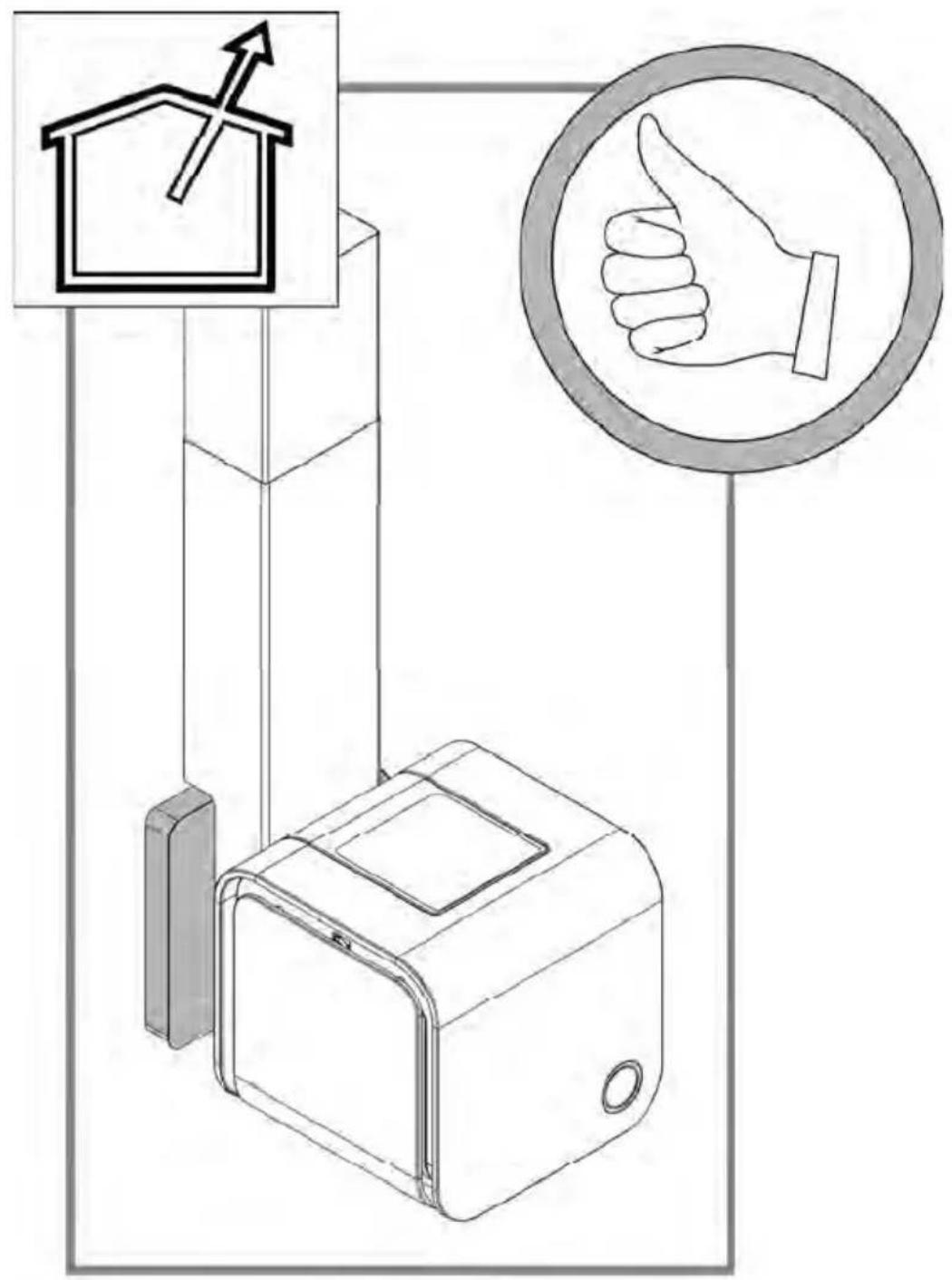

Ducting version

In this case the fumes are conveyed outside of the building by means of a special pipe connected with the connection ring located on top of the hood.

Attention! The exhausting pipe is not supplied and must be purchased apart.

Diameter of the exhausting pipe must be equal to that of the connection ring.

In the horizontal runs the exhausting pipe must be slightly slanted (about 10°) and directed upwards to vent the air easily from the room to the outside.

Attention! If the hood is supplied with active charcoal filter, then it must be removed.

Connect the hood and discharge holes on the walls with a diameter equivalent to the air outlet (connection flange).

Using the tubes and discharge holes on walls with smaller dimensions will cause a diminution of the suction performance and a drastic increase in noise.

Any responsibility in the matter is therefore declined.

! Use a duct of the minimum indispensable length. ! Use a duct with as few elbows as possible (maximum elbow angle: 90°). ! Avoid drastic changes in the duct cross-section. ! Use a duct as smooth as possible inside. ! The duct must be made of certified material. ! For easy installation of the hood in ducting version, we recommend the use of corrugated flexible tube with a diameter of 150mm

Filter version

One active charcoal filter is needed for this and can be obtained from your usual retailer.

The filter removes grease and odors from the extracted air before sending it back into the room through the upper outlet grid.

Installation

Specialized personnel must carry out both the electrical and mechanical installation.

The minimum distance between the supporting surface for the cooking equipment on the hob and the lowest part of the range hood must be not less than 50 cm from electric cookers and 65 cm from gas or mixed cookers.

If the installation instructions for the gas hob specify a greater distance, this must be adhered to.

Electrical connection

The mains power supply must correspond to the rating indicated on the plate situated inside the hood. If provided with a plug, connect the hood to a socket in compliance with current regulations and positioned in an accessible area after installation. If it is not fitted with a plug (direct mains connection) or if the plug is not located in an accessible area after installation, apply a double pole switch in accordance with standards which assures the complete disconnection of the mains under conditions relating to over-current category III, in accordance with installation instructions.

Warning! Before re-connecting the hood circuit to the mains supply and checking the efficient function, always check that the mains cable is correctly assembled.

Warning! Changing the interconnection cable must be carried out by the authorized technical assistance service.

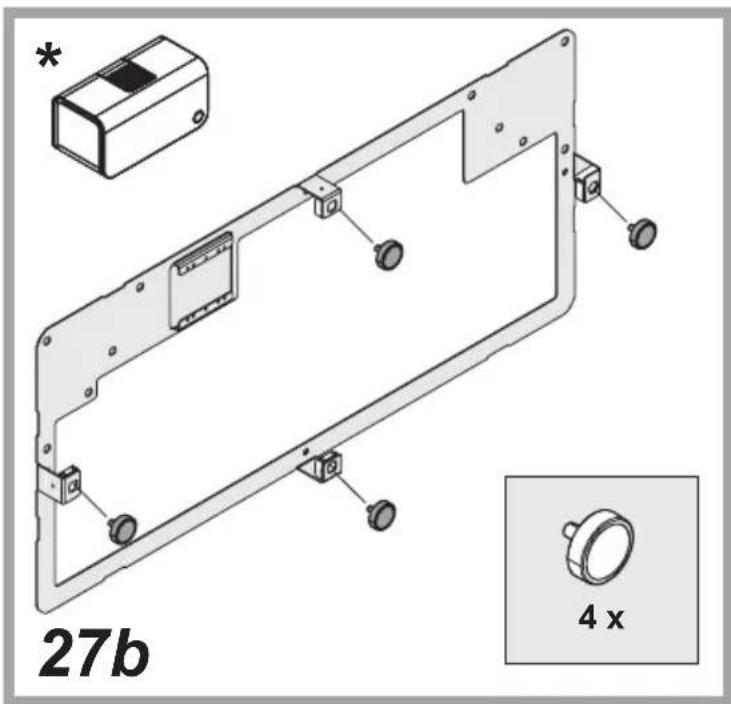

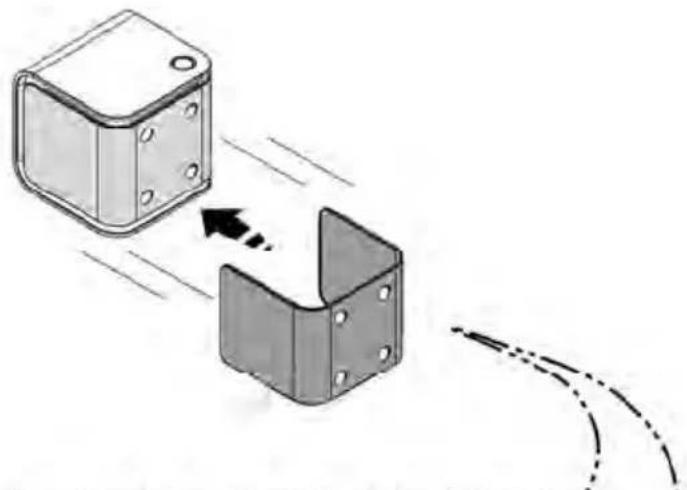

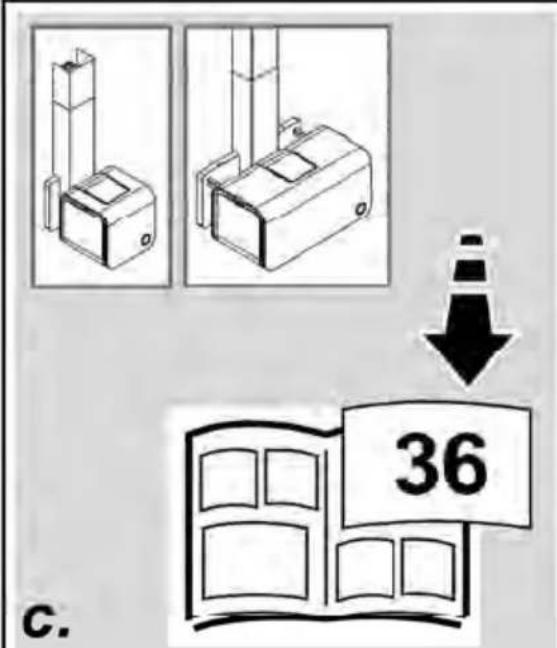

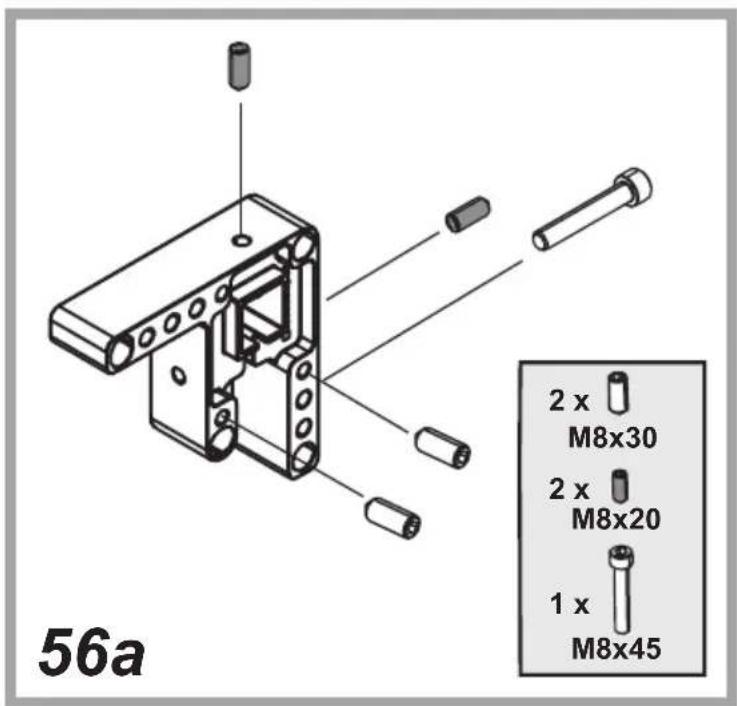

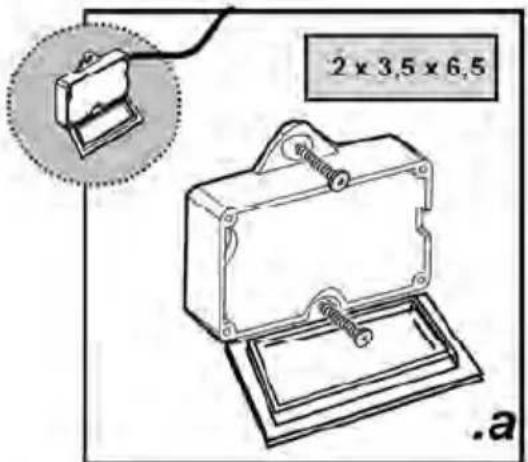

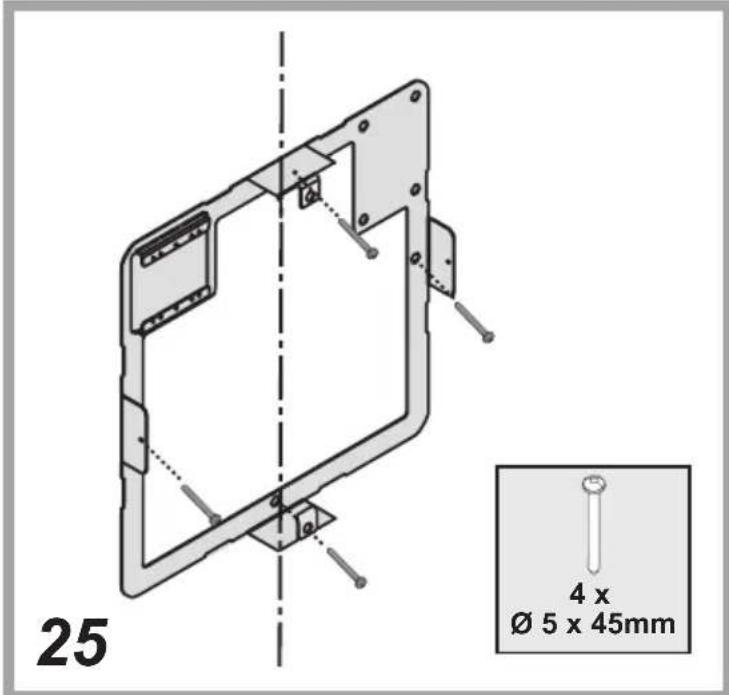

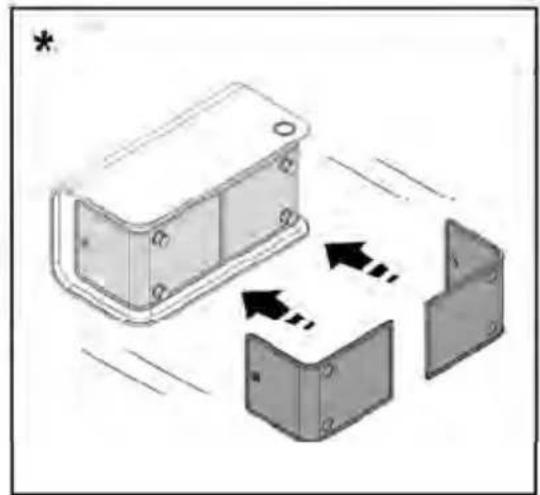

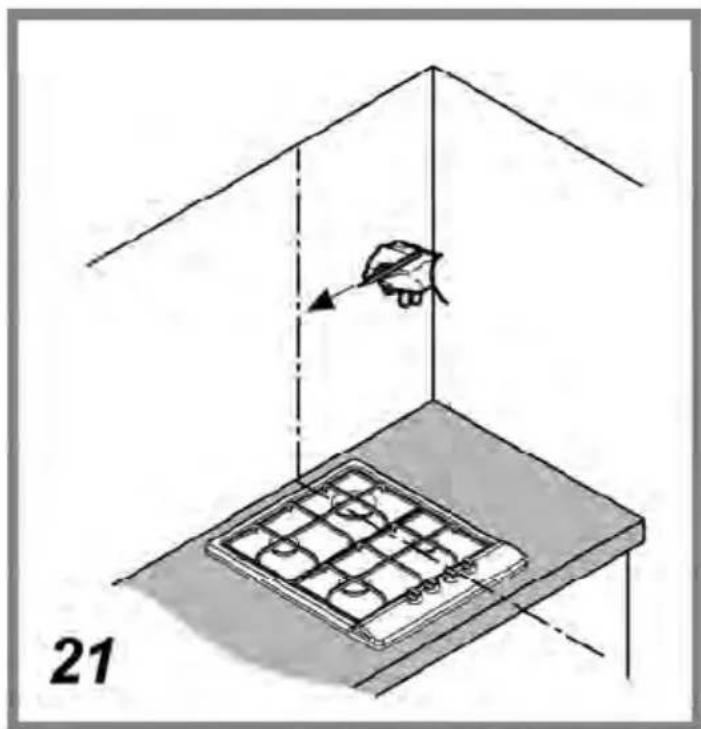

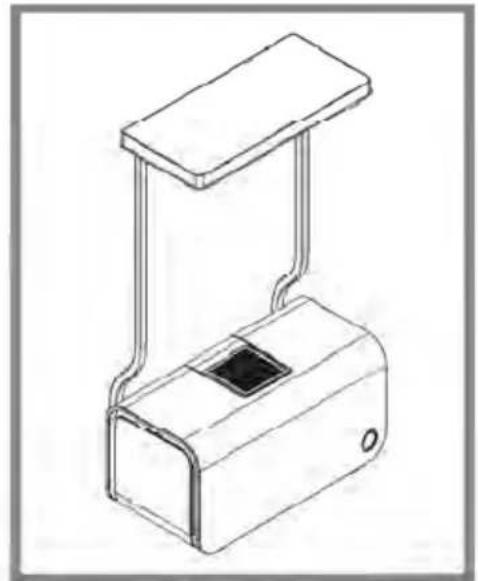

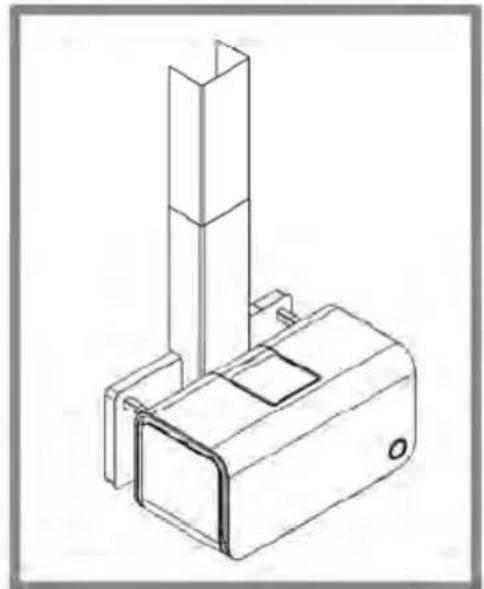

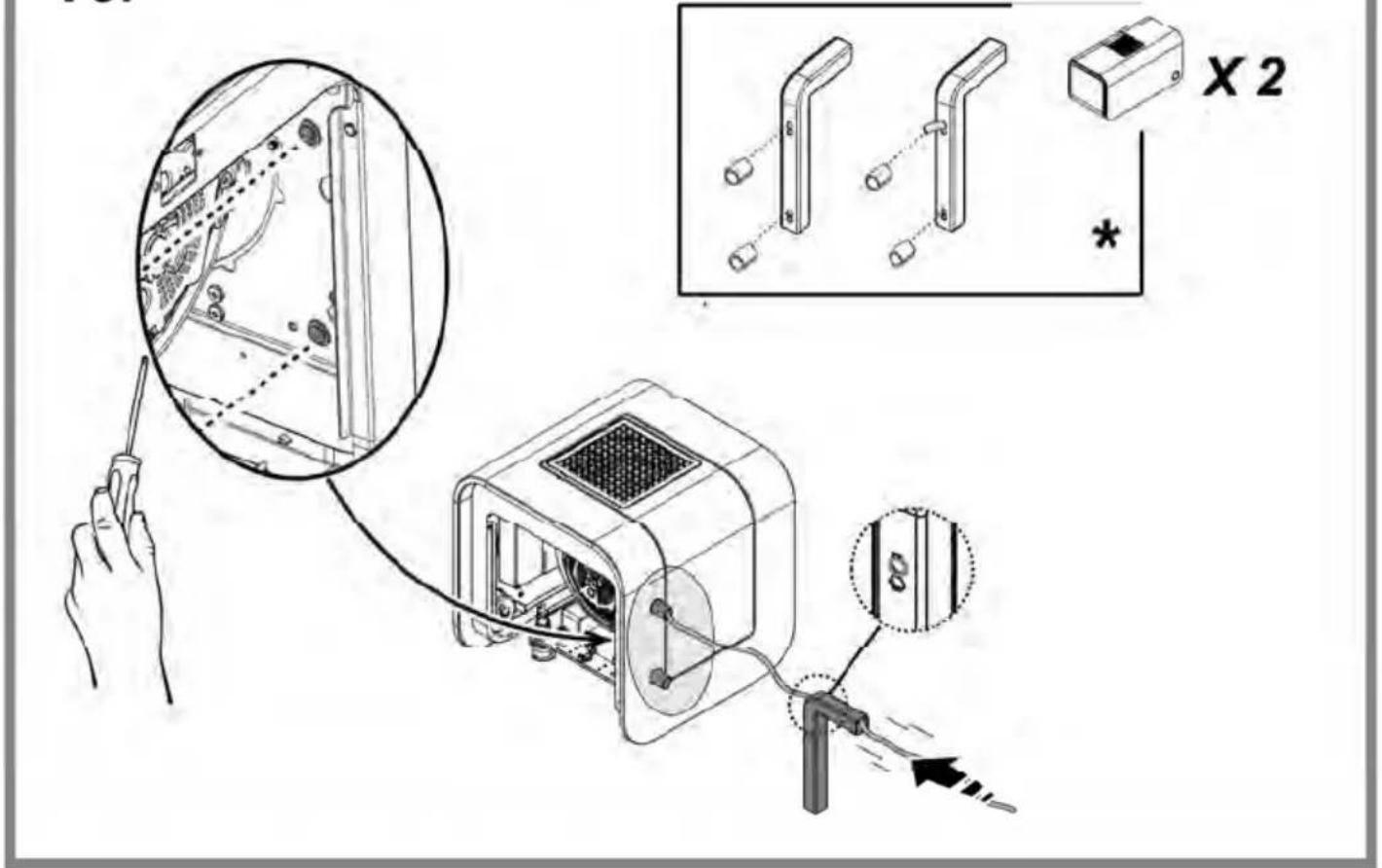

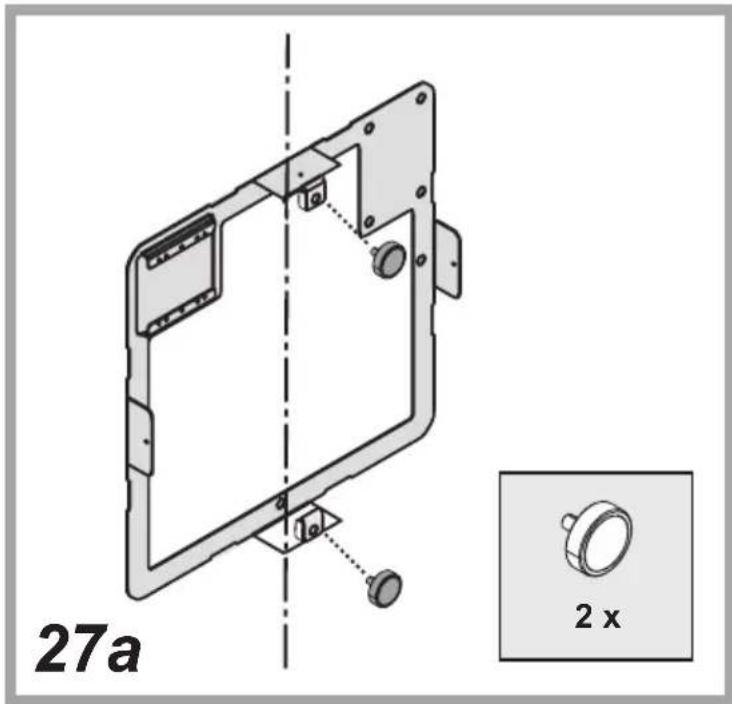

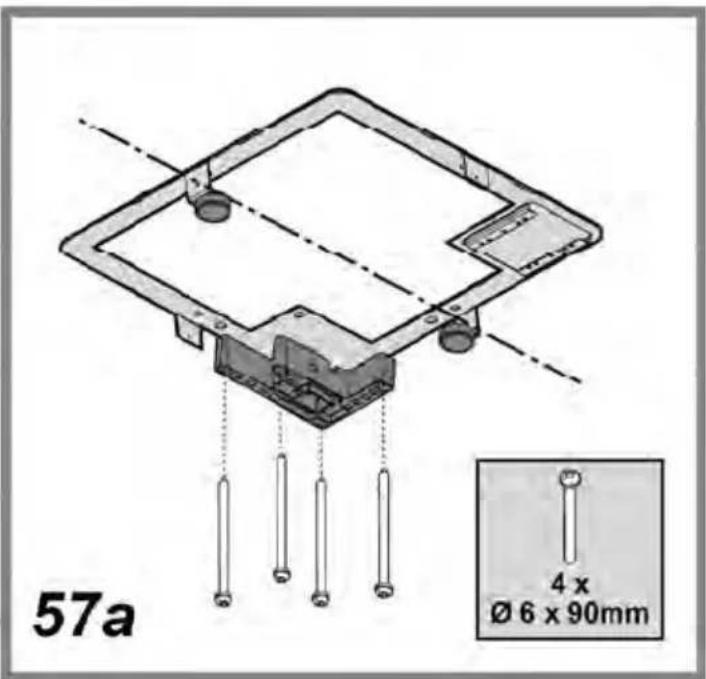

Mounting

Before beginning installation:

• Check that the product purchased is of a suitable size for the chosen installation area.
• Remove the charcoal (*) filter(s) if supplied (see also relative paragraph). This/these is/are to be mounted only if you want to use the hood in the filtering version.
• Check (for transport reasons) that there is no other supplied material inside the hood (e.g., packets with screws (*), guarantees (*), etc.), eventually removing them and keeping them.
• If possible, disconnect and move freestanding or slide-in range from cabinet opening to provide easier access to rear wall/ceiling. Otherwise put a thick, protective covering over countertop, cooktop or range to protect from damage and debris. Select a flat surface for assembling the unit. Cover that surface with a protective covering and place all canopy hood parts and hardware in it.
• In addition check whether near the installation area of the hood (in the area accessible also with the hood mounted) an electric socket is available and it is possible to connect a fumes discharge device to the outside (only suction version).
• Carry out all the masonry work necessary (e.g. installation of an electric socket and/or a hole for the passage of the discharge tube).

Expansion wall plugs are provided to secure the hood to most types of walls/ceilings. However, a qualified technician must verify suitability of the materials in accordance with the type of wall/ceiling. The wall/ceiling must be strong enough to take the weight of the hood. Do not tile, grout or silicone this appliance to the wall. Surface mounting only.

In the case of the presence of panels and/or walls and/or lateral wall units check that there is sufficient space to install the hood and that access to the command panel is easy.

Operation

Use the high suction speed in cases of concentrated kitchen vapours. It is recommended that the cooker hood suction is switched on for 5 minutes prior to cooking and to leave in operation during cooking and for another 15 minutes approximately after terminating cooking.

The control panel consists of a backlit rotating disk.

•To put on and off the lights:

Press on the disk (T) to put on and off the lights

• To select the available suction speeds:

Turn the disk (T) clockwise to turn on and increase the suction speed and counter-clockwise to decrease it, and to turn off the hood.

The crown (L) lights to indicate the selected suction speed:

• L1 lit

speed 1 (minimum).

• L1 + L2 lit

speed 2 (medium).

• L1 + L2 + L3 lit

Speed 3 (maximum).

• L1 + L2 + L3 + L4 lit in flashing mode

Speed 4 (intensive), lasting for 5 minutes, then the hood is placed automatically at speed 2

• L off:

Suction motor off

Filters' Saturation Control

The hood is equipped with a device that indicates when it is required to perform the filter maintenance

The saturation control device of the grease filter is always active

The control device of the activated carbon filter is usually turned off

To activate it, proceed as follows:

- Turn off the hood.

- Press the disk (T) for more than 5 seconds

The crown (L) lights completely, flashing, and a beep will be heard: the control device of the charcoal filter is activated.

NB = to turn it off, turn off the hood, press the disk (T), L1 + L2 will be backlit, flashing; wait for the beep to confirm the deactivation.

Grease filter saturation indicator

L1 + L2 flash when you have to perform maintenance of the grease filter

Activated charcoal filter saturation indicator

L3 + L4 flash when you have to perform maintenance of the activated charcoal filter

Reset of filter saturation signal

After filter maintenance, turn on the hood and press the disk (T) for more than 5 seconds: you will hear a long tone (beep) confirming the reset.

Note: In case of simultaneous signaling (grease filter and activated charcoal filter saturation), you must repeat the reset twice.

Maintenance

ATTENTION! Before performing any maintenance operation, isolate the hood from the electrical supply by switching off at the connector and removing the connector fuse.

Or if the appliance has been connected through a plug and socket, then the plug must be removed from the socket.

Cleaning

The cooker hood should be cleaned regularly (at least with the same frequency with which you carry out maintenance of the fat filters) internally and externally. Clean using the cloth dampened with neutral liquid detergent. Do not use abrasive products. DO NOT USE ALCOHOL!

WARNING: Failure to carry out the basic cleaning recommendations of the cooker hood and replacement of the filters may cause fire risks.

Therefore, we recommend observing these instructions.

The manufacturer declines all responsibility for any damage to the motor or any fire damage linked to inappropriate maintenance or failure to observe the above safety recommendations.

Panel

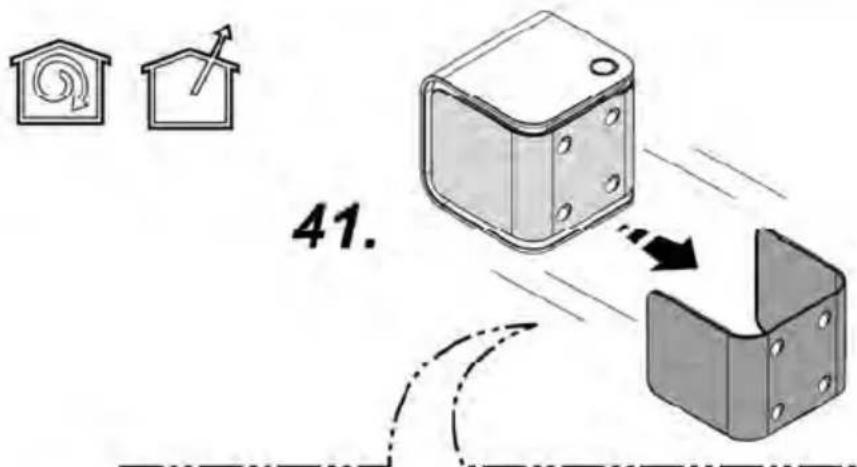

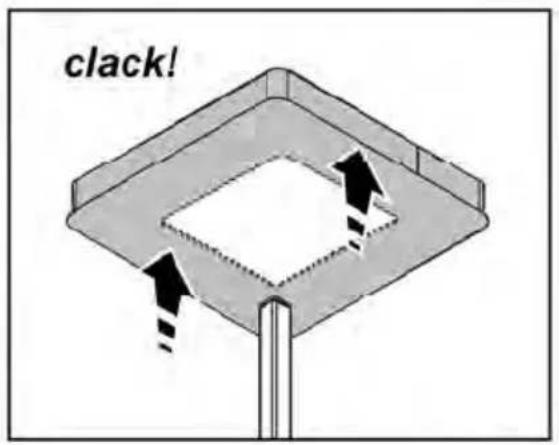

Fig. 1/19 - 41/50

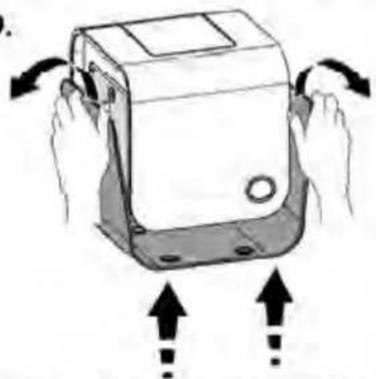

Dismantling:

pull the panel out decisively and remove it from all the connecting points.

Cleaning:

the panel should be cleaned with the same frequency as the fat filters, using a cloth soaked in neutral liquid detergents.

Avoid the use of products containing abrasives. DO NOT USE ALCOHOL!

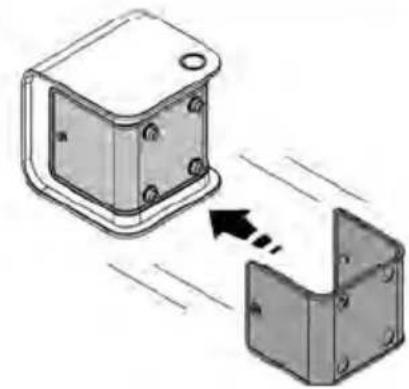

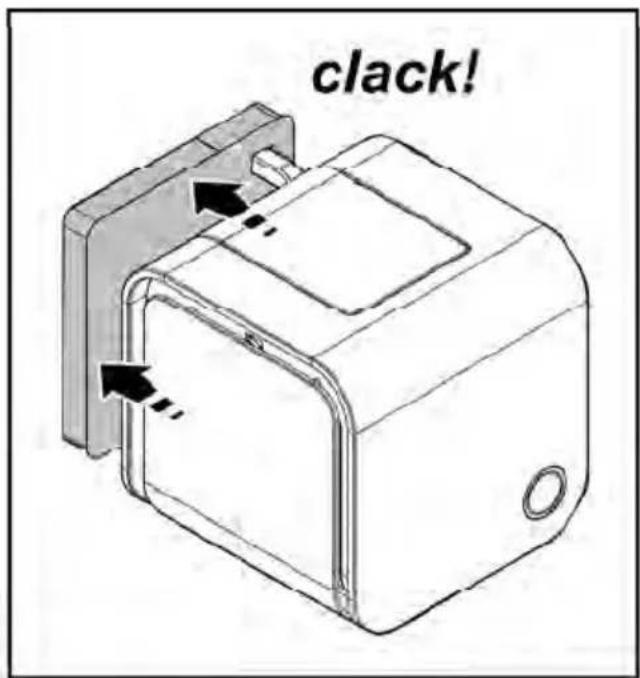

Montage:

The panel should be fixed between the pins placed for this reason on the surface of the hood.

Attention! Always check that the panel is fixed in its place well.

Grease filter

Fig. 2/18 - 42/49

Traps cooking grease particles.

The grease filter must be cleaned once a month using non-aggressive detergents, either by hand or in the dishwasher, which must be set to a low temperature and a short cycle. When washed in a dishwasher, the grease filter may discolour slightly, but this does not affect its filtering capacity.

To release and remove the grease filter, grip the two side handles.

Charcoal filter (filter version only)

Fig. 17 / 48

It absorbs unpleasant odours caused by cooking.

The saturation of the charcoal filter occurs after more or less prolonged use, depending on the type of cooking and the regularity of cleaning of the grease filter.

In any case, it is necessary to replace the cartridge at least every four months.

The charcoal filter may NOT be washed or regenerated.

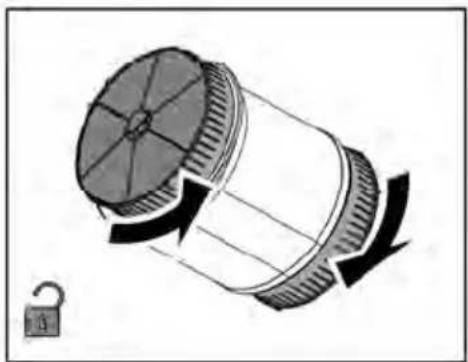

Circular carbon filter

Apply one on each side as a cover to both the shield grids of the motor impeller, then turn clockwise.

For disassembly, turn counter-clockwise.

Replacing lamps

The hood is equipped with a lighting system based on LED technology.

The LEDs guarantee optimum lighting, a duration up to 10 times as long as traditional lamps, and allow saving 90% electrical energy.

For replacement, contact the technical service.

is now enabled.

- To turn the lights on and off:
