H170 Combo - Motherboard ASROCK - Free user manual and instructions

Brand	ASRock
Model	H170 Combo
Category	Motherboard
Product Type	ATX Motherboard
Processor Socket	LGA1151
Compatible Processors	Intel Core i7/i5/i3/Pentium/Celeron (6th Generation)
Chipset	Intel H170
Memory Type	DDR4 2133 / DDR3/DDR3L 1866(OC)/1600/1333/1066
Number of Memory Slots	4 (2 for DDR4, 2 for DDR3)
Maximum Memory	32 GB (approx.)
Expansion Slots	1x PCIe 3.0 x16, 1x PCIe 3.0 x4, 1x PCIe 2.0 x1, 2x PCI
Integrated Graphics	Intel HD Graphics 510/530 (HDMI, DVI-D, VGA)
Storage	6x SATA3 (6 Gb/s), 1x M.2 (SATA/PCIe Gen3 x4), 2x SATA Express
USB	6x USB 3.0 (rear), 2x USB 3.0 (front), 4x USB 2.0 (front)
Audio	Realtek ALC892 (7.1 channels)
Network	Gigabit Ethernet (Realtek RTL8111GR)
Rear I/O	1x PS/2, 1x HDMI, 1x DVI-D, 1x VGA, 6x USB 3.0, 1x RJ45, 5x Audio jack, 1x SPDIF optical
Dimensions (L x W)	30.5 x 22.4 cm (ATX form factor)
Weight	Approximately 0.8 kg
Power Supply	ATX 24-pin + ATX 12V 8-pin
Key Features	Dual DDR4/DDR3 memory, Ultra M.2, Full Spike Protection, UEFI BIOS with graphical interface
Maintenance and Cleaning	Regular dusting with compressed air, avoid liquids
Security	Electrostatic discharge (ESD) protection, surge protection
Repairability and Spare Parts	Replaceable CMOS battery, standard connectors, ASRock technical support
Supported Operating Systems	Windows 7 (64-bit), Windows 8.1 (64-bit), Windows 10 (64-bit)

Frequently Asked Questions - H170 Combo ASROCK

Which processors are compatible with the ASRock H170 Combo motherboard?

This motherboard supports Intel Core i7/i5/i3, Pentium, and Celeron processors from the 6th generation (Skylake) in LGA1151 package.

Can I use both DDR4 and DDR3 on this board?

Yes, the H170 Combo has dedicated slots for DDR4 and DDR3. However, you cannot mix memory types: use either two DDR4 modules or two DDR3 modules.

How do I clear the CMOS on the ASRock H170 Combo?

Turn off the computer and unplug the power cable. Locate the CLRMOS1 jumper (see manual). Using a jumper cap, short pins 2 and 3 for 5 seconds. Return the cap to its original position (pins 1-2) and reconnect power.

What are the available video output ports?

The board offers an HDMI port (up to 4Kx2K @ 24Hz), a DVI-D, and a VGA. Outputs depend on the processor used (a processor with integrated GPU is required).

How do I connect the front panel to the PANNEAU1 header?

Connect the case cables (power button, reset, LED) to the 9-pin PANNEAU1 header following the pinout. Refer to the manual to identify positive and negative pins.

Can I install an M.2 SSD on this motherboard?

Yes, it has an M.2 slot (M2_1) compatible with M.2 devices of SATA or PCIe Gen3 x4 (32 Gb/s) type. Note that if a SATA M.2 device is installed, the SATA3_0 port is disabled.

What is the procedure to install Windows 7 on this board?

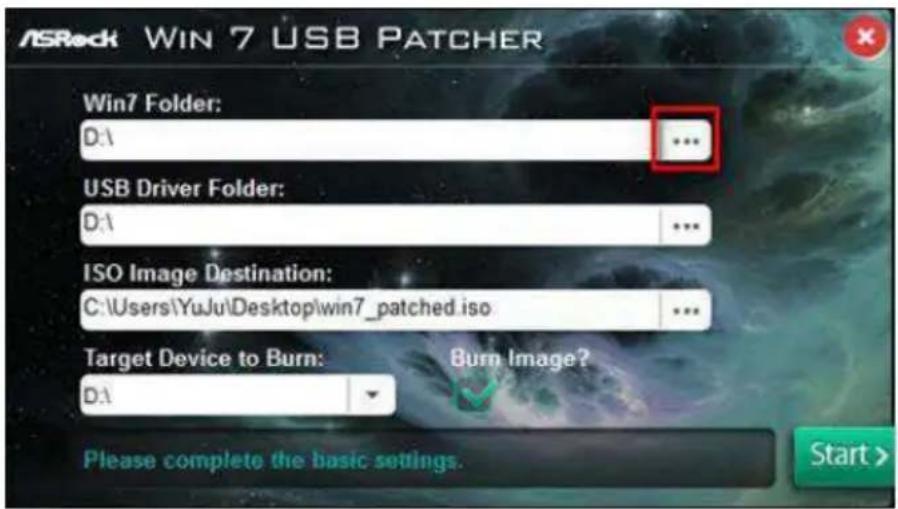

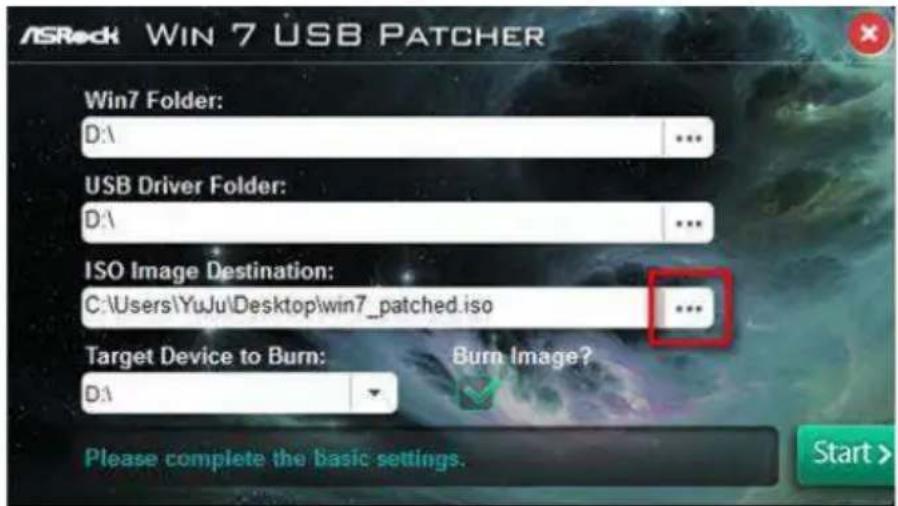

Windows 7 requires an xHCI driver integrated into the installation media. Create a modified installation USB with the xHCI drivers, or use a tool like ASRock Win7 USB Patcher.

What does 'Full Spike Protection' mean?

It is an ASRock technology that protects the motherboard against electrical surges and electrostatic discharge (ESD) on USB, Ethernet, and audio ports for enhanced durability.

Does the motherboard support CrossFireX?

Yes, it supports AMD CrossFireX with up to two graphics cards (one in PCIe x16 and the other in PCIe x4).

How do I update the BIOS?

Download the latest BIOS version from the ASRock website. Copy the file to a FAT32 USB drive. Reboot and press F6 to access the Flash BIOS tool in the UEFI. Select the file and confirm the update.

USER MANUAL H170 Combo ASROCK

Published August 2015

Copyright©2015 ASRock INC. All rights reserved.

Copyright Notice:

No part of this documentation may be reproduced, transcribed, transmitted, or translated in any language, in any form or by any means, except duplication of documentation by the purchaser for backup purpose, without written consent of ASRock Inc.

Products and corporate names appearing in this documentation may or may not be registered trademarks or copyrights of their respective companies, and are used only for identification or explanation and to the owners' benefit, without intent to infringe.

Disclaimer:

Specifications and information contained in this documentation are furnished for informational use only and subject to change without notice, and should not be constructed as a commitment by ASRock. ASRock assumes no responsibility for any errors or omissions that may appear in this documentation.

With respect to the contents of this documentation, ASRock does not provide warranty of any kind, either expressed or implied, including but not limited to the implied warranties or conditions of merchantability or fitness for a particular purpose.

In no event shall ASRock, its directors, officers, employees, or agents be liable for any indirect, special, incidental, or consequential damages (including damages for loss of profits, loss of business, loss of data, interruption of business and the like), even if ASRock has been advised of the possibility of such damages arising from any defect or error in the documentation or product.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

CALIFORNIA, USA ONLY

The Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance controlled in Perchlorate Best Management Practices (BMP) regulations passed by the California Legislature. When you discard the Lithium battery in California, USA, please follow the related regulations in advance.

"Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/perchlorate"

ASRock Website: http://www.asrock.com

The terms HDMI ^™ and HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

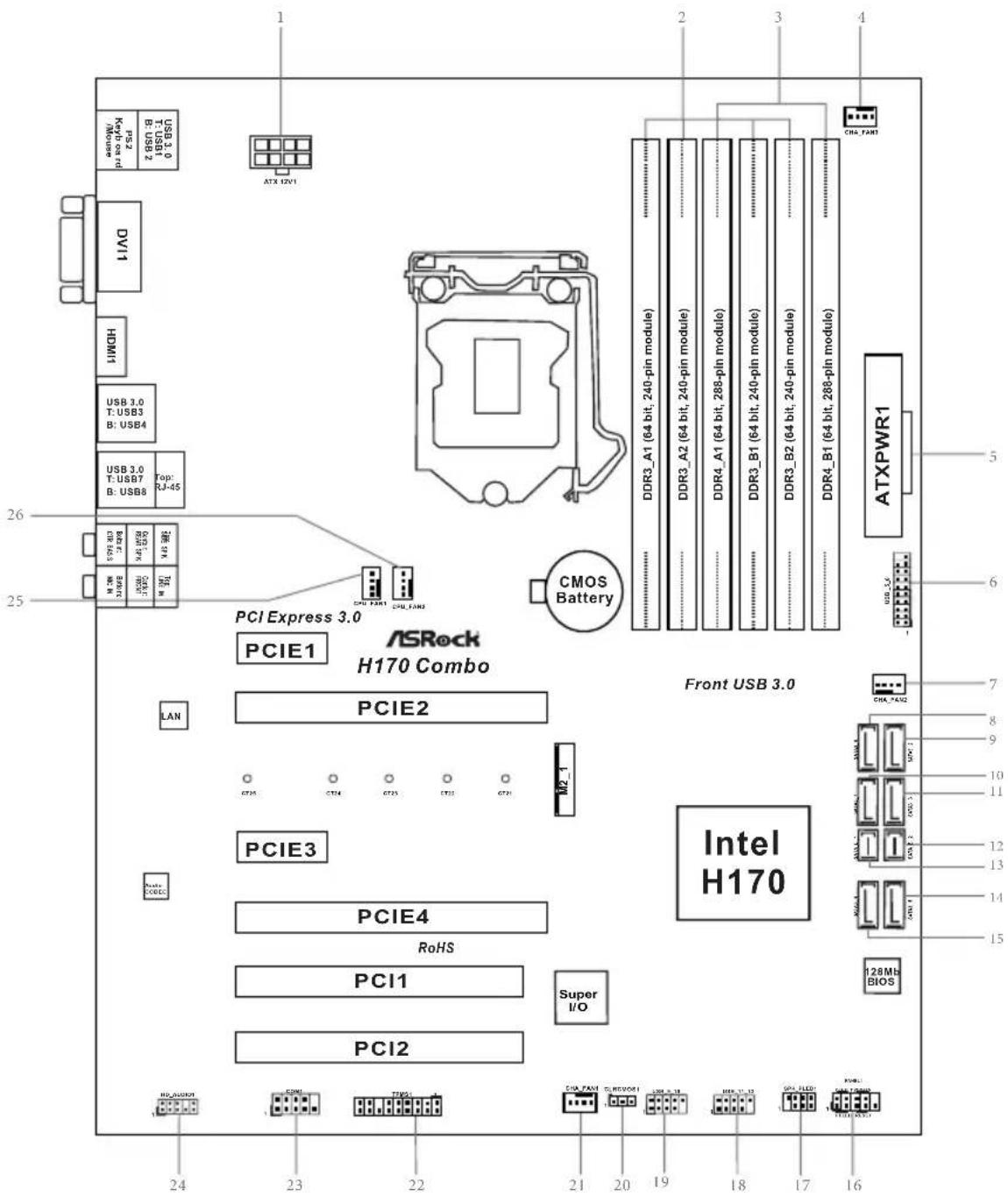

Motherboard Layout

No. Description

1 ATX 12V Power Connector (ATX12V1)

2 4 x 240-pin DDR3/DDR3L DIMM Slots

(DDR3_A1, DDR3_A2, DDR3_B1, DDR3_B2)

3 2 x 288-pin DDR4 DIMM Slots (DDR4_A1, DDR4_B1)

4 Chassis Fan Connector (CHA_FAN3)

5 ATX Power Connector (ATXPWR1)

6 USB 3.0 Header (USB_5_6)

7 Chassis Fan Connector (CHA_FAN2)

8 SATA3 Connector (SATA3_0)

9 SATA3 Connector (SATA3_2)

10 SATA3 Connector (SATA3_1)

11 SATA3 Connector (SATA3_3)

12 SATA Express Connector (SATA_E_1)

13 SATA Express Connector (SATA_E_2)

14 SATA3 Connector (SATA3_5)

15 SATA3 Connector (SATA3_4)

16 System Panel Header (PANEL1)

17 Power LED and Speaker Header (SPK_PLED1)

18 USB 2.0 Header (USB_11_12)

19 USB 2.0 Header (USB_9_10)

20 Clear CMOS Jumper (CLRMOS1)

21 Chassis Fan Connector (CHA_FAN1)

22 TPM Header (TPMS1)

23 COM Port Header (COM1)

24 Front Panel Audio Header (HD_AUDIO1)

25 CPU Fan Connector (CPU_FAN1)

26 CPU Fan Connector (CPU_FAN2)

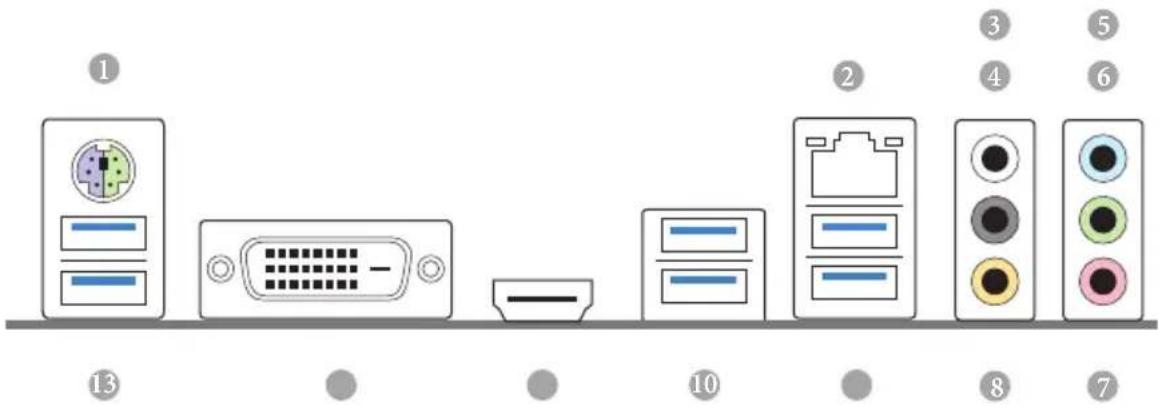

I/O Panel

No. Description No. Description

1 PS/2 Mouse/Keyboard Port 8 Central / Bass (Orange)
2 LAN RJ-45 Port* 9 USB 3.0 Ports (USB_78)
3 Side Speaker (Gray) 10 USB 3.0 Ports (USB_34)
4 Rear Speaker (Black) 11 HDMI Port
5 Line In (Light Blue) 12 DVI-D Port
6 Front Speaker (Lime)** 13 USB 3.0 Ports (USB_12)
7 Microphone (Pink)

* There are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.

Activity / Link LED Speed LED
Status Description Status Description
Off No Link Off	10Mbps connection
Blinking	Data Activity	Orange	100Mbps connection
On Link Green	Gbps connection

** If you use a 2-channel speaker, please connect the speaker's plug into "Front Speaker Jack". See the table below for connection details in accordance with the type of speaker you use.

Audio Output Channels	Front Speaker (No. 6)	Rear Speaker (No. 4)	Central / Bass (No. 8)	Side Speaker (No. 3)
2 V --- --
4 V V ---
6 V V V --
8 V V V V

To enable Multi-Streaming, you need to connect a front panel audio cable to the front panel audio header. After restarting your computer, you will find the "Mixer" tool on your system. Please select "Mixer ToolBox" click "Enable playback multi-streaming", and click "ok". Choose "2CH", "4CH", "6CH", or "8CH" and then you are allowed to select "Realtek HDA Primary output" to use the Rear Speaker, Central/Bass, and Front Speaker, or select "Realtek HDA Audio 2nd output" to use the front panel audio.

Chapter 1 Introduction

Thank you for purchasing ASRock H170 Combo motherboard, a reliable motherboard produced under ASRock's consistently stringent quality control. It delivers excellent performance with robust design conforming to ASRock's commitment to quality and endurance.

Because the motherboard specifications and the BIOS software might be updated, the content of this documentation will be subject to change without notice. In case any modifications of this documentation occur, the updated version will be available on ASRock's website without further notice. If you require technical support related to this motherboard, please visit our website for specific information about the model you are using. You may find the latest VGA cards and CPU support list on ASRock's website as well. ASRock website http://www.asrock.com.

1.1 Package Contents

ASRock H170 Combo Motherboard (ATX Form Factor)

ASRock H170 Combo Quick Installation Guide

ASRock H170 Combo Support CD

2 x Serial ATA (SATA) Data Cables (Optional)

1 x I/O Panel Shield

1 x Screw for M.2 Socket

1.2 Specifications

Platform	ATX Form FactorSolid Capacitor design
CPU	Supports 6^th Generation Intel® CoreTM i7/i5/i3/Pentium*/Celeron® Processors (Socket 1151)Digi Power design10 Power Phase designSupports Intel® Turbo Boost 2.0 Technology
Chipset	Intel® H170Supports Intel® Small Business Advantage 4.0
Memory	Dual Channel DDR4/DDR3/DDR3L Memory Technology2 x DDR4 DIMM SlotsSupports DDR4 2133 non-ECC, un-buffered memoryMax. capacity of system memory: 32GBSupports Intel® Extreme Memory Profile (XMP) 2.015μ Gold Contact in DDR4 DIMM Slots4 x DDR3/DDR3L DIMM SlotsSupports DDR3/DDR3L 1866(OC)/1600/1333/1066 non-ECC, un-buffered memory* Supports 2 x DDR3/DDR3L memory modules up to 1866(OC) and 4 x DDR3/DDR3L memory modules up to 1333* Please refer to Memory Support List on ASRock's website for more information. (http://www.asrock.com/)Max. capacity of system memory: 64GB
Expansion Slot	2 x PCI Express 3.0 x16 Slots (PCIE2: x16 mode; PCIE4: x4 mode)*Supports NVMe SSD as boot disks2 x PCI Express 3.0 x1 Slots (Flexible PCIe)2 x PCI Slots* PCI cards that need subtractive decode are not supported.Supports AMD Quad CrossFireXTM and CrossFireXTM

Graphics

Intel® HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video with HEVC, AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® HD Graphics 510/530 Pixel Shader 5.0, DirectX 12

Max. shared memory 1792MB

Dual graphics output: Support DVI-D and HDMI ports by independent display controllers

Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz

Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz

Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)

Supports Accelerated Media Codecs: HEVC, VP8, VP9

Supports HDCP with DVI-D and HDMI Ports

Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports

Audio

7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)

Premium Blu-ray Audio support

Supports Surge Protection (ASRock Full Spike Protection) ELNA Audio Caps

LAN

Gigabit LAN 10/100/1000 Mb/s

Giga PHY Intel ^® I219V

Supports Wake-On-LAN

Supports Lightning/ESD Protection (ASRock Full Spike Protection)

Supports Energy Efficient Ethernet 802.3az

Supports PXE

Rear Panel

1 x PS/2 Mouse/Keyboard Port

I/O

1 x DVI-D Port

1 x HDMI Port

6 x USB 3.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))

1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)

HD Audio Jacks: Side Speaker / Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone

Storage

6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0,

RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology

14 and Intel Smart Response Technology), NCQ, AHCI and Hot Plug

2 x SATA Express 10 Gb/s Connectors*

* Support to be announced

* If M2_1 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled.

1 x Ultra M.2 Socket, supports M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)

* Supports ASRock U.2 Kit

Connector

1 x COM Port Header

1 x TPM Header

1 x Power LED and Speaker Header

2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)

3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)

1 x 24 pin ATX Power Connector

1 x 8 pin 12V Power Connector

1 x Front Panel Audio Connector

2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))

1 x USB 3.0 Header (Supports 2 USB 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))

BIOS

128Mb AMI UEFI Legal BIOS with multilingual GUI support

Feature

ACPI 1.1 Compliant wake up events

SMBIOS 2.3.1 Support

CPU, GT_CPU, DRAM, VPPM, PCH 1.0V, VCCIO, VC-

CPLL, VCCSA Voltage Multi-adjustment

Hardware Monitor

CPU/Chassis temperature sensing

CPU/Chassis Fan Tachometer

CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature)

CPU/Chassis Fan multi-speed control

Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, VPPM, PCH 1.0V, VCCIO, VCCSA

os

Microsoft* Windows* 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-bit

* To install Windows® 7 OS, a modified installation disk with xHCI drivers packed into the ISO file is required. Please refer to page 140 for more detailed instructions.

* For the updated Windows® 10 driver, please visit ASRock's website for details: http://www.asrock.com

Certifications

FCC, CE, WHQL

ErP/EuP Ready (ErP/EuP ready power supply is required)

* For detailed product information, please visit our website: http://www.asrock.com

Please realize that there is a certain risk involved with overclocking, including adjusting the setting in the BIOS, applying Untied Overclocking Technology, or using third-party overclocking tools. Overclocking may affect your system's stability, or even cause damage to the components and devices of your system. It should be done at your own risk and expense. We are not responsible for possible damage caused by overclocking.

Chapter 2 Installation

This is an ATX form factor motherboard. Before you install the motherboard, study the configuration of your chassis to ensure that the motherboard fits into it.

Pre-installation Precautions

Take note of the following precautions before you install motherboard components or change any motherboard settings.

Make sure to unplug the power cord before installing or removing the motherboard components. Failure to do so may cause physical injuries and damages to motherboard components.

In order to avoid damage from static electricity to the motherboard's components, NEVER place your motherboard directly on a carpet. Also remember to use a grounded wrist strap or touch a safety grounded object before you handle the components.

Hold components by the edges and do not touch the ICs.

Whenever you uninstall any components, place them on a grounded anti-static pad or in the bag that comes with the components.

When placing screws to secure the motherboard to the chassis, please do not over-tighten the screws! Doing so may damage the motherboard.

2.1 Installing the CPU

1. Before you insert the 1151-Pin CPU into the socket, please check if the PnP cap is on the socket, if the CPU surface is unclean, or if there are any bent pins in the socket. Do not force to insert the CPU into the socket if above situation is found. Otherwise, the CPU will be seriously damaged.
2. Unplug all power cables before installing the CPU.

1

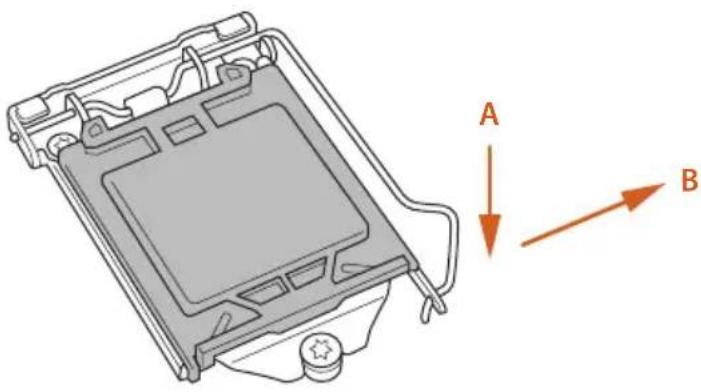

Technical line drawing of a mechanical component with labeled directional arrows (A and B) indicating movement or force directions (no text or symbols beyond labels)

2

Technical line drawing of a mechanical device with an arrow indicating rotation or movement (no text or symbols present)

3

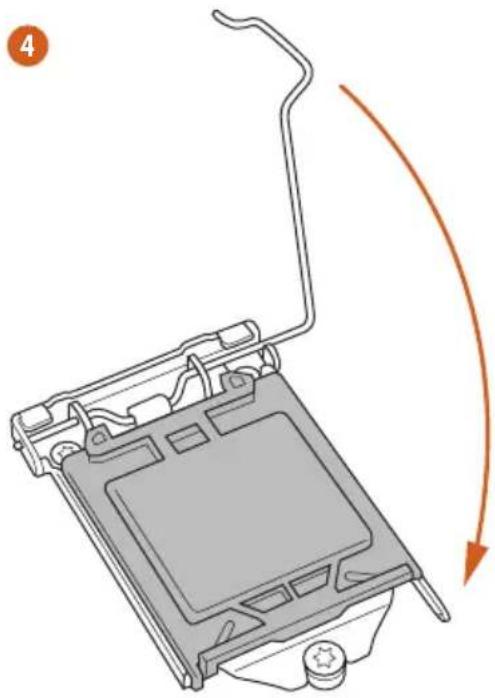

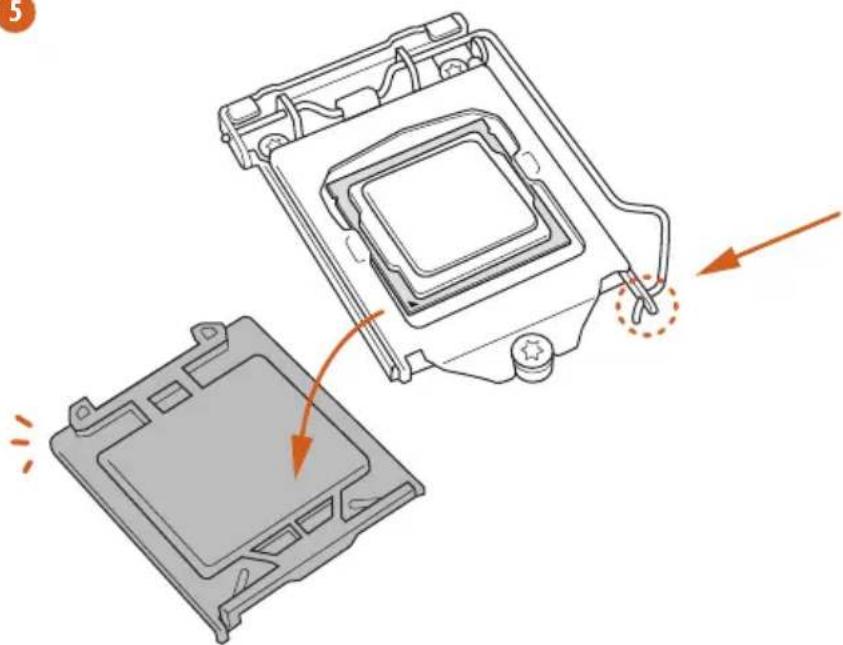

Technical diagram of a computer processor internal structure showing mounting holes and a highlighted section (no text or symbols)

Diagram of a computer monitor with an orange curved arrow indicating motion or rotation (no text or symbols present)

5

Diagram of a computer processor showing internal components and a close-up view of the base (no text or symbols)

Please save and replace the cover if the processor is removed. The cover must be placed if you wish to return the motherboard for after service.

2.2 Installing the CPU Fan and Heatsink

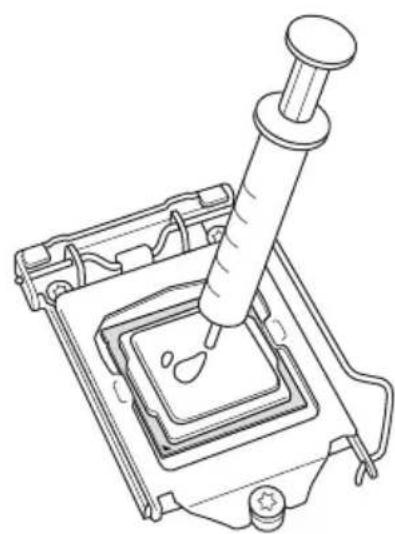

Technical line drawing of a mechanical assembly with a pipette inserted into a square component (no text or symbols)

2.3 Installing Memory Modules (DIMM)

This motherboard provides two 288-pin DDR4 (Double Data Rate 4) and four 240-pin DDR3/DDR3L (Double Data Rate 3) DIMM slots, and supports Dual Channel Memory Technology.

Warning! It is NOT allowed to install a memory module into a DDR4 slot and a DDR3 slot simultaneously; otherwise, this motherboard and DIMM may be damaged.

1. For dual channel configuration, you always need to install identical (the same brand, speed, size and chip-type) DDR4 or DDR3/DDR3L DIMM pairs.
2. It is unable to activate Dual Channel Memory Technology with only one or three memory module installed.
3. It is not allowed to install a DDR or DDR2 memory module into a DDR3 slot, or a DDR, DDR2 or DDR3 memory module into a DDR4 slot; otherwise, this motherboard and DIMM may be damaged.

Dual Channel Memory Configuration

Priority DDR3_A1 DDR3_A2 DDR4_A1 DDR3_B1 DDR3_B2 DDR4_B1

1 Populated Populated
2 Populated Populated
3 Populated Populated Populated	Populated

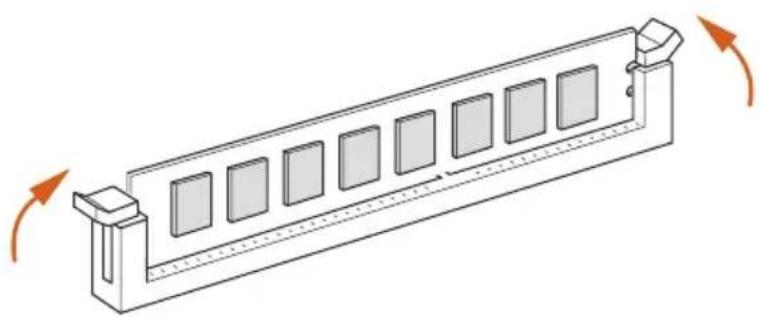

The DIMM only fits in one correct orientation. It will cause permanent damage to the motherboard and the DIMM if you force the DIMM into the slot at incorrect orientation.

1

Technical line drawing of a mechanical support structure with rotational arrows indicating motion (no text or symbols)

2

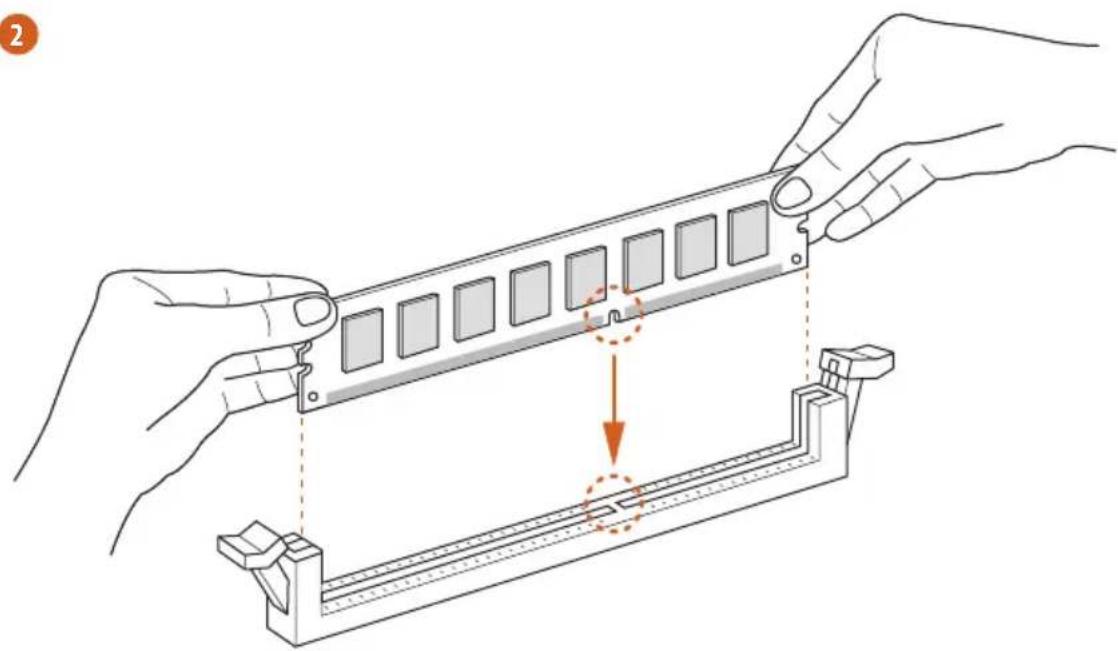

Illustration of hands assembling a mechanical component with a highlighted section (no text or symbols)

3

Isometric line drawing of a rectangular mechanical component with multiple square cutouts and directional arrows indicating rotation (no text or symbols)

2.4 Expansion Slots (PCI and PCI Express Slots)

There are 2 PCI slots and 4 PCI Express slots on the motherboard.

Before installing an expansion card, please make sure that the power supply is switched off or the power cord is unplugged. Please read the documentation of the expansion card and make necessary hardware settings for the card before you start the installation.

PCI slot:

The PCI1 and PCI2 slots are used to install expansion cards that have 32-bit PCI interface.

PCIe slots:

PCIE1 (PCIe 3.0 x1 slot) is used for PCI Express x1 lane width cards.

PCIE2 (PCIe 3.0 x16 slot) is used for PCI Express x16 lane width graphics cards.

PCIE3 (PCIe 3.0 x1 slot) is used for PCI Express x1 lane width cards.

PCIE4 (PCIe 3.0 x16 slot) is used for PCI Express x4 lane width graphics cards.

PCIe Slot Configurations

PCIE2 PCIE4

Single Graphics Card x16 N/A

Two Graphics Cards in CrossFireX ^TM

x16 x4

For a better thermal environment, please connect a chassis fan to the motherboard's chassis fan connector (CHA_FAN1, CHA_FAN2 or CHA_FAN3 when using multiple graphics cards.

2.5 Jumpers Setup

The illustration shows how jumpers are setup. When the jumper cap is placed on the pins, the jumper is "Short". If no jumper cap is placed on the pins, the jumper is "Open". The illustration shows a 3-pin jumper whose pin1 and pin2 are "Short" when a jumper cap is placed on these 2 pins.

Clear CMOS Jumper (CLRMOS1)

(see p.1, No. 20)

Clear CMOSDefault

CLRMOS1 allows you to clear the data in CMOS. To clear and reset the system parameters to default setup, please turn off the computer and unplug the power cord from the power supply. After waiting for 15 seconds, use a jumper cap to short pin2 and pin3 on CLRMOS1 for 5 seconds. However, please do not clear the CMOS right after you update the BIOS. If you need to clear the CMOS when you just finish updating the BIOS, you must boot up the system first, and then shut it down before you do the clear-CMOS action. Please be noted that the password, date, time, and user default profile will be cleared only if the CMOS battery is removed.

2.6 Onboard Headers and Connectors

Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these headers and connectors. Placing jumper caps over the headers and connectors will cause permanent damage to the motherboard.

System Panel Header (9-pin PANEL1)

(see p.1, No.16)

Connect the power switch, reset switch and system status indicator on the chassis to this header according to the pin assignments below. Note the positive and negative pins before connecting the cables.

PWRBTN (Power Switch):

Connect to the power switch on the chassis front panel. You may configure the way to turn off your system using the power switch.

RESET (Reset Switch):

Connect to the reset switch on the chassis front panel. Press the reset switch to restart the computer if the computer freezes and fails to perform a normal restart.

PLED (System Power LED):

Connect to the power status indicator on the chassis front panel. The LED is on when the system is operating. 'The LED keeps blinking when the system is in S1/S3 sleep state. 'The LED is off when the system is in S4 sleep state or powered off (S5).

HDLED (Hard Drive Activity LED):

Connect to the hard drive activity LED on the chassis front panel. The LED is on when the hard drive is reading or writing data.

The front panel design may differ by chassis. A front panel module mainly consists of power switch, reset switch, power LED, hard drive activity LED, speaker and etc. When connecting your chassis front panel module to this header, make sure the wire assignments and the pin assignments are matched correctly.

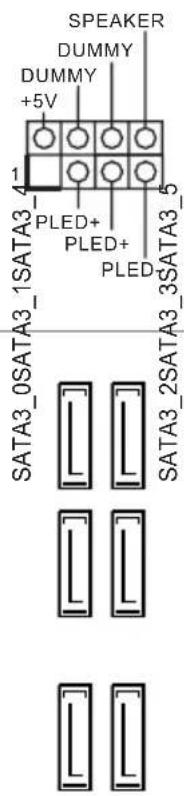

Power LED and Speaker Header (7-pin SPK_PLED1) (see p.1, No. 17)

Please connect the chassis power LED and the chassis speaker to this header.

Serial ATA3 Connectors

(SATA3_0:

see p.1, No. 8)

(SATA3_1:

see p.1, No. 10)

(SATA3_2:

see p.1, No. 9)

(SATA3_3:

see p.1, No. 11)

(SATA3_4:

see p.1, No. 15)

(SATA3_5:

see p.1, No. 14)

These six SATA3 connectors support SATA data cables for internal storage devices with up to 6.0 Gb/s data transfer rate. The SATA3_0, SATA3_1 are shared with the SATA_E_1. The SATA3_2, SATA3_3 are shared with the SATA_E_2.

*If M2_1 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled.

Serial ATA Express

Connectors

(SATA_E_1:

see p.1, No. 12)

(SATA_E_2:

see p.1, No. 13)

Please connect either SATA or PCIe storage devices to these connectors.

USB 2.0 Headers

(9-pin USB_9_10)

(see p.1, No. 19)

(9-pin USB_11_12)

(see p.1, No. 18)

There are two headers on this motherboard. Each USB 2.0 header can support two ports.

USB 3.0 Headers

(19-pin USB_5_6)

(see p.1, No. 6)

Besides six USB 3.0 ports on the I/O panel, there is one header on this motherboard. This USB 3.0 header can support two ports.

Front Panel Audio Header (9-pin HD_AUDIO1)

(see p.1, No. 24)

This header is for connecting audio devices to the front audio panel.

1. High Definition Audio supports Jack Sensing, but the panel wire on the chassis must support HDA to function correctly. Please follow the instructions in our manual and chassis manual to install your system.
2. If you use an AC'97 audio panel, please install it to the front panel audio header by the steps below:

A. Connect Mic_IN (MIC) to MIC2_L.
B. Connect Audio_R (RIN) to OUT2_R and Audio_L (LIN) to OUT2_L.
C. Connect Ground (GND) to Ground (GND).
D. MIC_RET and OUT_RET are for the HD audio panel only. You don't need to connect them for the AC'97 audio panel.
E. To activate the front mic, go to the "FrontMic" Tab in the Realtek Control panel and adjust "Recording Volume".

Chassis Fan Connectors

(4-pin CHA_FAN1)

(see p.1, No. 21)

Please connect fan cables to the fan connectors and match the black wire to the ground pin.

(4-pin CHA_FAN2)

(see p.1, No. 7)

(4-pin CHA_FAN3)

(see p.1, No. 4)

CPU Fan Connectors

(4-pin CPU_FAN1)

(see p.1, No. 25)

(4-pin CPU_FAN2)

(see p.1, No. 26)

This motherboard provides a 4-Pin CPU fan

(Quiet Fan) connector.

If you plan to connect a

3-Pin CPU fan, please

connect it to Pin 1-3.

ATX Power Connector

(24-pin ATXPWR1)

(see p.1, No. 5)

This motherboard

provides a 24-pin ATX

power connector. To use a

20-pin ATX power supply,

please plug it along Pin 1

and Pin 13.

ATX 12V Power

Connector

(8-pin ATX12V1)

(see p.1, No. 1)

This motherboard pro-

vides an 8-pin ATX 12V

power connector. To use a

4-pin ATX power supply,

please plug it along Pin 1

and Pin 5.

Serial Port Header

(9-pin COM1)

(see p.1, No. 23)

This COM1 header

supports a serial port

module.

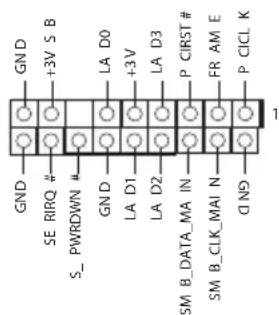

TPM Header

(17-pin TPMS1)

(see p.1, No. 22)

This connector supports Trusted

Platform Module (TPM) syste

which can securely store keys,

digital certificates, passwords,

and data. A TPM system also

helps enhance network security,

protects digital identities, and

ensures platform integrity.

2.7 M.2\_SSD (NGFF) Module Installation Guide

The M.2, also known as the Next Generation Form Factor (NGFF), is a small size and versatile card edge connector that aims to replace mPCIe and mSATA. The Ultra M.2 Sockets support M.2 PCI Express module up to Gen3 x4 (32 Gb/s).

* If M2_1 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled.

Installing the M.2\_SSD (NGFF) Module

Pure technical line drawing of a rectangular component with internal slots and a small inset view (no text or symbols)

Step 1

Prepare a M.2_SSD (NGFF) module and the screw.

Step 2

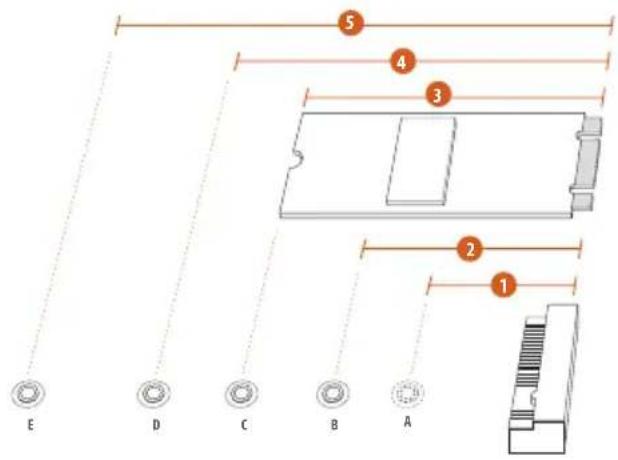

Depending on the PCB type and length of your M.2_SSD (NGFF) module, find the corresponding nut location to be used.

No.12345

Nut Location A B C D E
PCB Length	3cm	4.2cm	6cm	8cm	11cm
Module Type	Type2230	Type 2242	Type2260	Type 2280	Type 22110

Step 3

Move the standoff based on the module type and length. The standoff is placed at the nut location D by default. Skip Step 3 and 4 and go straight to Step 5 if you are going to use the default nut. Otherwise, release the standoff by hand.

Step 4

Peel off the yellow protective film on the nut to be used. Hand tighten the standoff into the desired nut location on the motherboard.

Step 5

Align and gently insert the M.2 (NGFF) SSD module into the M.2 slot. Please be aware that the M.2 (NGFF) SSD module only fits in one orientation.

Technical diagram of a mechanical component with labeled parts and an arrow indicating direction (no readable text or symbols)

1 Einleitung

DRAM, VPPM, PCH 1,0 V, VCCIO, VCCSA

Betriebssystem

7,64 Bit

CPU Vcore, DRAM, VPPM, PCH 1,0V, VCCIO, VCCSA

Cavalier Clear CMOS (CLRMOS1)

(voir p.1, No. 20)

Par défaut

Fonction Clear CMOS

RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 14 e Intel Smart Response Technology), NCQ, AHCI e Hot Plug

1866(OC)/1600/1333/1066

1866(OC)/1600/1333/1066 Non-ECC Unbuffered

Vcore, DRAM, VPPM, PCH 1,0 B, VCCIO, VCCSA

oc

Apagar o Jumper CMOS (CLRMOS1)

(ver p.1, N.° 20)

Apagar CMOSPadrão

5, RAID 10, Intel Rapid Storage Technology 14 ve Intel Smart Response Technology), NCQ, AHCI ve Tak Çıkar destekler

M(Trusted Platform Module)

시스템을 지원합니다 .TPM

시스템은 네트워크 보안을

강화하고,디지털 신원을 보

호하며 플랫폼 무결성을 유

지합니다.

1 はじめに

Simple graphic with a magnifying glass icon and a horizontal line, no text or symbols present.

1.1 パッケージの内容

1.2 仕様

プラット

フォーム

CPU

TM

チップ

Intel ^® H170

セット

メモリ

拡張ス

ロット

AMD Quad CrossFireX ^TM

'TM

グラフィッ

クス

TM

TM

510/530

Pixel Shader 5.0, DirectX 12

(3840x2160) @ 30Hz

VP9

オーディオ

LAN

リアパネル

I/O

ストレージ

コネクタ

BIOS 機能

ハード

ウェアモ

二ター

os

Microsoft ^® Windows ^® 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-bit

140

認証

1.3 ジャンパー設定

Short

Open

(CLRMOS1)

1_2

2_3

Enabling USB Ports for Windows® 7 Installation

Intel® Braswell and Skylake has removed their support for the Enhanced Host Controller Interface (EHCI – USB2.0) and only kept the eXtensible Host Controller Interface (XHCI – USB3.0). Due to that fact that XHCI is not included in the Windows 7 inbox drivers, users may find it difficult to install Windows 7 operating system because the USB ports on their motherboard won’t work. In order for the USB ports to function properly, please create a Windows® 7 installation disk with the Intel® USB 3.0 eXtensible Host Controller (xHCI) drivers packed into the ISO file.

Requirements

A Windows ^® 7 installation disk or USB drive

USB 3.0 drivers (included in the ASRock Support CD or website)

A Windows® PC

Win7 USB Patcher (included in the ASRock Support CD or website)

Scenarios

You have an ODD and PS/2 ports:

If there is an optical disc drive, PS/2 ports and PS/2 Keyboard or mouse on your computer, you can skip the instructions below and go ahead to install Windows ^® 7 OS.

You only have an ODD (For Intel Skylake platforms only):

If there is an optical disc drive but no PS/2 ports on your computer, please enable the "PS/2 Simulator" option in UEFI SETUP UTILITY > Advanced > USB Configuration, which allows the USB port to function as a PS/2 port, and then you can install the Windows® 7 OS. Please set PS/S Simulator back to disabled after the installation.

You've got nothing:

If you do not have an optical disc drive, please find another computer and follow the instructions below to create a new ISO file with the “Win7 USB Patcher”. Then use the new patched Windows ^® 7 installation USB drive to install Windows ^® 7 OS.

Instructions

Step 1

Insert the Windows ^® 7 installation disk or USB drive to your system.

Step 2

Extract the tool (Win7 USB Patcher) and launch it.

Step 3

Select the "Win7 Folder" from Step1 by clicking the red circle as shown as the picture below.

Step 4

Select the "USB Driver Folder" by clicking the red circle as shown as the picture below.

If you are using ASRock's Support CD for the USB 3.0 driver, please select your CD-ROM.

Step 5

Select where to save the ISO file by pressing the red circle as shown as the picture below.

Step 6

If you want to burn the patched image to a CD, please check “Burn Image” and select “Target Device to Burn”. If not, the patched ISO image will be exported to the destination selected in Step5. Then Press “Start” to proceed.

Step 7

Now you are able to install Windows ^® 7 on Braswell or Skylake with the new burned CD. Or please use the patched ISO image to make an OS USB drive to install the OS.

Contact Information

If you need to contact ASRock or want to know more about ASRock, you're welcome to visit ASRock's website at http://www.asrock.com; or you may contact your dealer for further information. For technical questions, please submit a support request form at http://www.asrock.com/support/tsd.asp

ASRock Incorporation

2F., No.37, Sec. 2, Jhongyang S. Rd., Beitou District,

Taipei City 112, Taiwan (R.O.C.)

ASRock EUROPE B.V.

Bijsterhuizen 3151

6604 LV Wijchen

The Netherlands

Phone: [phone]

Fax: [phone]

ASRock America, Inc.

13848 Magnolia Ave, Chino, CA91710

U.S.A.

Phone: [phone]

Fax: [phone]
