USER MANUAL E6EC1-6ST ELECTROLUX

• available in certain models onlyA

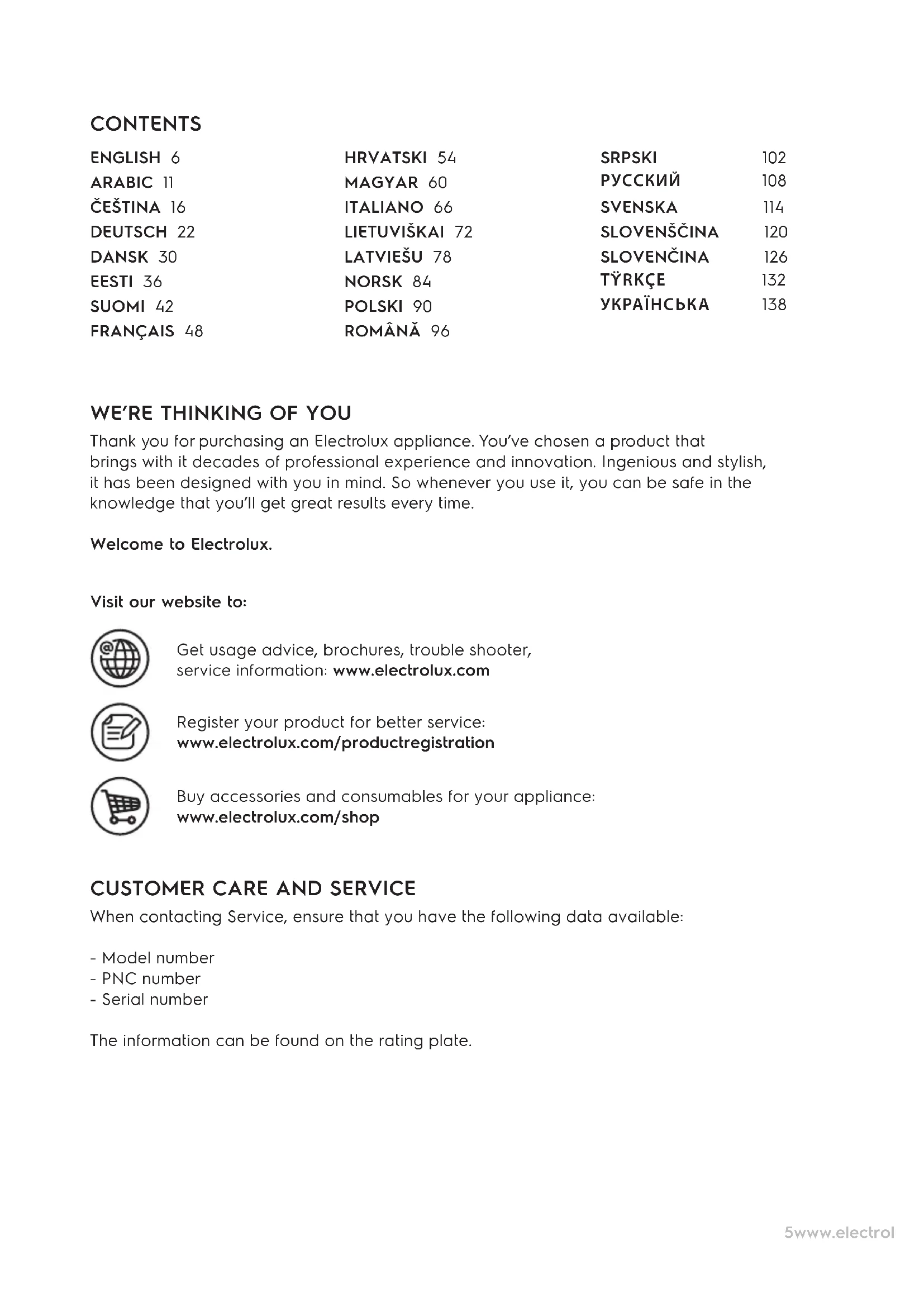

WE’RE THINKING OF YOU

Thank you for purchasing an Electrolux appliance. You’ve chosen a product that brings with it decades of professional experience and innovation. Ingenious and stylish, it has been designed with you in mind. So whenever you use it, you can be safe in the knowledge that you’ll get great results every time. Welcome to Electrolux.

CUSTOMER CARE AND SERVICE

When contacting Service, ensure that you have the following data available: - Model number - PNC number - Serial number The information can be found on the rating plate.6 www.electrolux.com ENGLISH Thank you for choosing an Electrolux product. In order to ensure the best results, always use original Electrolux accessories and spare parts. They have been designed especially for your product. This product is designed with the environment in mind. All plastic parts are marked for recycling purposes. COMPONENTS (picture page 2) A. Power indicator button B. One-cup indicator/button C. Two-cup indicator/button D. Steam indicator/button E. Brewing head

I. Tamper/dispenser measure spoon

J. Cleaning pin* K. Water tank lid L. Water tank handle M. Water tank N. Cup warmer O. Steam knob P. Hot water/steam nozzle (milk frother) Q. Drip grid R. Drip tray

• available in certain models only SAFETY ADVICE time.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the appliance.

• Cleaning and user maintenance shall not be made by children unless they are supervised.

• Keep the appliance and its cord out of reach of children less than 8 years old.

• The appliance may only be connected to a power supply whose voltage and frequency

• Never use or pick up the appliance if – the supply cord is damaged, – the housing is damaged.

• The appliance must only be connected to an earthed socket. If necessary, an extension cable suitable for 10 A can be used.

• If the appliance or the supply cord is damaged, it must be replaced by the

use, before cleaning and maintenance.

• The appliance and accessories become hot during operation. Use only designated handles and knobs. Allow to cool down before cleaning or storage.

• The mains cable must not come into contact with any hot parts of the appliance.

pressurized. The risk of burns exists.

• Do not remove the water tank during the brewing process.

DANGER! There is risk of scalding.

• Warning: Avoid steam burn.

• When the steam function is used there can be some hot water dripping from the brewing head. DANGER! The water is hot, there is a risk for scalding.

• When opening the steam knob there is a shot of hot water coming out. Be careful and open the steam valve slowly. DANGER! The water is hot, there is a risk for scalding.

• Do not immerse the appliance in water or any other liquid.

• Fill the water tank only with cold water, never with milk or other liquids.

• Always use fresh water to brew espresso to promise the best taste.

• Do not use the appliance without the drip tray or drip grid, unless a higher cup/mug is in use.

• Do not use or place the appliance on a hot surface or near source of heat.

• Warning: Avoid spillage on the connector.

• This appliance is intended for domestic use only. The manufacturer cannot accept any liability for possible damage caused by improper or incorrect use.

• This appliance is not intended to be operated by means of an external timer or

• Power consumption in o mode: 0.3W

• Power consumption in standby: 0.5W

Maximum time needed for the equipment to reach automatically the applicable low power mode: 20Min separate remote-control system. This appliance is intended to be used in household and similar applications such as:

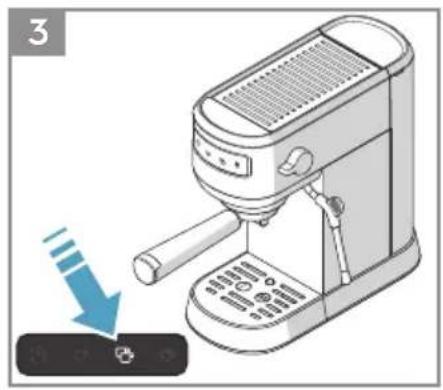

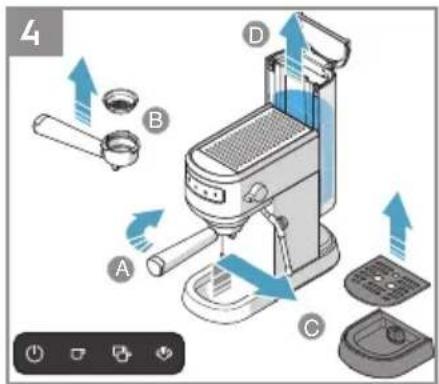

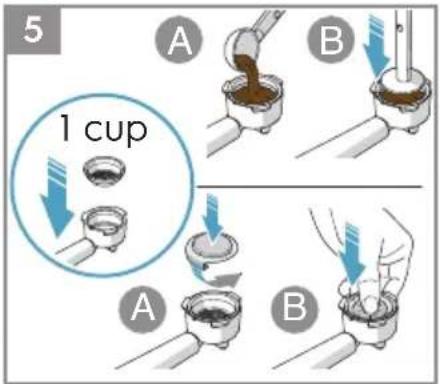

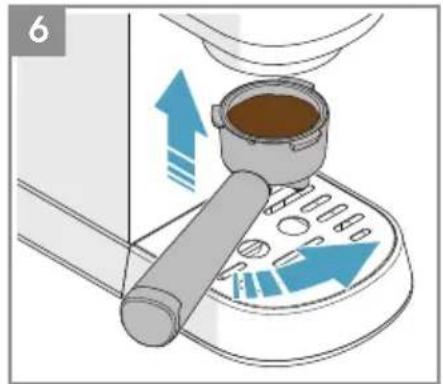

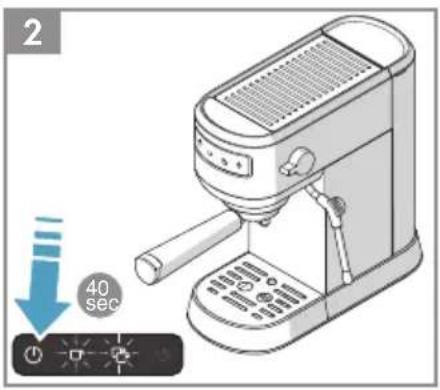

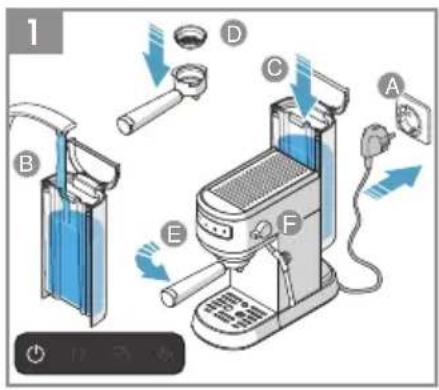

- farm houses; - by clients in hotels, motels and other residential type environments; - bed and breakfast type environments. GETTING STARTED (picture page 3 and 4) 1 button horizontal position (“OFF” position).2 Start the machine with the button, whose light turns fully on and and buttons start blinking.3 When buttons stop blinking, pre-heating is done. Press button to start brewing process. NOTE: There from inside. The noise will stop after about 20 seconds. Now the machine is ready to use. operation.8 www.electrolux.com

E.S.E (Easy Serving Espresso) Pods can be used to simplify

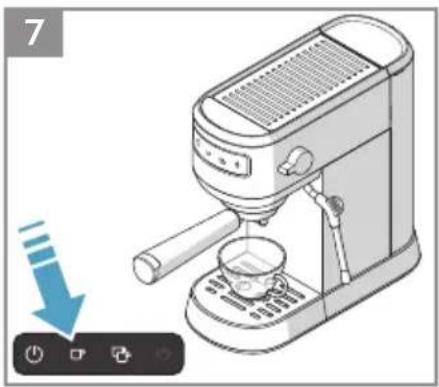

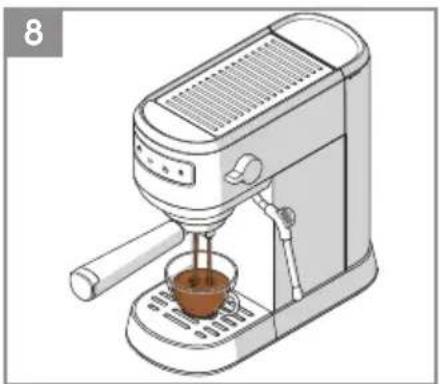

7 Put a warm cup on the drip tray. In “pre-heating done” mode when and and buttons are steadily and fully light on, press button to start brewing process.

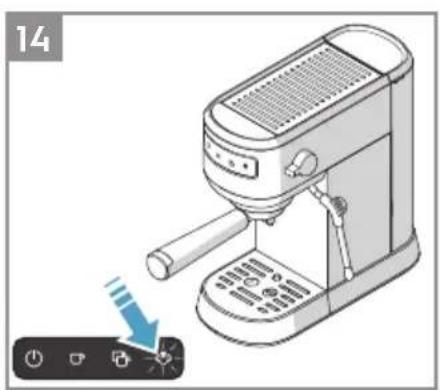

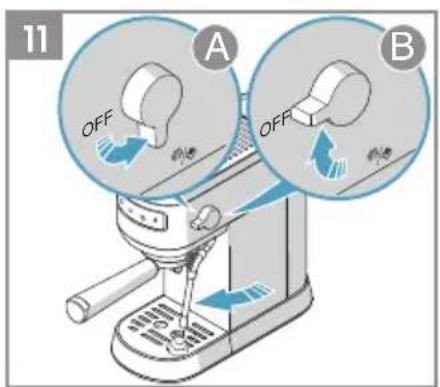

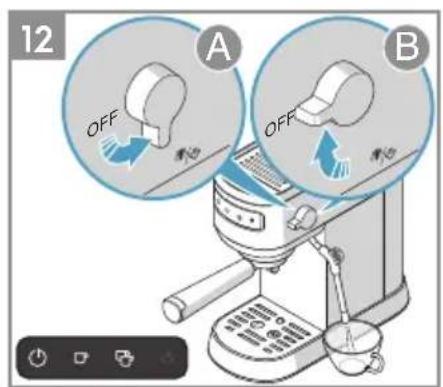

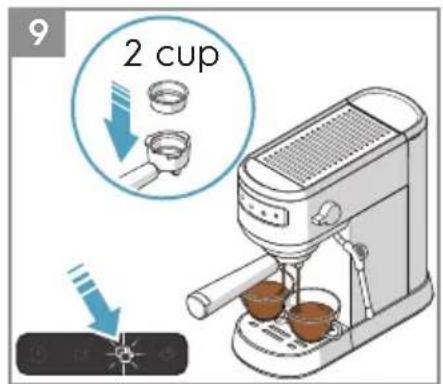

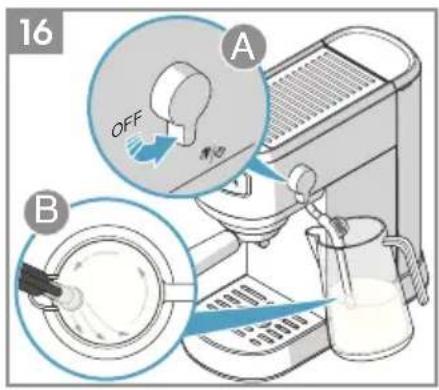

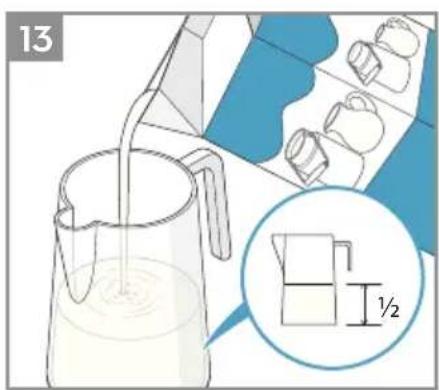

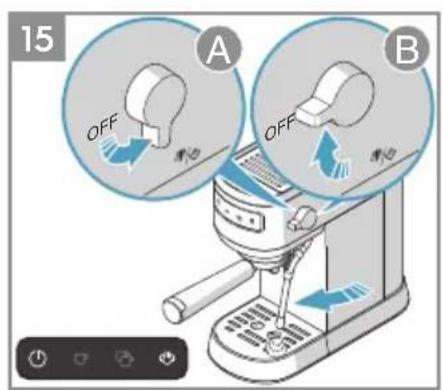

button. Brew 2 cups of espresso at the same time. 10 NOTE: If both and buttons start blinking quickly, you may simply press or button to cancel brewing, or (step 11) 11 (step 10) you may restart brewing after cooling down the boiler. Turning the knob to position and release hot water from steam nozzle. The pump stops working automatically when it’s done Make hot water 12 In “pre-heating done” mode when and and buttons are steadily and fully light on, turn the knob to amount is complete. Froth milk and make cappuccino/latte 13 Fill a jug with 100ml (for cappuccino) or 200ml (for latte) milk. NOTE: make sure jug diameter is no less than 70±5mm, and jug capacity can hold twice the milk volume after it’s done frothing. 14 In “pre-heating done” mode when and and buttons are steadily and fully light on, press button, it starts blinking. NOTE: Use full milk at refrigerator temperature (NOT HOT!). 15 When the button stops blinking, steam / milk frothing function is ready. Before frothing milk, push steam nozzle in the direction of drip tray, turn the knob to position and release steam until there’s 16 Immerse steam nozzle in milk about 2cm under the milk surface, turn on the knob. Make sure the steam nozzle is placed in a position that makes the milk turning in one direction inside the jug from top to bottom. 17 NOTE: Clean steam nozzle with wet sponge immediately after steam stops generating, but care not to hurt! The pump automatically stops working after milk frothing for 3 minutes. 18 Pour the frothed milk into the espresso prepared, now the cappuccino/latte is ready. Sweeten to taste and if desired, sprinkle the froth with a little cocoa powder. NOTE: After making steam, you may imme- diately make espresso again by pressing or button. If both and buttons start blinking quickly, cool down the boiler and resume brewing (see step 11). DIY / volume 19 In “pre-heating done” mode when and and buttons are steadily and fully light on, long press / button for 3 seconds to start resetting mode. Press / button to start brewing and press again to stop when the desired volume is complete. Now the volume is saved for next operation and from then on. 20 Restore factory volume setting simply by long pressing and buttons for 3 seconds again.

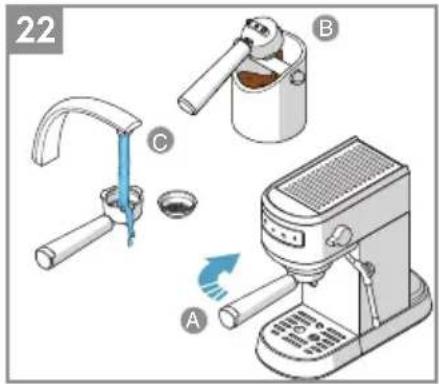

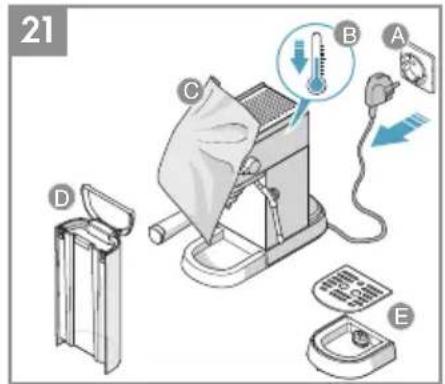

ing. Wipe all outer surfaces with a damp cloth. Clean water tank, drip tray and drip grid regularly. Never use caustic or abrasive cleaners, and never immerse the machine in liquid!9www.electrolux.com

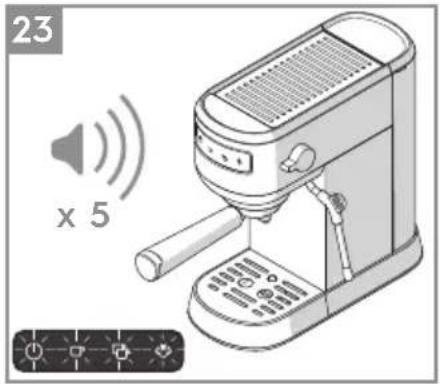

DECALCIFYING 23 Descaling is recommended when all indicators blink 5 times with 5 beeps the moment machine is turned on. Descaling warning will repeat 2 more times each time when you turn on the appliance if you do not perform descaling or do not cancel by simultaneously pressing and and for 3 seconds.

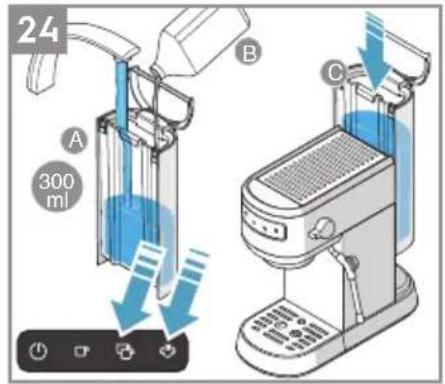

vinegar 1:1). Use only an environmentally friendly descaling agent and always follow the manufacturer’s instructions. In “pre-heating done” mode when and and buttons are steadily and fully light on, simultaneously press and for 3 seconds to start descaling process, during which and buttons blinking slowly one after another. When descaling completes, the machine will return to stand- by mode. Perform step 1-4 twice before using the machine. Enjoy your new Electrolux product! TROUBLESHOOTING

PROBLEM POSSIBLE CAUSE SOLUTION

maker. There is too much water in the drip tray. Please clean the drip tray. Please contact with the authorized service facility for repairing. edge when locked into the brewing head. Acid (vinegar) taste exists in espresso Didn’t perform descaling correctly. Clean up machine according to step 1-4 for “Start the machine turns bad. in a cool, dry place. After powder, reseal it tightly and store it in a refrigerator to maintain its freshness. anymore or does not respond at all. The power outlet is not plugged well. Plug the power cord into an earthed socket correctly. If the appliance still does not work, please contact with the authorized service facility for repairing. The steam / milk frothing does not work properly. The white indicator is not illuminated. Only after the white indicator is illuminated, the steam station can be used to perform milk frothing. The container is too big or the shape Use high and narrow cup or professional milk frothing jug. You have used skimmed milk Use whole milk or half- skimmed milk. Steam indicator blinking quickly. Make steam for 3 minutes and the steam knob is not reset. Reset steam knob to “OFF” position.10 www.electrolux.com

PROBLEM POSSIBLE CAUSE SOLUTION

One-cup indicator and two-cup indicator blinking quickly. Make hot water for 40ml and then the steam knob is not reset. Reset steam knob to “OFF” position. The steam knob is not reset after cooling down. Boiler temperature is too high. Cool it down by perform Step 11. One-cup indicator, two-cup indicator and steam indicator blinking quickly. The steam knob is not reset, but the machine is turned on. Reset steam knob to “OFF” position. ALL indicators blinking at the same time for 5 times. Need descaling. Perform decalcifying. Filter holder is too tight to operate. powder. Too much powder. powder. too tight. with less force. Filter cup blocked. cleaning pin. ENVIRONMENTAL CONCERNS Recycle materials with the symbol . Put the packaging in relevant containers to recycle it. Help protect the environment and human health by recycling waste of electrical and electronic appliances. Do not dispose appliances marked with the symbol with the household waste. Return the product to your local recycling facility or contact your municipal oce. Where should you take your old equipment? Anywhere that sells new equipment or hand it in to ocial SENS collection points or ocial SENS recycling rms. The list of ocial SENS collection points can be found at www.erecycling.chseconds For Switzerland:11www.electrolux.com
